Mazdaspeed meets EFR, ARTech, MS2E - Page 8 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Build Threads Building a motor? Post the progress here.

Reply



LinkBack Thread Tools Search this Thread
Old 03-15-2014, 06:39 PM   #141
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Installed some goodness over the past few days.

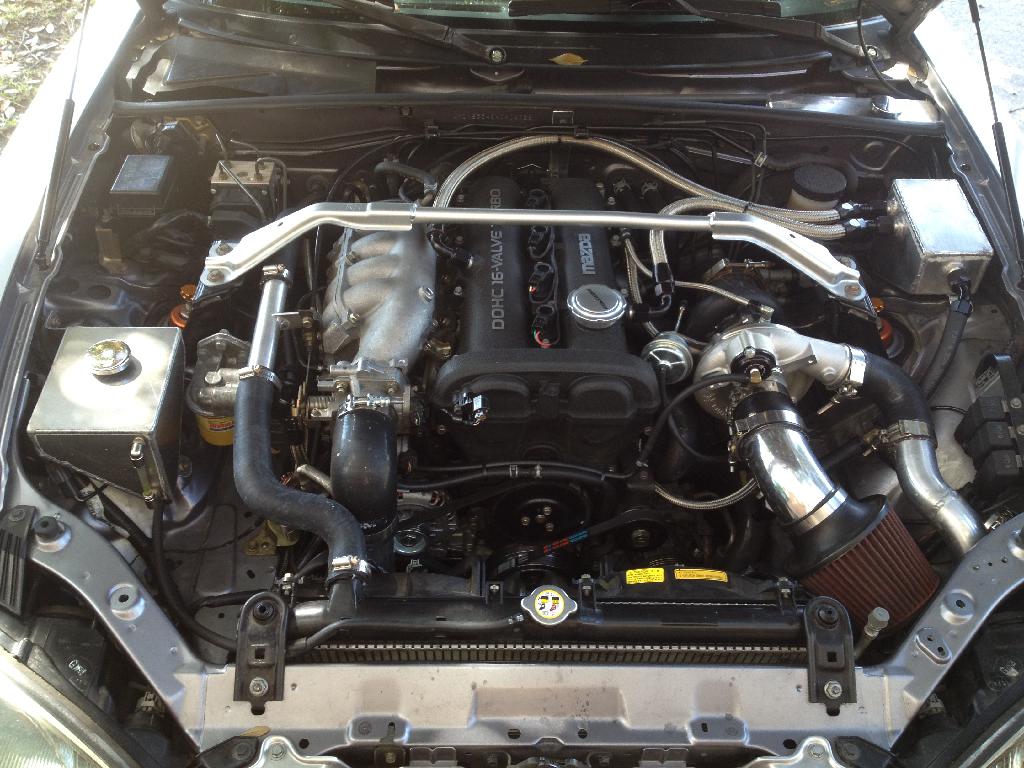

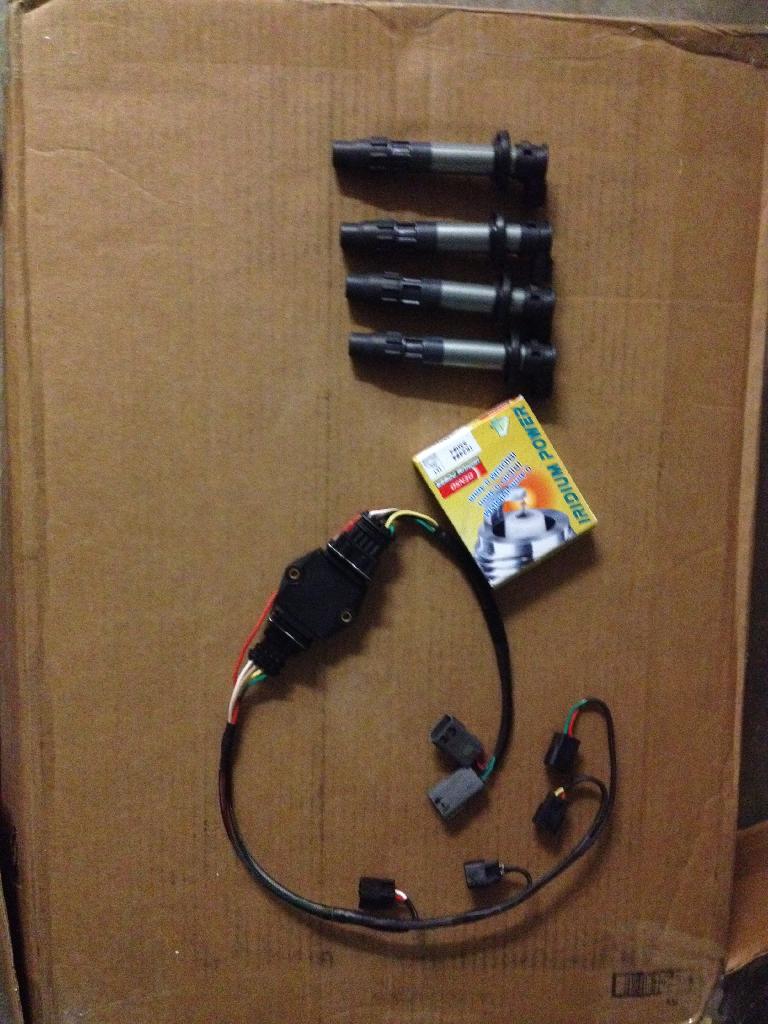

Fab9 COP kit

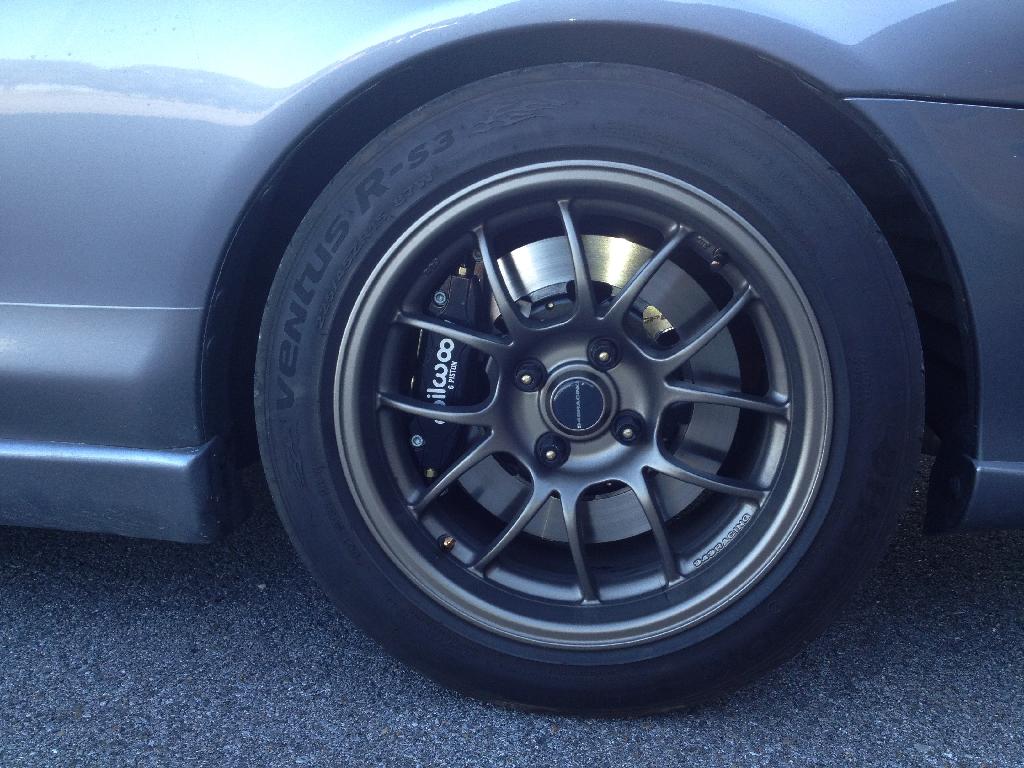

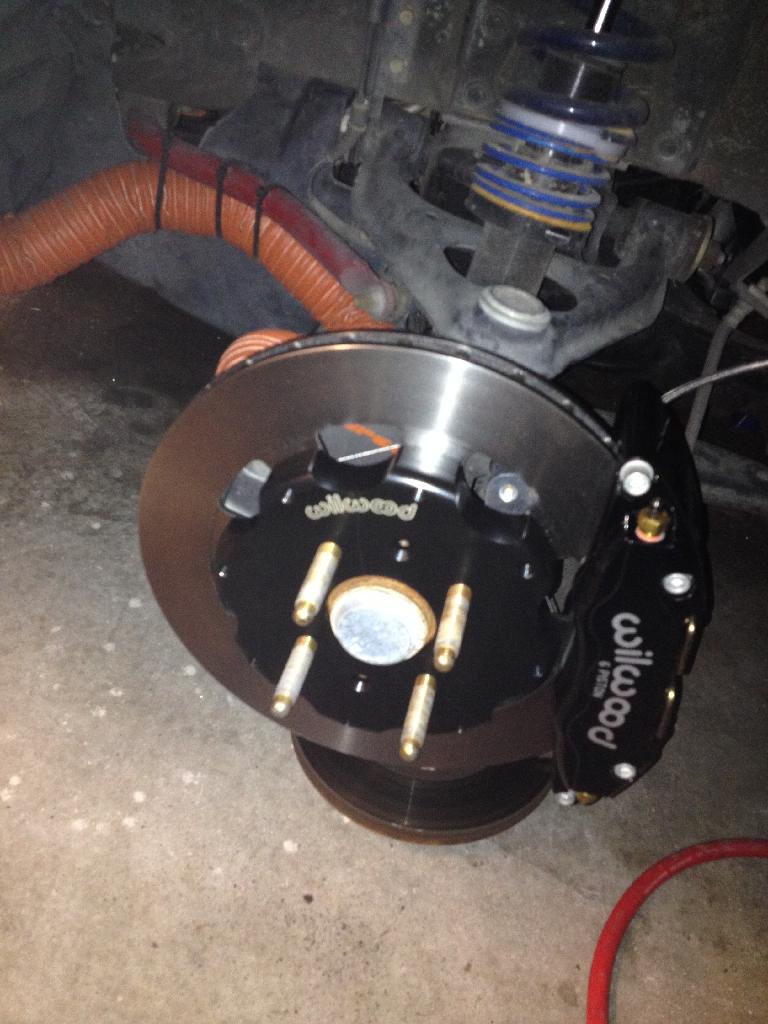

Trackspeed 11.75" Dynapro6 BBK w/ AX6 pads

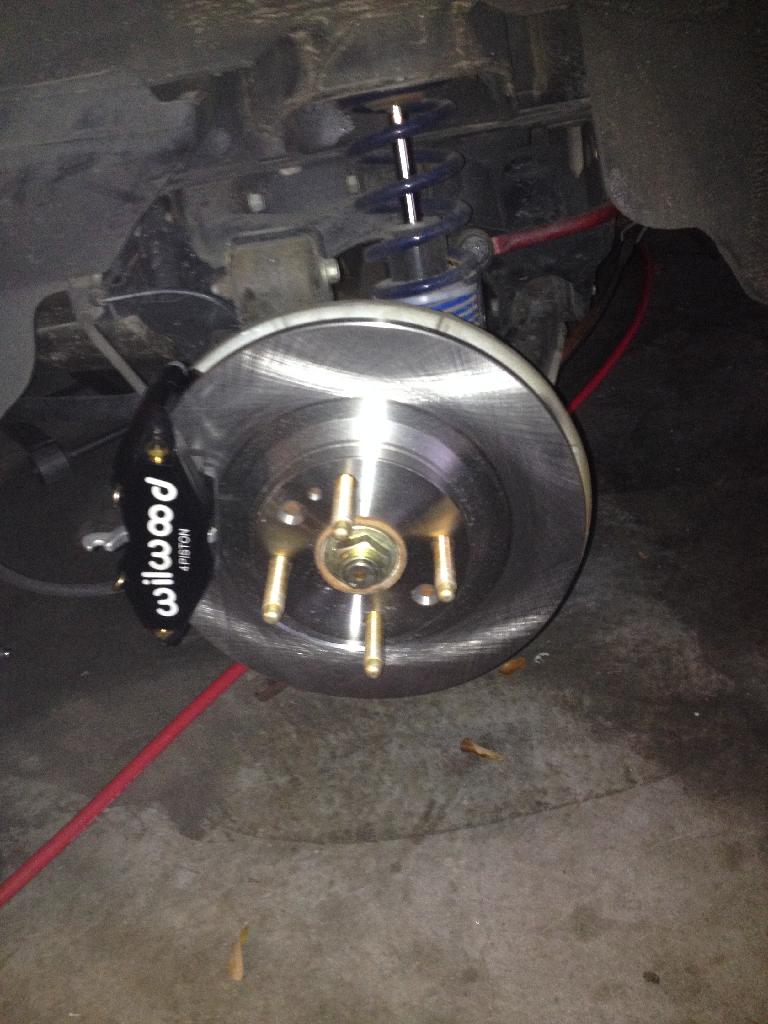

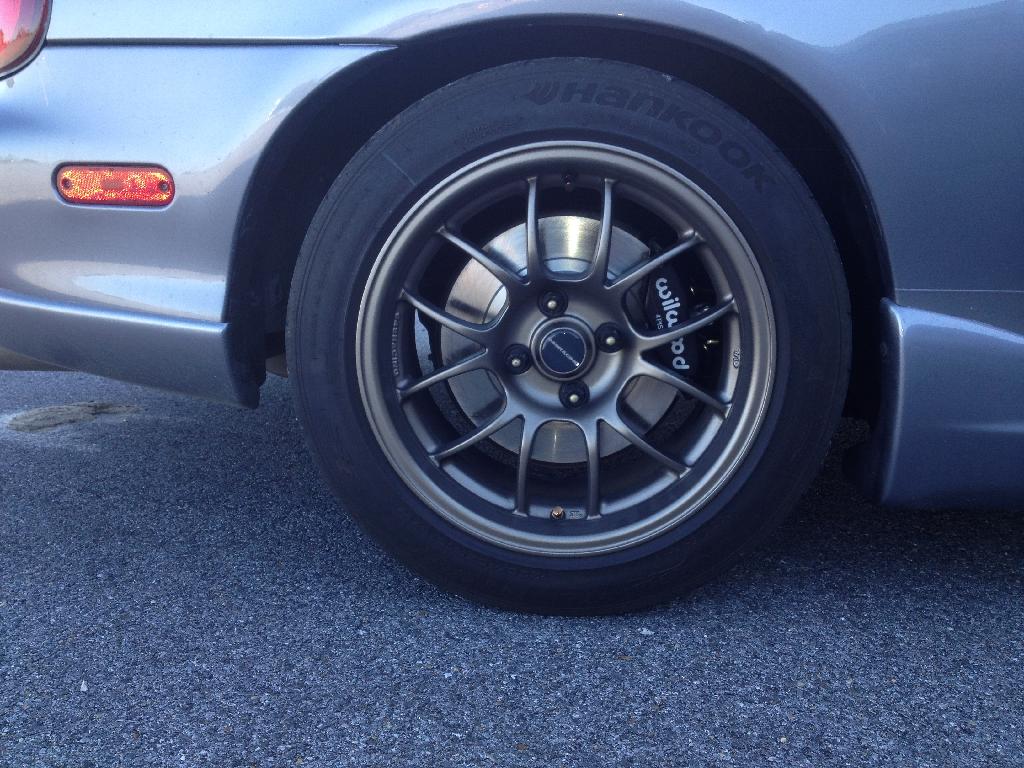

FM 11" Powerlite "street" rear BBK w/ AX6 pads
FM R-speed hood damper kit

Pics:






Attached Thumbnails
Mazdaspeed meets EFR, ARTech, MS2E-8a22452e-9c5f-4242-b84f-25bd805b6458.jpg   Mazdaspeed meets EFR, ARTech, MS2E-61006359-ecb9-4f8b-b87a-4e01723c2e16.jpg   Mazdaspeed meets EFR, ARTech, MS2E-2bedfb44-33e5-4ae4-8a9b-4adf06963312.jpg   Mazdaspeed meets EFR, ARTech, MS2E-754f7395-550f-4499-9fc6-9f32c733ffb9.jpg   Mazdaspeed meets EFR, ARTech, MS2E-85388333-7955-4774-b2a0-b405b05db643.jpg

Mazdaspeed meets EFR, ARTech, MS2E-450f63b2-e00e-4353-9e62-6e6a94a0852e.jpg   Mazdaspeed meets EFR, ARTech, MS2E-cd0d19e8-74ea-4585-9331-4088e98b8fc9.jpg
FrankB is offline   Reply With Quote
Old 03-15-2014, 06:51 PM   #142
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

So after installing my BBK's I am experiencing some steering wheel shutter during moderate braking in a straight line. If I'm braking and steering in either direction slightly it doesn't shutter. I am wondering if the beefed up brakes exposing another weak area in my car.. Maybe tie rods are starting to get some play in them, I'm not sure. I'll have to check when I get a chance.
FrankB is offline   Reply With Quote
Old 03-15-2014, 07:33 PM   #143
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

bed the pads in properly? did you need an adjustable bias valve for the rears?
psyber_0ptix is offline   Reply With Quote
Old 03-15-2014, 07:48 PM   #144
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

I have tried to bed in the pads a few times now but on the street though and then parking the car few a few hours to let them cool.

No I didn't use a proportioning valve, I still have the factory ABS I remember reading that ABS cars shouldn't use one.
FrankB is offline   Reply With Quote
Old 03-15-2014, 11:51 PM   #145
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

So how are the COPs?
Impuls is offline   Reply With Quote
Old 04-02-2014, 06:08 PM   #146
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by Impuls View Post
So how are the COPs?
+1. Also, where did you mount the external ignitor box thing?
EO2K is offline   Reply With Quote
Old 04-05-2014, 02:02 PM   #147
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

The COP's are great and I made a bracket to mout it on the firewall right behind the valve cover next to the VIN. If you look close enough at the engine bay picture you can just barely see it.
FrankB is offline   Reply With Quote
Old 04-05-2014, 04:01 PM   #148
Senior Member
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,404
Total Cats: 263
Default

Frank, you also might want to check the steering rack to see if the rack tensioner is putting enough pre-load. I had some play in my other Miata and thought it was a tie-rod, but found that the tensioner needed to be adjusted. The tensioner is that bolt on the rack with the big lock nut.
99mx5 is offline   Reply With Quote
Old 04-05-2014, 05:59 PM   #149
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by FrankB View Post
The COP's are great and I made a bracket to mout it on the firewall right behind the valve cover next to the VIN. If you look close enough at the engine bay picture you can just barely see it.
inb4 ALLOFIT test on Fab9 COPs.
Impuls is offline   Reply With Quote
Old 04-05-2014, 07:27 PM   #150
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by 99mx5 View Post
Frank, you also might want to check the steering rack to see if the rack tensioner is putting enough pre-load. I had some play in my other Miata and thought it was a tie-rod, but found that the tensioner needed to be adjusted. The tensioner is that bolt on the rack with the big lock nut.
Thanks I'll check that out. I was talking with Andrew at Trackspeed and he thinks that another possibility is uneven pad material build up on the rotors due to improper pad bedding which could be mimicking warped rotors. I will also be resurfacing the rotors and trying again.
FrankB is offline   Reply With Quote
Old 04-15-2014, 02:06 AM   #151
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Had my first ever HPDE1 event this past weekend at NOLA Motorsports Park.
I was running 11psi and unfortunately still running the factory radiator. I was seeing engine temps of 230 in some spots so I had to strt backing off the throttle and run one or two gears higher than normal to get the RPM's and temps down. This was my fastest lap of the day. I would say it was my best but Imade a few mistakes and in some of my other laps I feel that my driving was better but my lap time suffered due to my cooling issues. I'll try to get more videos posted later. I'm doing everything through my iphone. Feel free to critique my driving, that's really what the video is for after all.
FrankB is offline   Reply With Quote
Old 04-15-2014, 08:14 AM   #152
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

So to add a little more information about my setup for this past weekends event. I was running Carbotech 1521 brake pads. My tire pressure was 36psi hot( checked after each session and brought back down to 36psi.) I was also able to sit in a NB w/ Sparco Sprint V's and have decided I will be buying some for myself. I will also be getting either a TSE radiator or a FM crossflow... Haven't decided.

Here are a few more laps from Sunday.




Last edited by FrankB; 04-15-2014 at 11:38 AM.
FrankB is offline   Reply With Quote
Old 04-15-2014, 12:23 PM   #153
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

I love the overlay.
Impuls is offline   Reply With Quote
Old 04-15-2014, 01:08 PM   #154
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by Impuls View Post
I love the overlay.
Thanks, my driving instructor talked me into downloading the "Harry's Lap Timer" App Saterday evening and and after using it Sunday, I wish I had downloaded it sooner.

After my third session on Saterday my instructor took me out as a passenger in his GT3 Porche during a HPDE3 session so I could get a little better feel of just how much I could puch the car. He was consistently running 1:57's and 1:58's owith some high perfermance pads and and street tires.(I can't remember the brand's)

After the ride-a-long I really started to step it up and push the car harder. In my forth session on Saterday I recieved point by's from every car in front of me. It was definately a big improvement from my first session where I was giving point by's to the same cars behind me.

I'm definately hooked and can't wait to get more seat time after I make some improvements to the cooling system and get a spare set of brake rotors for my track pads.
FrankB is offline   Reply With Quote
Old 04-15-2014, 01:36 PM   #155
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by FrankB View Post
Thanks, my driving instructor talked me into downloading the "Harry's Lap Timer" App Saterday evening and and after using it Sunday, I wish I had downloaded it sooner.


I'm definately hooked and can't wait to get more seat time after I make some improvements to the cooling system and get a spare set of brake rotors for my track pads.
I'll have to download that. Not like I frequently track though.
I'd definitely like to get some real seat time in but with it the feel of the car going +70mph, track videos always seem so boring.

Yeah, track pads eat the **** out of rotors..
Don't try daily driving without religiously washing your wheels.
And after that month of running them my rotors are gone.

Did you use the Pledge trick in the wheels?
Impuls is offline   Reply With Quote
Old 04-15-2014, 02:10 PM   #156
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Get your wheels opti-coated for +/- $100, brake dust will simply spray off with just a tiny amount of soap.

It is a permanent sealant/wax and you never have to wax them again. I do it to all my wheels. Went almost the entire winter without wiping my winter set with a towel and they are as shiny as ever.
Jeffbucc is offline   Reply With Quote
Old 04-15-2014, 02:19 PM   #157
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by Impuls View Post
I'll have to download that. Not like I frequently track though.
I'd definitely like to get some real seat time in but with it the feel of the car going +70mph, track videos always seem so boring.

Yeah, track pads eat the **** out of rotors..
Don't try daily driving without religiously washing your wheels.
And after that month of running them my rotors are gone.

Did you use the Pledge trick in the wheels?
I feel you there. I originally had my AX6 pads on the car but the squeal was just terrible for the street. I had the AX6's on for about a week and the dust was pretty heavy but i bought the Carbotech wheel cleaner from 949racing when I bought my pads and it works pretty well. By the time the event came my 1521's were nicely bedded in and I didnt want to change them back out. Had my coolant temps stayed lower I could have definately benefited from the AX6's.

I'm not familiar with the pledge trick in the wheels. Care to share it?
FrankB is offline   Reply With Quote
Old 04-15-2014, 02:24 PM   #158
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by Jeffbucc View Post
Get your wheels opti-coated for +/- $100, brake dust will simply spray off with just a tiny amount of soap.

It is a permanent sealant/wax and you never have to wax them again. I do it to all my wheels. Went almost the entire winter without wiping my winter set with a towel and they are as shiny as ever.
Hmmm.. I'll have to look into that. I plan on getting another set of 15x9 6UL's for some track tires and that would come in handy.
FrankB is offline   Reply With Quote
Old 04-15-2014, 02:28 PM   #159
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I was running a Koyo 37mm + stock routing and I had issues at anything over 90F ambient. There is nothing worse than cutting short a session due to overheating so I feel you on that one. I hit the problem with the biggest hammer I could find (TSE Rad + M-Tuned Reroute) so we'll see how it turns out.

You are running the BEGI reroute, correct? Do you know what head gasket is on your engine?

Getting a ride with an instructor is awesome. I had the same exact experience and the resulting point-bys are a glorious ego boost Glad you are having fun out there.
EO2K is offline   Reply With Quote
Old 04-15-2014, 02:28 PM   #160
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by FrankB View Post
I'm not familiar with the pledge trick in the wheels. Care to share it?
Someone mentioned it in my hawk blue dust thread.
https://www.miataturbo.net/wheels-ti...2/#post1104960
Impuls is offline   Reply With Quote
