Old 10-22-2013, 12:59 AM   #81
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 259
Default

oh, they are -10an? you should be fine. I have a single -12an to a breather can.
soviet is offline   Reply With Quote
Old 10-22-2013, 07:11 AM   #82
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by soviet View Post
oh, they are -10an? you should be fine. I have a single -12an to a breather can.
Yeah, the lines are all -10AN for the catch can. I drilled the valve cover out to match too.
FrankB is offline   Reply With Quote
Old 10-22-2013, 12:14 PM   #83
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

I love every last bit of this build.

there will be quite a bit of suction coming from the intake pipe to the catch can...I'm curious if you'll be oiling the intake too much in the process.
Preluding is offline   Reply With Quote
Old 10-22-2013, 12:50 PM   #84
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by Preluding View Post
I love every last bit of this build.

there will be quite a bit of suction coming from the intake pipe to the catch can...I'm curious if you'll be oiling the intake too much in the process.
That thought has crossed also my mind as I originally had to tear down my motor due to oil in the intake. If I start to have any issuses I might try to reduce the line from the catch can to the intake, maybe that would help. I really don't want to go with a VTA setup though.
FrankB is offline   Reply With Quote
Old 10-22-2013, 05:59 PM   #85
Junior Member

Join Date: Mar 2012
Location: Searcy, AR
Posts: 149
Total Cats: -2
Default

We went to a VTA setup after Solo Nationals. Planned on doing it before but ran out of time and didn't think it was going to be 'a big deal'... Well it was when the car was sucking tons of oil after PCV failure, so we deleted all the re-circulation stuff. It was smoking so bad we thought it had a broken ring land and didn't finish running the car Day 2.
FrankL is offline   Reply With Quote
Old 10-22-2013, 06:42 PM   #86
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

So why exactly do people run such huge oil catch can lines?
I honestly don't know, I have a feeling I'm asking a stupid question.
Impuls is offline   Reply With Quote
Old 10-22-2013, 08:21 PM   #87
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,897
Total Cats: 109
Default

Quote:
Originally Posted by FrankB View Post
Frank said this.
Quote:
Originally Posted by FrankL View Post
Frank said that.
LOL
miata2fast is offline   Reply With Quote
Old 10-22-2013, 10:23 PM   #88
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by FrankL View Post
We went to a VTA setup after Solo Nationals. Planned on doing it before but ran out of time and didn't think it was going to be 'a big deal'... Well it was when the car was sucking tons of oil after PCV failure, so we deleted all the re-circulation stuff. It was smoking so bad we thought it had a broken ring land and didn't finish running the car Day 2.
Maybe since I'm not running a PCV and I have a modified passenger side valve cover baffle things might be a little different? If not, a catch can redesign will be in order with a breather added to reduce the suction or just VTA. Either way, thanks for the input I'll definately keep an eye on that issue.
FrankB is offline   Reply With Quote
Old 10-22-2013, 10:32 PM   #89
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

So today was a productive day! Installed the starter, bled the clutch, installed the radiator, filled up all the fluids, primed the motor but we weren't quite able to get it to run. It was getting late so tomorrow after work hopefully we can get it running on some kind of base tune for clutch/motor break in.
FrankB is offline   Reply With Quote
Old 10-23-2013, 09:45 AM   #90
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by Impuls View Post
So why exactly do people run such huge oil catch can lines?
I honestly don't know, I have a feeling I'm asking a stupid question.
larger lines slow down the velocity of flow, preventing it sucking excess fumes or going even faster and turning into a black hole vacuum cleaner (sucking in your oil)

to those who have had oil control issues....if your running -8an sized, go to -10 or -12, maybe add another breather hose...that type of thing and you will have less issues.
shlammed is offline   Reply With Quote
Old 10-23-2013, 10:49 AM   #91
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

Quote:
Originally Posted by FrankB View Post
That thought has crossed also my mind as I originally had to tear down my motor due to oil in the intake. If I start to have any issuses I might try to reduce the line from the catch can to the intake, maybe that would help. I really don't want to go with a VTA setup though.
Venturi in exhaust tube -w- check valve instead if it gives you troubles and you still don't want to go VTA?
Still not convinced Venturi systems work with even a hint of an exhaust baffle though.
Preluding is offline   Reply With Quote
Old 10-23-2013, 11:03 AM   #92
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Faeflora ran a slash cut in his exhaust, IIRC it was one of the few successful parts of his build.
thenuge26 is offline   Reply With Quote
Old 10-23-2013, 03:38 PM   #93
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

Quote:
Originally Posted by thenuge26 View Post
Faeflora ran a slash cut in his exhaust, IIRC it was one of the few successful parts of his build.
WAITWUT?

No. Not at all. He specifically said it sucked and he wouldn't do it again if given the chance.

I even still have the email where he told me that it was a pain in the butt and he doesn't like it.
18psi is offline   Reply With Quote
Old 10-23-2013, 04:44 PM   #94
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Wow, either I missed that or it's the only thing he didn't complain about in his build thread.
thenuge26 is offline   Reply With Quote
Old 10-23-2013, 08:30 PM   #95
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

Lots of failure points.
Lots of clutter.
The check valves get clogged/fail
You get to smell burning oil all the time
Your muffler and tip and bumper are coated with burnt oil

It sucks.
18psi is offline   Reply With Quote
Old 10-25-2013, 08:19 AM   #96
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

So the car got put back together and was ready to start up but there is an issue with the MS2e not sending spark to cylinder 2 and 3. The coils were swapped and the issue stayed with cylinder 2 and 3. My tuner is currently working with Reverant's to to and resolve the issue. Hopefully they will get the issue figured out and I'll get to drive the car again sometime soon. I'm definately not going to make it to the HPDE event on the 2nd-3rd of November.
FrankB is offline   Reply With Quote
Old 11-02-2013, 01:32 AM   #97
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

IT'S ALIVE!!!! I drove it home tonight.
FrankB is offline   Reply With Quote
Old 11-02-2013, 03:07 AM   #98
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by FrankB View Post
IT'S ALIVE!!!! I drove it home tonight.
Didn't blow up from EFR awesomeness?!
Impuls is offline   Reply With Quote
Old 11-03-2013, 11:39 PM   #99
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Breaking is going well! I'm up to about 200 miles so far and the car drives amazing with the Megasquirt.
FrankB is offline   Reply With Quote
Old 11-18-2013, 11:47 AM   #100
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

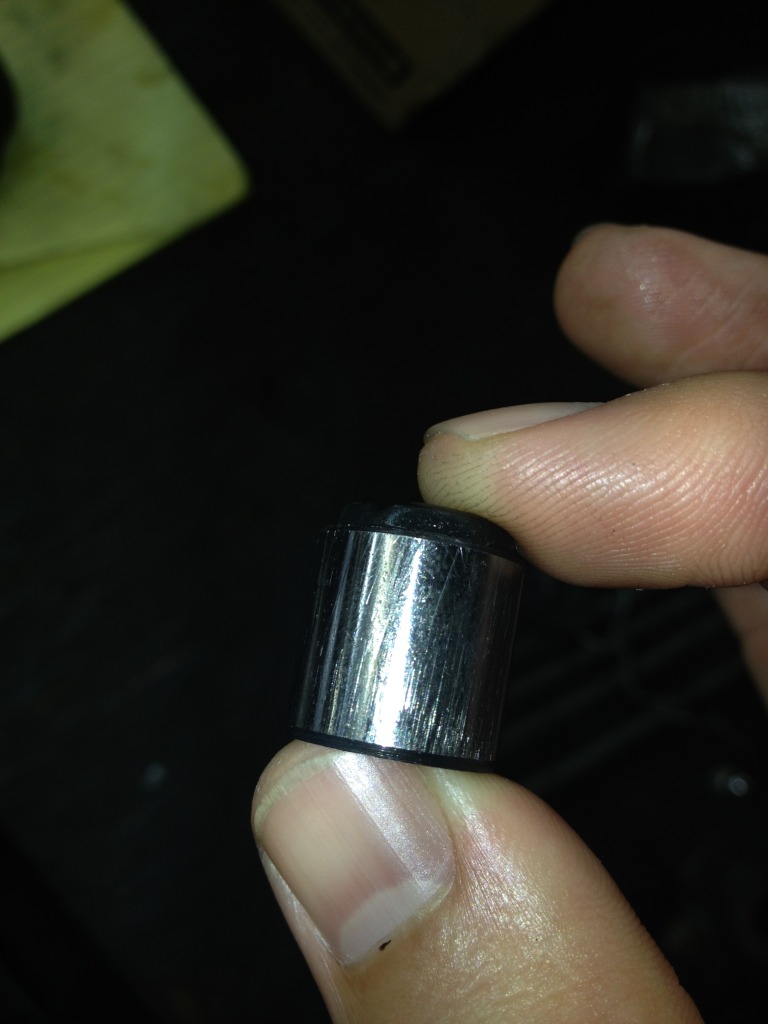

I've been neglecting updating this thread due to the excessive amount of **** that has gone wrong with my project. The latest issue was a catastrophic failure involving spun rod bearings on cylinders 1 & 2 that appears to have been caused by oil starvation at some point in time. The tear down showed a seized oil pressure relief valve in the shut position on the oil pump and the gears had been rubbing against the housing of the pump itself.

Motor had 566 miles at tear down.. :(

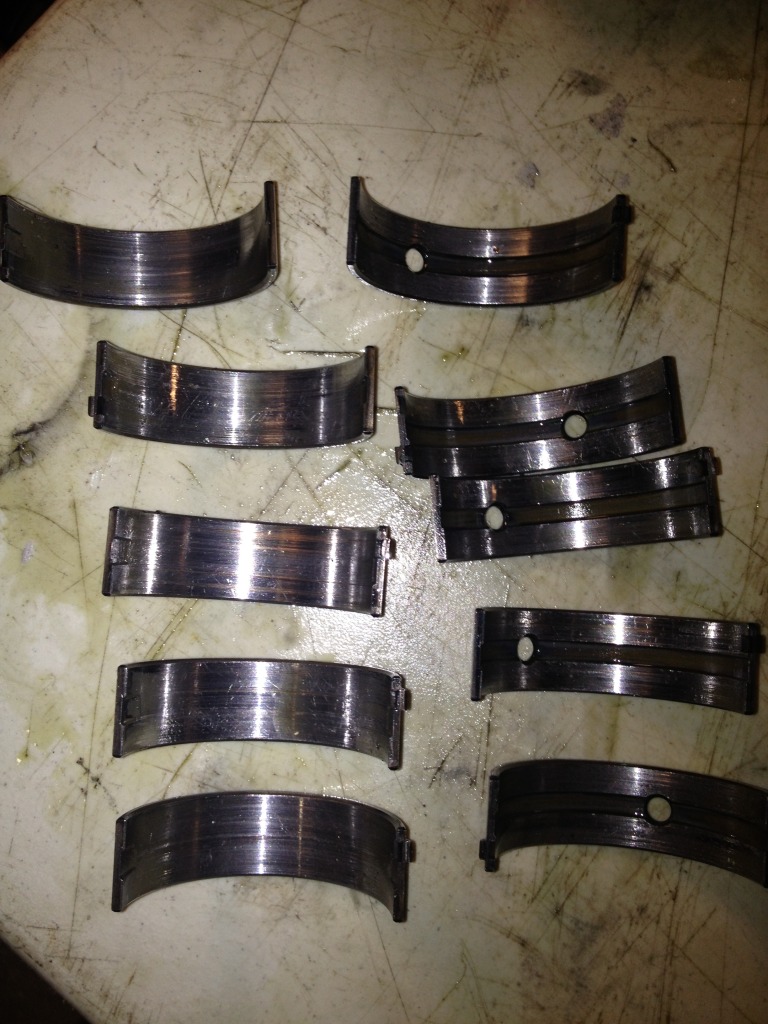

The main bearings (clearance was .0025")

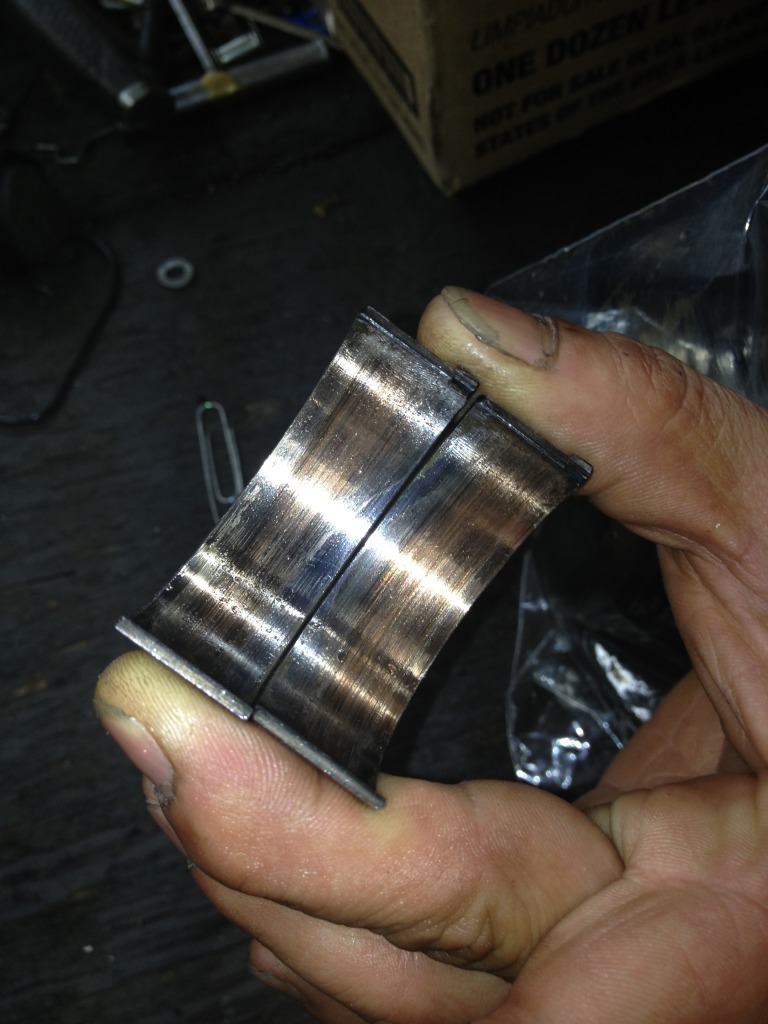

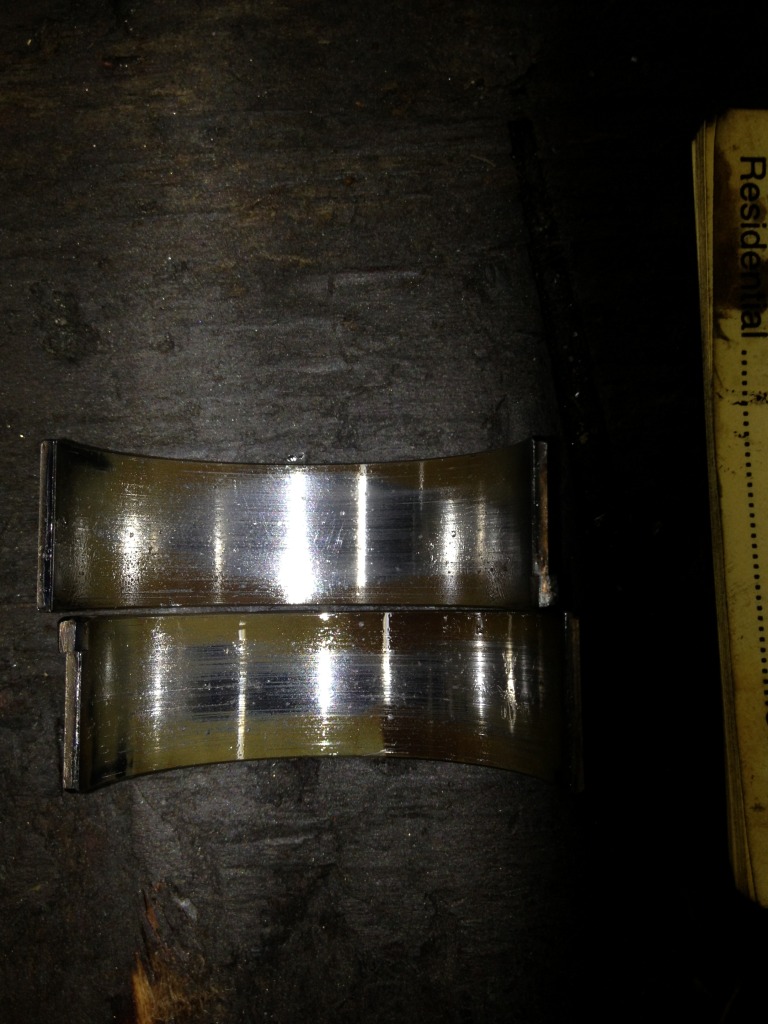

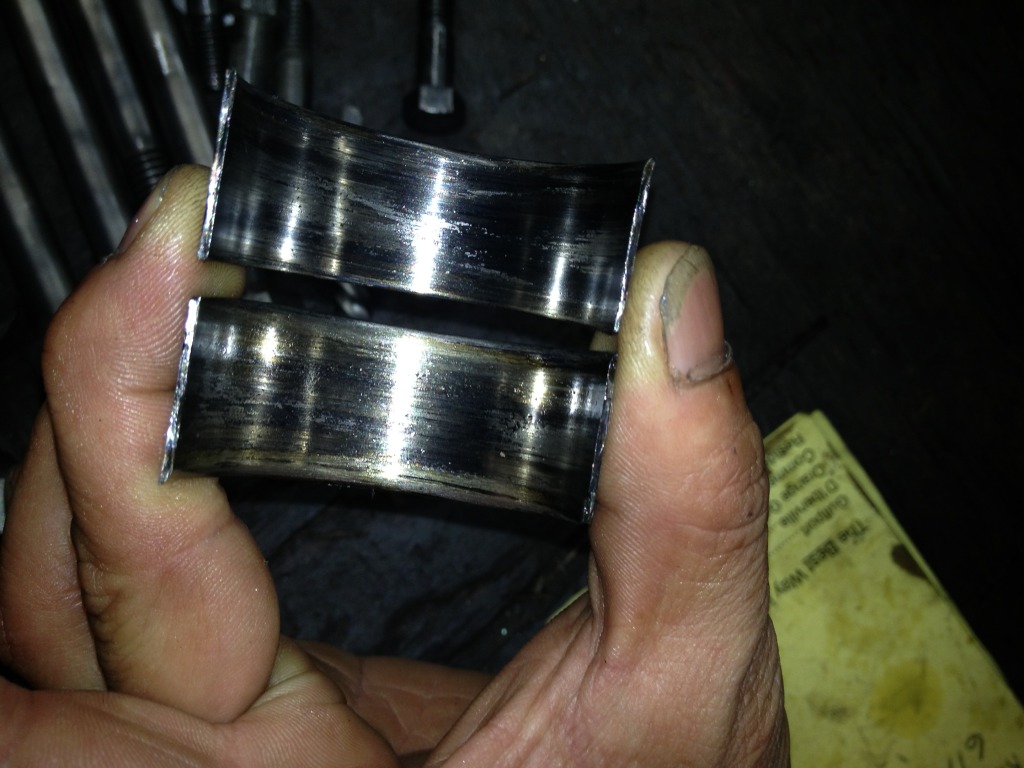

Three of the rod bearings.. I didn't get a picture of the bearing at cylinder 2 but it was pretty badly gone (clearance was .0024")

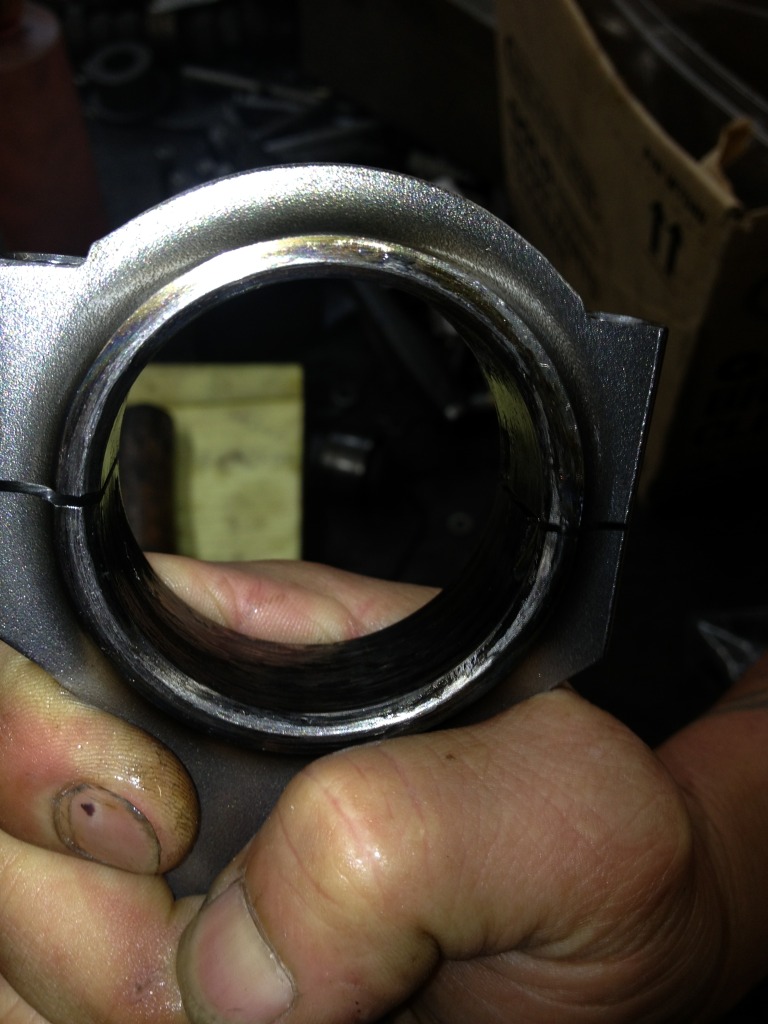

Number 2 connecting rod

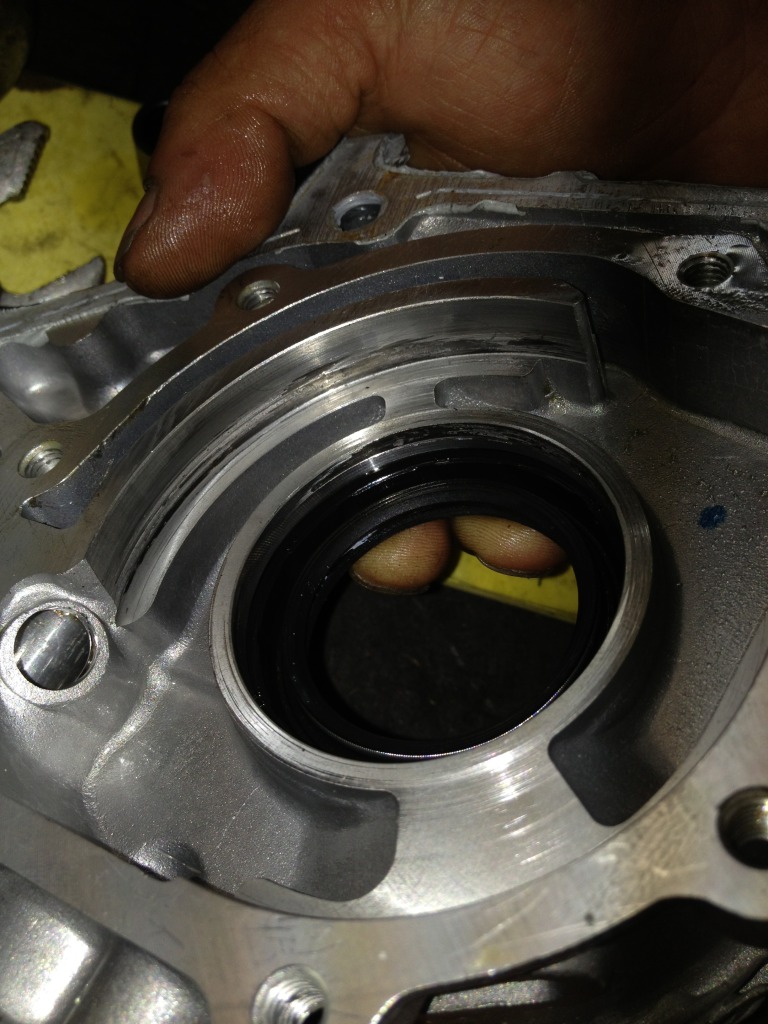

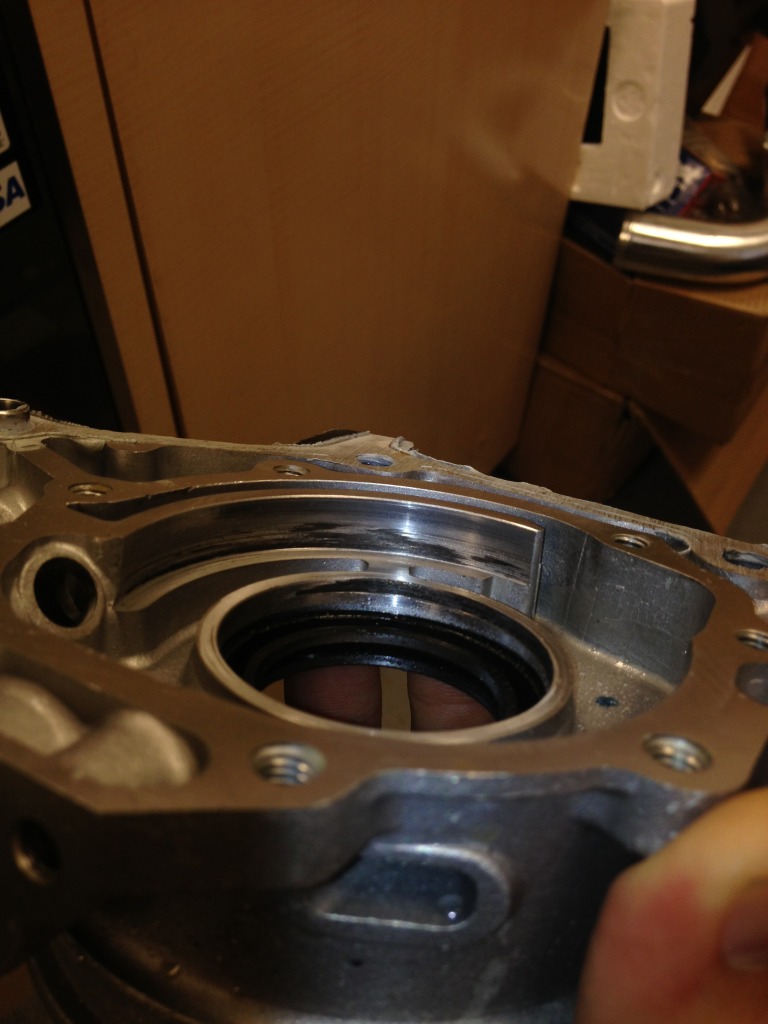

The oil pump (Boundry Engineering Street/Strip with 2 shims)


Attached Thumbnails
Mazdaspeed meets EFR, ARTech, MS2E-null_zps65119103.jpg   Mazdaspeed meets EFR, ARTech, MS2E-null_zps3d20022e.jpg   Mazdaspeed meets EFR, ARTech, MS2E-null_zpsb1bad6eb.jpg   Mazdaspeed meets EFR, ARTech, MS2E-null_zps063bc2ca.jpg   Mazdaspeed meets EFR, ARTech, MS2E-null_zpsef61d614.jpg

Mazdaspeed meets EFR, ARTech, MS2E-null_zps9951b406.jpg   Mazdaspeed meets EFR, ARTech, MS2E-null_zps8d518fbe.jpg   Mazdaspeed meets EFR, ARTech, MS2E-null_zps03a451d6.jpg
FrankB is offline   Reply With Quote
