Both Main and Rod bearings were ACL STD HX series
FrankB is online now
Old 11-18-2013, 11:17 AM
  #102
Elite Member
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Laguna Hills, CA
Posts: 7,220
Total Cats: 628
Default

Ah man that sucks... I don't understand exactly what went wrong but I feel for ya. Perhaps others can chime in on what might have caused that relief to sieze.
turbofan is offline
Old 11-18-2013, 11:35 AM
  #103
Junior Member
iTrader: (4)

Join Date: Jun 2008
Location: Colorado
Posts: 344
Total Cats: 8
Default

First go around with me on my built motor was oil starvation. I had billet gears, but they were not large enough to supply a VVT head. I then coughed up the $$ for a properly sized boundry engineering pump and have been ok since.

Sorry to hear about your problems. I know exactly how you feel.
05pearl is offline
Old 11-18-2013, 11:44 AM
  #104
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,593
Total Cats: 244
Default

Ouch.
__________________
Originally Posted by ninerwfo View Post
The “into to megasquirt thread” mentions that the MS3 basic has 5 inputs with built in pull up resistors - and I was just wondering why it would have so many, while the MS3Pro PnP has just 2 (with no pull ups?)
MS Labs: Plug and Play Megasquirt ECUs for ANY 90-05 Miata (NA, NB1, NB2 w/VVT, MSM), including basemaps to get you started ASAP. PM me or email or details.
For support on MS Labs ECUs: Please email, be sure to include the unit's serial number and include a datalog and your current map.
Reverant is offline
Old 11-18-2013, 11:53 AM
  #105
Senior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Gulfport, MS
Posts: 512
Total Cats: 40
Default

Originally Posted by 05pearl View Post
First go around with me on my built motor was oil starvation. I had billet gears, but they were not large enough to supply a VVT head. I then coughed up the $$ for a properly sized boundry engineering pump and have been ok since.

Sorry to hear about your problems. I know exactly how you feel.
Yeah, what sucks is I forked out the $$ for the whole pump... :(


Originally Posted by Reverant View Post
Ouch.
Rev, on the bright side the new ECU started right up! That's for the great tech support!
FrankB is online now
Old 11-18-2013, 12:02 PM
  #106
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 754
Total Cats: 19
Default

Originally Posted by Impuls View Post
Didn't blow up from EFR awesomeness?!
I'm sorry :( I think I jinxed you.
Impuls is offline
Old 11-18-2013, 12:06 PM
  #107
Senior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Gulfport, MS
Posts: 512
Total Cats: 40
Default

Originally Posted by Impuls View Post
I'm sorry :( I think I jinxed you.
Noted... I think you just made my list... Haha just kidding

I must have pissed someone off though... Or broke a mirror I don't remember breaking, my luck has just sucked!
FrankB is online now
Old 11-18-2013, 03:42 PM
  #108
Senior Member

Join Date: Mar 2011
Location: South Chicago
Posts: 697
Total Cats: 26
Default

Now I'm scared to build my motor... Everyone I know lately with built motors has had failures similar to this.

My condolences go out to you and your family...
Mazduh is offline
Old 11-18-2013, 03:53 PM
  #109
Ich verstehe nur Bahnhof
iTrader: (4)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 4,512
Total Cats: 493
Default

Holy crap, I have the same pump, but might remove a shim. I'm really sorry to hear. Is it that much a tossup, whether or not relief valves are prone to becoming stuck, even if the pump is brand new?
psyber_0ptix is online now
Old 11-18-2013, 05:54 PM
  #110
Elite Member
iTrader: (15)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,532
Total Cats: 407
Default

Damn...
Frank, sorry to hear about your misfortune. Every time I read about motor build issues such as yours and Shiend's, I feel like I just got lucky with mine.
99mx5 is offline
Old 11-18-2013, 07:39 PM
  #111
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 3,077
Total Cats: 159
Default

Damn there has been too much of that going on lately. Sorry to hear that man. You have some pretty mad skills, so I have a feeling you will get it right. Hang in there.
miata2fast is offline
Old 11-18-2013, 09:58 PM
  #112
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 754
Total Cats: 19
Default

Luckily I'm one of the engine builds that survived.
Not that I don't have problems ( electrical )
So the plan is to rebuild it? or have you gotten so discouraged with it you give up?

I was telling my boosted s2k buddy about your loss because his motor spun a bearing at ~500mi too because an oil squirter broke off and blah blah.
I know it sucks man.
If there's anything we can do..
Impuls is offline
Old 11-19-2013, 10:31 AM
  #113
Moderator
iTrader: (12)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 19,329
Total Cats: 2,434
Default

My relief seized in the open position and did not allow oil pressure to build. The debris that caused it ti stay open was little bits of plastic from the melted dipstick handle being too close to the hot exhaust.

I don't understand how you had a failure of the engine with the valve stuck closed. It would make very high oil pressure unless you misspoke.
sixshooter is offline
Old 11-19-2013, 11:23 AM
  #114
Senior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Gulfport, MS
Posts: 512
Total Cats: 40
Default

Originally Posted by sixshooter View Post
My relief seized in the open position and did not allow oil pressure to build. The debris that caused it ti stay open was little bits of plastic from the melted dipstick handle being too close to the hot exhaust.

I don't understand how you had a failure of the engine with the valve stuck closed. It would make very high oil pressure unless you misspoke.
When I tore the oil pump apart and tried to remove the relief valve, it was seized in the closed position and took a few blows with a small hammer and a long skinny punch to free. I know my symtoms would be better explained if it were seized in the open position but that was not the case at least when it was torn apart. Is it possible that it could have seized in the open position at one point in time and then free'd itself when the housing got warm and expanded and then reseized in the closed position?

The relief valve sticking doesn't explain the pump gears rubbing on the housing though. The scores aren't from debris but they look to have been caused by a constant contact between the two. Clearance issue perhaps? I sent the pump back to Travis at BE to take a look.

The motor is back at the machine shop for rework.

All I know is I won't be trailering the miata down to Clearwater when I head down there next week... :(
FrankB is online now
Old 11-19-2013, 12:02 PM
  #115
Senior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Gulfport, MS
Posts: 512
Total Cats: 40
Default

Currently trying to figure out if I should just remove the factory oil cooler on the block( as it no doubt is ruined) and shorten the threaded rod for the filter relaxation adapter or remove the factory oil cooler and buy/install a spacer/sandwich plate with a few ports for aftermarket oil tamp/ oil pressure sensors.

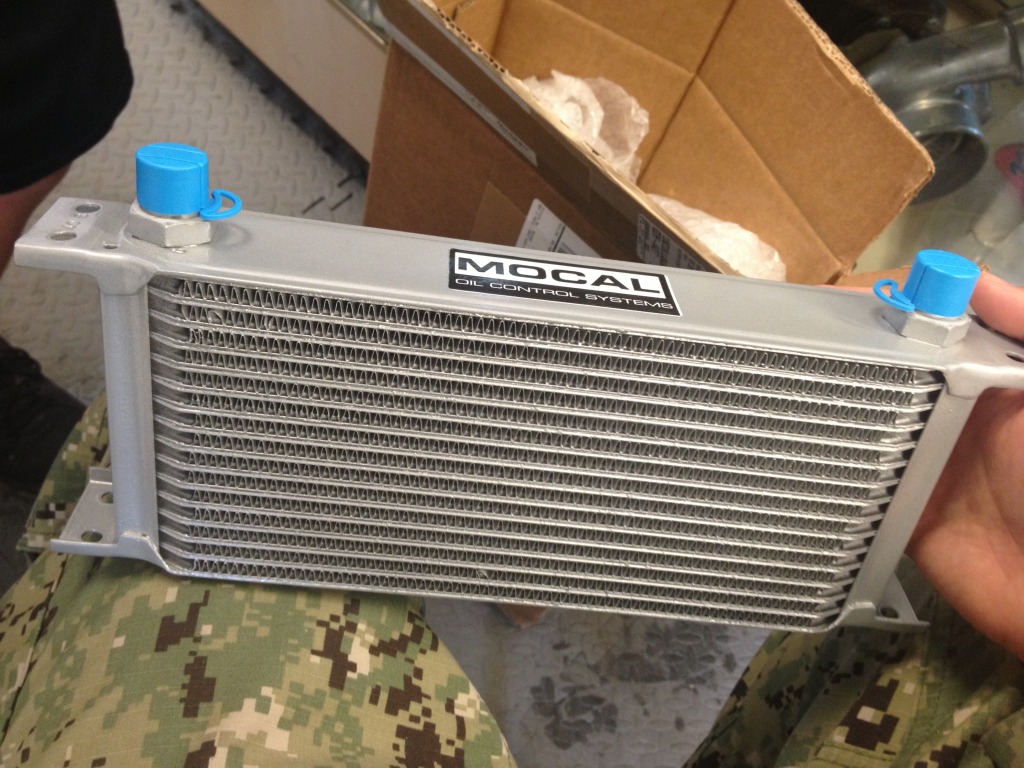

On the bright side my new mocal 16 row oil cooler to replace my existing(566mile old..) 13 row cooler showed up yesturday!
Attached Thumbnails Mazdaspeed meets EFR, ARTech, MS2E-null_zps2500868a.jpg
FrankB is online now
Old 11-19-2013, 12:31 PM
  #116
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: *** BANNED ***
Posts: 9,666
Total Cats: 998
Default

Why the change from 13 to 16? I've been looking to buy a 13.

Sorry to hear about the engine, that's absolutely painful. Sorry for your loss

Originally Posted by miata2fast View Post
Damn there has been too much of that going on lately.
+1, what the hell is up with this?
EO2K is offline
Old 11-19-2013, 12:44 PM
  #117
Senior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Gulfport, MS
Posts: 512
Total Cats: 40
Default

Originally Posted by EO2K View Post
Why the change from 13 to 16? I've been looking to buy a 13.
No real reason, I had the room for a 16 row and since I had to get a new cooler anyway I decidesf to go with the 16 this time.
FrankB is online now
Old 01-28-2014, 10:39 PM
  #118
Senior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Gulfport, MS
Posts: 512
Total Cats: 40
Default

Okay its been a while since I have posted any updates and . I got the car back on Dec 31, 2013 and have put just over 1,000 miles on it so far and it has been running great with one exception. shortly after getting the car back I saw that there was a small oil leak that looked like it was coming from the front main seal. Due to inpatients I stupidly decided to order a seal from Advanced Auto Parts. I tore the front of the engine down and found the the front main seal looked to be tapped in a little crooked. Not thinking much else of it I went to install the new seal and it just fell in.. the outside diameter was too small to seal. I was able to get it back out and return it to the store. of course now I have no seal. I called up O'Reilly's and they said they had one in stock so I rushed over there and picked it up and the outside diameter looked to match the OEM one great. I install it using FM's Big Nose Crank Seal Install Tool. What I didn't realize at the time is that the inside diameter was a hair too big and after installing it my leak was a little worse then with the crooked OEM seal.. At that point I decided to order an OEM seal and when it came in I installed it along with swapping my timing belt over to a Gates Racing belt. Well my seal is still leaking, not nearly as bad as with the aftermarket seal but still leaking. I didn't notice any a burrs or nicks on the pump housing or crankshaft but when the timing assembly is torn apart you can clearly see that the leak is coming from the front main seal area. Short of ripping the engine apart and or getting a new oil pump I am stumped. Any ideas?

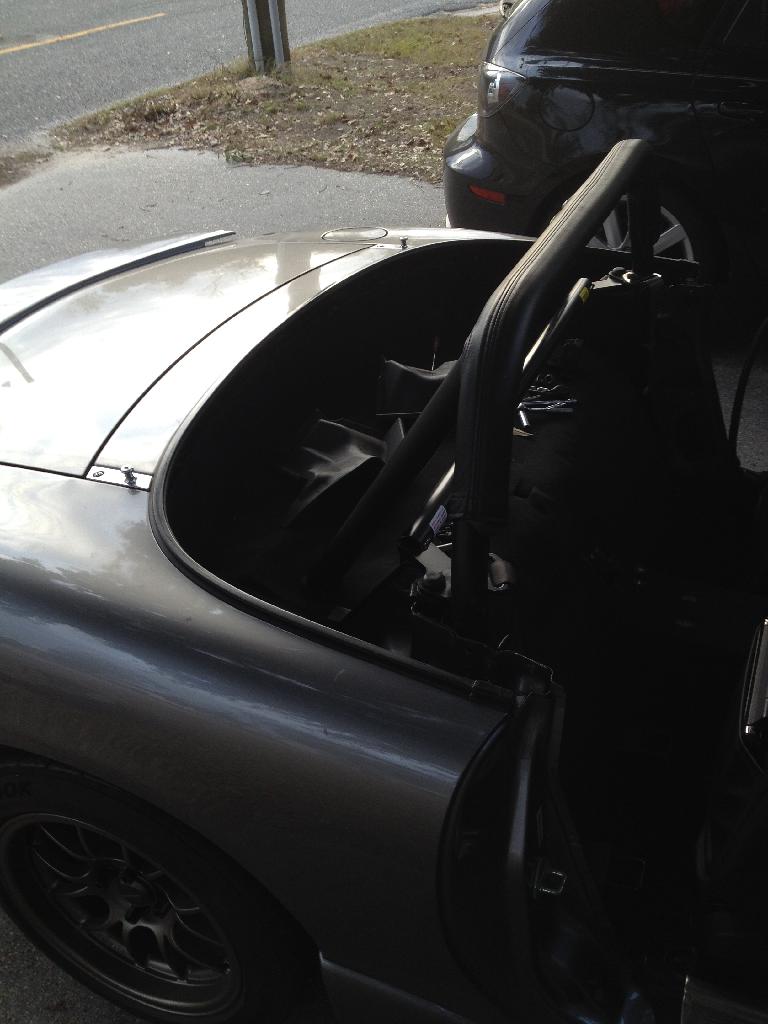

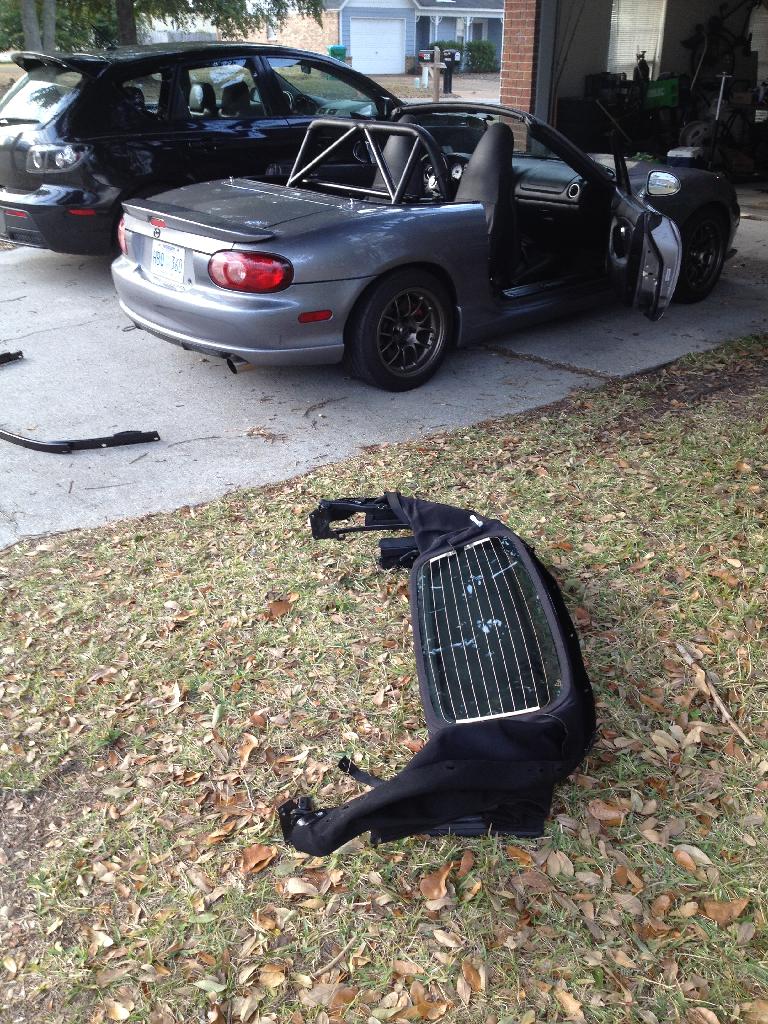

On a softer note, since I never use the soft top I decided to remove it and clean up the inside a little bit.

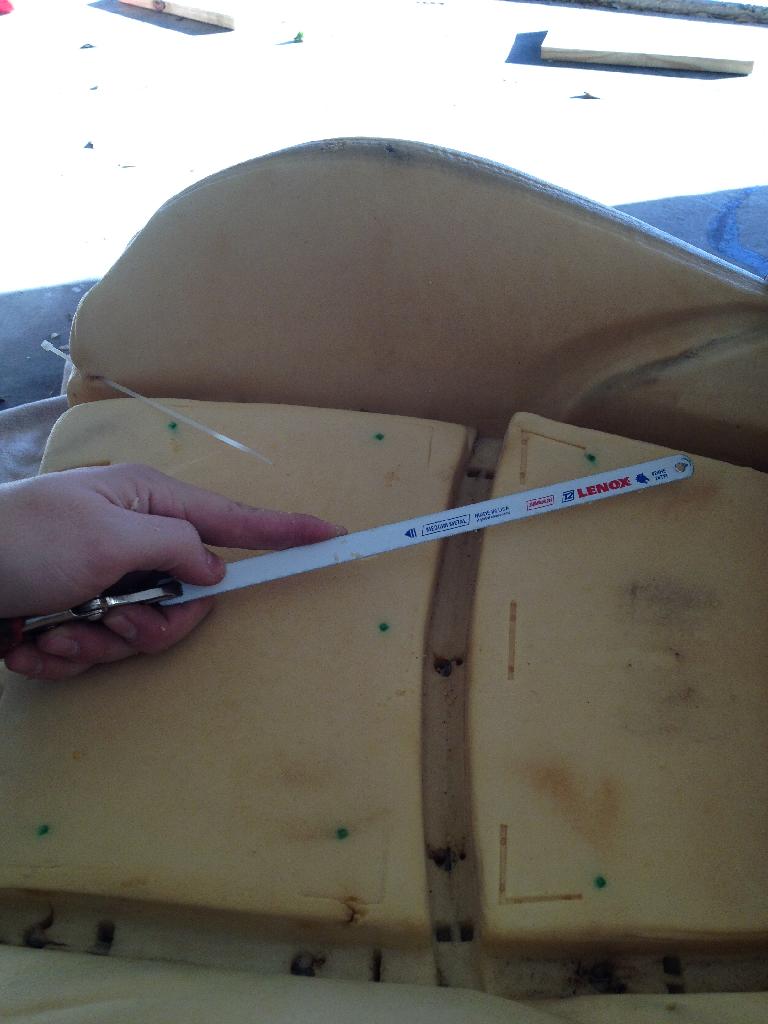

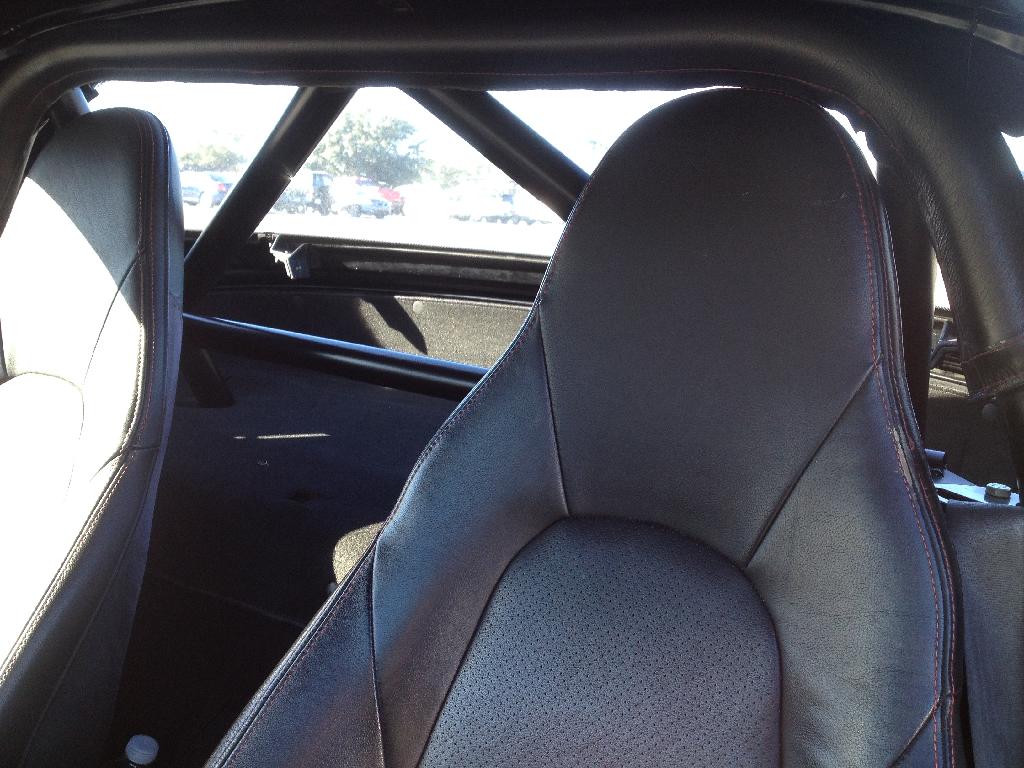

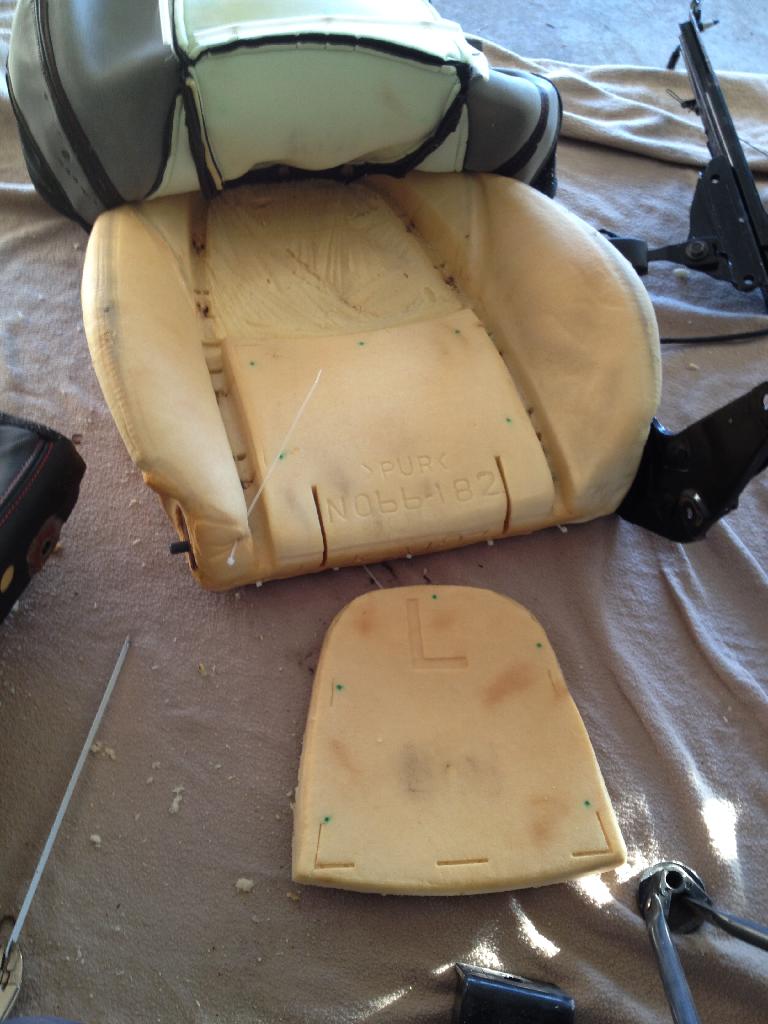

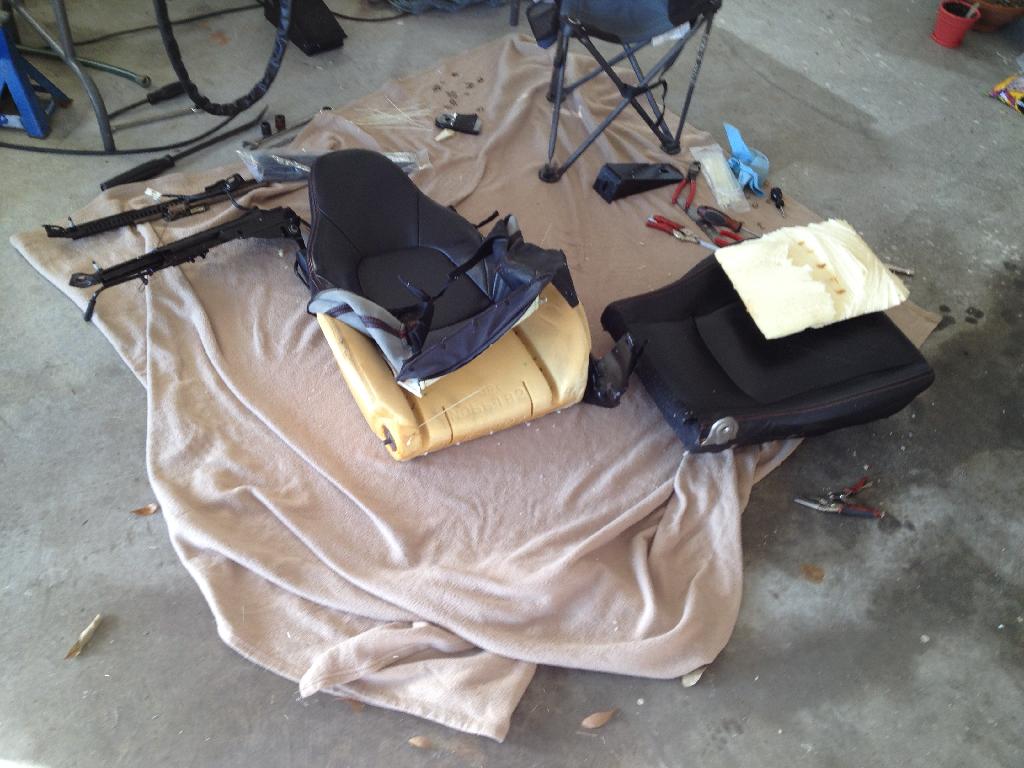

I also broke down and decided to do a foamectomy on my drivers seat. I was a bit skeptical at first since I have the leather seats and I have heard some negative results as far as the leather not stretching when the foam is removed. I'm happy to say that the seat feels a hundred times better after the foamectomy. I removed about 2.5" from the bottom of the seat and then the top portion of the center panel in the seat back. I left the bottom portion of the center panel on the seat back for some lumber support.

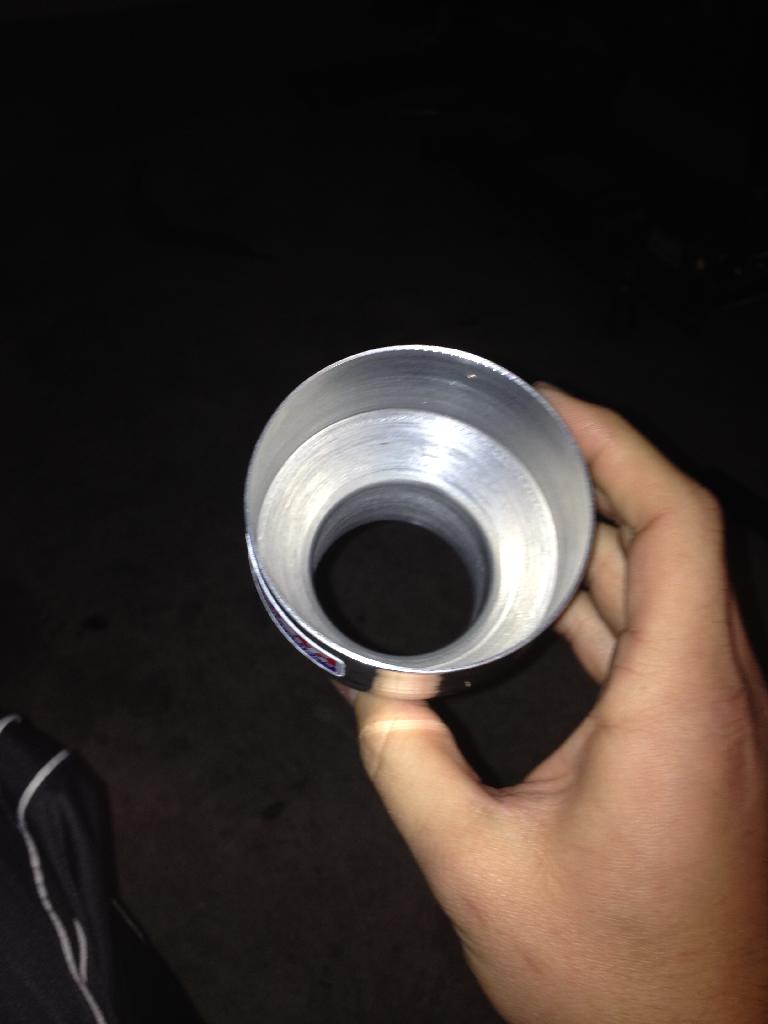

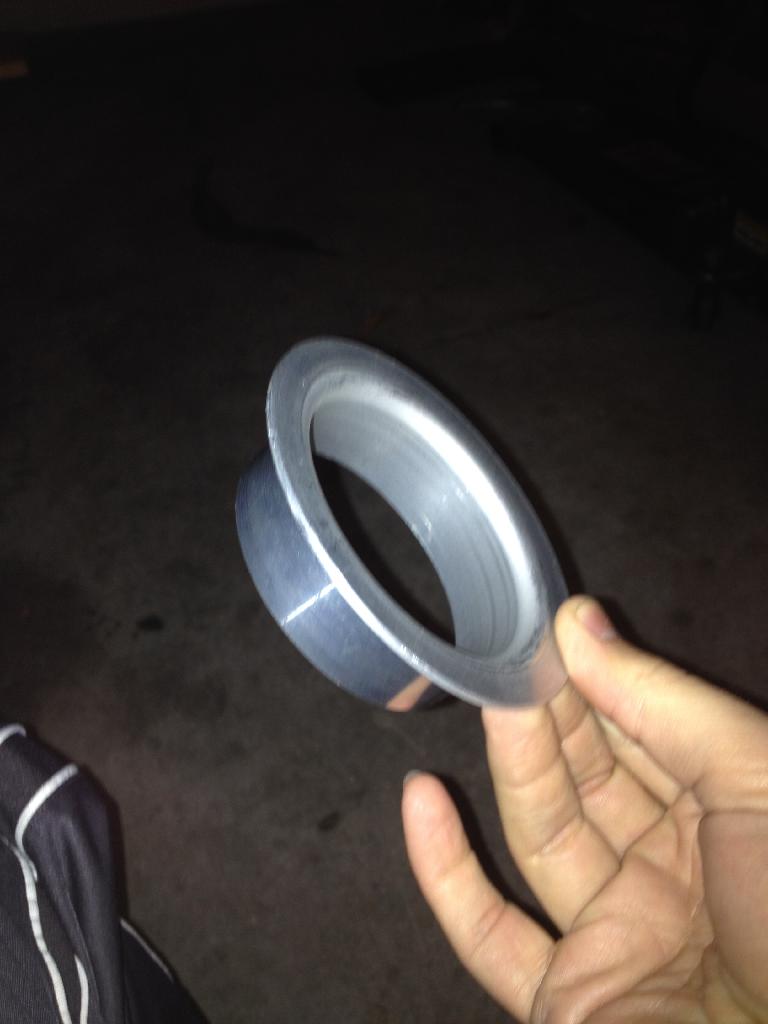

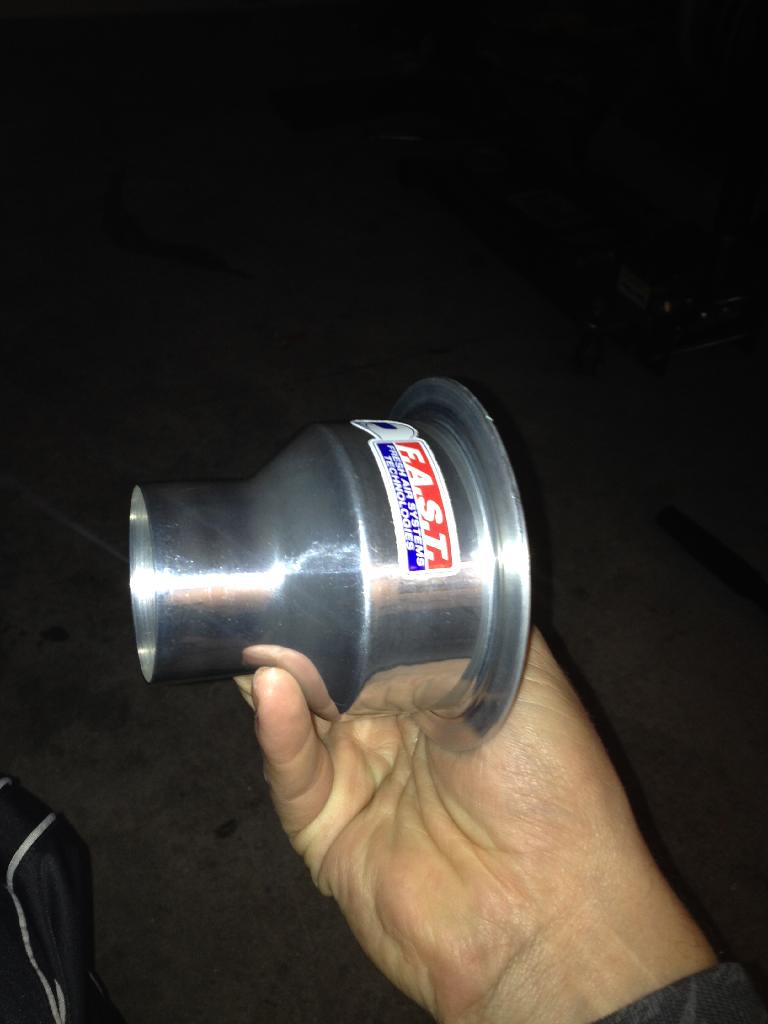

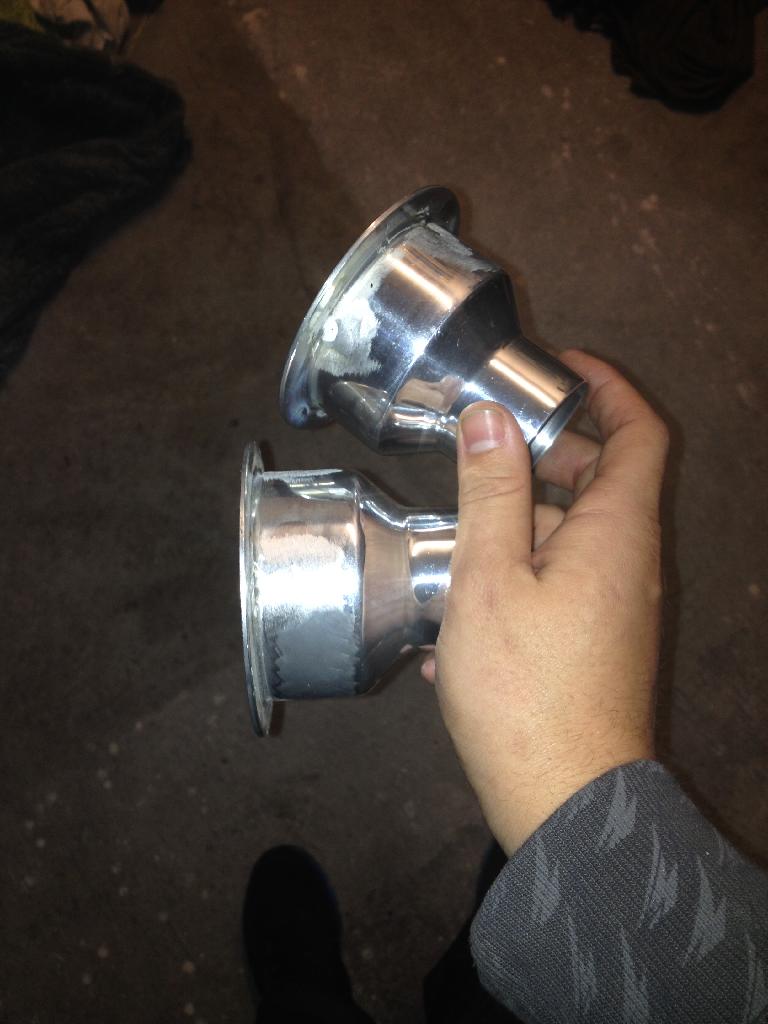

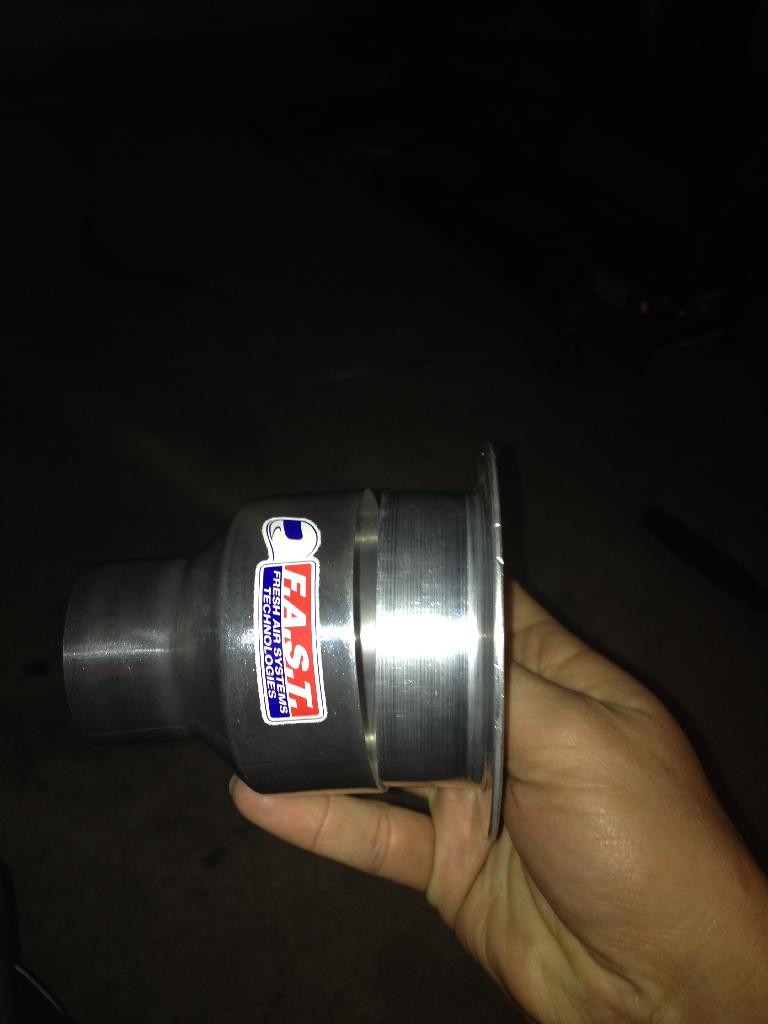

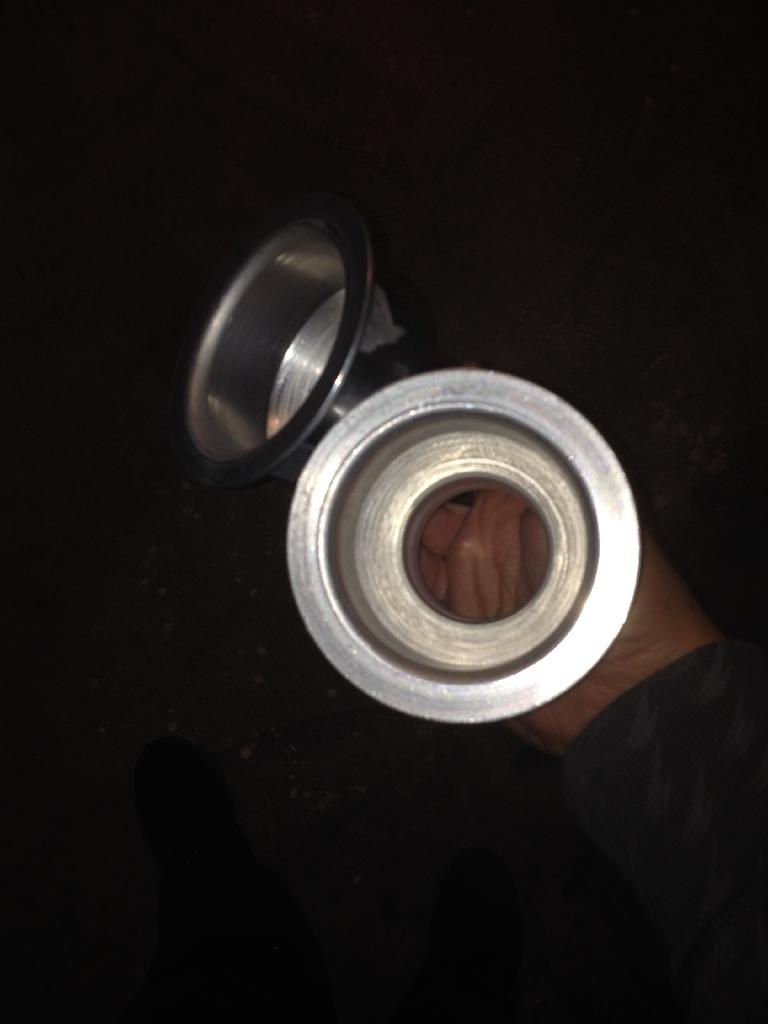

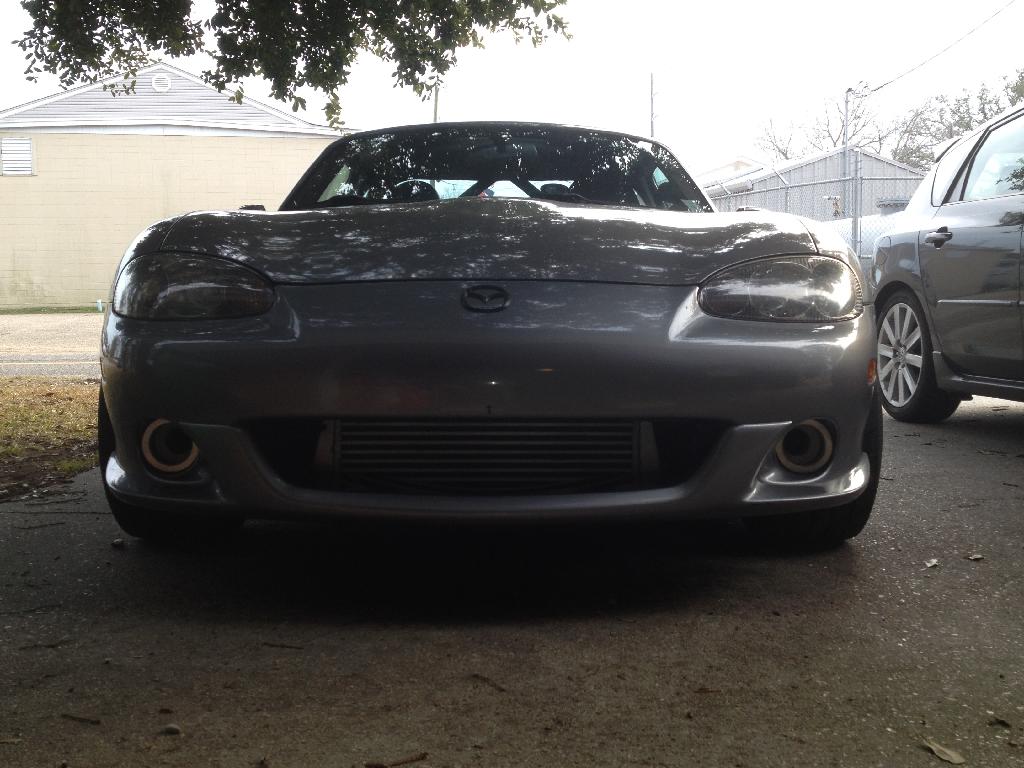

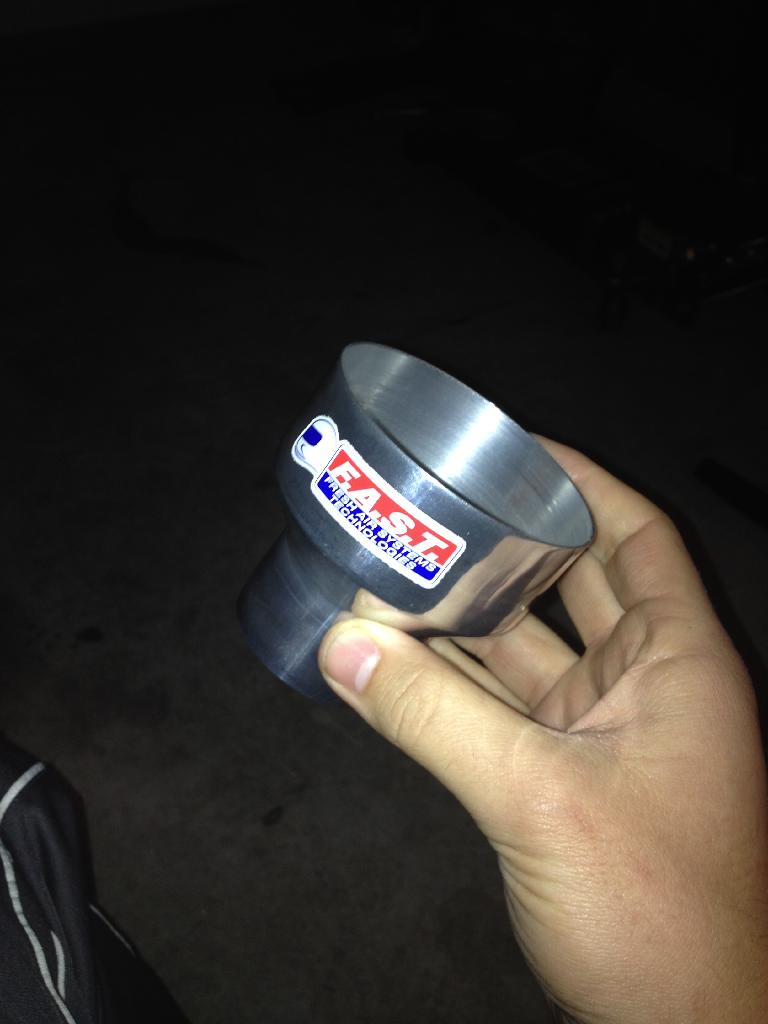

Today I started the install of my fog light brake ducts. I ordered two 4" duct flanges from aircraftspruse.com. Instead of using a 3"-2" silicone reducer to connect the duct flange to a separate 2" aluminum pipe so that I could the 2" silicone hose that runs to the TSE brake ducts I ordered two aluminum 3"-2" reducers from ebay and welded them to the flanges. this way I can directly connect the 2" silicone hose to the now all-in-one flange/reducer.

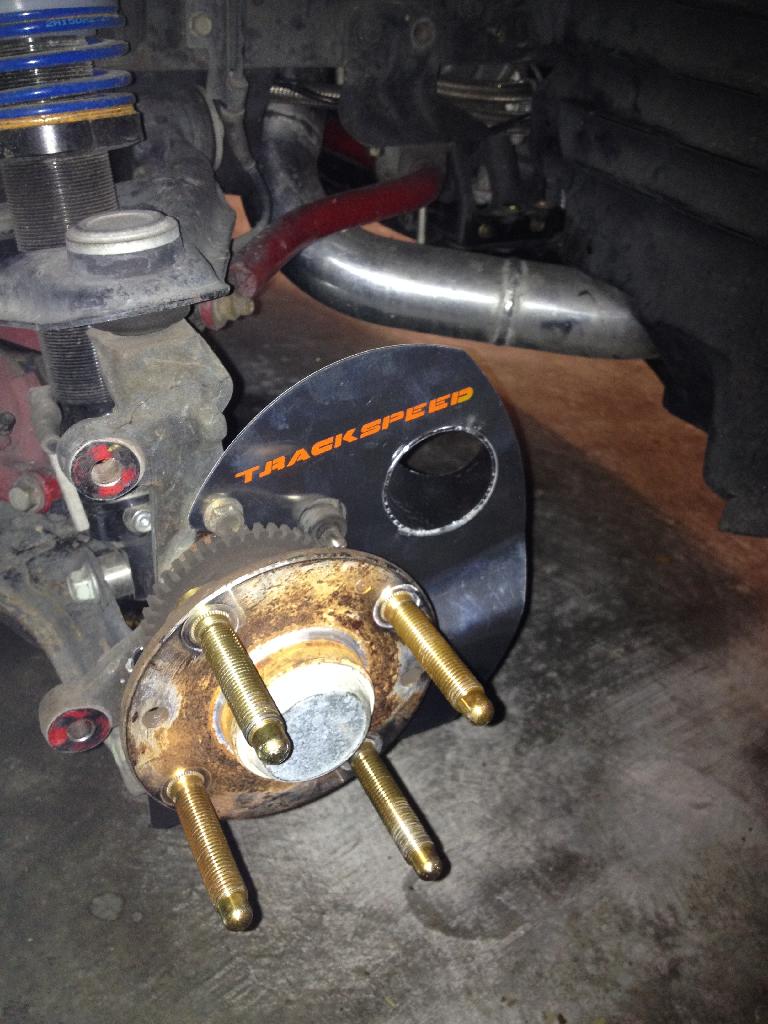

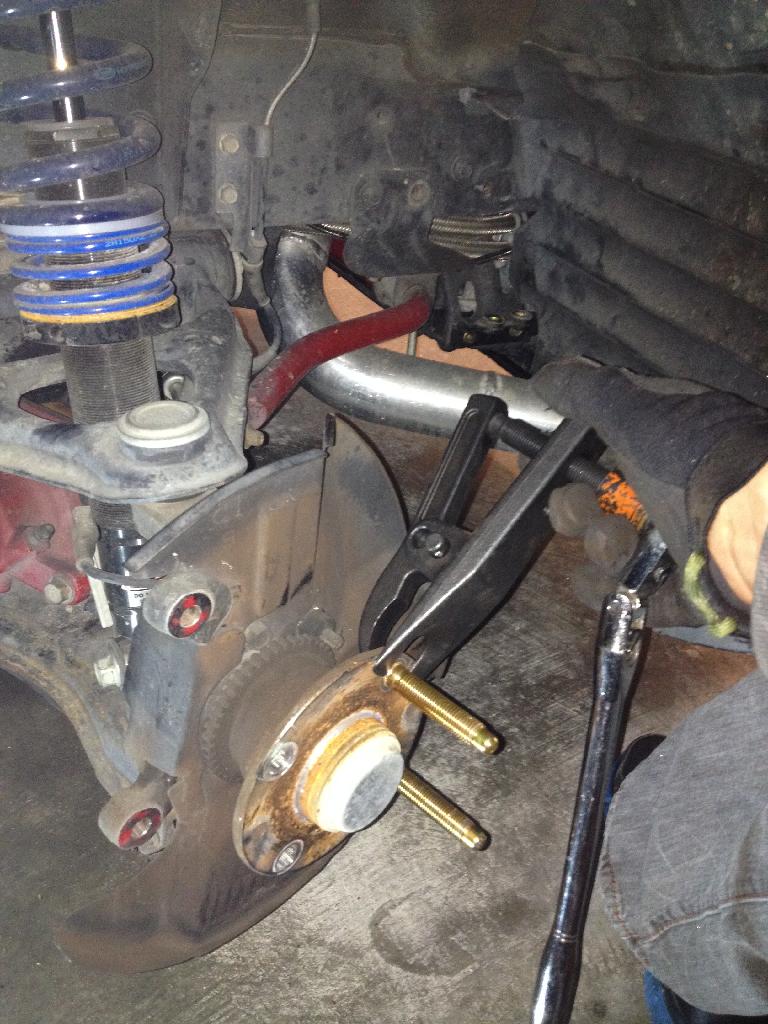

The TSE brake duct install went really smooth. While I was there I decided to start swapping out the stock wheel studs for the ARP extended studs. I didn't use a hammer or a press. I bought a ball joint removal tool from harbor freight and used that to remove and install the new studs and it worked great. It took about an hour per side to install the studs and TSE ducts.

Attached Thumbnails Mazdaspeed meets EFR, ARTech, MS2E-37f81cbe-a6c8-4694-9335-d69d8d5ecbc0.jpg   Mazdaspeed meets EFR, ARTech, MS2E-3359aa5e-b0e5-424c-a78b-0141a26aa46c.jpg   Mazdaspeed meets EFR, ARTech, MS2E-e7a2c153-9390-4e55-830a-b619779e085c.jpg   Mazdaspeed meets EFR, ARTech, MS2E-94f59bcf-66a7-4a5e-a184-96e543d4959a.jpg   Mazdaspeed meets EFR, ARTech, MS2E-39d73ef9-b8ad-4a7e-92d3-da72c1311dc6.jpg

Mazdaspeed meets EFR, ARTech, MS2E-bde83c83-8176-4887-8cde-629131c02586.jpg   Mazdaspeed meets EFR, ARTech, MS2E-b5672499-7dc9-45ab-aec4-97a0bccaa589.jpg   Mazdaspeed meets EFR, ARTech, MS2E-2a5e5549-83f9-423d-bc54-7e27d6b95d69.jpg   Mazdaspeed meets EFR, ARTech, MS2E-b3f72597-d0cd-4b90-960d-be5d888ade68.jpg   Mazdaspeed meets EFR, ARTech, MS2E-4cb448bc-943a-46b5-82a2-ffd635cea9c9.jpg

Mazdaspeed meets EFR, ARTech, MS2E-88a4387b-9785-4c8f-a44c-c793268a0b93.jpg   Mazdaspeed meets EFR, ARTech, MS2E-c848012c-88b3-4a50-9e87-908228555211.jpg   Mazdaspeed meets EFR, ARTech, MS2E-5bed91f9-d4e1-4abd-b19d-7ffb1a67062a.jpg   Mazdaspeed meets EFR, ARTech, MS2E-06a9aabb-bb2c-4797-a73d-0b25391a5398.jpg   Mazdaspeed meets EFR, ARTech, MS2E-e1ce1da2-9fb9-4442-9582-5968087c1bc7.jpg

Mazdaspeed meets EFR, ARTech, MS2E-224a6eb0-f3a2-4065-830e-678d10a3ce9d.jpg   Mazdaspeed meets EFR, ARTech, MS2E-eaf39bf8-2c48-42f9-8cae-8bac68509d6b.jpg

Last edited by FrankB; 01-28-2014 at 11:21 PM. Reason: Fixed images
FrankB is online now
Old 01-28-2014, 11:11 PM
  #119
Elite Member
iTrader: (11)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,902
Total Cats: 30
Default

Looking good.
IcantDo55 is offline
Old 01-28-2014, 11:53 PM
  #120
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: *** BANNED ***
Posts: 9,666
Total Cats: 998
Default

Brilliant! I need to do that with my brake ducts. Did those just ...friction fit into the fog light openings? I need to steal this. I seem to remember someone recommending something like 1/4" or 1/8" mesh over the ducts to keep out the rocks but admittedly I've been drinking this evening.

Mad props for updates and foamectomy pics. I have a feeling this will be in my future. No idea on the leak though :(
EO2K is offline
