Old 08-19-2015, 01:37 PM   #241
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by sixshooter View Post
321whp, huh? I could have sworn it felt like 324whp so I'm sure the dyno is off a bit.

Was the car any better regarding overheating on the way home?
Haha I've got a few things that I need to change, but I'll do that with the MS3.

I'm still up in Kennesaw with the in-laws, I'll be heading back home tomorrow sometime. I'll let you know.
FrankB is offline   Reply With Quote
Old 09-17-2015, 11:11 AM   #242
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

Great build, looks very familiar

How hard were the hood louvres to do? I'm thinking of running the NC ones on my MSM
Mazdaspeeder is offline   Reply With Quote
Old 09-18-2015, 12:53 AM   #243
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by Mazdaspeeder View Post
Great build, looks very familiar

How hard were the hood louvres to do? I'm thinking of running the NC ones on my MSM
Thanks, they weren't hard to install, just time consuming. But I'm not sure how the NC louvers will be as far as installation. They look like you have to cut more bracing too..
FrankB is offline   Reply With Quote
Old 09-18-2015, 01:00 AM   #244
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

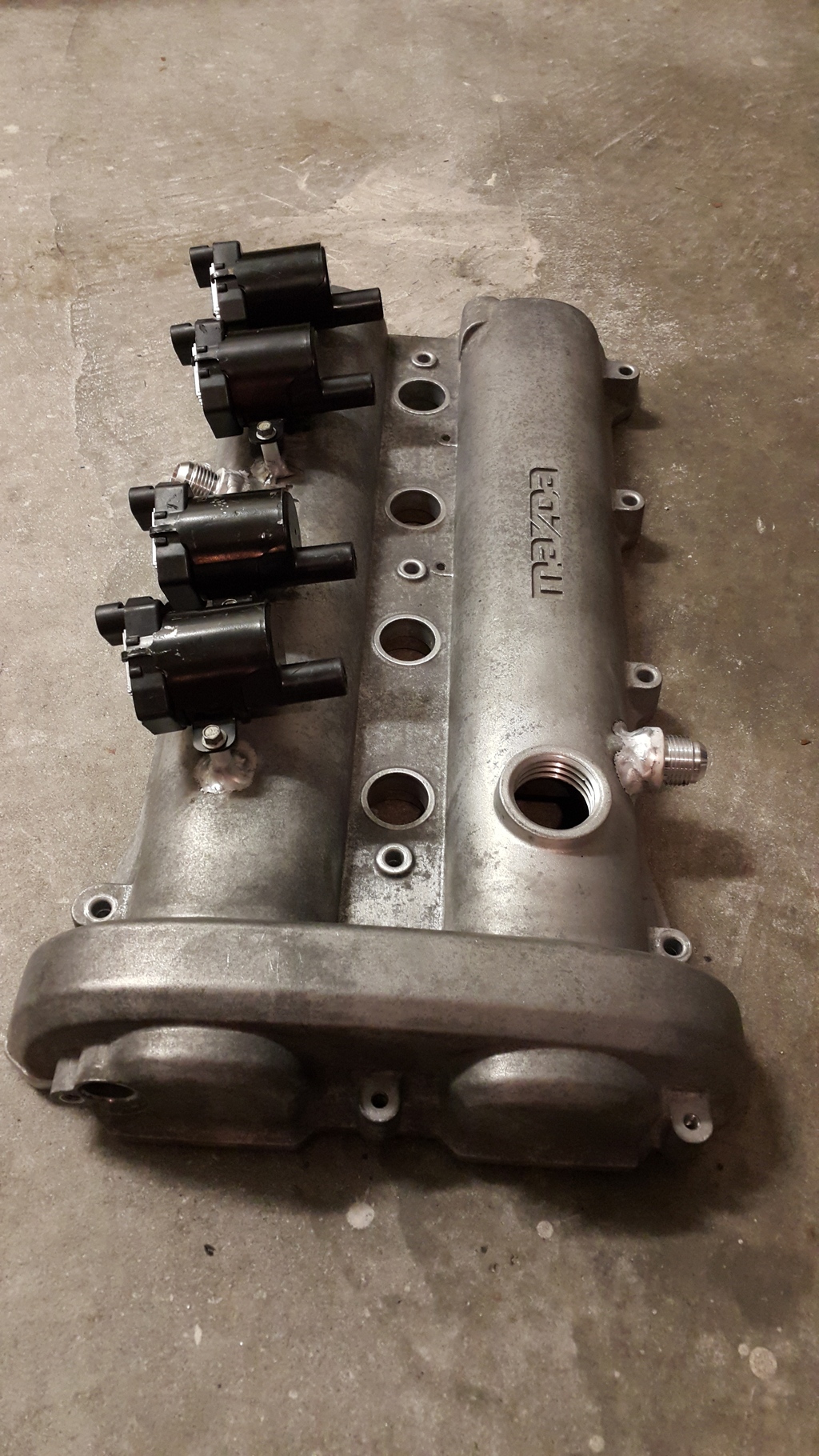

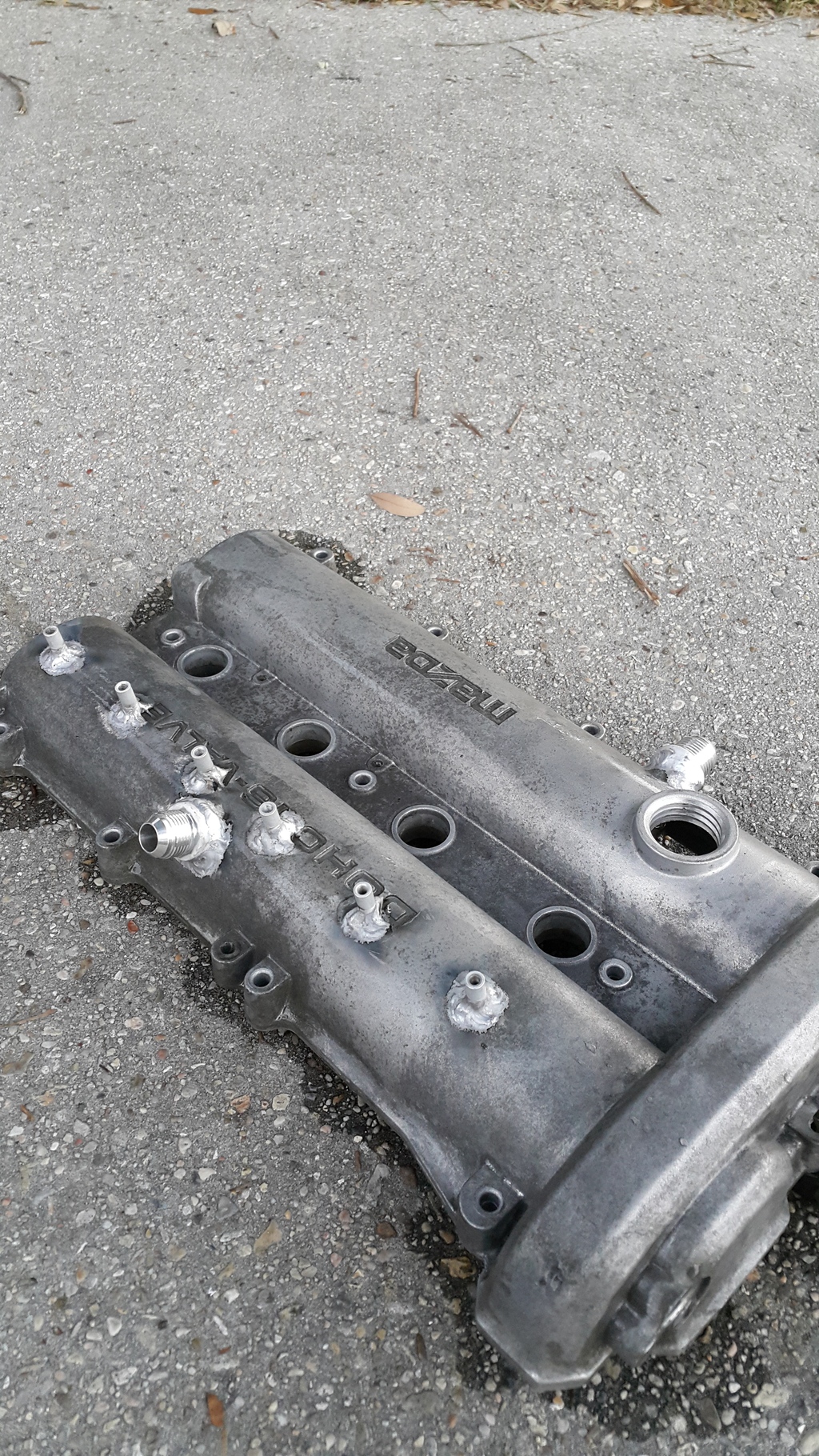

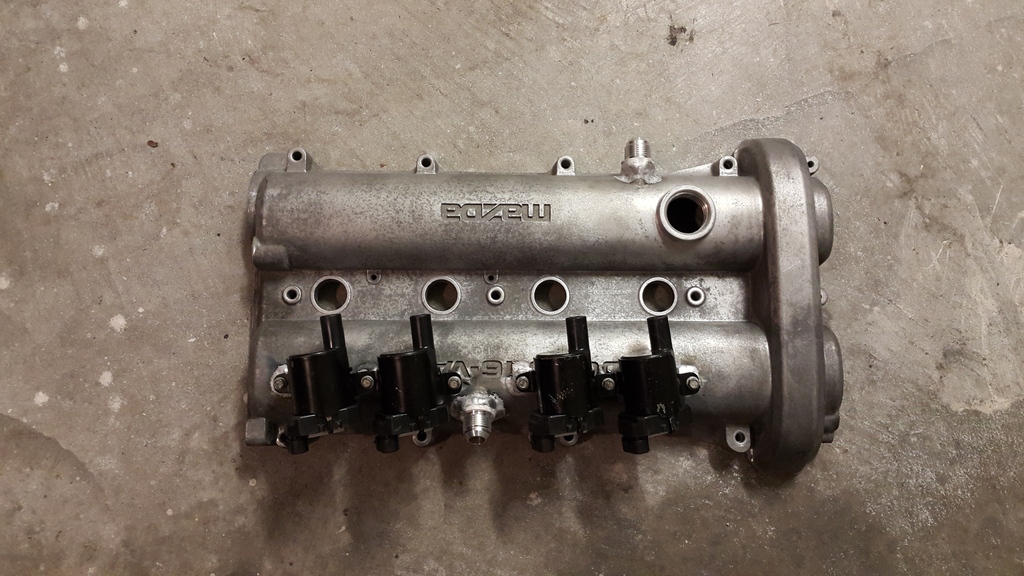

I got a 99-00 valve cover from 99mx5 for my LS2 truck coil setup and have everything I need but the plug wires. I'll be calling Magnacor in the morning for a custom set.


Attached Thumbnails
Mazdaspeed meets EFR, ARTech, MS2E-20150917_185746_zpsim66khfv.jpg   Mazdaspeed meets EFR, ARTech, MS2E-20150917_192205_zpsfg033scm.jpg   Mazdaspeed meets EFR, ARTech, MS2E-20150917_192053_zpsyiprlxod.jpg
FrankB is offline   Reply With Quote
Old 09-18-2015, 02:30 AM   #245
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Nice job, that would look mint if you sandblasted it.
timk is offline   Reply With Quote
Old 09-18-2015, 02:36 AM   #246
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by timk View Post
Nice job, that would look mint if you sandblasted it.
Thanks, it'll be getting the VHT crinkle black treatment like my current valve cover.
FrankB is offline   Reply With Quote
Old 09-19-2015, 10:11 AM   #247
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

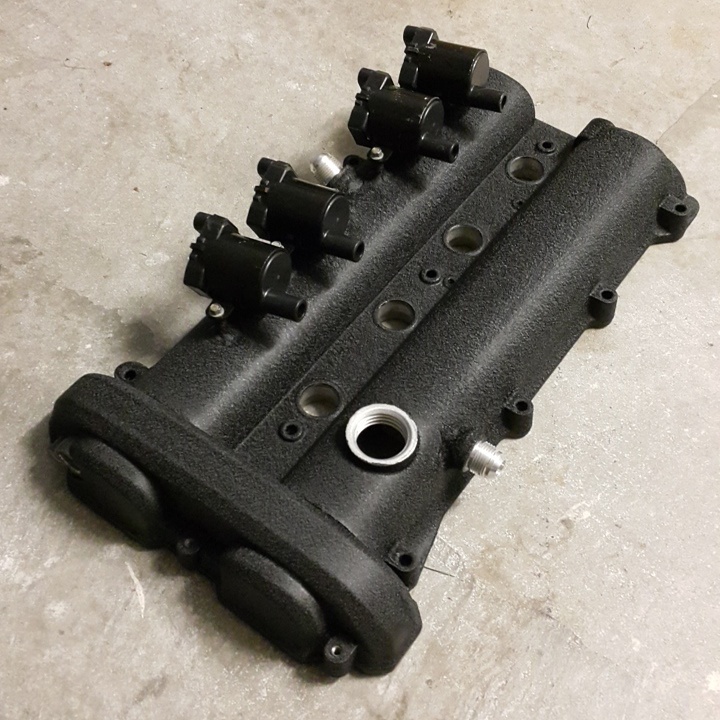

Welded up the letters on the valve cover and then shaved them and sprayed it with the wrinkle black.

Finished product:
Attached Thumbnails
Mazdaspeed meets EFR, ARTech, MS2E-img_20150919_071915_zpsnpk9wknl.jpg
FrankB is offline   Reply With Quote
Old 09-19-2015, 11:05 PM   #248
Senior Member
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,404
Total Cats: 263
Default

Looks badass Frank!
99mx5 is offline   Reply With Quote
Old 09-23-2015, 12:51 AM   #249
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

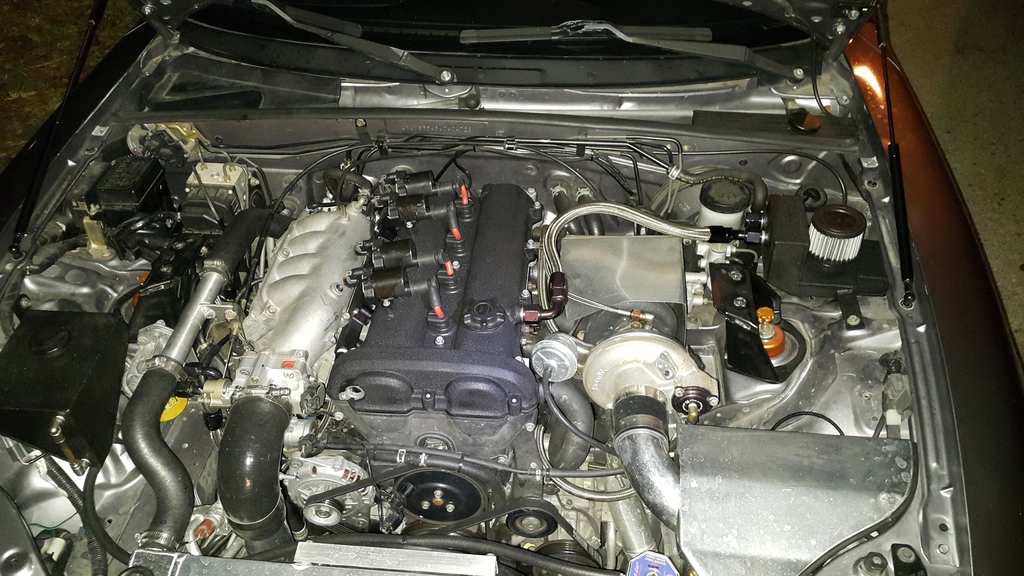

Alright guys, My LS2 Truck coil swap is complete! I thought I was going to have to rewire in the factory coils because I was getting no spark at first but then I realized that with all the excitement of the swap I forgot to hook the CAM sensor back up....

Once I hooked up the sensor the car fired right up, THANK GOD!

I took her for a rive and shes running great!

You can see in the picture I took tht the CAM sensor is out... haha I'm glad it was a simple fix.

She sure does look sexy though!

Attached Thumbnails
Mazdaspeed meets EFR, ARTech, MS2E-20150922_210528_zpsphp86ora.jpg
FrankB is offline   Reply With Quote
Old 09-23-2015, 01:53 AM   #250
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

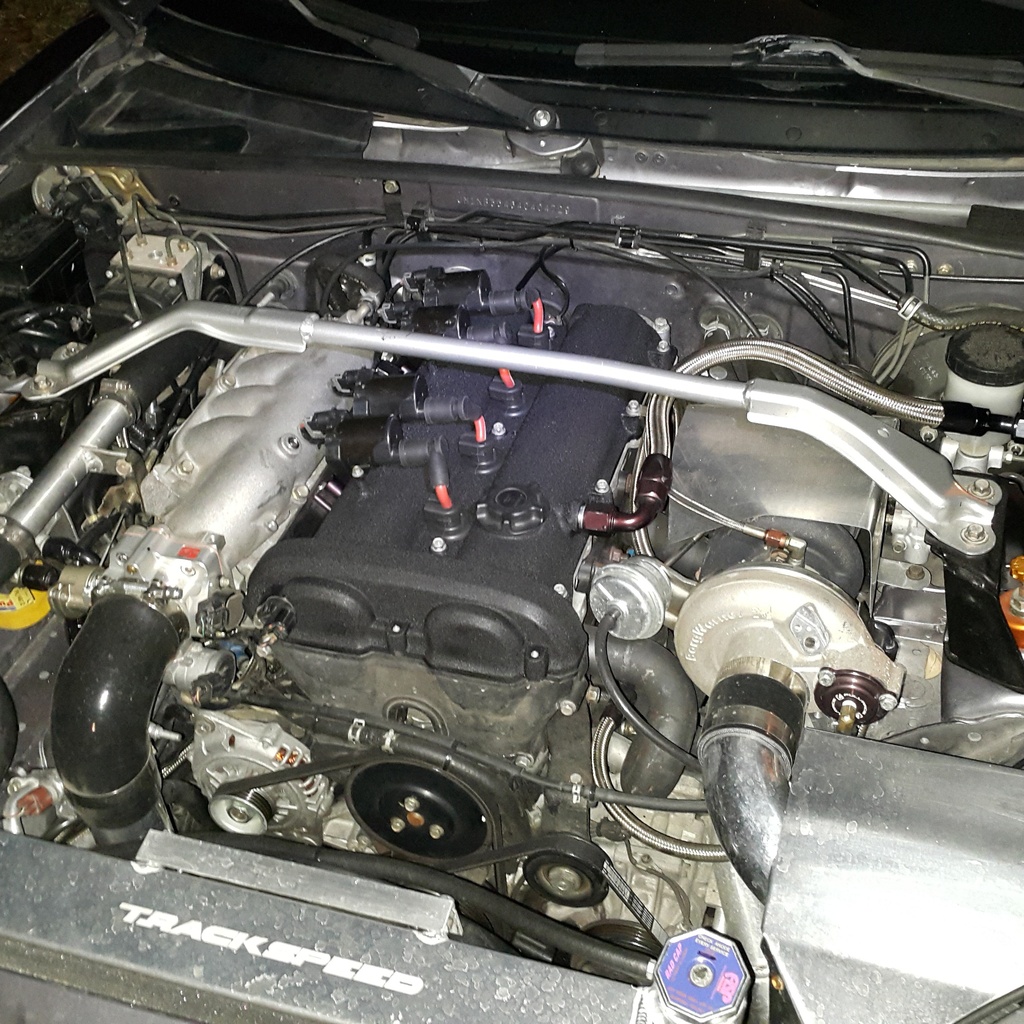

Here's a shot of the engine bay with the swap completed:
Attached Thumbnails
Mazdaspeed meets EFR, ARTech, MS2E-img_20150922_234309_zpserwwztil.jpg
FrankB is offline   Reply With Quote
Old 09-23-2015, 08:32 PM   #251
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,679
Total Cats: 1,561
Default

You never told me if the car overheated on the ride home. Did you do anymore cooling work since I saw you?
sixshooter is online now   Reply With Quote
Old 09-23-2015, 11:31 PM   #252
Junior Member

Join Date: Dec 2009
Location: Brisbane, AUSTRALIA
Posts: 486
Total Cats: 45
Default

What Spark plugs, gap and dwell time are you using?

I've had issues trying to get my D514As to fire using NGK Iridium spark plugs(BKR7EIX-11) which are gapped at 0.044"

I've tried using dwell times ranging from 2.5ms to 4.7ms to get the engine to fire up.


Switching back to the original NGK HKS M35i sparkplugs and Magnecore KV45 leads, dropping the dwell time back to stock 2.1mS and everything fired up as normal.

Details of my setup, including pics, here: mx5cartalk.com ? View topic - Lokiel's "Gina" (2004 Titanium SE)
Lokiel is offline   Reply With Quote
Old 09-24-2015, 01:29 PM   #253
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by sixshooter View Post
You never told me if the car overheated on the ride home. Did you do anymore cooling work since I saw you?

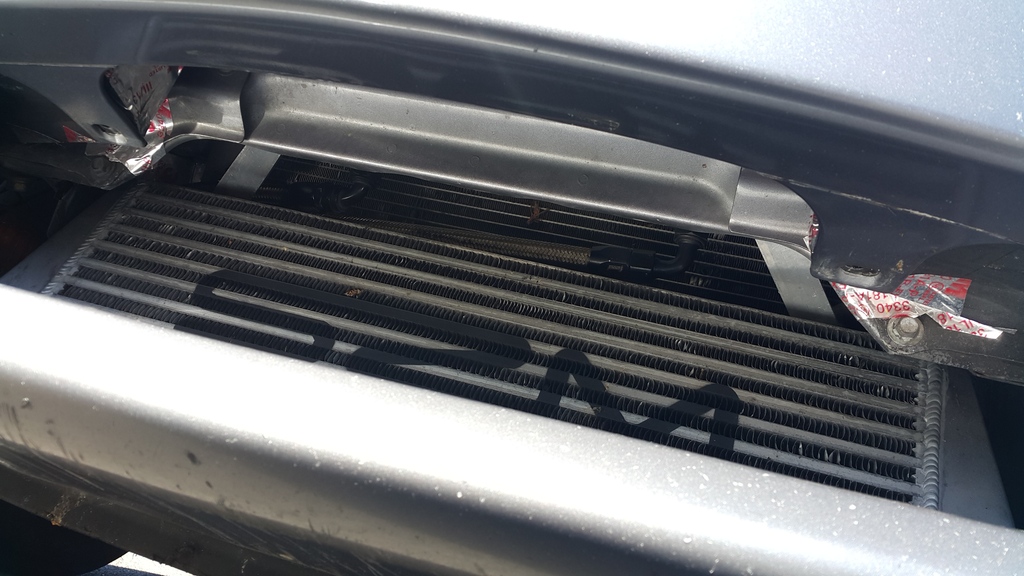

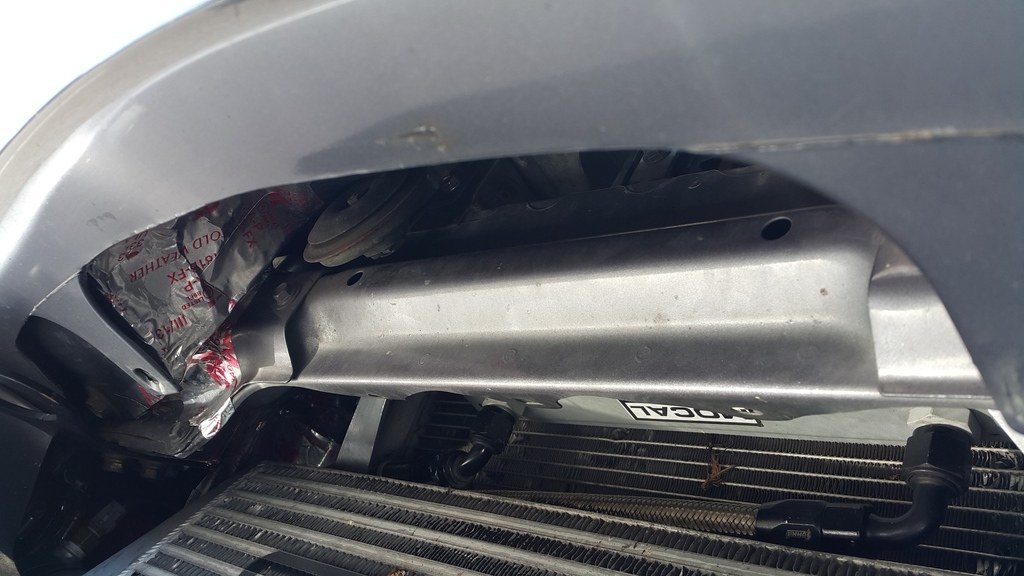

She ran good, I remounted the oil cooler to the underside of the radiator support behind the hood latch to raise it up a couple extra inches. I tilted the intercooler back as far as I could and made new support tabs. Then I cut the bumper support like you mentioned doing but I took it further and cut it along the lines of the bumper cover and 3M taped up as many holes as I could. I also reinstall the engine undertray. I haven't got around to sealing everything up all the way to the bumper yet but its definitely better.







Quote:
Originally Posted by Lokiel View Post
What Spark plugs, gap and dwell time are you using?

I've had issues trying to get my D514As to fire using NGK Iridium spark plugs(BKR7EIX-11) which are gapped at 0.044"

I've tried using dwell times ranging from 2.5ms to 4.7ms to get the engine to fire up.


Switching back to the original NGK HKS M35i sparkplugs and Magnecore KV45 leads, dropping the dwell time back to stock 2.1mS and everything fired up as normal.

Details of my setup, including pics, here: mx5cartalk.com ? View topic - Lokiel's "Gina" (2004 Titanium SE)
I'm 99% positive I have the same plugs but they are regapped to 0.025" and my max dwell duration is set to 4.5ms with a max spark duration of 2.0ms, cranking dmwell is also set to 4.5ms

EDIT: It's funny, I just took a look at your thread and I used the wiring diagram you posted to wire up my coils. I just did a google image search and didn't realized it was yours until now. Thanks for the wiring help Lokiel!
Attached Thumbnails
Mazdaspeed meets EFR, ARTech, MS2E-20150924_102116_zpst4db7t88.jpg   Mazdaspeed meets EFR, ARTech, MS2E-20150924_102132_zpsf8ix4q4q.jpg
FrankB is offline   Reply With Quote
Old 09-25-2015, 03:42 PM   #254
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,679
Total Cats: 1,561
Default

Now that's a good hole! I'm going to go open mine up some more.
sixshooter is online now   Reply With Quote
Old 09-25-2015, 04:19 PM   #255
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by sixshooter View Post
Now that's a good hole! I'm going to go open mine up some more.
Thanks, if you open the bumper support any more than how you have yours you'll find the hollow center. That's why I have so much 3M tape on the back of the bumper support to close off the hole you create in the support.
FrankB is offline   Reply With Quote
Old 09-25-2015, 07:46 PM   #256
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,679
Total Cats: 1,561
Default

I can weld a plastic cover over the hole.
sixshooter is online now   Reply With Quote
Old 09-25-2015, 09:36 PM   #257
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by sixshooter View Post
I can weld a plastic cover over the hole.
That was actually my first idea but I didn't have any plastic handy. What are you planning on using exactly?
FrankB is offline   Reply With Quote
Old 09-27-2015, 01:49 AM   #258
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

AMAZING UPDATE: I finally got the car tuned on the MS3 Basic and it runs great! I also tried out the launch control and that was a blast! Car is running 20psi now!
FrankB is offline   Reply With Quote
Old 09-27-2015, 12:29 PM   #259
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

Quote:
Originally Posted by FrankB View Post
AMAZING UPDATE: I finally got the car tuned on the MS3 Basic and it runs great! I also tried out the launch control and that was a blast! Car is running 20psi now!
Awesome. Glad you got it running good on it.
shuiend is offline   Reply With Quote
Old 09-27-2015, 03:09 PM   #260
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,679
Total Cats: 1,561
Default

I have no idea, but I'll do something.
sixshooter is online now   Reply With Quote
