Old 10-26-2012, 12:12 PM   #481
Junior Member

718 of 4000's Avatar

Join Date: Apr 2011
Posts: 83
Total Cats: 3
Default

Here's another picture, in case you can't open pdfs



It's just like that, but with a back plate that doesn't allow access to the pins on the rear of the connector
718 of 4000 is offline   Reply With Quote
Old 10-26-2012, 12:18 PM   #482
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

hustler is offline   Reply With Quote
Old 10-26-2012, 12:26 PM   #483
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

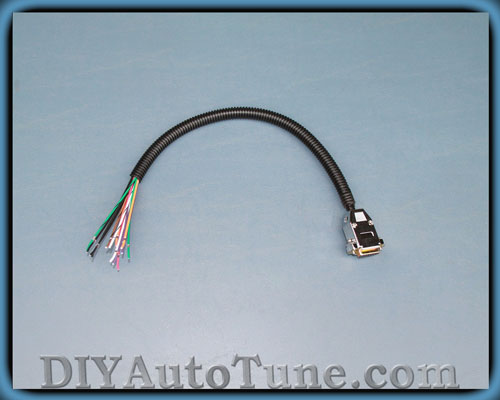

I'm talking about this:

Attached Thumbnails
My awesome daily project 35mpg/150whp highway donut-vvt-piggy_med.jpg
Reverant is offline   Reply With Quote
Old 10-26-2012, 12:48 PM   #484
Junior Member

718 of 4000's Avatar

Join Date: Apr 2011
Posts: 83
Total Cats: 3
Default

Quote:
Originally Posted by Reverant View Post
I'm talking about this:

Oh, the cable.

Mention the DB15 female cable next time!

Yeah, I can do that if Trey wants.
718 of 4000 is offline   Reply With Quote
Old 10-26-2012, 12:52 PM   #485
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

This is what you need to modify. Open up the connector, and you'll see the cables I mentioned.
Reverant is offline   Reply With Quote
Old 10-26-2012, 12:54 PM   #486
Junior Member

718 of 4000's Avatar

Join Date: Apr 2011
Posts: 83
Total Cats: 3
Default

Quote:
Originally Posted by Reverant View Post
This is what you need to modify. Open up the connector, and you'll see the cables I mentioned.
Yeah, I gotcha now.

I've opened up DB connector shells and done something similar before.
718 of 4000 is offline   Reply With Quote
Old 10-26-2012, 03:05 PM   #487
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

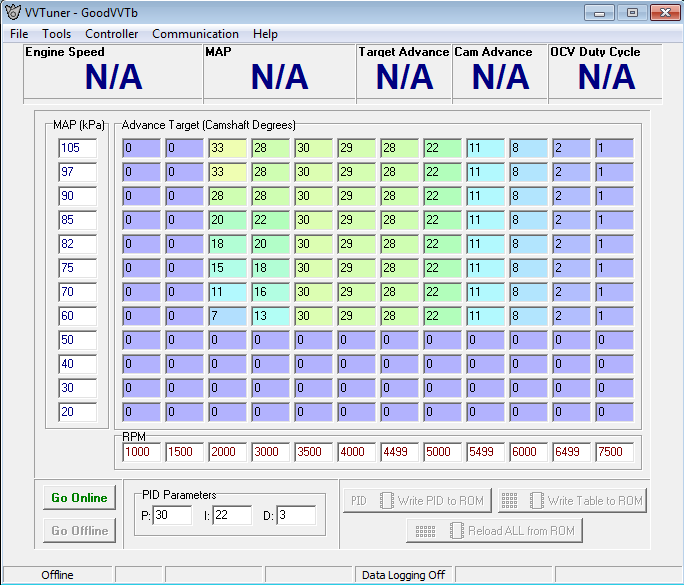

Less bucking in school zones, greater VE value required at 5000rpm:
Attached Thumbnails
My awesome daily project 35mpg/150whp highway donut-pyo2e.png
hustler is offline   Reply With Quote
Old 10-28-2012, 06:36 PM   #488
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Just ordred a baller shift-boot for both cars, like a bauce.
hustler is offline   Reply With Quote
Old 10-29-2012, 04:40 PM   #489
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

My idle was getting all cray cray:

This happens occasionally, wtf? It will not do it with the computer plugged in. When it does this and I plug-in the computer, it stops and acts normally. I guess it knows dad is watching.
hustler is offline   Reply With Quote
Old 10-29-2012, 05:18 PM   #490
Junior Member

718 of 4000's Avatar

Join Date: Apr 2011
Posts: 83
Total Cats: 3
Default

You get my e-mail Trey?
718 of 4000 is offline   Reply With Quote
Old 10-29-2012, 05:34 PM   #491
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Send me your current map Trey.
Reverant is offline   Reply With Quote
Old 11-15-2012, 07:53 PM   #492
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

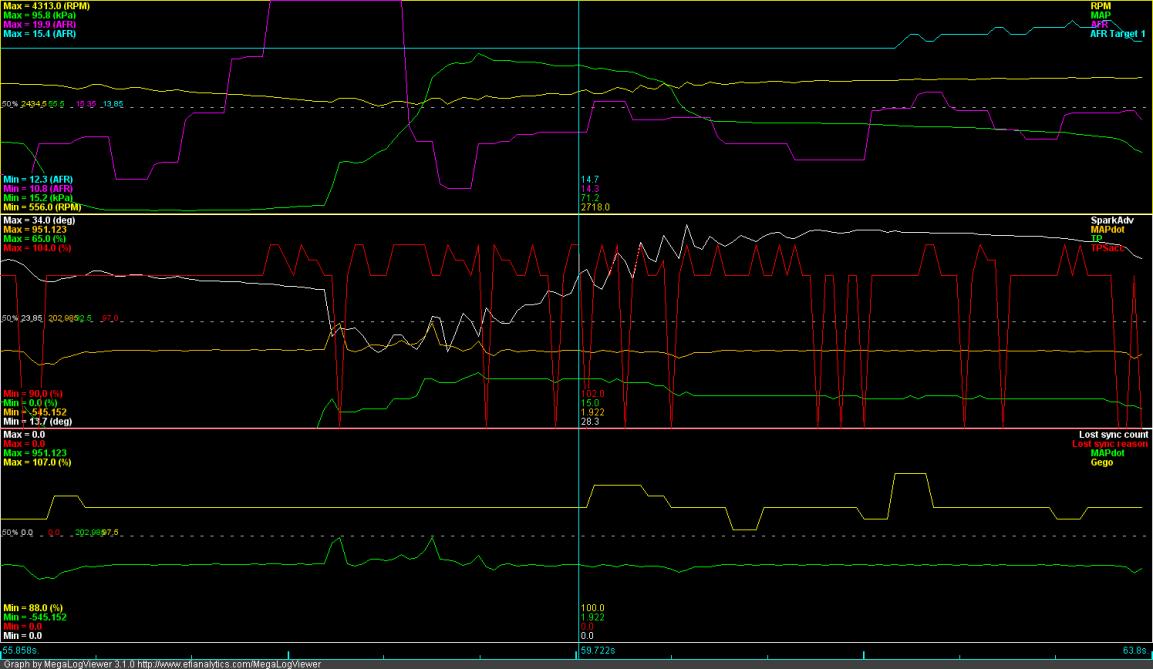

WTF is this TPSaccel ****?
Attached Thumbnails
My awesome daily project 35mpg/150whp highway donut-ao4sp.jpg
hustler is offline   Reply With Quote
Old 11-15-2012, 08:00 PM   #493
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,323
Total Cats: 1,344
Default

Quote:
Originally Posted by hustler View Post
WTF is this TPSaccel ****?
NA6 TPS switched or variable TPS on this car?
emilio700 is offline   Reply With Quote
Old 11-15-2012, 08:01 PM   #494
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by emilio700 View Post
NA6 TPS switched or variable TPS on this car?
Variable, from a 99. threshold is set ot 70%/s
Attached Files
File Type: msq RoadTuned87test.msq (102.1 KB, 56 views)
hustler is offline   Reply With Quote
Old 11-15-2012, 09:47 PM   #495
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

tpsaccel is your TPS Accel Enrichment. It is a percent of req fuel I believe. Note your scale is 90-104% so it's not pulling much.
y8s is offline   Reply With Quote
Old 11-19-2012, 10:03 PM   #496
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by y8s View Post
tpsaccel is your TPS Accel Enrichment. It is a percent of req fuel I believe. Note your scale is 90-104% so it's not pulling much.
Well, it doesn't look like that when I log with the computer.

On another note, I got 34mpg at 80mph with the headlights up after some work on my return home from F1. I'm running 10* of advance on the cam in the cruise cells, 15.3afr, and 31* of spark.
hustler is offline   Reply With Quote
Old 11-20-2012, 11:44 AM   #497
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Have you profiled your speedo against GPS?
Bryce is offline   Reply With Quote
Old 11-20-2012, 12:14 PM   #498
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Bryce View Post
Have you profiled your speedo against GPS?
Yes, 7% correction on mileage. I managed to pull another .2ms of PW out of 80mph cruise last night and went from 73kpa to 61kpa with the lights up at that speed on flat ground. Maybe it will get even better.

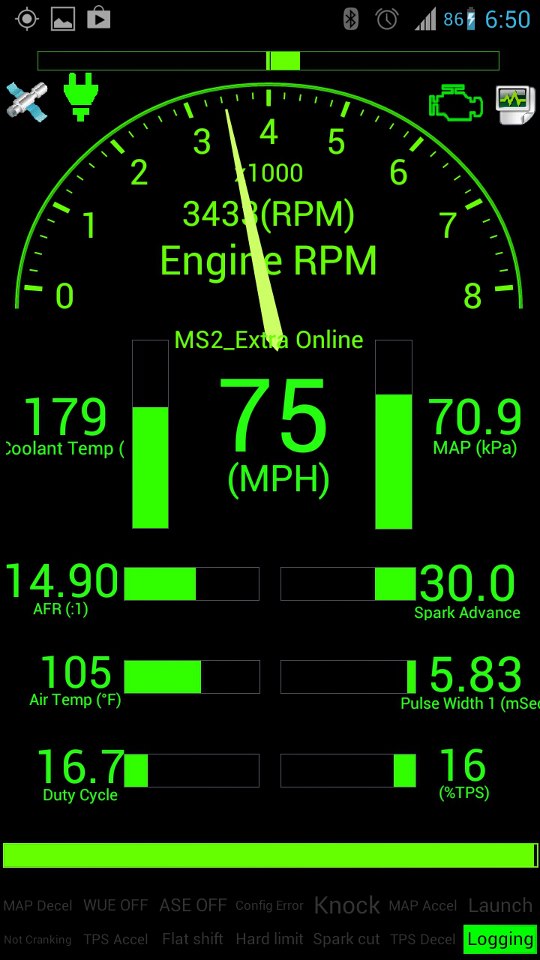

This is pretty handy for fuel economy:
Attached Thumbnails
My awesome daily project 35mpg/150whp highway donut-553978_10101197653844130_356753564_n.jpg
hustler is offline   Reply With Quote
Old 12-14-2012, 05:47 PM   #499
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

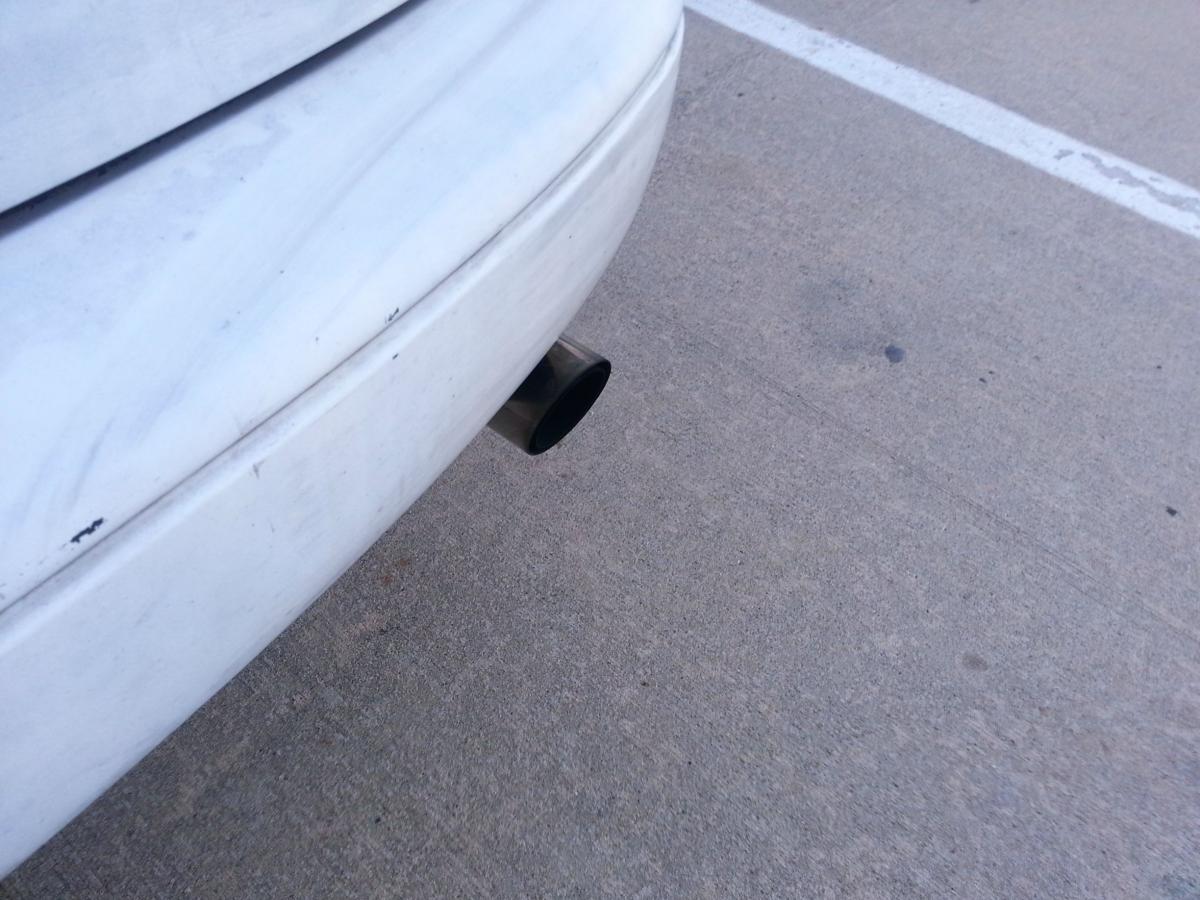

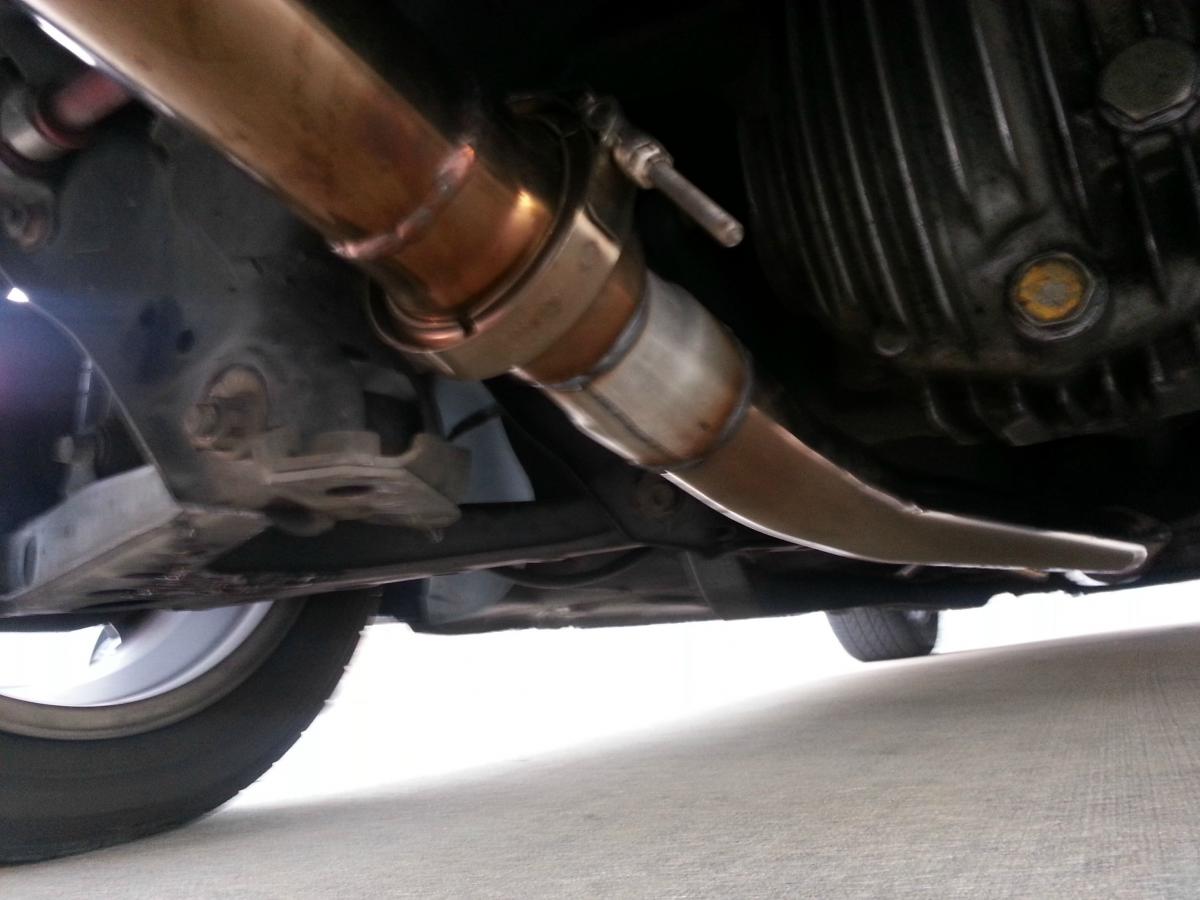

I wanted to take a moment to show everyone how well the Roadster Sport exhaust fit on my daily:

All you have to do is drop $50 and get a muffler shop to weld-in another 2" of pipe.

Without the pipe the muffler would not mount-up with the rear hangers, the front hanger fit fine. When I compared it to the spare OEM exhaust and the Enthuza 3", the mid-pipe was clearly 2" too short.

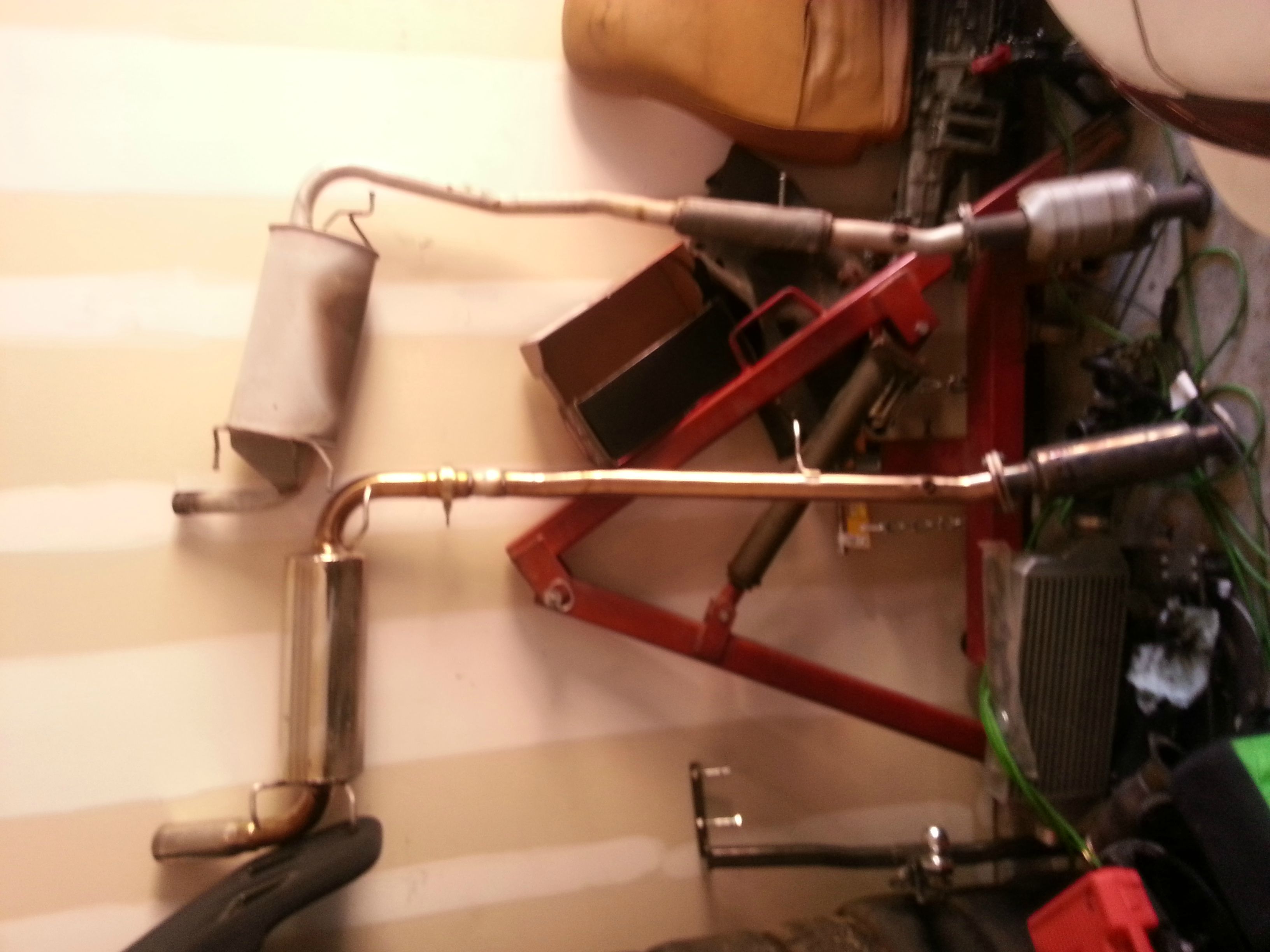

Here's a pic of it next to the OEM ehxuast. Notice that the OEM exhaust "tip" has fallen off, and that was like another 2" long. The location of the muffler inlet bend tells the tale.

I have a VVT engine, RB NA header, and OEM cat on my daily. My track car has a 99 engine, RB NA header, test-pipe. Apparently I'm doing something wrong.
Attached Thumbnails
My awesome daily project 35mpg/150whp highway donut-pzmfa.jpg   My awesome daily project 35mpg/150whp highway donut-0jdfk.jpg
hustler is offline   Reply With Quote
Old 12-14-2012, 06:21 PM   #500
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Apparently. Because I had an RB header, Roadstersport midpipe and roadstersport muffler and it all fit perfectly.
