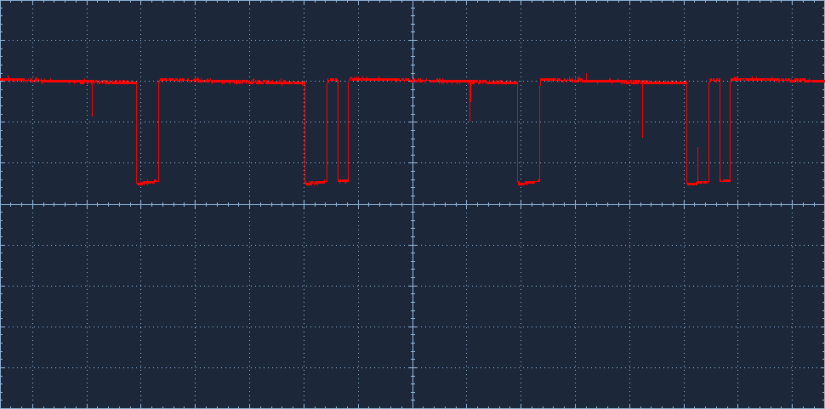

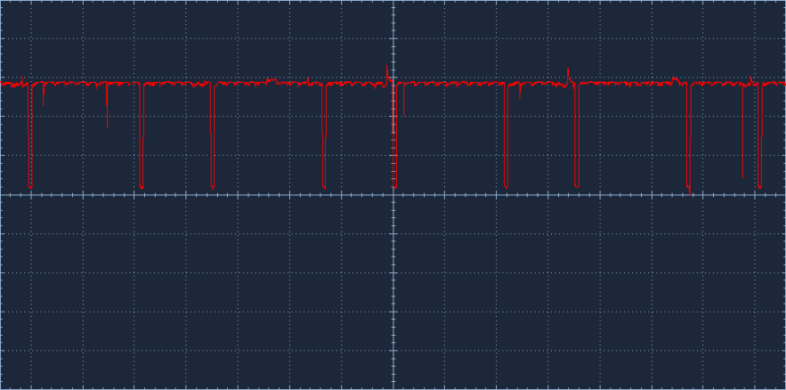

I'm half way through the wiring but I have a problem...I don't really know how to read the key logger. Can someone take a look at these two pics from another thread and tell me what's wrong with them?


I'm basically counting 4 CKP teeth and I should see the 3 CMP teeth falling...where?
hustler is offline   Reply With Quote
Old 10-10-2012, 12:31 PM   #302
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

BTW, I'm using the yellow/blue from the 1994 EGR purge valve solenoid to pin #8 on the VVTuner. I don't think Dimitris put anything on the circuit since it's been unplugged for 9-months with the car running fine.
hustler is offline   Reply With Quote
Old 10-10-2012, 12:38 PM   #303
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

What exactly are you trying to do? What is wired up so far?
shuiend is offline   Reply With Quote
Old 10-10-2012, 12:44 PM   #304
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

The signals themselves look ok. Its the phasing between them that must match. Can you get both together in the same screen?
Reverant is offline   Reply With Quote
Old 10-10-2012, 01:06 PM   #305
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

On the coils for the 2001, please tell me if I'm right here:
black is GND
black/white is power
brown, brown/white, brown/yellow, or blue/yellow is signal

The wire diagrams online don't match my coils. My coils have different wire colors, the brown/white goes to coil #1, brown goes to coil #2 which does not match the diagrams.
hustler is offline   Reply With Quote
Old 10-10-2012, 01:07 PM   #306
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Reverant View Post
The signals themselves look ok. Its the phasing between them that must match. Can you get both together in the same screen?
I haven't finished wiring yet. That is from another thread and I was hoping to go into this with some knowledge so I don't panic. Something engine management related went wrong on the green car last night so I really need the white car to work today, lol. I don't care to trouble shoot two cars. (I think it's IAT related on the green car.)
hustler is offline   Reply With Quote
Old 10-10-2012, 01:09 PM   #307
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Can someone come over and help me bleed my clutch slave? thanks.
hustler is offline   Reply With Quote
Old 10-10-2012, 01:12 PM   #308
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by hustler View Post
On the coils for the 2001, please tell me if I'm right here:
black is GND
black/white is power
brown, brown/white, brown/yellow, or blue/yellow is signal

The wire diagrams online don't match my coils. My coils have different wire colors, the brown/white goes to coil #1, brown goes to coil #2 which does not match the diagrams.
Correct.

On the 2001, the brown/yellow goes to the rear coil that sparks on cylinders 1 and 4, while brown goes to the front coil that sparks cylinders 2 and 3.
Reverant is offline   Reply With Quote
Old 10-10-2012, 01:13 PM   #309
Junior Member
iTrader: (3)

Join Date: Apr 2012
Location: Ridgecrest CA
Posts: 448
Total Cats: 44
Default

Those are the correct wires (Black/White - Power, Black - Ground, others - signal). Brown/White to coil 2 (forward one), Black/Yellow to coil 1 (rear one) on my 2001.
czubaka is offline   Reply With Quote
Old 10-10-2012, 01:15 PM   #310
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Reverant View Post
Correct.

On the 2001, the brown/yellow goes to the rear coil that sparks on cylinders 1 and 4, while brown goes to the front coil that sparks cylinders 2 and 3.
There is no brown/yellow on my car, but now I know what do do. I'm going to break from the wire diagram because my coils, in the factory wiring plastic stuff, untouched, makes brown/white go to coil #1. I'm going to write this down and save it for future reference. Is this a big "no no" in the "automotive electronics guild of people who have a clue"?
hustler is offline   Reply With Quote
Old 10-10-2012, 01:17 PM   #311
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Thanks bros.
hustler is offline   Reply With Quote
Old 10-10-2012, 01:26 PM   #312
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by hustler View Post
There is no brown/yellow on my car, but now I know what do do. I'm going to break from the wire diagram because my coils, in the factory wiring plastic stuff, untouched, makes brown/white go to coil #1. I'm going to write this down and save it for future reference. Is this a big "no no" in the "automotive electronics guild of people who have a clue"?
There should be NO brown/white going to the coils on a 94-95.

Its either black/white (which is 12V), or brown/yellow. Maybe the yellow seems like white after so many years under the hood?
Reverant is offline   Reply With Quote
Old 10-10-2012, 02:32 PM   #313
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

This bitch starts and runs.

Thanks everyone. I'll be back later.
hustler is offline   Reply With Quote
Old 10-10-2012, 02:45 PM   #314
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by hustler View Post
This bitch starts and runs.

Thanks everyone. I'll be back later.
Congrats on getting her running.
shuiend is offline   Reply With Quote
Old 10-10-2012, 03:22 PM   #315
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Hurray!
Reverant is offline   Reply With Quote
Old 10-10-2012, 03:35 PM   #316
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Reverant View Post
Hurray!
I emailed you asking about the VVT harness which has a red and purple wire. Which is signal/#8 and what does the other do?

Thanks
hustler is offline   Reply With Quote
Old 10-10-2012, 03:43 PM   #317
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Purple is #8. Red is 12V for the VVT solenoid, aka #15.
Reverant is offline   Reply With Quote
Old 10-10-2012, 03:45 PM   #318
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Reverant View Post
Purple is #8. Red is 12V for the VVT solenoid, aka #15.
Do I need to add power to this? Can I just grab power at the factory connector from white/red?

I assumed it was powered through the harness you built. Last question. After this you can ignore all emails. lol
hustler is offline   Reply With Quote
Old 10-10-2012, 03:48 PM   #319
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

The red wire HAS 12 volts.

Just connect these two wires to the solenoid. Polarity doesn't matter.
Reverant is offline   Reply With Quote
Old 10-10-2012, 03:49 PM   #320
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Reverant View Post
The red wire HAS 12 volts.

Just connect these two wires to the solenoid. Polarity doesn't matter.
I powered the solenoid off red/wht from the injector harness so I'll leave it. Thanks baller.

Now seriously, I'm playing "hey mister" with the neighbors to find a bleed buddy. lol
hustler is offline   Reply With Quote
