Old 10-12-2012, 03:55 AM   #361
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

32 is a confirmed sync loss due to improper crank/cam timing.

Does it occur often enough to catch it with a composite log?
Reverant is offline   Reply With Quote
Old 10-12-2012, 04:05 AM   #362
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Reverant View Post
32 is a confirmed sync loss due to improper crank/cam timing.

Does it occur often enough to catch it with a composite log?
I'll get it. There are 44 sync losses in that log which is 28-minutes long. What does sync-loss look like on the composite logger? I downloaded this from a Supra with sync loss, but I don't really know what I'm looking at.

Is this something I can fix or am I screwed? This kind of sucks because my track car is kind of screwed-up right now and I can't really drive it.
hustler is offline   Reply With Quote
Old 10-12-2012, 04:15 AM   #363
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

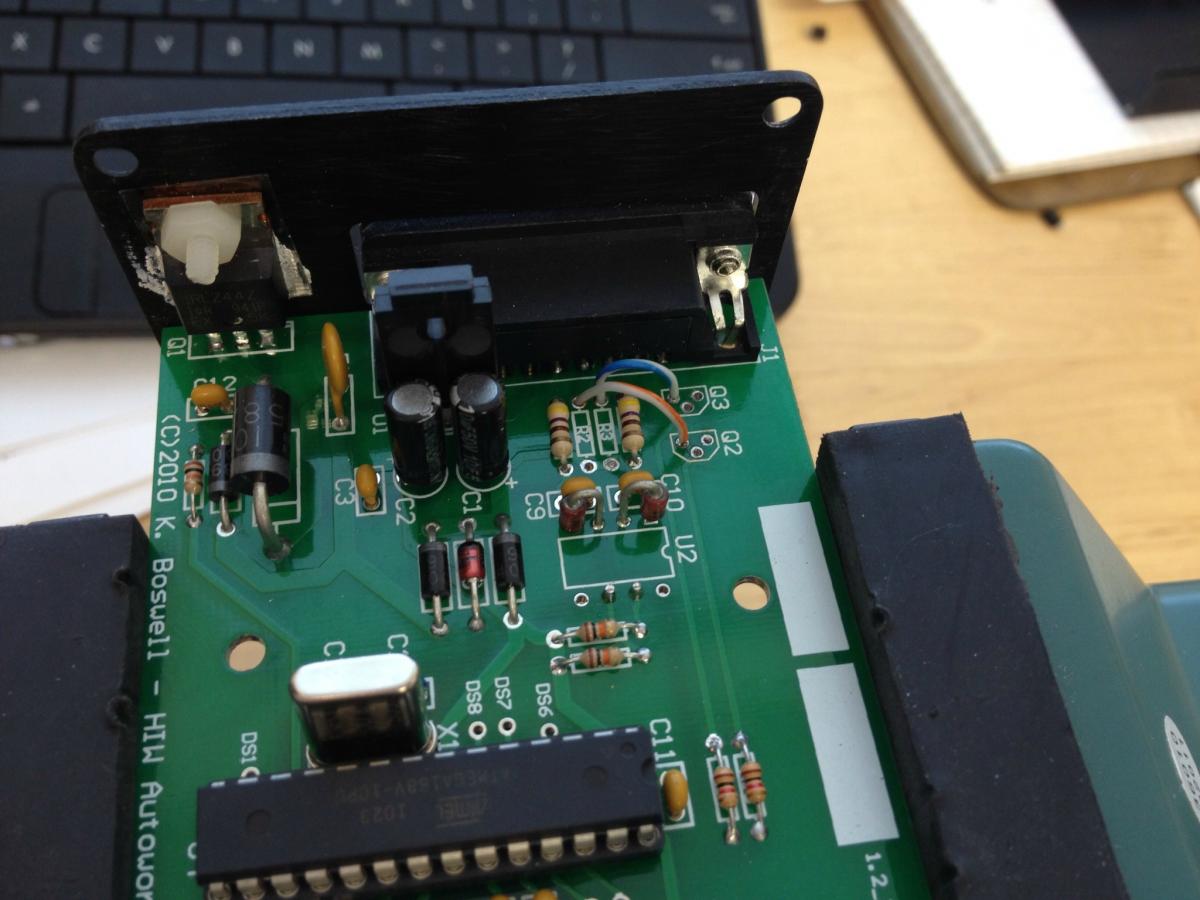

Graeme sent me this pic of the mod he had to do:

I'm watching google vids on soldering circuit boards, kind of a shitty way to start out learning how to mod this stuff.
Attached Thumbnails
My awesome daily project 35mpg/150whp highway donut-megim.jpg
hustler is offline   Reply With Quote
Old 10-12-2012, 04:36 AM   #364
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I should have just bought that Bugatti instead.
hustler is offline   Reply With Quote
Old 10-12-2012, 11:01 AM   #365
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

get some vodka and burn it.
Braineack is offline   Reply With Quote
Old 10-12-2012, 11:51 AM   #366
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Can someone please help me and and shoe me what a composite-logger sync 32 error looks like so I know when I have what I need to proceed? I made a few logs this morning and can't tell if it's happening or not.

Quote:
Originally Posted by Braineack View Post
get some vodka and burn it.
Hold on, let me mouth some dudes first.
hustler is offline   Reply With Quote
Old 10-12-2012, 11:52 AM   #367
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: raleigh nc
Posts: 140
Total Cats: 1
Default

I have a spare vvt valve cover if you need it. Fatkao might have a spare head off his first vvt motor, try pming him if not let me know and I will call him.
tzdevill is offline   Reply With Quote
Old 10-12-2012, 12:03 PM   #368
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

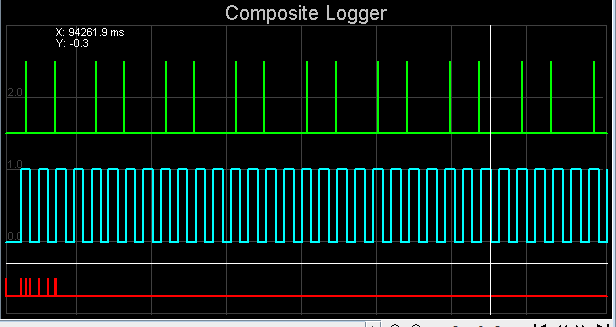

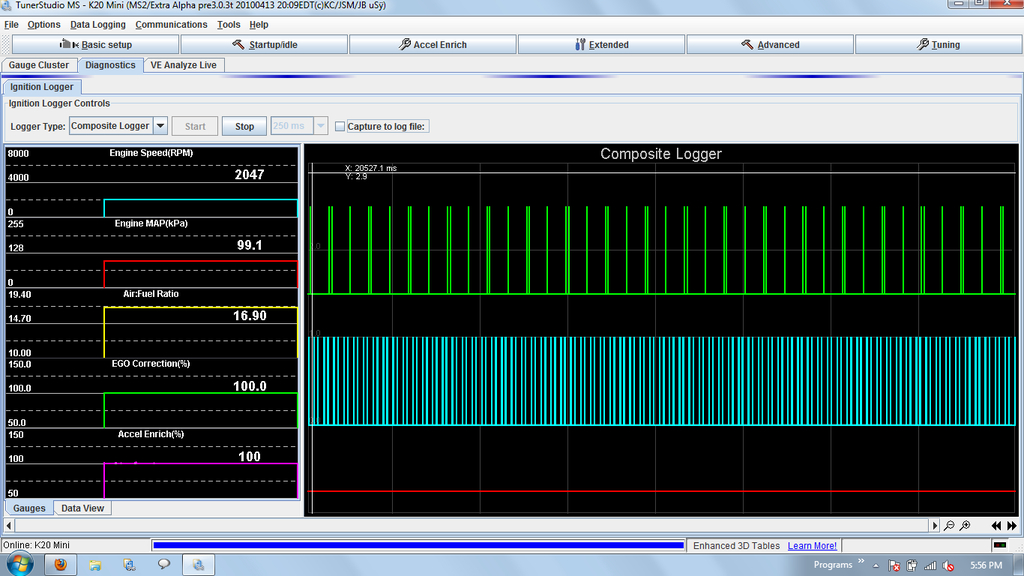

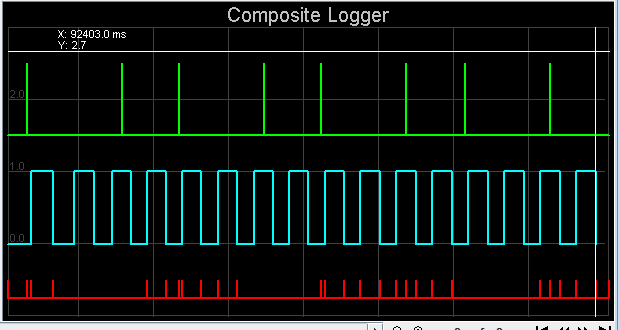

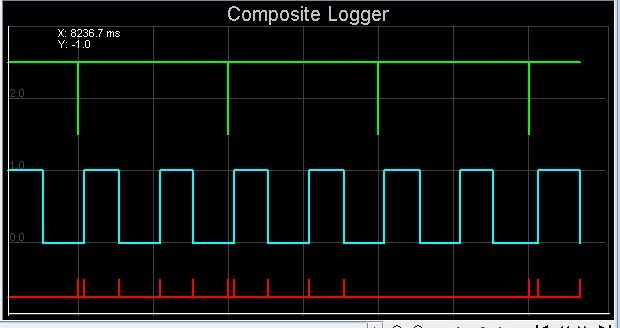

Here are a few logs that all have sync loss and I can't tell where which I found on the interweb from various cars:






Just about every one of those shows no break in the CKP/CMP patters. Damn, I'm dumb.
Attached Thumbnails
My awesome daily project 35mpg/150whp highway donut-goodcomplog.png

Last edited by hustler; 10-12-2012 at 12:50 PM.
hustler is offline   Reply With Quote
Old 10-12-2012, 12:05 PM   #369
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

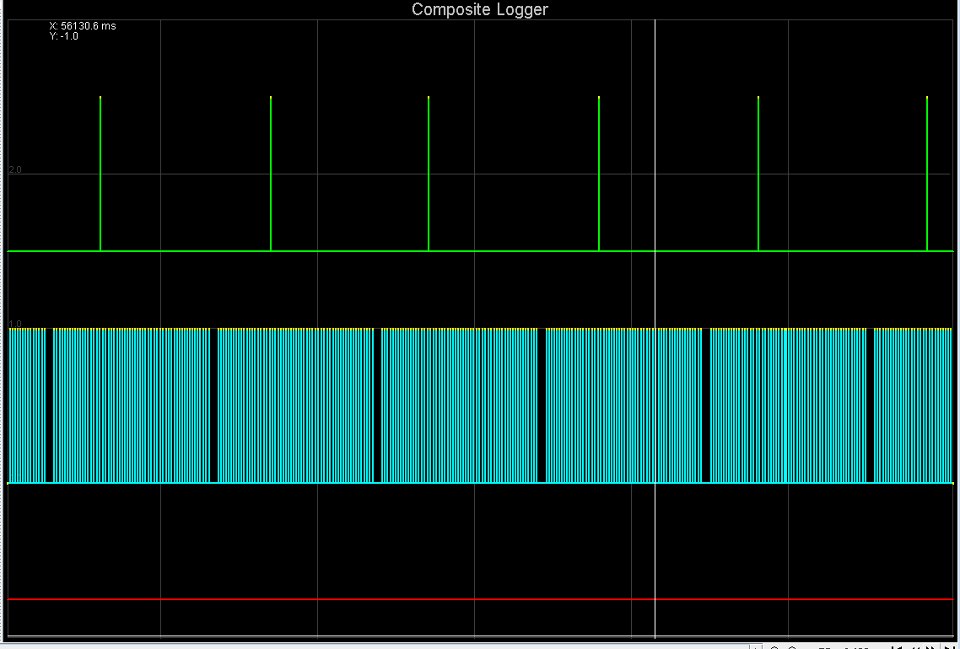

I feel like they should all look like this if a 36-1 and a single cas tooth. some you've posted look like a 4-2
Attached Thumbnails
My awesome daily project 35mpg/150whp highway donut-603211_10151044438916953_758046932_n.jpg
Braineack is offline   Reply With Quote
Old 10-12-2012, 12:13 PM   #370
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Braineack View Post


I feel like they should all look like this if a 36-1 and a single cas tooth. some you've posted look like a 4-2
That's because I can't find a composite logger with sync loss. Any thoughts on going with a tighter tolerance on the CKP sensor?
hustler is offline   Reply With Quote
Old 10-12-2012, 12:28 PM   #371
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,776
Total Cats: 1,106
Default

Quote:
Originally Posted by hustler View Post
That's because I can't find a composite logger with sync loss. Any thoughts on going with a tighter tolerance on the CKP sensor?
What is your tolerance at now? What happens if you unplug the VVT Tuner and drive around? Do you still get sync losses?
shuiend is offline   Reply With Quote
Old 10-12-2012, 12:28 PM   #372
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Have you changed the ignition mode to Miata 99-00 in the MS?
Reverant is offline   Reply With Quote
Old 10-12-2012, 12:32 PM   #373
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Reverant View Post

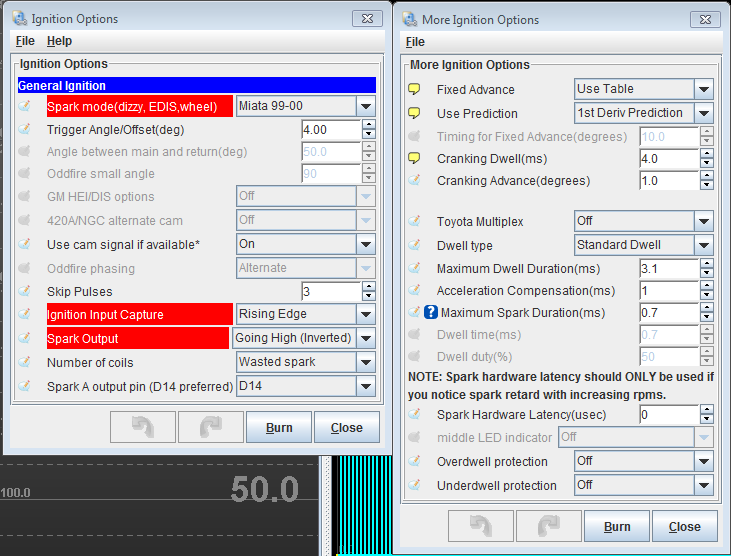

Have you changed the ignition mode to Miata 99-00 in the MS?
Yes.

Attached Thumbnails
My awesome daily project 35mpg/150whp highway donut-anbpc.png
hustler is offline   Reply With Quote
Old 10-12-2012, 12:34 PM   #374
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by shuiend View Post
What is your tolerance at now?
The thickness of two hotel key-cards, I don't have feelers that large.

Quote:
Originally Posted by shuiend View Post
What happens if you unplug the VVT Tuner and drive around? Do you still get sync losses?
I'll check in a little bit.
hustler is offline   Reply With Quote
Old 10-12-2012, 12:44 PM   #375
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

Stack feelers, then add their thicknesses.

Either way, you should be able to tighten that to ~.030 without any adverse effects. Make sure the concentricity between the crank and trigger wheel is good, though.
vehicular is offline   Reply With Quote
Old 10-12-2012, 12:45 PM   #376
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Oh man, stacking feelers...this is embarrassing. I'll get out in a little bit and try this.
hustler is offline   Reply With Quote
Old 10-12-2012, 12:52 PM   #377
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Screw that. Credit card thickness. If you can pull a credit card through the gap with a slight drag it should be good.


Two hotel cards is too big a gap. I was having problems till I closed the gap to 1.
Bryce is offline   Reply With Quote
Old 10-12-2012, 12:58 PM   #378
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Bryce View Post
Screw that. Credit card thickness. If you can pull a credit card through the gap with a slight drag it should be good.


Two hotel cards is too big a gap. I was having problems till I closed the gap to 1.
Troll post?
hustler is offline   Reply With Quote
Old 10-12-2012, 01:04 PM   #379
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Quote:
Originally Posted by hustler View Post
Troll post?
Maybe. I just realized youre running a different trigger wheel than I, right?

I just looked back at my thread. I was getting error 32. My ckp gap was 1/4". Closed the gap to single credit card thickness (gap from tooth to sensor), and the error became less frequent. But what really fixed my problem was going from rising edge trigger to falling edge. Your input circuit setup is possibly very different from mine though. I'm running Frank's implementation of the NB input circuit.
Bryce is offline   Reply With Quote
Old 10-12-2012, 02:18 PM   #380
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I tightened up the tolerance on the CKP sensor and I have about 45-minutes of logs with 1 sync loss event, #31. I am set-up on leading edge. Should I be concerned or switch to falling edge?
hustler is offline   Reply With Quote
