Old 09-15-2015, 09:59 PM   #2001
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,874
Total Cats: 1,266
Default

Too bad it's not a China Turbo then you could just run the wastegate open and creep to 10 psi
aidandj is offline   Reply With Quote
Old 09-15-2015, 10:01 PM   #2002
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,874
Total Cats: 1,266
Default

Has anyone run CNC head+efr? I very excited to see.
aidandj is offline   Reply With Quote
Old 09-15-2015, 10:14 PM   #2003
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,488
Total Cats: 289
Default

Quote:
Originally Posted by EO2K View Post
But I tend to agree with 18, the actuator works and we know it works, plus its the easiest thing in the world to test. Something else in the system is binding, the question is what exactly.


Honestly, I think its just the Skunk2 TB. The air path for the idle air bypass is all jacked up with weird passages and steps and crap. It would not surprise me in the least.
Note that when the car is running the turbo is hot and a different shape than it is when it's cold and being tested. Possible it binds in one and not in the other?

You're talking about the min/max values for the idle control valve? Mine are 18 & 80, with a skunk2.

--Ian
codrus is offline   Reply With Quote
Old 09-15-2015, 10:41 PM   #2004
Junior Member
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 474
Total Cats: 33
Default

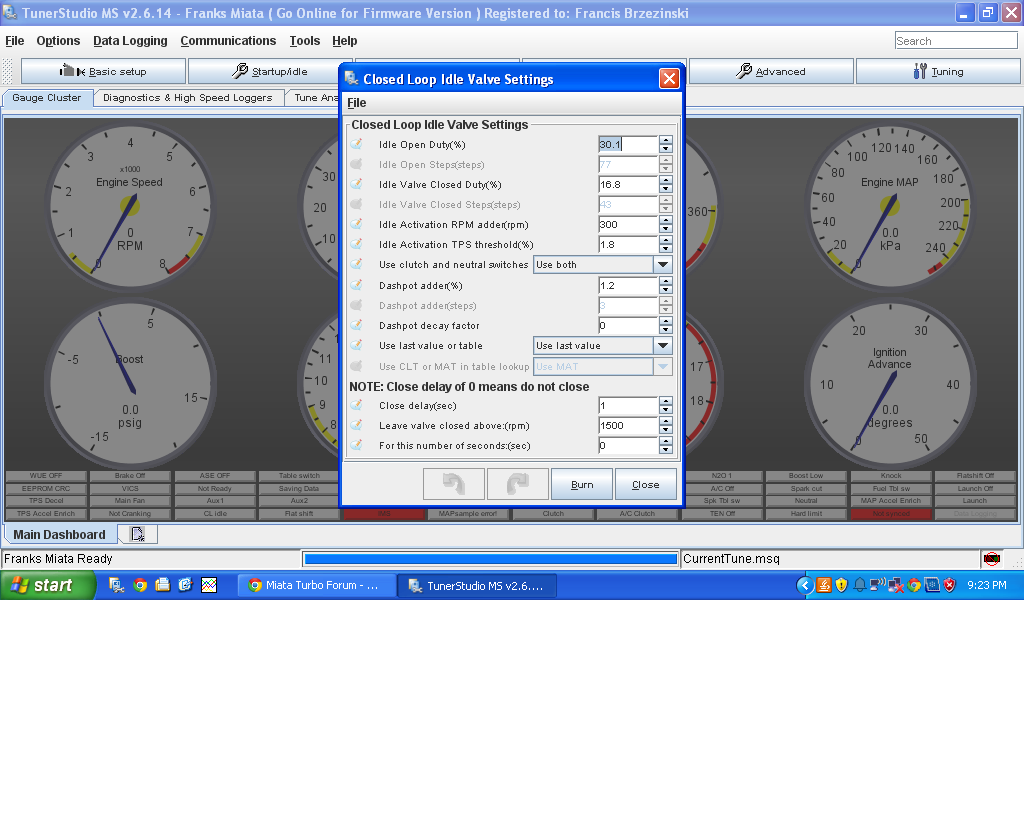

Okay, first here is a screen shot of my IAC valve settings:


Next, to give you an idea of how my EFR-6258 with medium wastegate (preloaded to 10psi) spools to compare to your own.. here are a few screen shots:

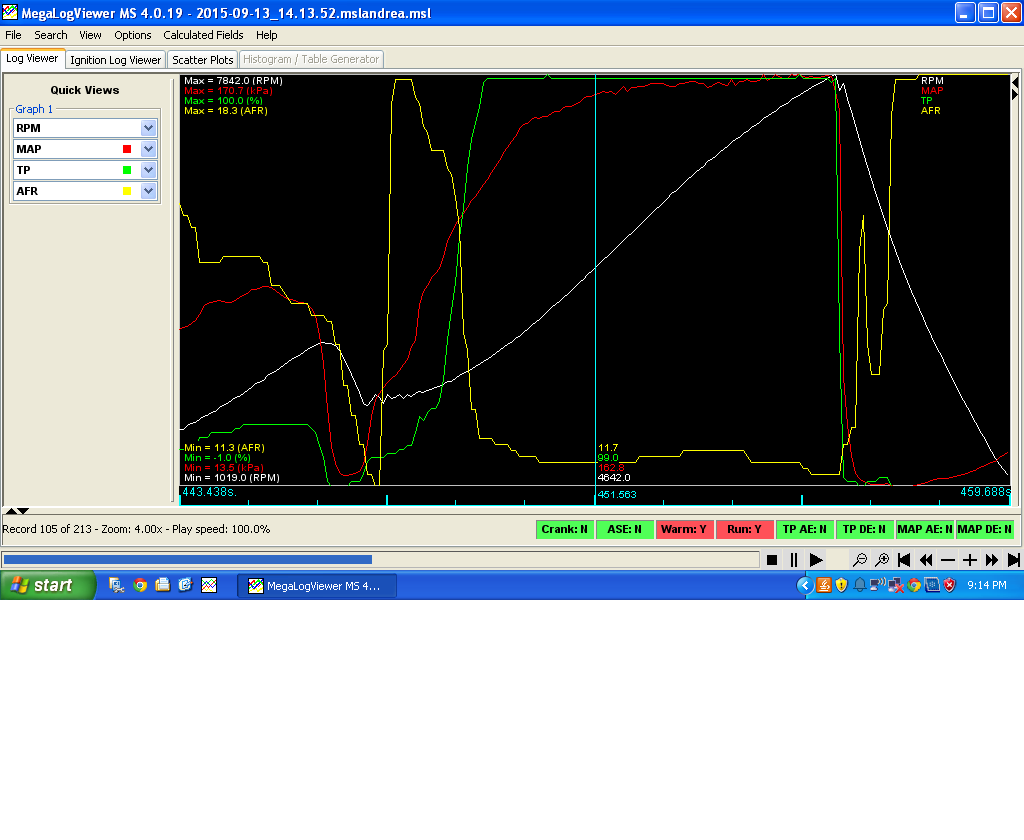

EBC turned off wastegate at 10psi

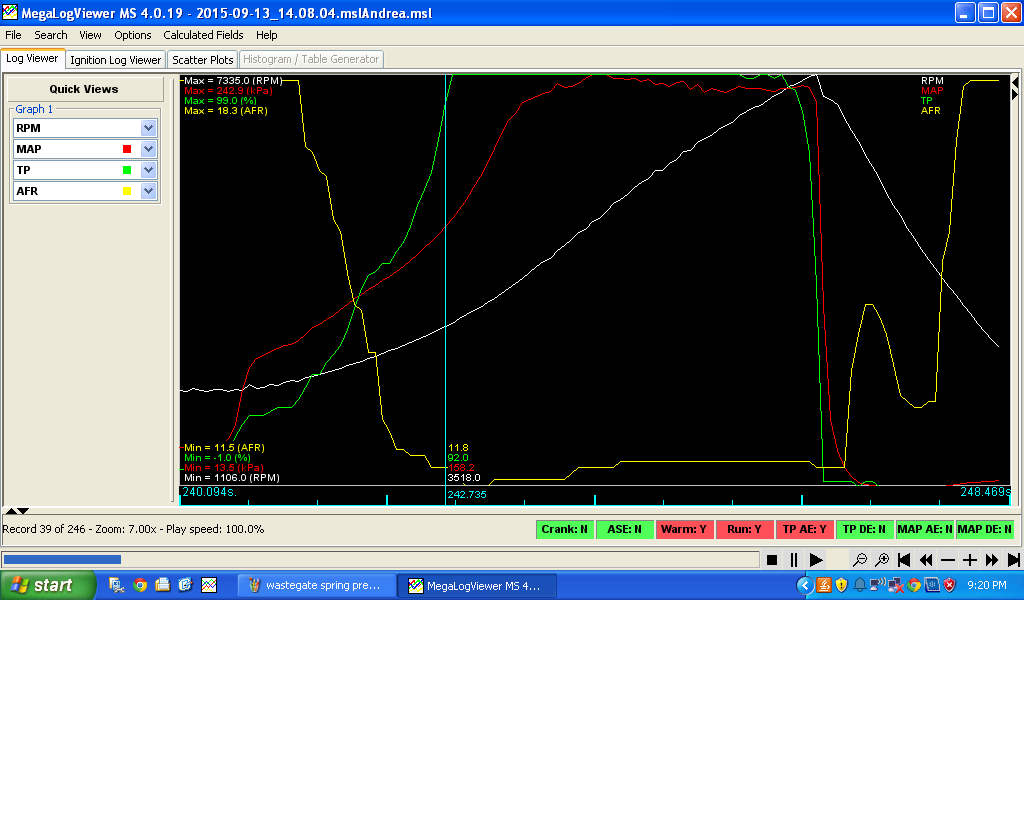

EBC on at 20psi (didn't do a full pull but you get the idea)


I hope this helps!
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-iac%2520settings.png   Nothing to see here, just project Sisyphus, move along-wastegate%2520spring%2520pressure%252010psi.png   Nothing to see here, just project Sisyphus, move along-ebc%252020psi.png
FrankB is offline   Reply With Quote
Old 09-15-2015, 10:52 PM   #2005
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,924
Total Cats: 93
Default

Just clock the chara, thats what I ended up doing. Dont run it like this for too long, or it'll bend the shaft, oh my. And thats the TLDR version of why my car has a turbosmart actuator. Also, with that actuator good luck getting much more than 15psi without running enough preload that your runout of actuator stroke and the flap wont open all the way. Then you either need to step up to the turbosmart dual port or a higher spring normal actuator.
Leafy is offline   Reply With Quote
Old 09-16-2015, 12:32 AM   #2006
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,445
Total Cats: 2,264
Default

What a day. I'm exhausted my knuckles are bleeding, and my fingertips are burnt (1800* housing tend to do that to them lulz). I'll probably expand on some of this more tomorrow, but here goes:

-first I connect air to the wg, it opens fine, but FAIL !! on the way back. doesn't close
- it binds so hard that you can't even pull it shut no matter what, only tapping it seems to loosen it up
- I then removed the wg rod and tested the wg with air. it works fine on it's own
-I then moved the wg flapper arm. it works fine for the most part. not perfect but ok
-after our talk w/ G, I remove the wg bracket which involves pulling one of the coolant feed lines to the turbo and 3 hex screws (pita to get to, cut hands )
-I then wash my hands with coolant, because, you know.......that's awesome (lol)
-I move the wg bracket over to the next set of holes
-It's not even close to looking right at that point, not even close. I rage.
-After another convo w/ G, I loosen the CHRA, the comp housing, and rotate the chra about 10* while keeping compressor in same spot.
-re-install everything, connect air, and VOILA !!!! it seems to open/close. WIN

I start dialing in the car. The difference is already huge. So much better response, so much better low end.

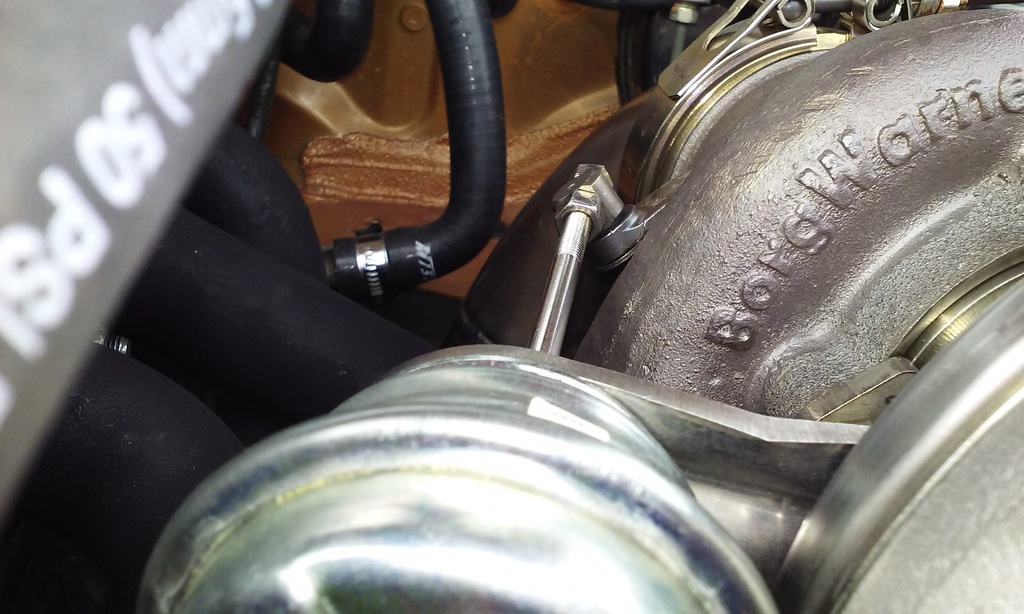

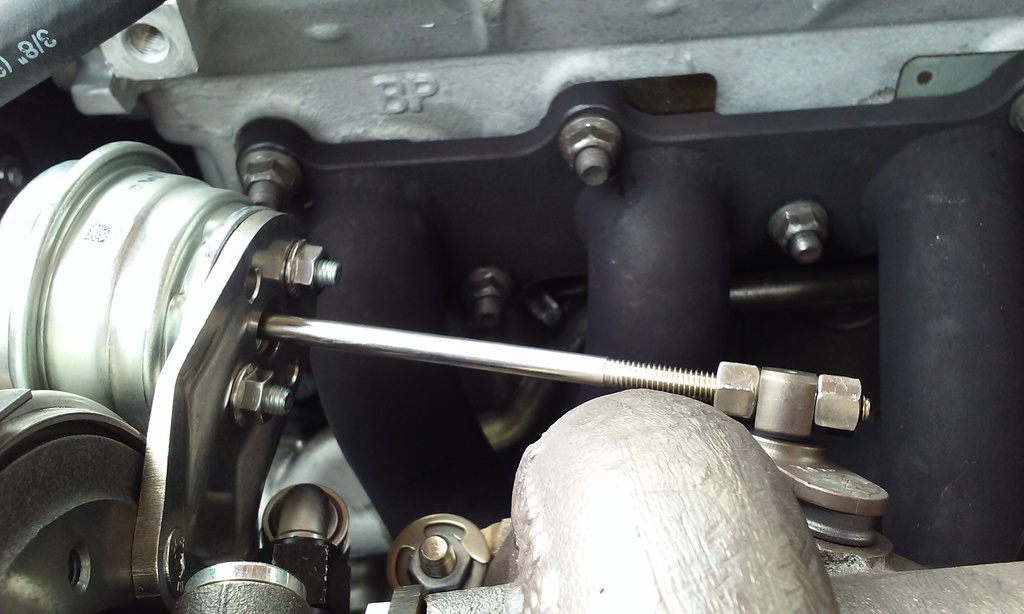

original location

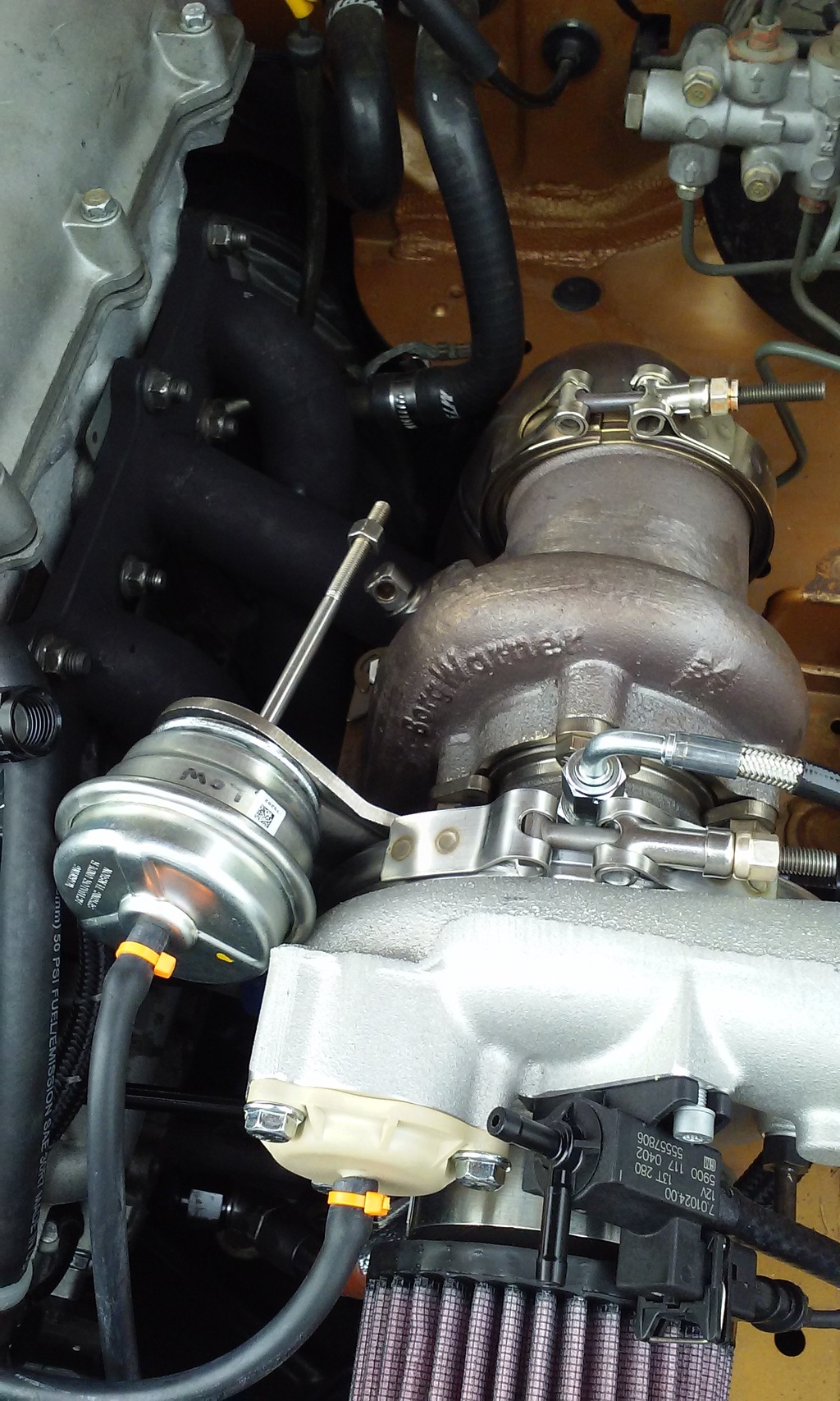

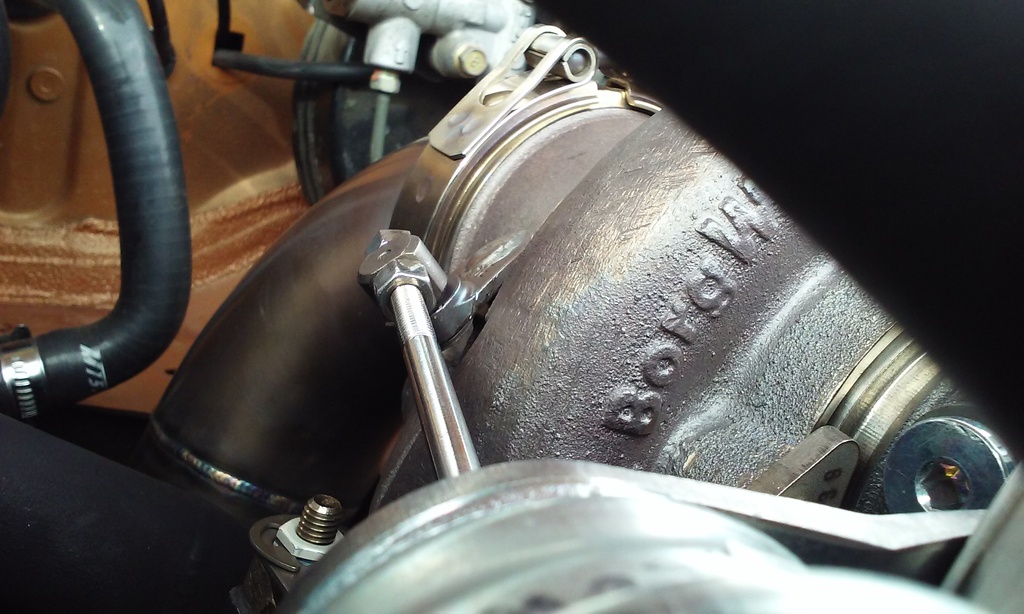

next set of holes location


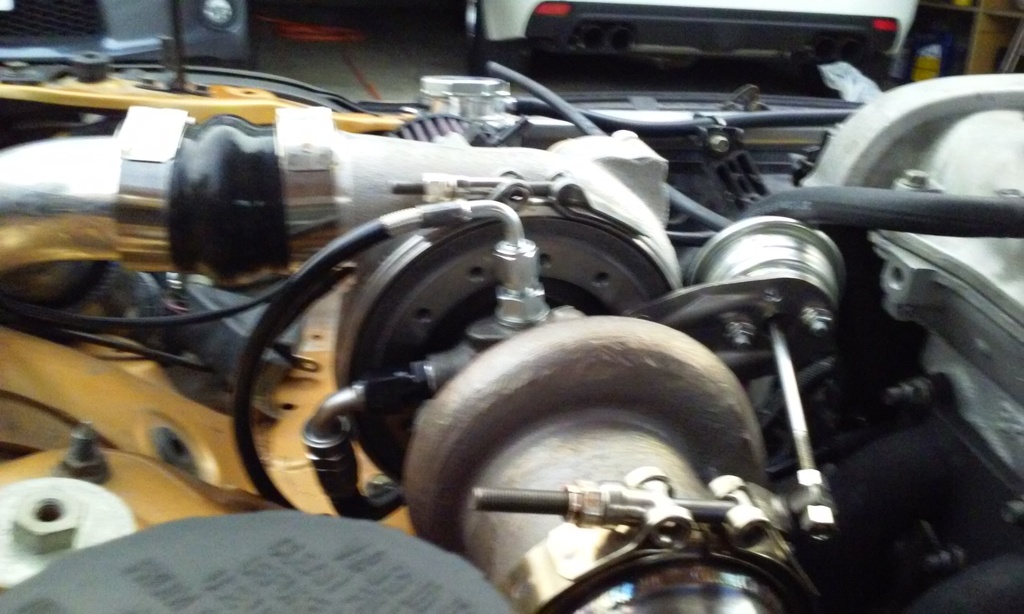

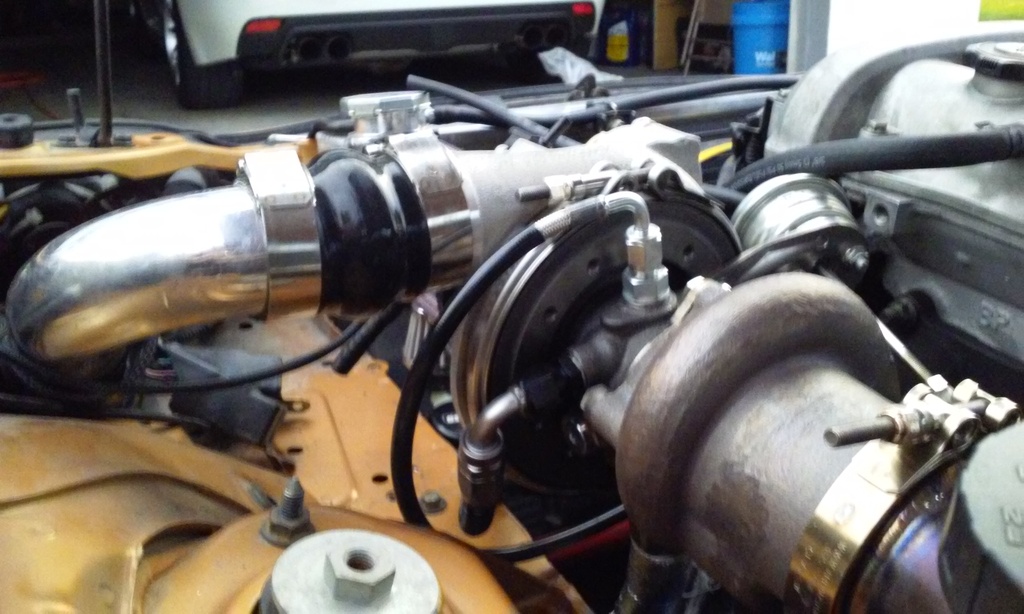

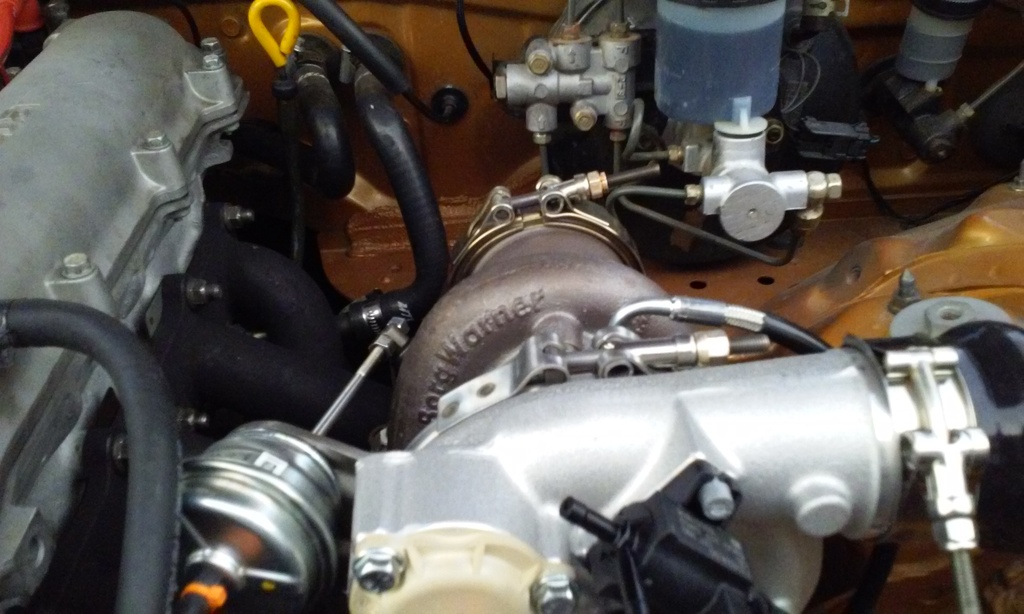

rotated chra


I took a video of testing the new setup but I'll upload it later. it works, obviously.

So anyway, I start dialing in the car. it pulls proper now after about 2 hours roughing in the maps. It's running timing UBER conservative for now, for obvious reasons.

It's making some power.

But the boost is still pretty weird. Keep in mind for now it's ALL MECHANICAL, with the WGA line going straight to the compressor nipple. EBC is installed but I'll need G's go ahead to use it. The car is fast, already spins the RS3's in 1st on demand with next to no timing and very little boost.

But for some reason it creeps past 6k.
MAD VTAK POWERBAND YO




normal or weird?
I know EBC should fix this, but I did not expect this type of boost curve. I actually expected the opposite: good midrang with taper up top.

Is the flapper perhaps still binding a little bit and not opening at high rpm?

Speaking of,

DOES ANYONE HAVE DECENT BORGWARNER EBC settings for MS? Like solenoid freq range, frequency, and stuff like that?

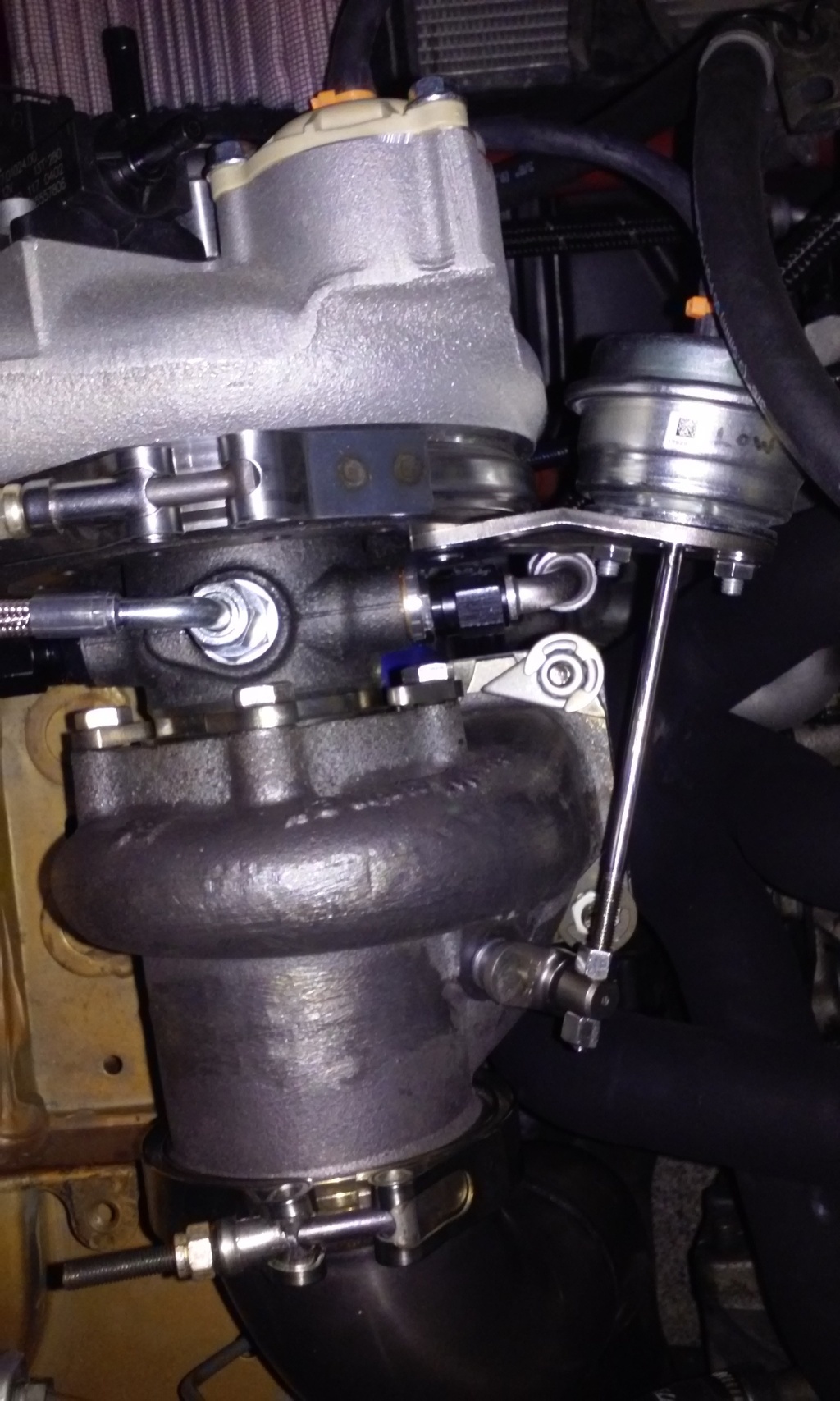

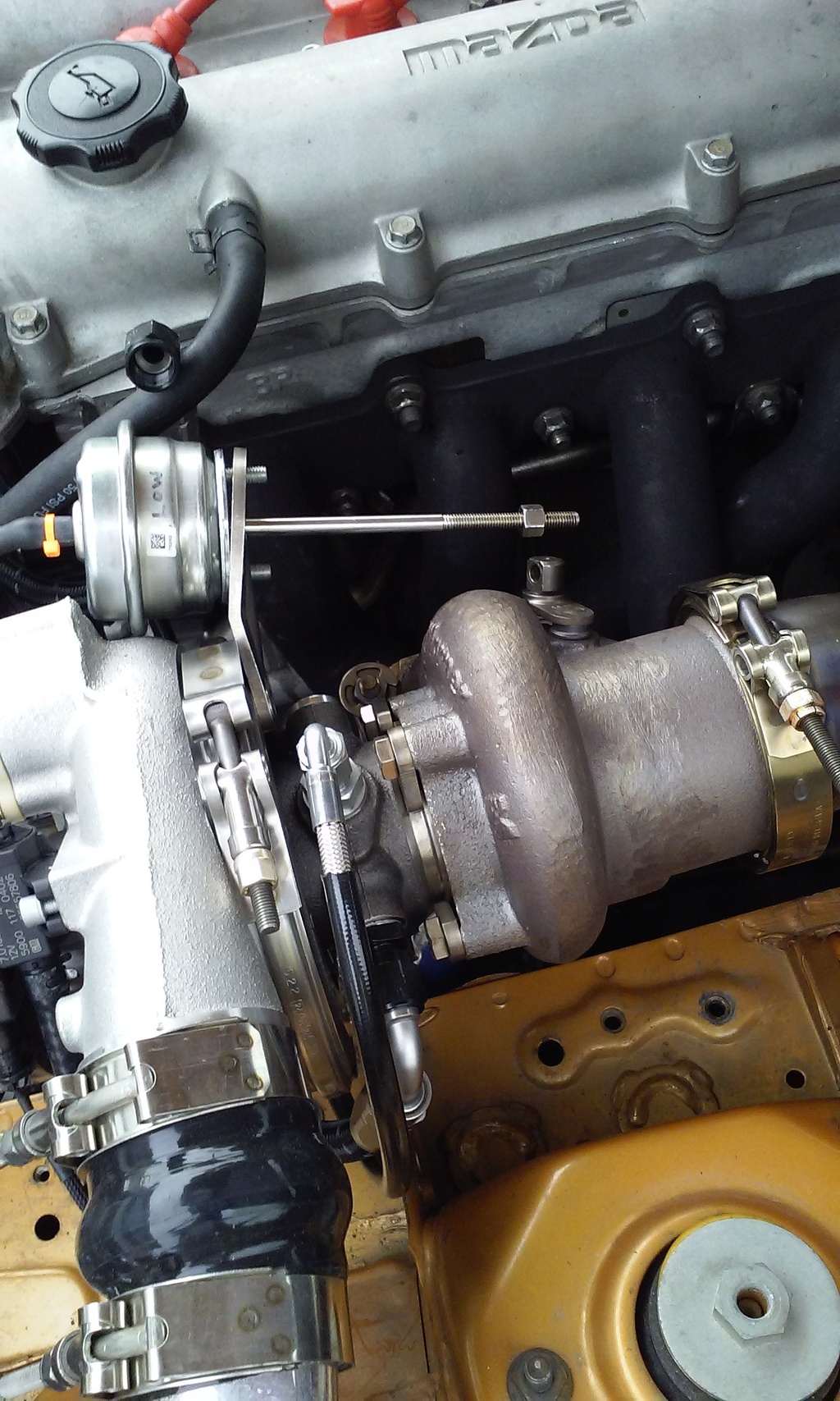

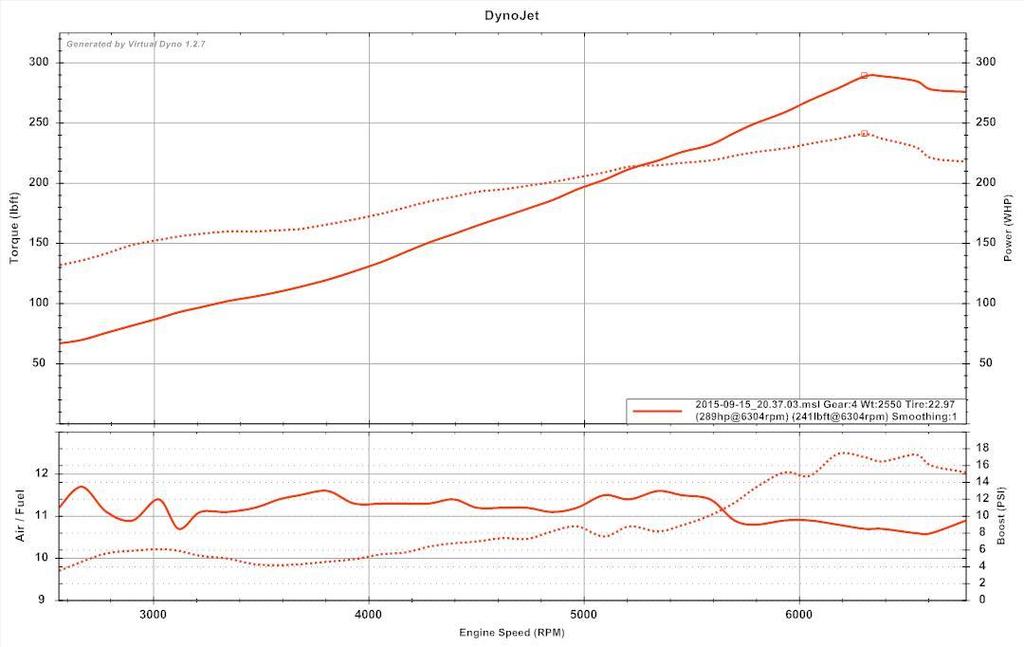

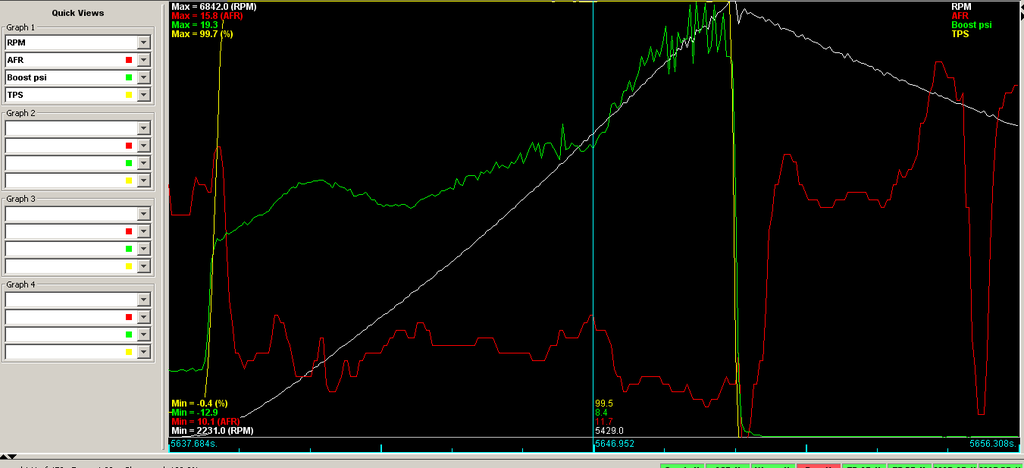

Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-20150914_192742_1.jpg   Nothing to see here, just project Sisyphus, move along-20150914_192742.jpg   Nothing to see here, just project Sisyphus, move along-20150915_162647.jpg   Nothing to see here, just project Sisyphus, move along-20150915_162657.jpg   Nothing to see here, just project Sisyphus, move along-20150915_162717.jpg

Nothing to see here, just project Sisyphus, move along-20150915_174334.jpg   Nothing to see here, just project Sisyphus, move along-20150915_174339.jpg   Nothing to see here, just project Sisyphus, move along-20150915_185756.jpg   Nothing to see here, just project Sisyphus, move along-20150915_185802.jpg   Nothing to see here, just project Sisyphus, move along-20150915_185808.jpg

Nothing to see here, just project Sisyphus, move along-efrz.png   Nothing to see here, just project Sisyphus, move along-efrz.jpg

Last edited by 18psi; 09-16-2015 at 09:53 AM.
18psi is offline   Reply With Quote
Old 09-16-2015, 01:07 AM   #2007
Senior Member
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 662
Total Cats: 111
Default

Yay! Not completely broken!

Also, I'm super gald to see that my ghetto air filter got replaced
gesso is offline   Reply With Quote
Old 09-16-2015, 04:52 AM   #2008
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,271
Total Cats: 32
Default

I'll take some happy snaps tomorrow showing how my actuator is sitting, I know Lokiel had issues with the wastegate binding but I think his problem was too much angle on the canister.

EDIT: Oops, didn't see the extra page there!
timk is offline   Reply With Quote
Old 09-16-2015, 05:18 AM   #2009
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,847
Total Cats: 228
Default

Surely somebody, somewhere, is predicting the end of the world soon. G's car is almost running properly with boost.

Much excite!
Mobius is offline   Reply With Quote
Old 09-16-2015, 06:49 AM   #2010
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 770
Total Cats: 56
Default

it apears to me that the wastegate actuator rood when tightened side loads the wastegate valve shaft enough to bind it on to the turbine housing, i would test this theory by bending the catuator shaft ( stay close to the treads but not on them since the treaded section is not as strong as the rest of the shaft) to align the hole of the wastegate arm to the threaded actuator shaft section and test it again, i suspect that it will make the problem go away if you have the correct alignment and are not sideloading the wastegate valve.
HHammerly is offline   Reply With Quote
Old 09-16-2015, 10:30 AM   #2011
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,691
Total Cats: 238
Default

Really cool seeing this build progress

Makes me consider EWG for simplicity.
Girz0r is offline   Reply With Quote
Old 09-16-2015, 11:13 AM   #2012
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

Guys, keep in mind that when I bought the turbo there had been no announcement about v-band inlet EFR. The only option was the T25 flange IWG version. I would have absolutely gone v-band/EWG had it been an option at the time.

Also, I only have the 2.5bar MAP in my MS3 so I'm limited to 20psi. I haven't bothered to upgrade it because I figured 20psi would get the job done regardless

Thanks guys, keep the feedback coming. I love you all.

That EBC is the one supplied by Borg Warner with the turbo, its a super ubiquitous GM 3 port so settings have got to be out there somewhere. I also have a 4 port MAC 46A-AA1-JDBA -1BA valve, I believe port A can be plugged and it works exactly like every other 3 port MAC if that's any help.
EO2K is offline   Reply With Quote
Old 09-16-2015, 11:17 AM   #2013
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,445
Total Cats: 2,264
Default

I don't see why this one won't work, at least we can give it a shot
18psi is offline   Reply With Quote
Old 09-16-2015, 11:21 AM   #2014
Junior Member
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 474
Total Cats: 33
Default

that boost curve looks a lot different than mine.
FrankB is offline   Reply With Quote
Old 09-16-2015, 11:24 AM   #2015
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,445
Total Cats: 2,264
Default

RIGHT???!!! It's still gotta be binding near full open. That's the only thing I can think of. ANd I don't feel comfy tilting the CHRA any more.

At least I'm at sea level so it shouldn't creep any harder than this.
18psi is offline   Reply With Quote
Old 09-16-2015, 11:41 AM   #2016
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 948
Total Cats: 41
Default

Quote:
Originally Posted by aidandj View Post
Too bad it's not a China Turbo then you could just run the wastegate open and creep to 10 psi
Hey now, my friend's china charger only does 6psi with the waste gate wired open!
x_25 is offline   Reply With Quote
Old 09-16-2015, 11:43 AM   #2017
Junior Member
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 474
Total Cats: 33
Default

Quote:
Originally Posted by 18psi View Post
RIGHT???!!! It's still gotta be binding near full open. That's the only thing I can think of. ANd I don't feel comfy tilting the CHRA any more.

At least I'm at sea level so it shouldn't creep any harder than this.
I'm not sure what else you could really do other then pulling the housing then, I'd be concerned about the amount of play in the flapper too. I'm also at sea level.
FrankB is offline   Reply With Quote
Old 09-16-2015, 12:02 PM   #2018
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,445
Total Cats: 2,264
Default

Are you using the BW ebc? If so, mind answering my question above or posting your settings for it? frequency, etc.

Last edited by 18psi; 09-16-2015 at 12:13 PM.
18psi is offline   Reply With Quote
Old 09-16-2015, 12:12 PM   #2019
Senior Member
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

I would have to agree with Frank. Rotate the CHRA to raise the actuator and see if it still binds.

Edit: Looks like I'm late to the game since reading the PM.
99mx5 is offline   Reply With Quote
Old 09-16-2015, 12:13 PM   #2020
Junior Member
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 474
Total Cats: 33
Default

Quote:
Originally Posted by 18psi View Post
Are you using the BW ebc? If so, mind answering my question above or posting your settings for it?
Sorry, my BW solenoid is still in my tool box where I threw it when I got the turbo. I'm running an AEM TRU-BOOST guage/controller setup
FrankB is offline   Reply With Quote
