Old 09-30-2015, 09:28 PM   #2161
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,597
Total Cats: 936
Default

I ordered it about 10 minutes after Leafy posted about it
EO2K is offline   Reply With Quote
Old 09-30-2015, 11:42 PM   #2162
Junior Member

Join Date: Dec 2009
Location: Brisbane, AUSTRALIA
Posts: 464
Total Cats: 35
Default

While waiting for my turbo to arrive, TurboSmart released a BOV for the EFR6258 so I bought one (hell, I'd already forked out a LOT for the turbo and S&H to Australia so the cost of the TurboSmart BOV was almost insignificant).

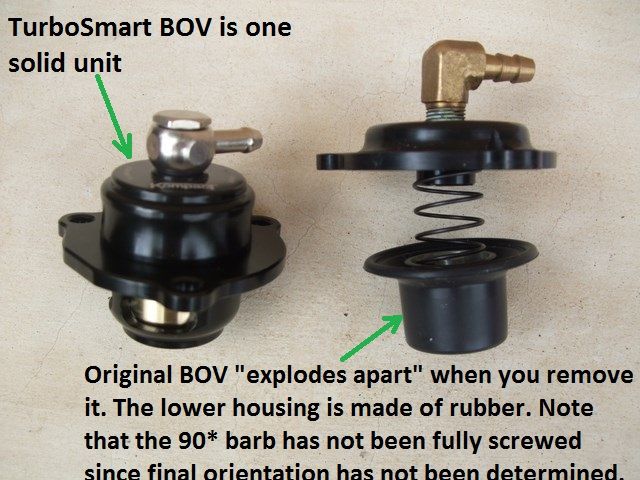

The original BOV is "dinky" in comparison to the TurboSmart BOV:


TurboSmart EFR6258 BOV vs OEM BOV<br/>

Can't say I've noticed any whining from this BOV.

For more info on the install, see mx5cartalk.com ? View topic - Lokiel's "Gina" (2004 Titanium SE)
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-80-bovssideviewa_zps3ea11e4f_7f7953cbca7a8b775674160b22e335dd18cf01ae.jpg
Lokiel is offline   Reply With Quote
Old 10-01-2015, 11:39 AM   #2163
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,597
Total Cats: 936
Default

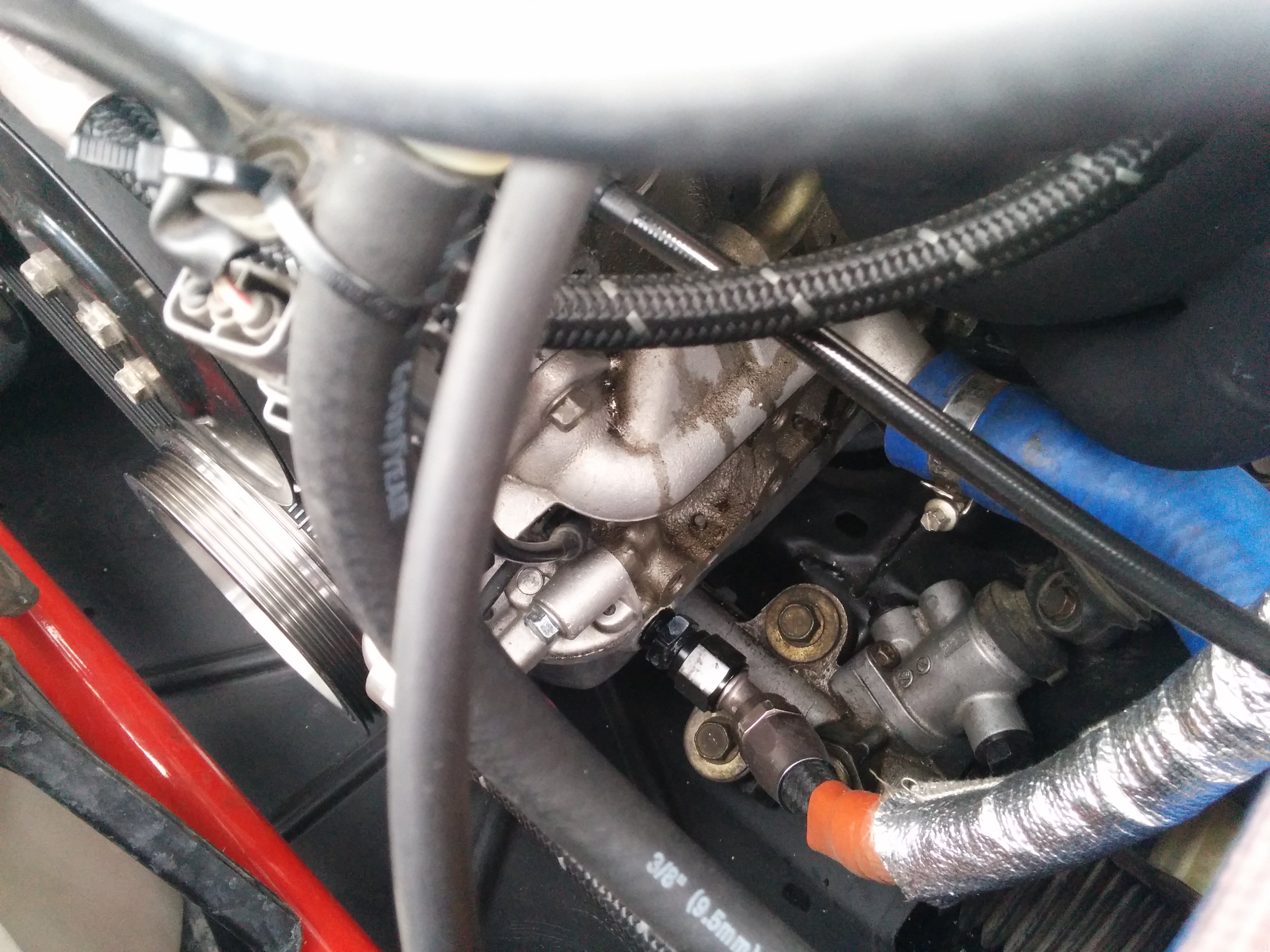

Hey 18psi, remember the drips on the side of the block you pointed out and I said "Oh yeah, that's fuel/condensation from when I was trying to get the MS sorted out" well... ***** back, and there is A LOT of it.



And its oil.

For those without the background info, this is NOT coming from the turbo, its coming from the head/manifold interface. I remember seeing a some oil in the exhaust ports when setting up the turbo stuff but I was not worried about it at the time. Now I'm worried. I'll be pulling the exhaust manifold tonight.
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-img_20151001_081115.jpg
EO2K is offline   Reply With Quote
Old 10-01-2015, 11:42 AM   #2164
Junior Member
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

That is terrible news, I hope it's nothing too serious. I'm curious to know what is causing so much oil to pour out of the exhaust ports.. Keep us updated
FrankB is offline   Reply With Quote
Old 10-01-2015, 11:59 AM   #2165
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,929
Total Cats: 1,440
Default

Duuuude. 2 days before MRLS? Drive the **** out of it and check the oil often
aidandj is offline   Reply With Quote
Old 10-01-2015, 12:01 PM   #2166
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,819
Total Cats: 269
Default

Quote:
Originally Posted by EO2K View Post
And its oil.


Hope it's an easy fix!
Girz0r is offline   Reply With Quote
Old 10-01-2015, 12:03 PM   #2167
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,597
Total Cats: 936
Default

It's not what I wanted to see, to be sure. I've been checking my fluids and things but its usually early AM (dark) or after an evening romp session (dark) and I guess not paying close enough attention.

It's been smelling oily but I've mentally ignored it because now I'm running an open crankcase system with a breather. I shouldn't do that apparently.
EO2K is offline   Reply With Quote
Old 10-01-2015, 12:20 PM   #2168
Senior Member
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 691
Total Cats: 139
Default

Wouldn't that volume of oil in the exhaust be smoking pretty bad? Have you noticed any smoking?
gesso is offline   Reply With Quote
Old 10-01-2015, 12:24 PM   #2169
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,929
Total Cats: 1,440
Default

Is there anything you could do about stem seals or a head gasket right now. I still think you should just drive it.
aidandj is offline   Reply With Quote
Old 10-01-2015, 12:29 PM   #2170
Senior Member
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 691
Total Cats: 139
Default

Now, me and the mad scientist got to rip apart the block... and replace the piston rings you fried.
gesso is offline   Reply With Quote
Old 10-01-2015, 12:31 PM   #2171
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,929
Total Cats: 1,440
Default

Need us to stop by and do a head gasket job overnight?
aidandj is offline   Reply With Quote
Old 10-01-2015, 12:33 PM   #2172
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,597
Total Cats: 936
Default

Quote:
Originally Posted by gesso View Post
Wouldn't that volume of oil in the exhaust be smoking pretty bad? Have you noticed any smoking?
Have not noticed any smoking while running, but 18 and I both noticed a bit of dark exhaust on hot restarts.

Quote:
Originally Posted by aidandj View Post
Is there anything you could do about stem seals or a head gasket right now. I still think you should just drive it.
I'm guessing its valve stem seals. The problem is if its doing this on the exhaust side, I'm going to worry about the intake side.

Ungh.
EO2K is offline   Reply With Quote
Old 10-01-2015, 12:34 PM   #2173
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,597
Total Cats: 936
Default

Quote:
Originally Posted by gesso View Post
Now, me and the mad scientist got to rip apart the block... and replace the piston rings you fried.
Wait, whut?

Quote:
Originally Posted by aidandj View Post
Need us to stop by and do a head gasket job overnight?
Oh god no.
EO2K is offline   Reply With Quote
Old 10-01-2015, 12:35 PM   #2174
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,748
Total Cats: 466
Default

Quote:
Originally Posted by aidandj View Post
Need us to stop by and do a head gasket job overnight?
Wouldn't that indicate a problem with the valves?

Edit: G beat me to it.
Monk is online now   Reply With Quote
Old 10-01-2015, 12:36 PM   #2175
Senior Member
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 691
Total Cats: 139
Default

Bullshit *******, no one likes the tuna here!
gesso is offline   Reply With Quote
Old 10-01-2015, 12:42 PM   #2176
Senior Member
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 691
Total Cats: 139
Default

Seems G is confused by my incohearant movie quotes, so I'll just show myself out now
gesso is offline   Reply With Quote
Old 10-01-2015, 12:43 PM   #2177
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,597
Total Cats: 936
Default

Hahaha! No, its cool, I get it now. The last time I saw that it was on VHS
EO2K is offline   Reply With Quote
Old 10-01-2015, 12:56 PM   #2178
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,801
Total Cats: 337
Default

Wait, how is valve stem seal failure producing a leak in the engine bay? That will make it leak into the cylinder and smoke after idling, yes, but how does it get onto the steering rack from there?

AFAIK failing valve seals won't pressurize the crank case and force it out the cam breather. How's the PCV?

--Ian
codrus is offline   Reply With Quote
Old 10-01-2015, 01:03 PM   #2179
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,597
Total Cats: 936
Default

Check the mixing manifold, its being dripped on from the top. There are similar drips below each exhaust port on the side of the block. No way you are pushing oil past the valve stem seals while under power unless I had an absolutely ridiculous amount of blow-by, literally enough to overpower the exhaust back pressure. If that were the case I'd think that would manifest itself in other ways.

Valve cover is unmodified, 323GTX PCV on the intake side, VTA catch can on the exhaust side. Dipstick stays in its home.

I'm just as boggled as everyone else. If I had to take a wild *** guess, I'd say oil is making it past the valve stem seals while the engine is shut down and super hot. If this is the case, I should see oil on top of the valves when I pull the manifold, no?
EO2K is offline   Reply With Quote
Old 10-01-2015, 02:15 PM   #2180
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,638
Total Cats: 530
Default

If that was the case, it'd smoke like Checch & Chong on startup.
rleete is offline   Reply With Quote
