Old 06-23-2015, 06:17 PM   #1421
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,598
Total Cats: 936
Default

Quote:
Originally Posted by hornetball View Post
LOL. MS1 baby!!
Does it get the job done? Yes? Then fuckit!

Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-haters-gonna-hate.gif
EO2K is offline   Reply With Quote
Old 06-23-2015, 06:17 PM   #1422
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,663
Total Cats: 235
Default

Quote:
Originally Posted by hornetball View Post
LOL. MS1 baby!!
I remember my first MS back in 2007-2008.... It was a MS2E! Damn I guess the MS1 was solid enough people still rock it.
patsmx5 is online now   Reply With Quote
Old 06-23-2015, 06:22 PM   #1423
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,981
Total Cats: 576
Default

Yeah, I've got MS1-based MSPNPs in both cars. They've been in there for years.

MS1s are open-source, which is nice. Allowed me to write custom code for the Silver car to handle AC idle-up.
hornetball is offline   Reply With Quote
Old 06-23-2015, 07:04 PM   #1424
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,801
Total Cats: 337
Default

Quote:
Originally Posted by patsmx5 View Post
Fuel injection. He has it set for 2 squirts/cycle, alternating. My understanding is it has to be on Simultaneous/1 squirt/cycle for sequential fuel to activate. At least with MS3 PRO.
Hm. 2 squirts/alternating is what my MS Labs MS3 came configured as from Reverant.

--Ian
codrus is offline   Reply With Quote
Old 06-23-2015, 07:09 PM   #1425
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,598
Total Cats: 936
Default

Quote:
Originally Posted by codrus View Post
Hm. 2 squirts/alternating is what my MS Labs MS3 came configured as from Reverant.

--Ian

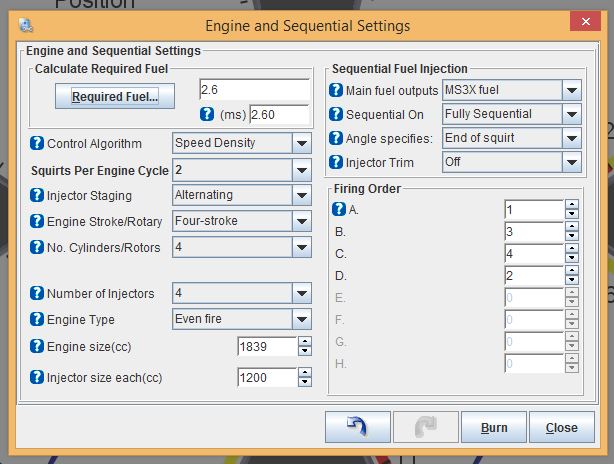

Same here. I pulled up my tune on the desktop now that I'm back in the office. I'm on a MSLabs MS3-Basic as well.



Menu is slightly different than Jeff's but settings are the same.
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-puk5n6q.jpg
EO2K is offline   Reply With Quote
Old 06-23-2015, 08:42 PM   #1426
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by patsmx5 View Post
Jeff, you know you have sequential turned off, right?
Apparently I did not...hmm, I have it wired for sequential and had no problems with it in the past and my tuner didn't comment on the lack thereof. Not saying you are wrong at all Pat, so
Jeffbucc is offline   Reply With Quote
Old 06-23-2015, 08:55 PM   #1427
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,929
Total Cats: 1,440
Default

<p><img src="http://cimg2.ibsrv.net/gimg/www.miataturbo.net-vbulletin/625x435/80-znzjy4e_c1255d241f3fff63c47ea89ca890f851fa6817b6.p ng" title="" /><br /><br />That tool tip tells me that he has it in sequential.</p>
aidandj is offline   Reply With Quote
Old 06-23-2015, 09:14 PM   #1428
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,663
Total Cats: 235
Default

Quote:
Originally Posted by aidandj View Post
<p><img src="http://cimg2.ibsrv.net/gimg/www.miataturbo.net-vbulletin/625x435/80-znzjy4e_c1255d241f3fff63c47ea89ca890f851fa6817b6.p ng" title="" /><br /><br />That tool tip tells me that he has it in sequential.</p>
How can it be sequential if it's 2 squirts/cycle? That would not be sequential then, it would be batch. Right? Sequential = 1 squirt/cycle, batch = 2 or more squirts/cycle. That's how I've always understood it.
patsmx5 is online now   Reply With Quote
Old 06-23-2015, 09:17 PM   #1429
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,929
Total Cats: 1,440
Default

<p>From the megamanual:</p><p>
Quote:
</p><p><span style="color:rgb(0, 0, 0)">Injector Staging - simultaneous fires all injectors each injection event, alternating fires only half the injectors on one injection event, then the other half on the next event.</span></p><p id="70">
</p><p>How MegaSquirt(R) EFI Controllers Work</p><p>To me that says that injector staging is only relevant in batch fire.</p>
aidandj is offline   Reply With Quote
Old 06-23-2015, 09:23 PM   #1430
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,663
Total Cats: 235
Default

Aidan- I've tried switching between 1 and 2 on my car, and my air/fuel ratio changes. My ECU is currently at DIY Autotune for repair right now or I'd go test this and post a datalog. But this lead me to believe it did affect fueling. I'm no expert though, just what I've seen/thought I understood!
patsmx5 is online now   Reply With Quote
Old 06-23-2015, 09:24 PM   #1431
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,929
Total Cats: 1,440
Default

<p>I'm no expert either. And I'm too lazy to go test it. I'm just reading tool tips. Maybe <span>Ben or <span>Braineack can chip in.</span></span></p>
aidandj is offline   Reply With Quote
Old 06-23-2015, 09:36 PM   #1432
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,596
Total Cats: 252
Default

Not that I understand the logic, but pretty sure the manual is correct.

Note the right column, "Fully Sequential".
DNMakinson is offline   Reply With Quote
Old 06-23-2015, 09:41 PM   #1433
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

They just use really confusing wording on it via the tooltip as it seems both do the same thing.

Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-zuaa5ai.png
Jeffbucc is offline   Reply With Quote
Old 06-23-2015, 09:43 PM   #1434
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

woops looks like several posts have happened since my email notified me! Everyone already addressed this.
Jeffbucc is offline   Reply With Quote
Old 06-23-2015, 09:53 PM   #1435
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,929
Total Cats: 1,440
Default

<p>Pretty much a given on a small open source project like this. Most engineers != good writers. And documentation is rarely at the same level that the code is.</p>
aidandj is offline   Reply With Quote
Old 06-23-2015, 09:53 PM   #1436
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,929
Total Cats: 1,440
Default

<p>Also jeff are you still using windows 98 or something...</p>
aidandj is offline   Reply With Quote
Old 06-23-2015, 10:05 PM   #1437
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by aidandj View Post
<p>Also jeff are you still using windows 98 or something...</p>
Tunerstudio does not play nicely on my Macbook Air, or I should specify OSX. So I run a very stripped down version of Windows XP in Parallels Desktop so that I can use OSX and XP at the same time.

Works great and no need for fancy features or UI.
Jeffbucc is offline   Reply With Quote
Old 06-23-2015, 10:06 PM   #1438
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,929
Total Cats: 1,440
Default

<p>Struggles. I run it native on osx. But there are a bunch of weird bugs</p><p>&nbsp;</p>
aidandj is offline   Reply With Quote
Old 06-23-2015, 11:32 PM   #1439
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,598
Total Cats: 936
Default

Take your filthy bourgeoisie OSX and chilled white wine elsewhere, we run Windows and drink brown liquor around here.
EO2K is offline   Reply With Quote
Old 06-23-2015, 11:33 PM   #1440
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,929
Total Cats: 1,440
Default

<p>Last time I formatted my system since switching to OSX.......never. Computer still boots in under 10 seconds and is just as fast as it was the day I bought it. Windows can suck a fat ****.</p><p>&nbsp;</p><p>Oh and its ugly too.</p>
aidandj is offline   Reply With Quote
