Old 11-25-2014, 08:08 PM   #961
Junior Member

Join Date: Dec 2009
Location: Brisbane, AUSTRALIA
Posts: 487
Total Cats: 45
Default

Dumb question: Why is the O2 sensor mounted there?

Ease of access to disconnect it after tuning is complete? - obviously will not last long mounted in that position.

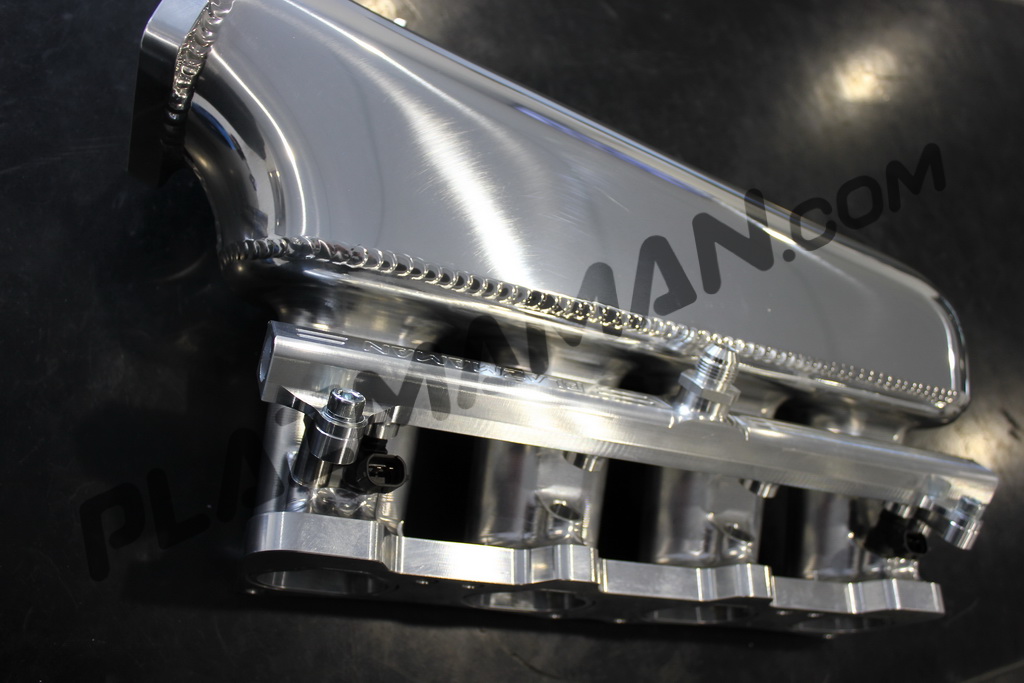

Also, needs custom intake manifold (just wish Plazmaman would make one of these for the MX5:
Attached Thumbnails
1.6L 2560r record attempt-img_5037_watermk.jpg
Lokiel is offline   Reply With Quote
Old 11-25-2014, 09:21 PM   #962
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

Hypertune will but it costs around 2500 dollars.
I will eventually build an IM but not yet.

The o2 is supposed to be there for only tuning but the turbo manifold has very long runners and it doesnt seem to bother it. Been left in a few events and no issues.

Dann
nitrodann is offline   Reply With Quote
Old 11-26-2014, 02:49 AM   #963
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 783
Total Cats: 23
Default

Mine is also there and was going to prompt the question as well...so far it seems to be fine after about 2 years and 10 race days/track days and plenty of about town driving...

Hopefully that comment didn't just engage murphy and his f'ed up laws...
mx5-kiwi is offline   Reply With Quote
Old 11-26-2014, 09:04 AM   #964
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by Lokiel View Post
Dumb question: Why is the O2 sensor mounted there?
in AUS, fire actually burns cold so the sensor isn't going to be harmed that close to the turbine.
Braineack is offline   Reply With Quote
Old 11-26-2014, 09:38 AM   #965
Junior Member
iTrader: (1)

Join Date: May 2014
Posts: 248
Total Cats: 13
Default

Turbos also spin backwards there too.
stoves is offline   Reply With Quote
Old 11-26-2014, 11:28 AM   #966
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,905
Total Cats: 613
Default

Quote:
Originally Posted by nitrodann View Post
Crank has had the counterweights off and is knife edged and fully polished.
pics? id really like to see how that was done.
hi_im_sean is offline   Reply With Quote
Old 11-26-2014, 12:45 PM   #967
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

Quote:
Originally Posted by stoves View Post
Turbos also spin backwards there too.
I've heard that.


The stock 1.6 intake is a restriction above a certain point. I don't recall what it is.
sixshooter is offline   Reply With Quote
Old 11-26-2014, 12:53 PM   #968
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 784
Default

I've been running a sensor about that close for 5 years now. Same sensor. Still going strong. Not an issue.
concealer404 is offline   Reply With Quote
Old 11-26-2014, 12:53 PM   #969
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,205
Total Cats: 2,586
Default

Nice work. It will be interesting to see a spud maxed out on e85. Hopefully with a proper dyno this tiem.
We got to 360 on stock IM and TB on ryans car, but the torque was starting to dip pretty hard up top, like 50ft/lb from peak to readline
That is probably close to the limit.
I really think your friend or customer or whatever should look into getting an NB head and proper IM
18psi is offline   Reply With Quote
Old 11-26-2014, 01:00 PM   #970
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

Quote:
Originally Posted by 18psi View Post
I really think your friend or customer or whatever should look into getting an NB head and proper IM
1.6
sixshooter is offline   Reply With Quote
Old 11-26-2014, 01:05 PM   #971
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,205
Total Cats: 2,586
Default

correct, and in japanland (and likely other places) they have nb heads for 1.6
he's in AU so he can probably source them easy
18psi is offline   Reply With Quote
Old 11-26-2014, 01:06 PM   #972
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

Did they continue to develop them as well? Very interesting.
sixshooter is offline   Reply With Quote
Old 11-26-2014, 01:13 PM   #973
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

In Europe too, very common
Zaphod is offline   Reply With Quote
Old 11-26-2014, 01:36 PM   #974
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,392
Total Cats: 58
Default

Quote:
Originally Posted by sixshooter View Post
Did they continue to develop them as well? Very interesting.
I don't know for sure, bit I don't think the intake ports are different between the NA/NB B6.
Just solid lifters, NB sensors and different cams (I think).
If the IM fits, there is no port difference to worry about. Same IM gasket?

Edit: Just checked Jenvey fitment for B6, same for NA and NB, so same port angle. Most probably the same casting of everything. Injector location is another thing that can be different (nice to not have experience some times).

Last edited by NiklasFalk; 11-26-2014 at 02:12 PM.
NiklasFalk is offline   Reply With Quote
Old 11-26-2014, 02:11 PM   #975
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 783
Total Cats: 23
Default

Can anyone elaborate on this above.....

a head that came with solid lifters is a plus for me....but worried about cams and sensor compatibility issues...
mx5-kiwi is offline   Reply With Quote
Old 11-26-2014, 02:19 PM   #976
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,392
Total Cats: 58
Default

Quote:
Originally Posted by mx5-kiwi View Post
Can anyone elaborate on this above.....

a head that came with solid lifters is a plus for me....but worried about cams and sensor compatibility issues...
you can swap lifters if you like. A cam ground for HLA will pound solid lifters since there are no "lash closing ramps". But the other way around is no problem (but not optimal).

Running NB sensors have it's advantages, and you have to search to see if anyone have been able to use a B6 NA CAS on a B6 NB head/cam.

There are performance cams available anyway...
NiklasFalk is offline   Reply With Quote
Old 11-26-2014, 02:24 PM   #977
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,205
Total Cats: 2,586
Default

Wow, so they just re-cast the na heads with solid lifters and nb sensors and called it a day?

That's terrible.
18psi is offline   Reply With Quote
Old 11-26-2014, 02:36 PM   #978
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 784
Default

Did the same thing with the KL. It's not uncommon. Even outside of Mazda.
concealer404 is offline   Reply With Quote
Old 11-26-2014, 02:39 PM   #979
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,392
Total Cats: 58
Default

Quote:
Originally Posted by 18psi View Post
Wow, so they just re-cast the na heads with solid lifters and nb sensors and called it a day?

That's terrible.
It's a low cost 110bhp version aimed to reduce the taxes, why spend money?
Using the NB sensors is most probably a lot cheaper than NA (AFM+CAS).
NiklasFalk is offline   Reply With Quote
Old 11-26-2014, 05:26 PM   #980
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by 18psi View Post
Wow, so they just re-cast the na heads with solid lifters and nb sensors and called it a day?

That's terrible.
The manifold is different for the NB6 though. The Z series motors were the evolution of the B6 that we know of, IIRC someone on here was putting one of the Z heads on a B block and it fit, ports look even better then 99+ 1.8s.
Leafy is offline   Reply With Quote
