Old 10-10-2013, 11:54 AM   #821
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

Quote:
Originally Posted by Stein View Post
This doesn't make sense to me either. First is sketchy but I can stand on mine in 2nd with 279WHP/308WTQ on the highway with new RS3's and it sticks. Maybe my setup is just that good?
But bro, your torqueless 5L V8 has nothing on his 1.6L of furry

Nothing
18psi is offline   Reply With Quote
Old 10-11-2013, 11:46 AM   #822
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Quote:
Originally Posted by Leafy View Post
Dammit, now I know why the car wont stick. Not enough downforce to counteract gravity.

WIN!
cyotani is offline   Reply With Quote
Old 10-16-2013, 05:41 AM   #823
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

So it just occired to me that it might ride the bump stops a lot.

Investigating.

Dann
nitrodann is offline   Reply With Quote
Old 10-16-2013, 07:17 AM   #824
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,647
Total Cats: 1,559
Default

Quote:
Originally Posted by nitrodann View Post
So it just occired to me that it might ride the bump stops a lot.

Investigating.

Dann
dannafbody?
sixshooter is online now   Reply With Quote
Old 10-16-2013, 07:47 AM   #825
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

What?
nitrodann is offline   Reply With Quote
Old 10-16-2013, 02:02 PM   #826
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,647
Total Cats: 1,559
Default

There is an active thread started by wannafbody about this very issue. I drew a parallel assuming you were actively reading current threads. Apparently you were not.
sixshooter is online now   Reply With Quote
Old 10-17-2013, 07:41 PM   #827
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,191
Total Cats: 260
Default

Dann clear your inbox!
Erat is offline   Reply With Quote
Old 10-17-2013, 08:03 PM   #828
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Sorry six, I had a different opinion to brain again, so I was out of here for a week.

Ill go find it now.

Erat it's clear.

Dann
nitrodann is offline   Reply With Quote
Old 11-03-2013, 12:54 AM   #829
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Its at the track again today, I was told it ran within a few tenths from the MX5 club lap record at Wakefield earlier.

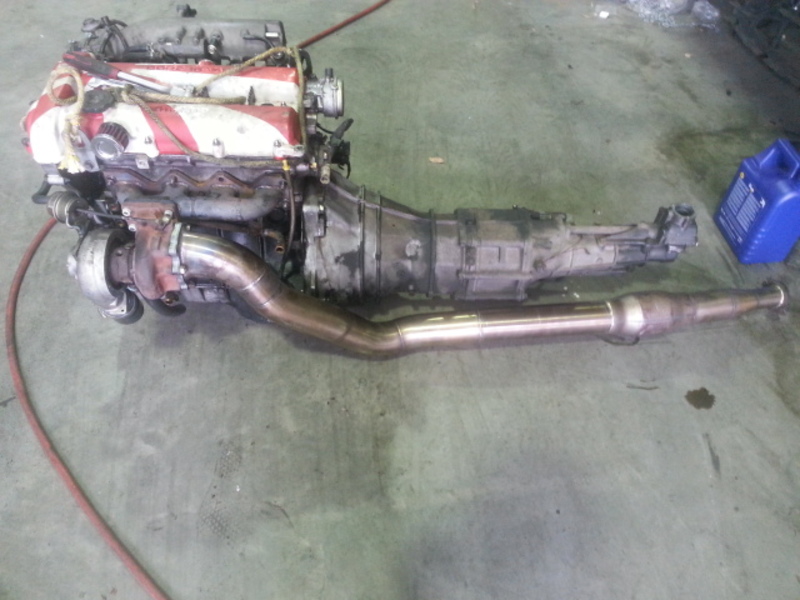

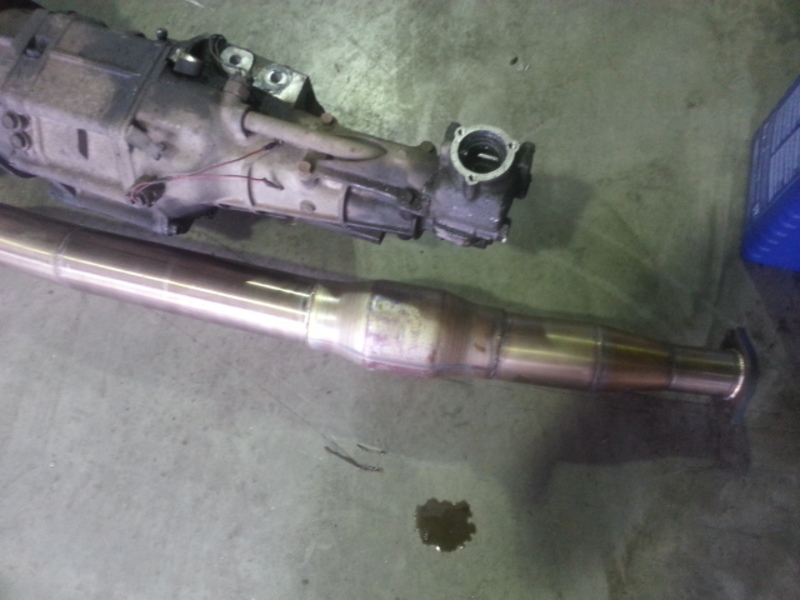

Just as a data point, the below setup (different car, identical setup) made 170rwkw at 15psi, on a 1.6L, with RX8 injectors, MSPnP2, and a 2" exhaust. The downpipe on that car is the same, 3" for as far as possible, bullet cat and smooth neck down to 2"

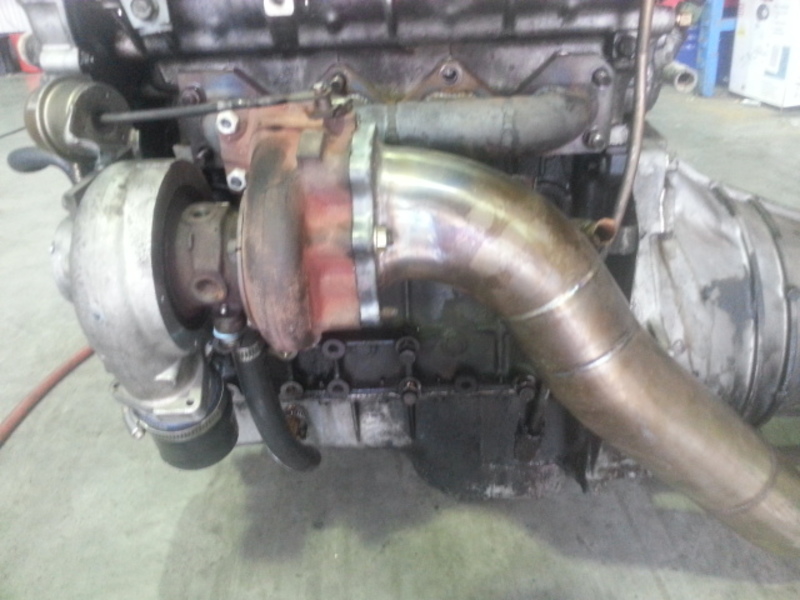

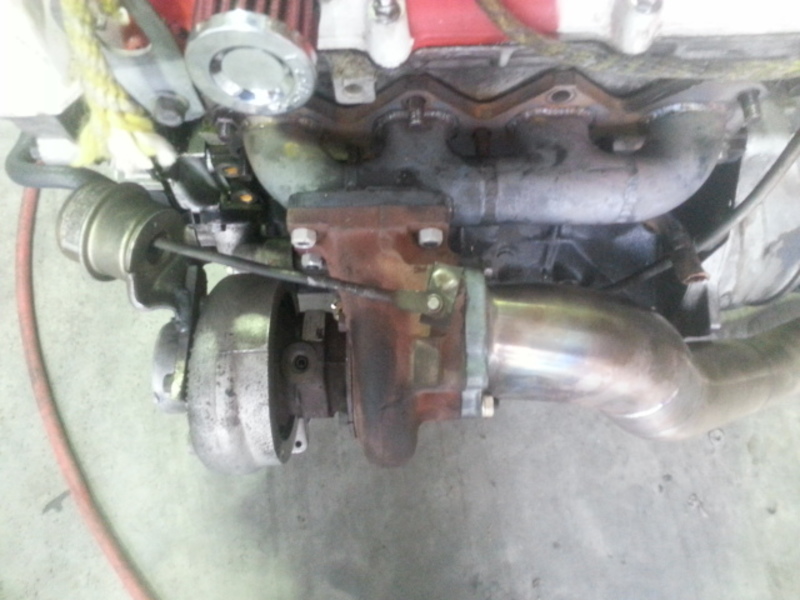

Same turbo location on the log and everything.

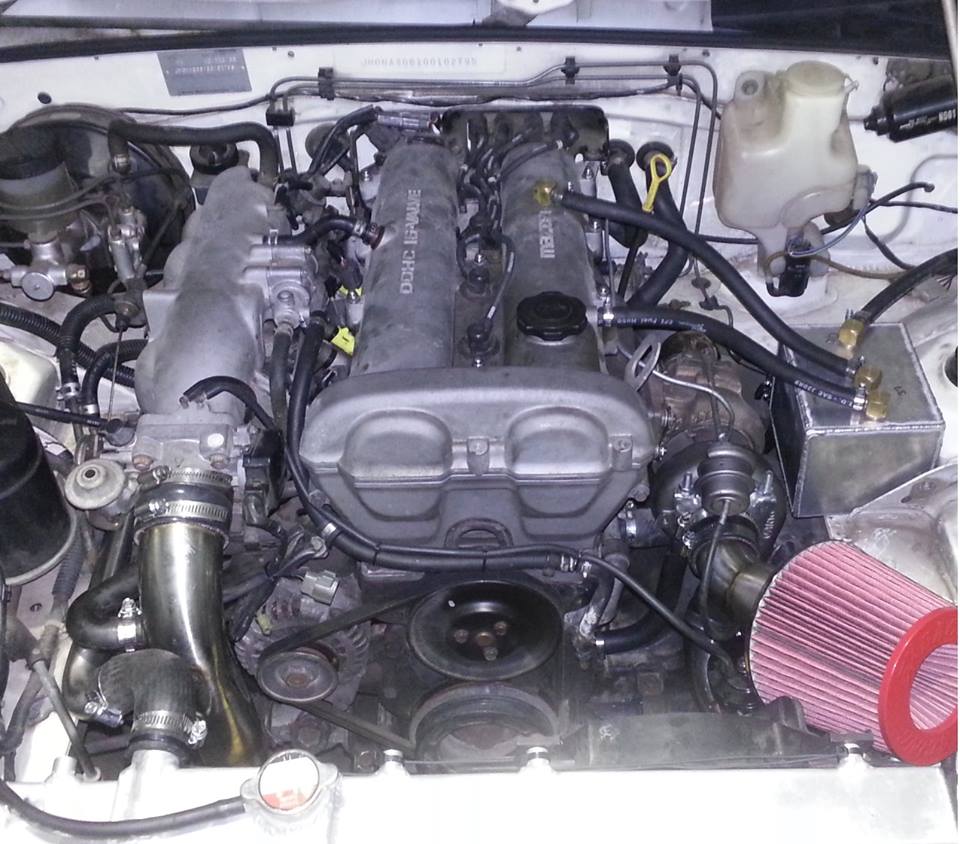

The actual car. I built everything you can see, stainless coldside reroute, intercooler setup, valve cover mods and catch can etc.

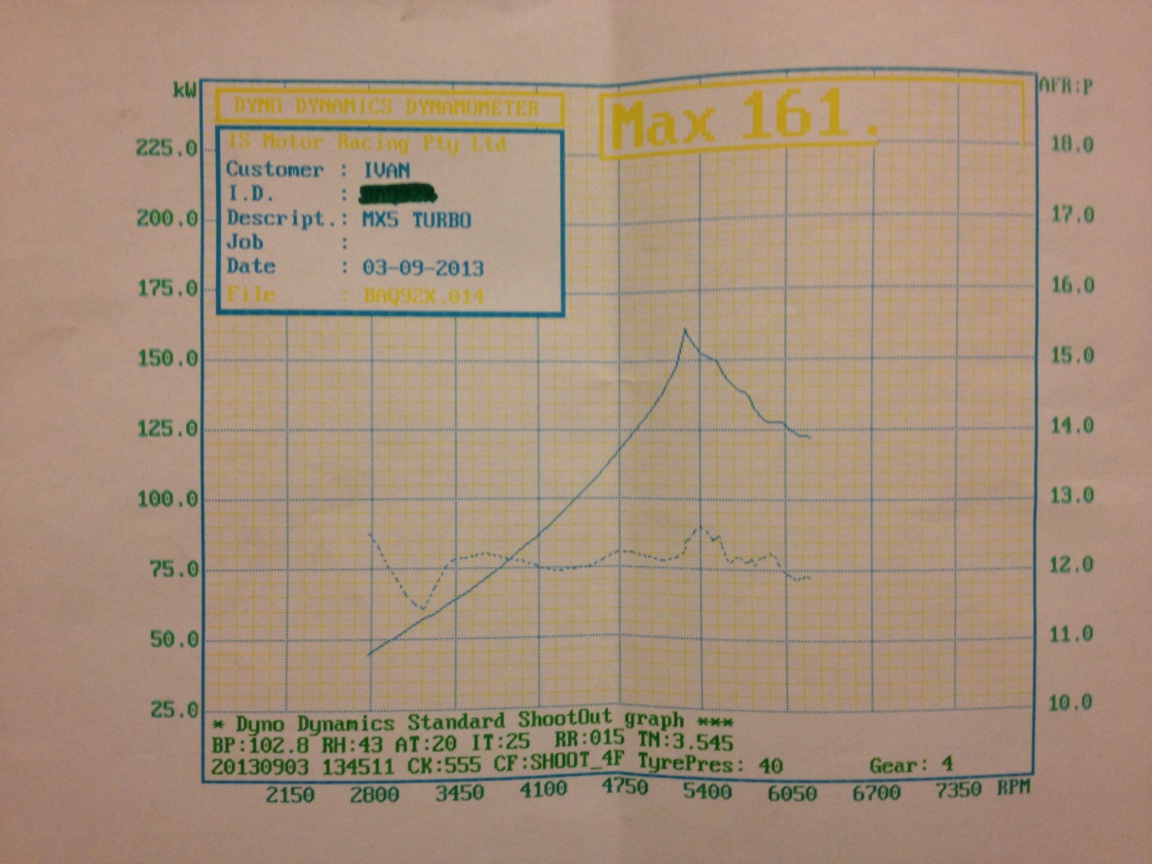

One of the first dyno pulls, with a boost control failure. 14psi here by memory. I didn;t tune this, not my dyno, not even my city.



Dann
Attached Thumbnails
1.6L 2560r record attempt-20131103_143235.jpg   1.6L 2560r record attempt-20131103_143245.jpg   1.6L 2560r record attempt-20131103_143252.jpg   1.6L 2560r record attempt-20131103_143304.jpg   1.6L 2560r record attempt-1185989_196821217161905_736218008_n.jpg

1.6L 2560r record attempt-img_17131.jpg
nitrodann is offline   Reply With Quote
Old 11-03-2013, 02:54 AM   #830
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

No record.

Ftd still.

Dann
nitrodann is offline   Reply With Quote
Old 11-03-2013, 06:50 AM   #831
Senior Member
iTrader: (1)

Join Date: Jan 2013
Location: Jacksonville FL
Posts: 649
Total Cats: 211
Default

Quote:
Originally Posted by nitrodann View Post



OK, I'm a little bit confused by your breather setup, for a couple reasons:

First off, did you add that brass fitting with the additional hose over to the breather box, and if so, why? There's already a hose running from the factory barb next to the oil fill cap, so an additional one seems unnecessary, no?

But more puzzling than that is your retention of the PCV, given that the other side of the crankcase it's connected to is effectively vented to atmosphere through the cam cover to breather box line(s). Why not route the PCV hose (either keep the PCV or toss it and make a fitting to fit the PCV grommet) over to the breather box?

As configured you basically have a 3/8" hole on your manifold connected to your breather box. Under boost you're likely bleeding pressure off and pressurizing the crankcase because PCV's are notoriously leaky (lol; maybe that;s why you need a catch can?), and under vacuum you're still pulling filthy oil vapors back into the manifold. It's actually worse than the factory setup.

I see this variations of this all the time, usually the Filler Nipple to intake hose is replaced by a little cone type breather filter instead of a spiffy breather box, but the result is the same. It's more of a problem on stock ECU cars where it basically allows the motor to ingest unmetered air, where a MAF based system doesn't care where the air comes from (just that it's present in the manifold), but you still have the problems of boost and vacuum "leakage" out via the path through the PCV to the atmosphere (breather box), not to mention the downside of still mucking up up the manifold with oil vapors.

Personally, I'd cap off the PCV to Intake hose, and run the PCV over to your breather box, or sticking a little cone filter on the PCV would work too. But as configured it makes no sense to me.

What am I missing?
Pinky is offline   Reply With Quote
Old 11-03-2013, 07:32 AM   #832
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Quote:
Originally Posted by Pinky View Post

What am I missing?
The pvc side is blocked. There is no flow either direction. if you look very carefully you can see the split, inside that is a glued in solid rod.

So there needs to be more flow out of the crankcase than just the single OEM hotside hose, so I added a second one to that side, it leads to the baffle on the inside.

The hotside never ever pukes oil on anyones car, the coldside does.

Fair?

Dann
nitrodann is offline   Reply With Quote
Old 11-03-2013, 10:05 AM   #833
Senior Member
iTrader: (1)

Join Date: Jan 2013
Location: Jacksonville FL
Posts: 649
Total Cats: 211
Default

Quote:
Originally Posted by nitrodann View Post
The pvc side is blocked. There is no flow either direction. if you look very carefully you can see the split, inside that is a glued in solid rod.

So there needs to be more flow out of the crankcase than just the single OEM hotside hose, so I added a second one to that side, it leads to the baffle on the inside.

The hotside never ever pukes oil on anyones car, the coldside does.

Fair?

Dann
Got it. The old PCV Hose That Isn't Really A Hose trick.. I see the split you're talking about now. I was unaware of the difference in oil-barf propensity from side to side, I'll keep that in mind next time I'm messing with crankcase venting.

Thanks-

Last edited by Pinky; 11-03-2013 at 10:18 AM.
Pinky is offline   Reply With Quote
Old 11-03-2013, 11:45 AM   #834
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

171kw = about 150whp right?
concealer404 is offline   Reply With Quote
Old 11-03-2013, 11:55 AM   #835
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,824
Total Cats: 1,781
Default

do i really see a 3" DP going to a 2" exhaust?

like I should ban you perm for that.
Braineack is online now   Reply With Quote
Old 11-03-2013, 12:02 PM   #836
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

161 rwkw is around 210rwhp.

Yes its a 3 down to a 2. And 210rwhp. Thats exactly why its an interesting data point


Dann
nitrodann is offline   Reply With Quote
Old 11-03-2013, 12:30 PM   #837
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,824
Total Cats: 1,781
Default

Quote:
Originally Posted by nitrodann View Post
161 rwkw is around 210rwhp.

Yes its a 3 down to a 2. And 210rwhp. Thats exactly why its an interesting data point


Dann

no, it's exactly why is spools just as bad as your other record setting turbo kit.
Braineack is online now   Reply With Quote
Old 11-03-2013, 07:32 PM   #838
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Hmm.

How much power does yours make?

Is yours not also a 1.6L with a t25 on a log?

Dann
nitrodann is offline   Reply With Quote
Old 11-03-2013, 08:33 PM   #839
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

IIRC he made more power than that, many years ago.

But seriously, why isnt it 3" all the way back?
Full_Tilt_Boogie is offline   Reply With Quote
Old 11-03-2013, 08:42 PM   #840
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Because everything costs money, and this is something that can upgraded at any time, its not like we pulled the head off and left stock rods in there, when he has further funds he can put a 3" on it whenever he wants.

Are you not surprised it made this power on a 2" press bent catback? It even has the OEM flange for the rear of the cat and the next foot or so is OEM.

Well, I learned something anyway.

What is with this site and getting all catty every time someone doesnt build an MS2, 1.8L with ebay rods, a 2560, and a full 3" exhaust on rx8 injectors. I mean, sure thats an excellent combo, but ****, some people should just untie their panties and take some posts for what they are..

It's a forum wide issue. It genuinely does slow progress and knowledge within the community, what does anyone learn reading about yet another cloned setup..

Dann
