Old 07-26-2007, 10:49 PM   #181
Junior Member

Join Date: Oct 2006
Posts: 312
Total Cats: 0
Default

That is a good point.
beerslurpy is offline   Reply With Quote
Old 07-26-2007, 10:53 PM   #182
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Once my junk is back up and running, I'm doing this.
Braineack is offline   Reply With Quote
Old 07-26-2007, 10:58 PM   #183
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

we should mock up a plate and get a few of them water jetted.

anyone near me have a spare 1.6 cam cover I could hang on to for a couple weeks?
Ben is offline   Reply With Quote
Old 07-26-2007, 11:00 PM   #184
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

what?! This looks like a job for zip ties and JB Weld! :gay:
Braineack is offline   Reply With Quote
Old 07-26-2007, 11:15 PM   #185
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

iv got this ginormous sheet of Al sitting in my living room that was gonna be the base for my front under tray. I think it can spare a short strip for use as a COP holder.
neogenesis2004 is offline   Reply With Quote
Old 07-27-2007, 12:29 AM   #186
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

I run between 10-15psi and just changed my plugs. They were gapped at .045" ! I thought I had them at .032". So anyways it's firing a .045" gap under boost.
lazzer408 is offline   Reply With Quote
Old 07-27-2007, 02:26 AM   #187
Junior Member

Join Date: Oct 2006
Posts: 312
Total Cats: 0
Default

That's my kind of news. Kickass.
beerslurpy is offline   Reply With Quote
Old 07-27-2007, 03:10 AM   #188
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Hey braineack in on it now? I must have started something good.
lazzer408 is offline   Reply With Quote
Old 07-27-2007, 05:29 PM   #189
Junior Member
iTrader: (1)

Join Date: Jul 2007
Location: Arvada, CO
Posts: 118
Total Cats: 0
Default

Ok, so installation pics on a 1.6.

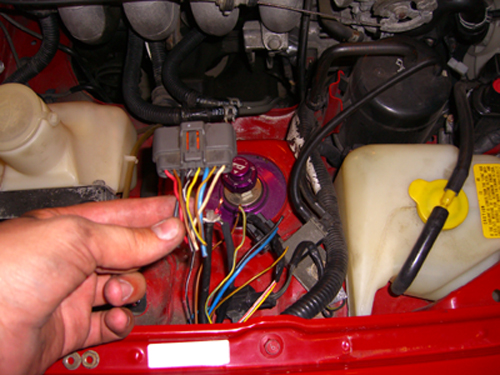

Step 1: Cut out your igniter box(leaving enough wire on the plug just in case things get fubar). Relocate the EGR plug and ground wire to the front bolt hole for the mounting plate of the igniter. (Is 1/2 hidden by the big wire loom on the right). Also tape up the red and white wires, you won't need these to be connected to anything anymore.

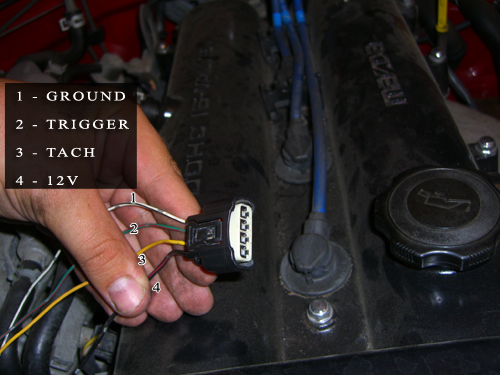

Step 2: Get your connecters and label them so that they follow this pattern (TOYOTA PLUGS/CONNECTORS ONLY, anything else may be different)

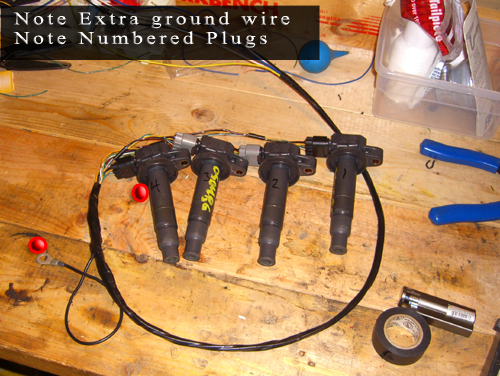

Step 3: Using Lazzers diagram FOUND HERE wire your plugs together and add the required length of wire to reach where the igniter box was. It's best to use 12gauge wire for power and ground and 16gauge wire for the trigger and tach. *Also, note the extra ground wire and how the coils are numbered (it's a good idea just to ensure you don't mix anything up while connecting all the wires)

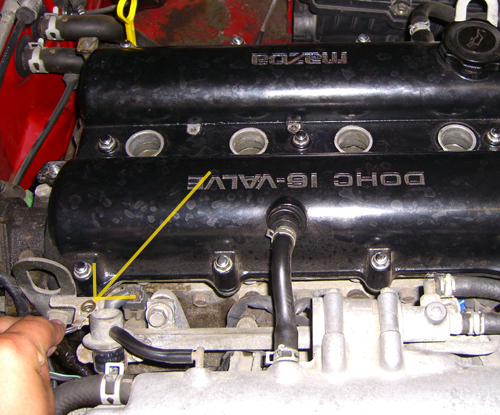

Step 4: Here a good ground location for the extra ground on the head is shown (it has a bolt in it, it's just removed in this picture)

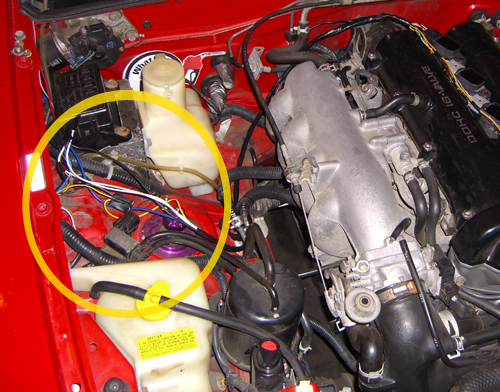

Step 5: Using Lazzers diagram again, connect the Ground, Triggers, Tach, and 12v to the wires that were going into the igniter box.

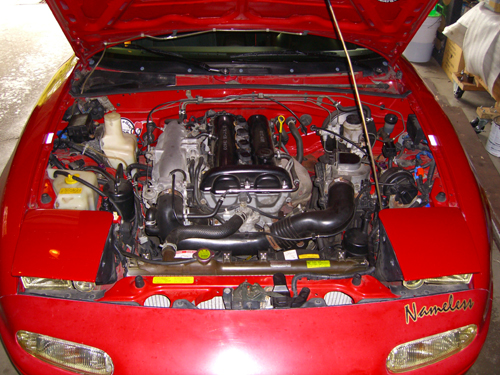

Step 6: Wrap all the wires in electrical tape and tuck them away however you like.

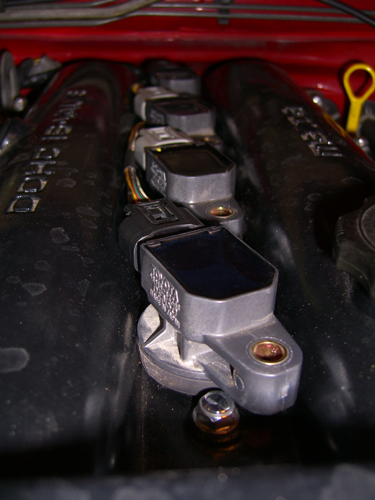

Step 7: The plugs will vibrate up off the valve cover if you don't fasten them to it. You can still drive the car, but doing so for an extended period of time will cause some problems. This parts up to you how you'd like to do it. I'm planning on JB Welding(or just regular welding) on 4 nuts to the valve cover and bolting the coils down to them.


Enjoy!
honeydesean is offline   Reply With Quote
Old 07-27-2007, 05:42 PM   #190
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Quote:
Originally Posted by lazzer408 View Post
Hey braineack in on it now? I must have started something good.

there's no reason not to! especially at the price tag.
Braineack is offline   Reply With Quote
Old 07-27-2007, 06:44 PM   #191
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,293
Total Cats: 26
Default

Instead of modding the valve cover... what about making a plate that holds them from above... and bolts that go down to the plug wire 10mm bolt locations?
Splitime is offline   Reply With Quote
Old 07-28-2007, 12:56 AM   #192
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

yar, that be wat im gonna do matey!
neogenesis2004 is offline   Reply With Quote
Old 07-28-2007, 02:16 AM   #193
Senior Member
iTrader: (4)

Join Date: May 2007
Location: Ontario
Posts: 790
Total Cats: 0
Default

Anybody been able to source the plugs yet?
reddroptop is offline   Reply With Quote
Old 07-28-2007, 02:30 AM   #194
Junior Member
iTrader: (1)

Join Date: Jul 2007
Location: Arvada, CO
Posts: 118
Total Cats: 0
Default

You mean the connectors? Re-read the thread if you're looking for plugs, it mentions a couple places. I got mine on ebay.

Right now the connectors are solely coming from junkyards from what I understand.
honeydesean is offline   Reply With Quote
Old 07-28-2007, 02:46 AM   #195
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Quote:
Originally Posted by honeydesean View Post
You mean the connectors? Re-read the thread if you're looking for plugs, it mentions a couple places. I got mine on ebay.

Right now the connectors are solely coming from junkyards from what I understand.
Sean do you mean coils? Coils or connectors are both from ebay and/or junkyards.

Nice pics Sean! Worth 1000 words especially pointing out the extra ground wire and location for grounding.
lazzer408 is offline   Reply With Quote
Old 07-28-2007, 04:12 AM   #196
Junior Member

Join Date: Oct 2006
Posts: 312
Total Cats: 0
Default

I can find what appear to be the correct COPs easily but I can't find the wires. PM me if you find the harness that hooks up to the COPs. Thanks.

Those of you who already PMed me, keep up the good work.
beerslurpy is offline   Reply With Quote
Old 07-28-2007, 06:59 AM   #197
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

I did a bit of investigating and I THINK these connectors are manufactured by a company which I've already contacted about the connector. They seem to make connectors ranging from injectors to atx power supply type. (molex) I'll keep you updated. =)

Company Name: Yueqing Brifar Electric Co., Ltd.
Contact Person: Kevin ****

Address: 917 Xinfu East Road, Hongqiao Town, Yueqing City, Zhejiang Province. China
Zip: 325608
Telephone: 86-577-61313666
Mobile Phone: 86-13968727921
Fax: 86-577-27813588
Website: http://www.brifar.com
http://brifar.en.alibaba.com


Here's some more coils on ebay.

http://cgi.ebay.com/ebaymotors/TOYOT...spagenameZWD1V

http://cgi.ebay.com/ebaymotors/TOYOT...spagenameZWD1V 16 available $14.62 each.

Just to update another piece of information. The coils are used in the following vehicles.

Chevy Prism '98-'02
Pontiac Vibe '03-'07
TOYOTA Corolla '98-02
TOYOTA MR2 Spider '00-05
TOYOTA AVENSIS 1.6i 3ZZ-FE N/A 2000-03
TOYOTA AVENSIS 1.8i 1ZZ-FE N/A 2000-03
TOYOTA AVENSIS 1.8i N/A N/A 2003-
TOYOTA CELICA 1.8i 1ZZ-FE N/A 1999-
TOYOTA COROLLA 1.4i 4ZZ-FE N/A 2002-
TOYOTA COROLLA 1.6i 3ZZ-FE N/A 2000-
TOYOTA COROLLA VERSO 1.6i N/A N/A 2001-
TOYOTA COROLLA VERSO 1.8i N/A N/A 2001-
TOYOTA MR2 1.8i VVTi 1ZZ-FE N/A 2000-
TOYOTA RAV 4 1.8i 1ZZ-FE N/A 2000-

Last edited by lazzer408; 07-28-2007 at 07:22 AM.
lazzer408 is offline   Reply With Quote
Old 07-28-2007, 09:28 AM   #198
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

There are a lot of companies (mainly in China) that make a compatible molded connector. Problem is they will have large minimum orders (1000 or3000 are typical) plus you have to wait for manufacturing + shipping time from China. Could take 90 days.

While having the harness would be easiest, what it looks like I am going to do is get some crimp-on/solder-on mini spades and make my own leads. It's not tough: solder on the spades to 4 wires, plug spades into the indiviudal terminals, and fill the connector with epoxy.
Ben is offline   Reply With Quote
Old 07-28-2007, 12:01 PM   #199
Senior Member
iTrader: (8)

Join Date: Mar 2006
Location: Floriduh
Posts: 882
Total Cats: 0
Default

I have a Hydra and intend to do this swap. I assume the Hydra can handle sequential coil firing. I have to figure out how to configure it for sequential. With COPs like this, esp from a different vehicle, and firing sequential, how should the coil dwell settings be changed?
soflarick is offline   Reply With Quote
Old 07-28-2007, 02:22 PM   #200
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Quote:
Originally Posted by Ben View Post
There are a lot of companies (mainly in China) that make a compatible molded connector. Problem is they will have large minimum orders (1000 or3000 are typical) plus you have to wait for manufacturing + shipping time from China. Could take 90 days.

While having the harness would be easiest, what it looks like I am going to do is get some crimp-on/solder-on mini spades and make my own leads. It's not tough: solder on the spades to 4 wires, plug spades into the indiviudal terminals, and fill the connector with epoxy.
Spades suck. Solder it straight to the coil's terminals and epoxy it.
lazzer408 is offline   Reply With Quote
