Old 10-25-2013, 12:24 PM   #241
Junior Member

Join Date: Aug 2013
Location: Ohio
Posts: 78
Total Cats: -7
Default

This is a great program. I tried it for the 1st time today. My street tune has me at 140/124. I'm hoping I can squeeze a little more out of it. My car is N/A by the way.
6speed is offline   Reply With Quote
Old 11-19-2013, 01:22 PM   #242
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

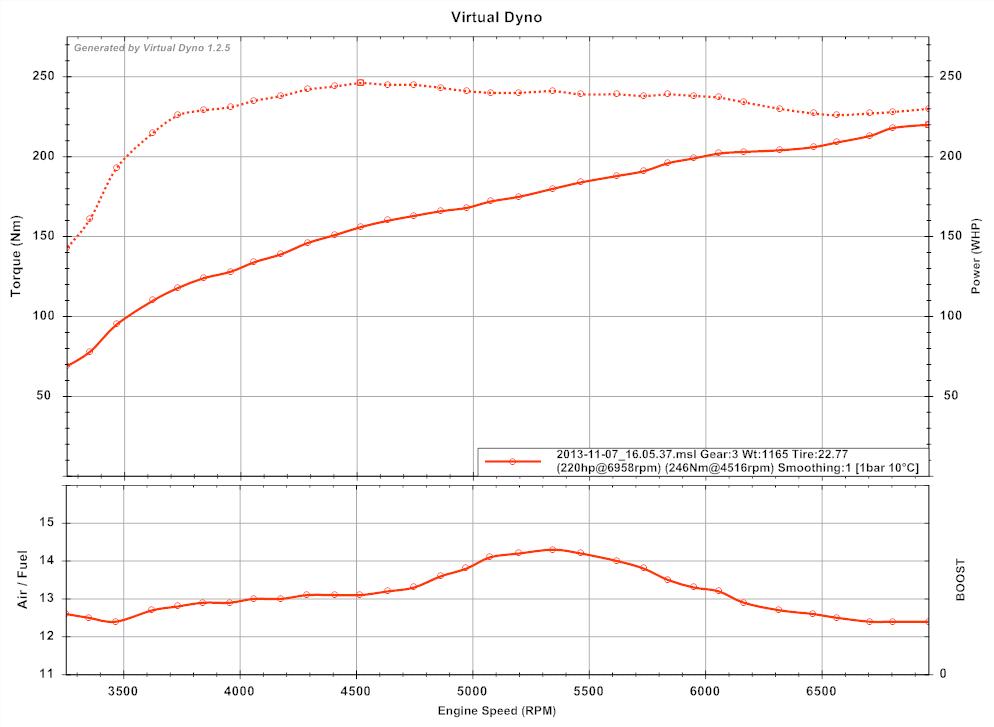

I've tried this on one of my logs I took while tuning a 99 car. As much stronger as it feels compared to stock, I'm guessing it's not close to 220hp/246Nm

Takes the log just fine, edited the car info slightly to change to the 3.636 diff ratio etc. It was a 3rd gear pull.

How do I get something slightly more realistic out of this?
Attached Thumbnails
Virtual Dyno-vdyno-graph_1.jpg   Virtual Dyno-vdyno-settings.jpg
Oscar is offline   Reply With Quote
Old 11-19-2013, 01:27 PM   #243
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Make sure you're not going down a hill?
Leafy is offline   Reply With Quote
Old 11-19-2013, 01:29 PM   #244
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Road was level as can be, 101 kPa and 10-ish celsius ambient that day, no wind.
Oscar is offline   Reply With Quote
Old 11-20-2013, 05:07 PM   #245
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

1. Try using English units. Since most users have been in the US, it may have bugs when using metric. If you find that to be the case, you should make a bug report.

2. Double check the gear ratios in the car profile. 5 spd vs. 6 spd (both were available on your model year) -- there could easily be an error.

3. Double check tire diameter and weights.

4. I usually do runs both ways to cut down on wind and slope effects.

Last edited by hornetball; 11-20-2013 at 05:09 PM. Reason: Just saw you reported "no wind."
hornetball is offline   Reply With Quote
Old 11-20-2013, 05:20 PM   #246
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

1. I'll give that a try
2. I checked all ratios for the 6 speed with FMs gearing calculator
3. I took stockish weight for a 99 and added my own, tire diameter calculated by inputting the tire size in VD itself
4. I've tried multiple logs, all give me >2xx hp.
Oscar is offline   Reply With Quote
Old 11-20-2013, 06:44 PM   #247
Junior Member

Join Date: Aug 2013
Location: Ohio
Posts: 78
Total Cats: -7
Default

Not sure whats wrong with the program but your run was pretty lean in the 45-6k range.
6speed is offline   Reply With Quote
Old 11-21-2013, 02:20 PM   #248
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by Oscar View Post
4. I've tried multiple logs, all give me >2xx hp.
If you're still having issues, post one of your logs and I'll give it a try.
hornetball is offline   Reply With Quote
Old 11-22-2013, 12:17 AM   #249
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

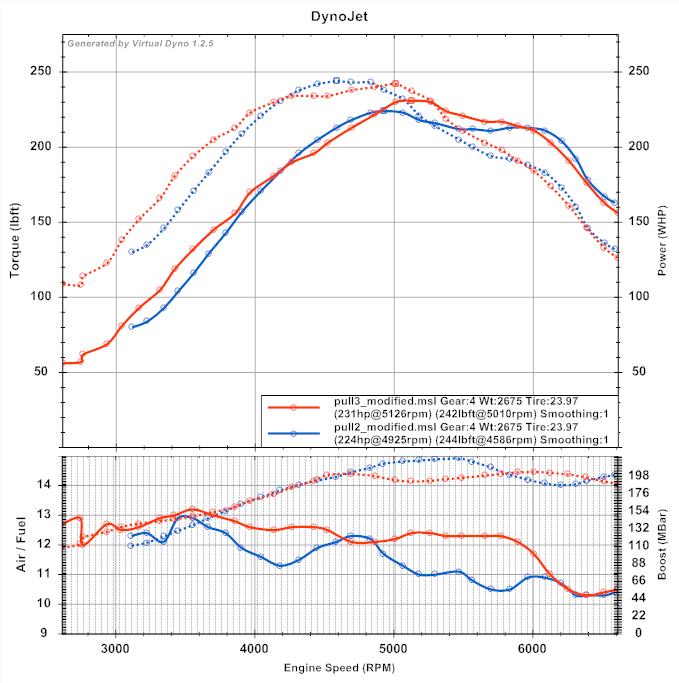

Note: My MS till has it's oscillating AFR signal issue.
Note2: It's art, imagine mountains.
Note3: Or hill sides.
Attached Thumbnails
Virtual Dyno-b7e.jpg   Virtual Dyno-dynos_zps77dc573a.jpg
Impuls is offline   Reply With Quote
Old 11-22-2013, 08:36 AM   #250
Junior Member

Join Date: Aug 2013
Location: Ohio
Posts: 78
Total Cats: -7
Default

My MS3 had an oscillating AFR signal also. Mine ended up being the ground. I switched the wideband ground from "ground" to "sensor ground" and it cured the problem.
6speed is offline   Reply With Quote
Old 11-22-2013, 12:22 PM   #251
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Not sure that's an oscillating AFR. The AFR's correspond to torque (i.e., being overly rich on pull 2 was hurting torque and power as compared to pull 3). That tells me the AFR is accurate.
hornetball is offline   Reply With Quote
Old 11-25-2013, 10:53 PM   #252
Junior Member

Join Date: Jan 2012
Location: Kansas City, KS
Posts: 66
Total Cats: 3
Default

Sounds like Hornetball has this under control
bbarnhill is offline   Reply With Quote
Old 11-25-2013, 10:54 PM   #253
Junior Member

Join Date: Jan 2012
Location: Kansas City, KS
Posts: 66
Total Cats: 3
Default

can this thread get stickied already?
bbarnhill is offline   Reply With Quote
Old 11-25-2013, 11:21 PM   #254
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Brad is it possible to make the minimum and maximum ranges customizable. For example say you want your boost range to be from 110kpa to 200kpa, just be able to click the bottom number set it to 110, and set the upper number to 200 and have the graph automatically scale.
triple88a is offline   Reply With Quote
Old 11-25-2013, 11:46 PM   #255
Junior Member

Join Date: Jan 2012
Location: Kansas City, KS
Posts: 66
Total Cats: 3
Default

it is possible ... can I ask why auto scaling isnt good enough?
bbarnhill is offline   Reply With Quote
Old 11-26-2013, 02:01 AM   #256
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by hornetball View Post
Not sure that's an oscillating AFR. The AFR's correspond to torque (i.e., being overly rich on pull 2 was hurting torque and power as compared to pull 3). That tells me the AFR is accurate.
No, I have a thread about my TunerStudio/MS AFR signal oscillation. MY gauge reads fine. The signal at the input pin for AFR is good, but somewhere in the MS it gets messed up and oscillates. Maybe something to do with the two burn components. But DIY said they are my idle circuit.
Impuls is offline   Reply With Quote
Old 11-26-2013, 07:19 PM   #257
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Okay, this is annoying. I updated VD on my personal computer. Try to load log and

Yo, No wide open throttle TPS data found. Do you want to close this log?
I'd post my log but MT.net isn't letting me go to Advanced.
Attached Thumbnails
Virtual Dyno-wut_zps2d5bd936.jpg
Impuls is offline   Reply With Quote
Old 08-18-2014, 01:00 PM   #258
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,704
Total Cats: 269
Default

I'm trying to run my log, but keep getting an error that there is no TIME collumn.

Using VD 1.2.7 and log from MS3

Log_Here

*EDIT: This is a sample log, that I have available right now. Last night I had a better log of just a 2K to 7K 3rd gear pull. Error Message is the same, and VD will not allow the log to be processed.

Help, please.
DNMakinson is offline   Reply With Quote
Old 08-18-2014, 01:18 PM   #259
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

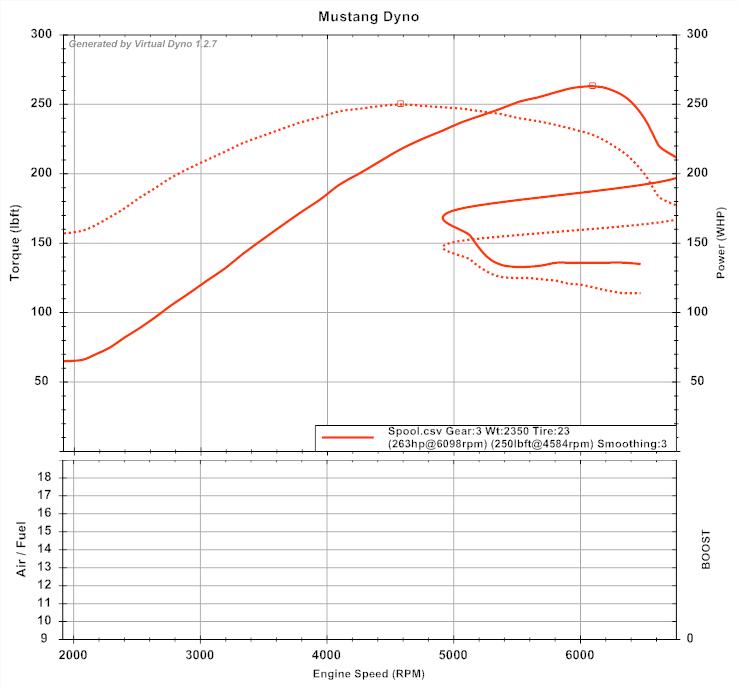

Here's what I got from your file David:



Nice numbers!

I'm not sure if VD is being actively supported or not. What I did to your file to get it to load was delete the first row (only had "#" in first column) and third row (with units) and then save it as a *.csv file. I did this with MS Excel. With that done, VD opened it just fine and produced the above output. The modified file is attached.

Send a query to the VD developer along with the MS3 file so he can make whatever changes are needed for native support.
Attached Thumbnails
Virtual Dyno-dnmakinson.jpg
Attached Files
File Type: csv Spool.csv (62.6 KB, 36 views)
hornetball is offline   Reply With Quote
Old 08-18-2014, 01:26 PM   #260
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,704
Total Cats: 269
Default

Well, I would not expect those numbers to be real, but the important thing is how to get the files to run.

Thanks heaps, Rick.

The 1st row I had heard about, but the third one not.
DNMakinson is offline   Reply With Quote
