Old 08-06-2012, 02:15 AM   #161
Junior Member

Join Date: Jan 2012
Location: Kansas City, KS
Posts: 66
Total Cats: 3
Default

awesome ... got your donation and its MUCH appreciated as donations have kinda dropped off here lately.
bbarnhill is offline   Reply With Quote
Old 08-06-2012, 02:45 PM   #162
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

My pleasure. I don't have the speed sensor necessary for the built-in HP/TQ feature in ECMLink, so this is a great alternative.
matthewdesigns is offline   Reply With Quote
Old 08-06-2012, 08:12 PM   #163
Junior Member

Join Date: Jan 2012
Location: Kansas City, KS
Posts: 66
Total Cats: 3
Default

plus this is quickly becoming a standard ... on the forums at least.
bbarnhill is offline   Reply With Quote
Old 08-06-2012, 08:36 PM   #164
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,201
Total Cats: 260
Default

Oh, never knew this thread was here. I used this and posted results in my progress log. (it's killing my self esteem)

I think It's pretty cool the owner of this program represents it himself around forums like this. Props. Donated, it's not much but it's what i can do. Looking forward to future updates to the program.
Erat is offline   Reply With Quote
Old 08-07-2012, 10:20 AM   #165
Junior Member

Join Date: Jan 2012
Location: Kansas City, KS
Posts: 66
Total Cats: 3
Default

Thanks Erat!!! I take pride in my work and my support I feel is unheard of now days. It gets overwhelming and I get behind sometimes but thats why its free
bbarnhill is offline   Reply With Quote
Old 08-07-2012, 04:34 PM   #166
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,704
Total Cats: 237
Default

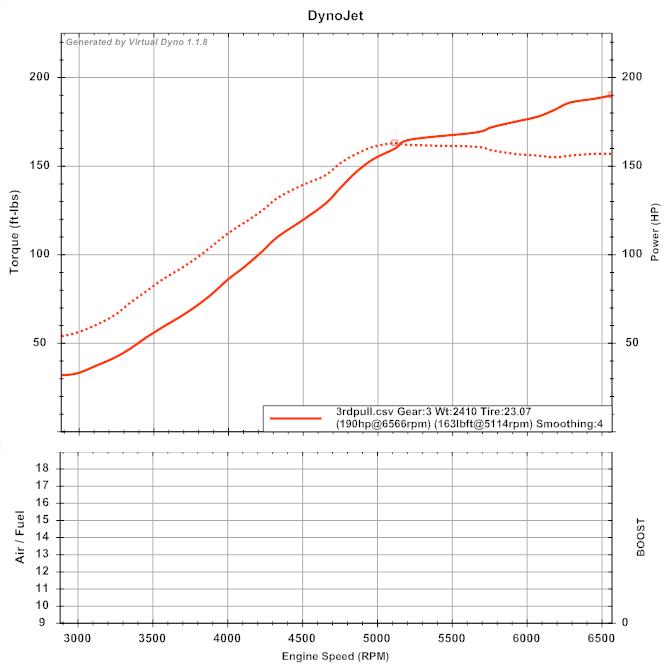

Hey! Since my first VD graph is in this thread I may as well update the new one for progress. Same boost level as the last one, new timing map thanks to brain. Mucho better.

Fireindc is offline   Reply With Quote
Old 08-07-2012, 06:58 PM   #167
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

That must feel much better. Making more TQ earlier, and 10% more at peak. Plus the extra 30 horses

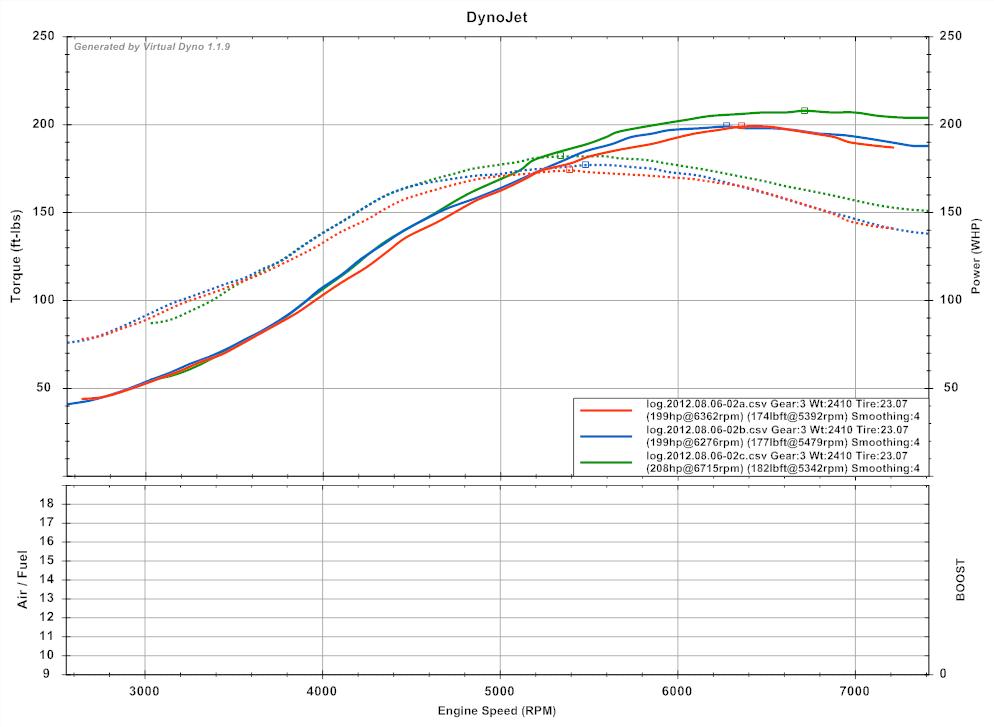

I've been playing with my tune lately as I was dubious of the results shown a page or so ago in this thread. I also wanted to make sure that I was seeing consistency in the graphing of the logfiles as interpreted by Virtual Dyno from run to run. I made three 3rd gear pulls the other day in the span of 10min with as much control over any variables as possible and here's what I came up with.



Looking at the logs after they were graphed, the green run log shows I had 1lb/min more airflow on that pull, which reflects the general idea that a change of 1lb/min = 10whp. Glad to see that line up as well. Eventually I'm going to hit the local DynoDynamics and see how it compares on the same tune, as I'm logging 23-24lb/min airflow but showing ~200hp in VD. I really don't want to leave that extra 30-40 "safe" hp on the table if I'm really only making 200 at the wheels.

Edit: I decided to search and see if there were any folks who had done any of this comparison testing before I drop coin on it. There are plenty of threads where favorable comparisons are made. Here's a link I found that shows me enough to be reasonably convinced of it's accuracy wrt actual dynos. Logs made during dyno runs are converted to VD graphs and compared.
Our Experiments With Virtual Dyno Innovative Tuning
Brad you ought to drop that link every chance you get lol.
Attached Thumbnails
Virtual Dyno-comparison-test-pulls.jpg
matthewdesigns is offline   Reply With Quote
Old 08-07-2012, 07:27 PM   #168
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

I say between 9.5 to 10.5hp per lb\min of air mass moved
so 23-24lb\min around 240hp~ then say 15% drive train loss around 200 whp.
One day I will test this myself on the dynojet dyno.
Techsalvager is offline   Reply With Quote
Old 08-07-2012, 07:29 PM   #169
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

max I pushed so far is around 170-180 grams a second that I'm aware of around 22-23lbs a min
Techsalvager is offline   Reply With Quote
Old 08-08-2012, 01:49 AM   #170
Junior Member

Join Date: Jan 2012
Location: Kansas City, KS
Posts: 66
Total Cats: 3
Default

Quote:
Originally Posted by matthewdesigns View Post
Our Experiments With Virtual Dyno Innovative Tuning
Brad you ought to drop that link every chance you get lol.
Im too modest ... I love skeptics ... I love proving every last one of them wrong
bbarnhill is offline   Reply With Quote
Old 08-08-2012, 04:33 AM   #171
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Torque divided by MAP. Failing that, just a text output of HP and Torque. How hard can it be? Please?
hornetball is offline   Reply With Quote
Old 08-08-2012, 09:59 AM   #172
Junior Member

Join Date: Jan 2012
Location: Kansas City, KS
Posts: 66
Total Cats: 3
Default

I also let this slip through the cracks. I just made myself a todo list in Visual Studio that includes this and other tasks to get done. So its now 'On the list'
bbarnhill is offline   Reply With Quote
Old 08-18-2012, 01:44 AM   #173
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,201
Total Cats: 260
Default

Had a little hiccup with mine. On my desktop i think when it went to update to 1.1.9 something happened and every time i opened it the window would not come up. Only the icon on the task bar would come up.

Just had to reinstall and it works now. Not that big of a deal, just thought i should share. It updated fine on my laptop, so it's probably just me.
Erat is offline   Reply With Quote
Old 08-20-2012, 07:29 PM   #174
Junior Member

Join Date: Jan 2012
Location: Kansas City, KS
Posts: 66
Total Cats: 3
Default

Weird ... had one more user do something similar but I dont know what it was. His would fail to open after the update. Totally different symptoms but ... still worries me a little. Not that much as a reinstall is possible.
bbarnhill is offline   Reply With Quote
Old 09-02-2012, 12:52 PM   #175
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

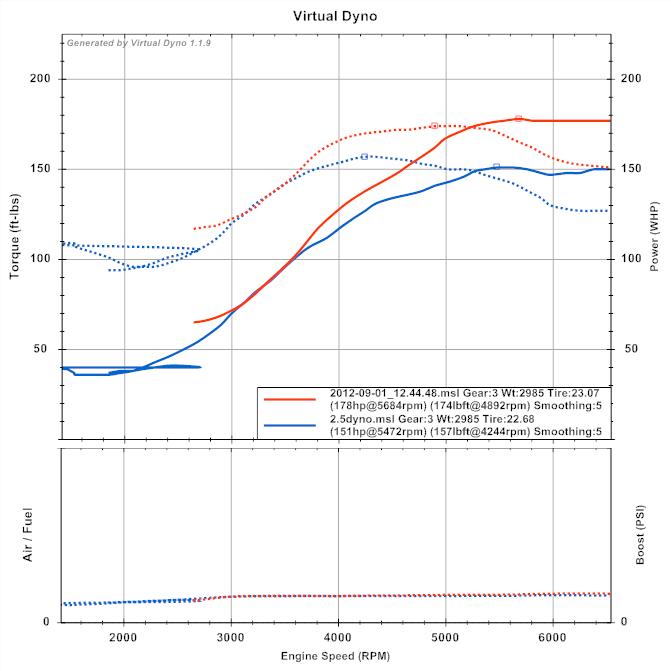

Finally got my exhaust comparison, I'll cross post this from my build thread.



Only thing that changed was the exhaust. I altered the weight to get the same dyno results of 155 HP on the 2.5 graph, then used those numbers again.

Now I just need to figure out why my MBC isnt working.
Attached Thumbnails
Virtual Dyno-25and3inchcompared.jpg
curly is offline   Reply With Quote
Old 09-03-2012, 05:28 PM   #176
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Awesome Curly. 30HP from an exhaust change. Sweet.

What was your boost? Can't really tell from the graph.
hornetball is offline   Reply With Quote
Old 09-03-2012, 05:31 PM   #177
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

8psi for both runs, although the 3" creeped to 10psi from 4500-6500.
curly is offline   Reply With Quote
Old 09-03-2012, 07:43 PM   #178
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Curly, couple of things:

1. Best way to match VD output to your dyno is by setting the "Dyno Correction Factor." This is found under File=>Options=>Dyno. What you did (changing weight) "sort of" works but skews the curve. Here's why:

There are three components that go into VD's torque calculation. They are:
a. Newtonian physics (F = MA). Your car has mass (M) and it takes force (F) to accelerate at rate (A).
b. In addition, we need to add rolling resistance, which is a fudged value based upon mass (M) and speed.
c. In addition, we need to add wind resistance, which is calculated from speed and the Cd/frontal area of your car.

So, if you change weight rather than use the "Dyno Correction Factor," you are changed calculations 1 & 2 but not calculation 3. This changes the curve shape somewhat.

2. The new exhaust has altered your engine's volumetric efficiency at higher RPM. I'd recommend some fuel tuning to compensate.

That's it. Great results. I'm looking to mimic what you did (our starting points are remarkably similar).
hornetball is offline   Reply With Quote
Old 09-03-2012, 08:23 PM   #179
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Cool thanks, I'll play around with it when I'm back at home. It's still hilly and in 3rd gear, so the numbers are still skewed.
curly is offline   Reply With Quote
Old 09-03-2012, 10:31 PM   #180
Junior Member

Join Date: Jan 2012
Location: Kansas City, KS
Posts: 66
Total Cats: 3
Default

Just a small note ... VD adds back in the power lost to wind resistance but doesnt take rolling resistance into account ... there arent any good formulas for this that Ive found.
bbarnhill is offline   Reply With Quote
