Quote:
Originally Posted by matthewdesigns View Post
If you are non-turbo. 100Kpa is aprox atmospheric pressure.
Sorry that was a typo.
I will post the correct KPA later. It was more like 136 or something like that...
poobs is offline   Reply With Quote
Old 09-20-2012, 08:38 PM   #202
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

You have to calibrate your sensor, atmo is 100kpa

full vacuum on deceleration on a stock block is about 18kpa at about 3-4k rpm and idle is about 30kpa.
triple88a is offline   Reply With Quote
Old 09-20-2012, 08:57 PM   #203
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Quote:
Originally Posted by triple88a View Post
You have to calibrate your sensor, atmo is 100kpa

full vacuum on deceleration on a stock block is about 18kpa at about 3-4k rpm and idle is about 30kpa.

It wouldn't surprise me if it is off

Does the MS1 have MAP sensor Cal ?

I don't recall seeing that in mega manual ...
poobs is offline   Reply With Quote
Old 10-13-2012, 10:10 PM   #204
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

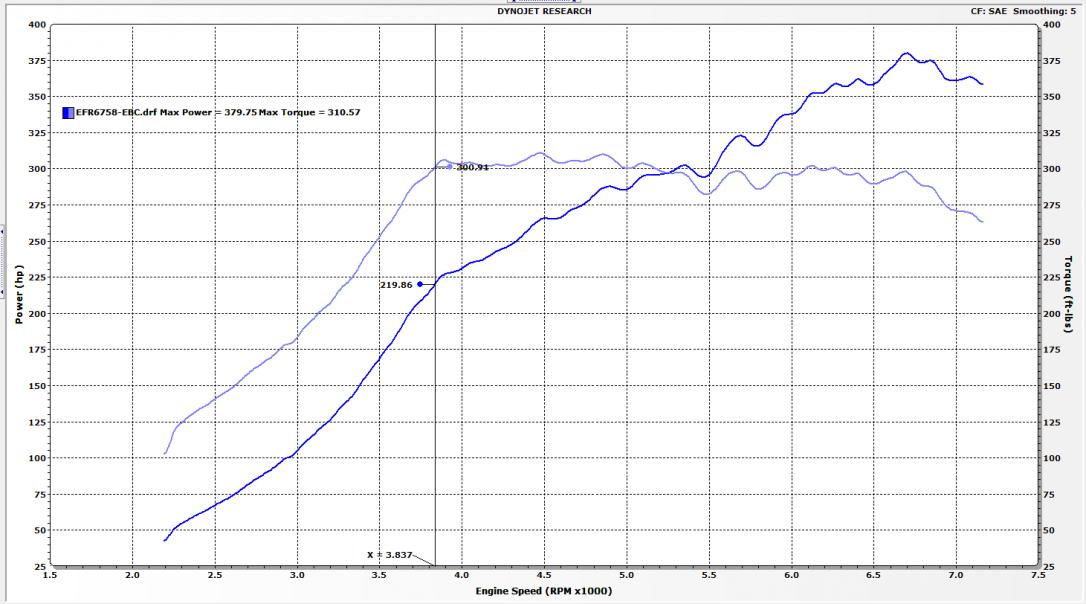

virtual dyno:


dynojet next day:


Notes:
  • virtual dyno I had to choose 99-05 miata to get the 6-speed ratios. My car is a 91. But sure it was with a hardtop and lowered and we can assume it was almost as aerodynamic.
  • Dyno was 1.5psi more boost (later was bumped 1.5psi more + 2* timing to get 400whp)
  • Same gear used in both
  • 'Dynojet' option was used in Virtual Dyno

Even with those differences it's incredibly close
Attached Thumbnails
Virtual Dyno-dynojet-379.jpg
soviet is offline   Reply With Quote
Old 10-13-2012, 10:13 PM   #205
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,202
Total Cats: 2,584
Default

that is very neat. the subaru guys already pretty much confirmed this thing works great, I guess the same could be said about miata's....very nice
18psi is offline   Reply With Quote
Old 10-14-2012, 12:34 AM   #206
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Very cool!!

Thanks for sharing that.
poobs is offline   Reply With Quote
Old 10-14-2012, 12:56 AM   #207
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

BTW, you can create a custom car profile in VD. So, you can have the 1991 aero + the 6-speed.

Good Lord, that must be a wild ride with 400.
hornetball is offline   Reply With Quote
Old 10-15-2012, 07:48 AM   #208
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

wow, 130 mph virtual dyno run!
sturovo is offline   Reply With Quote
Old 10-15-2012, 10:09 AM   #209
Junior Member

Join Date: Jan 2012
Location: Kansas City, KS
Posts: 66
Total Cats: 3
Default

Quote:
Originally Posted by hornetball View Post
BTW, you can create a custom car profile in VD. So, you can have the 1991 aero + the 6-speed.
You beat me to it hornet ... nice work.
bbarnhill is offline   Reply With Quote
Old 10-18-2012, 12:23 PM   #210
Junior Member

Join Date: Aug 2007
Location: Finland
Posts: 60
Total Cats: 0
Default

Please help me out! Seems like Im total retard, I cant get this **** right... See my csv. log. 3rd gear pull. What em I missing?
Attached Files
File Type: csv logi2.csv (2.4 KB, 52 views)
jim_rocketmow is offline   Reply With Quote
Old 10-18-2012, 12:42 PM   #211
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by bbarnhill View Post
You beat me to it hornet ... nice work.
It never seemed to save my custom gear ratios correctly. Was version 1.19 though, haven't tried 1.2 yet.
soviet is offline   Reply With Quote
Old 10-18-2012, 12:45 PM   #212
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

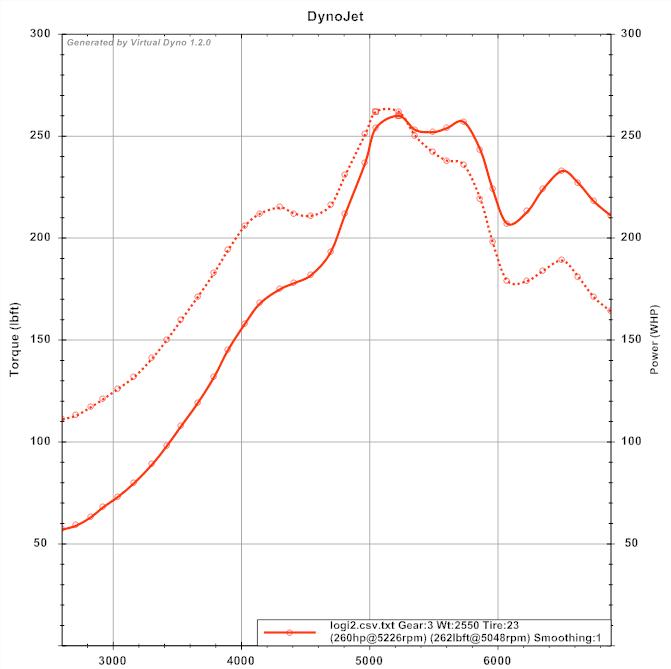

jim, like this?
Attached Thumbnails
Virtual Dyno-graph.jpg
Attached Files
File Type: csv logi2.csv (3.0 KB, 57 views)
sturovo is offline   Reply With Quote
Old 10-18-2012, 12:48 PM   #213
Junior Member

Join Date: Aug 2007
Location: Finland
Posts: 60
Total Cats: 0
Default

Quote:
Originally Posted by sturovo View Post
jim, like this?
Something like that.. Just testing with random log. What was wrong with my csv. file?
jim_rocketmow is offline   Reply With Quote
Old 10-18-2012, 12:51 PM   #214
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

I replaced the ; with , in your file as my spread sheet app wouldn't open it correctly and re based time to zero.
sturovo is offline   Reply With Quote
Old 04-02-2013, 06:37 PM   #215
Junior Member

Join Date: Oct 2012
Posts: 60
Total Cats: 2
Default

1st it wouldnt open. I changed the titles in the options to the title in the csv.

Now the graph opens (no 101 error) but it wont display data. Something about index zero (see below)

Any ideas or help?

See the end of this message for details on invoking
just-in-time (JIT) debugging instead of this dialog box.

************** Exception Text **************
System.ArgumentOutOfRangeException: Index 0 is out of range.
Parameter name: index
at System.Windows.Forms.Control.ControlCollection.get _Item(Int32 index)
at VirtualDyno.GraphOther.GraphOtherColumns.PopulateC olumnList()
at VirtualDyno.GraphOther.GraphOtherColumns..ctor(Str ing Filename, DataTable& RunData, String RPMColumnName, String TimeColumnName, String AFRColumnName, Double MinRPM, Double MaxRPM, Object HPPoints, Object TQPoints)
at VirtualDyno.RunControl.cRunControl.btnGraphOtherCo lumns_Click(Object sender, EventArgs e)
at System.Windows.Forms.Control.OnClick(EventArgs e)
at System.Windows.Forms.Button.OnMouseUp(MouseEventAr gs mevent)
at System.Windows.Forms.Control.WmMouseUp(Message& m, MouseButtons button, Int32 clicks)
at System.Windows.Forms.Control.WndProc(Message& m)
at System.Windows.Forms.ButtonBase.WndProc(Message& m)
at System.Windows.Forms.Button.WndProc(Message& m)
at System.Windows.Forms.Control.ControlNativeWindow.W ndProc(Message& m)
at System.Windows.Forms.NativeWindow.Callback(IntPtr hWnd, Int32 msg, IntPtr wparam, IntPtr lparam)


************** Loaded Assemblies **************
mscorlib
Assembly Version: 2.0.0.0
Win32 Version: 2.0.50727.5466 (Win7SP1GDR.050727-5400)
CodeBase: file:///C:/Windows/Microsoft.NET/Framework64/v2.0.50727/mscorlib.dll
----------------------------------------
Virtual Dyno
Assembly Version: 1.2.1.3
Win32 Version: 1.2.1.3
CodeBase: file:///C:/Program%20Files%20(x86)/Pnuema%20Productions/Virtual%20Dyno/Virtual%20Dyno.exe
----------------------------------------
System.Windows.Forms
Assembly Version: 2.0.0.0
Win32 Version: 2.0.50727.5468 (Win7SP1GDR.050727-5400)
CodeBase: file:///C:/Windows/assembly/GAC_MSIL/System.Windows.Forms/2.0.0.0__b77a5c561934e089/System.Windows.Forms.dll
----------------------------------------
System
Assembly Version: 2.0.0.0
Win32 Version: 2.0.50727.5467 (Win7SP1GDR.050727-5400)
CodeBase: file:///C:/Windows/assembly/GAC_MSIL/System/2.0.0.0__b77a5c561934e089/System.dll
----------------------------------------
System.Drawing
Assembly Version: 2.0.0.0
Win32 Version: 2.0.50727.5467 (Win7SP1GDR.050727-5400)
CodeBase: file:///C:/Windows/assembly/GAC_MSIL/System.Drawing/2.0.0.0__b03f5f7f11d50a3a/System.Drawing.dll
----------------------------------------
ZedGraph
Assembly Version: 5.1.5.28844
Win32 Version: 5.1.5.28844
CodeBase: file:///C:/Program%20Files%20(x86)/Pnuema%20Productions/Virtual%20Dyno/ZedGraph.DLL
----------------------------------------
VirtualDyno.Core
Assembly Version: 1.0.0.0
Win32 Version: 1.0.0.0
CodeBase: file:///C:/Program%20Files%20(x86)/Pnuema%20Productions/Virtual%20Dyno/VirtualDyno.Core.DLL
----------------------------------------
System.Data
Assembly Version: 2.0.0.0
Win32 Version: 2.0.50727.5420 (Win7SP1.050727-5400)
CodeBase: file:///C:/Windows/assembly/GAC_64/System.Data/2.0.0.0__b77a5c561934e089/System.Data.dll
----------------------------------------
System.Xml
Assembly Version: 2.0.0.0
Win32 Version: 2.0.50727.5420 (Win7SP1.050727-5400)
CodeBase: file:///C:/Windows/assembly/GAC_MSIL/System.Xml/2.0.0.0__b77a5c561934e089/System.Xml.dll
----------------------------------------
System.Configuration
Assembly Version: 2.0.0.0
Win32 Version: 2.0.50727.5420 (Win7SP1.050727-5400)
CodeBase: file:///C:/Windows/assembly/GAC_MSIL/System.Configuration/2.0.0.0__b03f5f7f11d50a3a/System.Configuration.dll
----------------------------------------
System.Web.Services
Assembly Version: 2.0.0.0
Win32 Version: 2.0.50727.5420 (Win7SP1.050727-5400)
CodeBase: file:///C:/Windows/assembly/GAC_MSIL/System.Web.Services/2.0.0.0__b03f5f7f11d50a3a/System.Web.Services.dll
----------------------------------------
hsjvefu0
Assembly Version: 1.2.1.3
Win32 Version: 2.0.50727.5467 (Win7SP1GDR.050727-5400)
CodeBase: file:///C:/Windows/assembly/GAC_MSIL/System/2.0.0.0__b77a5c561934e089/System.dll
----------------------------------------
Ionic.Zip
Assembly Version: 1.7.1.11
Win32 Version: 1.7.1.11
CodeBase: file:///C:/Program%20Files%20(x86)/Pnuema%20Productions/Virtual%20Dyno/Ionic.Zip.DLL
----------------------------------------
VirtualDyno.RunControl
Assembly Version: 1.1.1.0
Win32 Version: 1.1.1.0
CodeBase: file:///C:/Program%20Files%20(x86)/Pnuema%20Productions/Virtual%20Dyno/VirtualDyno.RunControl.DLL
----------------------------------------
XPClient
Assembly Version: 2.2.0.18017
Win32 Version: 2.2.0.0
CodeBase: file:///C:/Program%20Files%20(x86)/ASUS/ASUS%20WebStorage/3.0.84.161/XPClient.DLL
----------------------------------------
LogicNP.EZNamespaceExtensions
Assembly Version: 4.0.0.0
Win32 Version: 4.0.0.0
CodeBase: file:///C:/Program%20Files%20(x86)/ASUS/ASUS%20WebStorage/3.0.84.161/LogicNP.EZNamespaceExtensions.DLL
----------------------------------------
eCaremeDLL
Assembly Version: 1.0.0.0
Win32 Version: 1.0.0.0
CodeBase: file:///C:/Program%20Files%20(x86)/ASUS/ASUS%20WebStorage/3.0.84.161/eCaremeDLL.DLL
----------------------------------------
Microsoft.VisualBasic
Assembly Version: 8.0.0.0
Win32 Version: 8.0.50727.5420 (Win7SP1.050727-5400)
CodeBase: file:///C:/Windows/assembly/GAC_MSIL/Microsoft.VisualBasic/8.0.0.0__b03f5f7f11d50a3a/Microsoft.VisualBasic.dll
----------------------------------------
log4net
Assembly Version: 1.2.10.0
Win32 Version: 1.2.10.0
CodeBase: file:///C:/Program%20Files%20(x86)/ASUS/ASUS%20WebStorage/3.0.84.161/log4net.DLL
----------------------------------------
ZzzzRangeBar
Assembly Version: 1.0.1279.22644
Win32 Version: 1.0.1279.22644
CodeBase: file:///C:/Program%20Files%20(x86)/Pnuema%20Productions/Virtual%20Dyno/ZzzzRangeBar.DLL
----------------------------------------
VirtualDyno.GraphOther
Assembly Version: 1.0.0.0
Win32 Version: 1.0.0.0
CodeBase: file:///C:/Program%20Files%20(x86)/Pnuema%20Productions/Virtual%20Dyno/VirtualDyno.GraphOther.DLL
----------------------------------------

************** JIT Debugging **************
To enable just-in-time (JIT) debugging, the .config file for this
application or computer (machine.config) must have the
jitDebugging value set in the system.windows.forms section.
The application must also be compiled with debugging
enabled.

For example:

<configuration>
<system.windows.forms jitDebugging="true" />
</configuration>

When JIT debugging is enabled, any unhandled exception
will be sent to the JIT debugger registered on the computer
rather than be handled by this dialog box.
Attached Files
File Type: csv ECU Internal Datalog.csv (15.8 KB, 47 views)
Canyonfive is offline   Reply With Quote
Old 04-03-2013, 10:07 AM   #216
Junior Member

Join Date: Jan 2012
Location: Kansas City, KS
Posts: 66
Total Cats: 3
Default

Was this log manipulated manually before putting it in Virtual Dyno?
bbarnhill is offline   Reply With Quote
Old 04-03-2013, 04:00 PM   #217
Junior Member

Join Date: Oct 2012
Posts: 60
Total Cats: 2
Default

Quote:
Originally Posted by bbarnhill View Post
Was this log manipulated manually before putting it in Virtual Dyno?
no. Is there any easy change i missed to make it work?
Canyonfive is offline   Reply With Quote
Old 04-05-2013, 11:41 AM   #218
Junior Member

Join Date: Jan 2012
Location: Kansas City, KS
Posts: 66
Total Cats: 3
Default

What logger is this? It has non-numeric data in each data cell. Im going to guess this is from a logger not on the list of supported loggers. If it is let me know what logger this is.
bbarnhill is offline   Reply With Quote
Old 04-05-2013, 06:31 PM   #219
Junior Member

Join Date: Oct 2012
Posts: 60
Total Cats: 2
Default

Quote:
Originally Posted by bbarnhill View Post
What logger is this? It has non-numeric data in each data cell. Im going to guess this is from a logger not on the list of supported loggers. If it is let me know what logger this is.
Hydra 2.7 but saved as a csv. Ill try copying and pasting it into another excel just moving over the final fields. or I could remove all non-numeric data?

(later) after removing all non-numeric data it worked. of course this is time consuming, any way around it?

Last edited by Canyonfive; 04-05-2013 at 07:52 PM.
Canyonfive is offline   Reply With Quote
Old 04-08-2013, 08:26 PM   #220
Junior Member

Join Date: Jan 2012
Location: Kansas City, KS
Posts: 66
Total Cats: 3
Default

The log example I have from Hydra doesnt have non-numeric data in the fields. Did they change something about the export to CSV?
bbarnhill is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Another Cast Manifold Corky Bell Prefabbed Turbo Kits 18 11-22-2016 10:01 PM
Why dynos should plot Torque divided by MAP JasonC SBB ECUs and Tuning 11 10-27-2015 05:56 PM
Time to start learning and play with tuning The Gleas MEGAsquirt 3 10-01-2015 10:30 AM
1.8, C30-74 Rotrex, 9psi, 235WHP/190WTQ (E85) Lincoln Logs Dynos and timesheets 4 09-23-2015 01:26 PM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 09:42 PM.
