Old 09-03-2012, 10:36 PM   #181
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by bbarnhill View Post
Just a small note ... VD adds back in the power lost to wind resistance but doesnt take rolling resistance into account ... there arent any good formulas for this that Ive found.
Yeah all the models for it are either overly simple, or stupidly complex. And we're going so fast for most of these runs that drag will be the dominate opposing force.
Leafy is offline   Reply With Quote
Old 09-04-2012, 12:08 AM   #182
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

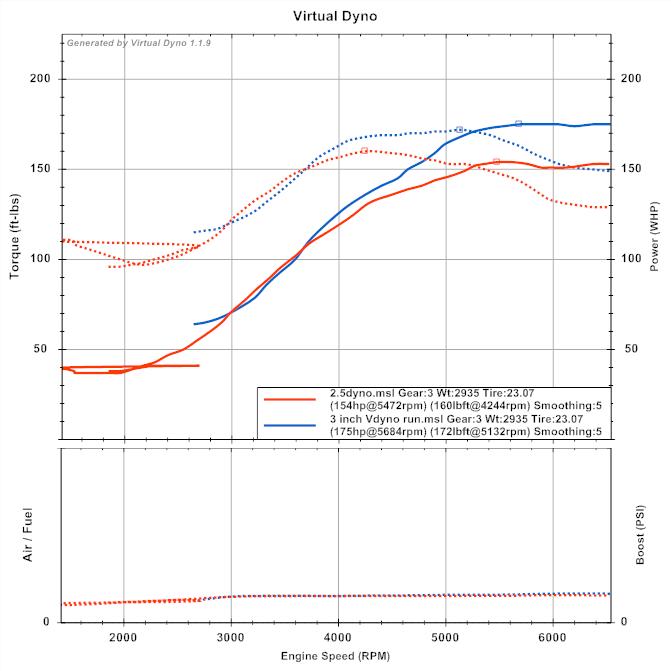

Ok, weight corrected*:

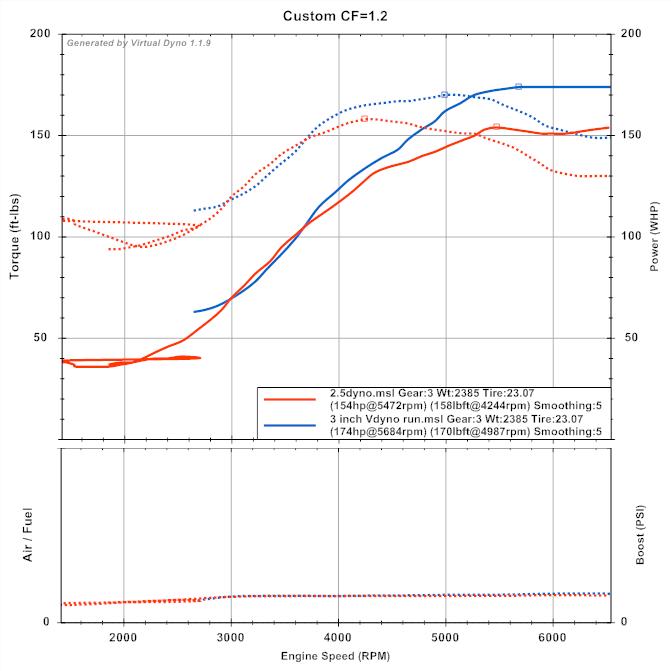

And by changing the dyno correction**:


*if you'll notice, this is slightly different than my previously posted graph, in which I hadn't clicked outside of a box after making a change.

**I used 1.2, which matched my dyno numbers of 155hp.
Attached Thumbnails
Virtual Dyno-25and3inchweightchanged.jpg   Virtual Dyno-25and3inchdynocorrection.jpg
curly is offline   Reply With Quote
Old 09-04-2012, 02:52 AM   #183
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Bummer. My advice cost you 1HP and 2FT-LBS.

Seriously, almost identical. Probably would see more difference on a 4th gear pull. I don't do those on the street either.
hornetball is offline   Reply With Quote
Old 09-04-2012, 09:36 AM   #184
Junior Member

Join Date: Jan 2012
Location: Kansas City, KS
Posts: 66
Total Cats: 3
Default

ummm ... 1.2 sounds a bit high to match a dyno ... thats a 20% elevation in the graph.
bbarnhill is offline   Reply With Quote
Old 09-04-2012, 09:48 AM   #185
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

What weight do the program default for a miata? Weights can easily vary on these cars by a quarter of a ton between something like a CSP car in the 1900lb range to hustlers car when it was turbo in the 2400lb range.
Leafy is offline   Reply With Quote
Old 09-04-2012, 09:50 AM   #186
Junior Member

Join Date: Jan 2012
Location: Kansas City, KS
Posts: 66
Total Cats: 3
Default

which year ... it supports 1990-2005
bbarnhill is offline   Reply With Quote
Old 09-04-2012, 08:30 PM   #187
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

You can set custom weights for all.
triple88a is offline   Reply With Quote
Old 09-19-2012, 08:22 PM   #188
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Hi!

I just downloaded the software.
When I drag my log into the program screen I get an error message.
It asks if I want to contact the developer.
Also something that it must be a log tracking TPS,Time and something else.
I'm using the free version of MLV

Any advive ?

Thanks
poobs is offline   Reply With Quote
Old 09-19-2012, 08:47 PM   #189
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Do you have VTPS? I think you need that.
curly is offline   Reply With Quote
Old 09-19-2012, 08:53 PM   #190
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Yes, I do.
I went to the log and clicked on the 3 things that they say I need. Maybe I needed to save it as a separate log and then try importing that ?
poobs is offline   Reply With Quote
Old 09-19-2012, 09:43 PM   #191
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Convert the log to a .csv if it's not already in that format. To be sure there is no other data getting in the way, trim everything out except rpm, time (in seconds), and tps (make sure it's reading properly). That's how I got my logfiles to work before he recently updated the program.
matthewdesigns is offline   Reply With Quote
Old 09-19-2012, 10:08 PM   #192
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Quote:
Originally Posted by matthewdesigns View Post
Convert the log to a .csv if it's not already in that format. To be sure there is no other data getting in the way, trim everything out except rpm, time (in seconds), and tps (make sure it's reading properly). That's how I got my logfiles to work before he recently updated the program.
Thanks.

U mean change the file name to .csv ?
poobs is offline   Reply With Quote
Old 09-19-2012, 10:11 PM   #193
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Well, maybe. I can export files from my logger in that format, but it's not the native format. I think I had been able to change the extension on another filetype (one that MegaLogViewer used IIRC) and have it work correctly.

Edit: yep, it was an msl file. All I did was change the extension, then I could open it in Excel and trim out what wasn't needed.
matthewdesigns is offline   Reply With Quote
Old 09-19-2012, 10:16 PM   #194
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

I'll try it .

Now, the log was captured during slow, fast driving etc. What does the program plot in a case like this - peak power ?
poobs is offline   Reply With Quote
Old 09-19-2012, 10:35 PM   #195
Junior Member

Join Date: Jan 2012
Location: Kansas City, KS
Posts: 66
Total Cats: 3
Default

I support MSL files so you can export in that format too.

I tried to load the file you sent me or someone sent and it wont load ... it may be a new log format or an old format that I havent seen.
bbarnhill is offline   Reply With Quote
Old 09-19-2012, 10:58 PM   #196
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Theoretically, it will look for only those areas where you are WOT (Brad stated somewhere in this thread what the percentage threshold is). But if you have multiple WOT sections of the log it may get confused. As part of the trimming, I'd crop the log down to a specific WOT event, where you start around 2K rpm and end at redline.
matthewdesigns is offline   Reply With Quote
Old 09-19-2012, 11:36 PM   #197
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Poobs, you might try looking at Post #26 to help you understand this better.
hornetball is offline   Reply With Quote
Old 09-19-2012, 11:38 PM   #198
Junior Member

Join Date: Jan 2012
Location: Kansas City, KS
Posts: 66
Total Cats: 3
Default

if you log correctly you dont have to trim your log as VD will do it for you.
bbarnhill is offline   Reply With Quote
Old 09-20-2012, 07:52 PM   #199
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Thumbs up

Ok I got it to work

I updated to the newest version of MLV and made sure I had the fields that VD needs (Time, VTPS etc..)

My log only goes to about 100KPA and 6500 RPM so power is around 125 HP

Does that sound right ?

BTW My vehicle was recently weighed at a truck scale so I was able to plug that in...
poobs is offline   Reply With Quote
Old 09-20-2012, 08:13 PM   #200
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

If you are non-turbo. 100Kpa is aprox atmospheric pressure.
