Old 07-21-2012, 06:01 PM   #141
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Quote:
Originally Posted by matthewdesigns View Post
I just opened it up in Excel, I'll dick around with it later when I have some time. From the log viewer, it looks like your pull starts at timestamp ~1200 and ends at ~1212...that correct?
Just double checked, you've got it. I appreciate it!
Fireindc is offline   Reply With Quote
Old 07-21-2012, 06:45 PM   #142
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Bored at work so here you go. I still don't know how accurate these graphs are, but when I did mine a couple weeks ago whp and airflow in lb/min seemed to be in rough agreement (typically lb/min x 10 = whp). I guessed at vehicle/driver weights and tire size.

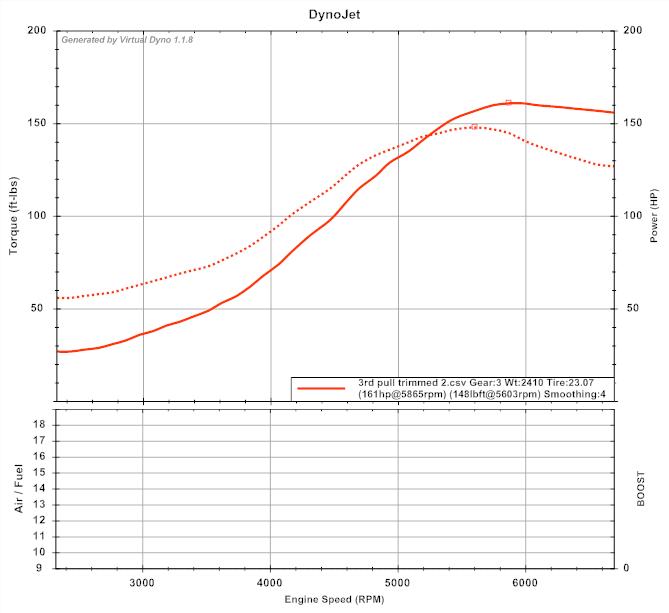

Fireindc's 3rd gear pull.

Attached Thumbnails
Virtual Dyno-fireindc-3rd-pull.jpg
matthewdesigns is offline   Reply With Quote
Old 07-22-2012, 01:31 AM   #143
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Thanks much! What exactly did you edit? I've downloaded open office calc and I'm playing with this now.

Looks like a good base to start from, apparently do need some more tuning. Have yet to play with the timing map I'm using at all, boost peaks at 160kpa and trails off to 149 kpa at redline, so not quite 10# per psi at all
Fireindc is offline   Reply With Quote
Old 07-22-2012, 01:52 AM   #144
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

I trimmed out all the data that was not tps, time, and rpm. Then I clipped the remaining bits down to just the pull. Then I changed the tps column to read 100 as the value in each cell. I also renamed the respective columns "Time (s)" and "TPS (%)"...RPM is fine (I deleted the column that shows RPM/100 and kept the one that reads the full value). When that was all done, I saved as a .csv.

And 10# per psi...not the value for that comparison. Airflow in pounds per minute, not a measure of pressure but mass flow. The generally accepted rule of thumb is that for every lb/min of airflow you can estimate 10whp.
matthewdesigns is offline   Reply With Quote
Old 07-22-2012, 01:57 AM   #145
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Thanks for the details, I have something to play with now. Still needz moar power, and this wastegate wont let me hold anything past 10psi to redline, even with a helper spring. Looking into buying a 10psi wastegate and fabbing up a bracket for it.

Quote:
Originally Posted by matthewdesigns View Post
And 10# per psi...not the value for that comparison. Airflow in pounds per minute, not a measure of pressure but mass flow. The generally accepted rule of thumb is that for every lb/min of airflow you can estimate 10whp.
How does one go about calculating this?
Fireindc is offline   Reply With Quote
Old 07-22-2012, 01:35 PM   #146
Junior Member

Join Date: Jan 2012
Location: Kansas City, KS
Posts: 66
Total Cats: 3
Default

Quote:
Originally Posted by matthewdesigns View Post
I trimmed out all the data that was not tps, time, and rpm. Then I clipped the remaining bits down to just the pull. Then I changed the tps column to read 100 as the value in each cell. I also renamed the respective columns "Time (s)" and "TPS (%)"...RPM is fine (I deleted the column that shows RPM/100 and kept the one that reads the full value). When that was all done, I saved as a .csv.

And 10# per psi...not the value for that comparison. Airflow in pounds per minute, not a measure of pressure but mass flow. The generally accepted rule of thumb is that for every lb/min of airflow you can estimate 10whp.
You know this is all unnecessary right? VD will clip the run to the WOT sections of the log. It knows that if 87 is the max that TPS gets to that its the WOT value. It is pretty smart when it comes to trimming. Also other columns you can leave in there as you can graph them too. Im just trying to save you a lot of work.
bbarnhill is offline   Reply With Quote
Old 07-22-2012, 02:12 PM   #147
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Thanks Brad! Given my multiple failed attempts to graph my own datalogs I wanted to be as specific as possible this time. And his TPS reads only 48 and 49 since it's not variable...didn't know if that would translate well.

Quote:
Originally Posted by Fireindc
How does one go about calculating this?
Does the MS logger capture mass airflow in any form, or can you ask it to display that info? If yes, and it's gm/rev, here's a formula to convert to lb/min:

lb/min = g/rev * rpm * 0.002204623
matthewdesigns is offline   Reply With Quote
Old 07-22-2012, 02:14 PM   #148
Junior Member

Join Date: Jan 2012
Location: Kansas City, KS
Posts: 66
Total Cats: 3
Default

I think 1.1.8 has a TPS floor so it does consider anything less than 50 to be less than WOT so that may not work. I think Ive removed that in the upcoming 1.1.9
bbarnhill is offline   Reply With Quote
Old 07-22-2012, 02:25 PM   #149
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

1.1.9?

Text output?
hornetball is offline   Reply With Quote
Old 07-23-2012, 11:58 AM   #150
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Quote:
Originally Posted by matthewdesigns View Post
Thanks Brad! Given my multiple failed attempts to graph my own datalogs I wanted to be as specific as possible this time. And his TPS reads only 48 and 49 since it's not variable...didn't know if that would translate well.



Does the MS logger capture mass airflow in any form, or can you ask it to display that info? If yes, and it's gm/rev, here's a formula to convert to lb/min:

lb/min = g/rev * rpm * 0.002204623
Not as far as I know, it's MAP based. Either way I know with my turbo setup at 10psi I should be around 200whp, then to calculate for altitude(7k+ ft, barometric pressure is 80 here, vs 100 for sea level) you take off about 20%, so 180whp. That said, I'm still 20whp off. I need some people to look at my timing map, though this probably isn't the thread to do so in - so I'll open a new one sometime here.
Fireindc is offline   Reply With Quote
Old 07-23-2012, 12:05 PM   #151
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by matthewdesigns View Post
Thanks Brad! Given my multiple failed attempts to graph my own datalogs I wanted to be as specific as possible this time. And his TPS reads only 48 and 49 since it's not variable...didn't know if that would translate well.



Does the MS logger capture mass airflow in any form, or can you ask it to display that info? If yes, and it's gm/rev, here's a formula to convert to lb/min:

lb/min = g/rev * rpm * 0.002204623
Only if you have a maf sensor connected and setup properly in megasquirt
And even then you won't know if its correct unless you are actually running with maf based fueling as well.
It has two outputs MAF and CalcLoad ( MAFMAP actually but it has no relevance to MAP )
MAF is in grams a second and calcload is just a load # based on displacement of the engine, etc of the maf formula.

Since its a grams a second its even easier to convert it over to lb/min
Techsalvager is offline   Reply With Quote
Old 07-23-2012, 01:43 PM   #152
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Quote:
Originally Posted by Fireindc View Post
Not as far as I know, it's MAP based. Either way I know with my turbo setup at 10psi I should be around 200whp, then to calculate for altitude(7k+ ft, barometric pressure is 80 here, vs 100 for sea level) you take off about 20%, so 180whp. That said, I'm still 20whp off. I need some people to look at my timing map, though this probably isn't the thread to do so in - so I'll open a new one sometime here.
Ahh ok. I'm in MAP-based speed density too, but ECMLink allows users to set up the VE table with a native MAF sensor, and there's a built in tool for refining it further based on fuel trims.

Quote:
Originally Posted by techsalvager
It has two outputs MAF and CalcLoad ( MAFMAP actually but it has no relevance to MAP )
MAF is in grams a second and calcload is just a load # based on displacement of the engine, etc of the maf formula.

Since its a grams a second its even easier to convert it over to lb/min
That's basically how ECMLink calculates airflow after the speed density VE table is originally established with a MAF sensor.

Last edited by matthewdesigns; 07-24-2012 at 03:35 AM.
matthewdesigns is offline   Reply With Quote
Old 07-23-2012, 02:59 PM   #153
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,994
Total Cats: 13
Default

I don't know how I missed this thread for months... I will have to try this out. Has anybody compared this to a real dyno? How close is it?
skidude is offline   Reply With Quote
Old 07-23-2012, 06:13 PM   #154
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

And if you dont have a maf you can use the same math the VE table uses to get calculated air flow based on MAP, IAT, and RPM.

Here's a nice write up with more info than you could ever want. https://dl.dropbox.com/u/18163809/Ho...ityWorks16.doc
Leafy is offline   Reply With Quote
Old 07-23-2012, 11:55 PM   #155
Junior Member

Join Date: Jan 2012
Location: Kansas City, KS
Posts: 66
Total Cats: 3
Default

1.1.9 is the version that is about to get released. Im very close to releasing the next version

Text output is on the priority list but its falling next to saving custom cars. They both need done ... but work is working me 60 hrs a week so Im doing all I can along with trying to get my ex wife out of my house thats 9 hours away. Dang complications. If someone would get her out I would be able to get more done on VD. Any takers?
bbarnhill is offline   Reply With Quote
Old 07-24-2012, 02:24 AM   #156
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by skidude View Post
I don't know how I missed this thread for months... I will have to try this out. Has anybody compared this to a real dyno? How close is it?
Pretty darn. There are fudge factors if you're after a perfect match. BUT, physics (VD and 1/4 mile runs) is actually a more accurate measure than a dyno anyway, as long as you pay attention to things like temperature, wind and slope.

VD is repeatable. Therefore, you can use it to tune.
hornetball is offline   Reply With Quote
Old 07-24-2012, 03:48 AM   #157
Junior Member

Join Date: Jan 2012
Location: Kansas City, KS
Posts: 66
Total Cats: 3
Default

Took the words straight from my finger tips ...
bbarnhill is offline   Reply With Quote
Old 07-24-2012, 09:30 AM   #158
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Make sure it's not windy out.
triple88a is offline   Reply With Quote
Old 08-05-2012, 03:45 PM   #159
Junior Member

Join Date: Jan 2012
Location: Kansas City, KS
Posts: 66
Total Cats: 3
Default

1.1.9 has been released ... Enjoy!!!
bbarnhill is offline   Reply With Quote
Old 08-05-2012, 04:03 PM   #160
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

ECMLink support!!

Donation to be made shortly...thanks!
matthewdesigns is offline   Reply With Quote
