Old 02-23-2015, 11:59 AM   #121
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Quote:
Originally Posted by Braineack View Post
i dont see the problem:

Wow! Just wow!
bcrx7 is offline   Reply With Quote
Old 02-23-2015, 03:16 PM   #122
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Gotta make some slider bars or something to protect the engine.
triple88a is offline   Reply With Quote
Old 02-24-2015, 10:54 PM   #123
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 492
Default

People are still posting about this swap?

ThePass is offline   Reply With Quote
Old 02-25-2015, 09:59 AM   #124
Junior Member

Join Date: Jan 2010
Location: Anderson, SC
Posts: 149
Total Cats: 6
Default

Quote:
Originally Posted by triple88a View Post
Gotta make some slider bars or something better decisions about engine swap kits to protect the engine.
There we go.
sharkythesharkdogg is offline   Reply With Quote
Old 02-25-2015, 12:21 PM   #125
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Yeah this is a train wreck.
concealer404 is offline   Reply With Quote
Old 02-25-2015, 12:33 PM   #126
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

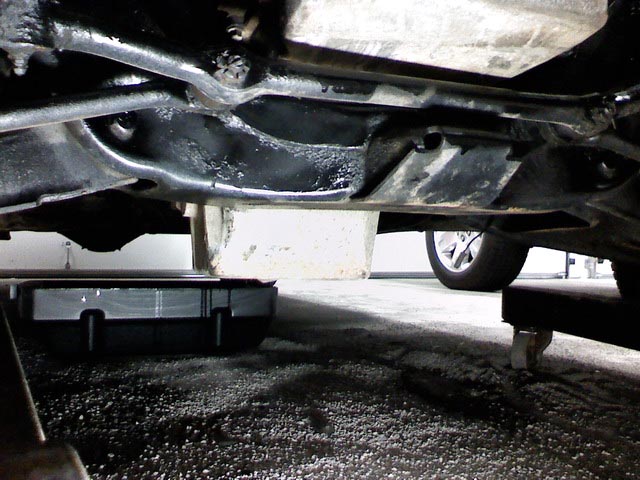

Leafy is making an oil pan to fix the clearance issues.
m2cupcar is offline   Reply With Quote
Old 02-25-2015, 07:55 PM   #127
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,051
Total Cats: 7
Default

Quote:
Originally Posted by m2cupcar View Post
Leafy is making an oil pan to fix the clearance issues.
Lol...that's what I was thinking
Efini~FC3S is online now   Reply With Quote
Old 02-27-2015, 01:05 PM   #128
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

The recent GRM article loved the J-Series in a Miata, with full-on journalist speak about how the nature of the car was unblemished and ****. Wine-and-cheesers need that sort of thing. I heard a number of $3500 bounced around in that article for the kit IIRC.
Sparetire is offline   Reply With Quote
Old 02-27-2015, 01:07 PM   #129
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

if its the same kit from this thread they are going to make bank. No way this **** costs more than 10$ for them to build.
aidandj is offline   Reply With Quote
Old 03-28-2015, 12:59 AM   #130
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

The last time I talked engine swaps with Shawn Church, his eyes lit up when HE brought up the J series engines. The sand rail guys get 450whp with a single turbo and stock internals, and 250-275whp NA with a stock ECU that's had the immobilizer chopped out of it. A quick check of the Acura forums shows all sorts of Franken swaps with J37 cranks, hi-comp pistons and wilder cams. Oh, and Honda.

I bet the weight would actually be LESS than a turbo or Rotrex car, with engine weight more mass-centralized. And last I saw that they made a new oil pan that looks less like an asphalt anchor.

I like the concept. But then again I'm a glutton for punishment.
cordycord is offline   Reply With Quote
Old 03-30-2015, 12:21 PM   #131
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Quote:
Originally Posted by cordycord View Post
The last time I talked engine swaps with Shawn Church, his eyes lit up when HE brought up the J series engines. The sand rail guys get 450whp with a single turbo and stock internals, and 250-275whp NA with a stock ECU that's had the immobilizer chopped out of it. A quick check of the Acura forums shows all sorts of Franken swaps with J37 cranks, hi-comp pistons and wilder cams. Oh, and Honda.

I bet the weight would actually be LESS than a turbo or Rotrex car, with engine weight more mass-centralized. And last I saw that they made a new oil pan that looks less like an asphalt anchor.

I like the concept. But then again I'm a glutton for punishment.
good luck getting the stock trans to live behind anything over 270hp.
OGRacing is offline   Reply With Quote
Old 03-31-2015, 09:36 AM   #132
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Quote:
Originally Posted by cordycord View Post
...I like the concept...
You sound like the perfect candidate to develop a swap kit for the J. With engine mounts.
m2cupcar is offline   Reply With Quote
Old 03-31-2015, 09:39 AM   #133
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by m2cupcar View Post
You sound like the perfect candidate to develop a swap kit for the J. With engine mounts.
And that uses a non-miata tranny. Lakewood makes a J to tko bellhousing.
Leafy is offline   Reply With Quote
Old 03-31-2015, 11:55 AM   #134
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: albion, mi
Posts: 303
Total Cats: 17
Default

Quote:
Originally Posted by Leafy View Post
And that uses a non-miata tranny. Lakewood makes a J to tko bellhousing.
Link?
glade is offline   Reply With Quote
Old 03-31-2015, 10:41 PM   #135
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by glade View Post
Link?
Bellhousing - Honda V6 ('08-'12) to TKO 500/600

Hmmm......very interesting...
cordycord is offline   Reply With Quote
Old 04-01-2015, 01:05 AM   #136
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by cordycord View Post
Man **** lakewood and their 20lb housings.
soviet is offline   Reply With Quote
Old 04-01-2015, 01:40 AM   #137
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by soviet View Post
Man **** lakewood and their 20lb housings.
Seriously, do you think the Lakewood housings are that much heavier than stock? For example, the T5 trans is only 75lbs but I don't know if that includes the housing or not. If it does, then that's Miata territory weight for a trans than can take 330wtq. That would be enough for a built J36, and not too much of a weight penalty.
cordycord is offline   Reply With Quote
Old 04-01-2015, 02:16 AM   #138
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Are we talking about T5 or TKO? T5 are nice but you have to basically DIY it to get the gear ratios you want. The lakewood bellhousing doesn't fit any T5 transmissions, if I recall.

TKO is like 90-100lbs without the bellhousing. It looked like the best option to me, especially with the lakewood bellhousing. But then I read a bunch of posts regarding shift problems at high rpm and kind of gave up on the idea.

At this point the transmission I'm interested the most is the BMW E39/E46 6-speed manual (Getrag 420G). It's rated at 370ft/lbs, weights 100lbs, can be had for reasonable price and has good gear ratios. The issues is that its short (probably hard to mate to PPF) and has a flange on the output shaft, instead of a spline, requiring a custom drive shaft (since you can't use a slip yoke). And of course, no easy way to mate it to any engine.

edit: to answer your question, I'd expect a miata-sized aluminum bellhousing to weigh like 10lbs.
soviet is offline   Reply With Quote
Old 04-01-2015, 02:54 AM   #139
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by soviet View Post
Are we talking about T5 or TKO? T5 are nice but you have to basically DIY it to get the gear ratios you want. The lakewood bellhousing doesn't fit any T5 transmissions, if I recall.

TKO is like 90-100lbs without the bellhousing. It looked like the best option to me, especially with the lakewood bellhousing. But then I read a bunch of posts regarding shift problems at high rpm and kind of gave up on the idea.

At this point the transmission I'm interested the most is the BMW E39/E46 6-speed manual (Getrag 420G). It's rated at 370ft/lbs, weights 100lbs, can be had for reasonable price and has good gear ratios. The issues is that its short (probably hard to mate to PPF) and has a flange on the output shaft, instead of a spline, requiring a custom drive shaft (since you can't use a slip yoke). And of course, no easy way to mate it to any engine.

edit: to answer your question, I'd expect a miata-sized aluminum bellhousing to weigh like 10lbs.
I thought for a second that the T5 and the TKO had the same bolt pattern. This is all bench racing anyway. Although the LFX and the J35 are interesting options, they'd need gearing that supported the lower rpm' sand higher torque of the engines.
cordycord is offline   Reply With Quote
Old 04-01-2015, 12:28 PM   #140
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by cordycord View Post
I thought for a second that the T5 and the TKO had the same bolt pattern. This is all bench racing anyway. Although the LFX and the J35 are interesting options, they'd need gearing that supported the lower rpm' sand higher torque of the engines.
TKO has "muncie 4 speed" pattern, which is only same as early Chevy T5 transmissions. Most T5 are ford pattern.
soviet is offline   Reply With Quote
