Old 01-26-2015, 02:28 PM   #101
Junior Member

Join Date: Sep 2011
Location: Prescott, AZ
Posts: 433
Total Cats: 28
Default

On their site, they claim the conversion adds "about 40lbs to the front axle", indicating the J is slightly heavier than the BP. Not sure how AC/PS factor in, either before or after the swap. I agree with Leafy that this is going to put a lot more stress on the PPF and diff mounts with the entire weight of the motor forward of the mounts. Especially in track cars that are seeing 1+G corner loads. Also, their mount setup doesn't look beefy enough for that kind of loading, though it's hard to be definitive with the pics that they've posted.
Roda is offline   Reply With Quote
Old 01-26-2015, 09:07 PM   #102
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Put me in the category of "would do not do this swap"

-Ryan
ThePass is offline   Reply With Quote
Old 01-27-2015, 07:27 PM   #103
Junior Member

Join Date: Sep 2009
Posts: 82
Total Cats: 0
Default

Quote:
Originally Posted by Roda View Post
It would have been nice if they specified the direction in their answer...
When I spoke to the fabricator he told me the steering rack was lowered 1/2".

I think if you buy their adapter plate/flywheel spacer and then buy the v8 roadsters mount less subframe you'd be better off. The s2000s with these swaps use mounts on the side, not the adapter plate method. You'd gain ground clearance by changing that stupid bottom/center starter setup, too.
Corey is offline   Reply With Quote
Old 01-28-2015, 01:53 PM   #104
Newb

Join Date: Aug 2011
Location: Propwash 16X D/FW, TX
Posts: 31
Total Cats: 2
Default

Quote:
Originally Posted by Corey View Post
I think if you buy their adapter plate/flywheel spacer and then buy the v8 roadsters mount less subframe you'd be better off.
/\ That…The guy in AU did the swap with side mounts, stock oil pan and a modded stock crossmember.
There's more than one way to skin a cat.
Rogue_LE is offline   Reply With Quote
Old 01-28-2015, 03:07 PM   #105
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,927
Total Cats: 526
Default

infraction
turbofan is offline   Reply With Quote
Old 01-28-2015, 03:08 PM   #106
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Quote:
Originally Posted by Savington View Post
lol @ 1/2" movement of steering rack not being "significant"

lol @ oil pan sitting below factory subframe
my oil pan sits level with the sub frame ( ls1, V8roadsters oil pan) and I've hit plenty with it. if it was a cast piece i'm sure i would have broken it once or twice. with this kit sitting lower and oem's love of cast = bad day.
OGRacing is offline   Reply With Quote
Old 01-28-2015, 03:13 PM   #107
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

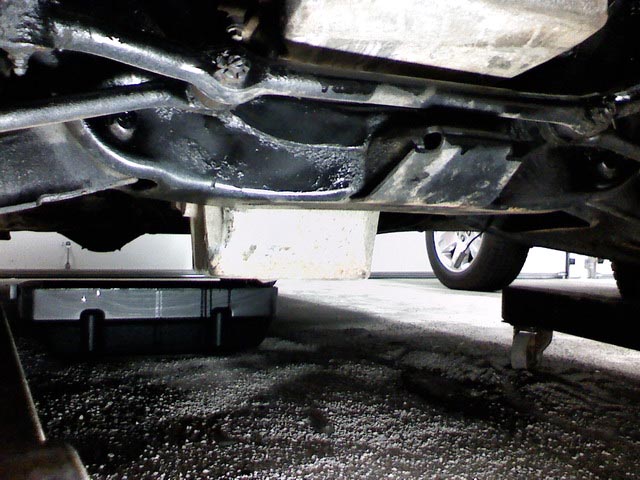

i dont see the problem:

Attached Thumbnails
Honda 3.5L V6 swap-oilpan_hanging_front.jpg
Braineack is offline   Reply With Quote
Old 01-28-2015, 04:48 PM   #108
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by Corey View Post
You'd gain ground clearance by changing that stupid bottom/center starter setup, too.
But then how would you start it? Push starting would get old fast.

If you do it Claire's KL way, you'd need to find a reverse rotation starter that works with the flywheel tooth pitch (OEM Honda if those mount on the trans side) then create your own mounting brackets inside/thru the bell housing.
TurboTim is offline   Reply With Quote
Old 01-28-2015, 11:05 PM   #109
Junior Member

Join Date: Sep 2009
Posts: 82
Total Cats: 0
Default

Quote:
Originally Posted by TurboTim View Post
But then how would you start it? Push starting would get old fast.

If you do it Claire's KL way, you'd need to find a reverse rotation starter that works with the flywheel tooth pitch (OEM Honda if those mount on the trans side) then create your own mounting brackets inside/thru the bell housing.
B-series engines rotate CCW. J-series rotate CW. The swap setup is using a b-series starter under the oil pan (engine side). Using a j-series on the transmission side would obviously mimic the factory setup on all oem j-series setups. I agree that a mount setup would have to be made similar to Claire's starter setup for the KL swaps and the bell housing would need modifications.
Corey is offline   Reply With Quote
Old 01-28-2015, 11:30 PM   #110
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by Braineack View Post
i dont see the problem:

Is that an actual picture of the swap?
aidandj is offline   Reply With Quote
Old 01-28-2015, 11:50 PM   #111
Senior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 510
Total Cats: 25
Default

Yes, but with the optional recirculating ball steering upgrade.
williams805 is offline   Reply With Quote
Old 01-29-2015, 09:31 AM   #112
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Quote:
Originally Posted by williams805 View Post
Yes, but with the optional recirculating ball steering upgrade.
and the ford 9" solid rear axle..
OGRacing is offline   Reply With Quote
Old 01-29-2015, 04:17 PM   #113
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by aidandj View Post
Is that an actual picture of the swap?
no, i think i googled bad engine swaps.
Braineack is offline   Reply With Quote
Old 01-29-2015, 04:18 PM   #114
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by Braineack View Post
no, i think i googled bad engine swaps.
Lol I realized that after seeing the steering links.
aidandj is offline   Reply With Quote
Old 02-21-2015, 02:18 PM   #115
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

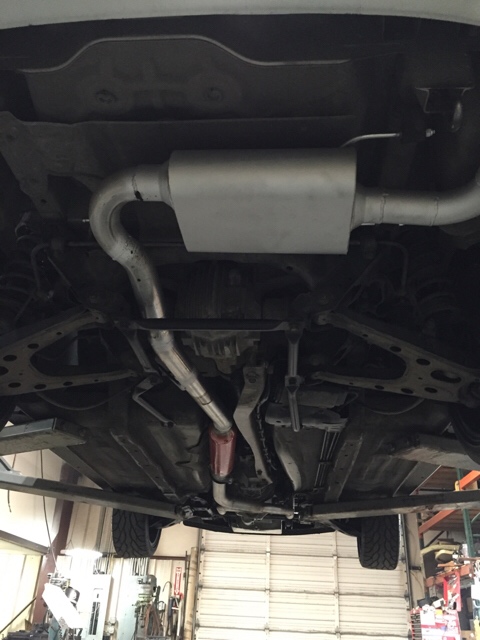

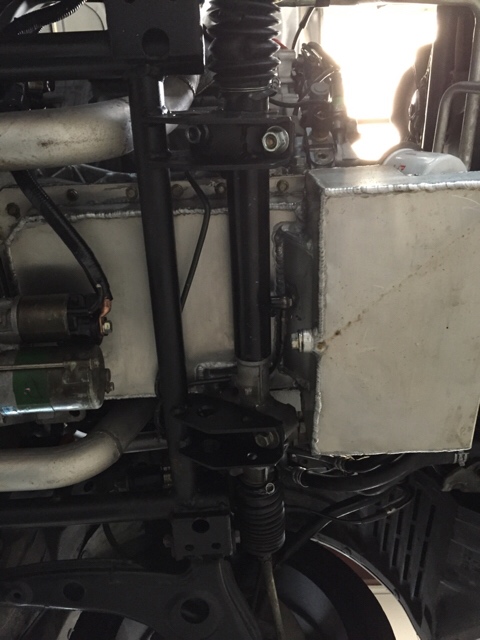

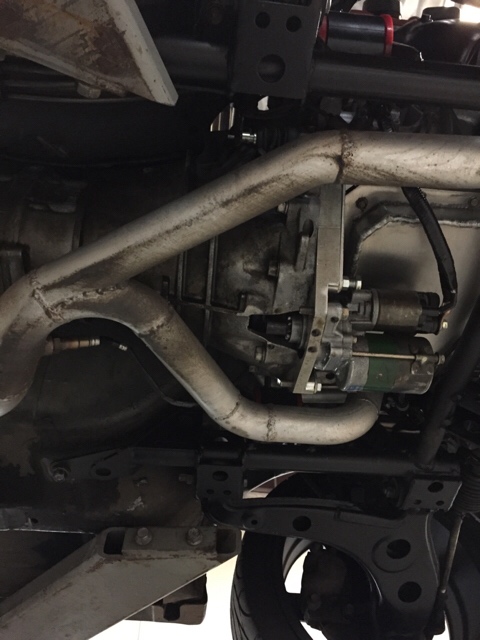

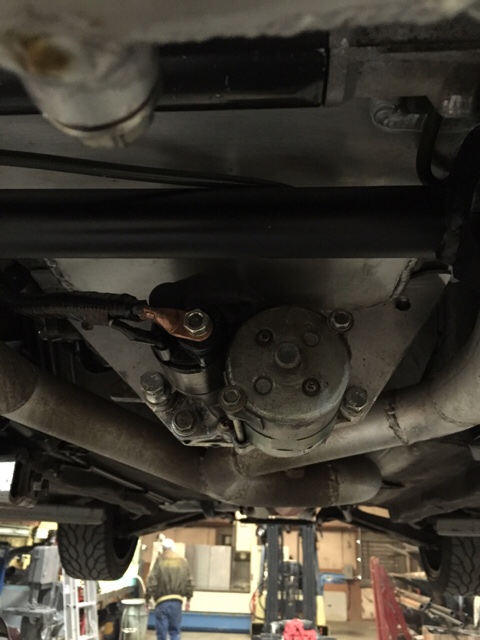

Some pictures from miata.net of the shop car:



Attached Thumbnails
Honda 3.5L V6 swap-imageuploadedbymx5-miata.net1423257437.979343.jpg   Honda 3.5L V6 swap-imageuploadedbymx5-miata.net1423257411.683531.jpg   Honda 3.5L V6 swap-imageuploadedbymx5-miata.net1423257383.385907.jpg   Honda 3.5L V6 swap-imageuploadedbymx5-miata.net1423257397.493260.jpg   Honda 3.5L V6 swap-133720d1424542669-honda-3-5l-v6-swap-imageuploadedbymx5-miata.net1423257437.979343.jpg

Honda 3.5L V6 swap-133721d1424542669-honda-3-5l-v6-swap-imageuploadedbymx5-miata.net1423257411.683531.jpg   Honda 3.5L V6 swap-133722d1424542669-honda-3-5l-v6-swap-imageuploadedbymx5-miata.net1423257383.385907.jpg   Honda 3.5L V6 swap-133723d1424542669-honda-3-5l-v6-swap-imageuploadedbymx5-miata.net1423257397.493260.jpg
njn63 is offline   Reply With Quote
Old 02-21-2015, 03:05 PM   #116
Senior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 510
Total Cats: 25
Default

Is the starter the lowest point on the car now? Al least it's kind of close to the axle center line.
williams805 is offline   Reply With Quote
Old 02-22-2015, 10:45 PM   #117
Senior Member
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 12
Default

It looks like a 12 year old welded that exhaust. I don't know if I trust that welding quality for the subframe pieces...
btabor is offline   Reply With Quote
Old 02-23-2015, 12:26 AM   #118
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

In before starter left on speed bump.
aidandj is offline   Reply With Quote
Old 02-23-2015, 10:16 AM   #119
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

looks like the front sump might protect the starter
m2cupcar is offline   Reply With Quote
Old 02-23-2015, 10:21 AM   #120
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

this just keeps getting worse
18psi is offline   Reply With Quote
