Old 02-04-2010, 12:52 PM   #201
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

True. But with the thing braced and good couplers, thats pretty unlikely. For it to come off it has to blow not one but all the couplers and overcome the bracing. If you do the bracing right, that means you need enough force to straight overcome the tensile strength of several peices of steel straping. If you have that kind of force, you are running diesel truck levels of boost and/or a large animal has been ramed into your engine bay and you are dead.

Lets say it does come off (which will be under boost if it happens) you will have a massive and sudden drop in the amount of air going into the head at first as boost just evacuates the intake. The engine is now pig rich and beyond for a short moment. Driver lets off the throttle with with the scary noise/feeling. Now you have basically ambient pressure on the MAP sensor. You do also have an engine getting airflow at ambient levels, but little or no fuel. So you will be lean or it will simply die for lack of fuel depending on where the injectors are. A 1.6 would likely be getting plenty of fuel due to the location of the injectors after the couplers. A 1.8 would be anyones guess. What with vacuum though, most of the fuel is going to get sucked right into the head short of the kind of blow up outlined in paragraph 1.

Lets say it does not die. Worse, lets say the driver goes into neutral or just pushes in the clutch. ****, now we have air and fuel (ish) going in and no load! ZOMG! Except that it will just bounce off the limiter untill the driver wakes up and shuts it down. Limiters work on ignition, which is working just fine.

Short of being a complete fool and running like that under a possible lean condition for a long damn time, I dont see damage occuring there. Scary as all get out sure, but not catstrophic. The only way the engine is going to run lean is if there is little or no load and then only at ambient pressure and then only for a moment. It wont over-rev, or at least not beyond whatever you set your limit to.
Sparetire is offline   Reply With Quote
Old 02-04-2010, 01:10 PM   #202
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,499
Total Cats: 1,707
Default

you know what works better? WELDING!
Braineack is offline   Reply With Quote
Old 02-04-2010, 01:13 PM   #203
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

OK, OK. Honestly I agree. I am going to STFU before I get banned.















......but I swear this would work.............
Sparetire is offline   Reply With Quote
Old 02-04-2010, 01:53 PM   #204
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

Quote:
Originally Posted by Sparetire View Post
Silicone Hose and Clamps

16" really strong coupler material (I used this on my own IC pipes @ 24 psig with 0 issues on a DD and that dealt with more movement than this will) - $16
"Tuning Tip: Red is a good color for all around performance, however with a big turbo blue gets upwards of 10 hp, unless you have stock cams, then only 5 hp. Purple is best for bottom end power, mix with red for excellent mid-range. For NT cars, shift all recommendations one hue towards a warmer color. Yellow hose should only be used on high compression NTs or turbo cars with welded differentials."

lol

Anyone have a pic of a cut 1.6 manifold?
ARTech is offline   Reply With Quote
Old 02-04-2010, 01:58 PM   #205
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

Quote:
Originally Posted by Jeff_Ciesielski View Post
I'm just throwing this out there. What is the worst case scenario of that connector falling off? Ok, now what is the worst case scenario of a coupler popping off post throttle body?
REDLINE!!! Rev'ing to redline and staying there.. I've seen this happen before on a DSM. Not good.
M-Tuned is offline   Reply With Quote
Old 02-04-2010, 02:04 PM   #206
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,499
Total Cats: 1,707
Default

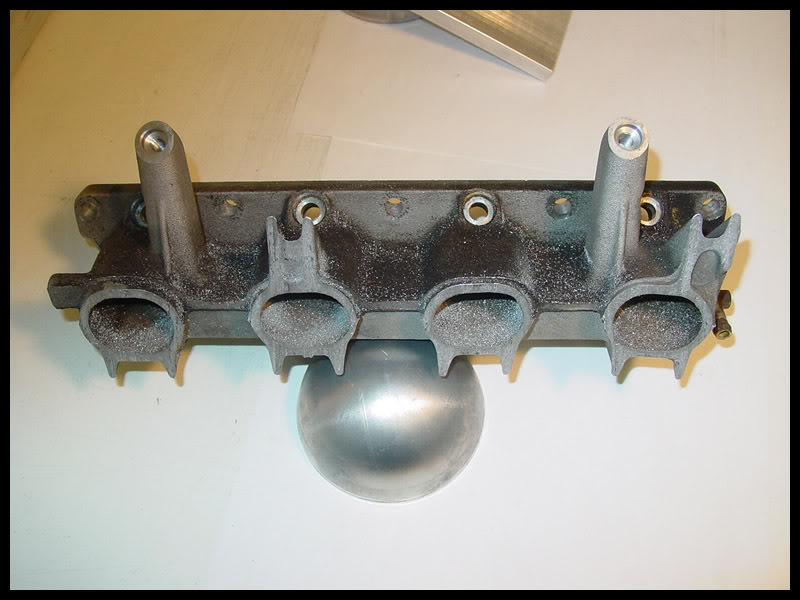

Name:  intake_flange.jpg
Views: 22
Size:  72.0 KB

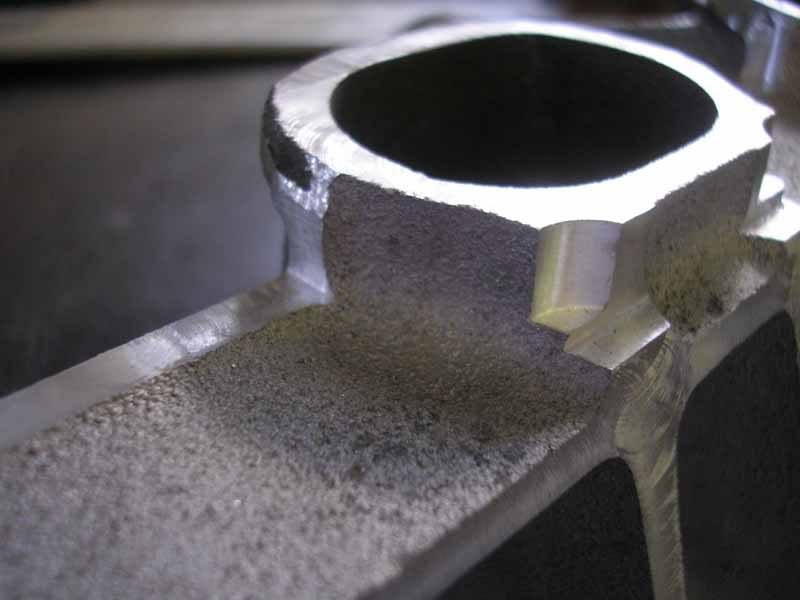

Name:  PB094936.jpg
Views: 22
Size:  33.0 KB

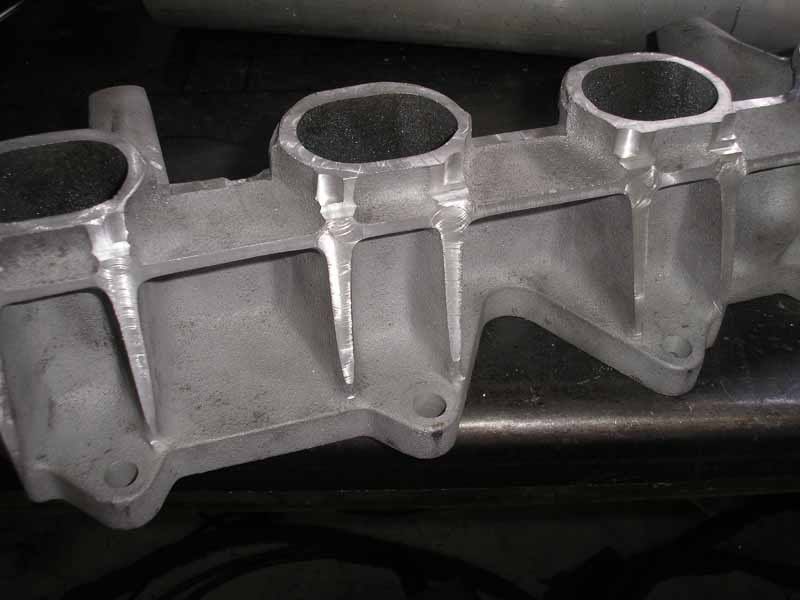

Name:  PB094934.jpg
Views: 22
Size:  37.0 KB

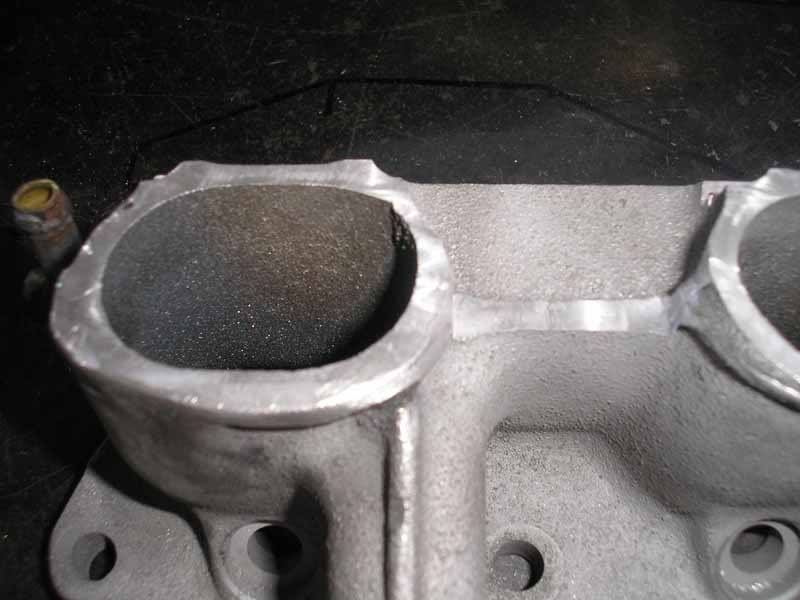

Name:  PB094933.jpg
Views: 22
Size:  42.2 KB

Concept "Blueprint":

Final result:
Braineack is offline   Reply With Quote
Old 02-04-2010, 02:08 PM   #207
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Those runners are so ungodly short...no wonder you took it off in less time than it took Corky to weld it.
gospeed81 is offline   Reply With Quote
Old 02-04-2010, 02:11 PM   #208
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,499
Total Cats: 1,707
Default

6" from tip of the stack to the flange. There should have been an extra 1" length of straight which I had on my first drawing...
Braineack is offline   Reply With Quote
Old 02-04-2010, 02:18 PM   #209
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by Braineack View Post
6" from tip of the stack to the flange. There should have been an extra 1" length of straight which I had on my first drawing...
I see now how it was different in construction...

I'm going to shoot a little closer to 9-10". The Skunk2 is designed to make power up to 8K+...and the Blox runners are even shorter. I don't plan on overspinning mine, and some crude interpolation of runner lengths versus powerbands tells me they should be a good bit longer to make the power from 5000-7000 we're looking for.


I'll stop posting in this thread until I'm ready to put up pictures of hardware.
gospeed81 is offline   Reply With Quote
Old 02-05-2010, 02:57 PM   #210
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

Looks really good so far.

I wonder how much the short runner length on that one will really affect things around 4k though. I would not think that short runners will affect velocity much, so my bet is that its not a big deal. I guess time will tell.
Sparetire is offline   Reply With Quote
Old 02-05-2010, 06:02 PM   #211
Senior Member
iTrader: (6)

tyson87's Avatar

Join Date: Aug 2008
Location: West Palm Beach, FL
Posts: 1,023
Total Cats: 1
Default

Quote:
Originally Posted by levnubhin View Post
Not even for a second.
I do think this would be a swell idea to help some one tune in the runner length.
tyson87 is offline   Reply With Quote
Old 02-09-2010, 01:56 PM   #212
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

Quote:
Originally Posted by Sparetire View Post
Looks really good so far.

I wonder how much the short runner length on that one will really affect things around 4k though. I would not think that short runners will affect velocity much, so my bet is that its not a big deal. I guess time will tell.
Tuning runner length (independent of all other variables) has nothing to do with direct velocity, it has to do with harmonics. It can matter /a lot./
Nagase is offline   Reply With Quote
Old 02-09-2010, 02:02 PM   #213
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,677
Total Cats: 212
Default

Quote:
Originally Posted by Braineack View Post
Concept "Blueprint":

Final result:
Thats the manifold that made this green line?

Full_Tilt_Boogie is offline   Reply With Quote
Old 02-09-2010, 03:07 PM   #214
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,499
Total Cats: 1,707
Default

yes, but my pretty much blew on the dyno and it wasnt boosting correctly



you gotta take the boost plots into consideration. I did make more power up top with less boost at the same timing.

here's how it compared at wastegate levels:



again, my motor was not up to snuff. I ultimately sold the IM to pay for a new block and parts.
Braineack is offline   Reply With Quote
Old 02-09-2010, 03:12 PM   #215
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,677
Total Cats: 212
Default

Quote:
Originally Posted by Braineack View Post
yes, but my pretty much blew on the dyno and it wasnt boosting correctly



you gotta take the boost plots into consideration. I did make more power up top with less boost at the same timing.
hm very intersting, I was about to say that a little bit longer may have been the sweet spot, but when you take the boost into account that may not be too short at all.

so what happened to that manifold? looks like it had plenty of potential
Full_Tilt_Boogie is offline   Reply With Quote
Old 02-09-2010, 03:58 PM   #216
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,499
Total Cats: 1,707
Default

Viperormiata owns it, he'll be done with his car soon to get it dynoed this spring/summer
Braineack is offline   Reply With Quote
Old 02-11-2010, 02:37 PM   #217
Senior Member
iTrader: (12)

absRTP's Avatar

Join Date: Sep 2009
Location: Montreal, Canada
Posts: 582
Total Cats: 0
Default

Does someone know if there is a non-mazda aftermarket intake manifold that would fit on a B6? (I mean the same runner paterns), thanks

Last edited by absRTP; 02-11-2010 at 03:22 PM.
absRTP is offline   Reply With Quote
Old 02-11-2010, 03:17 PM   #218
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

^ WTF are you talking about? This whole thread has been about how to utilize a aftermarket or Honda manifold for B18 engines.
Sparetire is offline   Reply With Quote
Old 02-11-2010, 03:21 PM   #219
Senior Member
iTrader: (12)

absRTP's Avatar

Join Date: Sep 2009
Location: Montreal, Canada
Posts: 582
Total Cats: 0
Default

thats why I'm asking if there is anything that can be use for 1.6L, as I can see, these hondas intake manifold as the same runner's paterns of the BP.

I wanna know if maybe toyota or whatever, why not honda X-series would fit?
absRTP is offline   Reply With Quote
Old 02-11-2010, 03:22 PM   #220
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

He may be addressing the fact that the runners almost exactly match the BP flange, but not the B6.

Still, we've been over it several times in this thread...cut the 1.6L mani 3" back from flange, and cut the Honda mani where the runners converge.

I'll let you know exactly how far back that is when I get it done. Gotta swap shocks again before I can get to it though.
gospeed81 is offline   Reply With Quote
