Old 06-30-2011, 11:31 PM   #221
Junior Member
iTrader: (3)

Join Date: Jul 2008
Location: Pinellas park Fl
Posts: 308
Total Cats: 1
Default

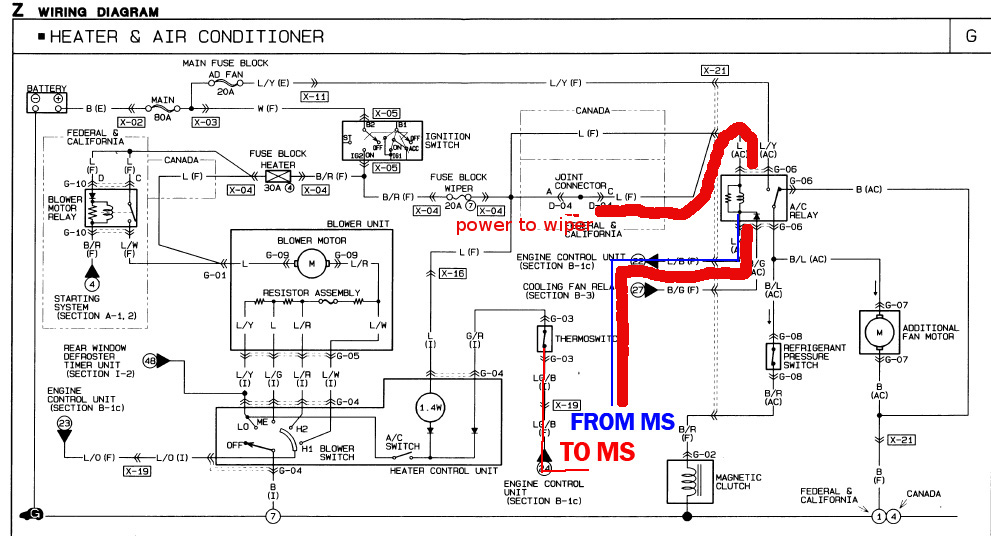

could you ms be sending 12v back to the wiper motor like this ?

I wonder what else is connected to that joint connector, could it be the air bag circuit ?
Attached Thumbnails
I Threw Gasoline On The Fire And Now I Have Stumps For Arms And No Eyebrows-ac_circuit2.jpg
92Miata is offline   Reply With Quote
Old 06-30-2011, 11:42 PM   #222
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

actually but through the blower motor, if i unplug the connector at g-01 the problem goes away.

EDIT: let me make that more clear. If I unplug the 12v side of the blower motor (which comes from the HEATER fuse), the crazy idle issue goes away. I'm getting a new resistor pack shipped, but I'm unsure if that's the issue or the blower motor itself.

the other issues where the voltage is flowing through the fuse panel i haven't figured out yet.

my sparks were coming from the starter, a had loosened a hose clamp that was hold a small section of hose to protect the pipe against rubbing the alternator bolt. I never refashioned it into position after I swapped my alternator last month. It crept all the way back and was able to make contact, that energized the pipe and when it hit the alternator bracket it sparked.

Last edited by Braineack; 07-01-2011 at 08:21 AM.
Braineack is offline   Reply With Quote
Old 06-30-2011, 11:58 PM   #223
Junior Member
iTrader: (3)

Join Date: Jul 2008
Location: Pinellas park Fl
Posts: 308
Total Cats: 1
Default

Quote:
Originally Posted by Braineack View Post
yes, it is. actually but through the blower motor, if i unplug the connector at g-01 the problem goes away.
does unplugging g-01 make your other problems go away ?
92Miata is offline   Reply With Quote
Old 07-01-2011, 01:32 AM   #224
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by revlimiter View Post
I'm totally shooting in the dark here.

Have you checked all of the wires below/around your coolant pipe? If it bridged the alternator, it seems like it could also mess with the starter motor.

As for your air bag fuse.... perhaps scrutinize your airbag sensors? Maybe a lot of voltage running across them suddenly was bad?

Holy **** your pony is so ******* cute. <3


Quote:
Originally Posted by Braineack View Post
yeah like i said losts of wires around coolant pipe, going to disassemble it all and see
Can you post a bunch of pics of your engine bay? High res?
Faeflora is offline   Reply With Quote
Old 07-01-2011, 08:37 AM   #225
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,687
Total Cats: 560
Default

Quote:
Originally Posted by Braineack View Post
I'm getting a new resistor pack shipped, but I'm unsure if that's the issue or the blower motor itself.
A bad motor will short straight through if the windings are cooked. If your alternator was shooting sparks, it probably pushed too much current through the motor and burned it out. I had a starter motor do that on a Datsum pickup. Turn key to start, and fried wiring resulted.
rleete is offline   Reply With Quote
Old 07-01-2011, 08:41 AM   #226
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

the resistor pack is getting hot as **** when the blower is running too. but yeah, I'd be more inclined to thing the current is passing through the motor, although it still blows strong.

Last edited by Braineack; 07-01-2011 at 09:19 AM.
Braineack is offline   Reply With Quote
Old 07-01-2011, 10:01 AM   #227
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

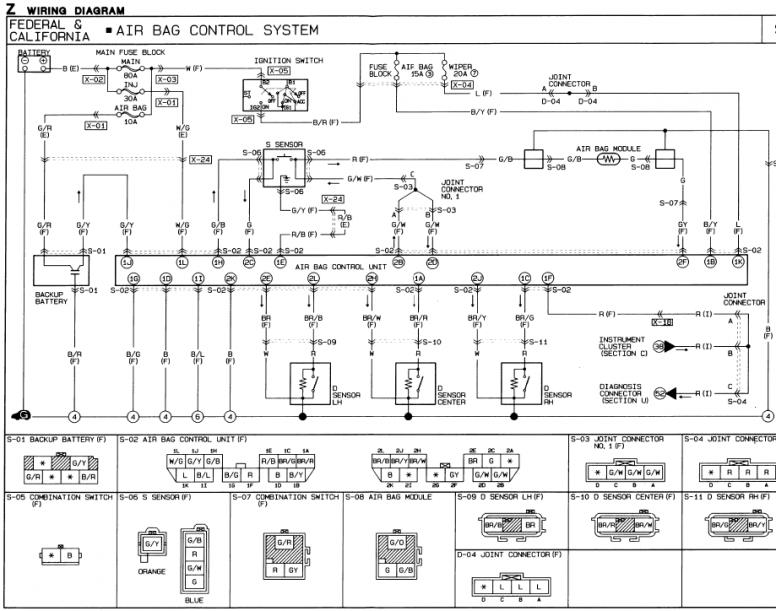

this might explain the airbag fuse, I wonder if that shield wire is joining the two on the 12v side??

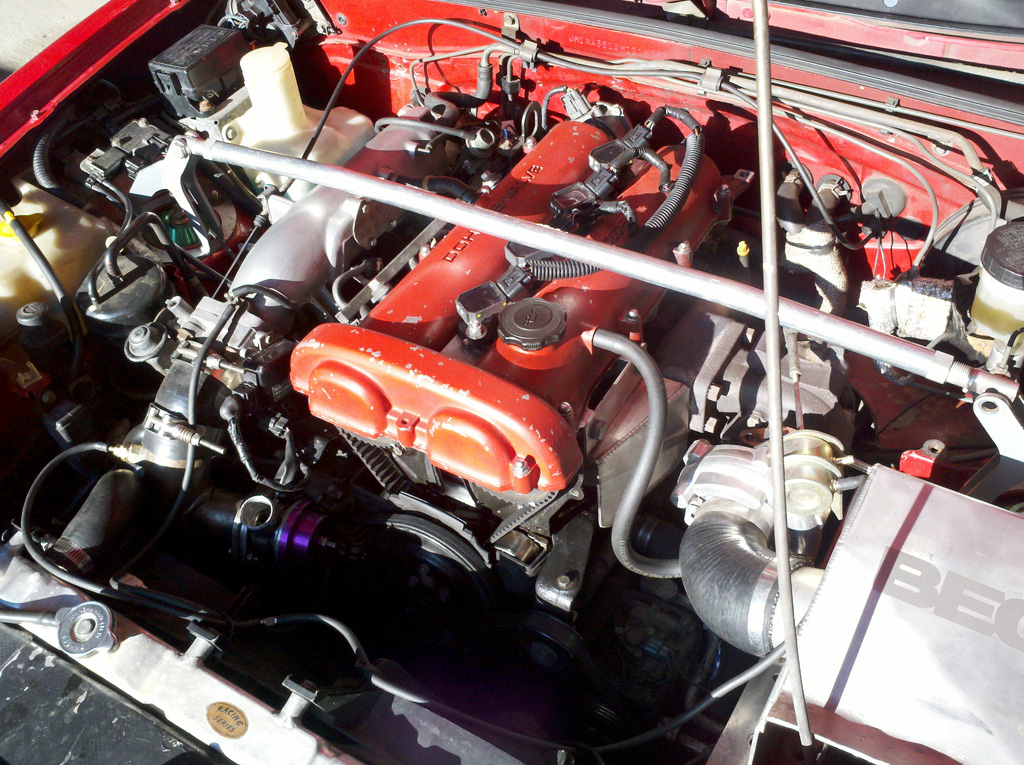

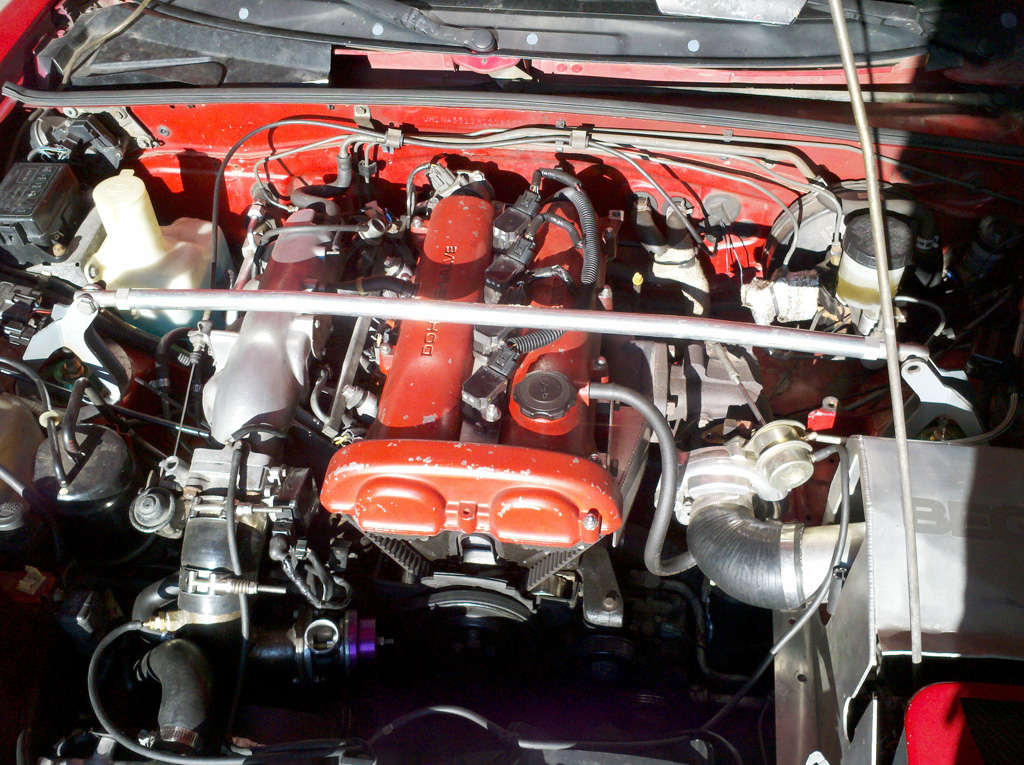

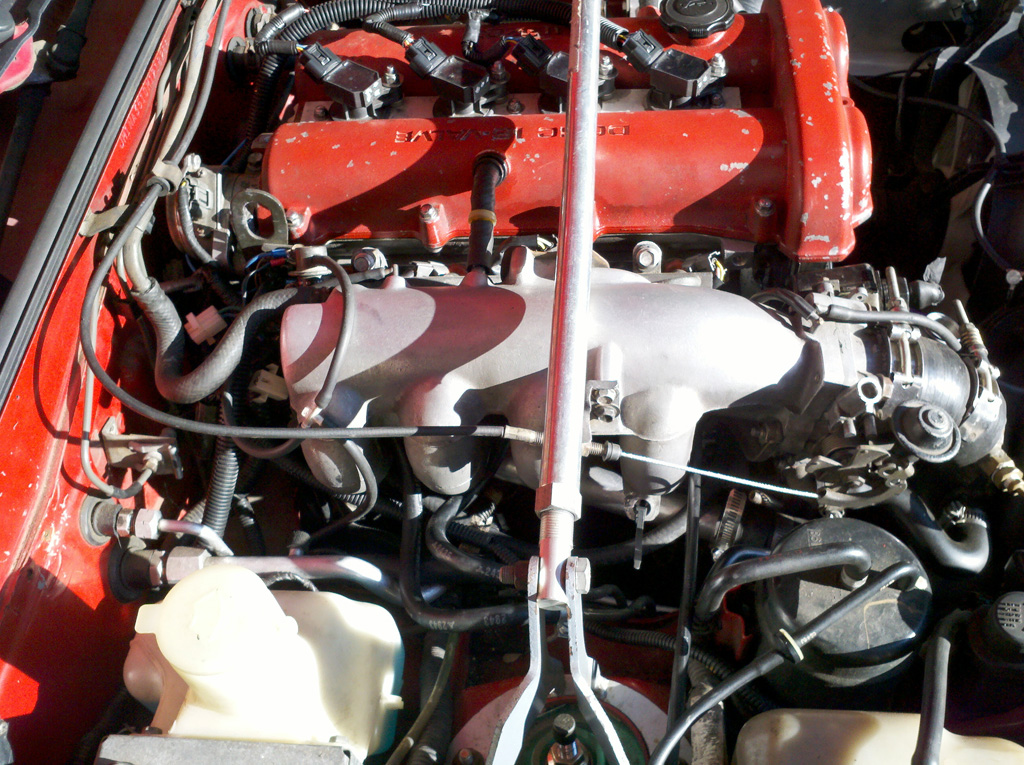

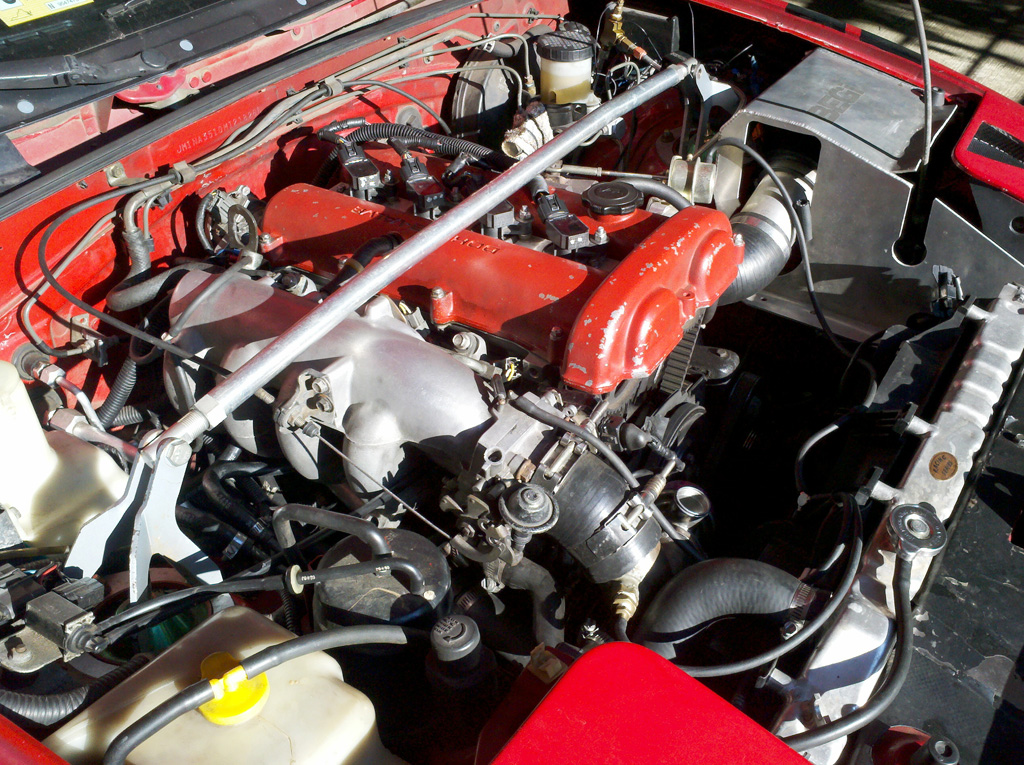

Pics for Floral --------------V
Attached Thumbnails
I Threw Gasoline On The Fire And Now I Have Stumps For Arms And No Eyebrows-airbag_circuit.jpg   I Threw Gasoline On The Fire And Now I Have Stumps For Arms And No Eyebrows-2011-07-01_08-03-32_147.jpg   I Threw Gasoline On The Fire And Now I Have Stumps For Arms And No Eyebrows-2011-07-01_08-03-39_290.jpg   I Threw Gasoline On The Fire And Now I Have Stumps For Arms And No Eyebrows-2011-07-01_08-03-43_875.jpg   I Threw Gasoline On The Fire And Now I Have Stumps For Arms And No Eyebrows-2011-07-01_08-03-52_602.jpg


Last edited by Braineack; 07-01-2011 at 10:11 AM.
Braineack is offline   Reply With Quote
Old 07-01-2011, 10:38 AM   #228
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,897
Total Cats: 109
Default

I believe you have grounding issues. Bizzare electrical behavior almost always are the result of bad grounds.
miata2fast is offline   Reply With Quote
Old 07-01-2011, 10:40 AM   #229
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

havent touched my grounds in a while, never had an issue before the alternator diedz. In fact I have 4 extra grounds running directly from my ECU to the fuel rail through 18awg wire.
Braineack is offline   Reply With Quote
Old 07-01-2011, 11:09 AM   #230
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Why not just start simply, and eyeball every single wire in your engine bay? Your engine bay is much fuller than mine but it still should only take about an hour. I would cut open the looms too.
Faeflora is offline   Reply With Quote
Old 07-01-2011, 11:37 AM   #231
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by Faeflora View Post
Why not just start simply, and eyeball every single wire in your engine bay? Your engine bay is much fuller than mine but it still should only take about an hour. I would cut open the looms too.

I plan to. I plan to at least remove the ign and fuel harnesses and poke around back there.

Right now I'm going through the wiring diagrams on paper to see how power can get to some of the spots I found when pulling fuses.

For example:
how/why does pulling my engine fuse activate my a/c relay? The engine fuse powers the main relay and the cooling fan relay. The main relay itself provides power to the the injectors, and CAS. The a/c relay is linked to teh cooling fan through the ground side of the relays, the thermowswitch and the diaganostics box.


why does pulling my air bag fuse remove power to one side of the wiper fuse?


Can someone confirm those double dashed lines are in fact shielding?

Last edited by Braineack; 07-01-2011 at 12:00 PM.
Braineack is offline   Reply With Quote
Old 07-01-2011, 01:00 PM   #232
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,897
Total Cats: 109
Default

When you have ground issues, voltage appears to move backwards, common occurance.

For kicks and giggles, have your alternator checked. We have purchased bad starters and alternators every once in a while.
miata2fast is offline   Reply With Quote
Old 07-01-2011, 01:10 PM   #233
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

ugh i hate removing it.
Braineack is offline   Reply With Quote
Old 07-01-2011, 01:22 PM   #234
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Sounds like you hate doing anything, all you've done is call on everyone for help and change the thread title a couple times. Oh, and felt a resistor pack.
curly is offline   Reply With Quote
Old 07-01-2011, 01:49 PM   #235
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

lol. ive totally cried a little too.


after fooling around just now, i'm pretty sure my ground loop issues all steam from my MS. I might just build a new mainboard from scratch. I have other two MSes and harness at home I can test this theory on.
Braineack is offline   Reply With Quote
Old 07-01-2011, 02:02 PM   #236
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

Wait a sec... Why does this thread have my name on it?
Joe Perez is online now   Reply With Quote
Old 07-01-2011, 02:09 PM   #237
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

why not?



when i remove MS all my ground loop noise in speakers dissapears, also, my a/c doesn't activate when i pull the engine fuse anymore...im pretty sure it's the cause.
Braineack is offline   Reply With Quote
Old 07-01-2011, 02:35 PM   #238
Senior Member

Join Date: Aug 2010
Location: Maumelle, AR
Posts: 618
Total Cats: 2
Default

Quote:
Originally Posted by Braineack View Post
the resistor pack is getting hot as **** when the blower is running too. but yeah, I'd be more inclined to thing the current is passing through the motor, although it still blows strong.
Those resistors get hella hot, thats why they put them in the moving air stream from the blower motor... They're super low resistance, high wattage deals... The higher the wattage the resistor the more heat it puts off. Those resistors work by soaking up power that would otherwise be running the blower motor faster.
ianferrell is offline   Reply With Quote
Old 07-01-2011, 02:37 PM   #239
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Braineack View Post
Can someone confirm those double dashed lines are in fact shielding?
those are harness connector outlines.

what the **** is a 'backup battery'??
y8s is offline   Reply With Quote
Old 07-01-2011, 02:43 PM   #240
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

for the airbag control unit, so it never dies!
Braineack is offline   Reply With Quote
