Old 08-25-2013, 04:01 PM   #541
Junior Member
Thread Starter

Join Date: Jun 2010
Posts: 176
Total Cats: -4
Default

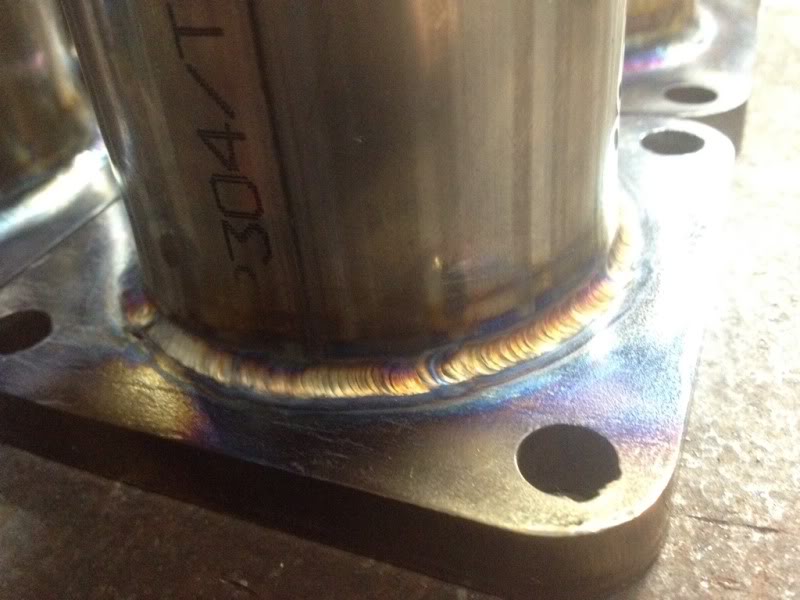

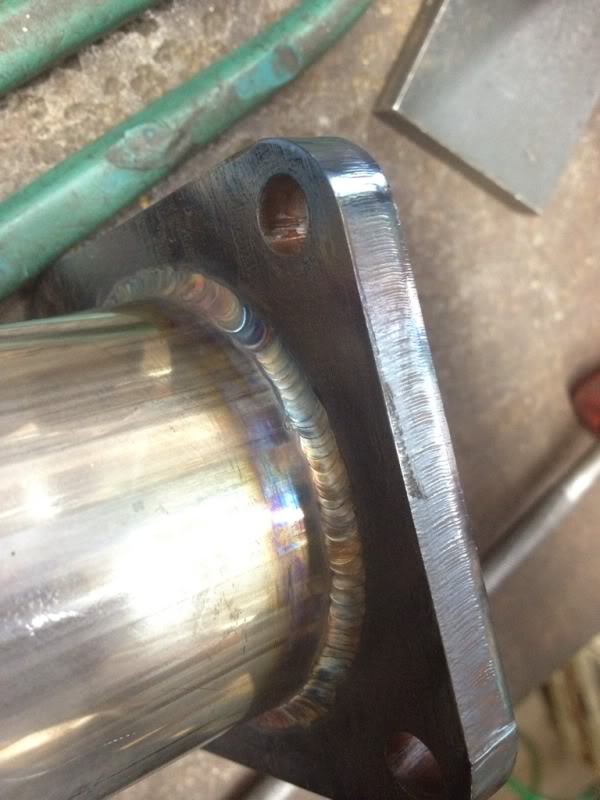

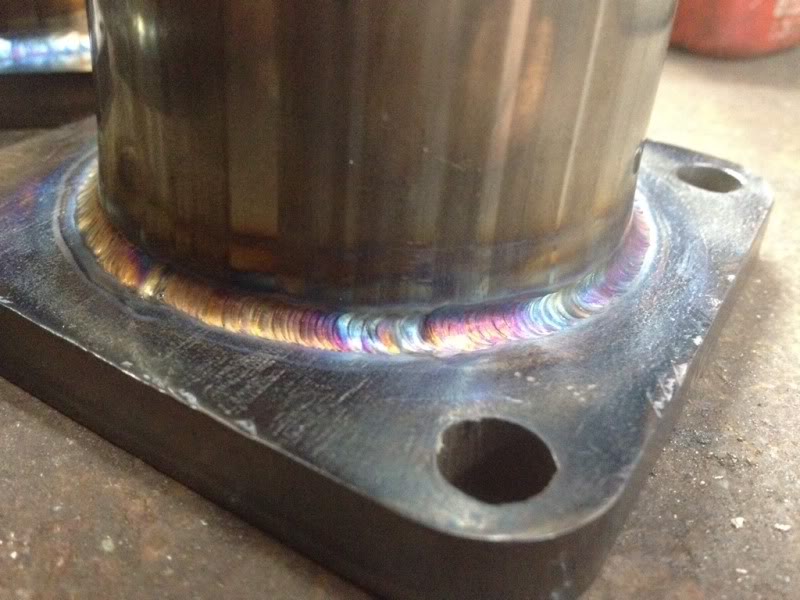

Started working at a new shop doing production work. Getting some practice on the new machine, dialing it in to get my amperage and gas flow right. Practicing getting my beads closer together, without pulse, just dip dip dip after seeing some aerospace welders do it like that. They explained to me that it keeps you from having to put as much heat down if you dip more often but with less filler. I also like the look I must say.

Name:  18A5708F-1778-486A-B8FD-B1A14C32EAA6-1715-000001BD39E9FEC7.jpg
Views: 4
Size:  59.6 KB
Name:  F5162242-174D-47B2-8AA2-58B3605FFF81-1715-000001BD3F4C7483.jpg
Views: 4
Size:  60.6 KB
Name:  5C7BE727-1684-4BA3-830E-F4C28FFB475B-1715-000001BD46D8F401.jpg
Views: 5
Size:  72.6 KB

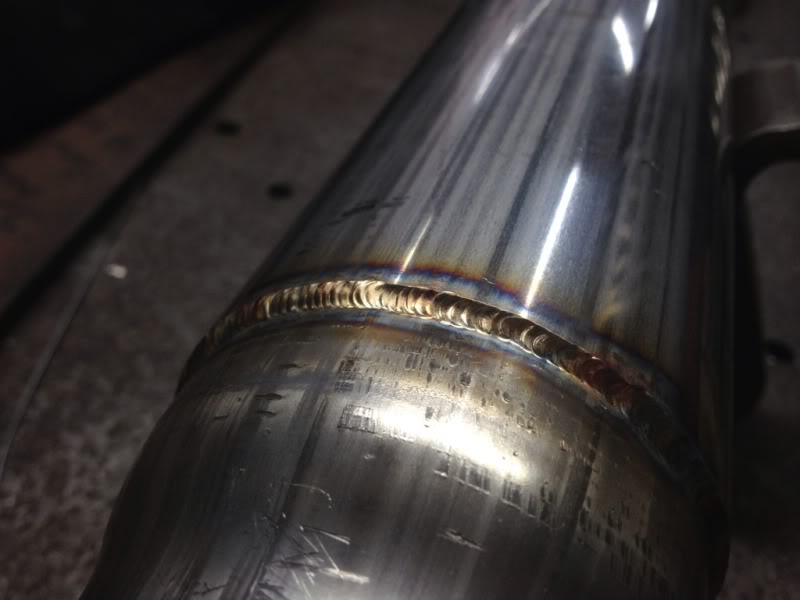

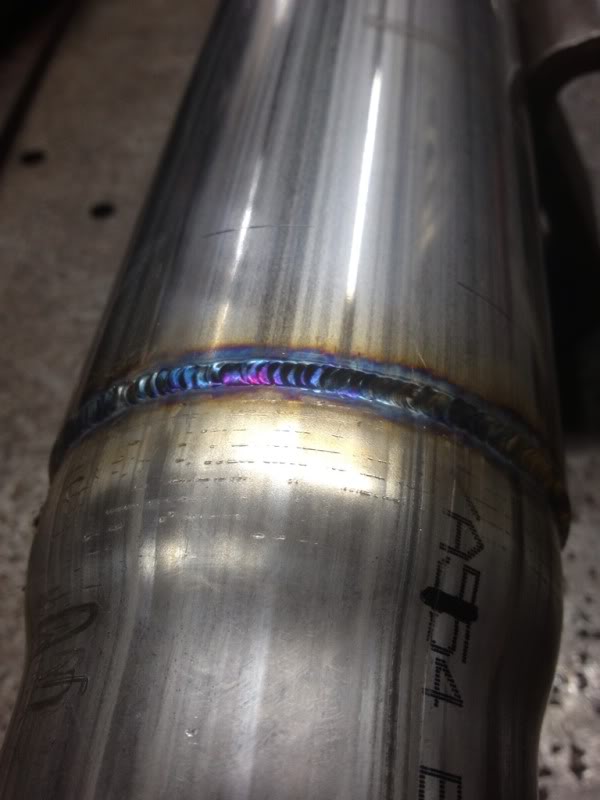

These are a slip fit, so I just washed the edge over. No pulse, just side to side.

Name:  1A7BE4B7-691A-43B4-8585-9CEC715B19AC-1715-000001BD516C84A7.jpg
Views: 4
Size:  44.7 KB
Name:  5103B537-049C-486E-9D28-C08425871D2C-1715-000001BD579E8CEB.jpg
Views: 4
Size:  40.7 KB

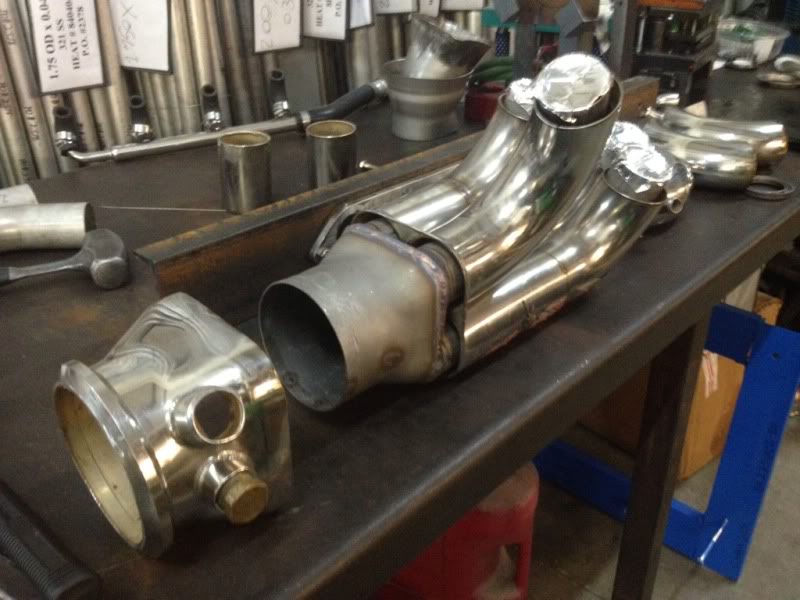

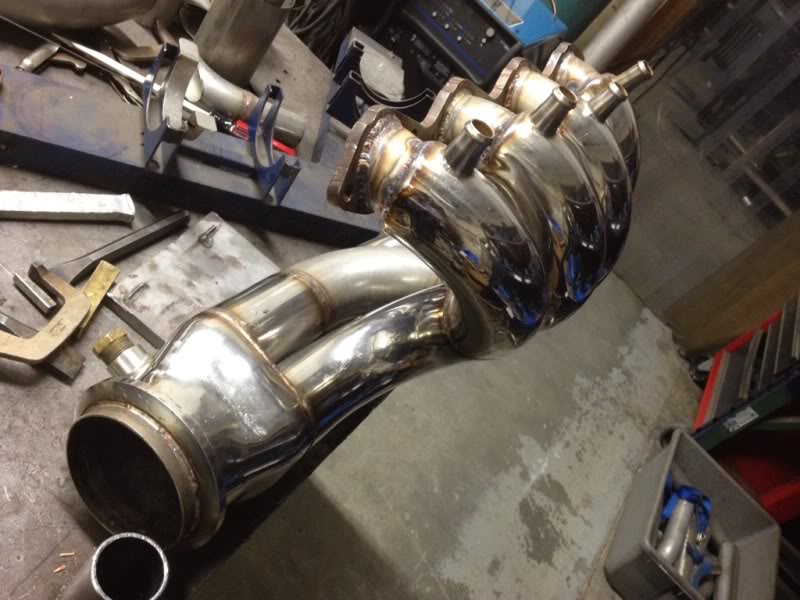

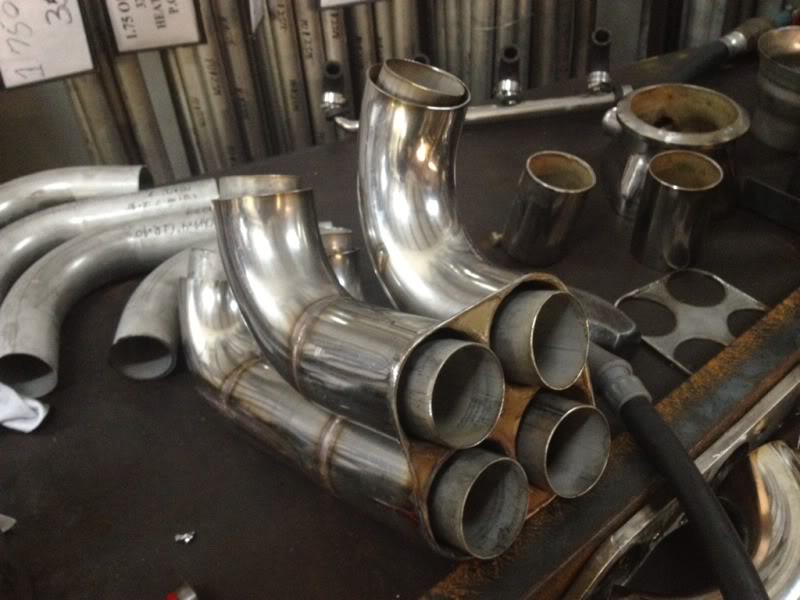

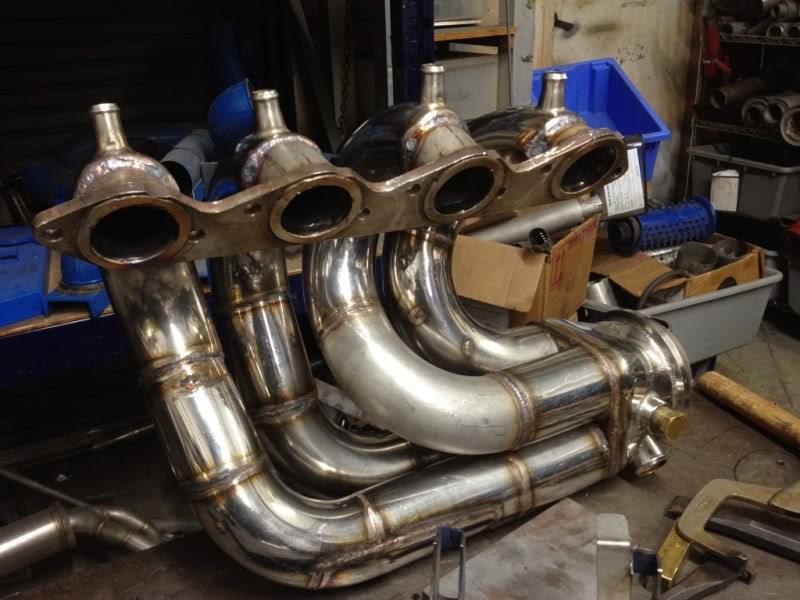

Here's a repair job on a marine exhaust I did.. What a bitch. Has to hold 20 psi internally, so it has to be oressure tested as you put it together. Inside tubes were leaking, and there wasn't enough time before the race to make new ones. For those of you Who don't know, marine exhaust are within another set of tubes, with water circulating for cooling.

Name:  6FA38F4F-2221-4AF4-9E77-B110CA9B2CF7-1715-000001BD5D8763E0.jpg
Views: 4
Size:  64.4 KB
Name:  4D9DDE6F-43D8-4197-8BFD-1DA7F4880FBC-1715-000001BD6505508B.jpg
Views: 4
Size:  70.1 KB
Name:  41F69FC2-A17F-4849-97B2-5A342A38028A-1715-000001BD7203A38C.jpg
Views: 6
Size:  80.4 KB
Name:  ACD3152C-5FB4-4A77-819C-8126D94DB4DD-1715-000001BD76BC6C95.jpg
Views: 4
Size:  79.7 KB

Last edited by Boost_addict; 08-25-2013 at 04:18 PM.
Boost_addict is offline   Reply With Quote
Old 08-28-2013, 02:42 AM   #542
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

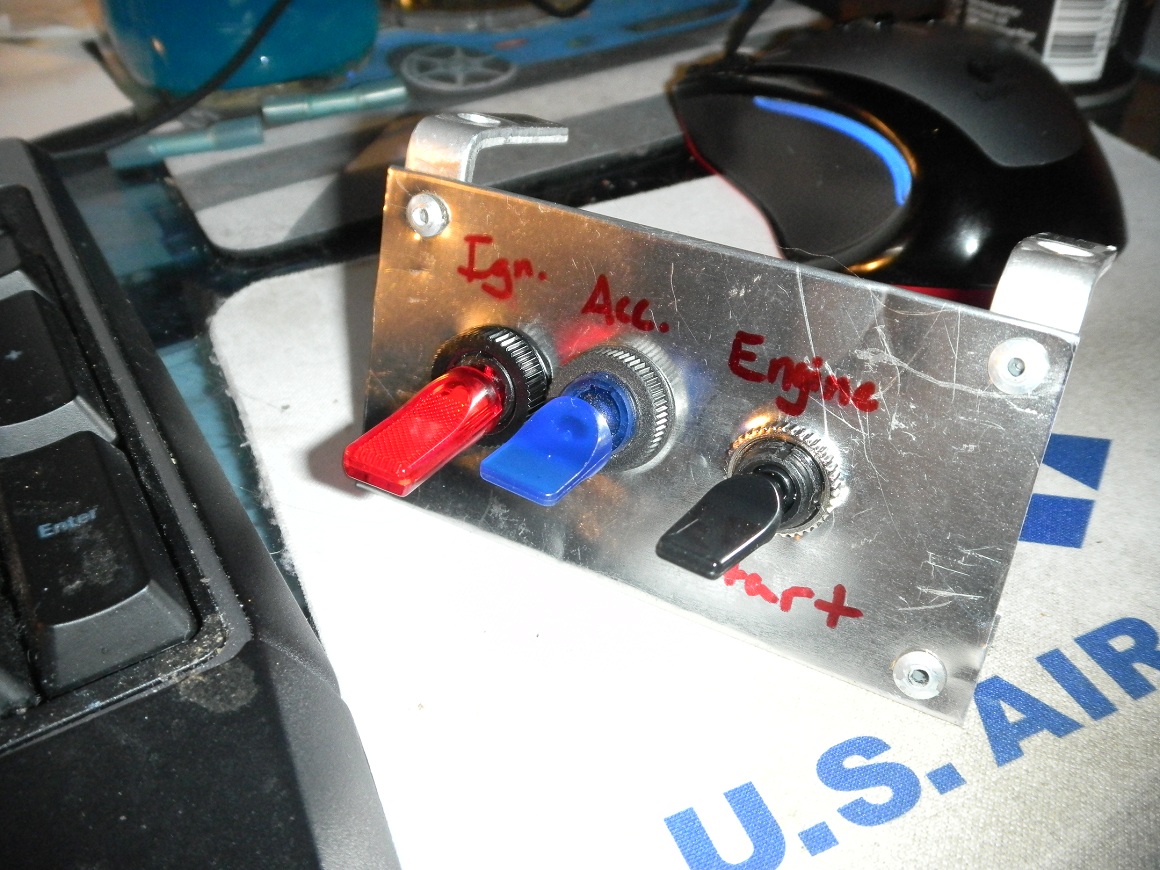

im a bit drujnk, but i made a drunk mangs switch start panel . Consists of two off/on light up swithcs, and a momentary toggle.

I thik itts going into the bronco.


This might be the saddest thing in this thread but im kwl onwing it



eww my corner of that keybard, I never touch that area. I need to clean that.


done.
Attached Thumbnails
The custom fabrication thread! (Post pics of stuff you have made)-dscn0314.jpg
Pen2_the_penguin is offline   Reply With Quote
Old 08-30-2013, 09:50 AM   #543
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

I particularly like the "creative" spacing/height

-Zach
thasac is offline   Reply With Quote
Old 08-30-2013, 10:57 AM   #544
573
Junior Member
iTrader: (2)

573's Avatar

Join Date: Nov 2011
Location: Troy, Michigan
Posts: 252
Total Cats: 16
Default

Hey, nothing wrong with **** that works. The only thing that I would have done differently is the labeling. Eject, rockets, and dome light could potentially confuse thieves.
573 is offline   Reply With Quote
Old 08-30-2013, 11:09 AM   #545
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Quote:
Originally Posted by 573 View Post
Hey, nothing wrong with **** that works. The only thing that I would have done differently is the labeling. Eject, rockets, and dome light could potentially confuse thieves.
Functionally speaking, I do not disagree.

Also, if those are Pico switches they have a 50% chance of failing (I know, I bought 6 from summit and 3 have failed after flicking them <10 times. The housing design is Chinatastic).
thasac is offline   Reply With Quote
Old 09-17-2013, 02:00 AM   #546
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,593
Total Cats: 22
Default

All finished, used another of my custom machined AIT bungs, I was so sick of not being able to purchase nice quality bungs made with high quality SS, so I had a run made by a local old time machinist


















Dann
nitrodann is offline   Reply With Quote
Old 09-17-2013, 07:43 AM   #547
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Good stuff Dan +1
but we need more pictures
I am curious about the dimples at the end. Are they to stop the hose coming off?
sturovo is offline   Reply With Quote
Old 09-17-2013, 07:44 AM   #548
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Quote:
Originally Posted by sturovo View Post
Good stuff Dan +1
but we need more pictures
I am curious about the dimples at the end. Are they to stop the hose coming off?
No, the bumps are for his pleasure.
Leafy is offline   Reply With Quote
Old 09-17-2013, 07:52 AM   #549
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,593
Total Cats: 22
Default

The bumps at the small end are for my pleasure, at the big end they are for hustlers mums pleasure.

Sorry about the fucktonne of photos, fair call.

Yes the dimples are for hose clamps, I wish I had a bead roller capable of doing 1.6mm stainless, but alas thats another 600 dollars away (and **** me I have a workshop, but no hoist, and I've been here 2 months already!).

Dann
nitrodann is offline   Reply With Quote
Old 09-17-2013, 10:46 AM   #550
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,783
Total Cats: 68
Default

Dann, you should be able to buy those fittings pretty easy.

Go to a good stainless supplier that does food grade stuff and ask for sanitary npt fittings in the size you need. they should be a stocked item and about $4 each.

I just used a few of those on a kegerator tank for a lowrider that i worked on.
shlammed is offline   Reply With Quote
Old 09-17-2013, 10:48 AM   #551
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Quote:
Originally Posted by shlammed View Post
Dann, you should be able to buy those fittings pretty easy.

Go to a good stainless supplier that does food grade stuff and ask for sanitary npt fittings in the size you need. they should be a stocked item and about $4 each.

I just used a few of those on a kegerator tank for a lowrider that i worked on.
Naw its upsidedownland, guessing they're like $40 there with a minimum order quantity of 100.
Leafy is offline   Reply With Quote
Old 09-17-2013, 11:04 AM   #552
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,593
Total Cats: 22
Default

What Leafy said, we all earn like 100k/year here so everything is ******* expensive as ****.

Dann
nitrodann is offline   Reply With Quote
Old 09-18-2013, 10:56 AM   #553
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,593
Total Cats: 22
Default









Dann
nitrodann is offline   Reply With Quote
Old 09-18-2013, 03:38 PM   #554
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

I want to rub it against my genitals.
Pen2_the_penguin is offline   Reply With Quote
Old 09-18-2013, 03:39 PM   #555
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Stainless charge piping? Isnt that both heavy and expensive?
Leafy is offline   Reply With Quote
Old 09-18-2013, 04:11 PM   #556
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,783
Total Cats: 68
Default

heavier yes.

Its only marginally more expensive as a material. it takes a lot longer to work compared to aluminum though so fab prices are higher.
shlammed is offline   Reply With Quote
Old 09-18-2013, 04:15 PM   #557
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Quote:
Originally Posted by shlammed View Post
heavier yes.

Its only marginally more expensive as a material. it takes a lot longer to work compared to aluminum though so fab prices are higher.
I guess its almost the same material costs if you're not buying the CX-Racing crappy bends and are getting like vibrant quality or better aluminum bends. The only real downside I've found with the twain CX-Racing bends is that occasionally you'll just hit a really thin spot and end up with 1/4" hole before you can get off the pedal.
Leafy is offline   Reply With Quote
Old 09-18-2013, 04:55 PM   #558
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

stainless is also quieter than cheapy aluminum
Pen2_the_penguin is offline   Reply With Quote
Old 09-18-2013, 04:58 PM   #559
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Quote:
Originally Posted by Pen2_the_penguin View Post
stainless is also quieter than cheapy aluminum
Quieter how? Quieter to weld, yes. Quieter to induction noises, use silicone hose the whole length if you want that.
Leafy is offline   Reply With Quote
Old 09-18-2013, 06:13 PM   #560
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,593
Total Cats: 22
Default

Stainless is just as easy to work with IMO, because the time you spend cutting and drilling it you save in not cleaning and preparing it for welding.

The main upside is that its tough, the threads are tough, prep is easy and it looks really fantastic. And you can get .8mm SS bends and tube also if you want (the ICV tube is .8 or .6) and there is no weight penalty.

Dann
nitrodann is offline   Reply With Quote
