Old 03-28-2014, 02:35 PM   #681
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,783
Total Cats: 68
Default

im sure you could build a nice piece of kit to bend long pieces.

its 3 wheels, with a bottle jack on the middle one and a large wheel on another as a handle.

I will see if I can find a picture... should be able to build the roller for ~$50 plus bottle jack.
shlammed is offline   Reply With Quote
Old 03-28-2014, 02:46 PM   #682
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,783
Total Cats: 68
Default

apparently its a harbor friehgt tubing bender im thinking of... probably cheap
shlammed is offline   Reply With Quote
Old 03-28-2014, 02:47 PM   #683
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,783
Total Cats: 68
Default

shlammed is offline   Reply With Quote
Old 03-28-2014, 03:28 PM   #684
Junior Member

Join Date: Jan 2013
Posts: 59
Total Cats: 8
Default

Quote:
Originally Posted by shlammed View Post
Or, you could just miter sections of the square tubing to do sort of a segmented arch. Would be good practice welding it all together. You could grind down the welds if using stick or it would be good tig practice before you move to aluminum if you're going to do that.
krazykarl is offline   Reply With Quote
Old 03-28-2014, 03:39 PM   #685
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,783
Total Cats: 68
Default

that wont have a smooth arch, if you can live with that.

Also, learning to weld is good, but your going to pull your hair out trying to weld that much.

3 or 4 mitres for a half octagon type shape might be a compromise.
shlammed is offline   Reply With Quote
Old 03-28-2014, 03:51 PM   #686
Junior Member

Join Date: Jan 2013
Posts: 59
Total Cats: 8
Default

Quote:
Originally Posted by shlammed View Post
3 or 4 mitres for a half octagon type shape might be a compromise.
That's sorta what I was thinking. shoulda been more specific...
krazykarl is offline   Reply With Quote
Old 03-28-2014, 04:35 PM   #687
Junior Member
iTrader: (4)

calteg's Avatar

Join Date: Nov 2006
Location: Austin, TX
Posts: 311
Total Cats: 14
Default

Not a fan of the segmented pseudo-arch.
I think I found a solution though; local DIY garage that has a TIG machine you can rent by the day, maybe they'll have a tubing bender as well.
Of course, that still leaves me trying to get an 8.5' wide arch home....
calteg is offline   Reply With Quote
Old 03-28-2014, 04:54 PM   #688
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Put top down. Instant pickup truck. Problem solved.
thenuge26 is offline   Reply With Quote
Old 03-28-2014, 07:13 PM   #689
Junior Member
iTrader: (1)

Join Date: Jan 2011
Posts: 375
Total Cats: 0
Default

I would like to acknowledge that we have spent more time on fences than manifolds. Not that I am arguing.

Thick gauge sheet metal into an arc? A friend, A torch and a jig to bend it to (forgot the term I'm looking for, a buck?). American Chopper style.
3rdCarMX5 is offline   Reply With Quote
Old 03-31-2014, 03:41 PM   #690
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,879
Total Cats: 44
Default

Quote:
Originally Posted by 3rdCarMX5 View Post
I would like to acknowledge that we have spent more time on fences than manifolds. Not that I am arguing.

Thick gauge sheet metal into an arc? A friend, A torch and a jig to bend it to (forgot the term I'm looking for, a buck?). American Chopper style.
There's a local minitruck shop that makes frames this way. Curved sections cut with a plasma cutter and dressed with a flap wheel on a side grinder, flat/ bent sections cut from strip/ sheet and bent as they weld it. It sounds hood rich, but is fast and strong when finished.
vehicular is offline   Reply With Quote
Old 04-13-2014, 08:08 PM   #691
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,707
Total Cats: 1,078
Default

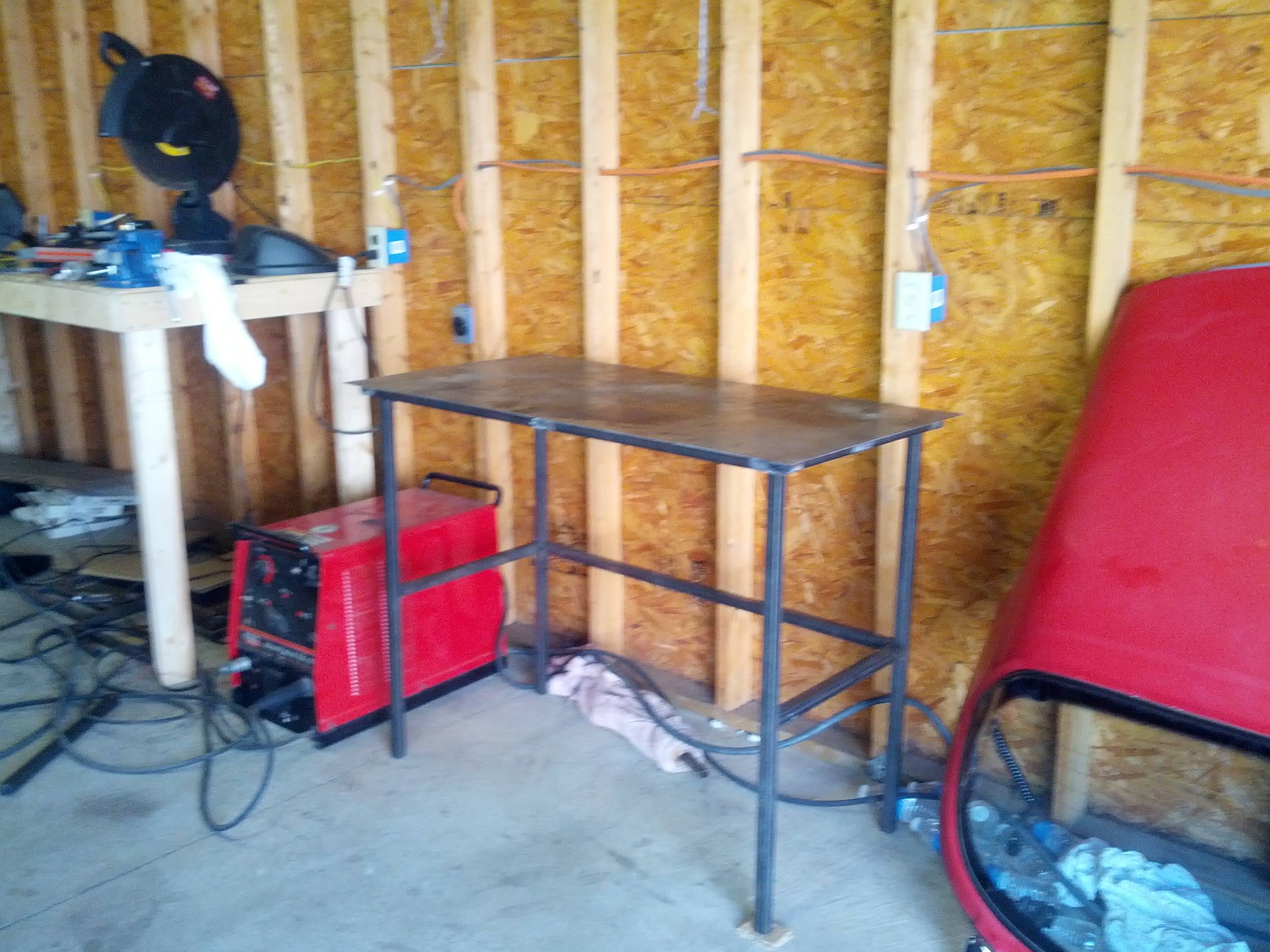

Built my first welding table. I will make a bigger beefer one eventually.

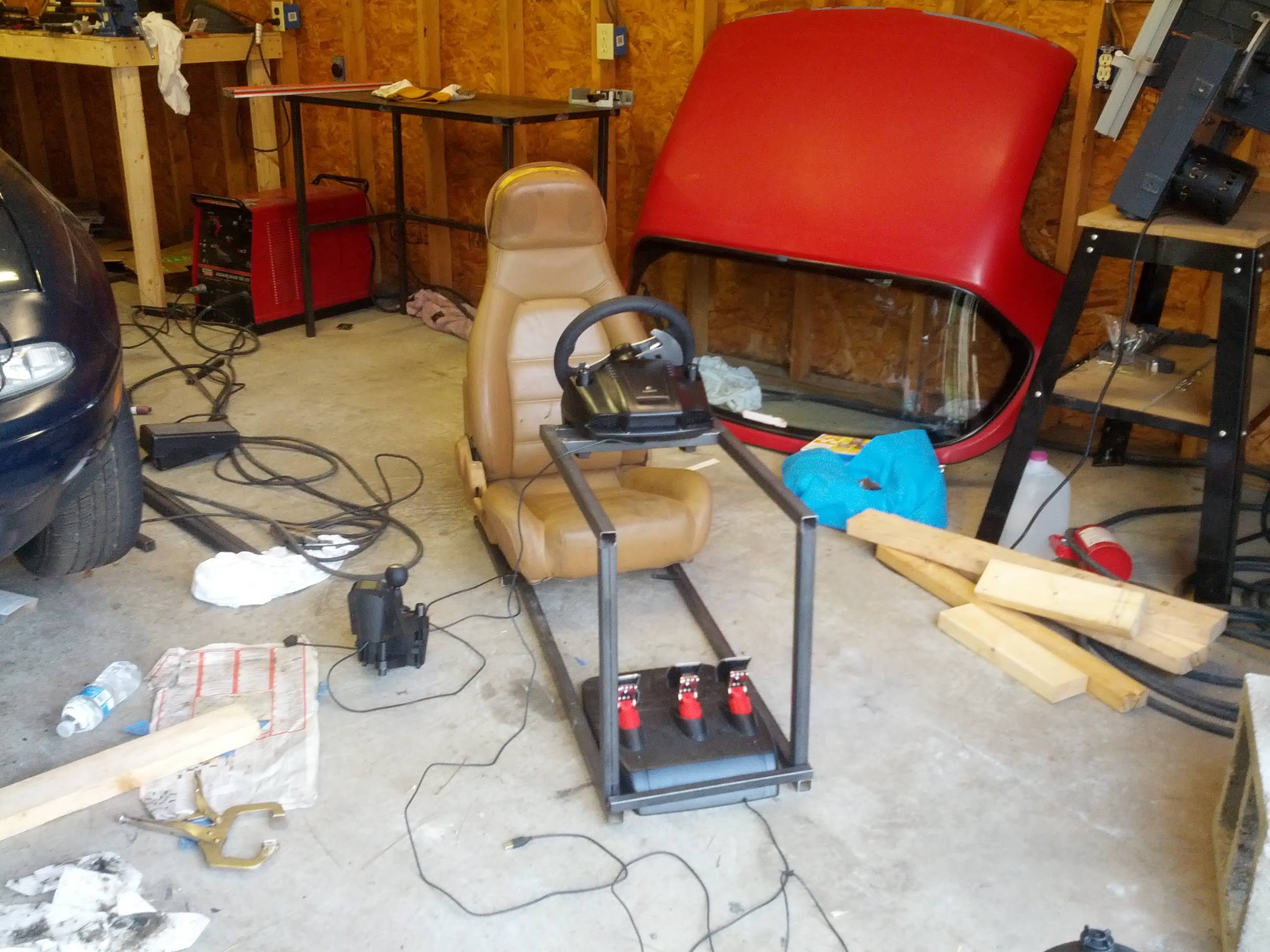

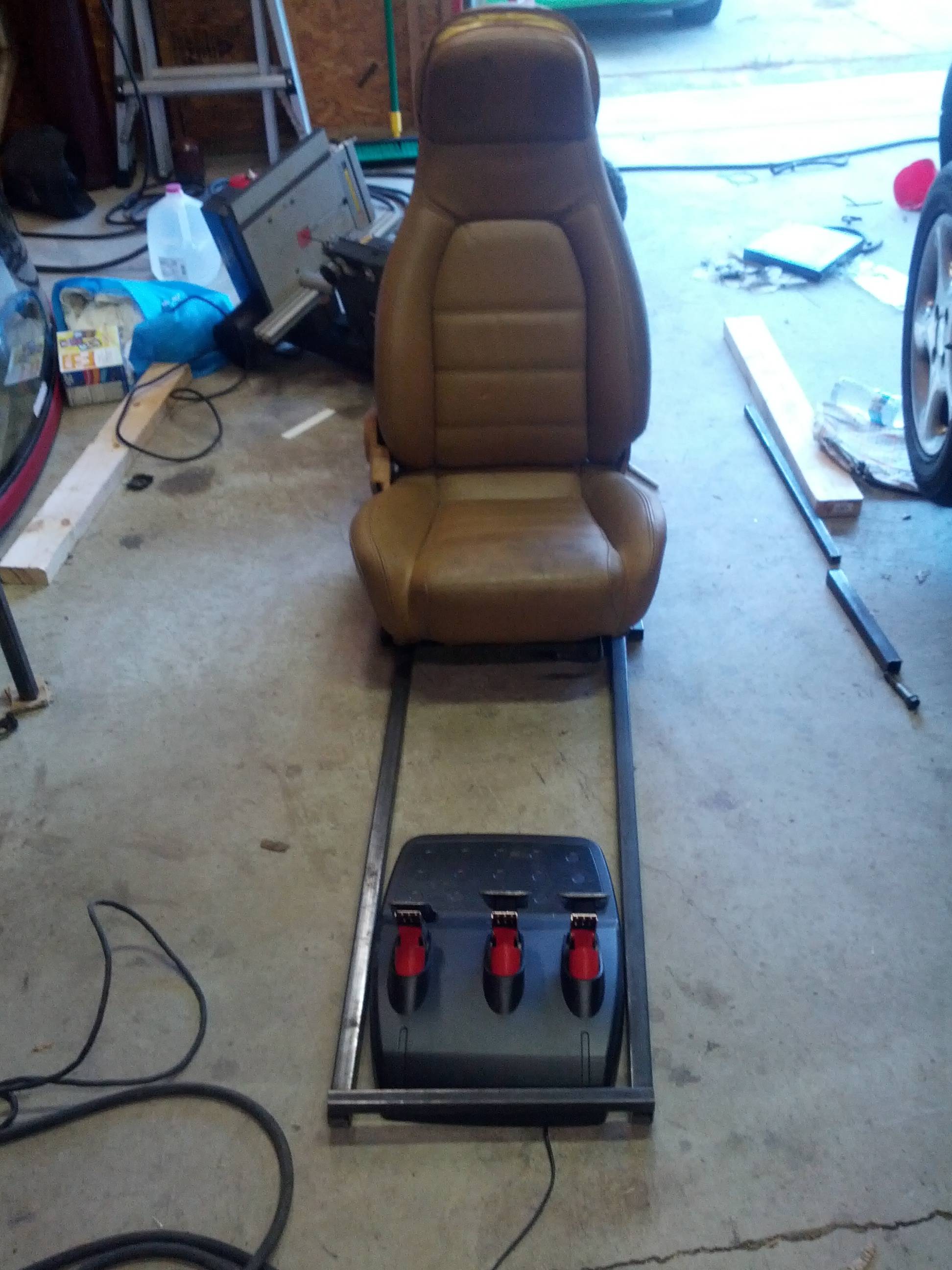

Also started on my racing sim setup. I got the bottom frame built so far. Tomorrow I will run and pick up more metal and then hopefully start building the mount for the steering wheel and shifter.
shuiend is offline   Reply With Quote
Old 04-14-2014, 07:43 PM   #692
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,707
Total Cats: 1,078
Default

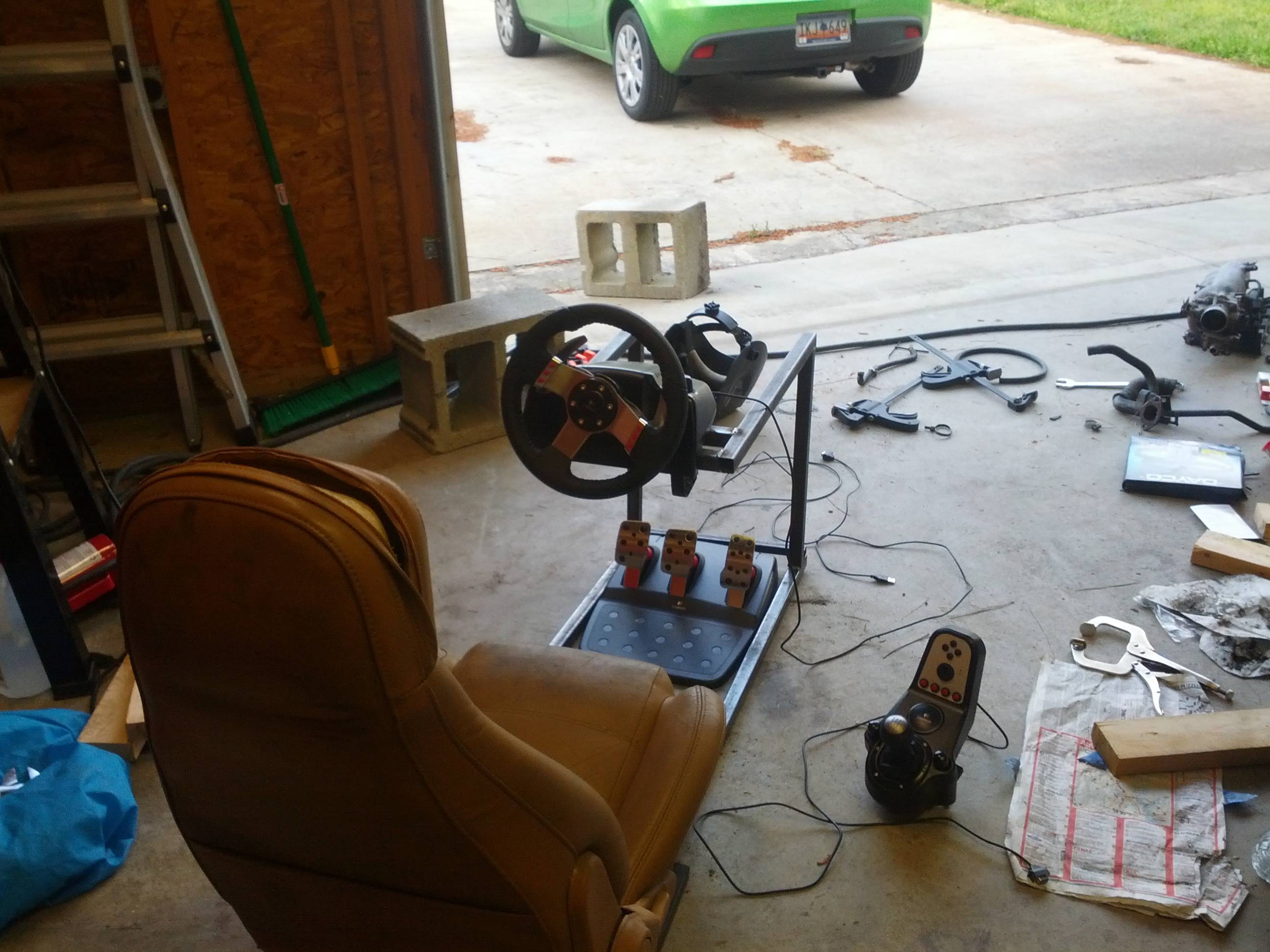

I have the steering wheel mounted. Tomorrow I build a spot for the shifter and then I test it out.

shuiend is offline   Reply With Quote
Old 04-14-2014, 08:31 PM   #693
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,633
Total Cats: 524
Default

You'd better brace that wheel mount or you'll end up snapping it right off, at the worst possible moment.
rleete is offline   Reply With Quote
Old 04-14-2014, 08:57 PM   #694
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,131
Total Cats: 257
Default

I'm sure he'll be putting some gussets on it.
Erat is offline   Reply With Quote
Old 04-15-2014, 09:44 AM   #695
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,981
Total Cats: 576
Default

With lightening holes I hope!

Looks like a cool project. I think I need to build myself one of these too. Both Miatas are busted right now and I'm having severe withdrawal.
hornetball is offline   Reply With Quote
Old 04-15-2014, 09:48 AM   #696
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Lightening holes in the gussets with dimple dies would be baller and make it look professionally made.
Leafy is offline   Reply With Quote
Old 04-15-2014, 10:41 AM   #697
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,783
Total Cats: 68
Default

for your next iteration, buy a tube bender and build the whole thing out of 2 bent pieces of metal with just a few cross pieces.

haha no kill like overkill.

Looks cool. Im not a gamer, but I can appreciate the effort for this having used an old Logitech wheel on playstation where you had to use your legs to hold the wheel in your lap.
shlammed is offline   Reply With Quote
Old 04-15-2014, 10:52 AM   #698
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,707
Total Cats: 1,078
Default

The frame for the rig is made out of 1"x1" 16gauge square tubing. The back bars that hold up the steering wheel are welded on 3 out of the 4 sides. When putting pressure on the steering wheel there is a little flex. I want to add in some sort of bracing, but I don't want to take of any space for leg room. While I could sit comfortably in it with sides holding up the steering wheel, I would like some of my bigger friends to also be able to sit in and fit in. I think I may try to put triangle brace on it and see how that works.

Does anyone have any suggestions for where to put the shifter? I am torn if I want it same level as steering wheel being directly to the right, or a little lower sitting.
shuiend is offline   Reply With Quote
Old 04-15-2014, 10:54 AM   #699
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

I'd want it low like it would be in a real car.
Leafy is offline   Reply With Quote
Old 04-15-2014, 10:56 AM   #700
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,988
Total Cats: 13
Default

I would put it somewhere near where you would find it in a real race car. Close to the steering wheel, but not right up next to it.
skidude is offline   Reply With Quote
