A synonym for oxidized rapidly is burns, like fire.
Leafy is offline   Reply With Quote
Old 01-13-2014, 10:35 AM   #642
Senior Member

Join Date: May 2011
Location: Pennsylvania
Posts: 1,119
Total Cats: 33
Default

Quote:
Originally Posted by sturovo View Post
Dan, your stuff looks fantastic.
If I come to visit you will you teach me how to weld like that?

Supercooper, great skills and quick thinking!
I want to be in your basement during the Zombie apocalypse
Man.... im almost ashamed to admit this... but you have no idea how prepared i am for the Zombie apocalypse.... lmao
I have the full Zombie Ka-Bar collection, a Barnett Zombie crossbow, about 20 gas masks, Full Chemical suits including boots and hoods, MRE's, Survival gear, Guns out the ***... even Hornady Z-Max ammo for most of them.... lmao
If it happens, you are more than welcome to join my colony.... as long as you dont have any bite marks... hahaha



And Damn Dann.... that is some crazy good fab work... looks better than any Factory set up ive ever seen... If i ever end up down under, im gonna have to pay you for something like that... haha
supercooper is offline   Reply With Quote
Old 01-13-2014, 05:38 PM   #643
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,783
Total Cats: 68
Default

For the titanium muffler, use stainless, then flare thr tube for a slip fit with the muffler like a bike has.
shlammed is offline   Reply With Quote
Old 01-14-2014, 03:09 AM   #644
Newb

Join Date: Apr 2012
Location: Austin, TX
Posts: 13
Total Cats: -1
Default

Quote:
Originally Posted by shlammed View Post
For the titanium muffler, use stainless, then flare thr tube for a slip fit with the muffler like a bike has.
This is what I thought I would probably do. Just have the lead up pipe to the muffler shortened and then do the rest in stainless and utilize the slip on stuff that all of the mufflers I have been looking at have.

I know that you cannot weld two kinds of metal together without asking for problems but can titanium touch steel without oxidizing? I know that if steel and aluminum have prolonged contact, they oxidize. I heard that pro bike guys use thinly sliced cork as a gasket, anyone know this to be true?
Swanky is offline   Reply With Quote
Old 01-14-2014, 04:27 AM   #645
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,136
Total Cats: 257
Default

Over a long enough time span, it will oxidize.
Erat is offline   Reply With Quote
Old 01-14-2014, 11:48 AM   #646
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,007
Total Cats: 0
Default

Quote:
Originally Posted by Swanky View Post
I know that you cannot weld two kinds of metal together without asking for problems but can titanium touch steel without oxidizing? I know that if steel and aluminum have prolonged contact, they oxidize. I heard that pro bike guys use thinly sliced cork as a gasket, anyone know this to be true?
The Galvanic Potential of Titanium and Stainless steel are very close, near as makes no difference the same. That said you are unlikely to have any problems with titanium and stainless in contact with each other. Also, both titanium and stainless have very tenacious oxide layers (hence the moniker "stainless") and the oxide layers will protect against a galvanic cell forming.

So, unless you put a bunch of fresh scratches on the surface of the mating areas, lather with salt water, and hook up a battery to each side, you are unlikely to ever have problems with galvanic corrosion between Stainless and Titanium. Even if you were to do that, the rest of the car would likely corrode away first.

The biggest perpetrators in galvanic corossion are Aluminum and Magnesium, which are much more Anodic than low alloy steel, titanium, and stainless.

Any sort of non-metallic gasket should help the situation, anything non-conductive that can break up a galvanic cell will be beneficial.


Long story short - Ti in contact with Stainless will be fine
Efini~FC3S is offline   Reply With Quote
Old 01-25-2014, 07:19 AM   #647
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,593
Total Cats: 22
Default

Some recent pics from all sorts of jobs.







Guess what this is off..?





Dann
nitrodann is offline   Reply With Quote
Old 01-25-2014, 07:47 PM   #648
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,039
Total Cats: 99
Default

Having fun with the acetone in that muffler?
Leafy is offline   Reply With Quote
Old 01-25-2014, 08:29 PM   #649
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,593
Total Cats: 22
Default



And just out of shot an air hose :P
nitrodann is offline   Reply With Quote
Old 02-06-2014, 07:43 PM   #650
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,136
Total Cats: 257
Default

Most of what i make is not car related and i have a pretty shitty camera. Two reasons i don't usually post the BS i make at work. If i did, things would get boring pretty quick.

Some stuff, i'm proud of though.

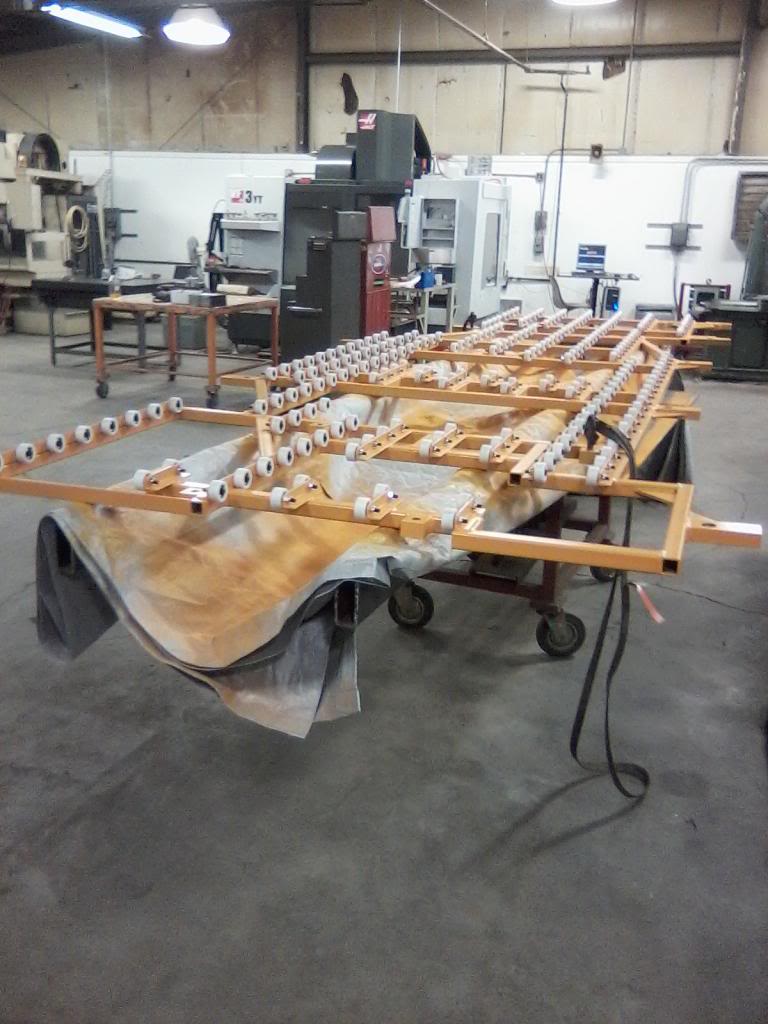

Built this big SOB over the last two weeks.

Tag teamed it with stan the other fab guy.

I must say, i'm pretty proud of myself with this one. Kept it within .125 across the entire thing. Which is pretty extraordinary considering a weld at one end could warp it enough to throw the other end pretty far off.

Name:  Image02062014160712.jpg
Views: 7
Size:  94.9 KB

Even painted in house.


Did 15 of these.

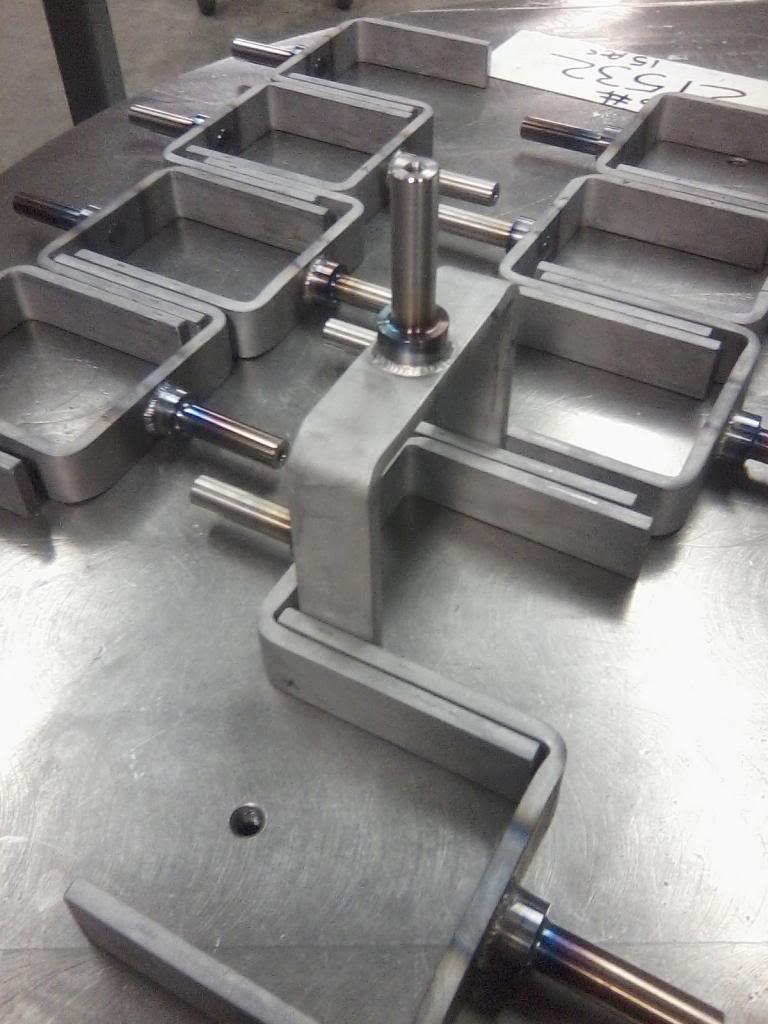

These ended up warping about .015" after i was done welding them. Handed them over to the machinist and somehow he scrapped them. So i'll probably be welding more. Plus they get some gussets on them(picture is 50% finished). These have to be within .010 and they get nickel plated, which i guess is .005 thick or something... So we have to account for that. Oh and the prints are in German. lol.
Name:  Image02032014174941.jpg
Views: 8
Size:  86.8 KB
Erat is offline   Reply With Quote
Old 02-06-2014, 08:02 PM   #651
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,593
Total Cats: 22
Default

Rotator?
nitrodann is offline   Reply With Quote
Old 02-06-2014, 08:06 PM   #652
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,136
Total Cats: 257
Default

That's very possible. I do know they rotate. I'll try and get a picture after the machinist fixes his fuckup and it's further along.
Erat is offline   Reply With Quote
Old 02-06-2014, 08:20 PM   #653
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,593
Total Cats: 22
Default

I meant are you using a rotator to do the welds? Its a very good way to get that warpage super low.

Dann
nitrodann is offline   Reply With Quote
Old 02-06-2014, 08:37 PM   #654
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,136
Total Cats: 257
Default

Nope, i weld it in quarters. It's even better at keeping warping to a minimum.

Some things i use a rotater though. It's more of a pain in the *** to set up than it is to just work on welding without. I like the challenge.
Erat is offline   Reply With Quote
Old 02-07-2014, 09:58 PM   #655
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,136
Total Cats: 257
Default

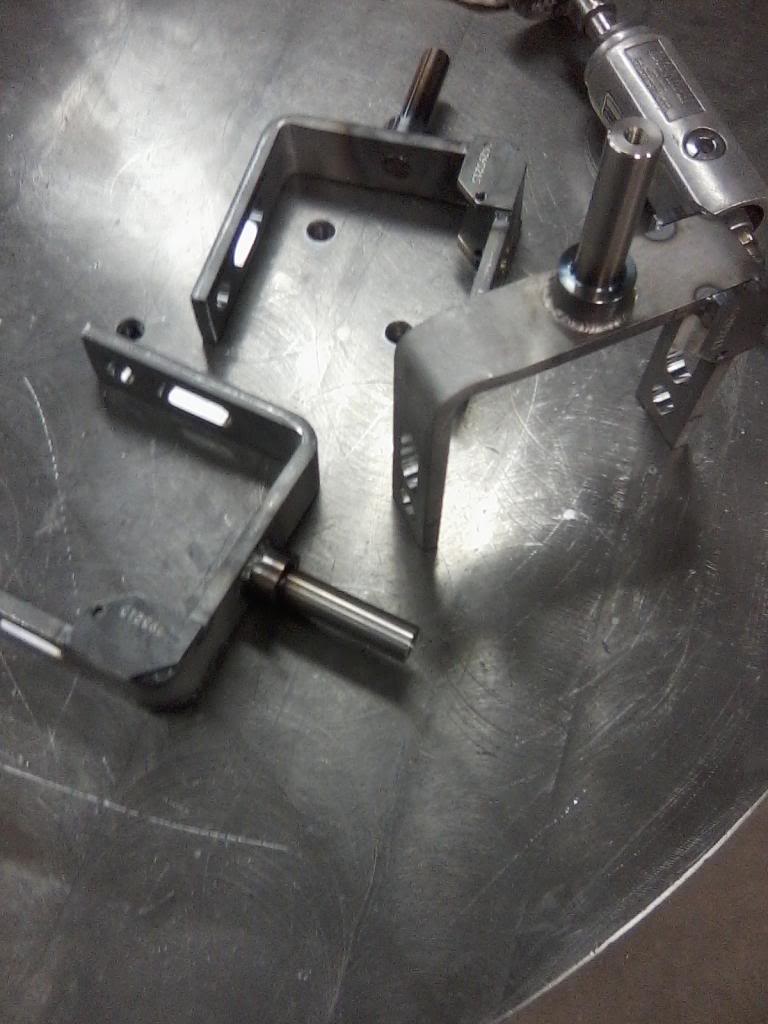

Before i started cutting them up. :(

Name:  Image02072014165254.jpg
Views: 7
Size:  80.6 KB
Erat is offline   Reply With Quote
Old 02-13-2014, 01:12 PM   #656
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,981
Total Cats: 576
Default iPod/iPhone + GPS Mount for Track Data

Little project that worked well. Simple setup consisting of an iPod Touch, a Dual XGPS150A and the CMS LapTimer Pro app. Built my own bracket to hold the iPod and GPS -- it bolts between my rear view mirror and windwhield header. It worked great. Some pics:

The end of the 1/8"x3" aluminum strap is drilled to match the mirror's mount.


A couple of pictures of the finished aluminum strap. An iPod case will be riveted to one surface and the GPS will be tie-wrapped to the flat at the end.




Installed. To finish, the strap is bent towards the windshield and then a furniture "Elevator Bolt" with a foam pad is placed against the windshield to triangulate. Adjust the nuts so that the assembly is spring-loaded against the windshield and the iPod is level and square for good G-readings. Simple and sturdy.


How it looks from the driver's seat:


Here's some video/data from last weekend:

hornetball is offline   Reply With Quote
Old 02-13-2014, 01:30 PM   #657
Junior Member

Join Date: Mar 2012
Posts: 320
Total Cats: 23
Default

Wow, that's really cool. Wasn't aware apps like this had come this far.

You have an external gps unit? How's it connected? and where'd you get it?
M.Adamovits is offline   Reply With Quote
Old 02-13-2014, 01:41 PM   #658
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,981
Total Cats: 576
Default

I used a Dual XGPS150A (5Hz data):

Universal Bluetooth GPS Receiver for Today

Got it from Amazon for ~$85. Connects to the iPod/iPhone via Bluetooth.
hornetball is offline   Reply With Quote
Old 02-13-2014, 01:45 PM   #659
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,039
Total Cats: 99
Default

If you dont need iphone compatibility you can use the qstars and get 10ghz gps for the same money.

I need to make a mount like that.
Leafy is offline   Reply With Quote
Old 02-13-2014, 01:51 PM   #660
Junior Member

Join Date: Mar 2012
Posts: 320
Total Cats: 23
Default

Reading the apps description, you have to program courses yourself? I guess that'd be good for event like AutoX.

How well does it record a course lay out? The mapping in you videos looks really good.
M.Adamovits is offline   Reply With Quote
