Old 09-30-2016, 02:19 PM   #1081
Junior Member

Join Date: Mar 2011
Location: Eindhoven, The netherlands
Posts: 170
Total Cats: 10
Default

At work we have some stuff, CNC mill/lathe and non cnc mill/lathe and everything i need. Sheet metal cut machine and bend machine.. I don't know the correct english term but i think you know what i mean
Vincentmiata is offline   Reply With Quote
Old 09-30-2016, 02:24 PM   #1082
Junior Member

Join Date: Mar 2011
Location: Eindhoven, The netherlands
Posts: 170
Total Cats: 10
Default

This is how it looks right now. The 3D prints works good, very stiff and made out of ABS. The prints were very cheap to try it out first at only 25 dollar








Vincentmiata is offline   Reply With Quote
Old 10-05-2016, 11:19 AM   #1083
Junior Member

Join Date: Jun 2016
Location: Dousman, WI
Posts: 116
Total Cats: 10
Default

Oooh, I'm going to have to work my way through this thread.



Here's one I'm working on - not done obviously. 3d printed core for a home investment casting of an intake manifold. This specifically is to fit an Arctic Cat 50mm throttle body pair to a heavily ported 13B to go into a Miata based Locost.



The homebrew foundry itself. Oil burning furnace burner - works great.
mekilljoydammit is offline   Reply With Quote
Old 10-05-2016, 12:55 PM   #1084
Junior Member

Join Date: May 2011
Location: Signal Hill, CA
Posts: 212
Total Cats: -2
Default

OoOoOo.... I like!
.one lane is offline   Reply With Quote
Old 10-07-2016, 09:04 AM   #1085
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,338
Total Cats: 229
Default

Quote:
Originally Posted by Vincentmiata View Post
At work we have some stuff, CNC mill/lathe and non cnc mill/lathe and everything i need. Sheet metal cut machine and bend machine.. I don't know the correct english term but i think you know what i mean
Since you have access to a lathe, I recommend turning a plug and pressing metal velocity stacks. Unless you don't have access to a press, but the harbor freight presses are cheap.



TurboTim is offline   Reply With Quote
Old 10-07-2016, 10:33 AM   #1086
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,926
Total Cats: -3
Default

Quote:
Originally Posted by mekilljoydammit View Post
Oooh, I'm going to have to work my way through this thread.

Here's one I'm working on - not done obviously. 3d printed core for a home investment casting of an intake manifold. This specifically is to fit an Arctic Cat 50mm throttle body pair to a heavily ported 13B to go into a Miata based Locost.



The homebrew foundry itself. Oil burning furnace burner - works great.
More info on the foundry? I've wanted to build one for years but have never taken the plunge...
Efini~FC3S is offline   Reply With Quote
Old 10-07-2016, 10:56 AM   #1087
Junior Member

Join Date: Mar 2011
Location: Eindhoven, The netherlands
Posts: 170
Total Cats: 10
Default

Quote:
Originally Posted by TurboTim View Post
Since you have access to a lathe, I recommend turning a plug and pressing metal velocity stacks. Unless you don't have access to a press, but the harbor freight presses are cheap.



Looks good, also have a press at work. Was it easy to press? lubricant and one shape to form it?
Vincentmiata is offline   Reply With Quote
Old 10-07-2016, 11:59 AM   #1088
Junior Member

Join Date: Jun 2016
Location: Dousman, WI
Posts: 116
Total Cats: 10
Default

Quote:
Originally Posted by Efini~FC3S View Post
More info on the foundry? I've wanted to build one for years but have never taken the plunge...
Shell is a dead hot water heater we had sitting around and it's filled with the refractory recipe from the Backyard Metal Casting site - combination of sand, perlite, portland cement and fireclay - by which I mean oildry. It's OK for aluminum but ferrous stuff will probably kill it. Poured a couple inches in the bottom, let it set, torched a hole in the side, stuck a 12" sonotube in the middle and a piece of dead leaf blower in the hole in the side offset, and did a bunch of pours until that was full. Lid was a cutoff section with rebar and more homebrew refractory, hinge is a clutch pedal from a VW Rabbit, and I welded a piece of channel on the side so the drum cart thing seen in the picture can latch onto it. There's lots of burner solutions, but that one is from an old oil burning furnace - has an ignition coil, pump, blower, injector, etc all in one self contained unit, so you just feed it diesel, give it 110V and glorious high BTU fire comes out. Have probably less than a hundred bucks in supplies into it, but the burner was literally sitting around my parent's barn from after they upgraded to gas heat. Crucible was a stainless sauce pot acquired from goodwill - which is ******* scary. Got a big clay graphite crucible but still need to make lifting and pouring tongs, and I got busy with new-homeowner-stuff for the last few years. Finally getting back to it.
mekilljoydammit is offline   Reply With Quote
Old 10-07-2016, 02:27 PM   #1089
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,338
Total Cats: 229
Default

Quote:
Originally Posted by Vincentmiata View Post
Looks good, also have a press at work. Was it easy to press? lubricant and one shape to form it?
Very easy to press. that's stainless tube as well, right from mcmaster (annealed). Aluminum would be even simpler. Lube was engine assembly lube that was on the next table over.
TurboTim is offline   Reply With Quote
Old 10-19-2016, 03:47 PM   #1090
Junior Member

Join Date: Mar 2011
Location: Eindhoven, The netherlands
Posts: 170
Total Cats: 10
Default

I like it, only need to place it on the mill to flatten the surface and paint the plenum black.

But im happy how it looks already, buddy of my did the welding
Vincentmiata is offline   Reply With Quote
Old 10-19-2016, 03:56 PM   #1091
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,626
Total Cats: 493
Default

In for dyno. Great welding BTW.
hi_im_sean is online now   Reply With Quote
Old 10-19-2016, 05:53 PM   #1092
Junior Member

Join Date: May 2011
Location: Signal Hill, CA
Posts: 212
Total Cats: -2
Default

Looks good!
.one lane is offline   Reply With Quote
Old 10-21-2016, 05:40 AM   #1093
Junior Member

Join Date: Apr 2011
Location: Hollywood, FL
Posts: 476
Total Cats: 15
Default

What runner length did you end up with? Obviously with the air horns as you have them you can tailor the length fairly easy so long as you have room inside the plenum. Nicely thought out and applied. In for dyno also.
hector is offline   Reply With Quote
Old 10-21-2016, 12:56 PM   #1094
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,099
Total Cats: 58
Default

Needs comparison dyno with squaretop all other things being equal.
stefanst is offline   Reply With Quote
Old 10-26-2016, 04:33 PM   #1095
Senior Member
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 737
Total Cats: 66
Default

I have been practicing tubing joints and experimenting with the mig like tig thing. It's slowly getting better. I think I'm going to dial back the intensity of the whip movement and worry less about getting a tig look. I have another 16 feet of erw showing up that I will notch into 4" pieces for practice.
asmasm is offline   Reply With Quote
Old 11-01-2016, 05:43 PM   #1096
Junior Member

Join Date: Mar 2011
Location: Eindhoven, The netherlands
Posts: 170
Total Cats: 10
Default

It fits and works, now it is time to clean everything up and retune it. I will post some result with a virtualdyno plot.. old vs new manifold.

Also need to re-install the LS coils again


Its a little bit bigger than i thought but i think it look good, so i will see how it drives. If it works will my next step is MR-2 powersteeringpump, BMW waterpump and V mount radiator setup







The engine bay itself isnt very nice, but thats because this was a very cheap car i have bought after the accident with my 1994 NA and i needed a new car to put this engine in. Car itself is in decent shape so it will turn out good when the engine bay is clean
Vincentmiata is offline   Reply With Quote
Old 11-01-2016, 07:34 PM   #1097
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,033
Total Cats: 246
Default

What are the chances of getting some prints or critical dimensions for that?
Erat is offline   Reply With Quote
Old 11-08-2016, 03:15 PM   #1098
Junior Member

Join Date: Mar 2011
Location: Eindhoven, The netherlands
Posts: 170
Total Cats: 10
Default

First i have to see how this works out. Then i will think about it. But i also work together with a mx-5 specialist in my free time so maybe we can make a production version out of cast aluminium
Vincentmiata is offline   Reply With Quote
Old 01-10-2017, 01:29 PM   #1099
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 25,518
Total Cats: 1,751
Default

Designed this little guy in the BabyCAD software that eMachineshop gives you:




They are so damn shiny and pretty... 6061 aluminum, each one weighs less than all of the blood in a churchmouse. Seriously, it's comical how little these things weigh as compared to how rigid they are.

The two holes in the raised section are threaded M4 x 0.7, and located 100 mm apart. General hole-to-hole spacing is 10mm Because VESA.


$260 for 20 of them:









Joe Perez is offline   Reply With Quote
Old 01-18-2017, 11:38 AM   #1100
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,338
Total Cats: 229
Default

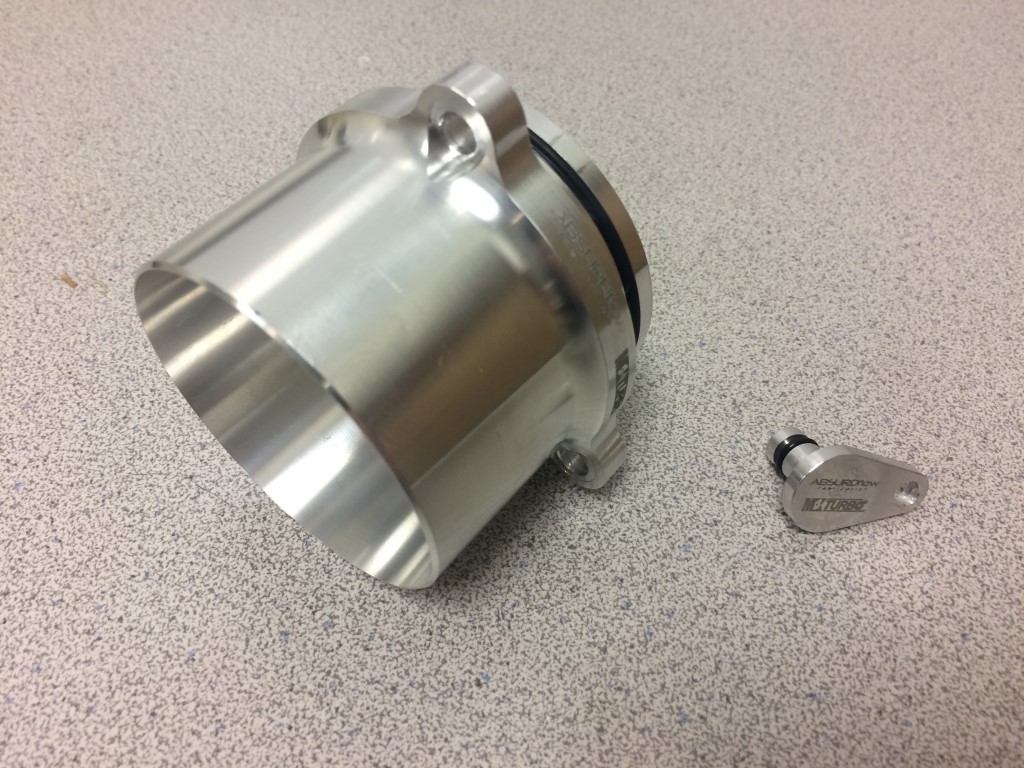

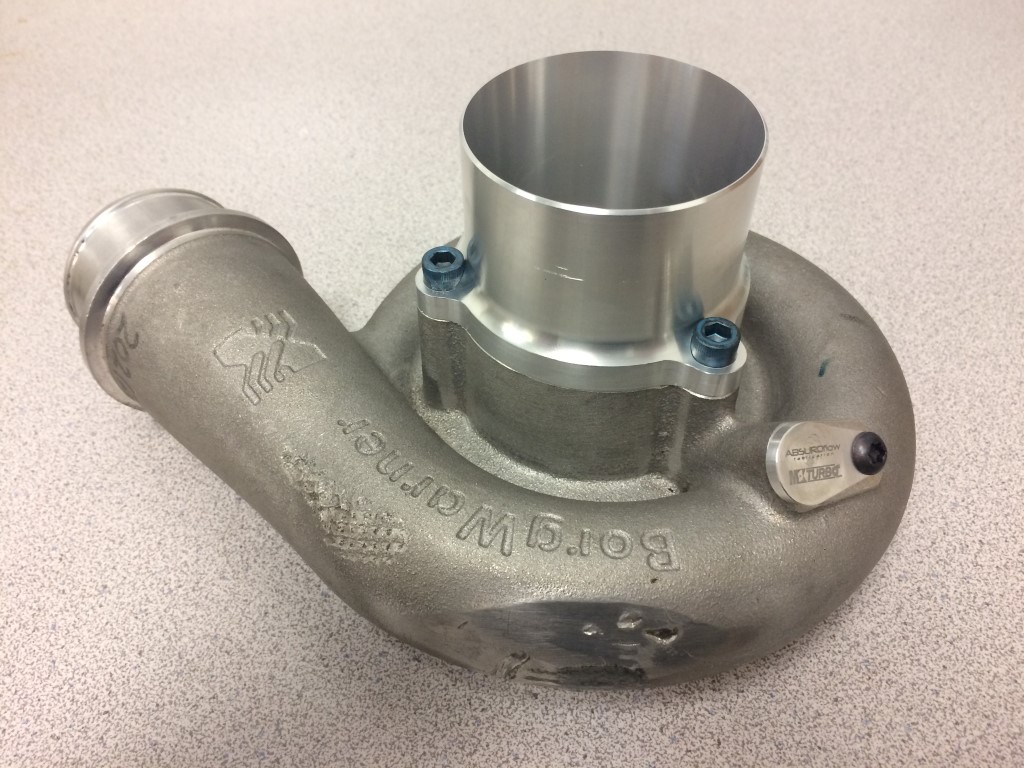

I made two things.



Attached Thumbnails
The custom fabrication thread! (Post pics of stuff you have made)-bw-efr3-medium-.jpg   The custom fabrication thread! (Post pics of stuff you have made)-bw-efr4-medium-.jpg
TurboTim is offline   Reply With Quote
