Old 02-16-2015, 04:39 AM   #981
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,593
Total Cats: 22
Default

You are the ******* man.

I love your work.
nitrodann is offline   Reply With Quote
Old 02-17-2015, 10:17 PM   #982
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 52
Default

cures for ED
ScottyP3821 is offline   Reply With Quote
Old 03-02-2015, 12:42 PM   #983
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,897
Total Cats: 1,433
Default

My version of seans bead roller. Timed myself, took less than 7 minutes to make this (which included digging the welder out of my parts pile and finding my **** set of vice grips) haha:



aidandj is offline   Reply With Quote
Old 03-16-2015, 10:38 AM   #984
Junior Member
iTrader: (4)

calteg's Avatar

Join Date: Nov 2006
Location: Austin, TX
Posts: 311
Total Cats: 14
Default

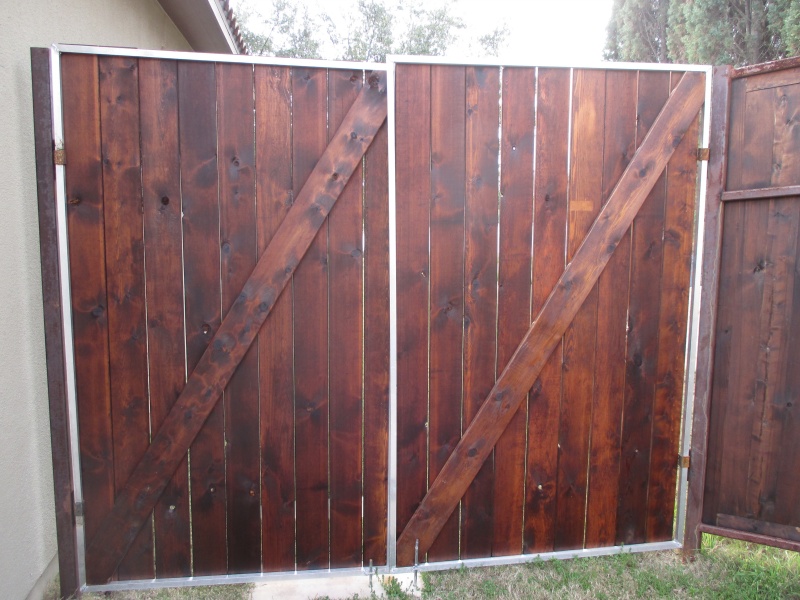

Here is my first attempt at MIG welding. Aluminum is a completely different beast, hats off to you folk that can lay down dimes. It took me four hours to make 16 small welds.

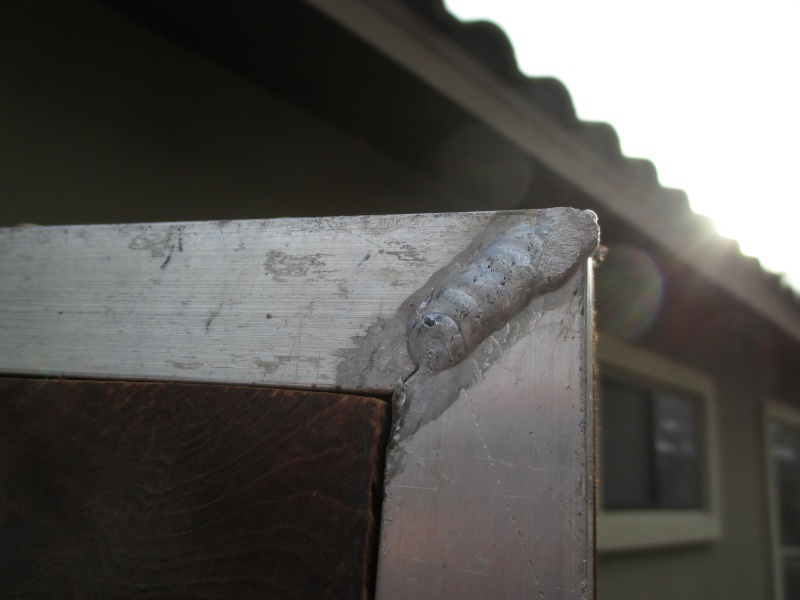

Initial results were....suboptimal

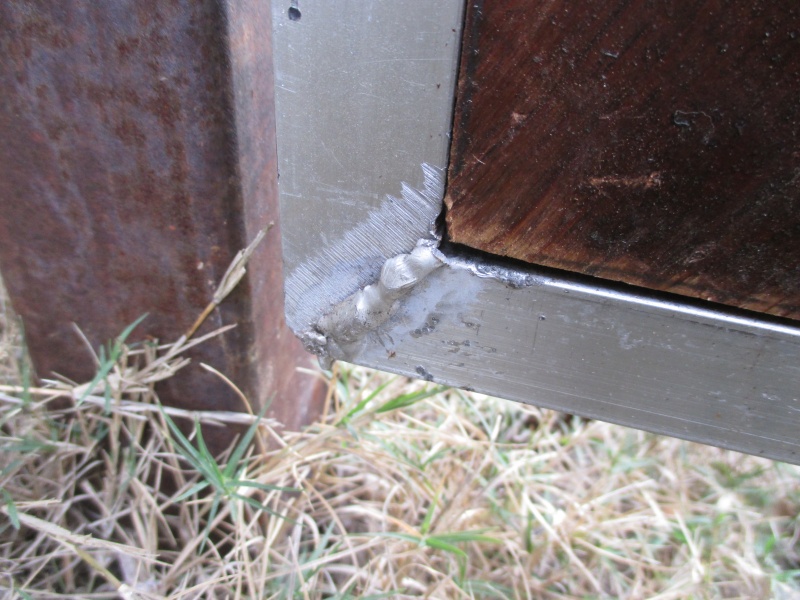

Last weld of the day, slightly less shitty.

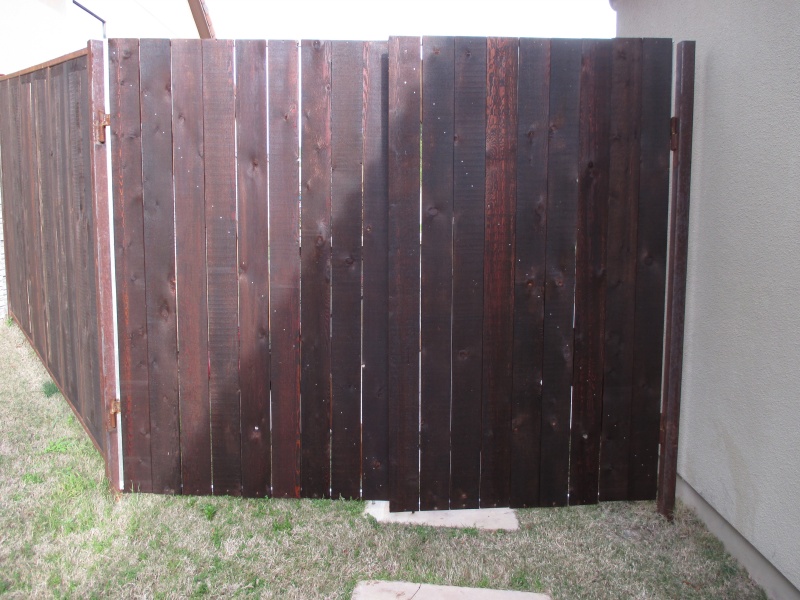

In my quest to just get the goddamn aluminum to stick together, I neglected to tack everything up first, then proceeded to put a ton of heat into the welds. You can see the frames are warped by about an inch at the top.

So I ended up adjusting the cedar planking to compensate. Not really noticeable from the outside.


Any ideas on how I can the the aluminum to look rusty like the steel? Paint seems to be the only option I've seen so far.
calteg is offline   Reply With Quote
Old 03-16-2015, 11:50 AM   #985
Newb

Join Date: May 2010
Location: Portland, OR
Posts: 30
Total Cats: 0
Default

Quote:
Originally Posted by calteg View Post
Here is my first attempt at MIG welding. Aluminum is a completely different beast,
There's two things you don't usually see together - MIG welding and Aluminum.
Diamond Dave is offline   Reply With Quote
Old 03-16-2015, 12:35 PM   #986
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,131
Total Cats: 257
Default

Not true at all.

My last job at the fab shop we did it all the time. Way more than using the tig.
At my current job the boys in the fab shop ONLY use mig for aluminum...

It's pretty common.
Erat is offline   Reply With Quote
Old 03-16-2015, 12:38 PM   #987
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,823
Total Cats: 555
Default

I'll 2nd that. We use mig for aluminum primarily, at work. I'm about the only one who uses the tig, and is only for learning. We have yet to use it for a job lol.
hi_im_sean is offline   Reply With Quote
Old 03-16-2015, 02:17 PM   #988
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,783
Total Cats: 68
Default

its common and has the traits of mig welding. its not as precise and not as clean.... but its much much faster when compared to TIG welding.

its used in a lot of process type stuff- some MIG welders are pretty trick now... more than your basic on/off welders.

M
shlammed is offline   Reply With Quote
Old 03-26-2015, 05:08 PM   #989
Junior Member

Join Date: May 2011
Location: Signal Hill, CA
Posts: 246
Total Cats: 11
Default

Quote:
Originally Posted by calteg View Post
Here is my first attempt at MIG welding..
did you use a tri-mix gas?
.one lane is offline   Reply With Quote
Old 03-26-2015, 11:30 PM   #990
Junior Member
iTrader: (4)

calteg's Avatar

Join Date: Nov 2006
Location: Austin, TX
Posts: 311
Total Cats: 14
Default

Quote:
Originally Posted by .one lane View Post
did you use a tri-mix gas?
Buddy of mine does aluminum repair for sailboats, I was borrowing his welder and bottle. I have no idea what was in there.
calteg is offline   Reply With Quote
Old 05-06-2015, 08:02 PM   #991
Junior Member

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 440
Total Cats: 17
Default

Fab related

Name:  9E05ACE4-0E7D-4BAC-9C87-D6BAD92829B8_zpsfxwmyb0r.jpg
Views: 9
Size:  188.9 KB
Dual flow meter arrived today so I can finally back purge stuff.

Name:  AC8327AF-9555-4835-A9AF-91077B8E720E_zpstqpcnfmo.jpg
Views: 8
Size:  121.4 KB
My bench, longevity 200sx & wp-9 torch

Name:  B99180AC-9A8D-4410-A74B-A68AAB3CDCF9_zpsiyeg66l7.jpg
Views: 8
Size:  80.4 KB
A transition I did for a friends R33 gtr for a 4" mid pipe. Port guys damaged the Apexi mid pipe taking it off the boat, it connects a Nismo cow pipe to the 95mm part of the Apexi exhaust
Sirnixalot is offline   Reply With Quote
Old 08-19-2015, 10:06 PM   #992
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,094
Total Cats: 48
Default

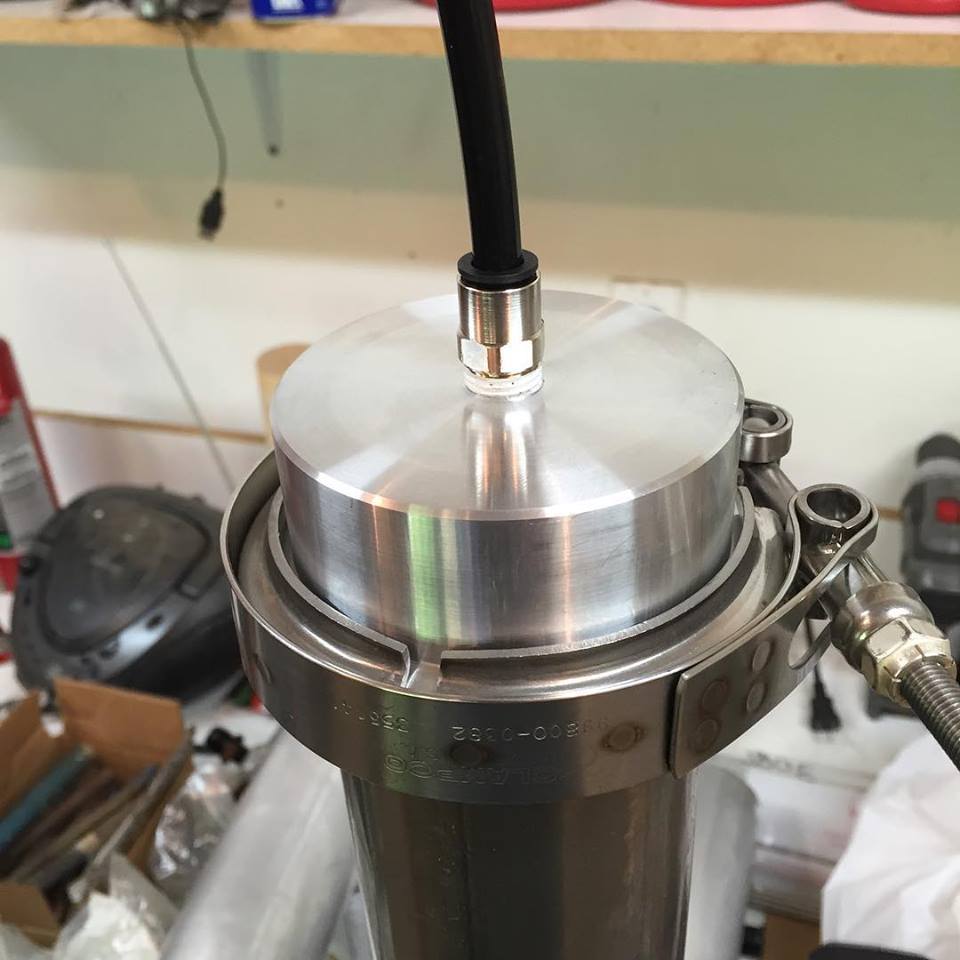

Lunch time G-job, V-band back purge cap/heat sink
Attached Thumbnails
The custom fabrication thread! (Post pics of stuff you have made)-11855771_10206361013121886_8406367863709931427_n.jpg
ctdrftna is online now   Reply With Quote
Old 08-19-2015, 10:55 PM   #993
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

**** I wish I was that baller.
Leafy is offline   Reply With Quote
Old 08-20-2015, 01:55 AM   #994
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

deezums is offline   Reply With Quote
Old 08-20-2015, 09:03 AM   #995
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,707
Total Cats: 1,078
Default

Quote:
Originally Posted by ctdrftna View Post
Lunch time G-job, V-band back purge cap/heat sink
That is a little bit more fancy then the v-band heat sinks I use when building my setups. I still need to find a way to put in a way to test pressure.
shuiend is offline   Reply With Quote
Old 08-20-2015, 09:40 AM   #996
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,453
Total Cats: 240
Default

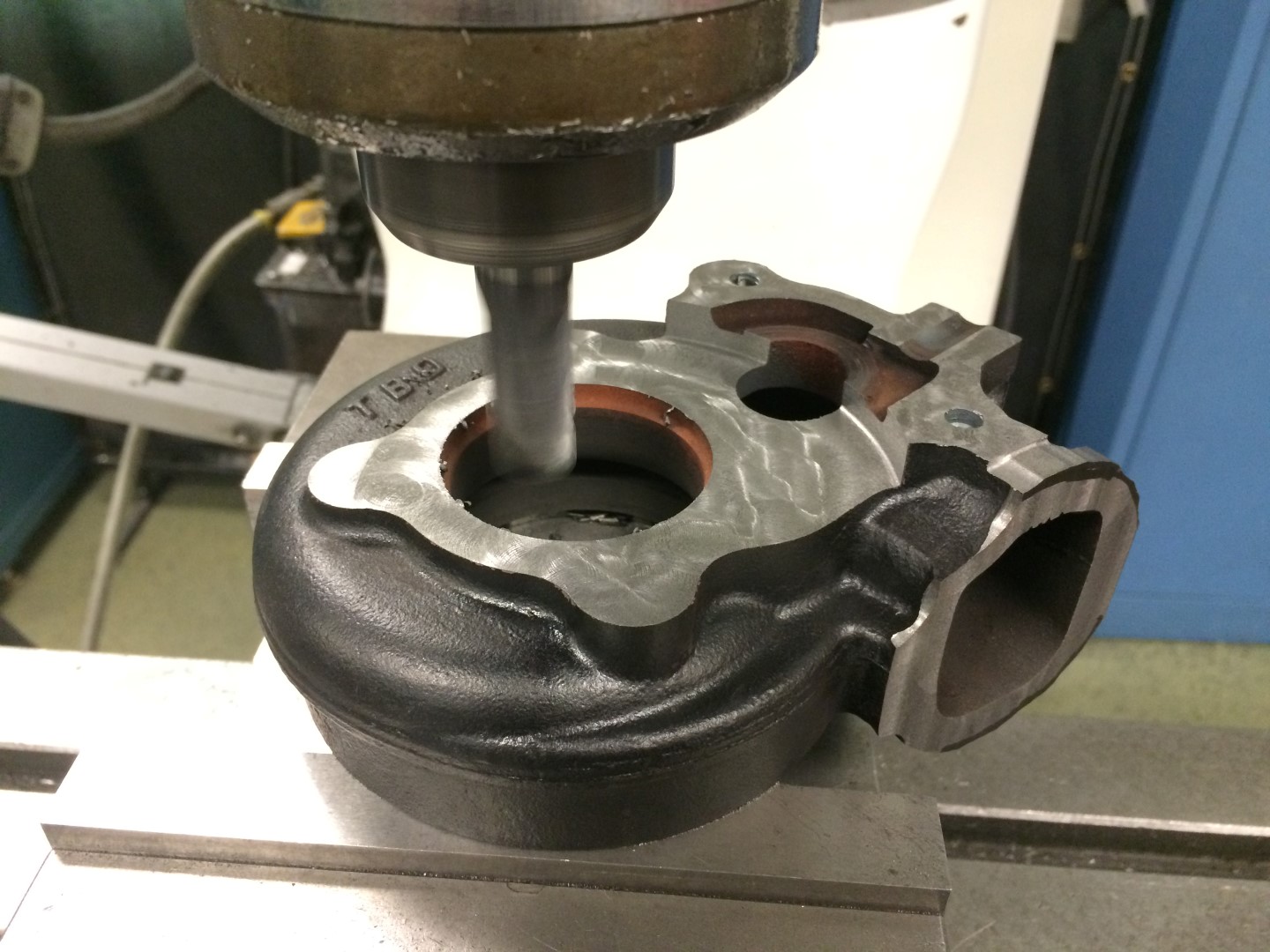

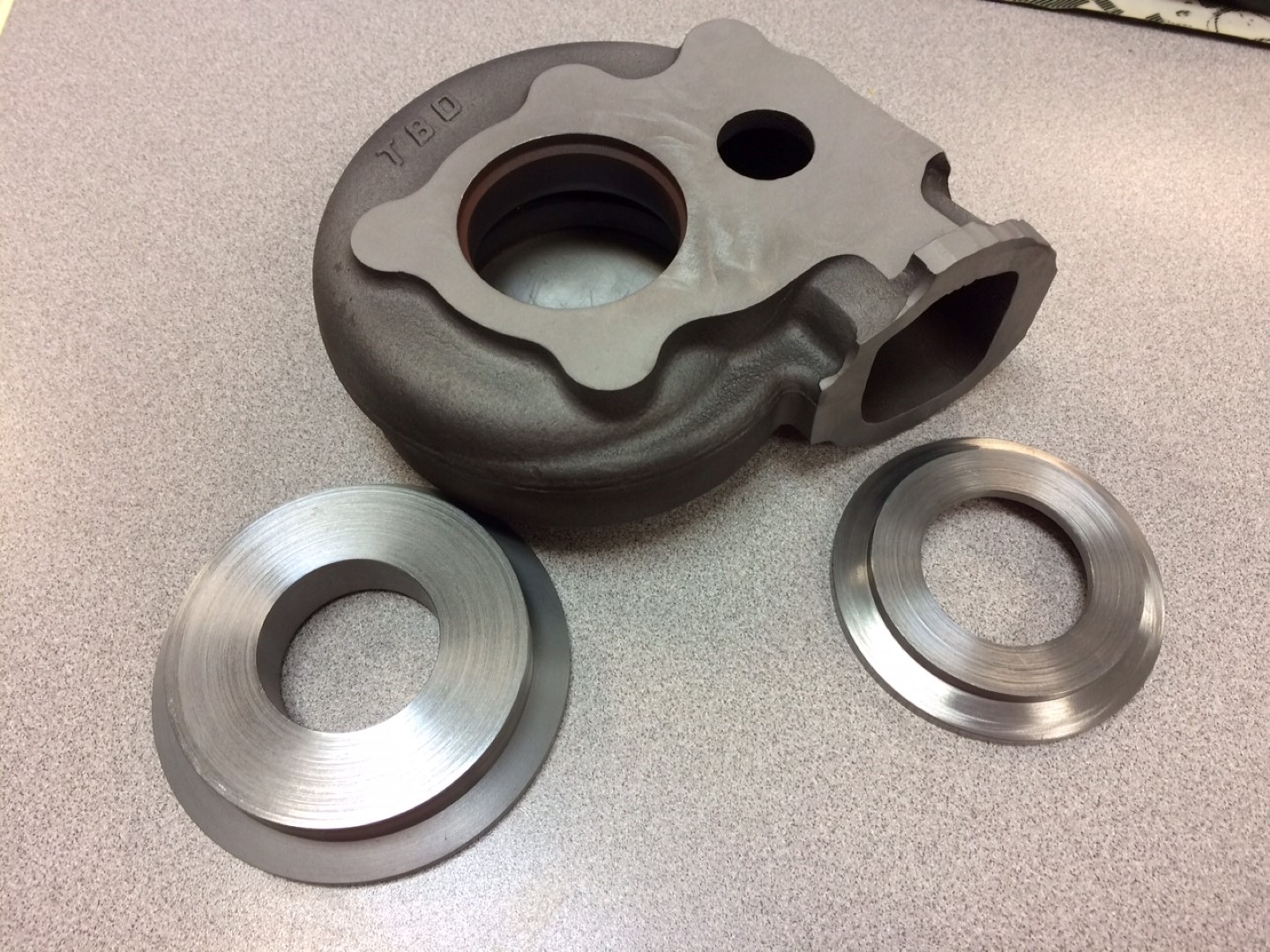

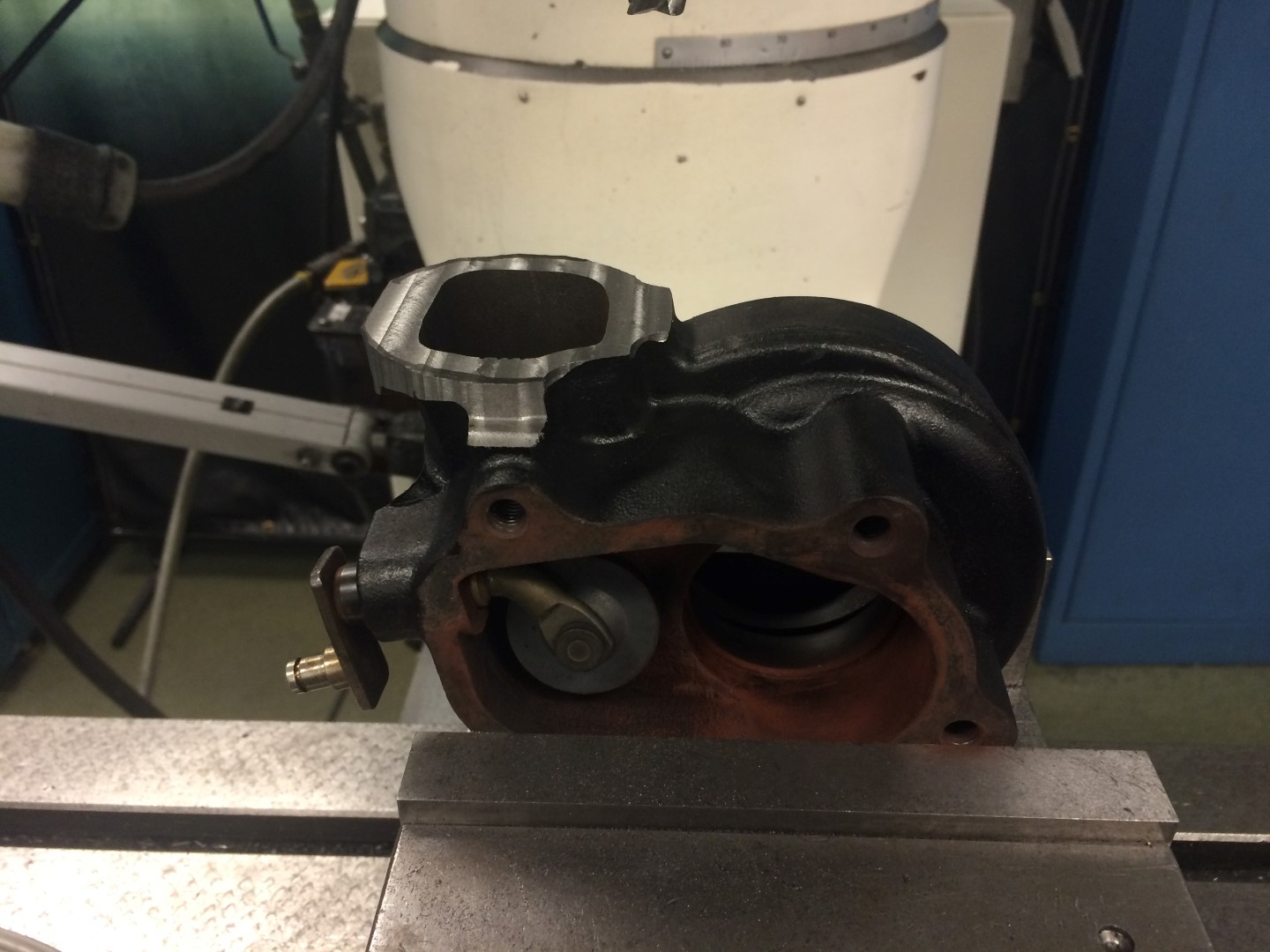

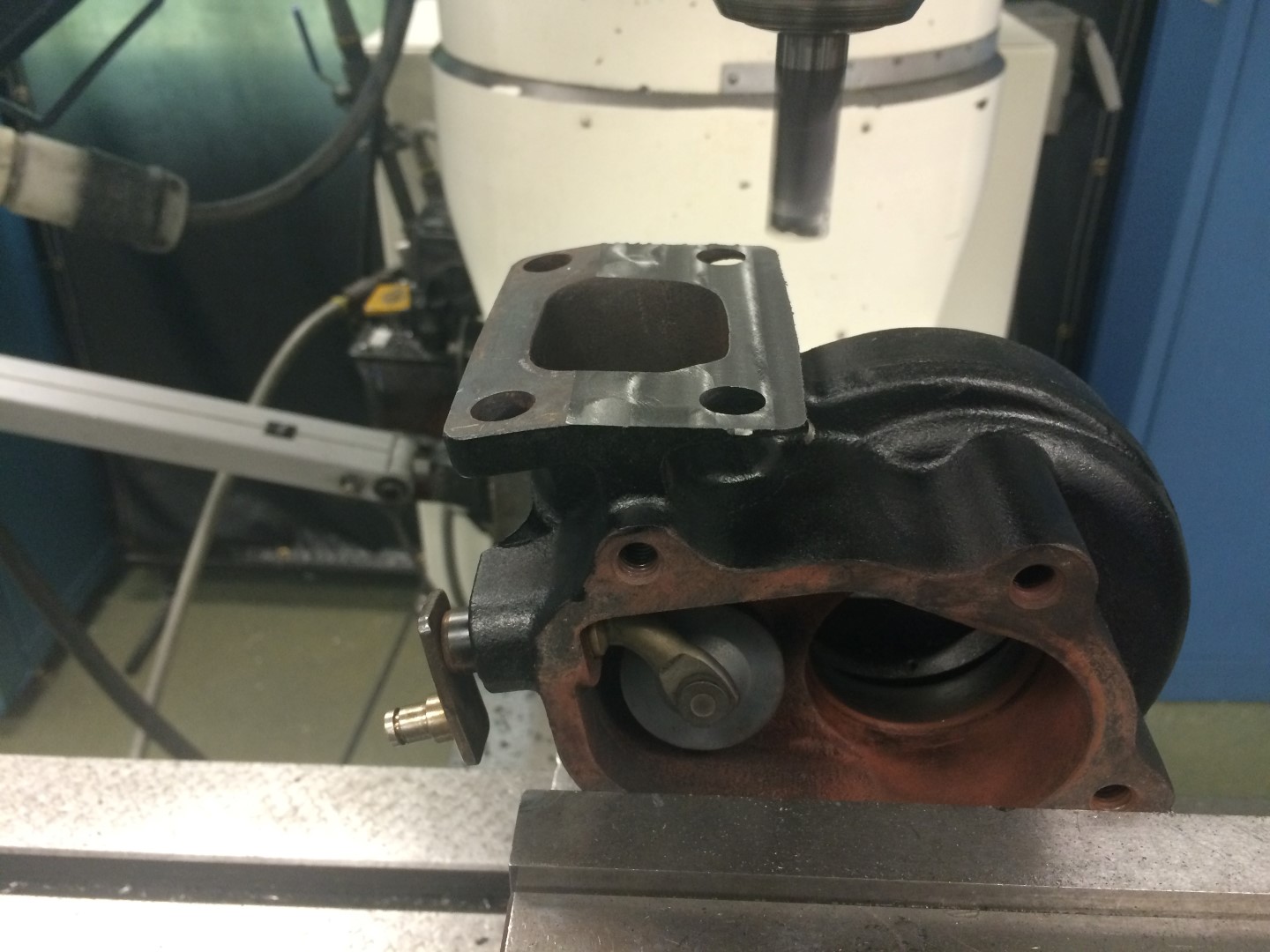

I'm getting creative with an old turbo I bought from you Lars. Lets see how quickly it does(n't) spool with 2.5l.










At lunch I'll see if I can attach some unknown, probably leaded, mild steel to cast iron.
Attached Thumbnails
The custom fabrication thread! (Post pics of stuff you have made)-emusa1.jpg   The custom fabrication thread! (Post pics of stuff you have made)-emusa2.jpg   The custom fabrication thread! (Post pics of stuff you have made)-emusa3.jpg   The custom fabrication thread! (Post pics of stuff you have made)-emusa4.jpg
TurboTim is offline   Reply With Quote
Old 08-20-2015, 09:47 AM   #997
A living god
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,020
Total Cats: 240
Default

Quote:
Originally Posted by TurboTim View Post
At lunch I'll see if I can attach some unknown, probably leaded, mild steel to cast iron.
Rumor has it that Treadstone will do this to just about any turbo they sell if you ask them nicely.

Given your skills you should be fine.
viperormiata is offline   Reply With Quote
Old 08-20-2015, 11:31 AM   #998
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,189
Total Cats: 266
Default

You left out the third v-band off the turbine near the flange for dual EWGs!
m2cupcar is offline   Reply With Quote
Old 08-24-2015, 12:57 PM   #999
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,453
Total Cats: 240
Default

Swapping springs in one EWG is enough.

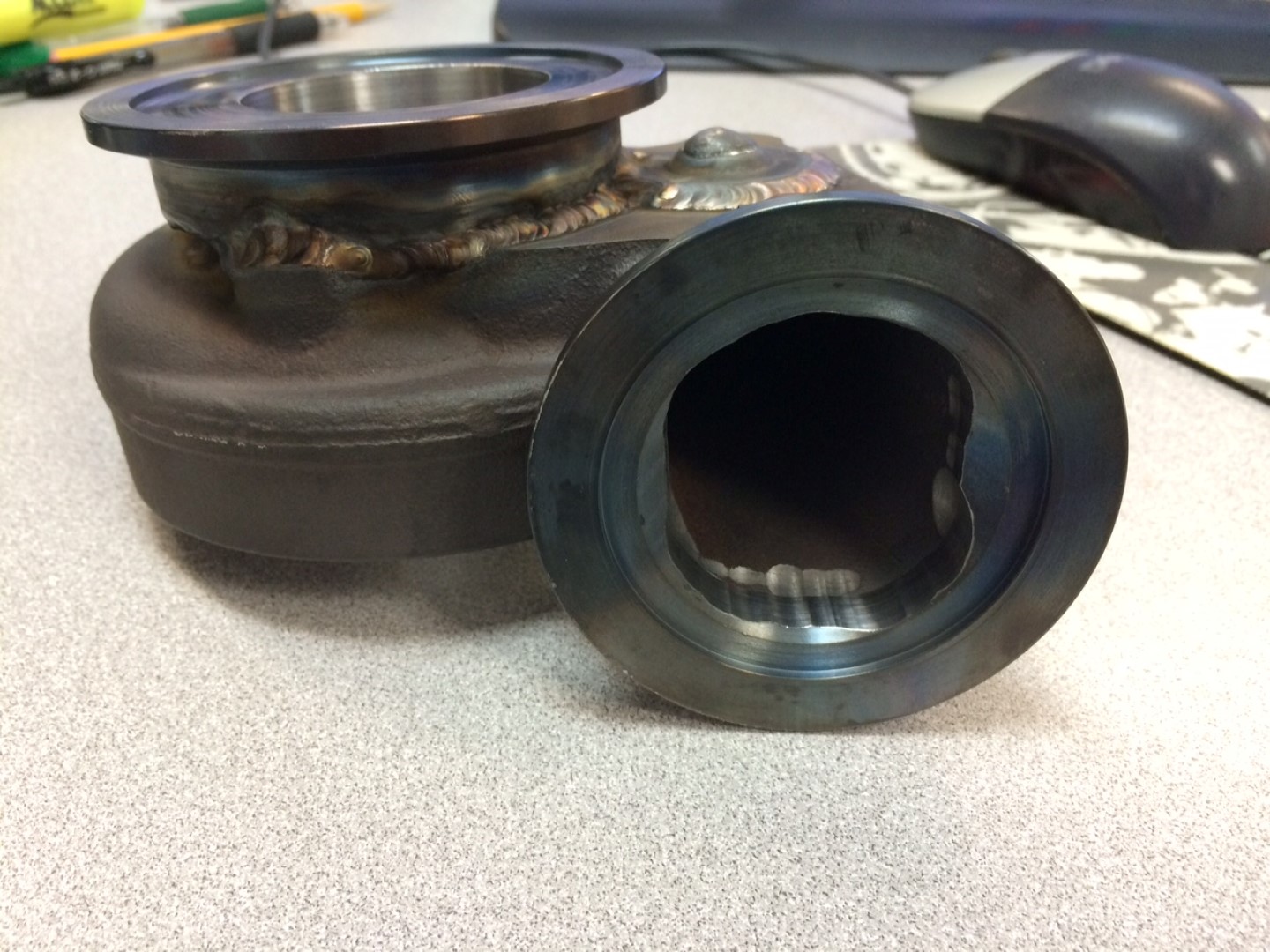

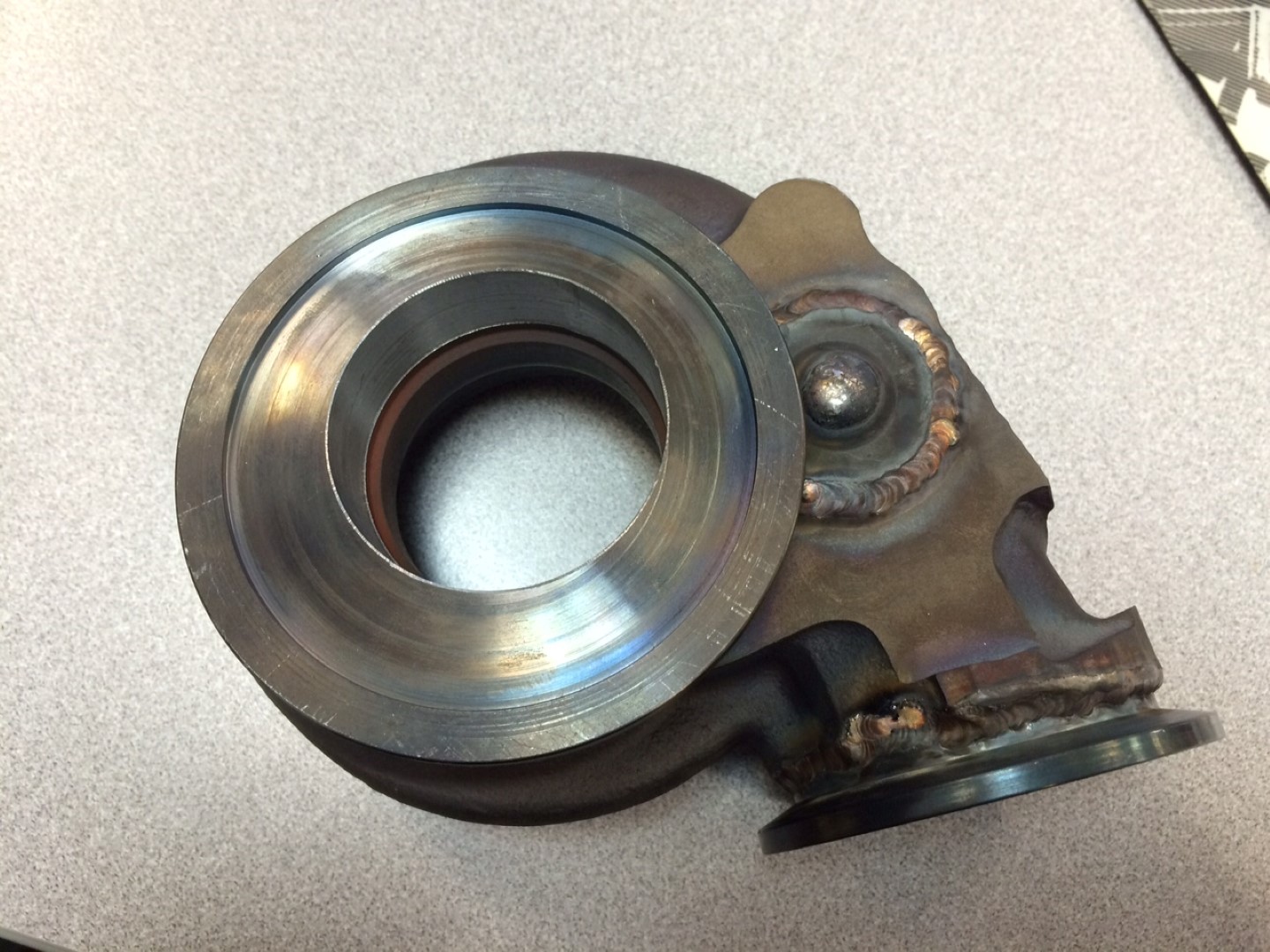

So it took a little while to choose a filler rod. I ended up using 309, with ~45min @500F preheat and shutting off the oven and letting it cool itself done post heat. So far there's no cracks. There's some silicon bronze and a few other material tacks mixed in there.

So here's a chinese "EMUSA GT28" turbo direct swap for a Precision vband turbine. hehe



Attached Thumbnails
The custom fabrication thread! (Post pics of stuff you have made)-emusa5.jpg   The custom fabrication thread! (Post pics of stuff you have made)-emusa6.jpg
TurboTim is offline   Reply With Quote
Old 08-24-2015, 12:58 PM   #1000
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,897
Total Cats: 1,433
Default

<p>Mucho sexy. I need to do that to my next turbo.</p>
aidandj is offline   Reply With Quote
