Old 11-04-2014, 12:36 PM   #121
Junior Member

Join Date: May 2008
Location: Canada
Posts: 395
Total Cats: 46
Default

Quote:
Originally Posted by OGRacing View Post
Cold bite - and fade resistance will be tough to find. dare i say not existent.
I know you're not keen on Carbotech pads, but the XP12 and XP24 both have incredible cold bite and will take between 1,850 and 2,000F. The only downside, for street use, is that they will squeal like a stuck pig. They also dust, but it's not particularly corrosive and will wash off easily.
DeerHunter is offline   Reply With Quote
Old 11-04-2014, 12:48 PM   #122
Supporting Vendor
Thread Starter
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,657
Total Cats: 64
Default

Quote:
Originally Posted by DeerHunter View Post
I know you're not keen on Carbotech pads, but the XP12 and XP24 both have incredible cold bite and will take between 1,850 and 2,000F. The only downside, for street use, is that they will squeal like a stuck pig. They also dust, but it's not particularly corrosive and will wash off easily.
you asked for a two rig / street. didn't think you wanted a full race pad. a race pad needs to get around 200* to start producing MU. a PFC .10 street pads will produce Tq under 100*, they are just not allot. FYI 100* in a braking system is early in the morning pulling out of the garage. 2000* is 800* away from turning the rotor into a liquid. i haven't seen xp12's dyno but i have seen them fall apart at lower temperatures then 2000* . generally the highest you want to see a rotor operate at is >1600*
OGRacing is offline   Reply With Quote
Old 11-04-2014, 01:49 PM   #123
Junior Member

Join Date: May 2008
Location: Canada
Posts: 395
Total Cats: 46
Default

Quote:
Originally Posted by OGRacing View Post
you asked for a two rig / street. didn't think you wanted a full race pad. a race pad needs to get around 200* to start producing MU. a PFC .10 street pads will produce Tq under 100*, they are just not allot. FYI 100* in a braking system is early in the morning pulling out of the garage. 2000* is 800* away from turning the rotor into a liquid. i haven't seen xp12's dyno but i have seen them fall apart at lower temperatures then 2000* . generally the highest you want to see a rotor operate at is >1600*
Makes sense. I've never placed much stock in peak pad temps for the reasons you mention (plus the fluid would have boiled long before). I'm just saying that the Carbotechs do work well when cold (and it does get cold here, even in the summer). I mean, lock up your seatbelt retractor well, even with a medium brake application. I've experienced race pads that really don't work when cold and you generally sail through the first stop sign you come to in the morning. Just a data point for those that are interested.

I have to replace my front friction rings this winter and have to make a decision whether to go with the same (DBA 11" from Goodwin) or upgrade to the 11.75" kit (which necessitates new wheels for the street). Thoughts?
DeerHunter is offline   Reply With Quote
Old 11-04-2014, 02:24 PM   #124
Supporting Vendor
Thread Starter
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,657
Total Cats: 64
Default

Quote:
Originally Posted by DeerHunter View Post
Makes sense. I've never placed much stock in peak pad temps for the reasons you mention (plus the fluid would have boiled long before). I'm just saying that the Carbotechs do work well when cold (and it does get cold here, even in the summer). I mean, lock up your seatbelt retractor well, even with a medium brake application. I've experienced race pads that really don't work when cold and you generally sail through the first stop sign you come to in the morning. Just a data point for those that are interested.

I have to replace my front friction rings this winter and have to make a decision whether to go with the same (DBA 11" from Goodwin) or upgrade to the 11.75" kit (which necessitates new wheels for the street). Thoughts?
if you got the money why not get the 11.75. they will last longer, rotors are easier to find/less expensive. with a wilwood prop valve we can get even brake performance with good-wins rear kit. but if you dont have the cash to upgrade stick with the 11"
OGRacing is offline   Reply With Quote
Old 11-04-2014, 02:58 PM   #125
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,176
Total Cats: 27
Default

Quote:
Originally Posted by OGRacing View Post
Cold bite - and fade resistance will be tough to find. dare i say not existent. If your lucky-enough for PFC to have your pad shape then i would recommend the PFC .10 compound. we had U-haul, Penski, Ryder trucks, Iowa police department, CHP, IL State troopers, ect.. all use the .10. when it gets hot it grips, really grips. it's a street pad so it doesn't dust to much. the cold bite is numb (anything under 100*), but it will take a 1600* rotor temperature before it starts to fade. 1600* is higher then the dtc-60 will take, but the dtc 60 will have a higher tq. The only problem with the .10 is that pfc only makes it for fleet vehicles. Big trucks, police cars, F-150 and so on. shoot me over what vehicle you have and i'll see if they make a pad shape for your rig. ive tried the Hawk LTB on my jeep. I am not very excited about the performance from those.

I might give the PFC Carbon Metallic a go on a minivan (all I could find for my application) when I head to the US during Christmas break - thanks again
Landrew is offline   Reply With Quote
Old 11-04-2014, 03:13 PM   #126
Supporting Vendor
Thread Starter
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,657
Total Cats: 64
Default

#race-van
OGRacing is offline   Reply With Quote
Old 11-05-2014, 10:26 PM   #127
Newb

Join Date: Nov 2014
Posts: 1
Total Cats: 0
Default

OGRacing, thanks for putting tons of great information out there.

I noticed that Leafy (page 4), like many others, struggled with the difference between a tandem master cylinder and a dual master cylinder set-up, regarding hydraulic pressure behind the M/C pistons. Explaining this, I always use the following experiment description:

Imagine two postal scales next to each other, bridged by a small plank. Reset both scales to zero. Place 10 lbs centered on the “bridge”, so both scales carry half off the weight and now read 5 lbs each.

Start over and place one scale on top of the other and reset displays to zero. Place the 10 lbs weight on the top scale... both displays now read 10 lbs.

In this experiment, the weight symbolizes the force coming from the push rod attached to the pedal assembly (driver input x pedal ratio). The two scales on top of each other resemble a tandem M/C and the two scales next to each other a dual M/C set-up with the “bridge” as balance bar.

I hope this explains why both pistons in a tandem M/C receive twice as much force from the brake pedal as both pistons in a dual M/C system with the balance bar at 50/50 (F/R) and everything else being equal.

Find more on M/C set-ups at my site (Cyotani already found it) on page: Tandem Master Cylinder | Dual Master Cylinder | BRAKE POWER

Closely related but not yet discussed, is pedal ratio. Because it is responsible for multiplying the drivers input (force on brake pedal pad), it plays an important role in the resulting brake torque at the wheels. More about this can be found here: Pedal Assist Ratio | Automotive Brake System Calculator | BRAKE POWER


Johnny, thanks again for sharing your knowledge and experience with us, making this a very interesting and educational thread for all motor sports enthusiasts.
BrakePower is offline   Reply With Quote
Old 11-06-2014, 08:04 AM   #128
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: albion, mi
Posts: 288
Total Cats: 16
Default

Just saying thanks for the great info!
glade is offline   Reply With Quote
Old 11-06-2014, 08:10 AM   #129
Supporting Vendor
Thread Starter
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,657
Total Cats: 64
Default

Quote:
Originally Posted by BrakePower View Post
OGRacing, thanks for putting tons of great information out there.

I noticed that Leafy (page 4), like many others, struggled with the difference between a tandem master cylinder and a dual master cylinder set-up, regarding hydraulic pressure behind the M/C pistons. Explaining this, I always use the following experiment description:

Imagine two postal scales next to each other, bridged by a small plank. Reset both scales to zero. Place 10 lbs centered on the “bridge”, so both scales carry half off the weight and now read 5 lbs each.

Start over and place one scale on top of the other and reset displays to zero. Place the 10 lbs weight on the top scale... both displays now read 10 lbs.

In this experiment, the weight symbolizes the force coming from the push rod attached to the pedal assembly (driver input x pedal ratio). The two scales on top of each other resemble a tandem M/C and the two scales next to each other a dual M/C set-up with the “bridge” as balance bar.

I hope this explains why both pistons in a tandem M/C receive twice as much force from the brake pedal as both pistons in a dual M/C system with the balance bar at 50/50 (F/R) and everything else being equal.

Find more on M/C set-ups at my site (Cyotani already found it) on page: Tandem Master Cylinder | Dual Master Cylinder | BRAKE POWER

Closely related but not yet discussed, is pedal ratio. Because it is responsible for multiplying the drivers input (force on brake pedal pad), it plays an important role in the resulting brake torque at the wheels. More about this can be found here: Pedal Assist Ratio | Automotive Brake System Calculator | BRAKE POWER


Johnny, thanks again for sharing your knowledge and experience with us, making this a very interesting and educational thread for all motor sports enthusiasts.
I'm going to send your tables over to The PFC engineers. if it checks out this would be a good on line resource. All of mine brake calculators are pdf's :(
OGRacing is offline   Reply With Quote
Old 11-06-2014, 10:34 AM   #130
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 14,406
Total Cats: 1,259
Default

I love this bar.

The exchange and discussion of ideas and information here is pretty cool.
sixshooter is offline   Reply With Quote
Old 11-09-2014, 11:36 AM   #131
Junior Member

Join Date: Apr 2011
Location: Hollywood, FL
Posts: 488
Total Cats: 16
Default

Lots of good info on this thread. Thanks for taking the time.

Now for an ignorant *** question:

What difference should I expect from going down to a 11/16" tandem master cylinder from a 3/4" tandem master cylinder as far as feel? Both are non-boosted.

We just recently deleted the brake booster from the car. Went from the 15/16" tandem master to a 3/4" tandem master. Awesome while autoxing. I could not believe how easy it was to get the exact amount of braking I needed from the car. With the booster it was always a crap shoot on initial pedal effort and if trying to modulate was even trickier. Only felt lockup a couple times w/o the booster and getting rid of it was easy w/o losing too much in brake force.

However, street driving was tough. Yes, I street drive a fairly well built CSP car. Not smart but neither is building a CSP car. We changed to an 11/16" tandem master and pedal feels much better for the street. I now find it easier to lock up the brakes with the softer pedal on the street tires which are bfg rivals. On A6's and with attack mentality Im sure it will be a different story.

Im going to find out in two weeks just what impact I made on what I thought to be an ideal setup as we have an autox coming up (Florida) but I just wanted to get your expert opinion on what to expect.

What I can remember about the setup:
Stock pedal ratio which I believe to be 4:1
Stock non-sport NA8 front brakes
Stock NA6 rear brakes
Stock NA8 proportioning valve
Front pads? I think Carbotech but compound is very soft
Rear pads? I think we are using the pads that came with the loaded calipers.
SS braided hoses.
Fresh fluid, nothing fancy.

I know our pad choices are suspect but the balance is good even with the stock prop valve in place and the bite for autox is good too. We used to run an aggressive rear pad on the NA8 rear brakes when we had them to tame the front bias but decided to wait and see when we switched to the NA6 rear brakes. It didn't do anything worse so we left it alone.

Obviously we plan to get rid of the stock prop valve and do correct pads for autox in the future but we are waiting to bet the FM LBBK for that.

Well maybe then I have two ignorant *** questions: what would you recommend for pads on the future setup?
hector is offline   Reply With Quote
Old 11-10-2014, 09:52 AM   #132
Supporting Vendor
Thread Starter
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,657
Total Cats: 64
Default

Quote:
Originally Posted by hector View Post
Lots of good info on this thread. Thanks for taking the time.

Now for an ignorant *** question:

What difference should I expect from going down to a 11/16(.6875)" tandem master cylinder from a 3/4" tandem master cylinder as far as feel? Both are non-boosted.

We just recently deleted the brake booster from the car. Went from the 15/16(.9375)" tandem master to a 3/4(.75)" tandem master. Awesome while autoxing. I could not believe how easy it was to get the exact amount of braking I needed from the car. With the booster it was always a crap shoot on initial pedal effort and if trying to modulate was even trickier. Only felt lockup a couple times w/o the booster and getting rid of it was easy w/o losing too much in brake force.

However, street driving was tough. Yes, I street drive a fairly well built CSP car. Not smart but neither is building a CSP car. We changed to an 11/16(.6875)" tandem master and pedal feels much better for the street. I now find it easier to lock up the brakes with the softer pedal on the street tires which are bfg rivals. On A6's and with attack mentality Im sure it will be a different story.

Im going to find out in two weeks just what impact I made on what I thought to be an ideal setup as we have an autox coming up (Florida) but I just wanted to get your expert opinion on what to expect.

What I can remember about the setup:
Stock pedal ratio which I believe to be 4:1
Stock non-sport NA8 front brakes
Stock NA6 rear brakes
Stock NA8 proportioning valve
Front pads? I think Carbotech but compound is very soft
Rear pads? I think we are using the pads that came with the loaded calipers.
SS braided hoses.
Fresh fluid, nothing fancy.

I know our pad choices are suspect but the balance is good even with the stock prop valve in place and the bite for autox is good too. We used to run an aggressive rear pad on the NA8 rear brakes when we had them to tame the front bias but decided to wait and see when we switched to the NA6 rear brakes. It didn't do anything worse so we left it alone.

Obviously we plan to get rid of the stock prop valve and do correct pads for autox in the future but we are waiting to bet the FM LBBK for that.

Well maybe then I have two ignorant *** questions: what would you recommend for pads on the future setup?
your madd! it's awesome seeing the initiative but your set up is all over the place with different components. i do spot some changes you should make that will help.

with a smaller master cylinder your going to get an increase in Fluid pressure, and a increase in pedal Travel. you might see the 11/16(.6875)" mc pedal go to the floor during a race. i'm not 100% sure that will happen but it is a possibility. When your at peak braking Do note where your foot is located. remember your peddle assembly has a sweet spot and starts to loose efficiency if the peddle travels past 90*.
Good news
your pedal ratio. Is still set up for a power system. 4:1 is far too short. ideally for a Manual system you'll want between a 5.2 - 5.7:1 ratio. This alone could make up for some lack in street TQ. with increased pedal ratio the 3/4" might be perfect. Drill a hole lower on the pedal and locate the master cylinder lower too. don't drill a hole .5" lower and jam the MC arm into it. the side load will dramatically shorten the master cylinders life.

As far as the Components your using I would look into upgrading the Rear NA6 brakes you have. When auto-crossing the Front tires have a huge load on them. Quick hands are not good for tire cohesion. i compensate for this with an above average rear brake bias. We do this because when your releasing the brakes and starting your turn, your Front tires have a lower duty on them and can begin the job of turning the car, while the rears are still doing some braking and helping rotate the car. look into some NA8 rear brakes or the 949 sport rotor kit.

Get rid of that Factory prop vale. The harder you press the less fluid gets sent to the rear. i hate those things.

Pads. I personally autocross on the PFC 01 compound. I do this for 2 reasons. 1.) if the transfer layer is there the Brake tq is very consistent. there is no Tq rise with heat. normally street driving will remove all transfer layer. so when you get to an event, it's gone. to get the transferlayer back, when you show up to an auto cross head over to the parking lot not being used, Accelerate up to 45 and drag the pedal down to about 10 mph. do this twice and your transfer-layer will come back. 2.) it's my track car and i don't feel like swapping pads. if your car is more of a double duty go with the HP+ pads the TQ increases with heat and that can be annoying, but the operating temperature does accommodate street driving.

Last edited by OGRacing; 11-10-2014 at 11:38 AM.
OGRacing is offline   Reply With Quote
Old 11-10-2014, 10:56 AM   #133
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 14,406
Total Cats: 1,259
Default

In your third sentence I believe you may have meant increased pedal travel and not decreased.
sixshooter is offline   Reply With Quote
Old 11-10-2014, 11:39 AM   #134
Supporting Vendor
Thread Starter
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,657
Total Cats: 64
Default

Quote:
Originally Posted by sixshooter View Post
In your third sentence I believe you may have meant increased pedal travel and not decreased.
yep your right, fixed, thank you!
OGRacing is offline   Reply With Quote
Old 11-10-2014, 02:15 PM   #135
Junior Member

Join Date: Apr 2011
Location: Hollywood, FL
Posts: 488
Total Cats: 16
Default

Yeah, I'm sure you were thinking WTF? when you were reading the ignorant **** we did. I'm surprised it turned out a working brake system. Although you have to really use some pedal pressure, it really was an improvement in feel.

It ended up the way it is as we were making changes to the car for getting rid of weight and we ended up using some flawed reasoning. Basically it was "make one change at a time" so as to know how one thing affected the brake system. The prop valve is just stupid, we should of gotten rid of it long ago, but we started making changes before turning our attention to it and then flawed reasoning kicked in. It is on the way out though, or so my co-driver said.

As far as trail braking, well neither of us is good enough for consistently doing that and not ending up in a spin so we try to do all our braking in a straight line. And what we are trying to do is use the brakes as little as possible anyhow as we both are overbraking too much since a miata is a momentum car and all that.

Oh and the pedal ratio. We cant drill a hole on the pedal but we can make a bracket to raise the pedal ratio a bit. We can go up on the pedal by about a half inch only since we can't cut the firewall and the outer bore of the master cylinder would interfere. This would give us about 4.8:1 pedal ratio.

Just so I know I'm doing the math right on the pedal ratio. The pivot point to the center of the pedal is 12". The pivot point to the master cylinder is 3". That's 4:1 correct? So reducing the length to the master by about 1/2" should work out to 12"/2.5"=4.8:1 correct?

So in your opinion it would be better to have the larger bore with better pedal ratio than the smaller bore?

Again, thanks for taking the time to answer.
hector is offline   Reply With Quote
Old 11-10-2014, 03:57 PM   #136
Supporting Vendor
Thread Starter
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,657
Total Cats: 64
Default

Quote:
Originally Posted by hector View Post
Yeah, I'm sure you were thinking WTF? when you were reading the ignorant **** we did. I'm surprised it turned out a working brake system. Although you have to really use some pedal pressure, it really was an improvement in feel.

It ended up the way it is as we were making changes to the car for getting rid of weight and we ended up using some flawed reasoning. Basically it was "make one change at a time" so as to know how one thing affected the brake system. The prop valve is just stupid, we should of gotten rid of it long ago, but we started making changes before turning our attention to it and then flawed reasoning kicked in. It is on the way out though, or so my co-driver said.

As far as trail braking, well neither of us is good enough for consistently doing that and not ending up in a spin so we try to do all our braking in a straight line. And what we are trying to do is use the brakes as little as possible anyhow as we both are overbraking too much since a miata is a momentum car and all that.

Oh and the pedal ratio. We cant drill a hole on the pedal but we can make a bracket to raise the pedal ratio a bit. We can go up on the pedal by about a half inch only since we can't cut the firewall and the outer bore of the master cylinder would interfere. This would give us about 4.8:1 pedal ratio.

Just so I know I'm doing the math right on the pedal ratio. The pivot point to the center of the pedal is 12". The pivot point to the master cylinder is 3". That's 4:1 correct? So reducing the length to the master by about 1/2" should work out to 12"/2.5"=4.8:1 correct?

So in your opinion it would be better to have the larger bore with better pedal ratio than the smaller bore?

Again, thanks for taking the time to answer.
It would be better to have a pedal that doesn't travel past the 90* plane. i'm wondering with a smaller MC that your increased pedal travel will be too far forward.


Quote:
Pedal Ratio is one of the most overlooked parts of a brake system. One of the main reasons and causes of a hard brake pedal is simply due to incorrect pedal ratio. When a brake pedal gets modified to “fit” in a vehicle or a booster/master cylinder gets installed where it “fits” in the car, the pedal ratio is rarely taken into consideration. Proper pedal ratio is a must when installing and operating a brake system. Below is a diagram to show how to properly figure pedal ratio:

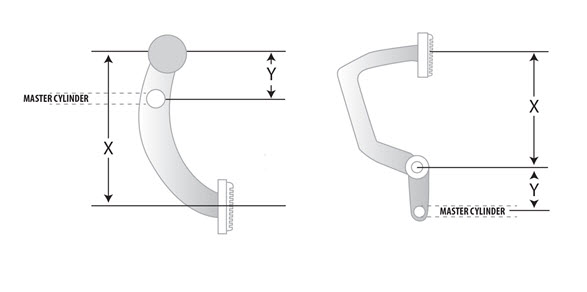

pedal ratio diagram



Pedal Ratio = X divided by Y

In a manual brake system, the pedal ratio will be between 5:1 and 6:1 and a power system will be between 4:1 and 5:1. In the above illustration of the hanging pedal on the left, let’s assume the overall length of “X” is 12” and the “Y” measures 3”. That puts the pedal ratio at 4:1 which is perfect for a power system. To make this function as a manual system, the “Y” measurement would need to change to 2” giving a 6:1 ratio.
Attached Thumbnails
Anyone have any brake questions?-pedal-ratio-diagram.jpg
OGRacing is offline   Reply With Quote
Old 11-10-2014, 03:58 PM   #137
Newb

Join Date: Nov 2014
Posts: 6
Total Cats: -10
Default

Are big brake kits worth it?
Mishift is offline   Reply With Quote
Old 11-10-2014, 04:04 PM   #138
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 14,406
Total Cats: 1,259
Default

Quote:
Originally Posted by Mishift View Post
Are big brake kits worth it?
Everybody hold on. Somebody's about to die in a fire.
sixshooter is offline   Reply With Quote
Old 11-10-2014, 04:12 PM   #139
Supporting Vendor
Thread Starter
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,657
Total Cats: 64
Default

Quote:
Originally Posted by sixshooter View Post
Everybody hold on. Somebody's about to die in a fire.
Get yo` Fire suits here! Get cha` Fire suits!! Suits | Driver

Attached Thumbnails
Anyone have any brake questions?-fire.jpg
OGRacing is offline   Reply With Quote
Old 11-10-2014, 04:14 PM   #140
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 14,406
Total Cats: 1,259
Default

Quote:
Originally Posted by OGRacing View Post
Get yo` Fire suits here! Get cha` Fire suits!! Suits | Driver

Nice product placement and good segway! +1
sixshooter is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Project Gemini - Turbo Civic on the Cheap Full_Tilt_Boogie Build Threads 55 05-06-2017 08:18 PM
15x10 - 15x11 6UL @ 949 Racing emilio700 Wheels and Tires 148 04-25-2017 09:41 AM
1994 Spec Miata Race Car SM/SM2/SSM For Sale Quinn Cars for sale/trade 6 10-23-2016 07:58 AM
Raleigh: Fiberglass headlight scope, 1.6L ECU, AFM, Hardtop latches, more bigmackloud Miata parts for sale/trade 9 11-07-2015 11:58 PM
Leaky Wilwoods mx592 Suspension, Brakes, Drivetrain 1 10-01-2015 12:45 AM


Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 04:45 PM.
