Default Sound Deadening

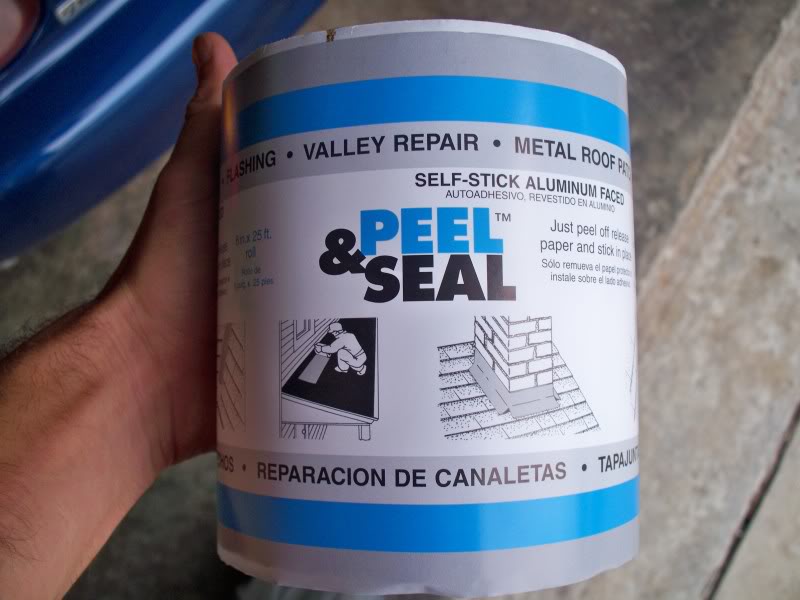

I think I'm getting old because I've found myself getting very tired of a loud car all the time. I found several reviews of people using Peel & Seal, a roof patching material, as an alternative to dynamat. It's apparently very similar, available at Lowes and significantly cheaper.

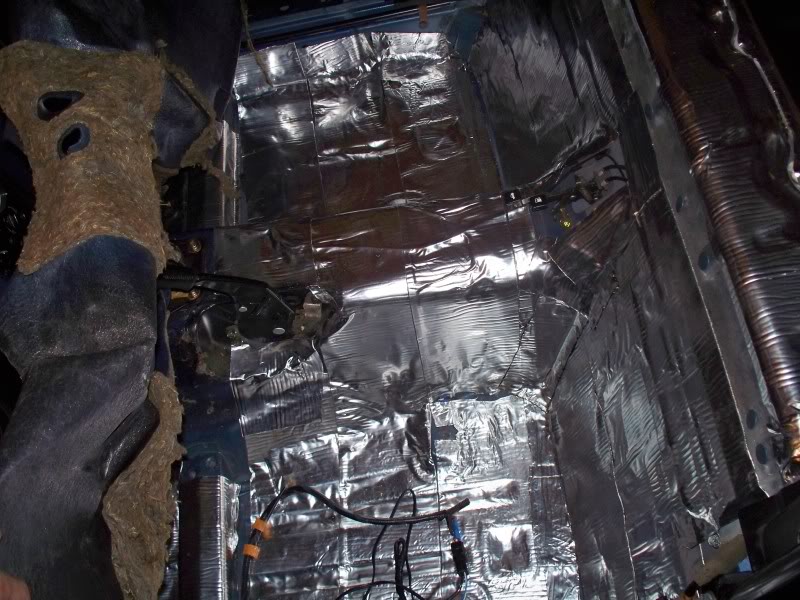

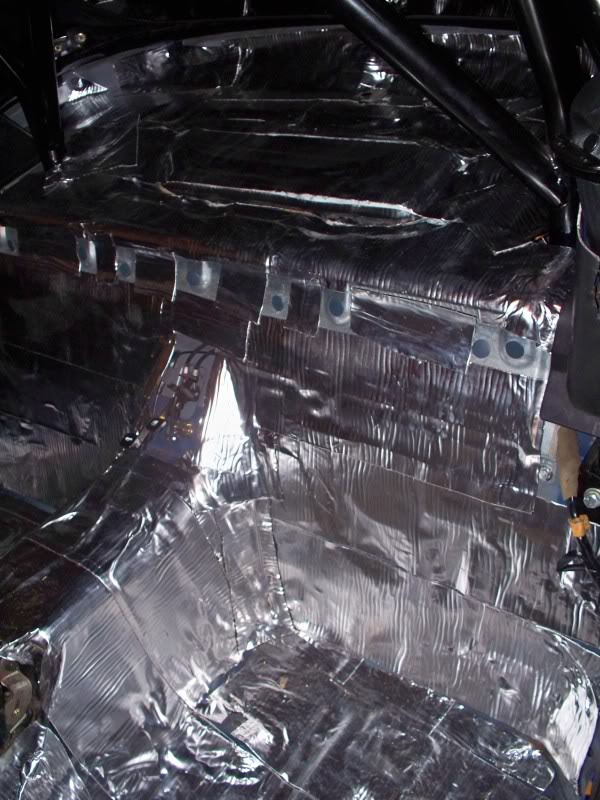

I figured I'd share incase others were interested in dampening some of the road/exhaust noise. I did under the carpet and the trunk with 4 6"x25' rolls ($75). It really seemed to quiet the car a good bit. I'm thinking about buying another roll or 2 to do the doors. I'll spare you the whole M.net style DIY, but I took a couple pics so you can at least see what the stuff looks like.

Name:  100_1989.jpg
Views: 131
Size:  57.0 KB

Name:  100_1991.jpg
Views: 132
Size:  108.2 KB

Name:  100_1994.jpg
Views: 99
Size:  98.3 KB
pdexta is offline   Reply With Quote
Old 07-01-2011, 05:21 PM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I want to do this to my daily. I did it to my Jetta when I was a car audio ****** and it was super quiet.
hustler is offline   Reply With Quote
Old 07-01-2011, 05:38 PM   #3
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

I did that with McMaster.com dynamat-alike ("mastic mat"), and also added a layer of bubble wrap. The effect was very significant.
JasonC SBB is offline   Reply With Quote
Old 07-01-2011, 05:48 PM   #4
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I also learned that you don't have to cover it from head to toe, just put a square or chunk on each piece of metal and you will get a significant reduction in noise. You don't have to cover it compelete to damp it.
hustler is offline   Reply With Quote
Old 07-01-2011, 06:36 PM   #5
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

In proper m.net form where every lb counts, how much does four 25' rolls weigh?

Not that it matters when I will have 300WHP to drag me along but inquiring minds...especially considering that the V8 is a bit louder than the old turbo 4.
Stein is offline   Reply With Quote
Old 07-01-2011, 07:10 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,818
Total Cats: 1,780
Default

Quote:
Originally Posted by hustler View Post
I also learned that you don't have to cover it from head to toe, just put a square or chunk on each piece of metal and you will get a significant reduction in noise. You don't have to cover it compelete to damp it.




it also works well that way if you are lazy.
Braineack is offline   Reply With Quote
Old 07-01-2011, 07:16 PM   #7
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Check out the product QuietCar. You paint it on which for some is easier than the dynamat-alike stuff.

I painted teh wheel wells of my beater Acuronda and the effect was noticeable.
JasonC SBB is offline   Reply With Quote
Old 07-01-2011, 07:18 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,818
Total Cats: 1,780
Default

I use truck bed liner in my altima, it never cured :( the above is Fat Mat, cheap on eBay.
Braineack is offline   Reply With Quote
Old 07-02-2011, 03:28 AM   #9
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

The RX7 guys have done a fair bit of the quiet car stuff. It's pretty light. One guy did the whole underbody of his car and some parts inside and recorded a 20db reduction in noise.
falcon is offline   Reply With Quote
Old 07-02-2011, 10:18 AM   #10
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

Quote:
Originally Posted by Stein View Post
In proper m.net form where every lb counts, how much does four 25' rolls weigh?

Not that it matters when I will have 300WHP to drag me along but inquiring minds...especially considering that the V8 is a bit louder than the old turbo 4.
I should have weighed it, but didn't think about it at the time. I'd be willing to bet that the 4 rolls I used weighted less than 20lbs combined.
pdexta is offline   Reply With Quote
Old 07-05-2011, 07:55 AM   #11
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

I did my whole FXT with Raammat which has done well in tests and is one of the most name brand affordable materials. On top of that I used closed cell foam for more deadening.

While you can apply small parts to kill resonance, putting on a complete layer like pdexta does a much better job at killing road noise and exhaust drone which isn't resonance as much as it is simple db.
fmowry is offline   Reply With Quote
Old 04-29-2012, 05:04 PM   #12
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

Was about to start a new thread, but found this one just like it, so here goes.

Just ordered 100 sq/ft of this stuff:



That much for 115 shipped seems like a fantastic deal to me.
Anyway, I plan to completely cover the inside of my heavy pig with this stuff. Like this:


Will post results.
Attached Thumbnails
Sound Deadening-%24-kgrhqf-l8e7dq-lb2ibo33qwovgq%7E%7E60_35.jpg   Sound Deadening-dynamat04.jpg
18psi is offline   Reply With Quote
Old 04-29-2012, 07:53 PM   #13
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

in4quietness
viperormiata is offline   Reply With Quote
Old 04-29-2012, 10:02 PM   #14
Senior Member
iTrader: (9)

Join Date: Sep 2009
Location: Yamato Japan
Posts: 692
Total Cats: 26
Default

Look up sounddeadenershowdown, I think that guy has the best, most objective information on this subject and I trust his system the most of everything I looked at.

As mentioned in this thread already, the dynamat stuff is just to cut down on resonating panels, and you only need about 25% coverage to achieve that, the rest is just dead weight.

The real luxery car style quiet comes from a sound barrier, like MLV, which is what they use to make sound booths in studios and the like sealed off, which you can buy off ebay from studio supply guys for much cheaper than any other source. Stuff is HEAVY however.

I'm using that very system on my VW project many of you have heard about, the MLV is suspended above a thermal barrier. I want that car cool and quiet.
tasty danish is offline   Reply With Quote
Old 05-01-2012, 01:27 PM   #15
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,993
Total Cats: 13
Default

Subscribed for relavent interest.
skidude is offline   Reply With Quote
