Old 03-23-2012, 01:24 AM   #401
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 266
Default

Me, I'm waiting for the Reverant MS3. Then I shall taunt you with my superior ECU goodness.
Mobius is offline   Reply With Quote
Old 03-23-2012, 01:45 AM   #402
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

Quote:
Originally Posted by MoonieGT View Post
I'll find out on Saturday... and let you know. I *think* that it will be possible to mount it in the vicinity of the OEM ECU, but have yet to try it. It will require some sort of custom mounting system for sure. I need to confirm that there is enough room as the MS box is maybe twice as thick as the oem unit?

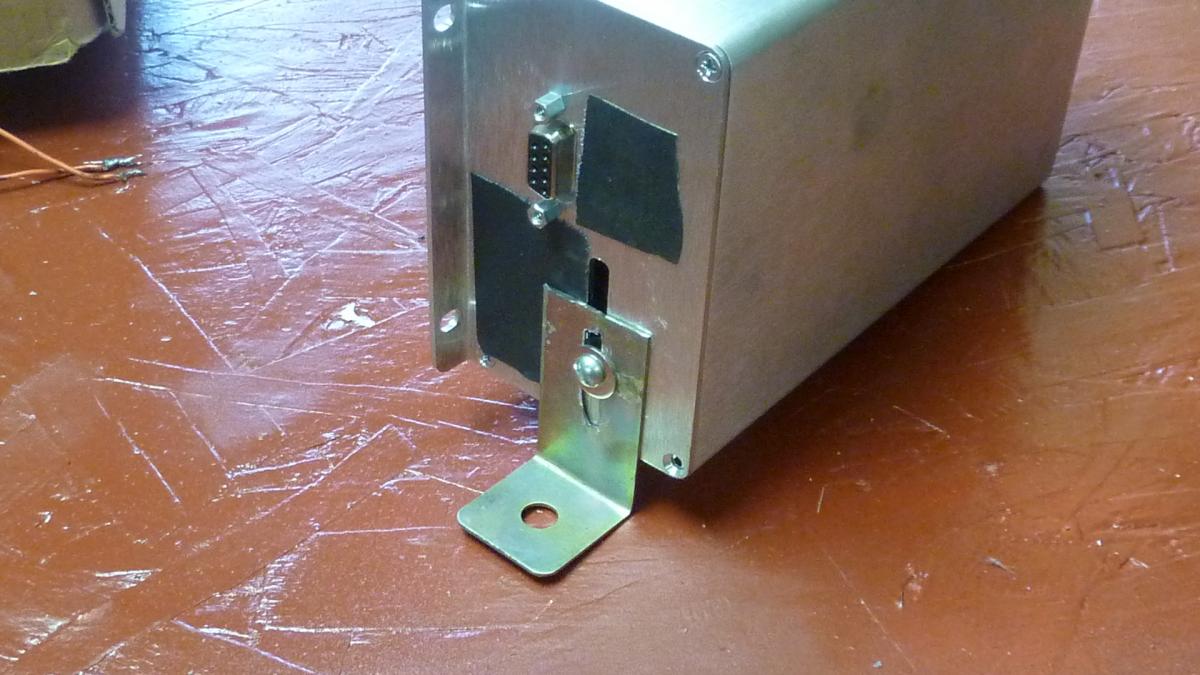

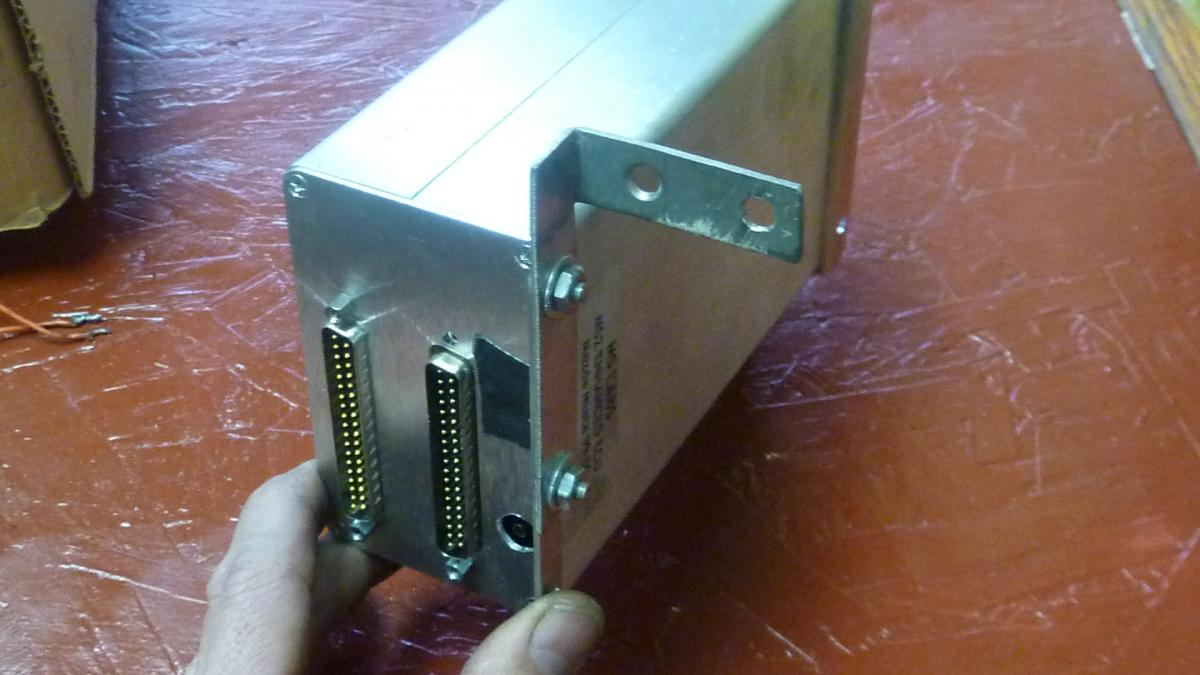

It fits, you will need to fab some brackets. The left pic is how it's facing ready to be plugged in.There is a 10mm stud way up in there at the top. The bracket on the right pic goes onto the 10mm stud coming out from the firewall. Don't plug anything in until all the fabbing/testfitting is done.
Cheers-JB
Attached Thumbnails
Enhanced Megasquirt Group Buy for all Miatas (90-05)-p1020157.jpg   Enhanced Megasquirt Group Buy for all Miatas (90-05)-p1020158.jpg
2manyhobyz is offline   Reply With Quote
Old 03-23-2012, 09:26 PM   #403
Newb

Join Date: Jun 2011
Posts: 32
Total Cats: 1
Default

Just got mine today, Greece to Chicago in 3 days. Less than a day spent in customs, no clue how I got that lucky. o_0
msm782 is offline   Reply With Quote
Old 03-23-2012, 09:38 PM   #404
Junior Member

Join Date: May 2010
Posts: 93
Total Cats: -1
Default

Mine was in customs for two weeks.
MoonieGT is offline   Reply With Quote
Old 03-24-2012, 01:07 PM   #405
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

I hope I get so lucky. Did he give you guys a tracking number? Im just blindly waiting, for a bigger suprise.
Miater is offline   Reply With Quote
Old 03-24-2012, 01:13 PM   #406
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by Miater View Post
I hope I get so lucky. Did he give you guys a tracking number? Im just blindly waiting, for a bigger suprise.
Tracking # PMed.
Reverant is online now   Reply With Quote
Old 03-26-2012, 11:32 AM   #407
Junior Member

Join Date: May 2010
Posts: 93
Total Cats: -1
Default

I tried installing this weekend: car would not start. The ECU was communicating with the laptop, but it just cranked with no hint of trying to fire up. Trouble shooting to follow. Jumping the fuel pump is the next step, but it will probably be a while before I have time to attack this project again.

Regarding mounting in a '99: you MIGHT MAYBE be able to mount in the stock location, but it will TIGHT. The problem is that the harness uses those two big connectors that are themselves very tall, add to that the stiff cable that sticks out from those and it's just so cramped with the pedals and other wires that are already populating the area. I think I'm going to have cut Rev's harness and extend it as well ala JeffMan. I just don't see how it's possible to install without doing that.
MoonieGT is offline   Reply With Quote
Old 03-26-2012, 11:45 AM   #408
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

These connectors have provisions for side exiting of the wires, if that helps.

I've very interested in any solution that doesn't require hacking up the PnP adapter harness. The one I build is ~20" long, which is long enough to wrap around the MS.
Reverant is online now   Reply With Quote
Old 03-26-2012, 12:03 PM   #409
Junior Member

Join Date: May 2010
Posts: 93
Total Cats: -1
Default

I'll have to play with harness and see what I can do. It's just so tight in there because of the pedals. The OEM unit is inbetween the brake and clutch pedals. Your ECU is 2 - 2.5 times thicker than the OEM, space is limited out of the box. Maybe I can work on the side exit and see if the wires can come over the top of the unit. If I can do that it might work. As for the box, I think you can probably zip tie it to the stock brackets.
MoonieGT is offline   Reply With Quote
Old 03-26-2012, 02:20 PM   #410
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by MoonieGT View Post
I'll have to play with harness and see what I can do. It's just so tight in there because of the pedals. The OEM unit is inbetween the brake and clutch pedals. Your ECU is 2 - 2.5 times thicker than the OEM, space is limited out of the box. Maybe I can work on the side exit and see if the wires can come over the top of the unit. If I can do that it might work. As for the box, I think you can probably zip tie it to the stock brackets.
Were you making fuel pressure or not?
hustler is offline   Reply With Quote
Old 03-26-2012, 02:31 PM   #411
Junior Member

Join Date: May 2010
Posts: 93
Total Cats: -1
Default

As far as we could tell the fuel lines had pressure in them. But I'm not sure if we had spark or not. I pulled a plug and tried to see if it sparked during cranking, but didn't see one...
MoonieGT is offline   Reply With Quote
Old 03-26-2012, 03:45 PM   #412
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by MoonieGT View Post
As far as we could tell the fuel lines had pressure in them. But I'm not sure if we had spark or not. I pulled a plug and tried to see if it sparked during cranking, but didn't see one...
Did it reek of fuel? I'm in town this weekend and free if you want help.
hustler is offline   Reply With Quote
Old 03-27-2012, 01:06 AM   #413
Senior Member
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

How big is the MS2? There's a fair amount of room left of the clutch, maybe it will fit there.
midpack is offline   Reply With Quote
Old 03-27-2012, 03:43 AM   #414
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by midpack View Post
How big is the MS2? There's a fair amount of room left of the clutch, maybe it will fit there.
158x105x63mm for the enclosure. Add about 80mm more to the length for the protruding connectors and wiring loop-around.
Reverant is online now   Reply With Quote
Old 03-27-2012, 09:04 AM   #415
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Mobius View Post
Me, I'm waiting for the Reverant MS3. Then I shall taunt you with my superior ECU goodness.
I hope you're looking forward to your ban, ----------.
hustler is offline   Reply With Quote
Old 03-27-2012, 10:40 PM   #416
Senior Member
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

It's tight, but my MFSII(tm) fit in two different spots.

Right of the steering column, harness points towards heater vent


Left of the clutch pedal, harness towards firewall


Once zip tied in place it would not rub against the pedal as shown in the picture.

Overall length was ~260mm



If you relocate the relays there would be tons of room
midpack is offline   Reply With Quote
Old 03-28-2012, 05:05 PM   #417
Newb

Join Date: Mar 2011
Posts: 12
Total Cats: 0
Default

Is group buy still open? Interested in a MS for 99-00. What is the price shipped to US-MA? Would like to mount in the glove box and do an easy connector swap for OBD2 testing once a year.
nismo240 is offline   Reply With Quote
Old 03-28-2012, 05:20 PM   #418
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

[QUOTE=nismo240;855164]Is group buy still open? Interested in a MS for 99-00. What is the price shipped to US-MA? Would like to mount in the glove box and do an easy connector swap for OBD2 testing once a year.[/QUOTE

The group buy is over. Spend some time reading over the first few pages of this thread, then go to the MS section of the forum and do MORE reading.
Miater is offline   Reply With Quote
Old 03-28-2012, 05:40 PM   #419
Senior Member
iTrader: (2)

Join Date: Mar 2006
Location: MA
Posts: 885
Total Cats: 2
Default

Quote:
Originally Posted by nismo240 View Post
Is group buy still open? Interested in a MS for 99-00. What is the price shipped to US-MA? Would like to mount in the glove box and do an easy connector swap for OBD2 testing once a year.
Go to the Meet-n-Greet forum and introduce yourself so we can ask questions and probe you.


yes, probe.
devin mac is offline   Reply With Quote
Old 03-28-2012, 10:10 PM   #420
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

How the hell do I track this god damned thing? USPS shows nothing. I can sit tight and all, I was just bored and lonely, in the cold.
hustler is offline   Reply With Quote
