Old 05-14-2012, 12:36 AM   #461
Junior Member

Join Date: May 2012
Location: Boston
Posts: 293
Total Cats: -7
Default

If it's for '99-2000 shoot me a note with your email address, please.
nile13 is offline   Reply With Quote
Old 06-12-2012, 02:05 PM   #462
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 411
Total Cats: 1
Default

Quote:
Originally Posted by shuiend View Post
Below are pictures and a brief write up that Jesse99James did.

I bought a DB9, 90 degree adapter. ...

I've been trying to find one of these online; the ones I have found either don't have the screws in the right location or one of the ports is turned 180 degrees the wrong way. Does anyone have a direct link to the part that fits?

EDIT: Link: http://www.blackbox.com/Store/Detail...e-Exit-2/FA881

Also this one if you want it turned 180* from the one above:
Amazon Amazon

Last edited by RavynX; 06-13-2012 at 03:45 PM.
RavynX is offline   Reply With Quote
Old 06-13-2012, 09:32 PM   #463
Newb

Join Date: Jun 2011
Posts: 32
Total Cats: 1
Default

Quote:
Originally Posted by RavynX View Post
Also this one if you want it turned 180* from the one above: http://www.amazon.com/StarTech-com-R...9610112&sr=8-1
I bought the one you have linked from amazon, it fit perfectly, no trimming or longer screws required. I mounted my MS2 in the factory location with the serial port toward the firewall and the vac. hose and harness toward the seat. Mine points the serial port toward the passenger side of the car, the serial cable then goes behind the dash to the passenger side.
msm782 is offline   Reply With Quote
Old 06-13-2012, 11:51 PM   #464
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 411
Total Cats: 1
Default

Quote:
Originally Posted by msm782 View Post
I bought the one you have linked from amazon, it fit perfectly, no trimming or longer screws required. I mounted my MS2 in the factory location with the serial port toward the firewall and the vac. hose and harness toward the seat. Mine points the serial port toward the passenger side of the car, the serial cable then goes behind the dash to the passenger side.
Aww man, that's not what I wanted to hear. Are you sure? According to how it's mounted and what the pictures show the one from BlackBox is the one to get. The smaller edge of the serial point should be pointing towards the passenger side of the car. The one on Amazon has the longer edge of the serial piece on the inside of the 90* bend which would mean it would point towards the driver's side. I already ordered the one from BlackBox earlier today; we'll see how it goes I suppose. :P
RavynX is offline   Reply With Quote
Old 06-14-2012, 10:18 AM   #465
Newb

Join Date: Jun 2011
Posts: 32
Total Cats: 1
Default

I just did it 2 weeks ago. I reused the upper stock ECU mounting bracket and used it in the lower mounting position of the stock ECU. The MS2 sits between the brake and clutch with loads of room. It wasn't hard at all. I ordered the adapter from amazon and it currently points toward the passenger side. Everything clears fine.
msm782 is offline   Reply With Quote
Old 06-14-2012, 08:03 PM   #466
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I mounted my DIYPNP exactly the same way msm782 did, but I used a Radio Shack Gigaware Serial to USB adapter with no 90 adapter. It fit, but it was tight.
EO2K is offline   Reply With Quote
Old 06-19-2012, 11:49 AM   #467
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 411
Total Cats: 1
Default

So I ordered the FA881 DB9 Right-angle connector from that blackbox.com website and got it yesterday. I totally forgot about the lip/edge on the side of the MegaSquirt that has the DB9 connection. msm782, I can see why you got the connector that points in the opposite direction to avoid that but I still don't see how yours points to the passenger side still, did you flip the MegaSquirt upside down?

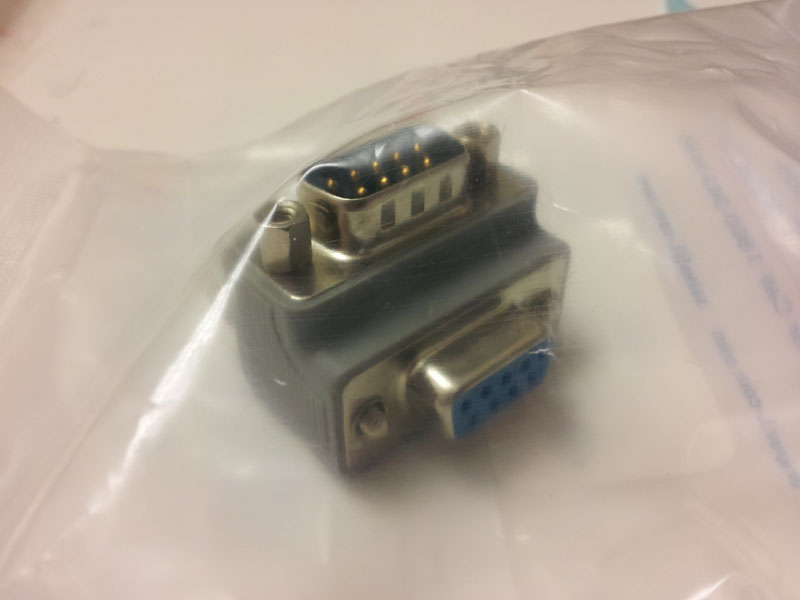

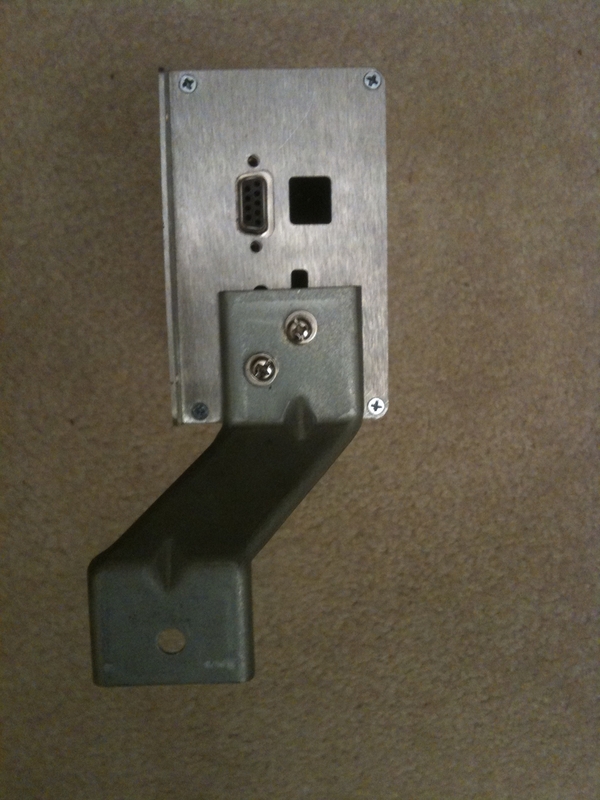

I took a photo of the connector I bought (which was suggested back on page 22 I believe) and added it here for others to view. Did anyone else get a similar connector and was able to clear the lip on the MS cover? Other photo added for reference from page 22.

I am guessing that I can swap the screws from one end to the other?

Attached Thumbnails
Enhanced Megasquirt Group Buy for all Miatas (90-05)-fa881.jpg   Enhanced Megasquirt Group Buy for all Miatas (90-05)-bracket1.jpg
RavynX is offline   Reply With Quote
Old 06-20-2012, 02:54 PM   #468
Newb

Join Date: Jun 2011
Posts: 32
Total Cats: 1
Default

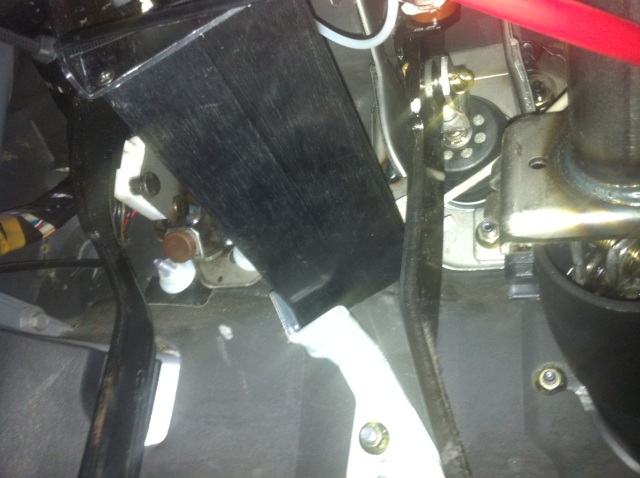

I see what you did with the bracket now. I didn't use the lower bracket at all. I used the upper bracket and used a bolt&nut to go through one of the supplied holes on the flange at the edge of the case (the flange on the front and back that provides a hole on each corner of the MS2 case). That was then bolted to the stock lower bracket mounting location on the firewall between the clutch and brake. This seemed to work the best for me. Sorry for the poor quality pic, its hard to get a good shot up there:

Attached Thumbnails
Enhanced Megasquirt Group Buy for all Miatas (90-05)-20fb329.jpg

Last edited by msm782; 06-20-2012 at 03:10 PM.
msm782 is offline   Reply With Quote
Old 06-20-2012, 04:24 PM   #469
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Can someone provide me with good quality pics of how the stock ECU is bolted up there? Maybe I can figure out something.
Reverant is offline   Reply With Quote
Old 06-20-2012, 04:33 PM   #470
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Hell, mine fits in there better than that... but I think I'm zip-tied at the top. I'll snap some pics tonight.
EO2K is offline   Reply With Quote
Old 06-20-2012, 04:43 PM   #471
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 411
Total Cats: 1
Default

Quote:
Originally Posted by Reverant View Post
Can someone provide me with good quality pics of how the stock ECU is bolted up there? Maybe I can figure out something.
I can snap some pictures later if I remember. Luckily they left the stock ECU in my car whenever the previous owner had the Hydra installed. My MS finally left customs yesterday and departed from Albany, NY this morning so hopefully I'll get it before the weekend.
RavynX is offline   Reply With Quote
Old 06-29-2012, 01:24 AM   #472
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 411
Total Cats: 1
Default

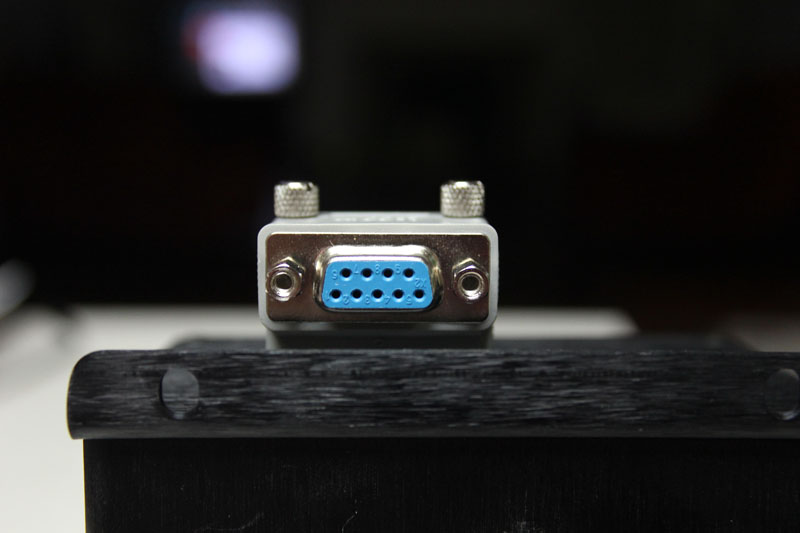

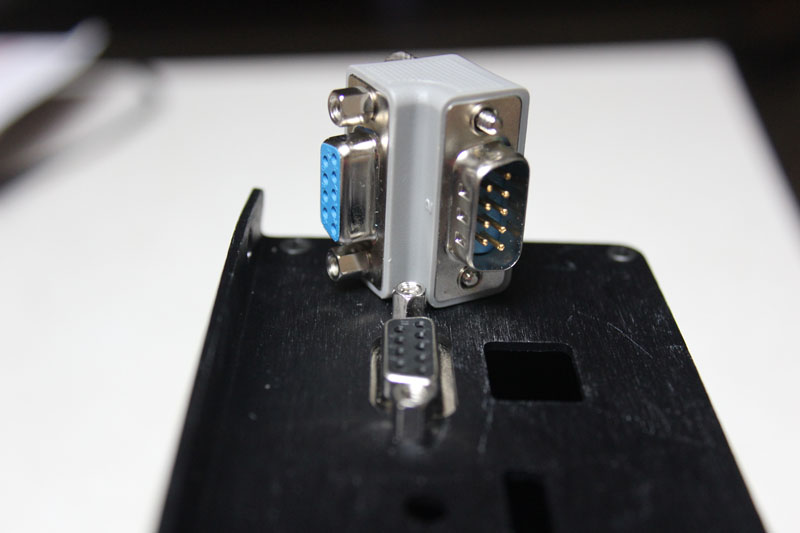

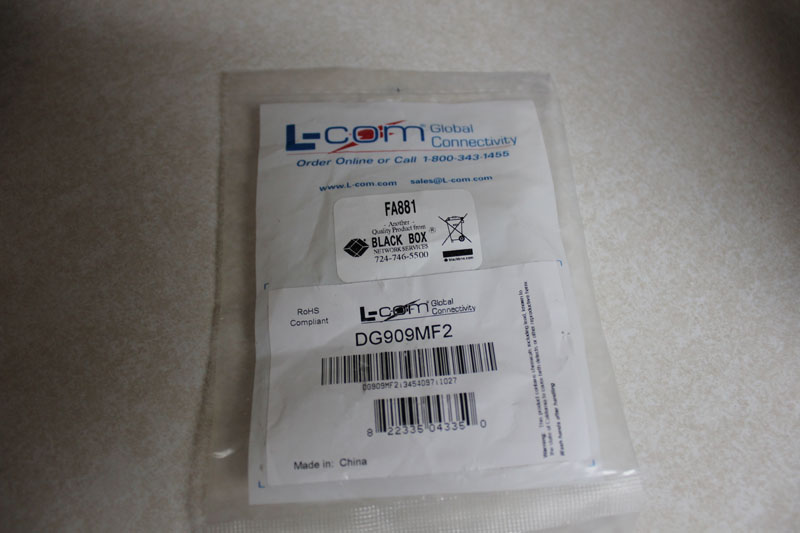

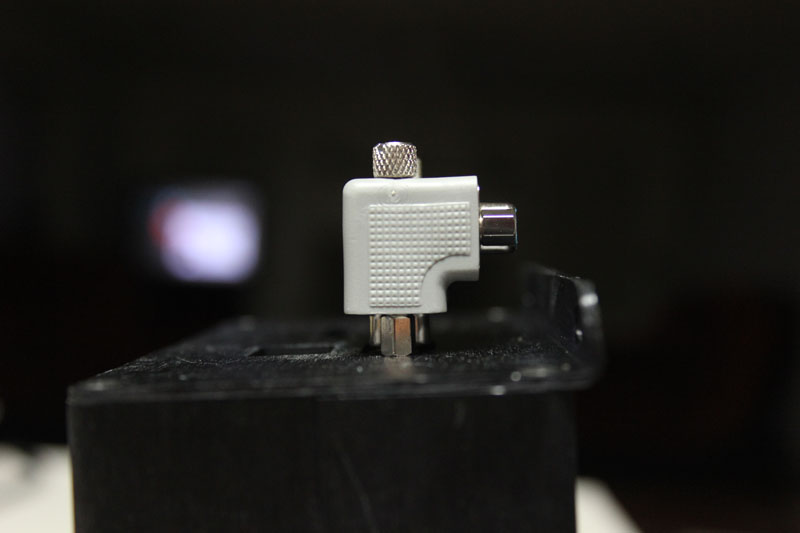

I got my MS this week. Here are some photos with the 90* connector on it...



It clears the side rail here...




Attached Thumbnails
Enhanced Megasquirt Group Buy for all Miatas (90-05)-connectors.jpg   Enhanced Megasquirt Group Buy for all Miatas (90-05)-front_profile.jpg   Enhanced Megasquirt Group Buy for all Miatas (90-05)-side_profile.jpg   Enhanced Megasquirt Group Buy for all Miatas (90-05)-package.jpg
RavynX is offline   Reply With Quote
Old 06-29-2012, 03:06 AM   #473
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Great! Take pics of the stock ECU mounted if you can!
Reverant is offline   Reply With Quote
Old 07-02-2012, 01:59 AM   #474
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 411
Total Cats: 1
Default

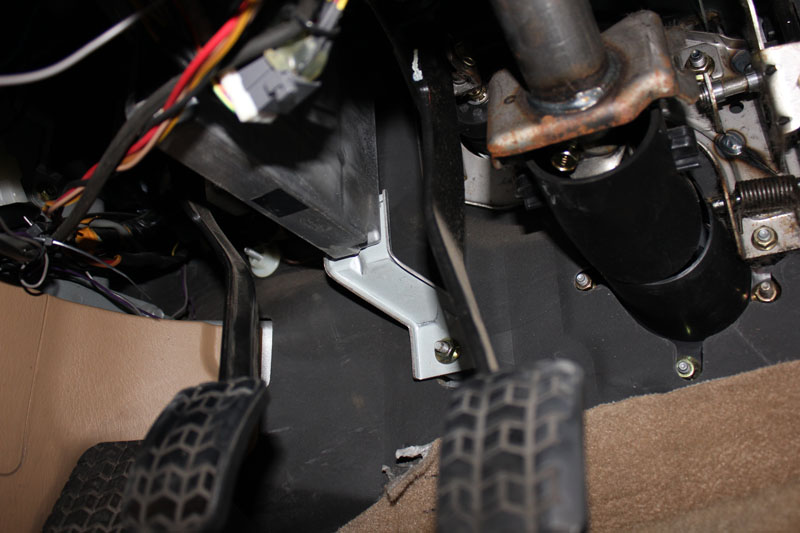

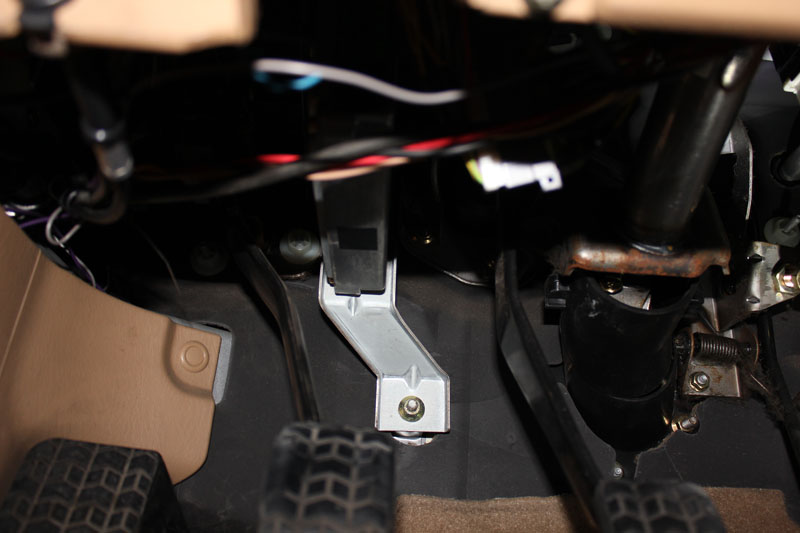

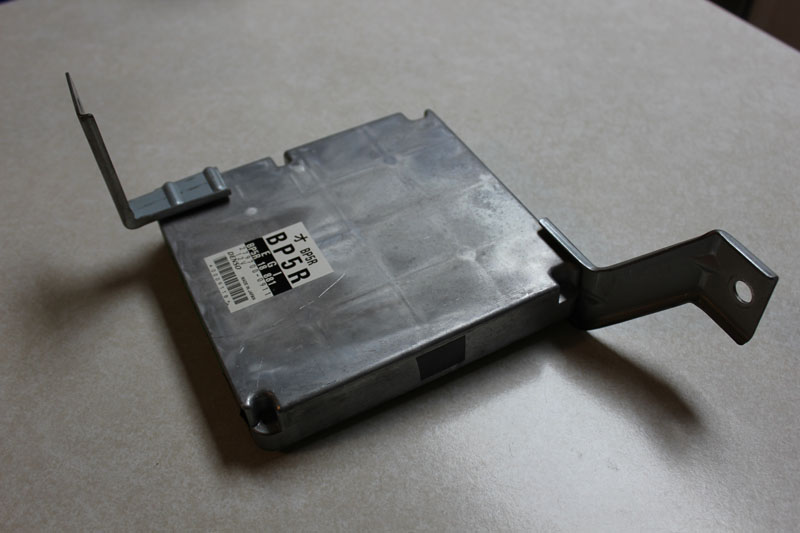

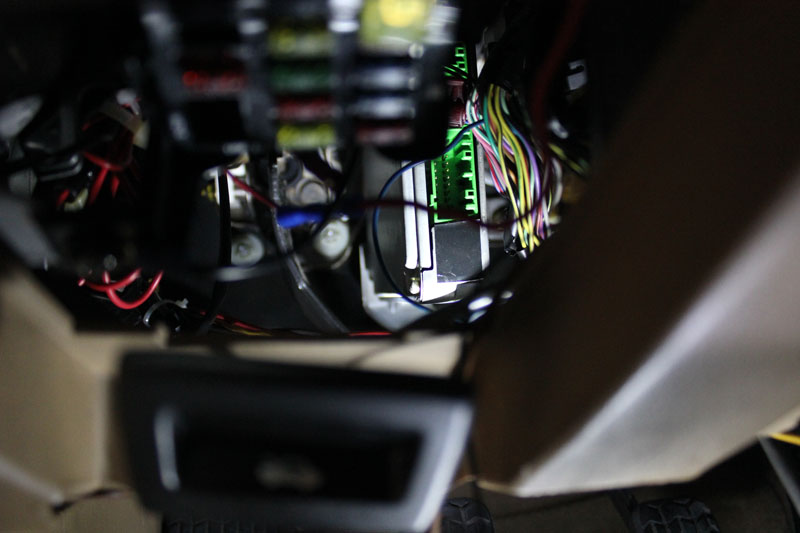

I took these today while taking apart the Miata to prepare for the MS install (2000 Miata)...

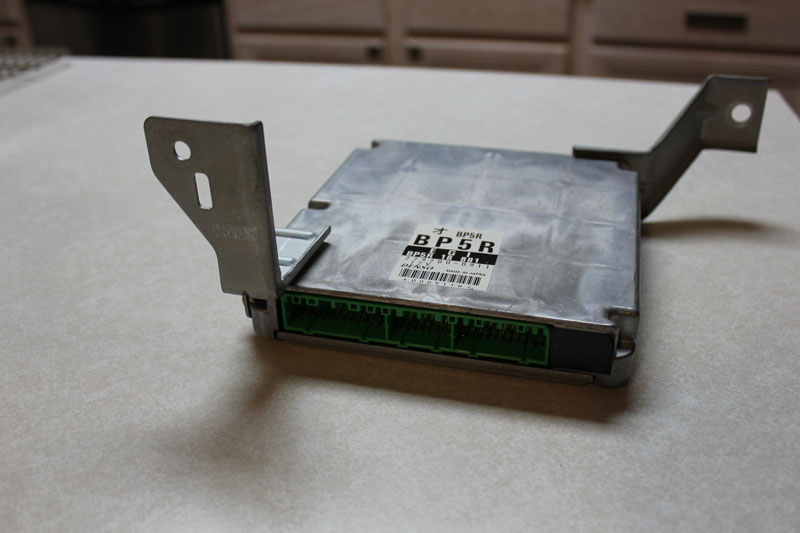

Name:  IMG_0877.jpg
Views: 5
Size:  57.6 KB

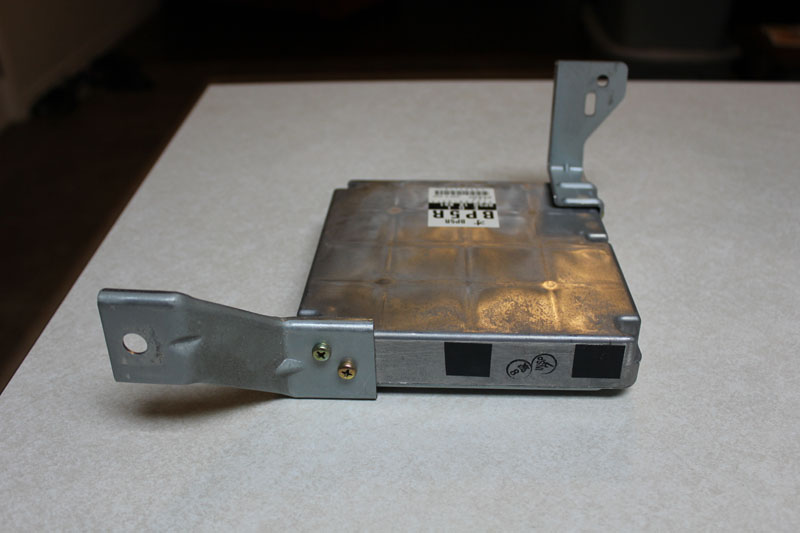

Name:  IMG_0878.jpg
Views: 5
Size:  55.2 KB
Attached Thumbnails
Enhanced Megasquirt Group Buy for all Miatas (90-05)-img_0844.jpg   Enhanced Megasquirt Group Buy for all Miatas (90-05)-img_0846.jpg   Enhanced Megasquirt Group Buy for all Miatas (90-05)-img_0860.jpg   Enhanced Megasquirt Group Buy for all Miatas (90-05)-img_0876.jpg   Enhanced Megasquirt Group Buy for all Miatas (90-05)-img_0877.jpg

Enhanced Megasquirt Group Buy for all Miatas (90-05)-img_0878.jpg
RavynX is offline   Reply With Quote
Old 07-02-2012, 03:34 AM   #475
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Great, the last few pics made it really clear, thanks! Does anyone have a set of these mounts that they no longer need?
Reverant is offline   Reply With Quote
Old 07-02-2012, 10:48 AM   #476
Newb

Join Date: Apr 2010
Posts: 22
Total Cats: -3
Default

I might have it
kingkong15 is offline   Reply With Quote
Old 07-02-2012, 10:59 AM   #477
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Let me know if you do.
Reverant is offline   Reply With Quote
Old 07-06-2012, 11:08 PM   #478
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 411
Total Cats: 1
Default

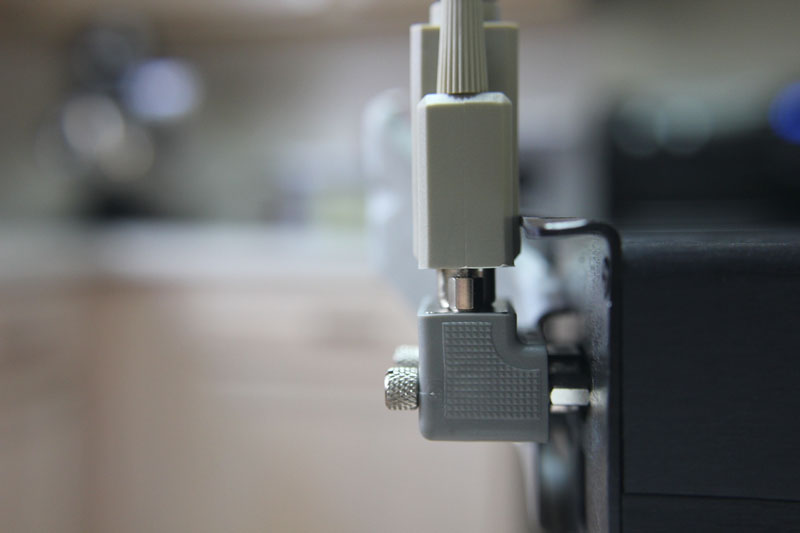

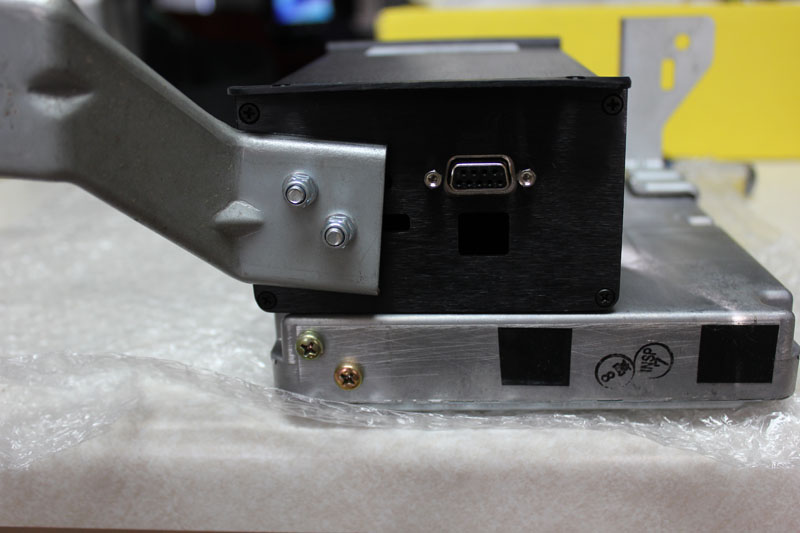

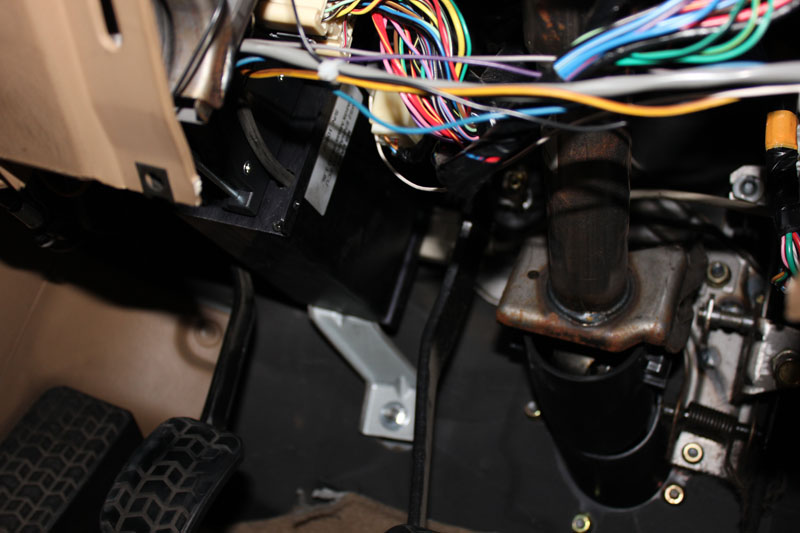

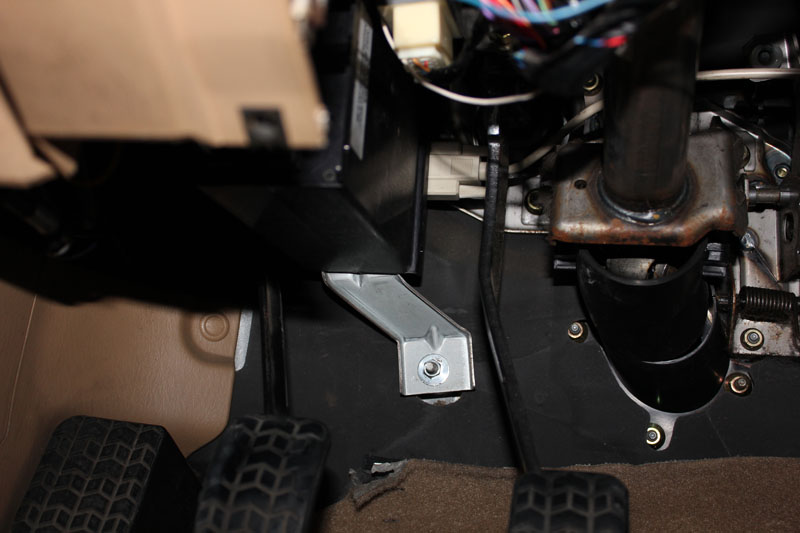

Here is the MegaSquirt bolted to the OEM bracket and mounted in my 2000 Miata. Fits like a glove.





Just barely!


Attached Thumbnails
Enhanced Megasquirt Group Buy for all Miatas (90-05)-img_0978.jpg   Enhanced Megasquirt Group Buy for all Miatas (90-05)-img_0980.jpg   Enhanced Megasquirt Group Buy for all Miatas (90-05)-img_0887.jpg   Enhanced Megasquirt Group Buy for all Miatas (90-05)-img_0882.jpg
RavynX is offline   Reply With Quote
Old 07-07-2012, 01:16 AM   #479
Newb

Join Date: Apr 2010
Posts: 22
Total Cats: -3
Default

yeah I have it ...
do you want it?
kingkong15 is offline   Reply With Quote
Old 07-07-2012, 04:17 AM   #480
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Quote:
Originally Posted by kingkong15 View Post
yeah I have it ...
do you want it?
Yes, I do.
Reverant is offline   Reply With Quote
