Old 01-19-2008, 10:20 PM   #101
Elite Member
Thread Starter
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default Bov Location***

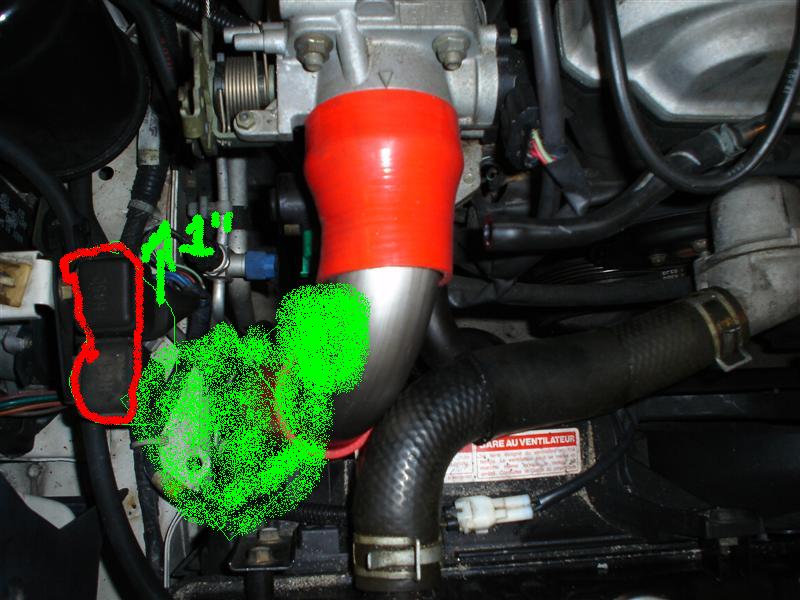

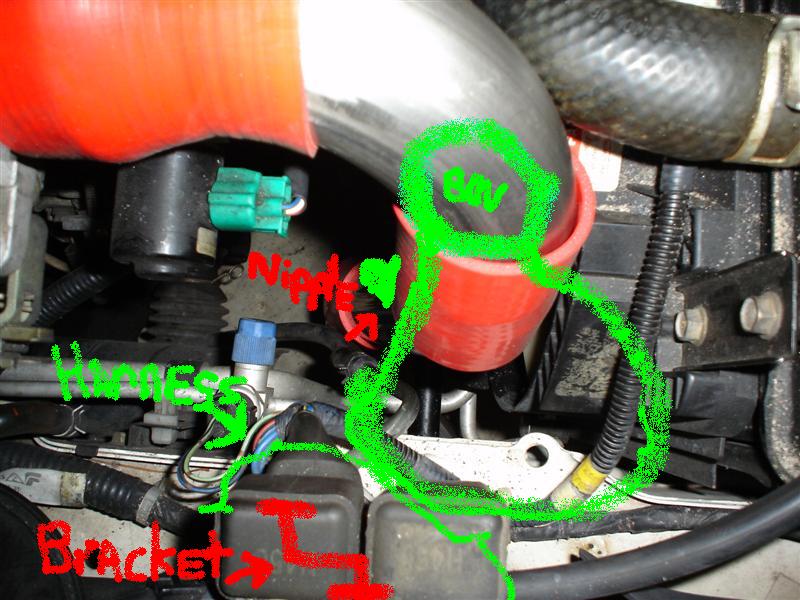

Hey guys here's a pic...

With some creativity & alot fo cursing i was able to get get it to fit (very snugly) right after the TB, as the pipe curves down...Assuming there's no issue with welding here should be good to go...

As noted in the pic, gonna have to relocate that harness some to make it work. I'm thinking we can use the same mounting location, just cut/bend a bracket to move them about 1-2" closer to the firewall...

Also, mocked up and marked for the nipple for that 1" hose that comes from right under the TB and has to go to the IC piping as well...

I'm also gonna have the guy weld in the bung for the IAT sensor, prob right under the nipple for the TB hose...Scott had advised me a while back that he put his right by the TB, but that he suggested moving it closer to the IC to help with heatsoak.

Comments--concerns?
Attached Thumbnails
Build party??? Calling all S. FLA Miata Guru's!!!!!!-bov-location.jpg   Build party??? Calling all S. FLA Miata Guru's!!!!!!-bov-location-2.jpg
TonyV is offline   Reply With Quote
Old 01-19-2008, 11:28 PM   #102
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Is there not enough space to put it on the other side under the rad hose?
Can I see a side angle shot (how it looks under the rad hose) What size pipe is that?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 01-19-2008, 11:36 PM   #103
Elite Member
Thread Starter
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

Not for the BOV, its a tial unit...pretty big piece
The nipple for the TB hose is on that side tho...
The fan assembly/pulleys/rad hose & neck make it too tight...I tried from every location..It was either this or pretty much just out fo the IC which may have caused an issue with the fascia, etc...Not to mention road debris

Why think it's an issue?
I checked Hood clearance & closes fine(its JUST lower than the top of the intake mani)
I also checked lights up/down, also clears...

Another thing just came to mind...I have the instructions for installing/tuning the MS, and it was built by Scott...but I noticed that it looks like no one on the crew is running one, u guys confident w/ this?
From the isntructions its not much...IAT sensor wiring, Boost solenoid wiring/vaccuum, Vaccuum hose for MAP, and cionnect harnesses...but then there's the actual software...
Speakign of which, I have a MAC & my bro has a HP (windows) that we can use....but not sure about the cable needed to connect to MS...?
TonyV is offline   Reply With Quote
Old 01-20-2008, 01:04 PM   #104
Elite Member
Thread Starter
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

??
TonyV is offline   Reply With Quote
Old 01-20-2008, 11:26 PM   #105
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by tvalenziano View Post
Not for the BOV, its a tial unit...pretty big piece
The nipple for the TB hose is on that side tho...
The fan assembly/pulleys/rad hose & neck make it too tight...I tried from every location..It was either this or pretty much just out fo the IC which may have caused an issue with the fascia, etc...Not to mention road debris

Why think it's an issue?
I checked Hood clearance & closes fine(its JUST lower than the top of the intake mani)
I also checked lights up/down, also clears...



Another thing just came to mind...I have the instructions for installing/tuning the MS, and it was built by Scott...but I noticed that it looks like no one on the crew is running one, u guys confident w/ this?
From the isntructions its not much...IAT sensor wiring, Boost solenoid wiring/vaccuum, Vaccuum hose for MAP, and cionnect harnesses...but then there's the actual software...
Speakign of which, I have a MAC & my bro has a HP (windows) that we can use....but not sure about the cable needed to connect to MS...?
Its just hard for me tell from pictures about the BOV. Your gonna have to make the call.

As for the install I dont think it should be a problem. Im sure we can refer to this forum if we need to and Eli has experience with installing engine management. The software I have no clue. You should ask Scott about the connection. I thought it had a vga connectio?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 01-20-2008, 11:35 PM   #106
Elite Member
Thread Starter
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

I hear ya, ill see if i can get a better pic, but theres really no room...But i dont think the location i have is bad...any thing to be concerned with it being there? Or just an observation?

As for MS good to hear eli has some exp, and ur right im sure between all of us it can be worked out..

Does a VGA connection resemble the connector of a computer monitor?
Ill ask around, maybe theres an adapter to make it usb or something, i dont see the same kind of port on either laptop so thats why i worry
TonyV is offline   Reply With Quote
Old 01-21-2008, 10:46 PM   #107
Elite Member
Thread Starter
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

Ok guys, got some more done...
Picked up the rear main seal, cas oring, and pilot bearing today..
The wirecare stuff came in, looks good
And confirmed that my clutch kit, ss clutch line, and flywheel will be here by Friday!
Gonna drop off the tubes at the welder tomm(was closed today), and then once its all here just gotta get the flywheel resurfaced..
And I think I found the proper cable or adapter to hook up to MS as well..
I checked again and I only have USB ports on my laptop so I was looking at either of these..
1- http://www.tigerdirect.com/applicati...&sku=C250-1162
2- http://www.tigerdirect.com/applicati...&sku=M501-1210

Listen, I only ask because of lack of knowledge, but I saw theres trans seals and whatnot that are only replaceable with the trans out...Are they like so durable that I dont need to worry even tho the trans is out and accesible?? Or its just somethign that u dont replace unless really necessary?
Just bringing it up in case...
TonyV is offline   Reply With Quote
Old 01-21-2008, 11:08 PM   #108
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by tvalenziano View Post
Listen, I only ask because of lack of knowledge, but I saw theres trans seals and whatnot that are only replaceable with the trans out...Are they like so durable that I dont need to worry even tho the trans is out and accesible?? Or its just somethign that u dont replace unless really necessary?
Just bringing it up in case...


Unless there leaking it wouldnt mess with them.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 01-21-2008, 11:12 PM   #109
Elite Member
Thread Starter
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

Quote:
Originally Posted by levnubhin View Post
Unless there leaking it wouldnt mess with them.
cool...

So are u guys still planning on carpooling?? Or am i gonna get to see some sweet miatas ton top of finishin mine?
Still aiming for 8am?
TonyV is offline   Reply With Quote
Old 01-22-2008, 11:11 AM   #110
Newb

Join Date: Jan 2008
Location: Boca Raton, FL.
Posts: 31
Total Cats: 0
Default

Great to see things are progressing nicely. Definitely excited about heading down.
94medition is offline   Reply With Quote
Old 01-22-2008, 11:44 AM   #111
Elite Member
Thread Starter
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

Quote:
Originally Posted by 94medition View Post
Great to see things are progressing nicely. Definitely excited about heading down.
Yup, same here!
TonyV is offline   Reply With Quote
Old 01-22-2008, 12:42 PM   #112
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Your driveway is gonna be flodded with Miatas. Park you other cars in the neigbors driveway, lol. 8am it is.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 01-22-2008, 01:12 PM   #113
Elite Member
Thread Starter
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

Sweeeeeeeeeeeeeeeeeet! Can't wait guys, and cant thank you all enough!

PS--dropped off pipes for welding, will be ready sometime tomm or Thurs morning.

Gonna swing by Tiger Direct and pick up one of those cables I posted previously, and then waiting for the flywheel (+surfacing) and the clutch kit.
And of course DA BEEEEEEER!
TonyV is offline   Reply With Quote
Old 01-22-2008, 03:12 PM   #114
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Better save the beer for later, otherwise no work is gonna get done.
Saml01 is offline   Reply With Quote
Old 01-22-2008, 03:16 PM   #115
Elite Member
Thread Starter
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

hahahaha, truuuuuu...
Nah, I can't hold da beer hostage! lol..then again, it would kinda be like holding the carrot in front of the turtle??
TonyV is offline   Reply With Quote
Old 01-22-2008, 03:21 PM   #116
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

I work better with beer in me, lol.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 01-22-2008, 03:31 PM   #117
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,237
Total Cats: 290
Default

Is the rad "plastic tanked"? If so, I wouldn't have anything pushing against the inlet.
m2cupcar is offline   Reply With Quote
Old 01-22-2008, 03:43 PM   #118
Elite Member
Thread Starter
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

The BOV actually clears the rad hose/inlet...What I WAS gonna do, is maybe trim about an inch on that rad hose, to make the turn just a LIL better/tighter..wasnt sure on it yet tho--as u mentioned, the plastic tanks dont need any stress...

---On a side note, I may have something OTHER than alcohol for after the build.....?
TonyV is offline   Reply With Quote
Old 01-22-2008, 04:12 PM   #119
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

yep, if you trim some of the hose it should work.
Braineack is offline   Reply With Quote
Old 01-22-2008, 04:14 PM   #120
Elite Member
Thread Starter
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

Also keep in mind my drawing SUCKS ***, lol...
Thanks for all the support guys, love to hear advice & suggestions from all of you...
TonyV is offline   Reply With Quote
