Track brakes - Page 6 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Race Prep Miata race-only chat.
Sponsored by:
Sponsored by:

Reply



LinkBack Thread Tools Search this Thread
Old 06-21-2012, 06:24 PM   #101
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

I'm using Wilwood EXP 600. The fronts were really black. I also noticed my front rotors turned blue after the second track day. The TSE kit is on the horizon. Right now I have Wilwood Dynalites, Maruha brackets and sport rotors.

Quote:
Originally Posted by sixshooter View Post
Dark fluid is very bad. It usually means your fluid is full of moisture and will boil more easily. It can also mean rust, rubber parts degrading, or exposure to excessive heat. In any case, it should be light and clear.

If you are tracking the car you should be changing the fluid every two months anyway, especially if using stock-type fluid. The guys using high dollar fluids don't usually have to do it quite so often. Pro race teams change it every race.

Keep the exposure of the fluid to the air to an absolute minimum because the fluid sucks moisture out of the air. I keep the reservoir lid and the caps from the bottles on as much as possible. I also buy only the smaller bottles so that the fluid stays fresh better. I'm not even close to being the fastest guy here but at ~200whp with Hoosier slicks I haven't reached the limit of off the shelf DOT4 on the track yet.
dgmorr is offline   Reply With Quote
Old 06-22-2012, 12:03 AM   #102
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Dark fluid that looks like motor oil... used oil or new oil?

Assuming new motor oil
Motul RBF-600 right out of a new bottle is considerably darker than normal DOT-4. But it might be time to change it if say it is as dark as Rotella T6. If it is DOT-4 and it is that dark, it is definitely time to change it. Ginger Ale color, OK. Ice tea color, not OK.

Assuming used motor oil...
That is so bad that kittens will drop dead in their tracks if you get within 100 yards. You are single handed-ly responsible for global warming, and Al Gore has a contract out on your ***. Change that ---- NOW and keep a close eye on it. You could have seals that are about to die as mentioned above.
ZX-Tex is offline   Reply With Quote
Old 06-22-2012, 08:43 AM   #103
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

The EXP600 is a bit lighter than ginger ale out of the bottle. I've flushed new fluid through the system now.

The fluid from the rear was more like Rotella T6. It's the fronts that came out pretty black. More like dark sediments floating in new T6. I'm not talking about ALL the fluid, but I'm guessing the first 2" worth in the line, about 2 cracks of the bleeder.

This is not good, I'm a bit worried now.

EDIT: I think I'm in denial. Should I just replace the piston seals before my next event. I've got an all day practice on the 29th, and a time attack on July 8th.

Last edited by dgmorr; 06-22-2012 at 09:30 AM.
dgmorr is offline   Reply With Quote
Old 06-22-2012, 10:13 AM   #104
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

Quote:
Originally Posted by dgmorr View Post
This is not good, I'm a bit worried now.
Just flush the colored stuff out after each event (or every other depending on how hard you really consume fluid). The fronts are easily gravity bled.
How often you should replace all the fluid you can have a M.net discussion about.
I replace all of it before each season, together with the rest of the pre-season service stuff.
The fluid in the reservoir, lines and ABS don't see any significant heat, it's moisture over time that plays a role there.
NiklasFalk is offline   Reply With Quote
Old 06-22-2012, 10:37 AM   #105
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

I'm more worried about the seals. But now that I know it can't go this long, I'll do it a lot more often.
dgmorr is offline   Reply With Quote
Old 06-22-2012, 07:39 PM   #106
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Don't quote me but based on your description I do not think you will have a catastrophic seal failure. It would probably degrade over several braking cycles, assuming it degrades at all. So flush the whole system, and keep a close eye on it. Pay attention to braking feel and whether it changes. If it does, slow way down (safely), get OFF the track on that lap and look over the entire system.

Related story time... I recently had an on-track brake failure where there were warning signs I ignored and attributed to brake fade. I was in the heat of battle and did not want to stop. Several corners later I had NO brakes going into a fast corner, with a passenger, which sucked. I saved it with awezome driving skillzz. But the point is it was a preventable failure had I heeded the warning signs, slowed down, and exited the track.

Also look for chunks of black stuff in the bottom of the master cylinder bowl. A bit of extremely fine dark material is probably OK. Chunks you can see with your naked eye, not OK.

Token caveat: This advice is worth what you are paying for it. We are talking about brakes here. The happy place is somewhere between a full system rebuild after every session (F1 type approach) and not doing any maintenance for several seasons (Social Darwinism approach). Ultimately you have to get educated and decide what you are comfortable with.

Last edited by ZX-Tex; 06-22-2012 at 07:50 PM.
ZX-Tex is offline   Reply With Quote
Old 06-22-2012, 08:42 PM   #107
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Thanks for the advice. I've never tracked a car this hard before, so I'm going to have to come up with a proper maintenance plan. Definitely going to spend the $20 on new seals in the coming month.

I did notice the pedal got slightly softer in my last session, which is what lead me to flush them now.
dgmorr is offline   Reply With Quote
Old 06-23-2012, 12:29 AM   #108
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

Quote:
Originally Posted by ZX-Tex View Post
Token caveat: This advice is worth what you are paying for it. We are talking about brakes here. The happy place is somewhere between a full system rebuild after every session (F1 type approach) and not doing any maintenance for several seasons (Social Darwinism approach). Ultimately you have to get educated and decide what you are comfortable with.
This advice is actually priceless. The same concept goes for the whole car. I try to put a wrench on as many nuts and bolts as I can between weekends and sometimes I get one I'm glad I found...
mr_hyde is offline   Reply With Quote
Old 06-23-2012, 02:14 AM   #109
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

I wrench my nuts as often as I can.
Mobius is offline   Reply With Quote
Old 07-02-2012, 03:36 PM   #110
Junior Member
iTrader: (1)

Join Date: May 2012
Location: East Texas
Posts: 230
Total Cats: 11
Default

Hustler and you other Texas guys, got any ECR vids? I've had brakes fade a bunch on me at ECR on that back straight, but i've never felt unsafe. Granted you are turning times several seconds faster than I was in your turbo car. I really want to see where you guys are braking.

I can see how some people get into trouble there though, i was at ECR weekend before last and rode with a guy in a BMW that was braking waaaay too late. i feared for my life a few times lol, not suggesting that's what any of you are doing. but to those that are new to tracking, where you brake and how you turn in can make a huge difference in how hard you are on brakes. i thought the factory brakes on my old car rocked and people were insane to suggest factory brembos weren't good enough for track work. then i got fast and things changed in a few sessions.
shanem is offline   Reply With Quote
Old 07-03-2012, 01:11 AM   #111
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

I have not been to ECR yet but that will change this year in October.

Some say, in reality that it can no longer be called Eagle's Canyon because he ate them all. And that he reduces ECR brake wear by stopping with telekenesis. All we know is, he's called The Hustler.
ZX-Tex is offline   Reply With Quote
Old 07-03-2012, 09:39 AM   #112
Junior Member

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 17
Default

Quote:
Originally Posted by ZX-Tex View Post
Some say, in reality that it can no longer be called Eagle's Canyon because he ate them all. And that he reduces ECR brake wear by stopping with telekenesis. All we know is, he's called The Hustler.
Handy Man is offline   Reply With Quote
Old 07-31-2012, 01:49 AM   #113
Junior Member

Join Date: Mar 2011
Location: Dallas, TX
Posts: 62
Total Cats: 1
Default

Does the TSE 11.75 BBK fit under 15x9 C3M's, no spacers?
Mach1 is offline   Reply With Quote
Old 07-31-2012, 01:57 AM   #114
Junior Member

Join Date: Apr 2010
Location: DC Area, VA
Posts: 71
Total Cats: 2
Default

Random question is random, but how come I hardly see any mention of FM's BBK? If someone can school me in how it compares relative to the competition (TSE (*no longer does 11", I know), Goodwin, etc) I'd appreciate it.

From my casually observant armchair position, it seems like I should be hearing more about it for $999 - Wilwood 4 piston calipers, two piece rotors, rear brackets, prop valve, etc. I just don't think I've seen anyone running it on here.
GDSpeed is offline   Reply With Quote
Old 07-31-2012, 02:34 AM   #115
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by GDSpeed View Post
Random question is random, but how come I hardly see any mention of FM's BBK? If someone can school me in how it compares relative to the competition (TSE (*no longer does 11", I know), Goodwin, etc) I'd appreciate it.

From my casually observant armchair position, it seems like I should be hearing more about it for $999 - Wilwood 4 piston calipers, two piece rotors, rear brackets, prop valve, etc. I just don't think I've seen anyone running it on here.
Because it's $1000 and yet only using 11" rotors? you can (or could) get an 11" brake kit for $500. You could compare the TSE kit to V8Roadsters options (their 11.75" front kit is $985) and they also make the baller 4-wheel BBK kit.... for $2400
soviet is offline   Reply With Quote
Old 07-31-2012, 02:38 AM   #116
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by sixshooter View Post
So the Corrado rotor upgrade isn't a halfway option between stock and serious baller dollars anymore?
Not a fan of corrado rotors anymore.
soviet is offline   Reply With Quote
Old 07-31-2012, 05:47 AM   #117
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Do you break parts on your car for a living or is it just a hobby of yours?
Reverant is offline   Reply With Quote
Old 07-31-2012, 06:15 AM   #118
Senior Member

Join Date: Feb 2012
Location: chicago
Posts: 665
Total Cats: -35
Default

impressive. I've sent a brake piston through a backing plate, long story, but never seen failure like that on a oem set up. was that a custom race pad? a ---- rotor? or both. you are lucky the rotor didn't explode and take out a wheel
psreynol is offline   Reply With Quote
Old 07-31-2012, 08:20 AM   #119
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,684
Total Cats: 1,561
Default

Quote:
Originally Posted by soviet View Post
Not a fan of corrado rotors anymore.
Scheisse! What happened there? I've heard no mention of this kind of failure from the other guys who used to track the Corrado rotors. Other things, yes, but not this.
sixshooter is online now   Reply With Quote
Old 07-31-2012, 11:59 AM   #120
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by soviet View Post
Not a fan of corrado rotors anymore.

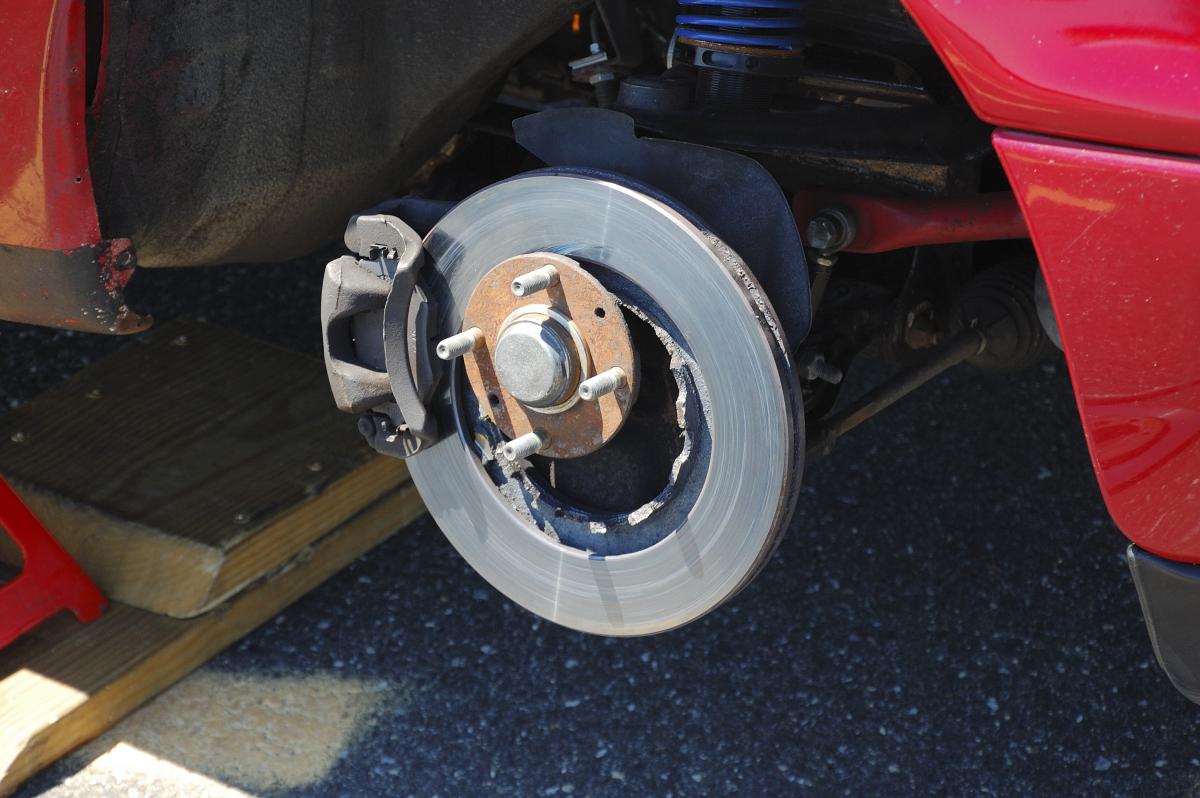

then you shouldn't be a fan of stock 1.6L rotors either:

:insert pic of the same thing on stock rotors once i go home and find the image on my pc:
Attached Thumbnails
Track brakes-dsc_0752.jpg
Braineack is offline   Reply With Quote
