I should mention with the proper gasket you shouldn't NEED RTV, especially with something like the throttle body. I mean, heaven forbid you get a new gasket Not like its coming off now though
EO2K is offline   Reply With Quote
Old 04-14-2014, 04:57 PM   #2142
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by RotorNutFD3S View Post
FWIW, the $20 oil pressure test kit from Harbor Freight works great. Just went through something similar (and a slight panic) when my aftermarket gauge sender took a crap.
Do you recommend the tester rather than a aftermarket gauge?

Quote:
Originally Posted by EO2K View Post
I should mention with the proper gasket you shouldn't NEED RTV, especially with something like the throttle body. I mean, heaven forbid you get a new gasket Not like its coming off now though

They essentially do the same thing This way, if the bolts fall out, I know it isn't going anywhere!

I'm at the point where I will do anything to spend no more money on the car. I'd rather start putting the money towards a down payment on a house.
Jeffbucc is offline   Reply With Quote
Old 04-15-2014, 12:17 AM   #2143
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

OK a little progress tonight. I bought a shitty napa mechanical gauge to do an independent test of the oil system. Yanked the sensor off the block and installed it.

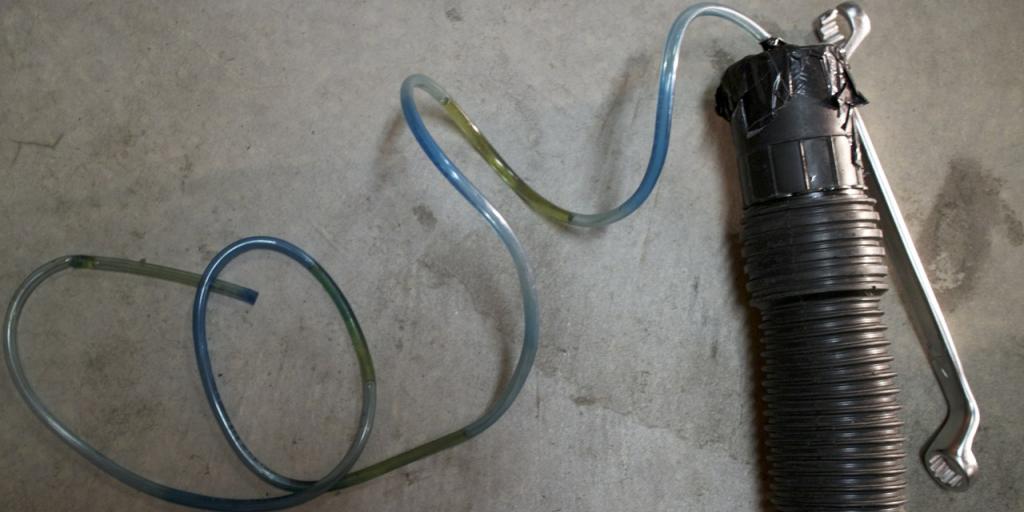

First I decided to try to bleed some of the air out of the lines. I ripped some clear tubing off my brake bleeder and taped it to the vacuum as well as I could. Then I jammed it in the hole as well as I could and bled until the majority of the air came out. I did this on the sensor bung and the turbo oil feed line.



Then I hooked up the gauge and cranked for around 10-15 seconds. I saw around 30 psi on the gauge, but I never trust the shitty hard line compression brass fittings on these things(mostly talking about plumbing experiences).

Soooo making progress at least! I'm hoping that it is just a minor leak in the hard line and having not started the motor to really get some pressure in the line.

Is it normal, when you stop cranking the motor, for pressure to bleed off immediately?

Just trying to think what else I can try here. Maybe replace the hard line with clear tubing? and use a hose clamp to clamp it down?

So 30 psi is a low reading of what the motor is actually developing I hope. I will say I saw a much quicker response pressure wise after vacuuming the air out of the lines.

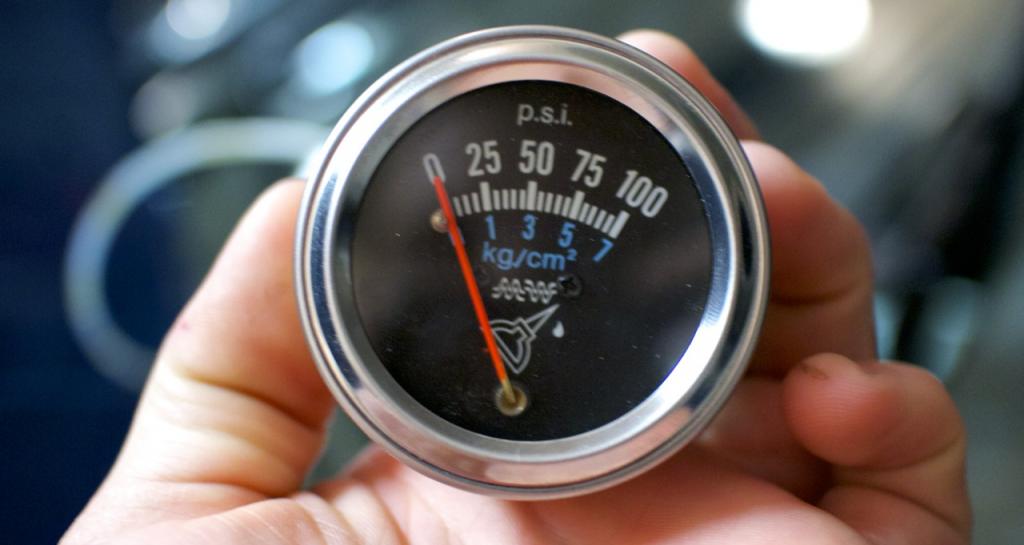

Shitty gauge picture. I tried to find a oil pressure bleeder, but I don't have a harbour freight close by.

Attached Thumbnails
93' Miata stolen and flipped build thread-img_2633.jpg   93' Miata stolen and flipped build thread-img_2632.jpg
Jeffbucc is offline   Reply With Quote
Old 04-15-2014, 01:12 AM   #2144
Newb

Join Date: Oct 2013
Location: Utah
Posts: 27
Total Cats: 3
Default

Pressure stops immediately because liquids don't compress and the oil has a place to go. Glad you saw pressure.
eduTechnic is offline   Reply With Quote
Old 04-15-2014, 01:19 AM   #2145
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,816
Total Cats: 479
Default

30psi is really good for just the starter. Plug everything back in a start the motor. You're fine.
curly is offline   Reply With Quote
Old 04-15-2014, 01:59 AM   #2146
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,485
Total Cats: 79
Default

+1 - fire her up...!
Zaphod is offline   Reply With Quote
Old 04-15-2014, 07:40 AM   #2147
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Awesome, thanks guys, I thought it needed to develop +/- 60 PSI.

Wired in my flyback correctly on my Idle Valve wires a la:



Tested continuity on the EBC, which didn't respond. Stripped back the shrink wrap and found the flyback diode had broken probably due to me tugging on the wiring to route it. So a new diode and we are back in business. I put a couple extra layers of shrink wrap around the soldered area to strengthen it up.

I reinstalled the OEM oil sensor and connected the gauge back up.

Right now I'm trying to figure out why I still can't get the tach to work.

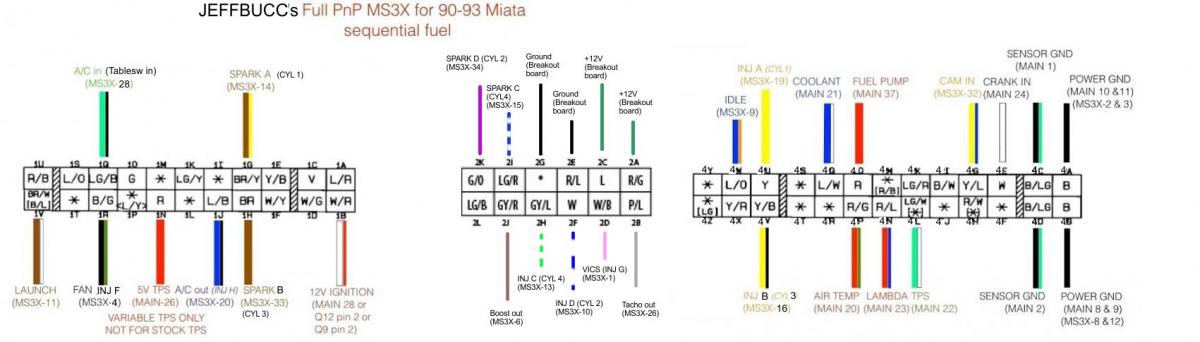

As per Zaphod's completely over the top wiring diagram he made for me, the tach out signal on the DB12 connector, 2B, is being routed to the yellow/blue wire on the igniter, which is the tach signal.

Also I thought I would note that tunerstudio is displaying the RPM's, so ms3x is receiving data.



Attached Thumbnails
93' Miata stolen and flipped build thread-ms3x-2wire-idle-wiring.png

Last edited by Jeffbucc; 04-15-2014 at 09:03 AM.
Jeffbucc is offline   Reply With Quote
Old 04-15-2014, 08:57 AM   #2148
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

hmmm after wiring the diode on both Idle Valve wires instead of just the +12v I get a loud hum from the TB area and no cranking...what did I do wrong here?
Jeffbucc is offline   Reply With Quote
Old 04-15-2014, 09:13 AM   #2149
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,673
Total Cats: 230
Default

humming noise is normal for the idle valve until you adjust the frequency. No idea why it would not crank though..
Fireindc is offline   Reply With Quote
Old 04-15-2014, 09:30 AM   #2150
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,485
Total Cats: 79
Default

TPS calibration set in tuner studio?
Also the frequency for the NB idle valve is 511Hz .
Zaphod is offline   Reply With Quote
Old 04-15-2014, 09:39 AM   #2151
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Jeffbucc View Post
hmmm after wiring the diode on both Idle Valve wires instead of just the +12v I get a loud hum from the TB area and no cranking...what did I do wrong here?
Nothing wrong. You definitely need to adjust the iac valve frequency in idle settings... I recently had the same thing last week when I installed my MS for the first time

Installing ms3x...crazy noise when key on...
BTMiata is offline   Reply With Quote
Old 04-15-2014, 09:56 AM   #2152
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Yeah frequency was set to 511hz, but still no start or even coming close to cranking. I'm still receiving power to MS, but upon listening to the car more closely when attempting to crank, the fuel pump is now turning on upon cranking.

I'm going to go buy some more fuel and see if that has anything to do with it. I only put a gallon or so in so who knows.
Jeffbucc is offline   Reply With Quote
Old 04-15-2014, 10:01 AM   #2153
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Also MAP is reading around 180+ degrees now...what the hell did I just do.
Jeffbucc is offline   Reply With Quote
Old 04-15-2014, 10:23 AM   #2154
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,921
Total Cats: 1,469
Default

Quote:
Originally Posted by Jeffbucc View Post
hmmm after wiring the diode on both Idle Valve wires instead of just the +12v I get a loud hum from the TB area and no cranking...what did I do wrong here?


this is me just staring at the screen disapprovingly...
Braineack is offline   Reply With Quote
Old 04-15-2014, 10:25 AM   #2155
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by Braineack View Post
this is me just staring at the screen disapprovingly...
Care to elaborate? I'm guessing I had it right the first time with it only on the +12v?
Jeffbucc is offline   Reply With Quote
Old 04-15-2014, 10:28 AM   #2156
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,921
Total Cats: 1,469
Default

well, the picture you posted of the diode is a correct way of wiring it.

what's the freq. of your idle valve set to in your msq? it needs to be much higher for an NB valve vs. the 93 of ~200Hz.


I personally would have wired the tachout to 2I which sends it directly to the ignitor, then all you gotta do is connect teh y/b with w/b wire.
Braineack is offline   Reply With Quote
Old 04-15-2014, 10:33 AM   #2157
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by Braineack View Post
is a
Couldn't help notice the clarification of alternate solutions in those two words. What is your preferred method of wiring a flyback into the wiring?
Jeffbucc is offline   Reply With Quote
Old 04-15-2014, 10:34 AM   #2158
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Also I set the frequency to 511.

That makes so much sense on the tach out wiring, jesus why didn't I see that...
Jeffbucc is offline   Reply With Quote
Old 04-15-2014, 10:36 AM   #2159
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,921
Total Cats: 1,469
Default

I do it inside the case. but same idea: banded end to 12v, non-banded end to the output/signal wire.

I would have done it inside your DIYBOB if anything. would have been much easier than hacking up wiring.
Braineack is offline   Reply With Quote
Old 04-15-2014, 10:37 AM   #2160
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,921
Total Cats: 1,469
Default

Quote:
Originally Posted by Jeffbucc View Post
Also I set the frequency to 511.

That makes so much sense on the tach out wiring, jesus why didn't I see that...
good thing is, it'll take you like what, 2 seconds to move the wire inside your diybob. if that's what you wanna do.
Braineack is offline   Reply With Quote
