Old 03-12-2009, 02:08 PM   #281
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

I'm pretty proud that those are the only two zip ties on my whole entire setup.
Braineack is offline   Reply With Quote
Old 03-15-2009, 06:21 PM   #282
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Finally got the car running and slightly tuned.

So far initial logs are showing I'm making my boost target 600rpm sooner in 4th gear (3400 vs 4000). Otherwise it's raining and my butt dyno isn't very sensitive so that's all I have to report.

I need to tackle a few small things and then get it inspected, I'll try to get the kinks worked out and out to a dyno in the next few weeks.
Braineack is offline   Reply With Quote
Old 03-15-2009, 06:54 PM   #283
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Quote:
Originally Posted by Braineack View Post
So far initial logs are showing I'm making my boost target 600rpm sooner in 4th gear (3400 vs 4000).
I hope the final logs show that or better. Wow.
m2cupcar is offline   Reply With Quote
Old 03-15-2009, 06:58 PM   #284
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

here's today's log:




vs the dyno just before the car got parked for the winter:

Braineack is offline   Reply With Quote
Old 03-15-2009, 07:25 PM   #285
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Woa
Ben is offline   Reply With Quote
Old 03-15-2009, 07:30 PM   #286
Junior Member
iTrader: (6)

Join Date: Dec 2008
Location: Boulder, CO
Posts: 291
Total Cats: 7
Default

Braineack, if you don't mind saying, what diameter is the plenum and what diameter tubing did you use for the runners? Also, any pics of the insides/velocity stacks?

Thanks,
--Ferdi
ftjandra is offline   Reply With Quote
Old 03-15-2009, 07:53 PM   #287
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by ftjandra View Post
Braineack, if you don't mind saying, what diameter is the plenum and what diameter tubing did you use for the runners? Also, any pics of the insides/velocity stacks?

Thanks,
--Ferdi

4" plenum, 1.75" runners (6" long from tip to tip)


the rest of the pictures are here: https://www.miataturbo.net/forum/t28417/
Braineack is offline   Reply With Quote
Old 03-15-2009, 10:59 PM   #288
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Quote:
Originally Posted by Ben View Post
Woa
x2
can't wait to see the new dyno plot
m2cupcar is offline   Reply With Quote
Old 03-15-2009, 11:09 PM   #289
Elite Member
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Thats interesting, 1.75 ID or OD?
TravisR is offline   Reply With Quote
Old 03-22-2009, 09:44 PM   #290
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

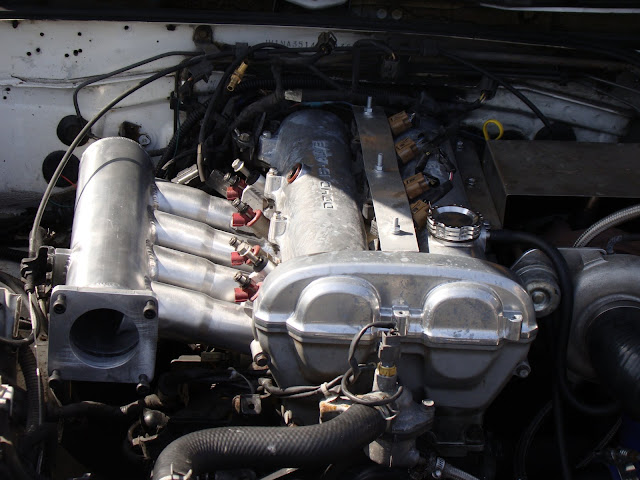

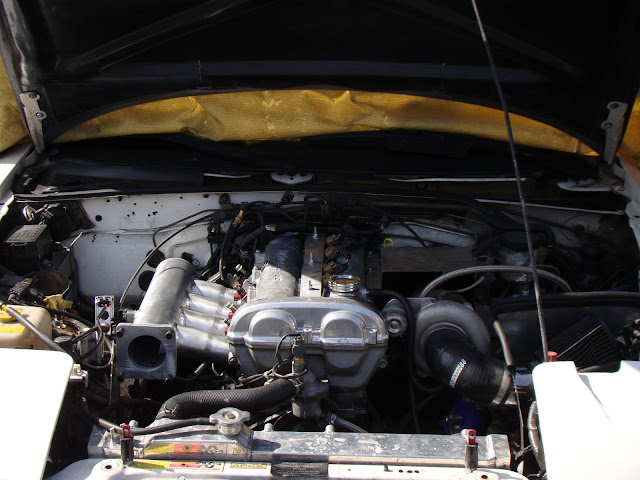

We made progress with newbsauce's IM today.

Since we used a 70mm 4.6L Mustang TB, it made the IC routing, interesting. I had to run so it didnt get finished :P





Braineack is offline   Reply With Quote
Old 03-22-2009, 09:49 PM   #291
NB/VVT Connoisseur
iTrader: (24)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,074
Total Cats: 253
Default

Wow! Looks Great!

Any idea on gains??
viperormiata is offline   Reply With Quote
Old 03-22-2009, 10:02 PM   #292
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

15 psi by 3300 rpm, Nice!

I need that IM!
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 03-23-2009, 02:23 AM   #293
Elite Member
iTrader: (5)

Join Date: Jan 2007
Location: Freehold, NJ
Posts: 1,577
Total Cats: -2
Default

Quote:
Originally Posted by levnubhin View Post
i need that im!
+1!
disturbedfan121 is offline   Reply With Quote
Old 03-23-2009, 01:32 PM   #294
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by levnubhin View Post
15 psi by 3300 rpm, Nice!
When my timing was retarded 10* and it was only 40*F out it seems.


Got to tuning this weekend. spool seems normal, butt dyno isn't sensitive enough to tell a difference from before, so once we finish brad's IM well both go dyno.
Braineack is offline   Reply With Quote
Old 03-23-2009, 01:38 PM   #295
Senior Member
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default

Did you change injectors? Ur Duty cycles go from a max of 85 to a max of 42.
ArtieParty is offline   Reply With Quote
Old 03-23-2009, 01:45 PM   #296
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

I'm using an adjustable FPR. since my DC% was pretty much maxed before, I'm running around 40psi at idle, and it's making 55psi at atmospheric.
Braineack is offline   Reply With Quote
Old 03-23-2009, 02:04 PM   #297
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

What's the thought/science behind the rapid reduction in the middle of the runner vs. a long taper from plenum to port?
m2cupcar is offline   Reply With Quote
Old 03-23-2009, 02:18 PM   #298
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

i believe the idea was to increase velocity.


i forgot, i have a 2.25" gutted cat in place of my test pipe right now, so i cant compare apples to apples. i guess i should swap that out tonight. but that earlier datalog is no good still, timing was way off and i had a leak at my TB.
Braineack is offline   Reply With Quote
Old 03-23-2009, 02:46 PM   #299
Elite Member
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

Picked up all the hardware to block off the idle valve port on my I/C pipe, and some stuff to make block offs for the mustang TB. Made a little template to block off the mustang idle valve port, but needed stronger material. I should have it all buttoned up tonight, but I probably won't get around to tuning and logs until this weekend.

Newbsauce is offline   Reply With Quote
Old 03-23-2009, 03:03 PM   #300
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Quote:
Originally Posted by Braineack View Post
i believe the idea was to increase velocity.
I was wondering, because the only other place on saw it was on the eBay manifold.
m2cupcar is offline   Reply With Quote
