04-04-2016, 11:38 AM

#661

18psi

VladiTuned

iTrader: (76)

Join Date: Apr 2008

Posts: 35,821

Total Cats: 3,481

not until I see dem thangs proven

04-04-2016, 11:42 AM

#662

aidandj

SADFab Destructive Testing Engineer

iTrader: (5)

Join Date: Apr 2014

Location: Beaverton, USA

Posts: 18,642

Total Cats: 1,866

I don't need to see a cast stainless manifold proven. Still kicking myself for not picking one up during the group buy.

04-04-2016, 11:45 AM

#663

18psi

VladiTuned

iTrader: (76)

Join Date: Apr 2008

Posts: 35,821

Total Cats: 3,481

Quote:

Originally Posted by aidandj

I don't need to see a cast stainless manifold proven. Still kicking myself for not picking one up during the group buy.

well that's a real cool story bro.
I do.
because theory and reality often do not go hand in hand.

04-04-2016, 11:47 AM

#664

aidandj

SADFab Destructive Testing Engineer

iTrader: (5)

Join Date: Apr 2014

Location: Beaverton, USA

Posts: 18,642

Total Cats: 1,866

Not theory. Other platform cast manifolds, stock cast turbo manifolds, FM cast manifolds, etc.

But sure. This specific one hasn't been fully proven.

04-04-2016, 02:12 PM

#665

99mx5

Elite Member

Thread Starter

iTrader: (16)

Join Date: Oct 2006

Location: Las Cruces, NM

Posts: 1,647

Total Cats: 524

Me loves long tubey manifolds long time. I found this link interesting... Long tube Vs Short tube runner length Turbo Manifolds

I have ordered the TSE studs and a vibrant turbo flange. Ideas on adding extra supports tot he flange are welcome. I am thinking of putting triangular supports that also act at fins on the flange. Similar to the supports that TurboTim added to the wastegate tubes on the Absurdflow manifolds. Aside from cast vs welded, I think the TSE manifold has the longest runners of the cast manifolds for miatas.

Edit: I'll gladly accept one of the TSE manifolds for testing.

04-04-2016, 02:22 PM

#666

shuiend

mkturbo.com

iTrader: (24)

Join Date: May 2006

Location: Charleston SC

Posts: 15,176

Total Cats: 1,680

Quote:

Originally Posted by 99mx5

Edit: I'll gladly accept one of the TSE manifolds for testing.

I am now debating sending you out mine. I know I probably won't actually be driving on it for ages.

04-05-2016, 02:25 AM

#667

99mx5

Elite Member

Thread Starter

iTrader: (16)

Join Date: Oct 2006

Location: Las Cruces, NM

Posts: 1,647

Total Cats: 524

To mount that manifold, I'd need to build a new downpipe and new hot-side intercooler pipe.

04-05-2016, 03:16 AM

#668

Mobius

Elite Member

iTrader: (2)

Join Date: May 2008

Location: Portland, Oregon

Posts: 3,468

Total Cats: 365

FOR SCIENCE

04-05-2016, 04:21 PM

#669

yank

Senior Member

iTrader: (1)

Join Date: Jun 2007

Posts: 661

Total Cats: 32

Quote:

Originally Posted by 99mx5

To mount that manifold, I'd need to build a new downpipe and new hot-side intercooler pipe.

I might be able to help with that.. For science purposes.

04-05-2016, 04:22 PM

#670

aidandj

SADFab Destructive Testing Engineer

iTrader: (5)

Join Date: Apr 2014

Location: Beaverton, USA

Posts: 18,642

Total Cats: 1,866

Quote:

Originally Posted by shuiend

I am now debating sending you out mine. I know I probably won't actually be driving on it for ages.

I'll do it for science too

04-05-2016, 04:23 PM

#671

yank

Senior Member

iTrader: (1)

Join Date: Jun 2007

Posts: 661

Total Cats: 32

Quote:

Originally Posted by 18psi

well that's a real cool story bro.
I do.
because theory and reality often do not go hand in hand.

Agreed. I've seen plenty cracked cast manifolds in the past.

04-05-2016, 04:29 PM

#672

Arca_ex

Elite Member

iTrader: (2)

Join Date: Jan 2013

Location: Chandler, AZ

Posts: 1,628

Total Cats: 427

I've seen a fair share of both cast and tubular manifolds that have cracked as well.

04-05-2016, 04:44 PM

#673

99mx5

Elite Member

Thread Starter

iTrader: (16)

Join Date: Oct 2006

Location: Las Cruces, NM

Posts: 1,647

Total Cats: 524

Quote:

Originally Posted by aidandj

I'll do it for science too

We can both take a crack at it.

04-05-2016, 05:00 PM

#674

99mx5

Elite Member

Thread Starter

iTrader: (16)

Join Date: Oct 2006

Location: Las Cruces, NM

Posts: 1,647

Total Cats: 524

Quote:

Originally Posted by yank

I might be able to help with that.. For science purposes.

Props! If given the opportunity, I'll take you up on that. I can also get a dyno to compare setups (ARTech long-tube vs TSE cast) with everything else being the same.

04-05-2016, 05:07 PM

#675

Savington

Former Vendor

iTrader: (31)

Join Date: Nov 2006

Location: Sunnyvale, CA

Posts: 15,442

Total Cats: 2,099

My cast manifold has already lasted longer than the first iteration of a Sch40 tubular manifold I ran.

04-05-2016, 05:24 PM

#676

psyber_0ptix

Elite Member

iTrader: (4)

Join Date: Mar 2012

Location: Northern VA

Posts: 4,648

Total Cats: 544

Quote:

Originally Posted by 99mx5

Props! If given the opportunity, I'll take you up on that. I can also get a dyno to compare setups (ARTech long-tube vs TSE cast) with everything else being the same.

I'm very interested in this and was about to pull the trigger on the TSE stuff to replace the perfectly functioning Artech stuff, but couldn't find justification ergo decided to focus on brakes and oil cooler first.

04-05-2016, 05:37 PM

#677

thumpetto007

Elite Member

iTrader: (15)

Join Date: Sep 2010

Posts: 2,041

Total Cats: -117

I would guess the tse cast mani would make more power earlier in the rpm band, but taper off in power, compared to a long tube header from Abe.

04-05-2016, 06:52 PM

#678

Girz0r

Moderator

iTrader: (1)

Join Date: Jun 2014

Location: Austin, TX

Posts: 3,033

Total Cats: 324

Quote:

Originally Posted by thumpetto007

I would guess the tse cast mani would make more power earlier in the rpm band, but taper off in power, compared to a long tube header from Abe.

Quote:

Originally Posted by Savington

Stock 2002 longblock
Trackspeed EFR6258 turbo system (347SS cast manifold, 3" downpipe)
Stock 2.25" NB2 exhaust
MS3 Basic
Flow Force 610cc injectors
5psi, intercooled

Quote:

Originally Posted by Savington

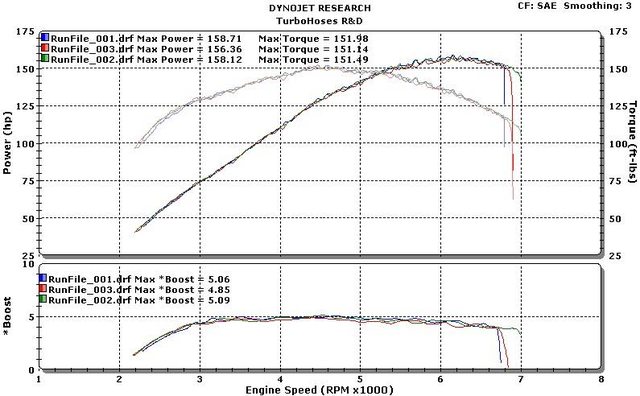

Quick dyno session today. Poor bottom end because I think it's blowing the wastegate open, but this chart is still worth showing.

Run 1 is with the stock 2.25" NB exhaust (peak boost 5psi)
Run 9 is with an Enthuza 3" stainless catted catback (peak boost 7psi)

Quote:

Originally Posted by Savington

The intercooler setup is a Precision 350hp with 2" coldside and 2.5" hotside pipes. The production intercooler will be a little smaller.

200whp on a BP05 longblock should take 10-11psi.

I don't have a baseline from my NB2, but Emilio was kind enough to shoot me a DRF file for a stock NB2 to compare.

Attached Thumbnails

04-06-2016, 04:04 PM

#679

turbofan

Supporting Vendor

iTrader: (1)

Join Date: Sep 2010

Location: Lake Forest, CA

Posts: 7,950

Total Cats: 1,003

These dynos don't really show anything in comparison to a long tube setup....

... but they do show that the power definitely does taper up top, even after they went to the 3" exhaust.

__________________
Ed@949Racing/Supermiata
www.949racing.com
www.supermiata.com
