Old 04-29-2014, 04:49 PM   #481
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

Quote:
Originally Posted by concealer404 View Post
Video nao plz!!!!
I wish I had taken video. I loved the sound of the exhaust rumble when downshifting.
99mx5 is offline   Reply With Quote
Old 04-29-2014, 04:52 PM   #482
Junior Member

Join Date: Apr 2011
Location: Las Cruces, NM
Posts: 253
Total Cats: 11
Default

Let's do some 20psi street pulls.
Stock is offline   Reply With Quote
Old 05-01-2014, 10:38 PM   #483
Senior Member
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

Go to ride several laps in this bad boy last weekend...


needless to say it was fast... much faster than my GT500 around the track (with me driving anyways)... and he also managed to spin my GT500 before I did LOL
jbrown7815 is offline   Reply With Quote
Old 05-02-2014, 04:14 PM   #484
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

LOL! Thanks for joining us at the track and letting me drive your ride! That GT500 is a blast to drive.
99mx5 is offline   Reply With Quote
Old 05-02-2014, 04:30 PM   #485
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,680
Total Cats: 232
Default

So you guys are all in NM as well, eh? I'm assuming you went to motiva speedway (or whatever they are calling it now days) ?

I'm definitely going to have to plan to meet up with you guys and turn some laps.
Fireindc is offline   Reply With Quote
Old 05-02-2014, 04:32 PM   #486
Junior Member

Join Date: Apr 2011
Location: Las Cruces, NM
Posts: 253
Total Cats: 11
Default

Arroyo Seco Raceway in Deming, NM. We hold 6-7 time attack events throughout the year, $60 entrance fee to run all day.

ASR Super Lap
Stock is offline   Reply With Quote
Old 05-02-2014, 08:33 PM   #487
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,416
Total Cats: 41
Default

Quote:
Originally Posted by Stock View Post
Arroyo Seco Raceway in Deming, NM. We hold 6-7 time attack events throughout the year, $60 entrance fee to run all day.

ASR Super Lap
Are you Tyler?
Chilicharger665 is offline   Reply With Quote
Old 05-02-2014, 09:44 PM   #488
Junior Member

Join Date: Apr 2011
Location: Las Cruces, NM
Posts: 253
Total Cats: 11
Default

I am.
Stock is offline   Reply With Quote
Old 05-02-2014, 10:27 PM   #489
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,416
Total Cats: 41
Default

Cool man. I met you last year at the finals. I was doing decently in the time attack until the times were lost and mine was unrecoverable. I was in a green 01.
Chilicharger665 is offline   Reply With Quote
Old 05-21-2014, 05:13 PM   #490
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

I noticed a rattling sound after the last race. I had to do prep anyway for the next event, so I inspected everything closely and found a few surprises.

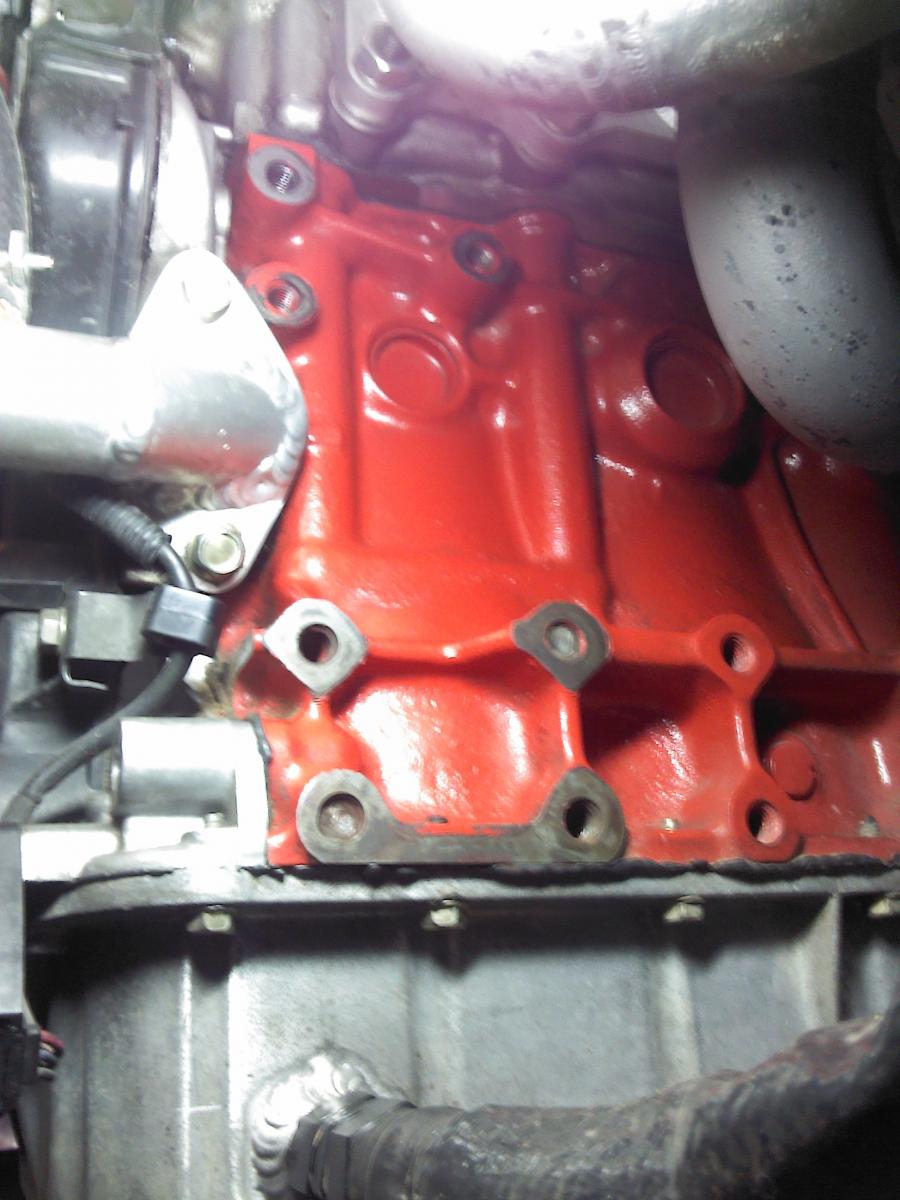

I found that two of the AC bracket screws were missing and two of them were broken.

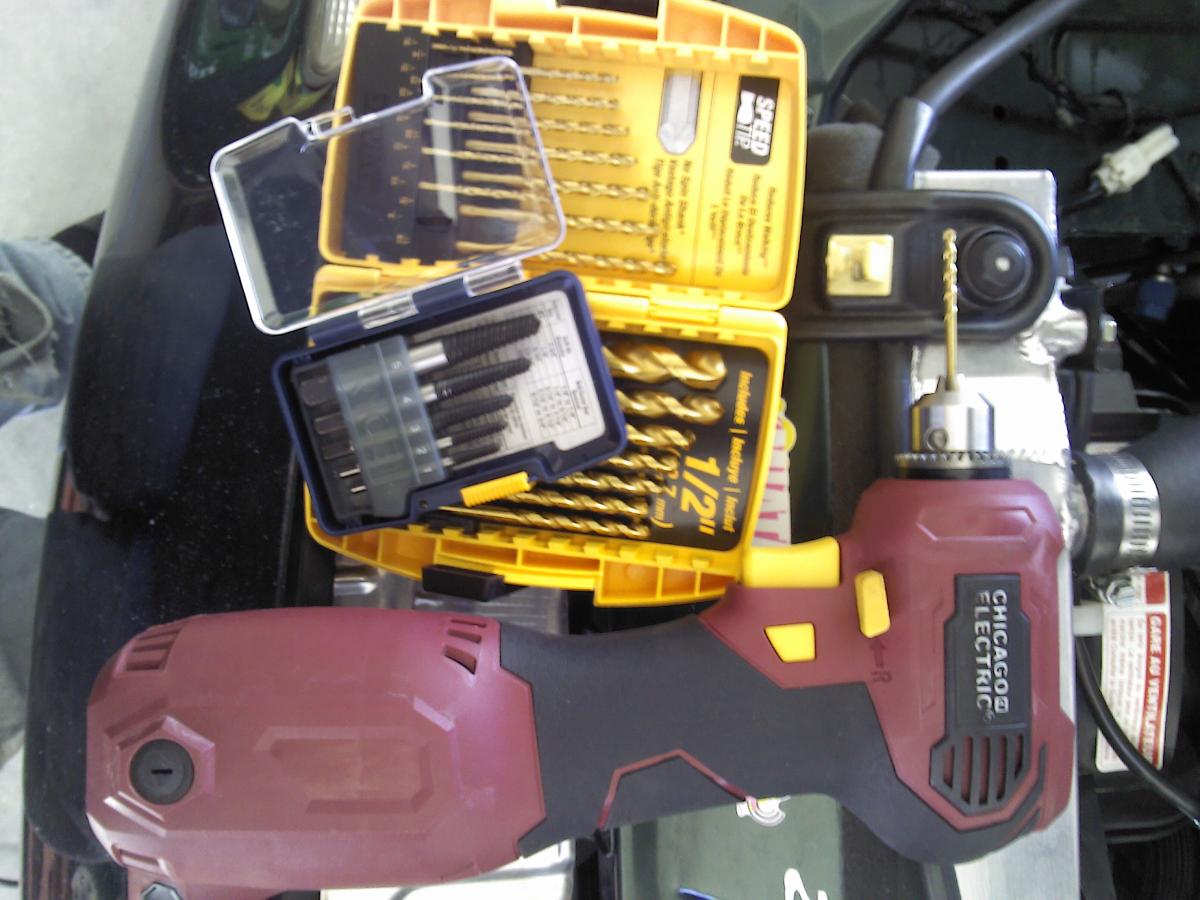

I bought an angle drill from the local HarborFreight. Dewalt titanium drill bits and screw extractors. (The HF drill is total win BTW).

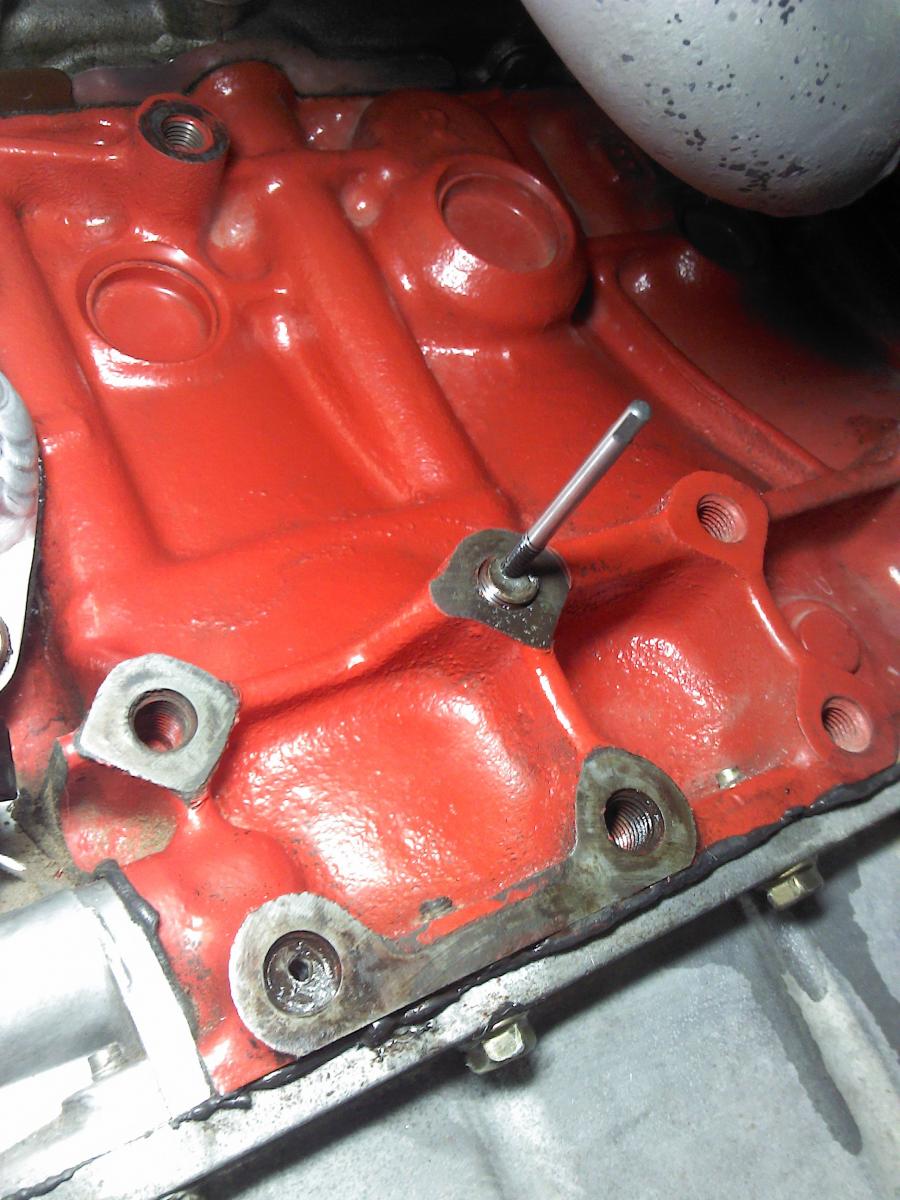

The upper screw came out easily. The lower one was frozen in place and would not come out after letting it soak overnight. Even though I had a good grip on it with the extractor, I feared that it might break and I decided to drill it out and tap it.

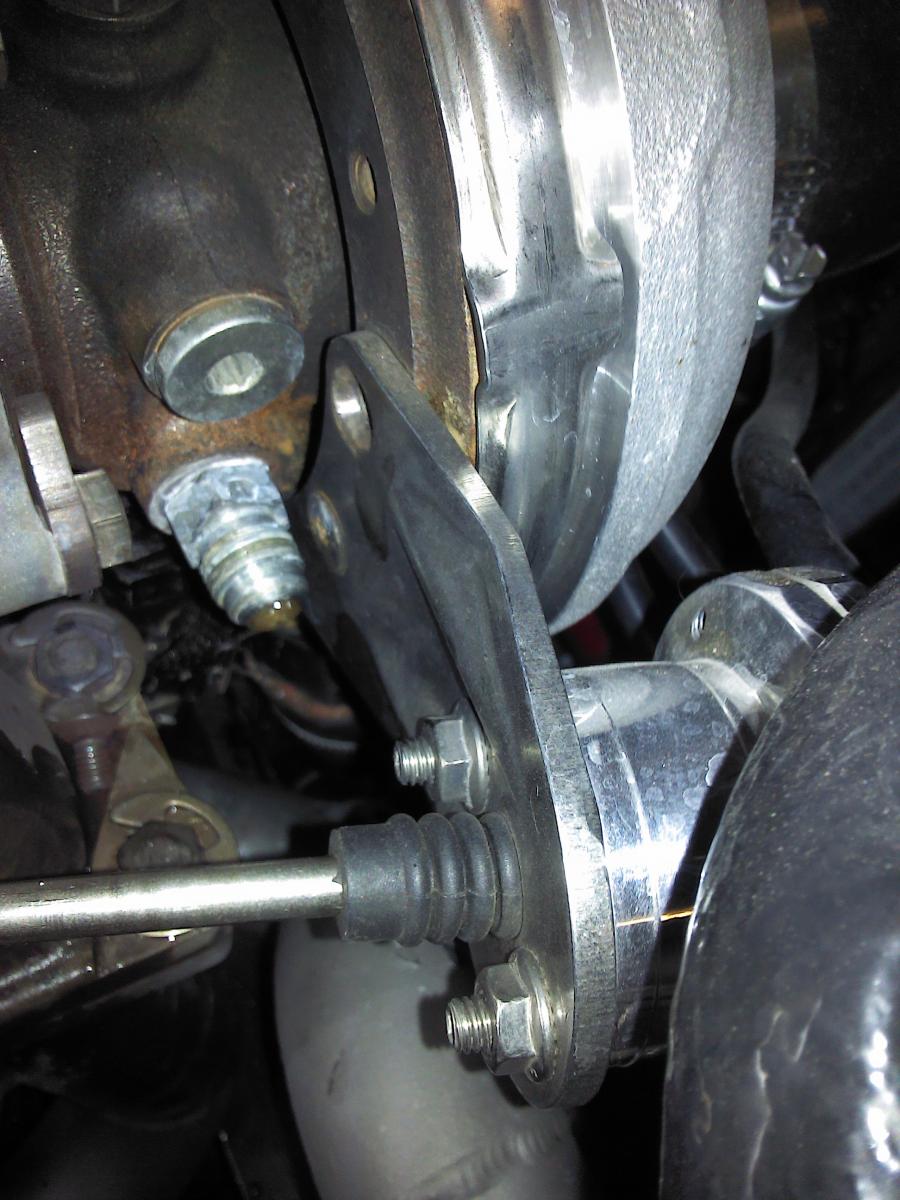

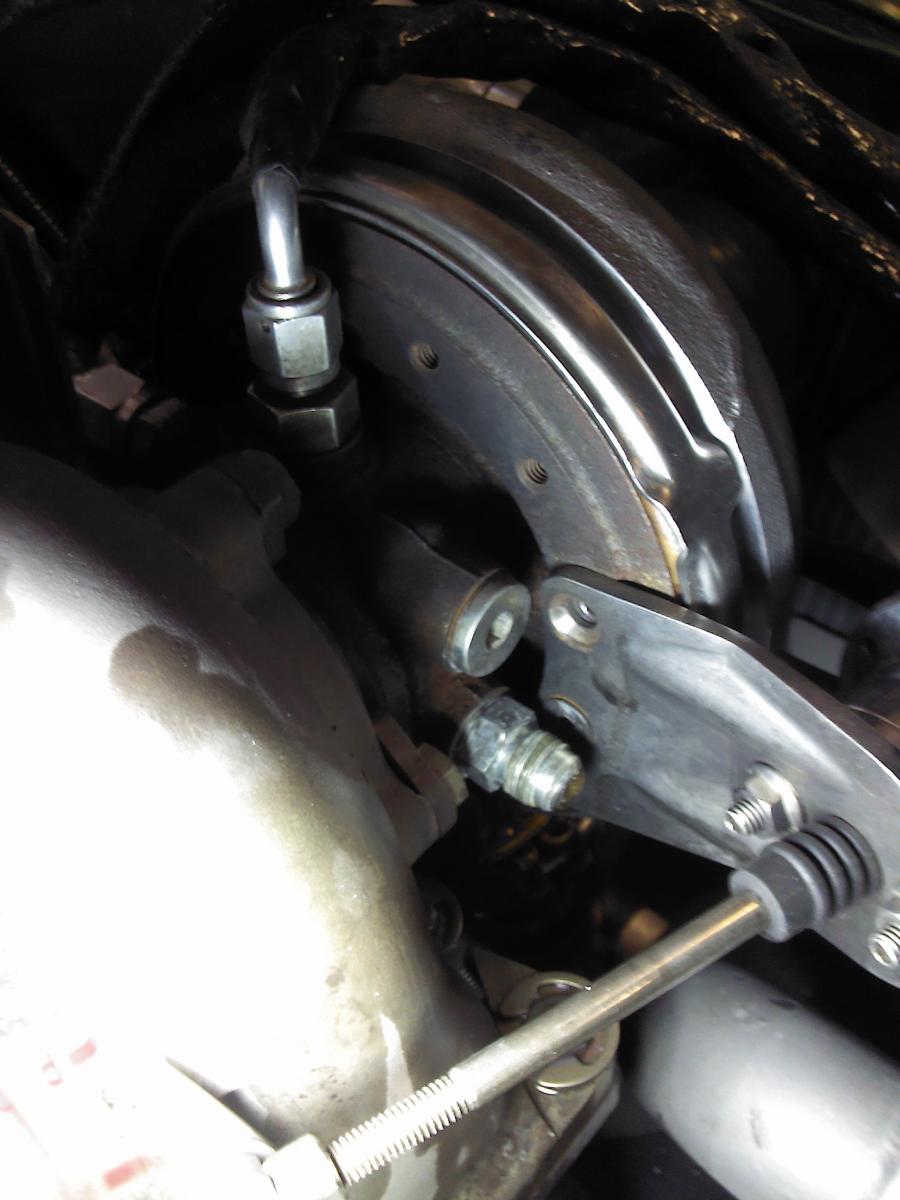

With the AC bracket re-installed, I still heard the rattle. I then found this.



I was lucky to find the bolt sitting on the turbo flange.



I removed the coolant fitting and re-installed the bolts with Locktite and all is well. Looks like I'll be using more Locktite from now on.

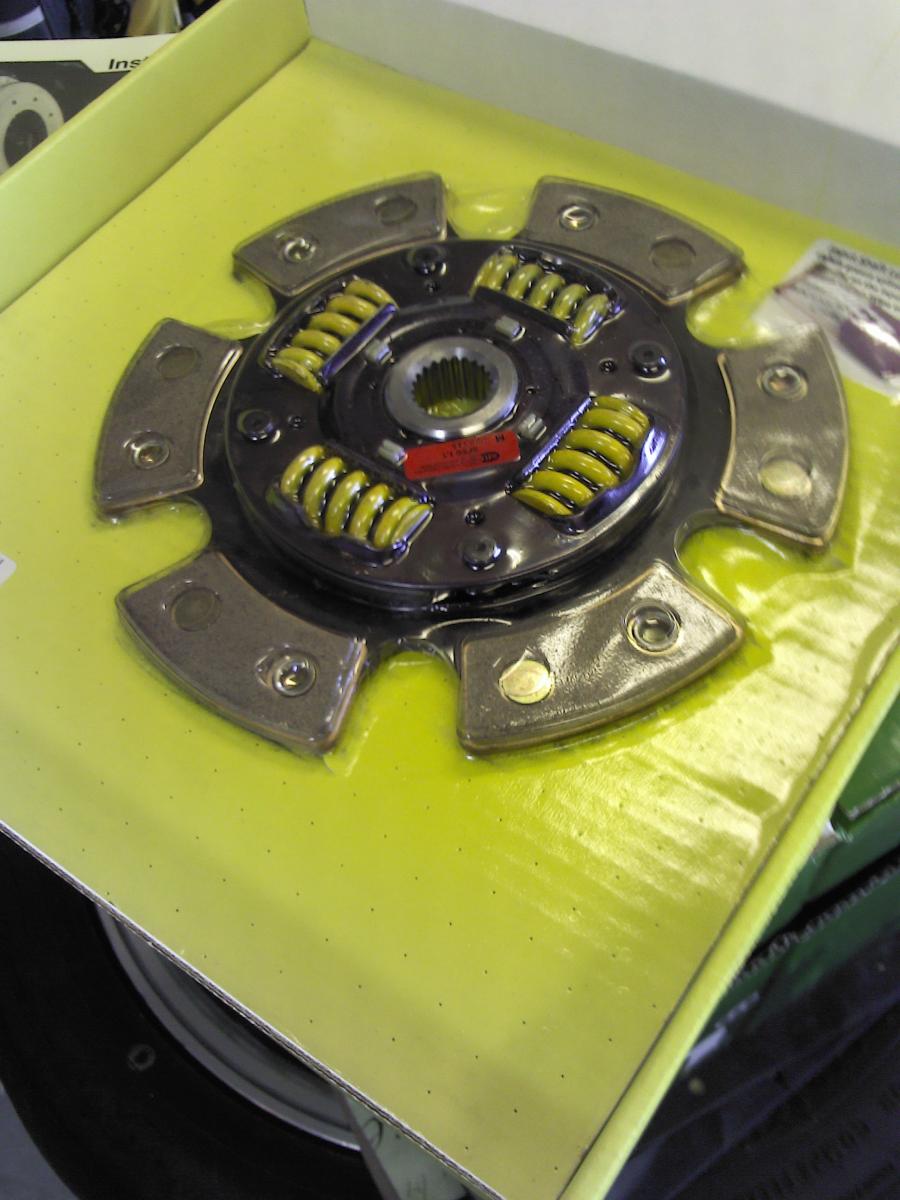

I also got this for my next project.

Attached Thumbnails
99mx5 EFR build-img_20140510_144418.jpg   99mx5 EFR build-img_20140510_141459.jpg   99mx5 EFR build-img_20140510_150118.jpg   99mx5 EFR build-img_20140516_194255.jpg   99mx5 EFR build-img_20140516_194240.jpg

99mx5 EFR build-img_20140508_183735.jpg
99mx5 is offline   Reply With Quote
Old 05-21-2014, 06:01 PM   #491
Junior Member

Join Date: Apr 2011
Location: Las Cruces, NM
Posts: 253
Total Cats: 11
Default

AriBuilt
Stock is offline   Reply With Quote
Old 05-21-2014, 06:21 PM   #492
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,725
Total Cats: 2,481
Default

Quote:
Originally Posted by 99mx5 View Post
Looks like I'll be using more Locktite from now on.

I also got this for my next project.
amen.
its crazy how bad these engines shake at high rpm
18psi is offline   Reply With Quote
Old 06-01-2014, 04:56 PM   #493
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

I had a blast at the last track day at ASR. The car ran flawlessly the whole day. I finally mounted the cam on my helmet.

This first video is when I was chasing a friend in his supercharged Miata to see his lines on the track. His Miata is a '90 with a 1.6 and M45 supercharger with TDR intercooler. His car makes about 200WHP.



This next video is my fast timed lap. I ran 1:19.1



After the race, we were doing burnouts on the strip for kicks.

99mx5 is offline   Reply With Quote
Old 06-01-2014, 11:37 PM   #494
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,416
Total Cats: 41
Default

The car seems so much more manic on the inside and in person...

Last edited by Chilicharger665; 06-01-2014 at 11:55 PM.
Chilicharger665 is offline   Reply With Quote
Old 06-02-2014, 07:48 PM   #495
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,707
Total Cats: 1,078
Default

The AC bolts backing out happened all the time on my 92 with 330k on it. I eventually just pulled the AC because I could not get them to stay tight.
shuiend is offline   Reply With Quote
Old 07-22-2014, 03:59 AM   #496
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

It's been a while but time marches on. I made a few changes since the last post.

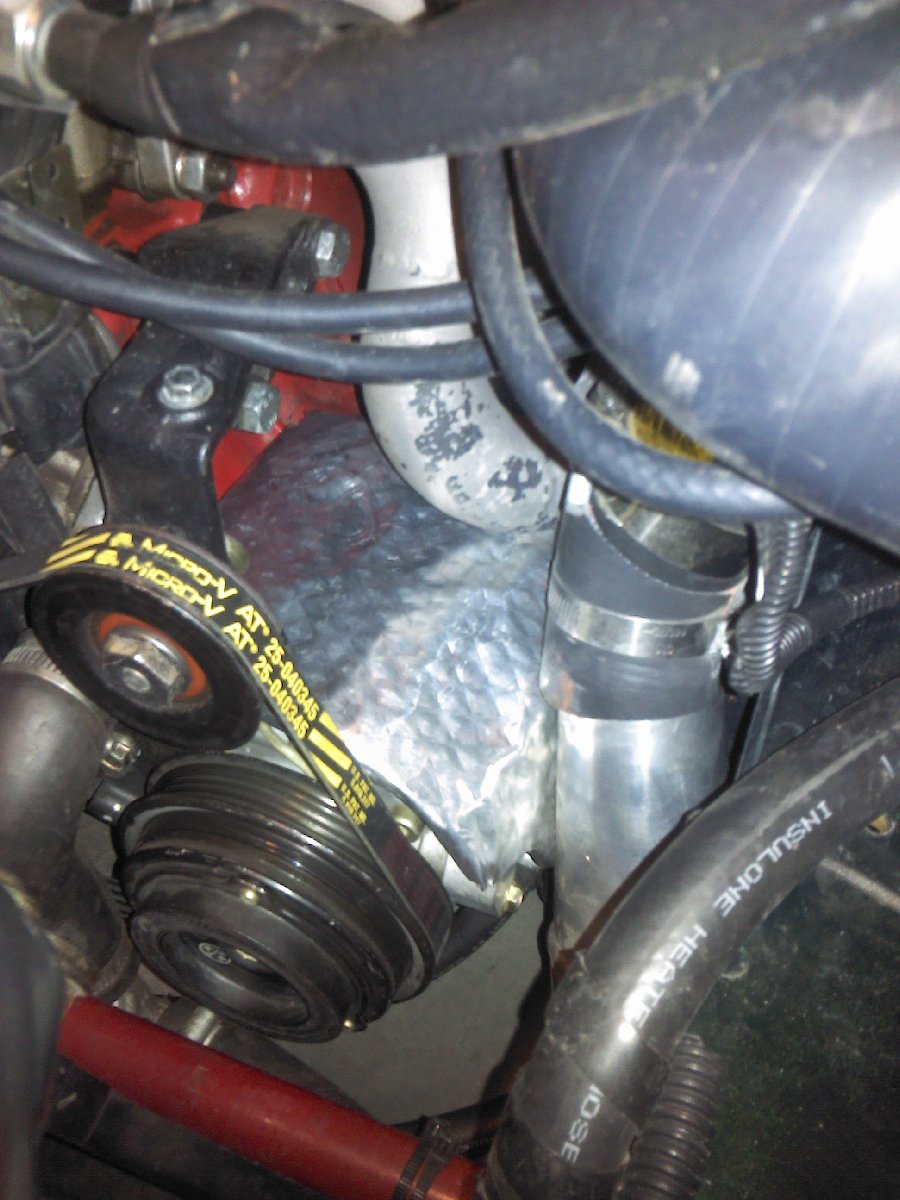

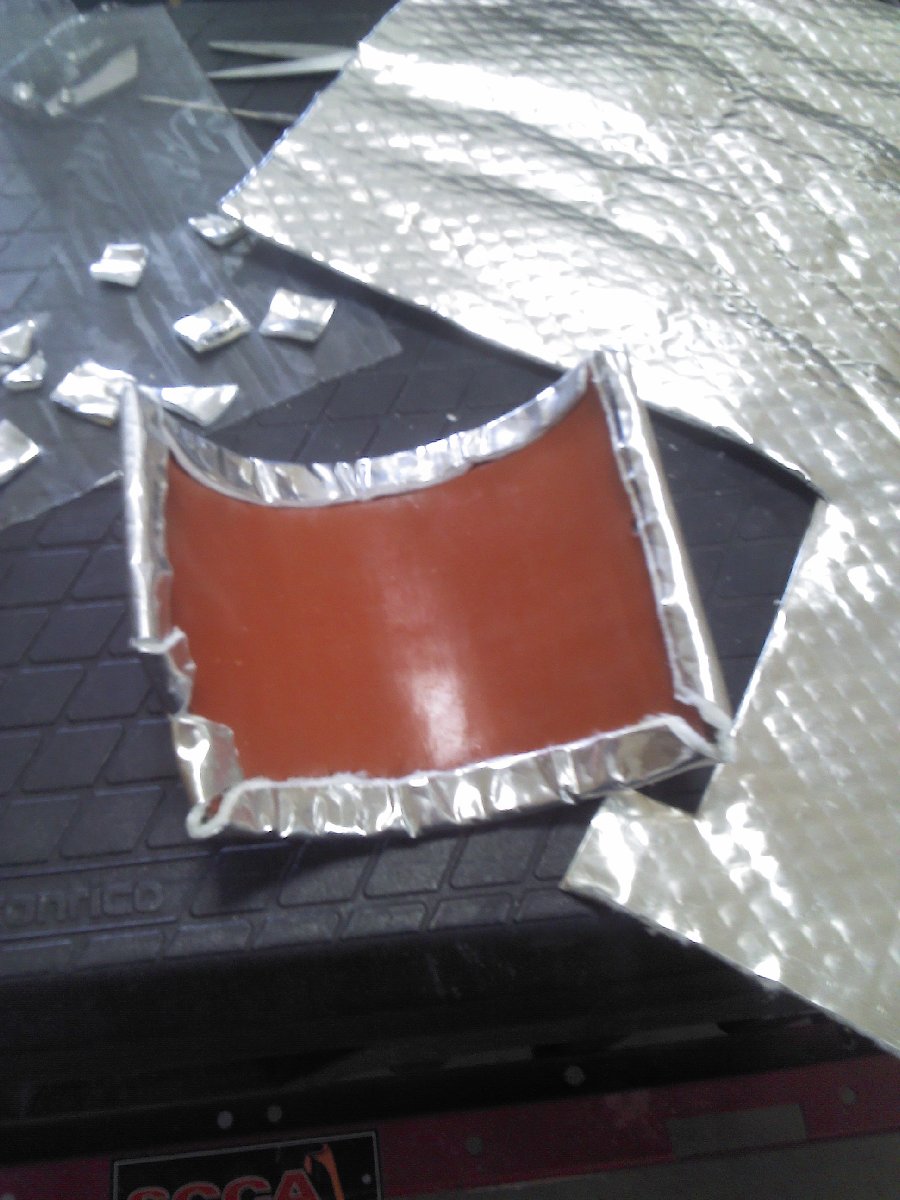

My last AC heatshield cracked, so I made another one from silicone wrapped in aluminum with fiberglass insulation.

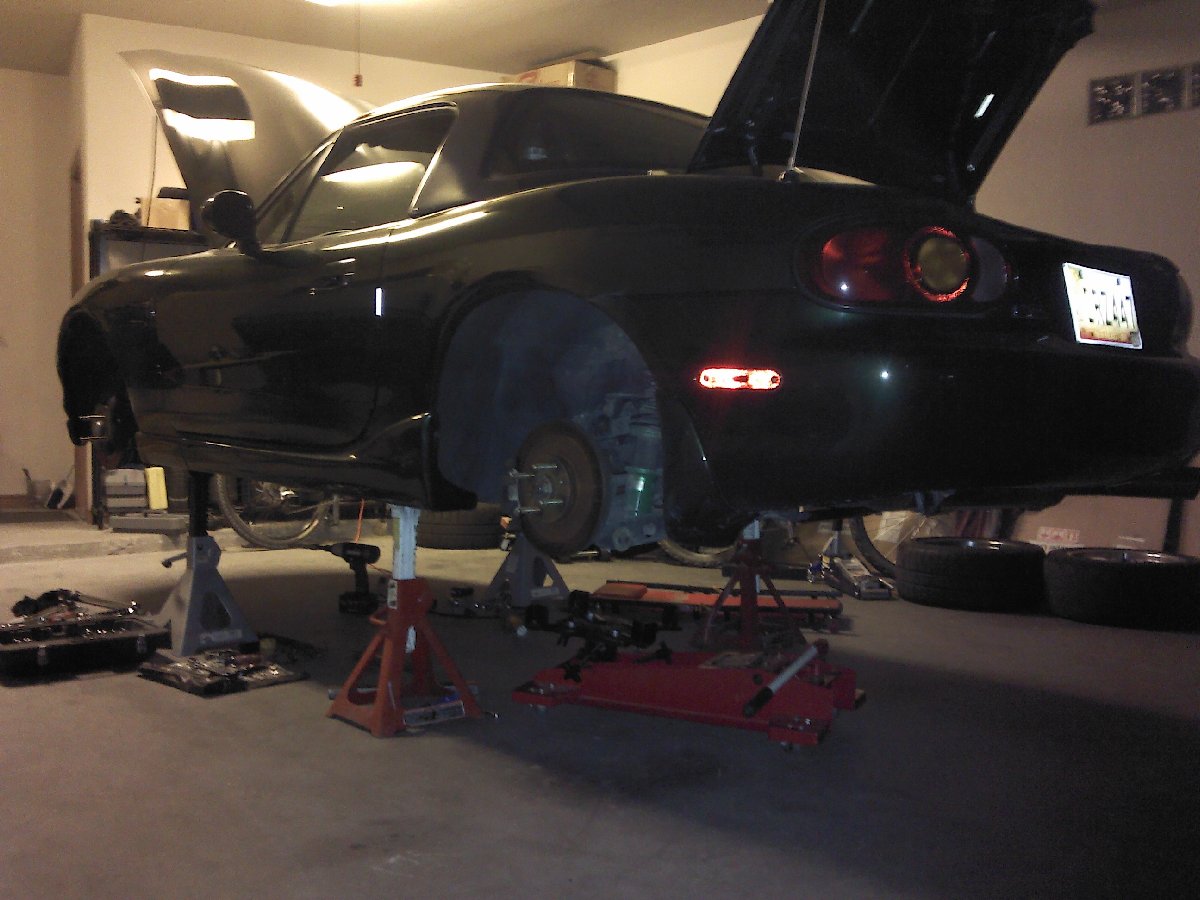

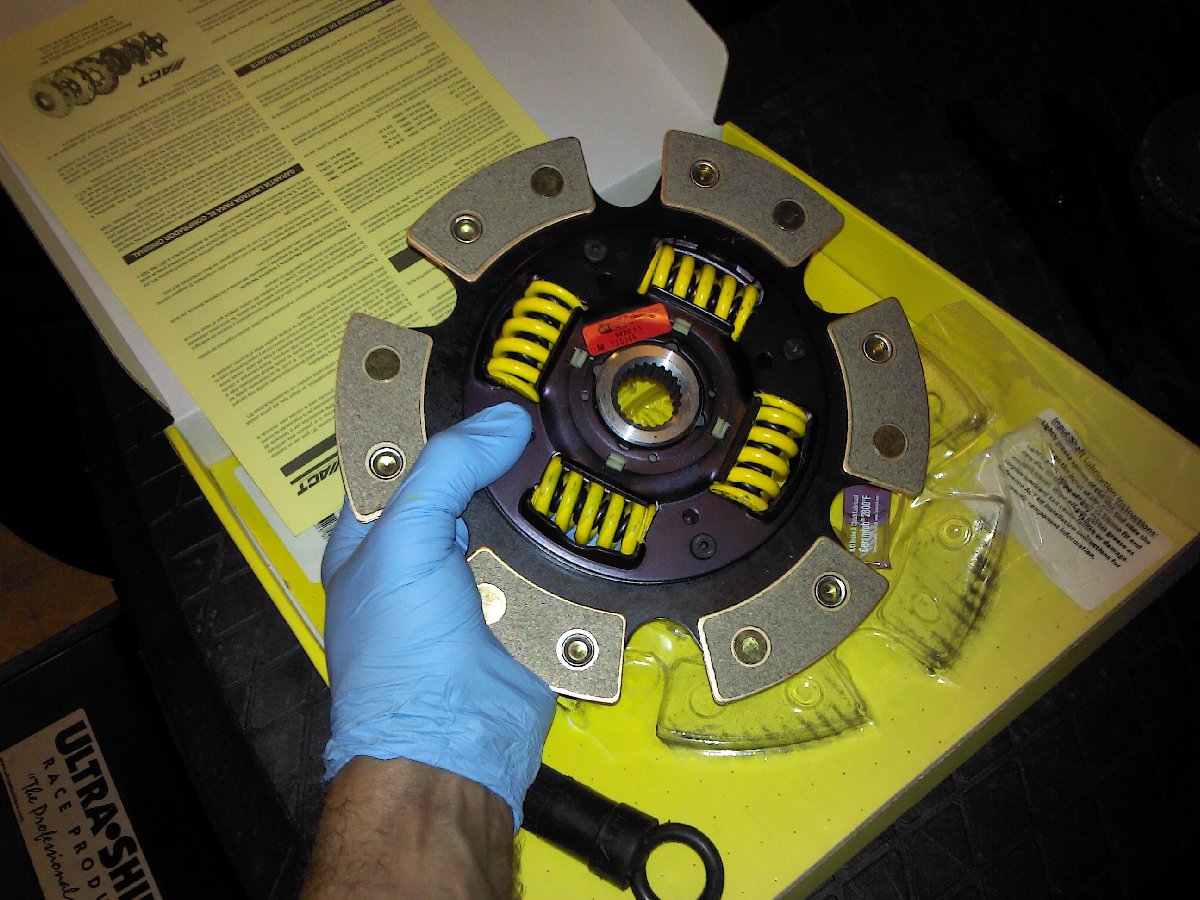

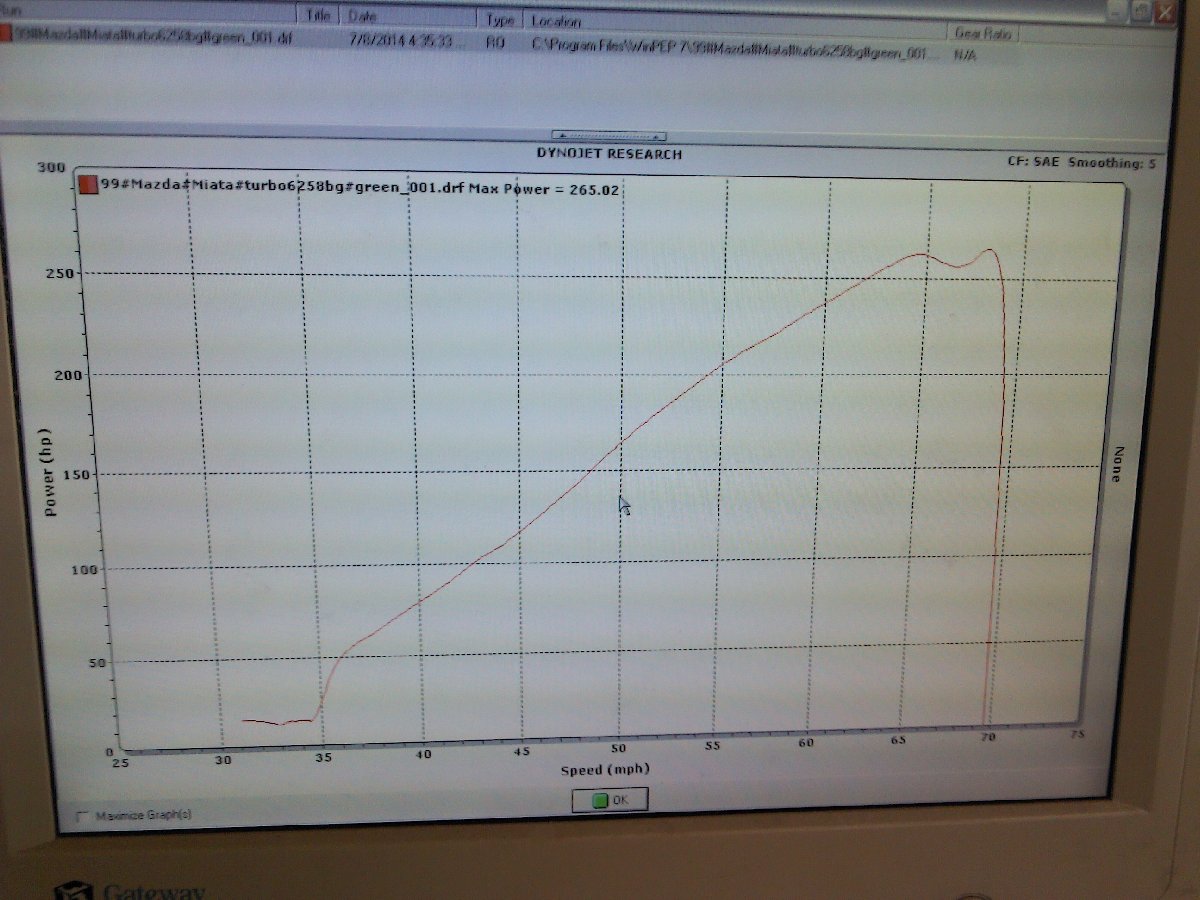

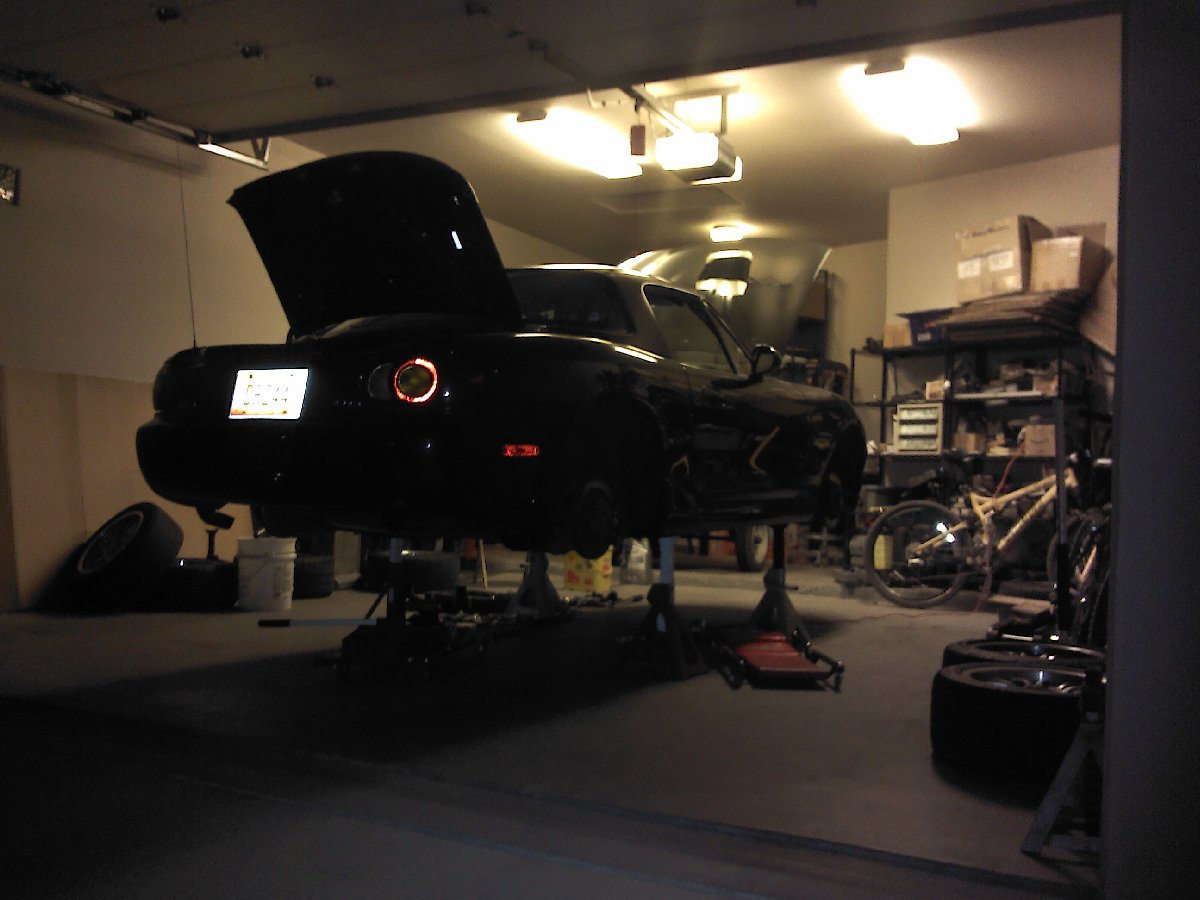

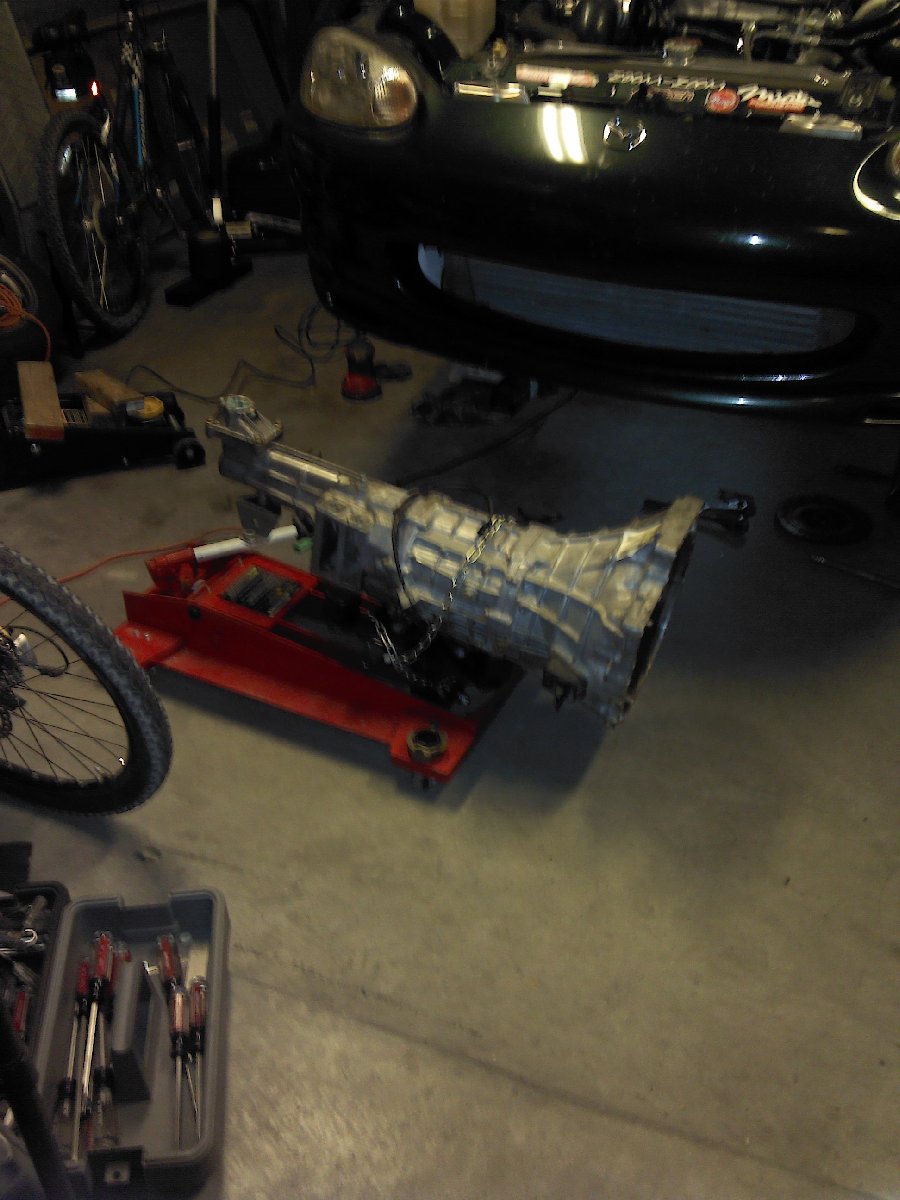

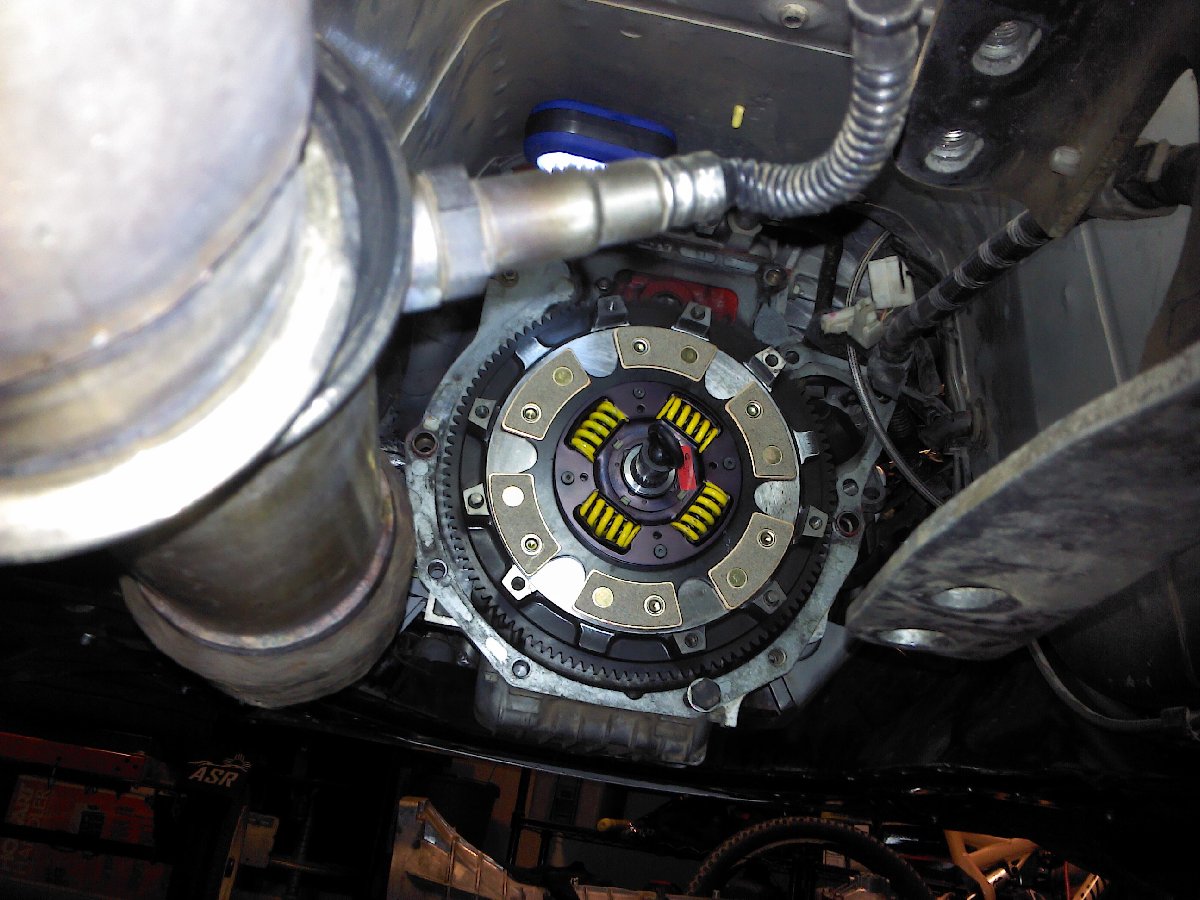

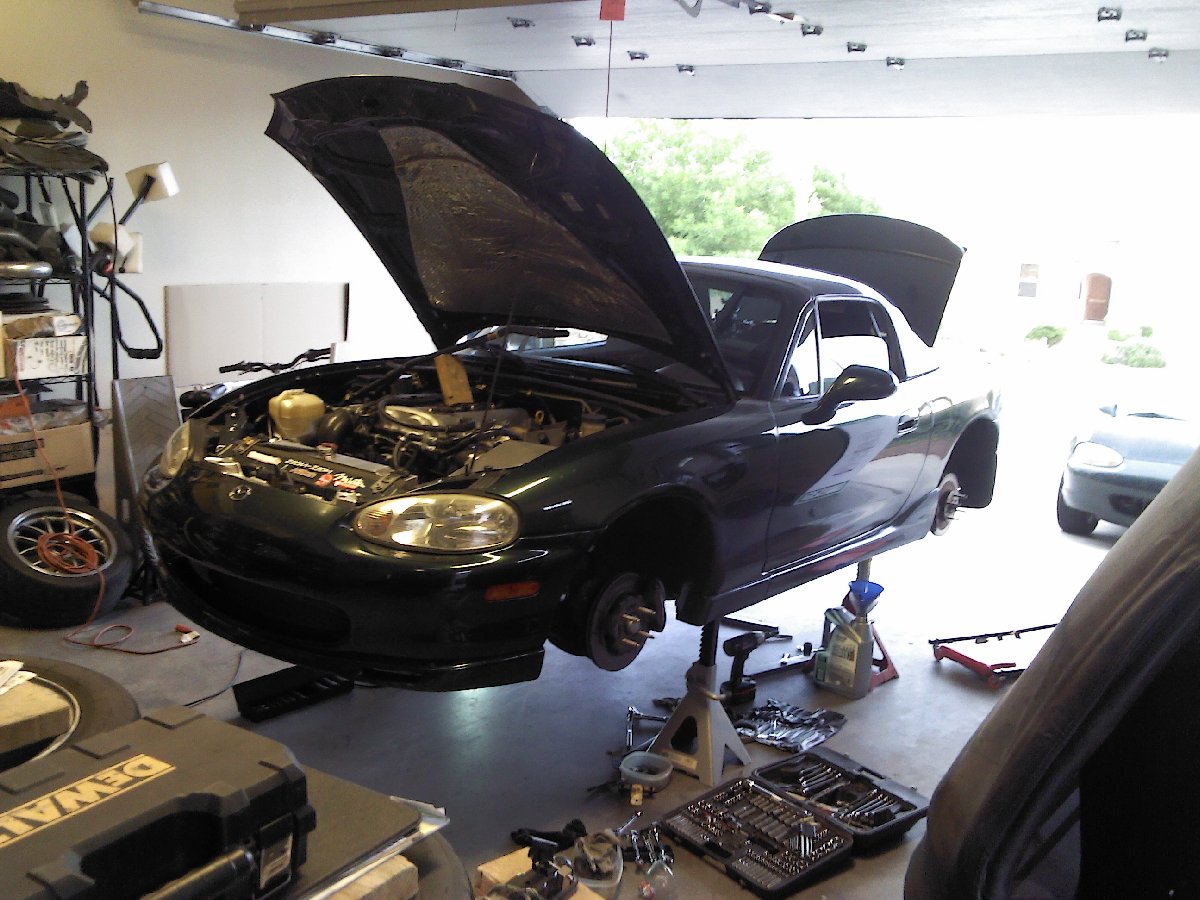

I tried to dyno the car on a Dynojet but the clutch slipped on the dyno, so I changed the clutch disk and swapped the transmission to a spare that I had that was newer. Here is how far I got before the clutch slipped. It slipped at 4K RPM.















The Forge wastegate actuator also failed. the actuator shaft threaded out of the housing and the threads were worn so I swapped in the stock EFR actuator. I also figured out the EBC settings and now have it working to my satisfaction. I initially had the EBC settings bleeding boost early then holding boost late and it felt like the turbo spooled late as if I had a big turbo. The turbo now holds boost early on then bleeds late.

The last trackday was a blast. I raced all day with max boost at 23 PSI. The damn car felt like a drift machine. The concept of too much power does exist as it was a challenge to put the power down and control it. I am a bit rich (11ish) at the top end, but will retune for this amount of boost at the next dyno session.

Here are some vids:

First session before adjusting EBC, you can hear the boost bleed early with a fluttering sound.



Night time attack. My headlights are crap. You can see me flipping high and low beams to try to see more of the track:



Boost gauge video to show boost response:




Edit: If the videos don't show or say "unavailable" click on the youtube icon to view in youtube. They should be available when processing is completed.
Attached Thumbnails
99mx5 EFR build-img_20140621_165606.jpg   99mx5 EFR build-img_20140621_184123.jpg   99mx5 EFR build-img_20140708_154234.jpg   99mx5 EFR build-img_20140712_194913.jpg   99mx5 EFR build-img_20140712_211250.jpg

99mx5 EFR build-img_20140712_213352.jpg   99mx5 EFR build-img_20140712_222225.jpg   99mx5 EFR build-img_20140712_232432.jpg   99mx5 EFR build-img_20140712_232450.jpg

Last edited by 99mx5; 07-22-2014 at 11:04 PM. Reason: Updated video links
99mx5 is offline   Reply With Quote
Old 07-22-2014, 07:48 AM   #497
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,707
Total Cats: 1,078
Default

What clutches were you using when they slipped? Did you also do proper break in on the newer disk you put in?
shuiend is offline   Reply With Quote
Old 07-22-2014, 01:59 PM   #498
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

I was using a ACT HD with the ACT street disk. I installed it when I had the supercharger, so it's old. The new ACT sprung 6-puck break in procedure is a few hard slips to lap the surface and then you are good to go.

"For organic street discs, we recommend breaking in the clutch for 200-300 miles with mild engagement such as stop-and-go city driving prior to racing or spirited driving. ACT race discs usually only require a few hard slips to lap in the surfaces prior to normal driving or racing. Do not overheat the clutch during the break in period." - FAQ // Advanced Clutch Technology

Edit: Looks like the first two videos are dead. :/ I'll reupload them this evening.

Last edited by 99mx5; 07-22-2014 at 02:56 PM.
99mx5 is offline   Reply With Quote
Old 07-22-2014, 03:56 PM   #499
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

My 6 puck is brutal. If I'm careful I can slip it perfectly, but in parking lots, lots of stop and go I hate life/am embarrassed. Mostly from the clutch chatter when I pull from 1st poorly. I don't want to do it, but it seems to like a very fast 2-2.5k rev clutch dump. Pulls away perfect when I do it like that!

Down the road I'll probably resurface the flywheel and see if that helps. Looks smooth Ari! Mind posting your EBC settings? Trying to dial mine in and need a good comparison.
Jeffbucc is offline   Reply With Quote
Old 07-22-2014, 04:50 PM   #500
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Clutch to hard to slip in the parking lot? Just slip the tires!
thenuge26 is offline   Reply With Quote
