Old 02-17-2015, 12:26 AM   #601
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

I'm digging that exhaust note.
Schuyler is offline   Reply With Quote
Old 02-17-2015, 12:37 AM   #602
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

Quote:
Originally Posted by EO2K View Post
Much more dramas in that one

So I've gotta ask, do you still have the template for your air filter box?

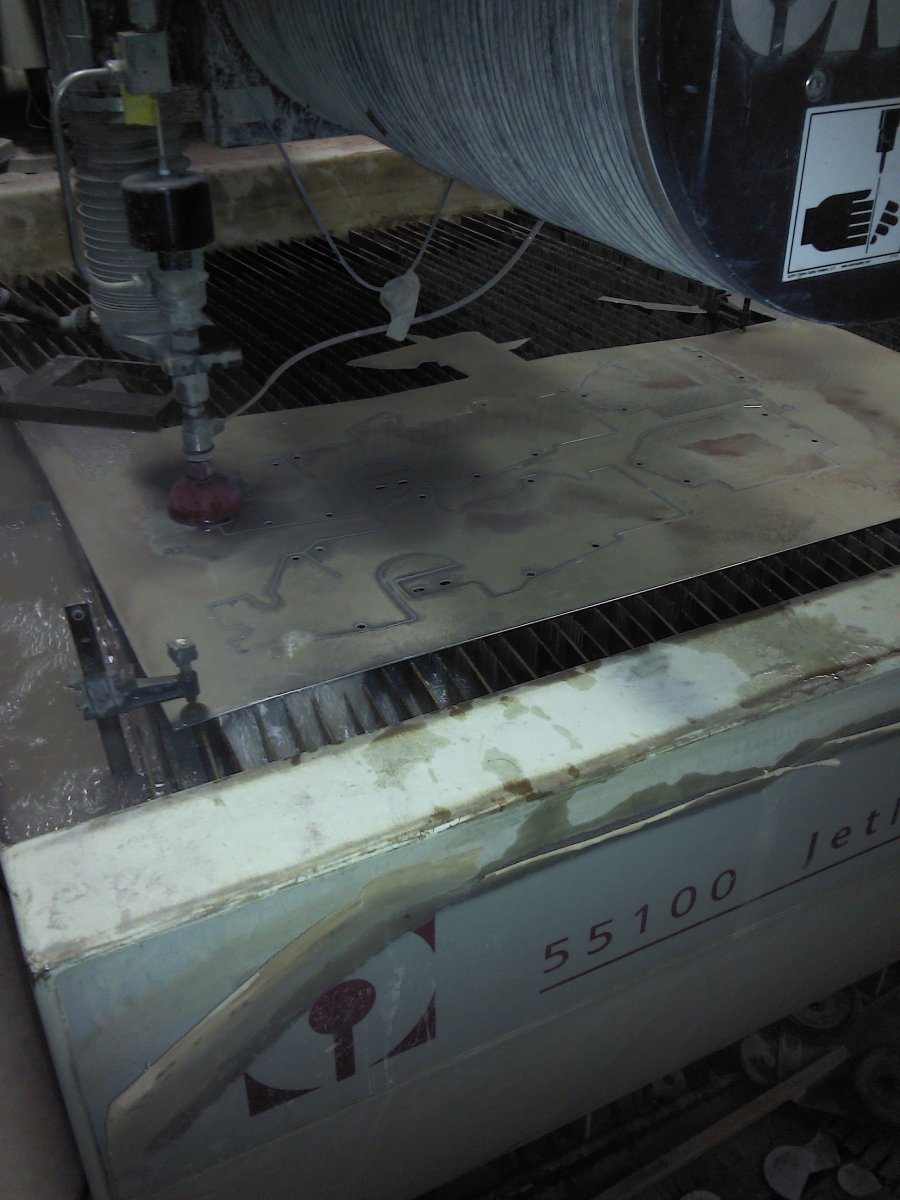

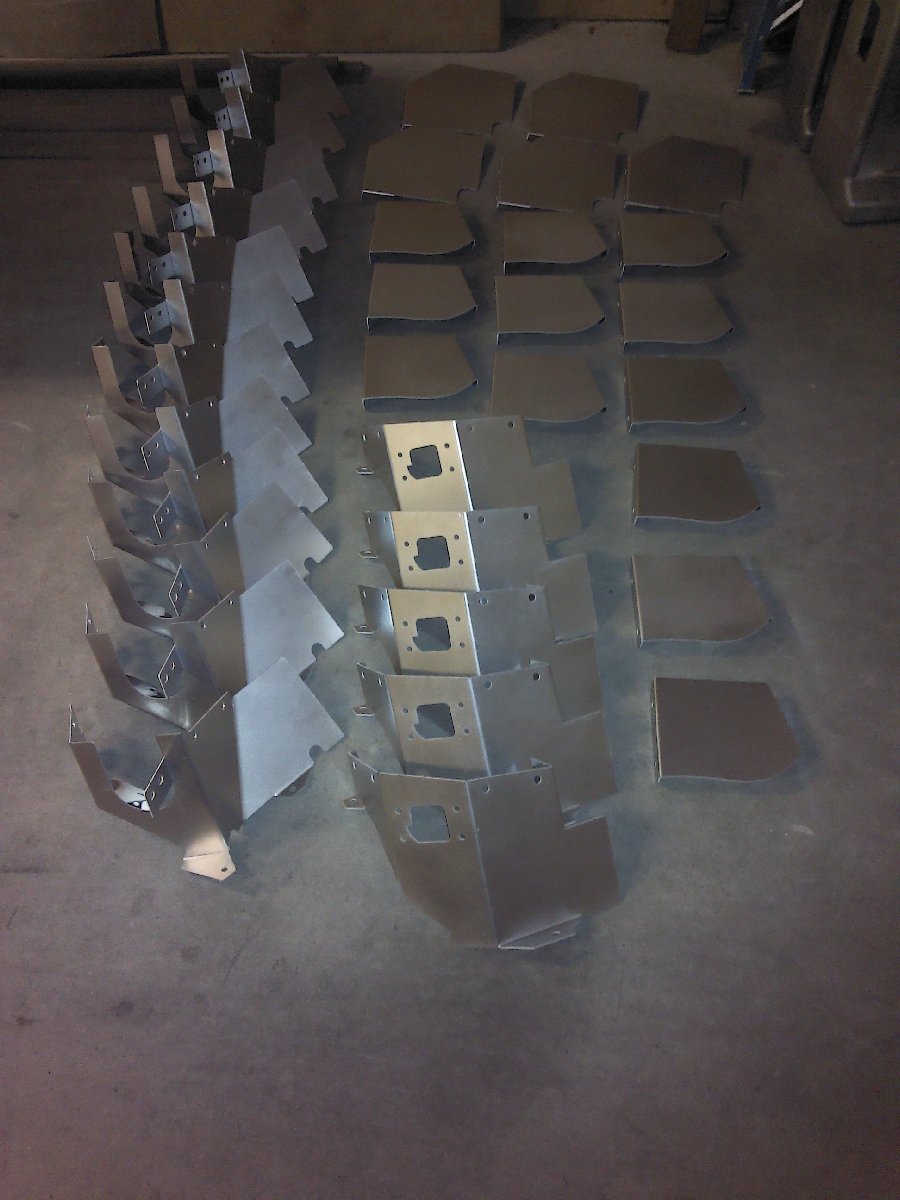

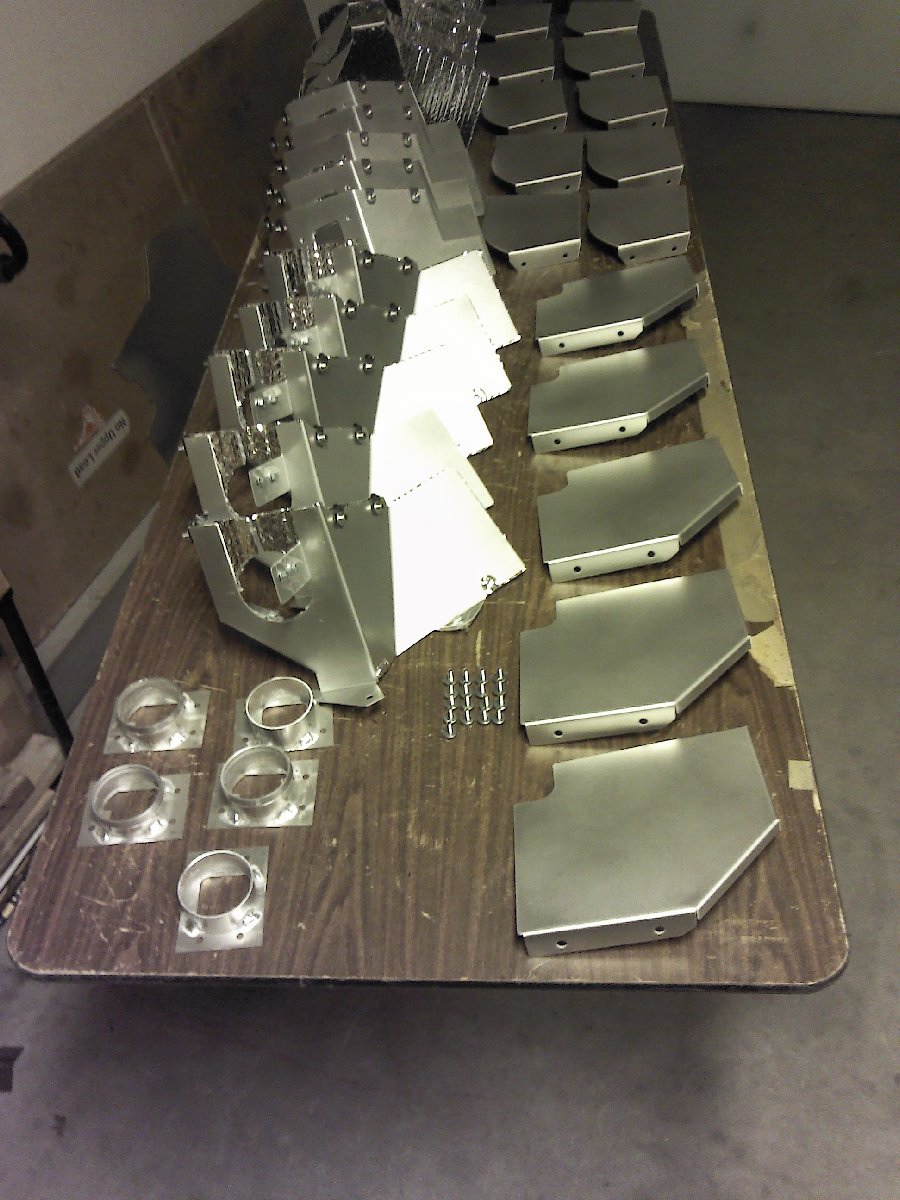

I think so. I was playing with the idea of making boxes and offering them up for sale if there was any interest. This box was hand made, but the ones I make in quantity are cut with a water jet.





Attached Thumbnails
99mx5 EFR build-img_20140203_190204.jpg   99mx5 EFR build-img_20140206_224121.jpg   99mx5 EFR build-img_20140211_222715.jpg
99mx5 is offline   Reply With Quote
Old 02-17-2015, 01:03 AM   #603
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,595
Total Cats: 936
Default

Sweet jesus just take my money You know I'm in for a set.
EO2K is offline   Reply With Quote
Old 02-17-2015, 01:11 AM   #604
Junior Member

Join Date: Apr 2011
Location: Las Cruces, NM
Posts: 255
Total Cats: 11
Default

Ari's box is meticulously maintained and quite amazing.
Stock is offline   Reply With Quote
Old 02-17-2015, 01:43 AM   #605
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Very much interested in a shipped $ on that.
Schuyler is offline   Reply With Quote
Old 02-17-2015, 09:11 AM   #606
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,757
Total Cats: 2,494
Default

ohh YES!!

I'm interested in one as well. (for MSM fitment)

Last edited by 18psi; 02-17-2015 at 09:37 AM.
18psi is offline   Reply With Quote
Old 02-17-2015, 09:27 AM   #607
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Seven Valleys, PA
Posts: 638
Total Cats: 10
Default

Holy hell those air boxes are nice! You deleted your PS didn't you... I would take one off your hands if I could fit the PS reservoir around it.
swimming108 is offline   Reply With Quote
Old 02-17-2015, 09:36 AM   #608
Junior Member

Join Date: Apr 2011
Location: Las Cruces, NM
Posts: 255
Total Cats: 11
Default

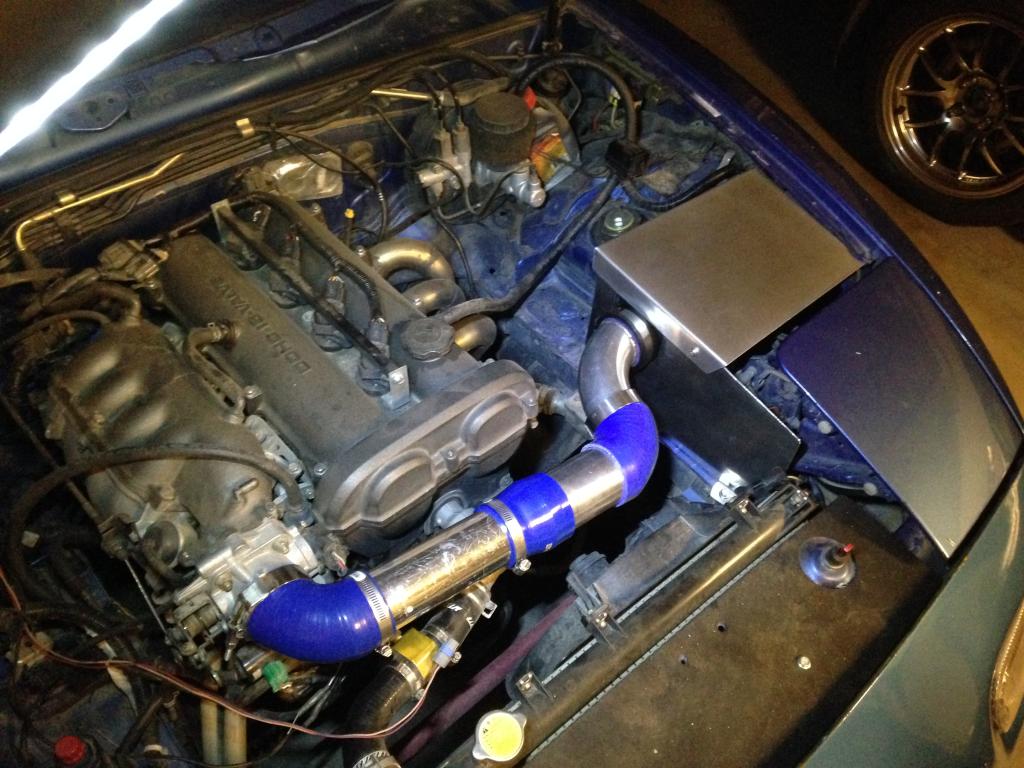

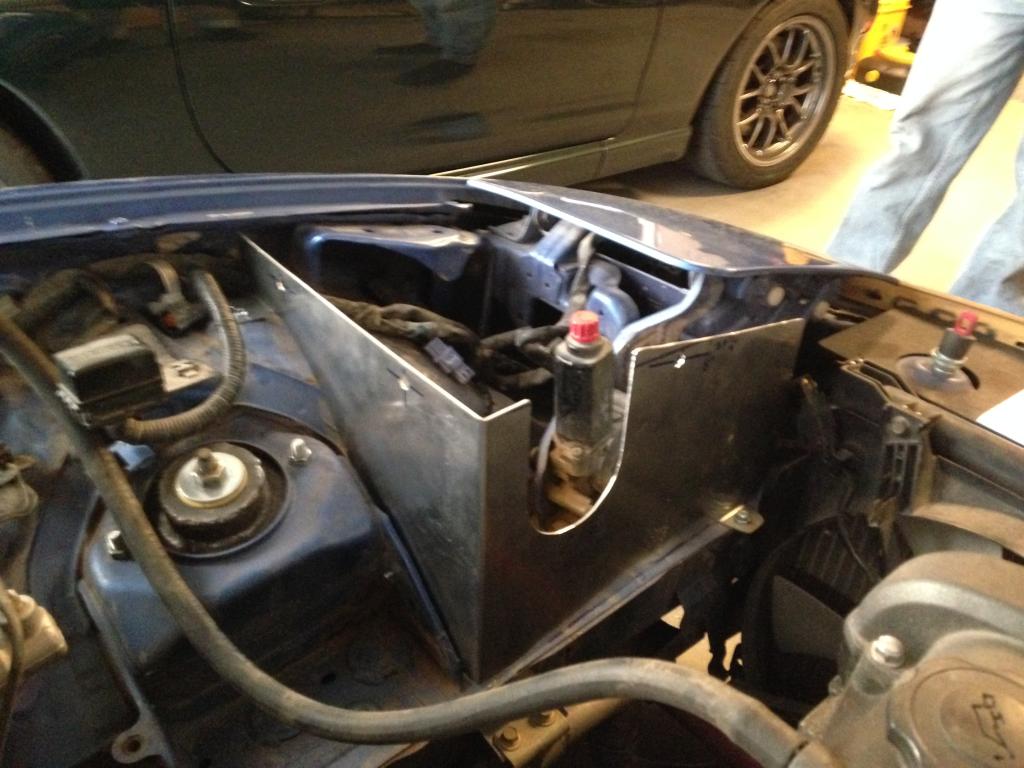

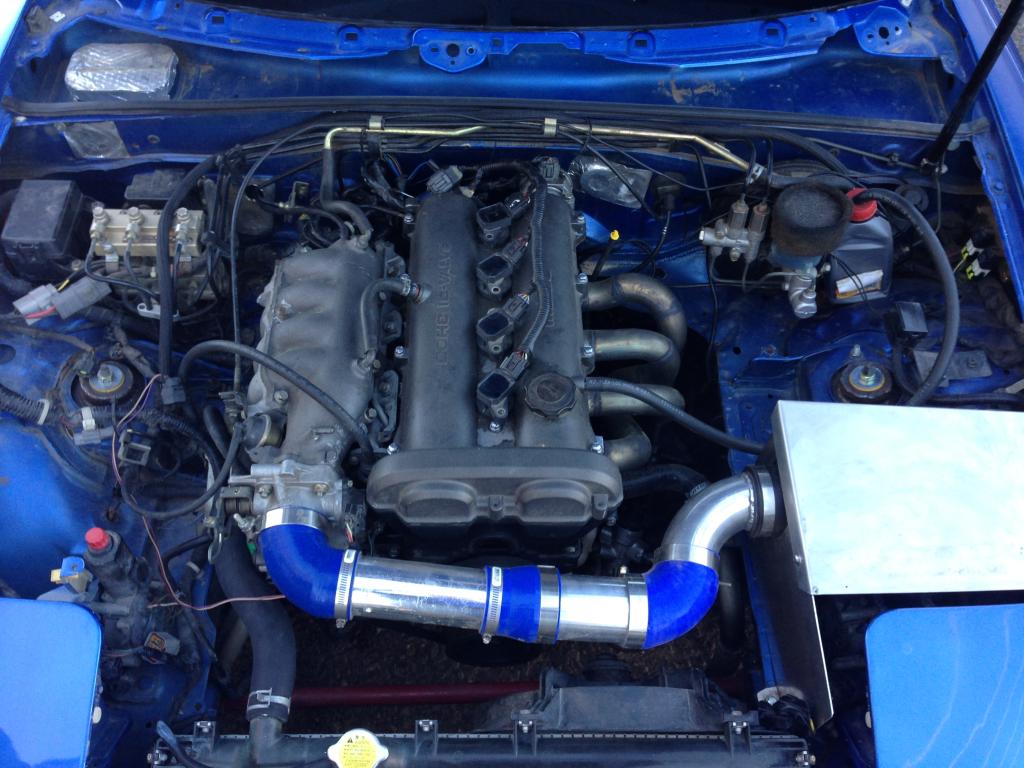

Here's one he built me almost literally using scrap from his garage:







He accidentally makes rad things.
Attached Thumbnails
99mx5 EFR build-89969784-baf2-4d9f-be2a-a43112457371_zpsjpxcukkx.jpg   99mx5 EFR build-47569309-e21c-4efe-9582-f93d71c99a09_zpscvzqfrxs.jpg   99mx5 EFR build-10dd7894-c199-4622-84b6-f0838b79356a_zpsqxytnoso.jpg
Stock is offline   Reply With Quote
Old 03-09-2015, 07:05 PM   #609
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

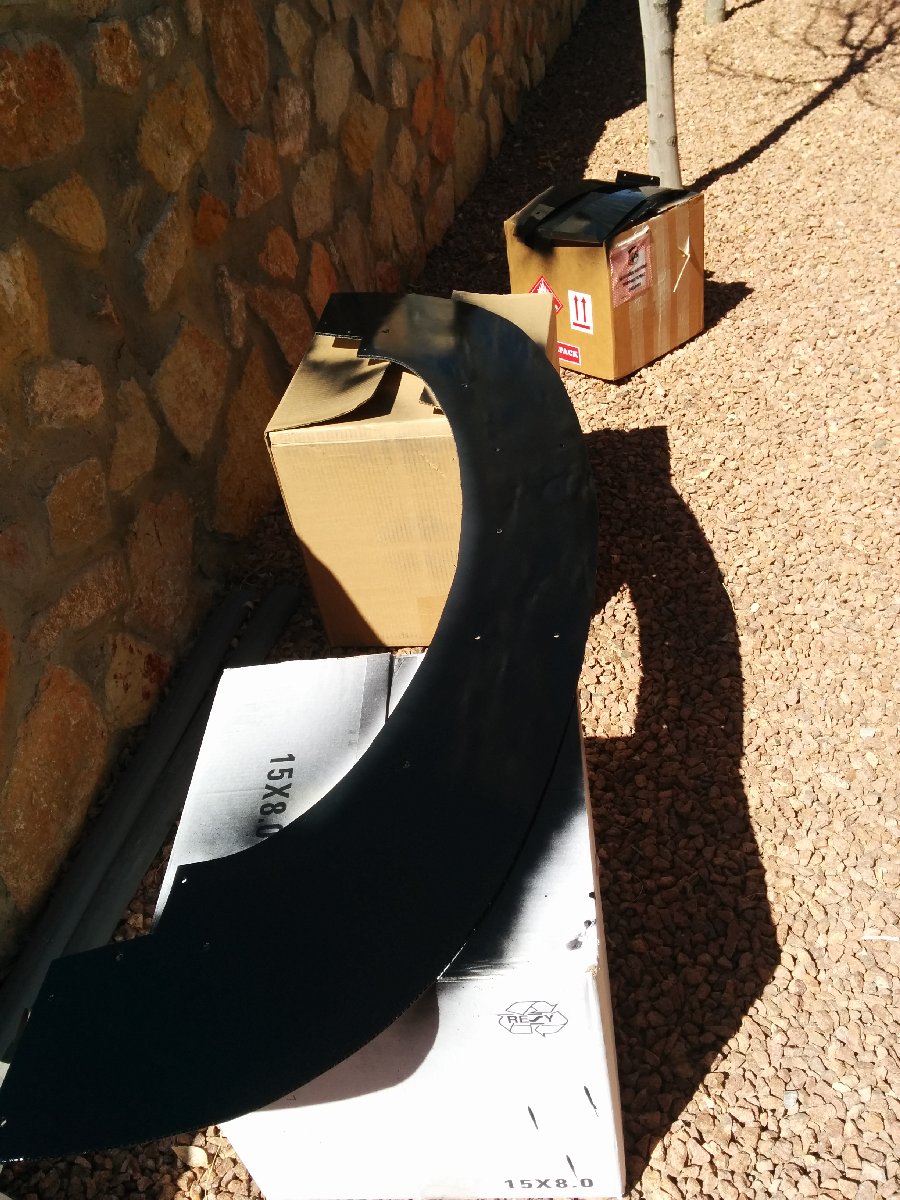

More progress. I'm prepping the car for the next track day / race season. My focus is wheels and tires, add a splitter to complement the wing, add brake cooling and upgrade brakes.

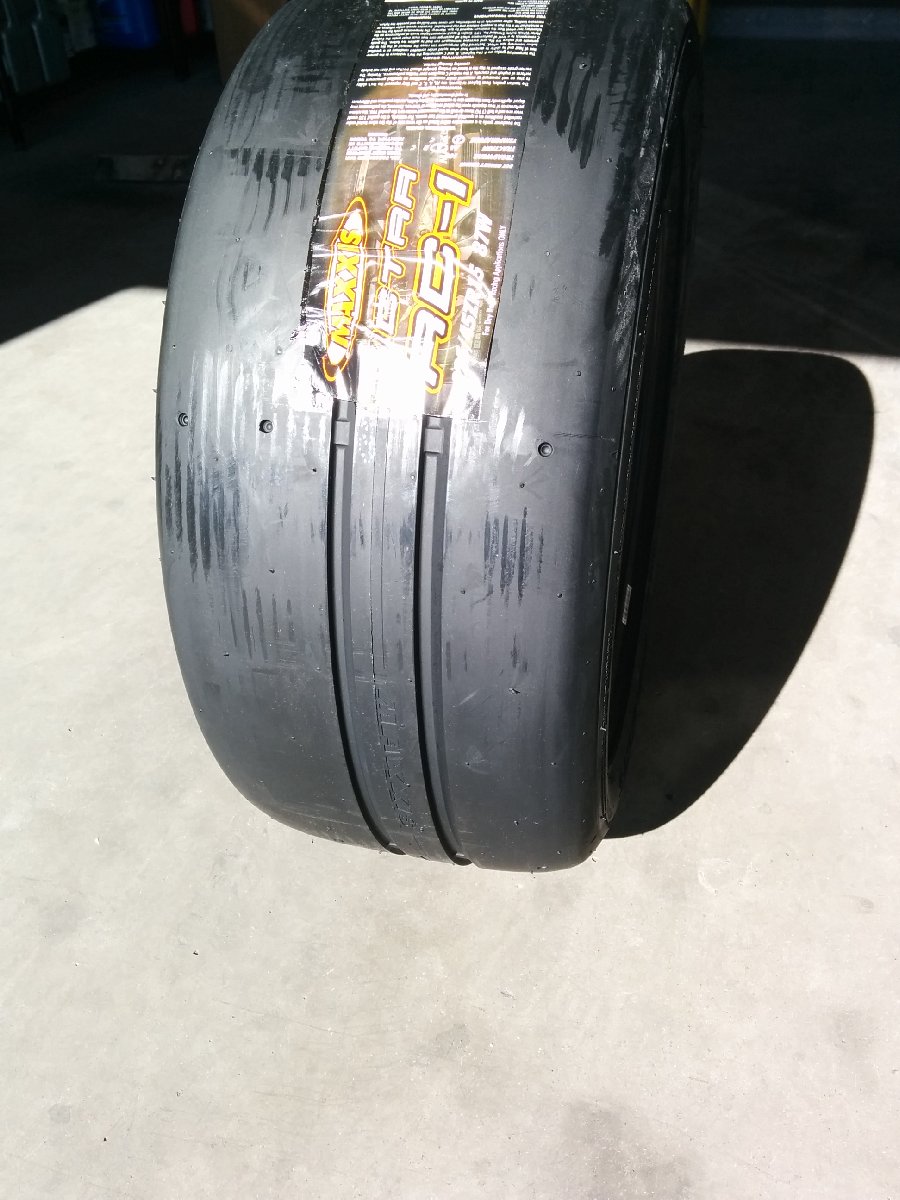

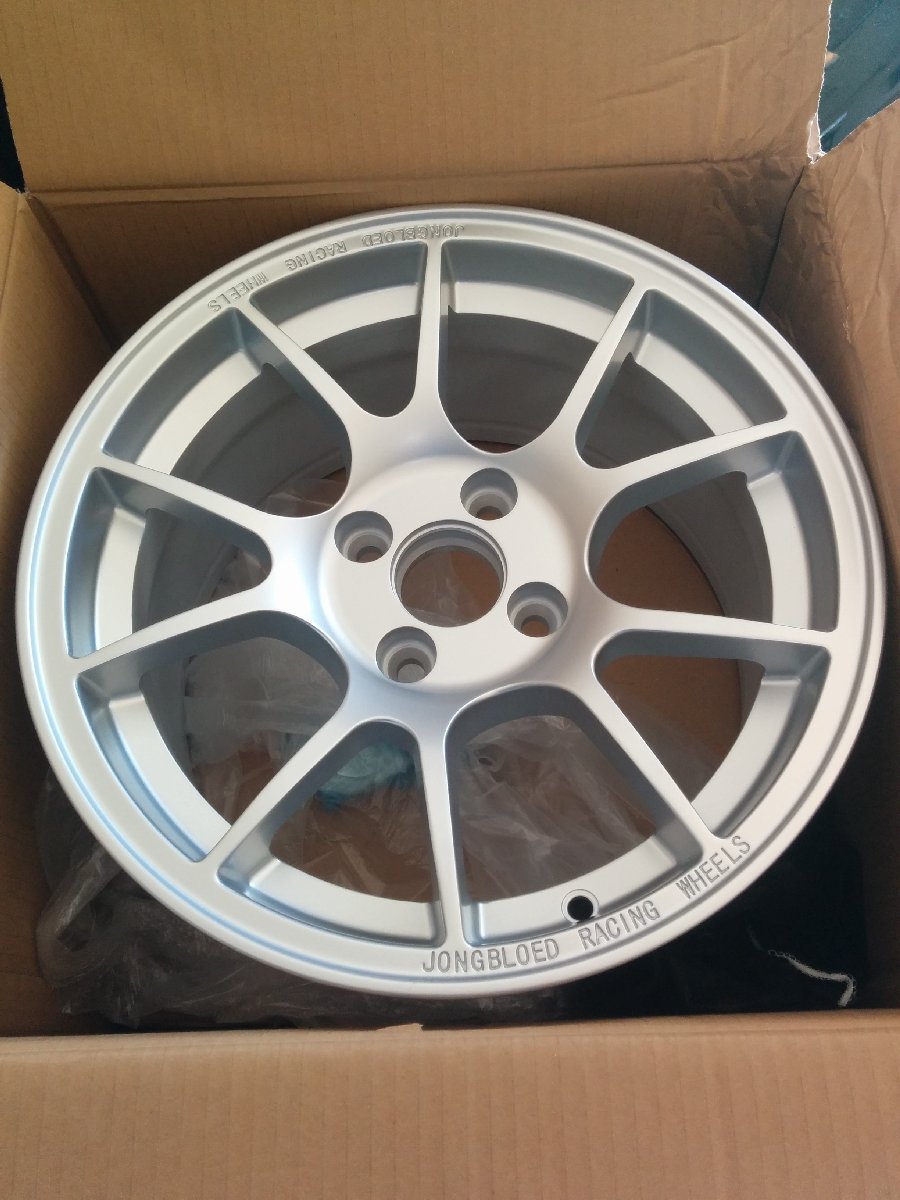

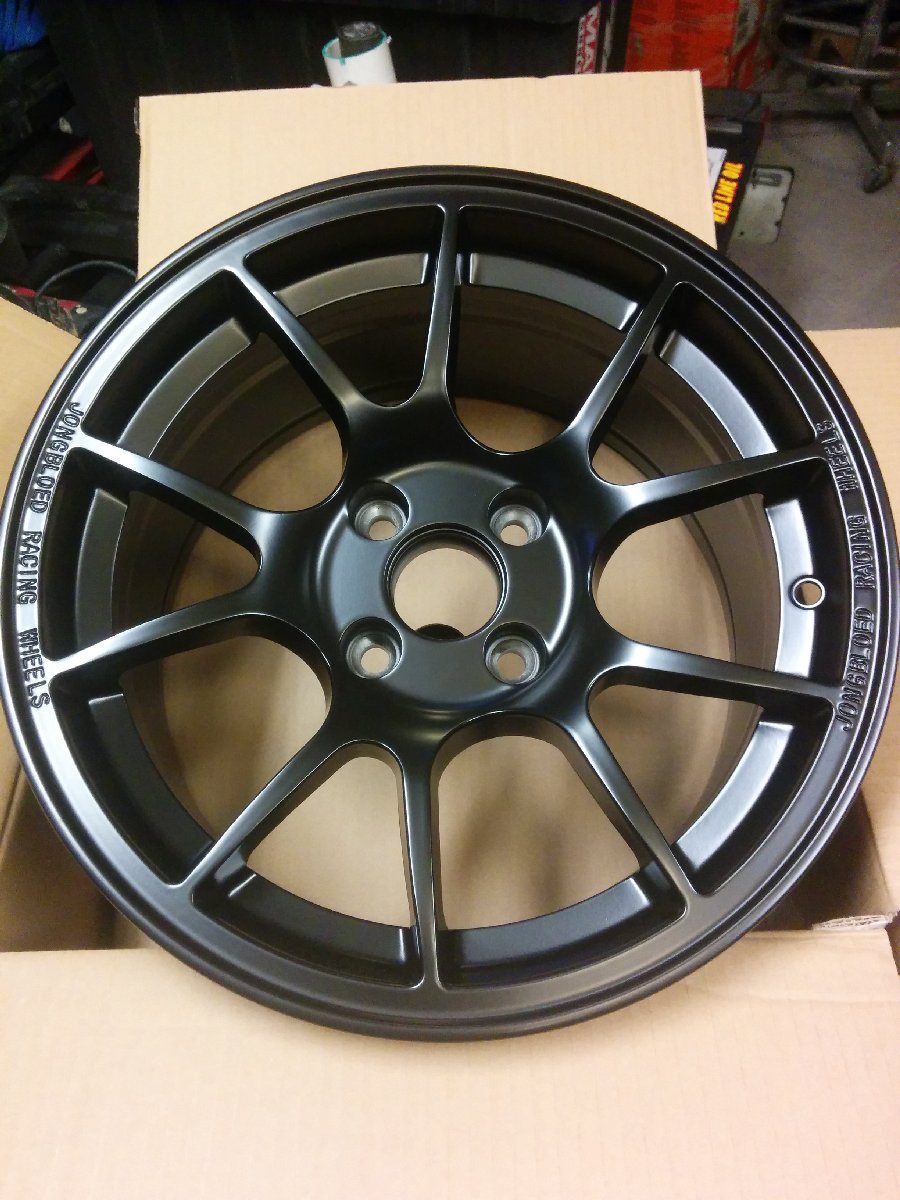

I ordered a set of Maxxis 225/45-15 Victra RC-1 tires and Jongbloed 15 x 8 wheels. Black wheels for the track and silver for the street.

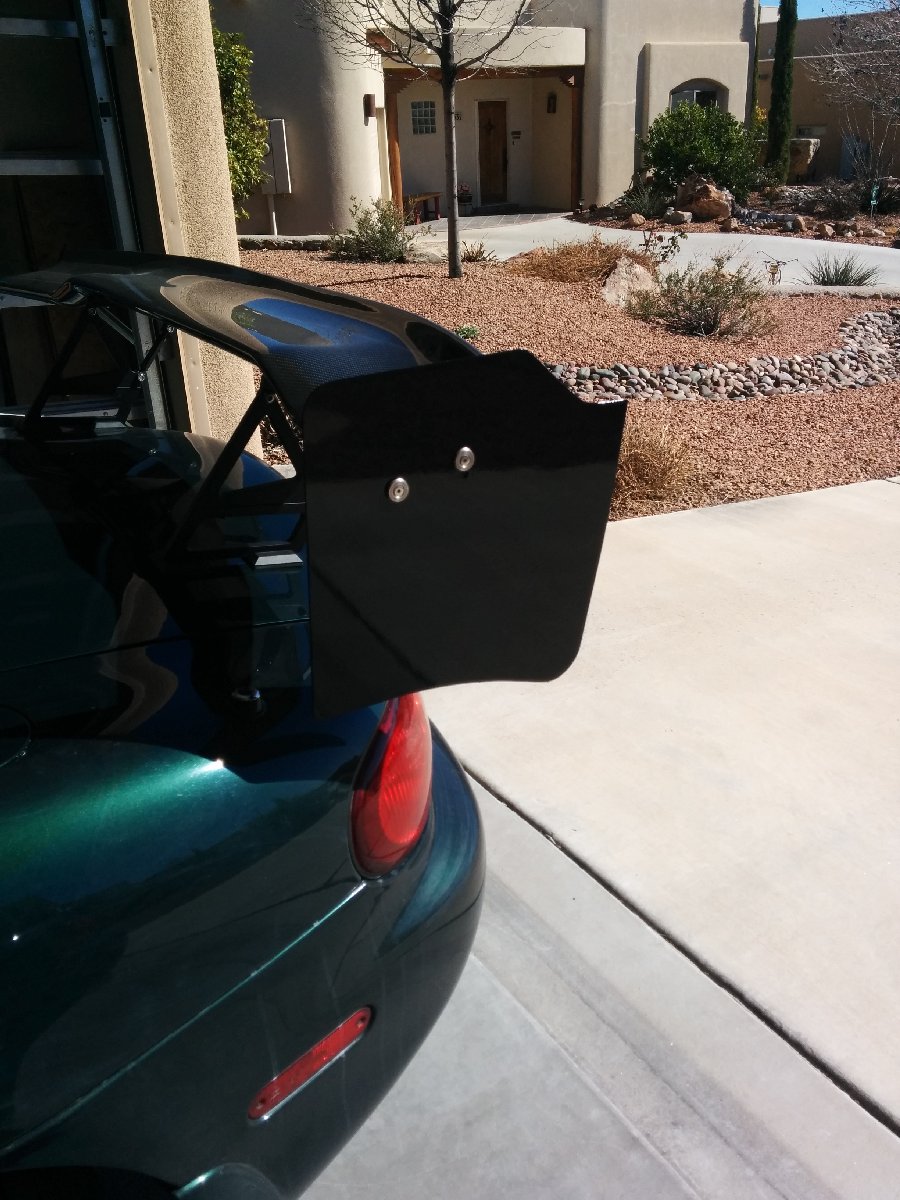

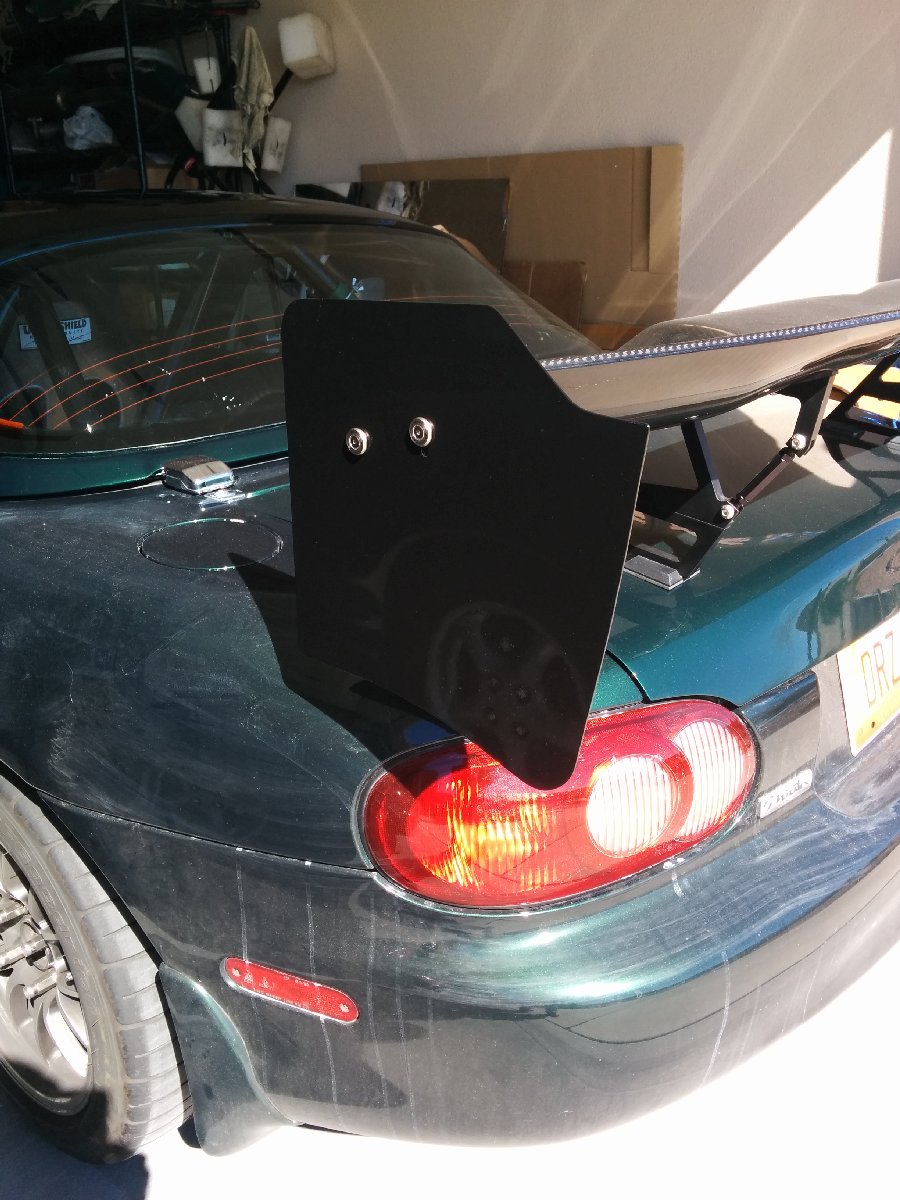

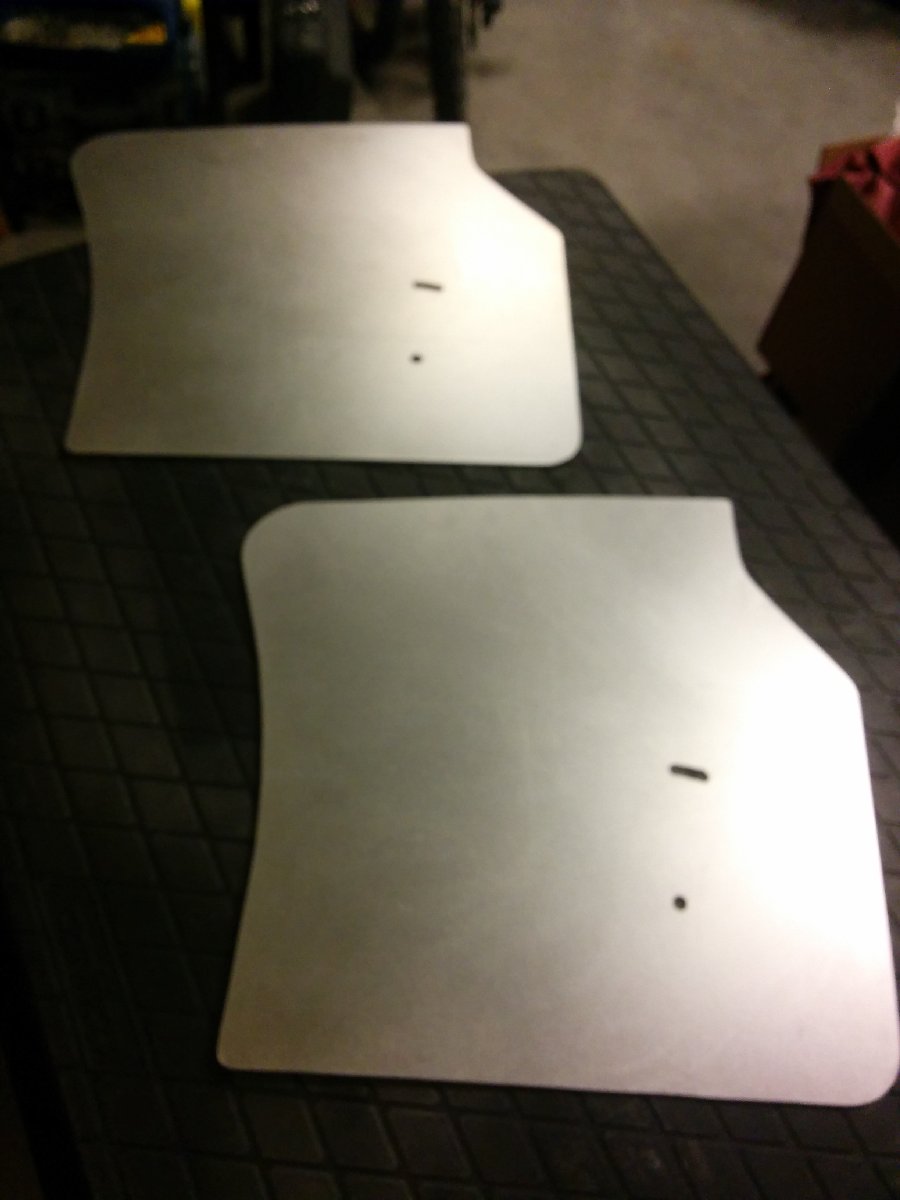

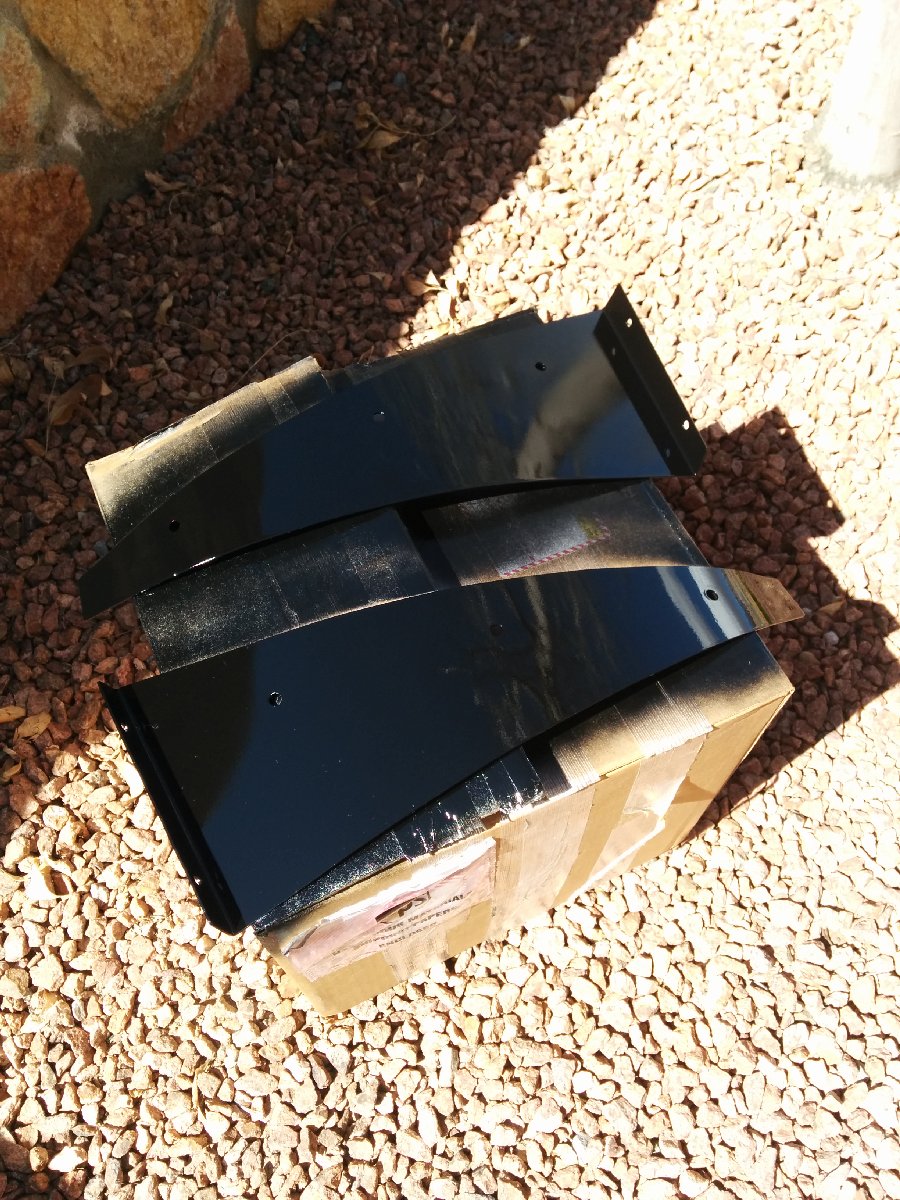

I also made a set of side plates for the wing.

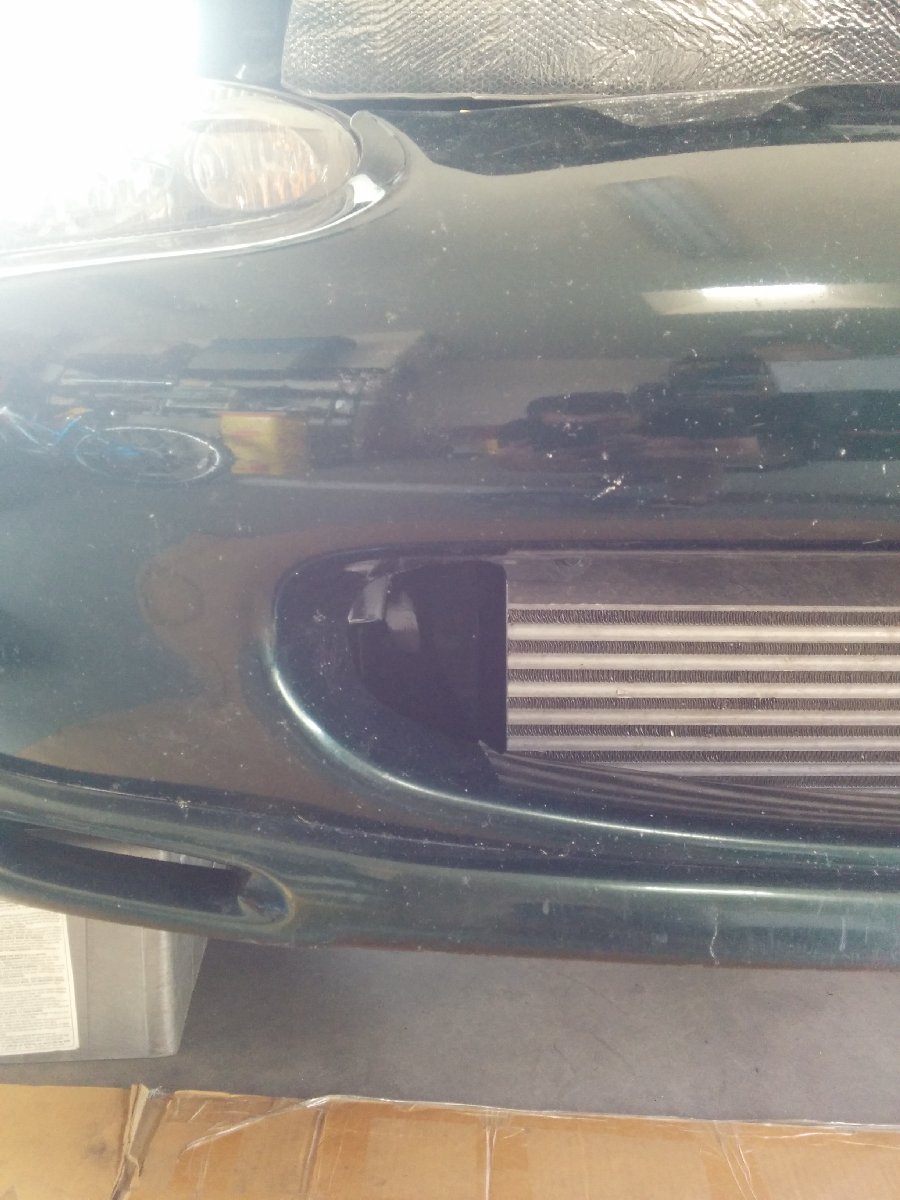

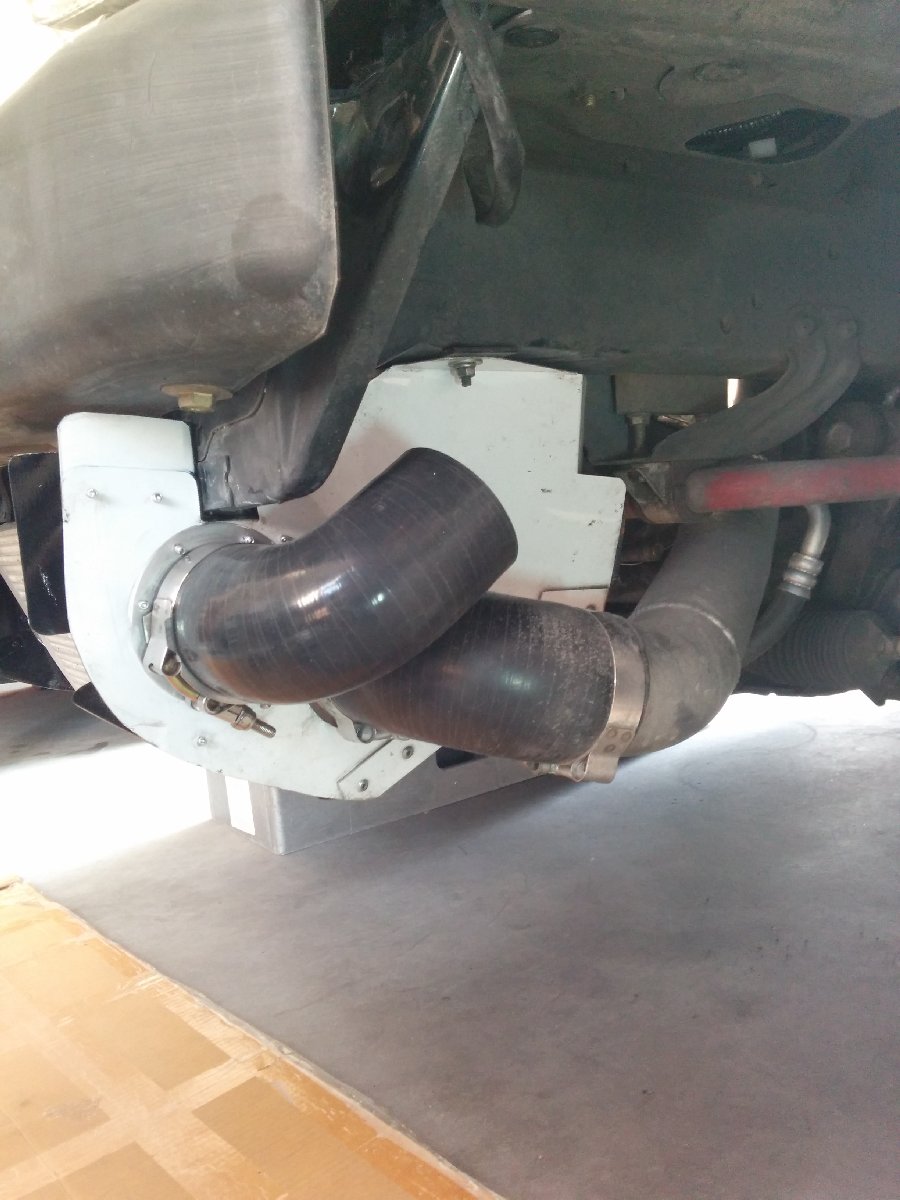

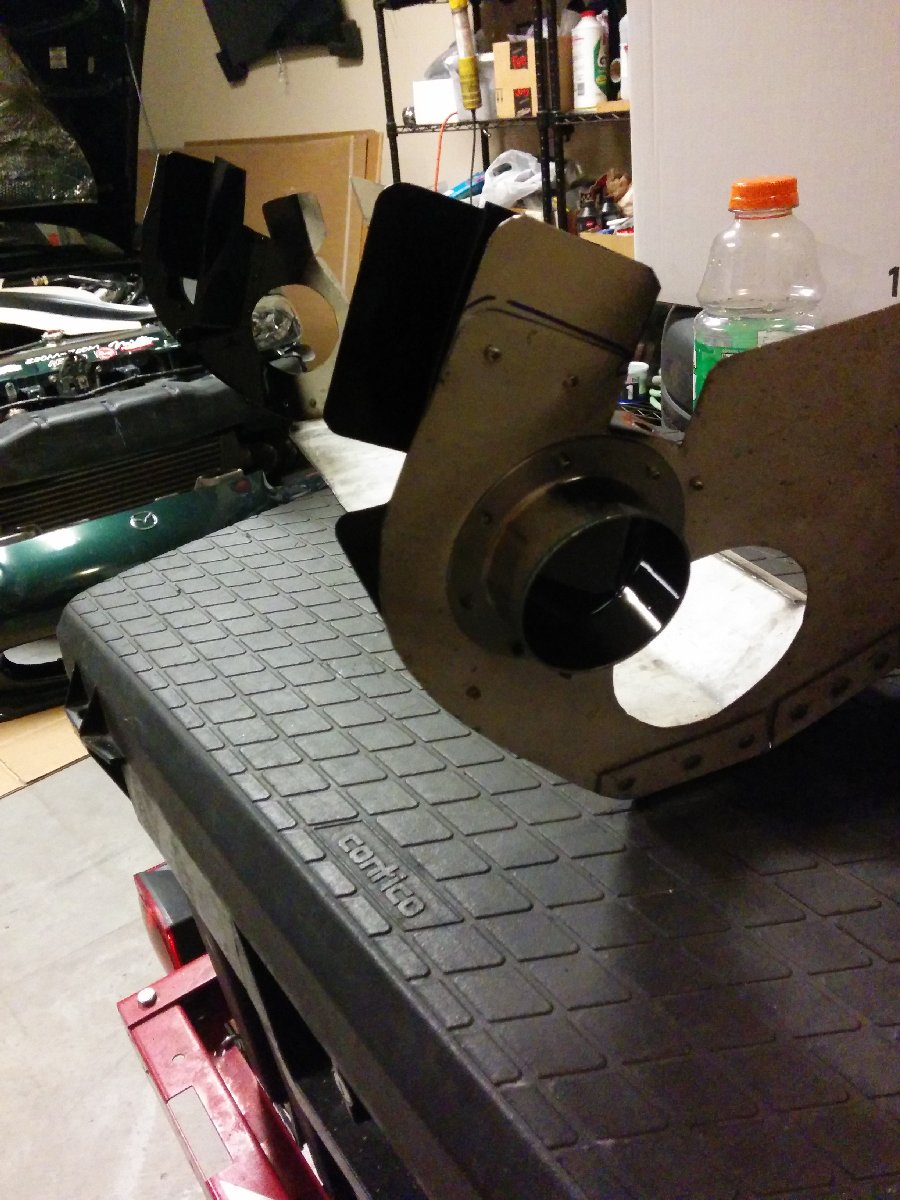

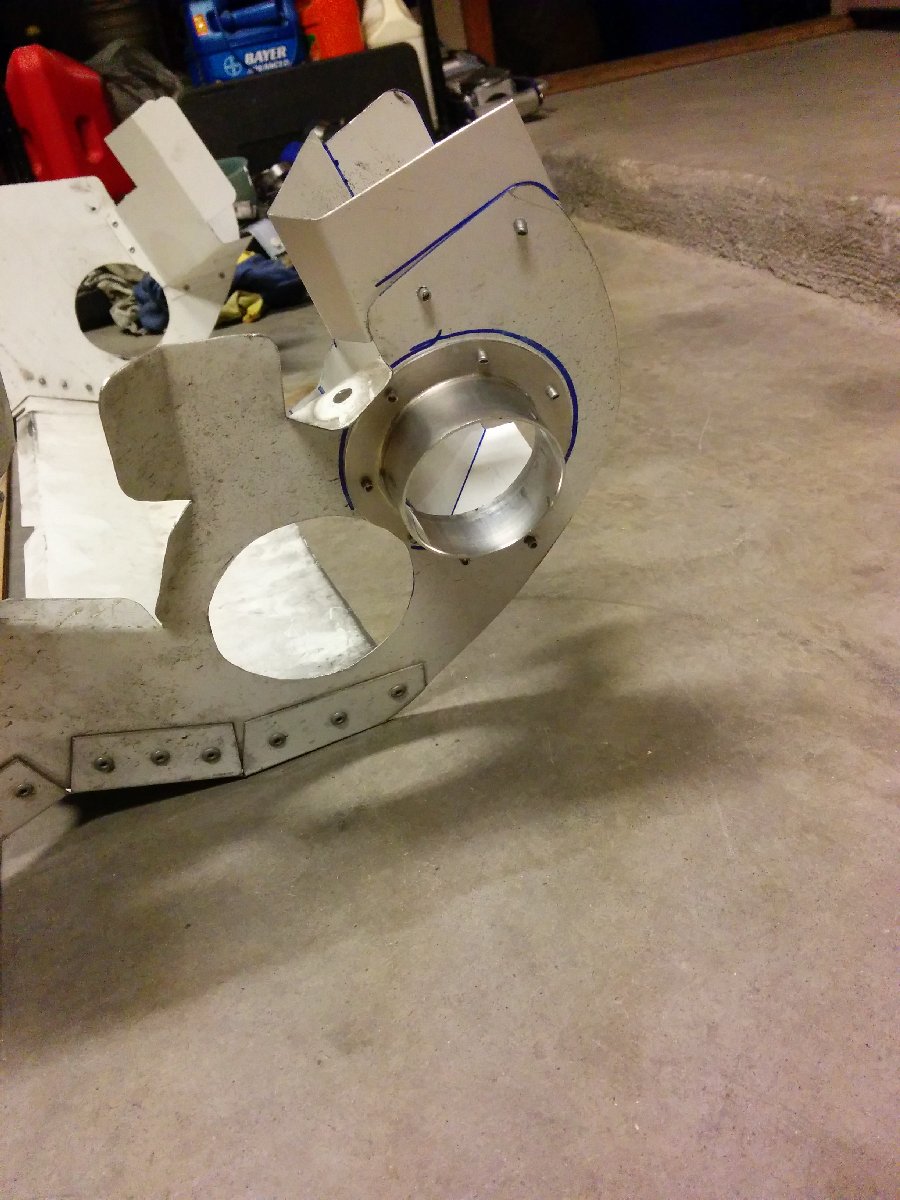

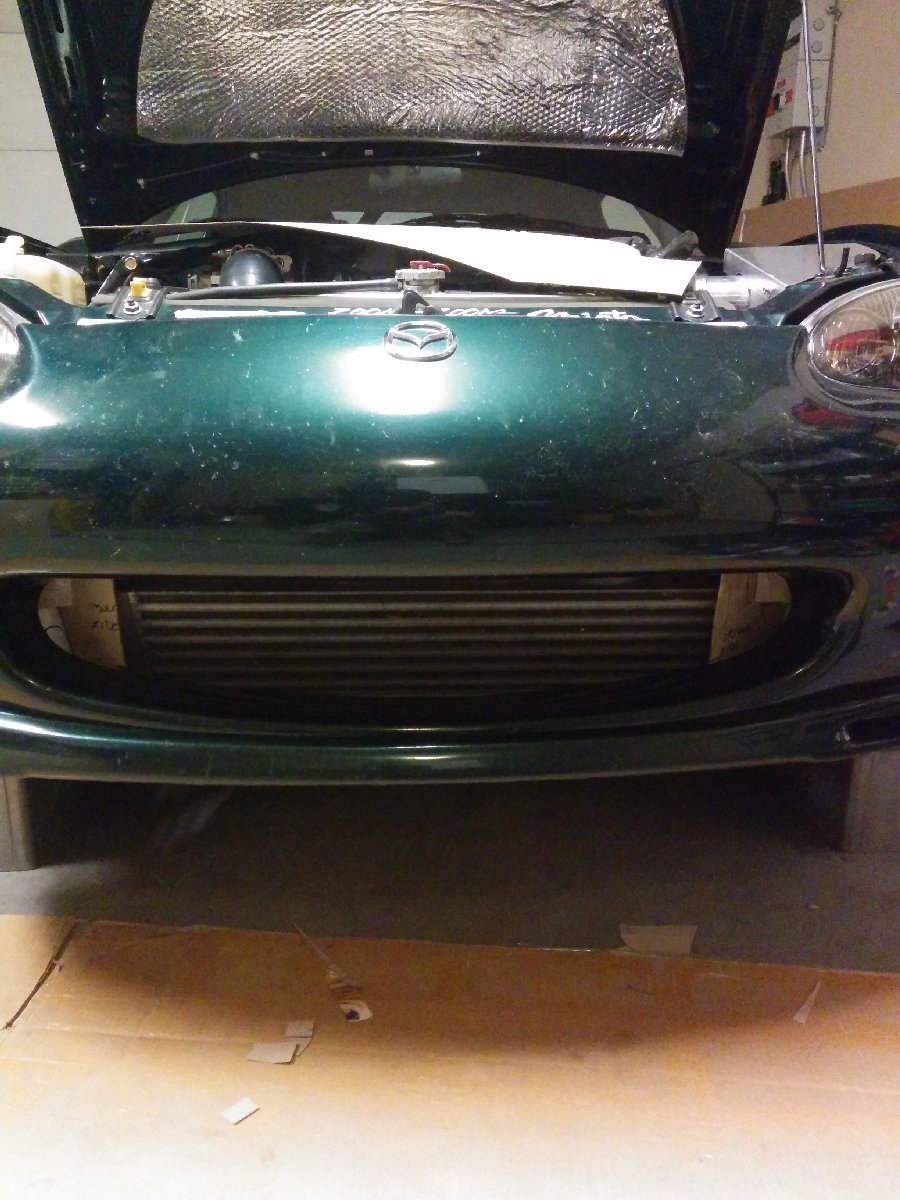

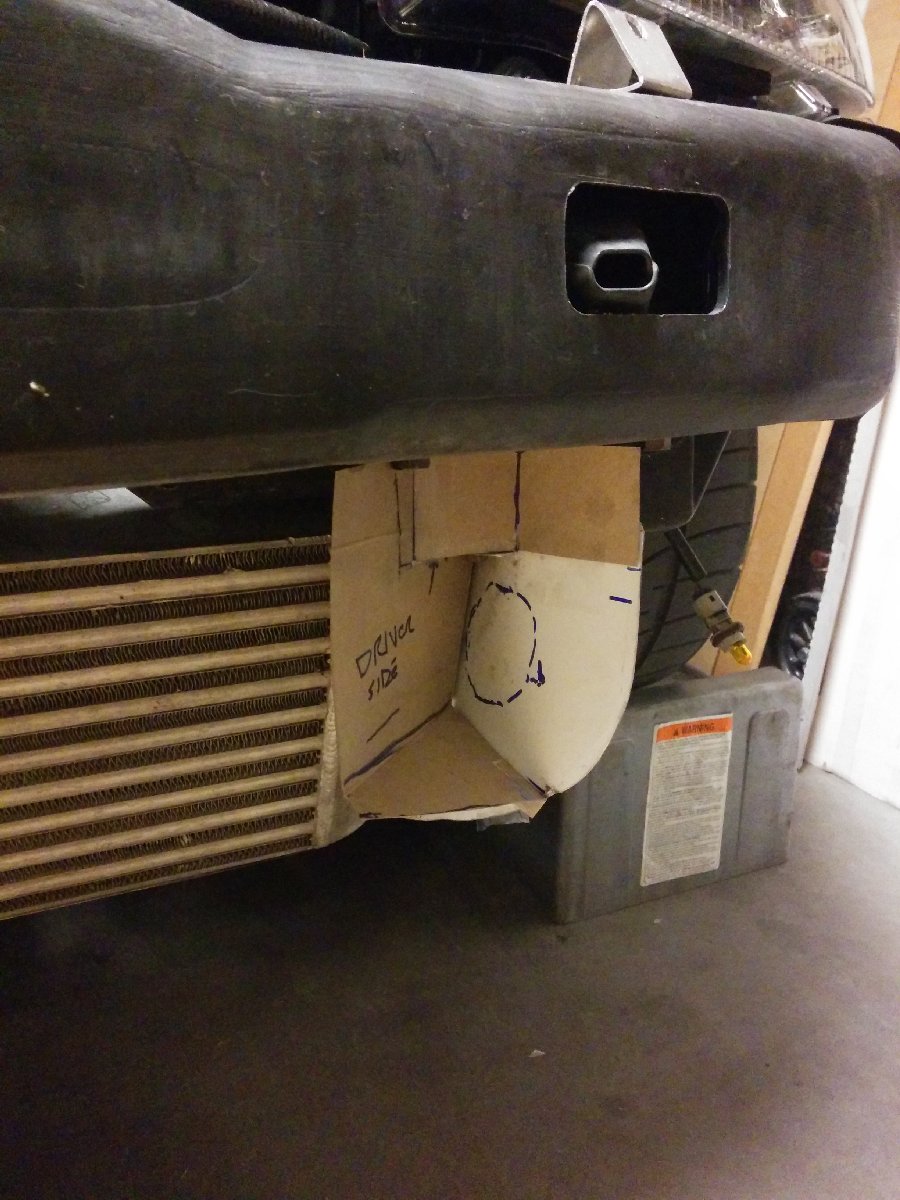

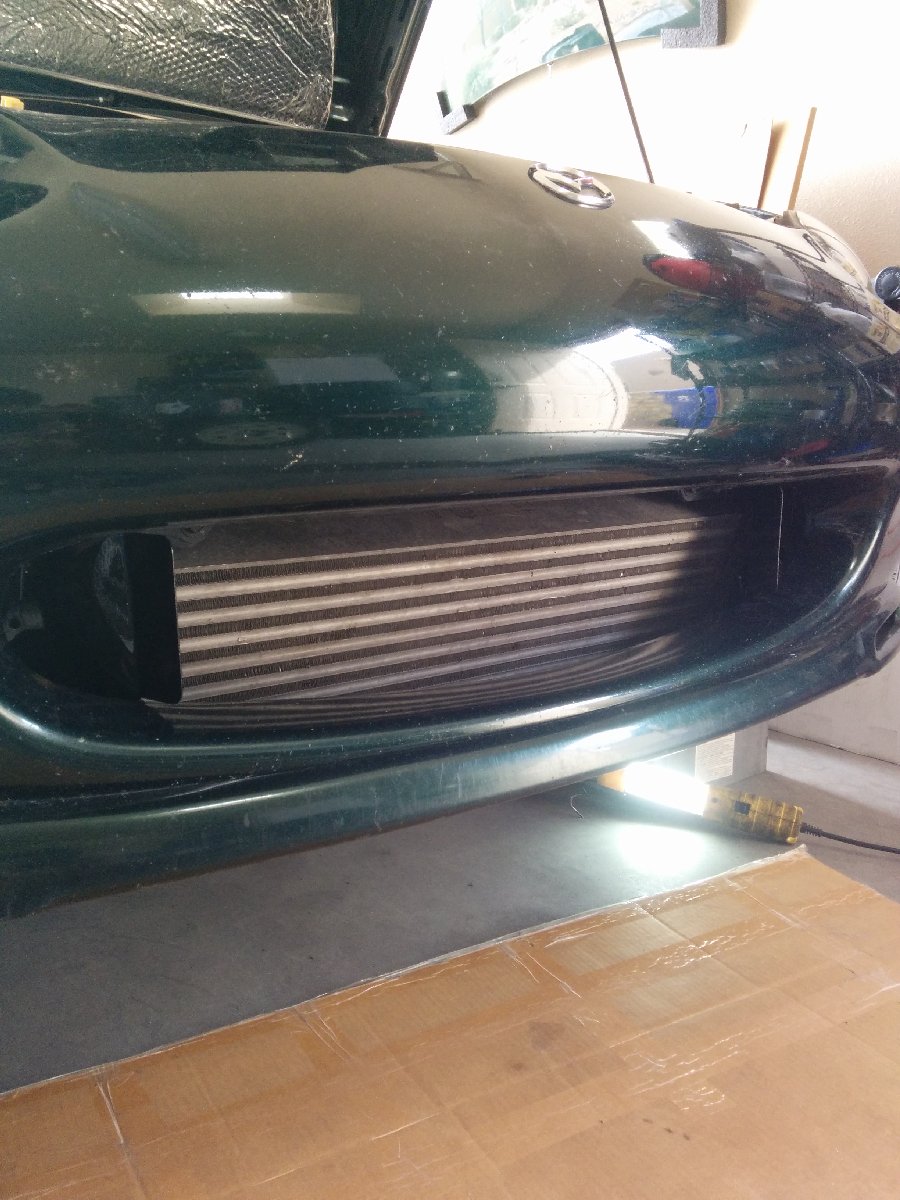

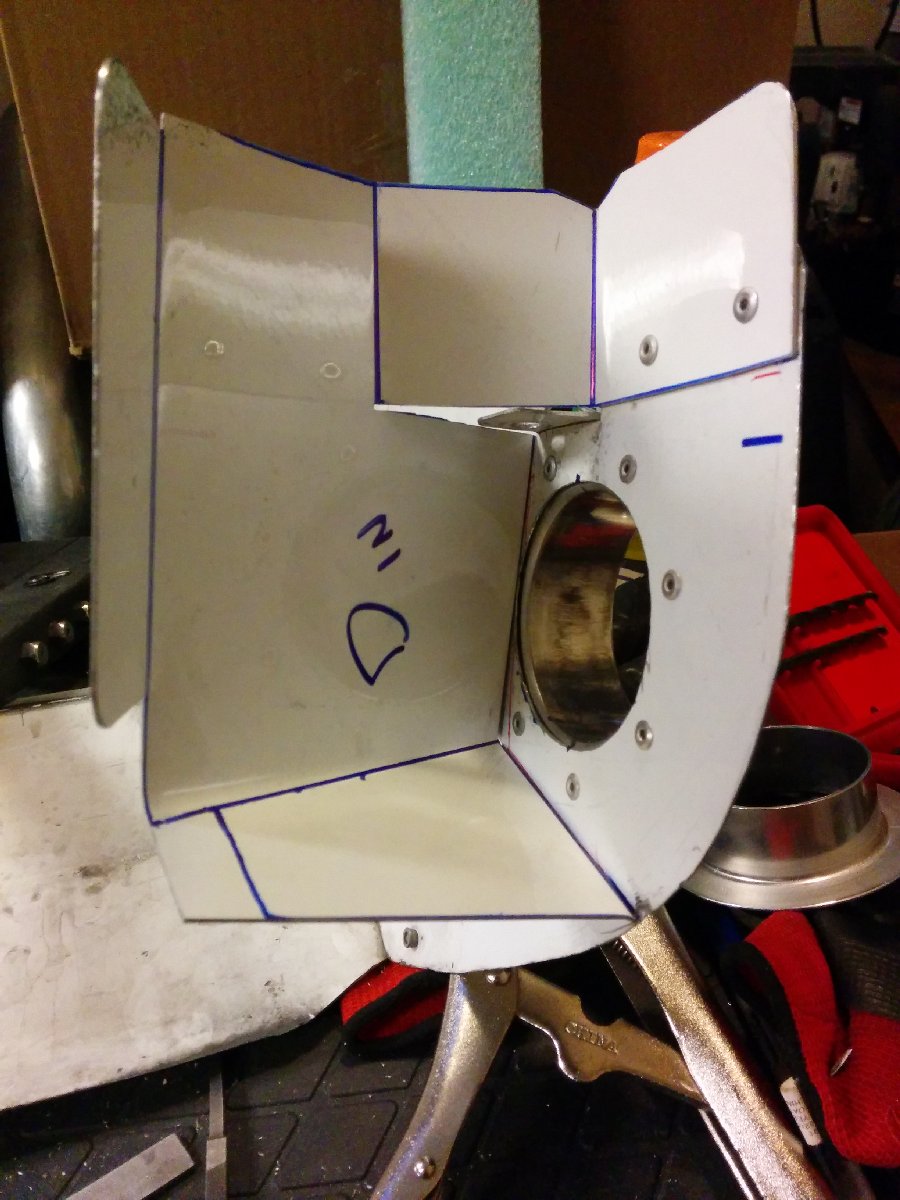

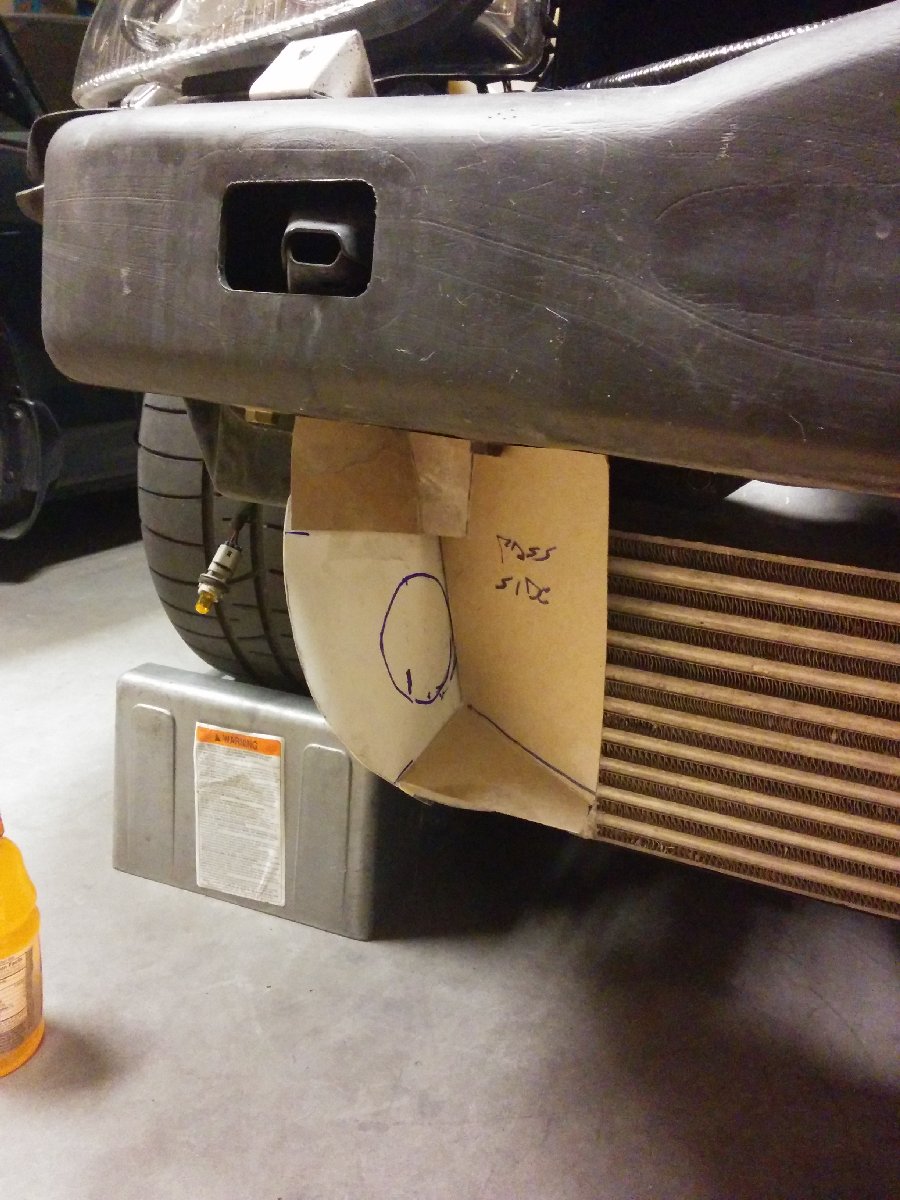

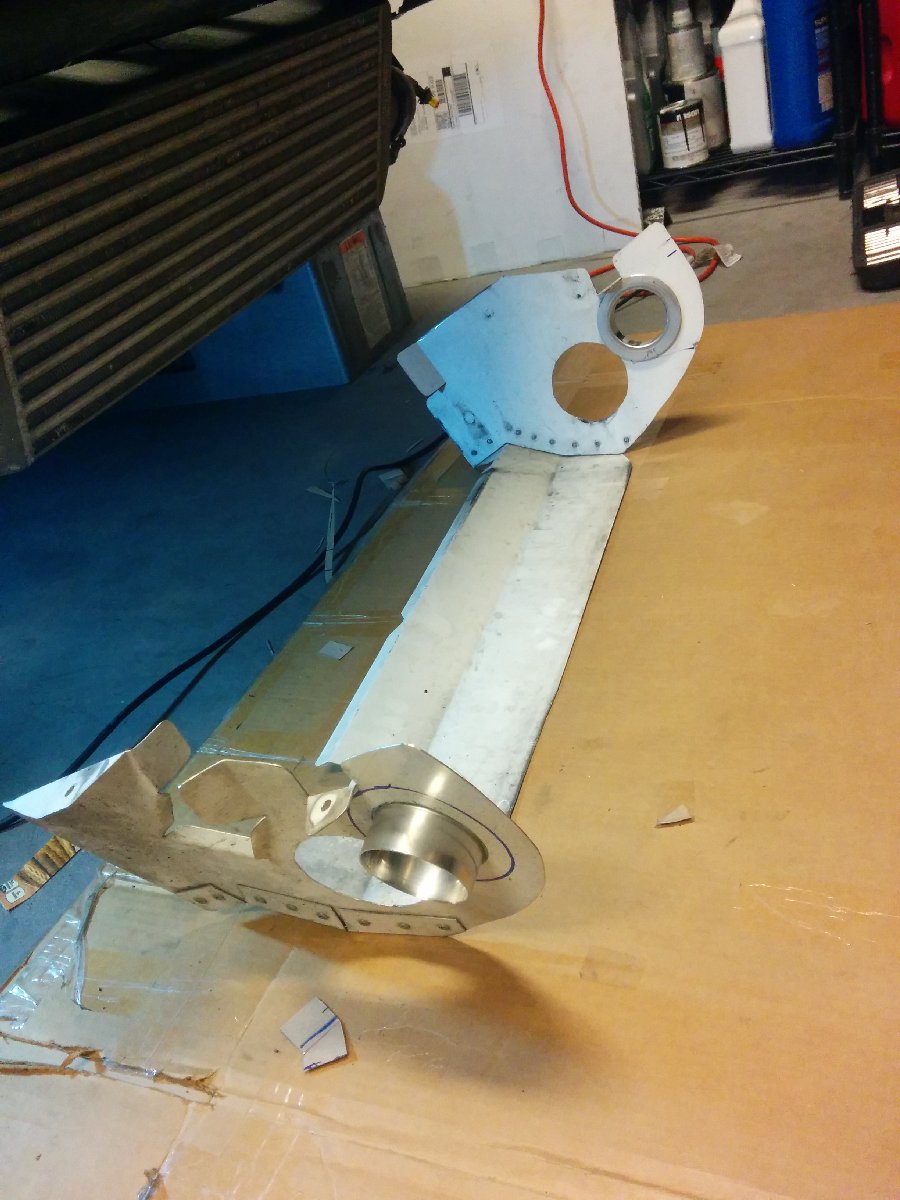

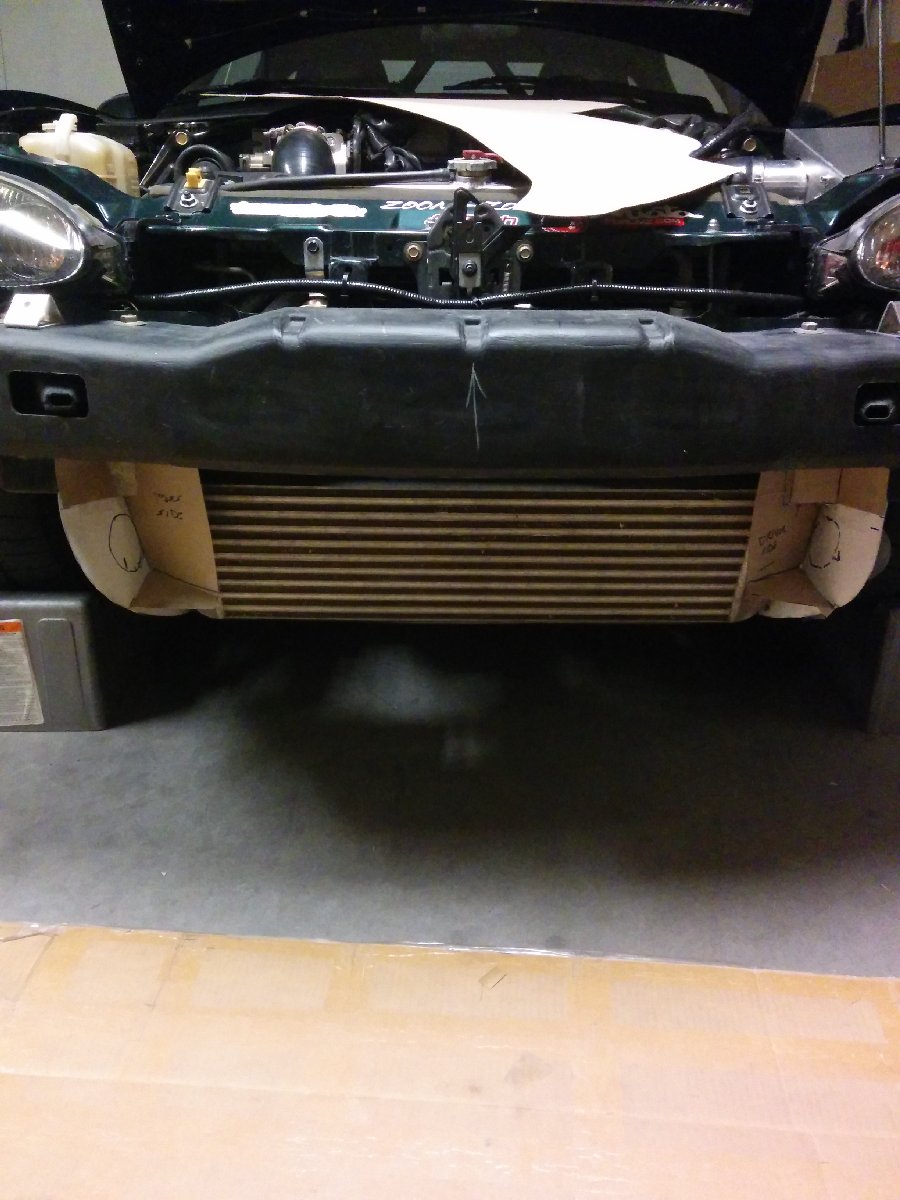

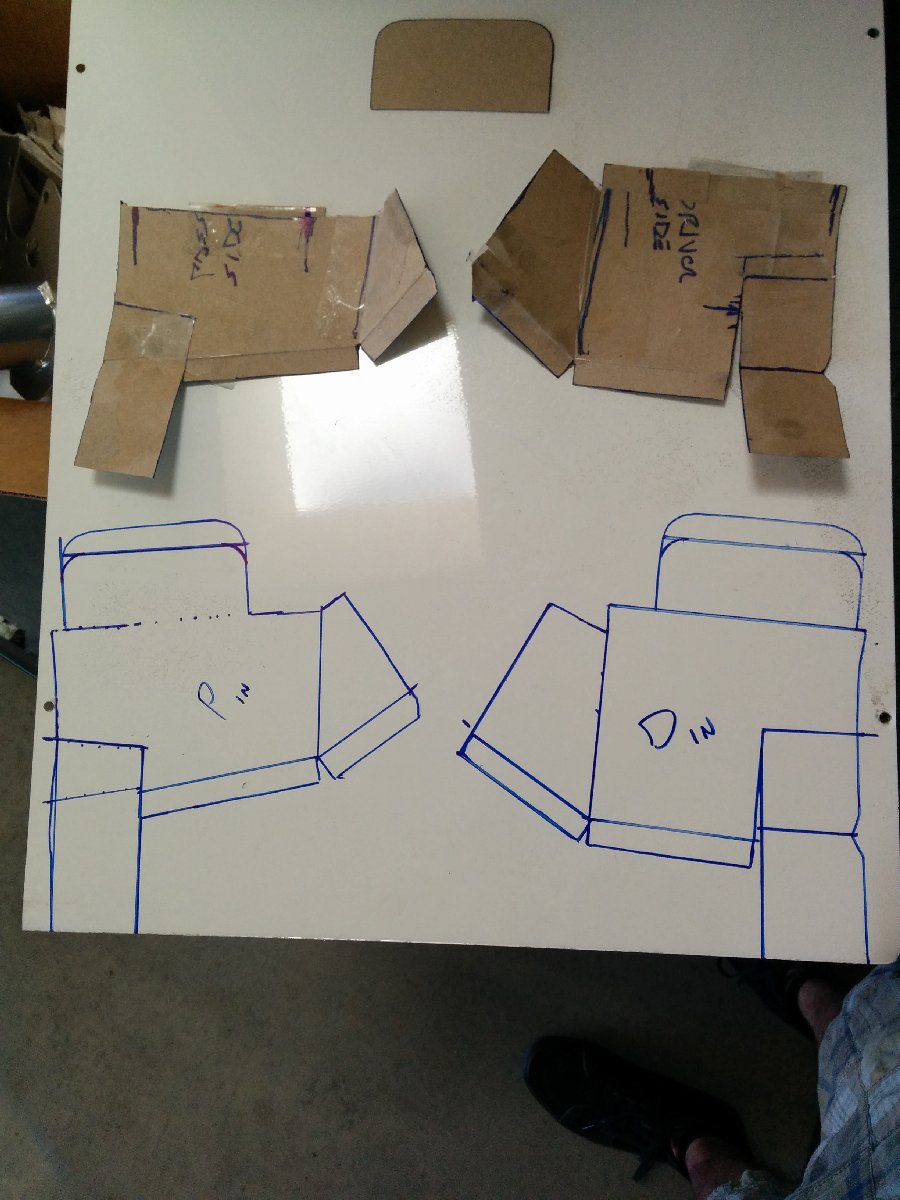

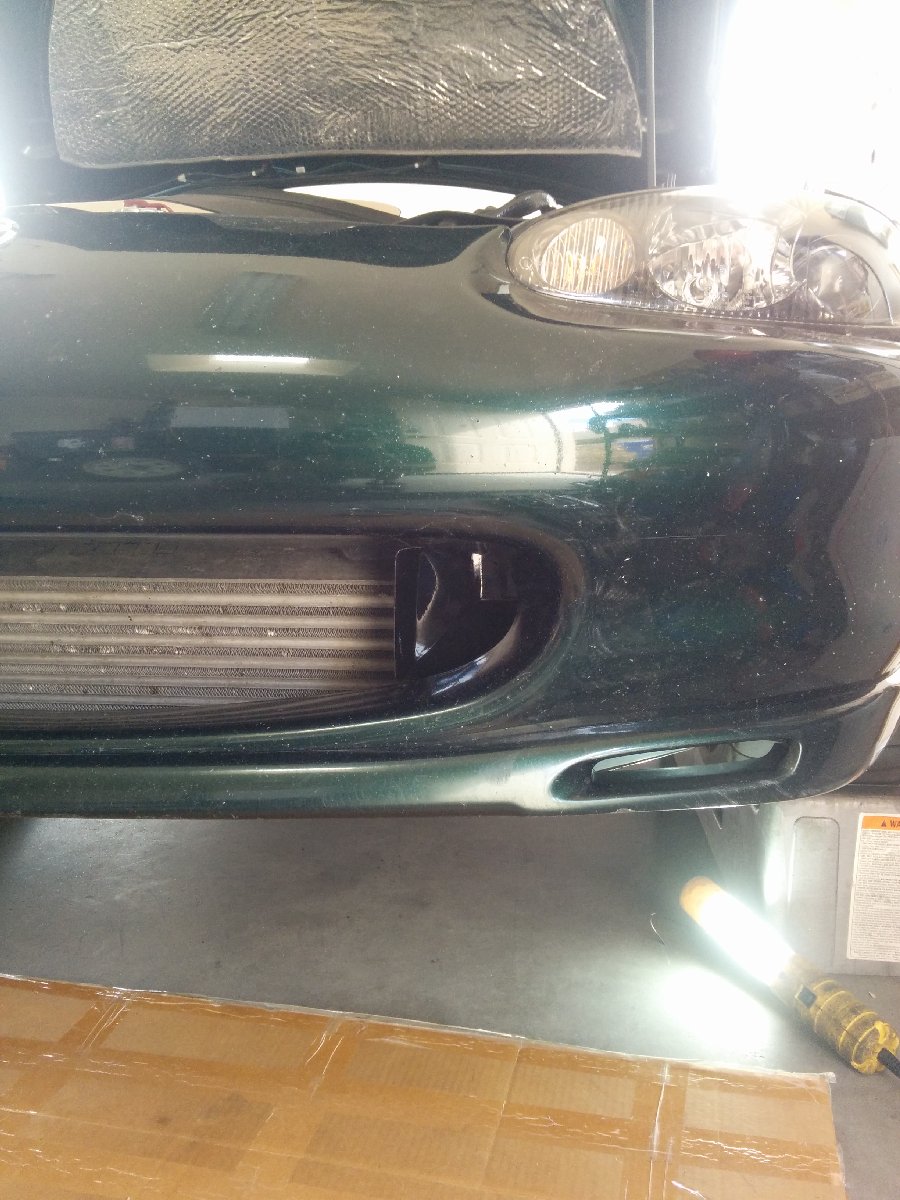

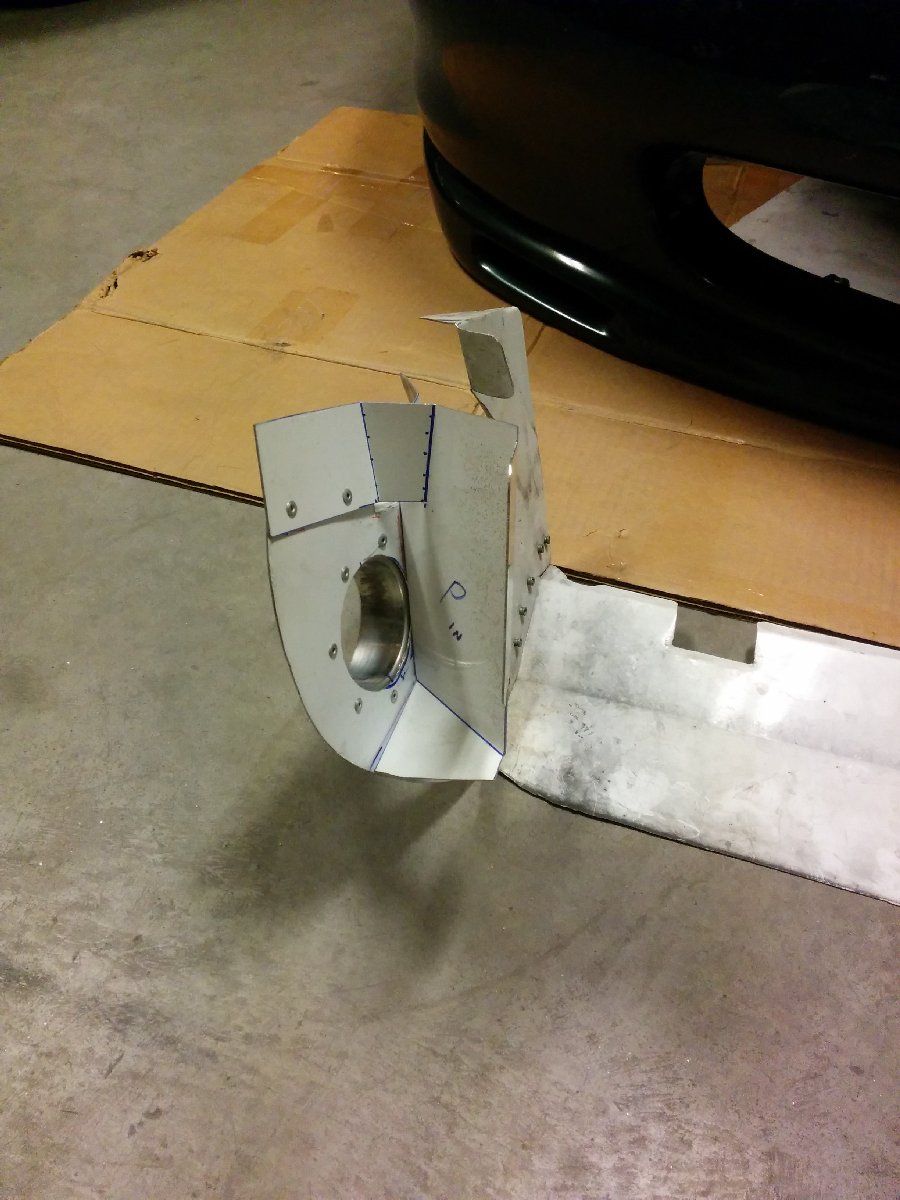

I bought flanges from AircraftSpruce and made air ducts in the mouth of the bumper. I integrated them into the intercooler ducting that I had previously made. I first made cardboard templates and then transferred them to aluminum sheet and then riveted them in and painted them black.

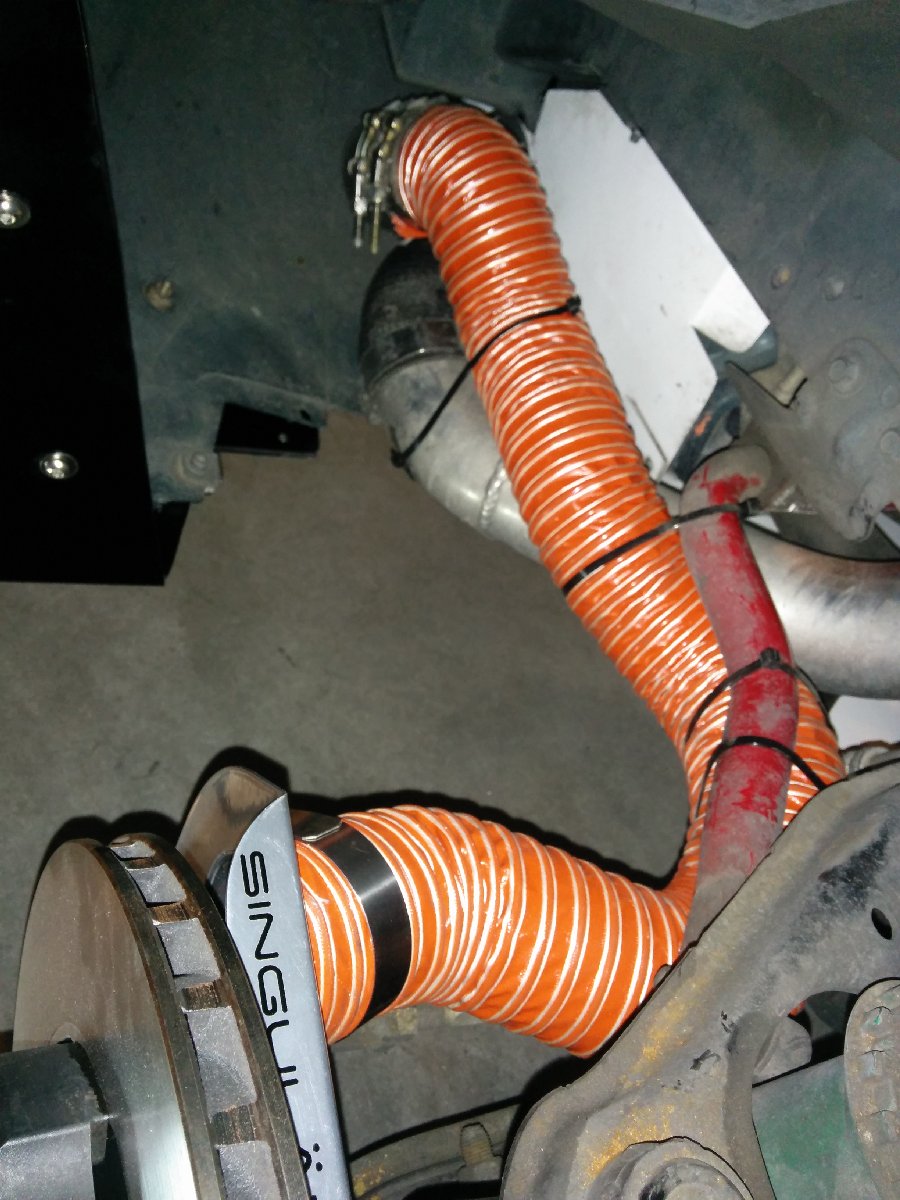

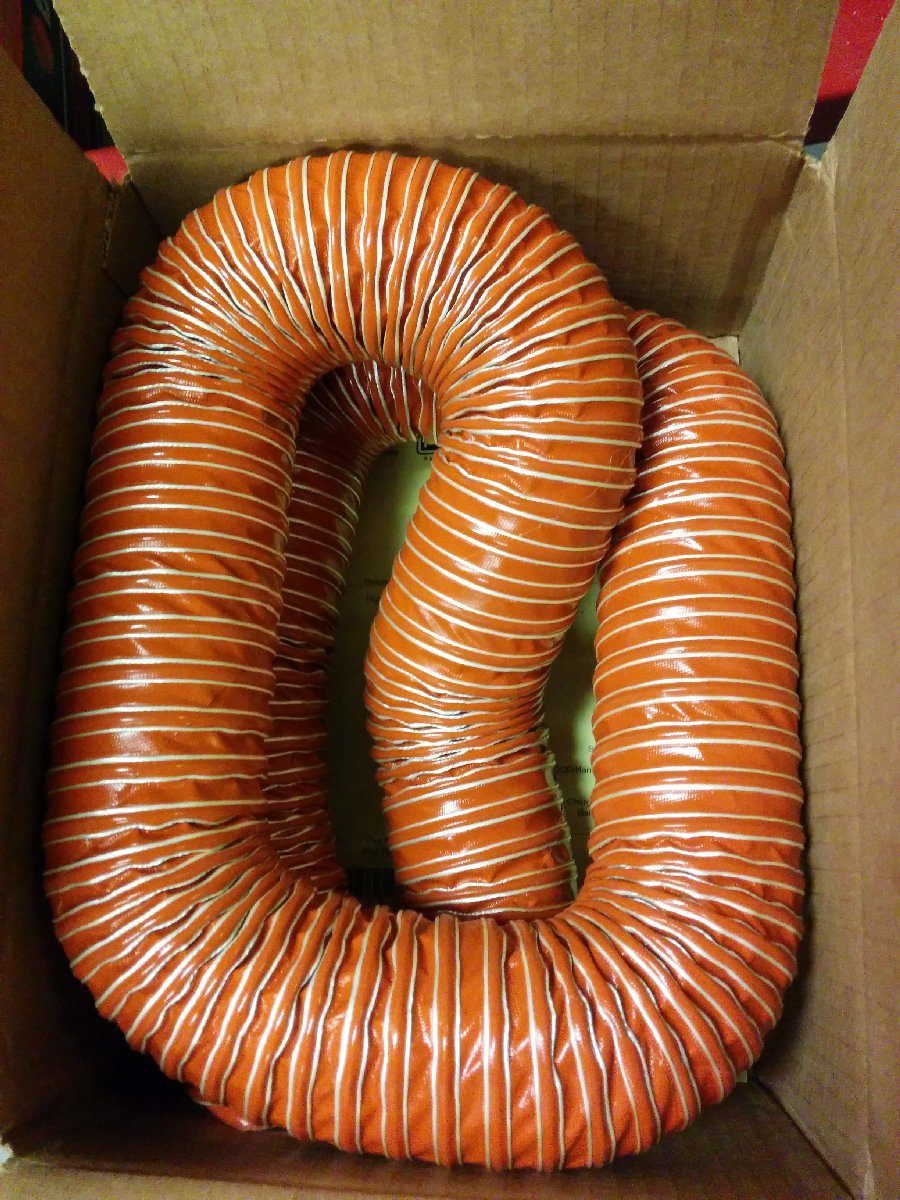

The flange connects to an elbow then will connect to the flex hose to the brake disc duct.

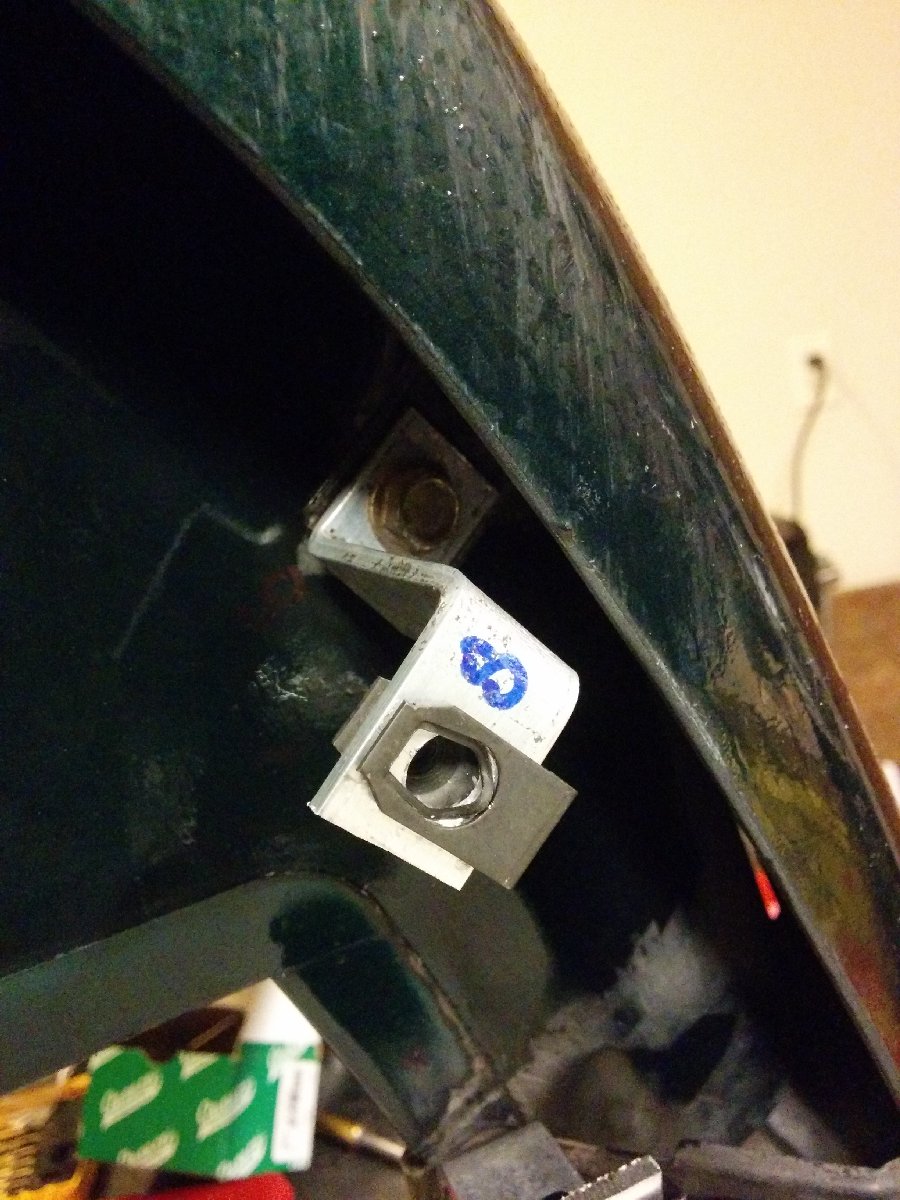

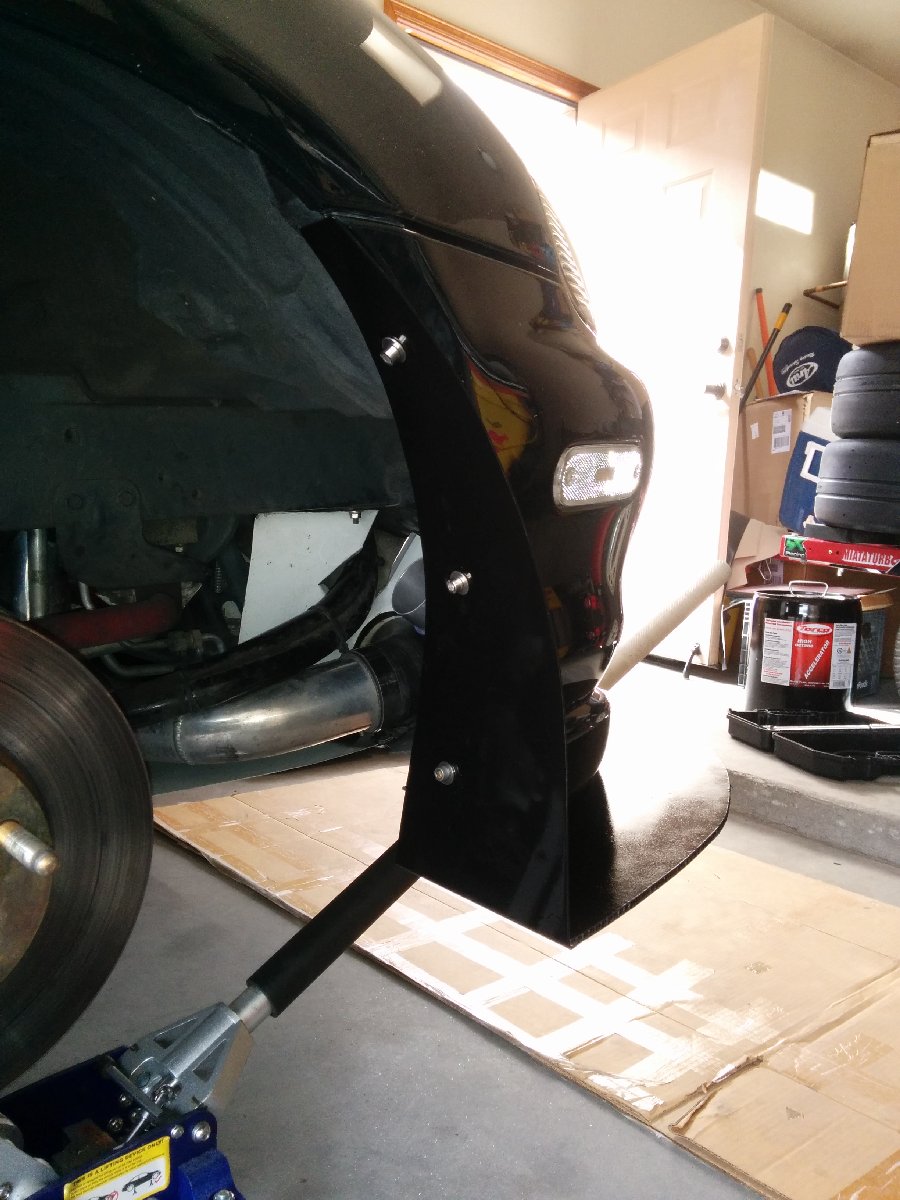

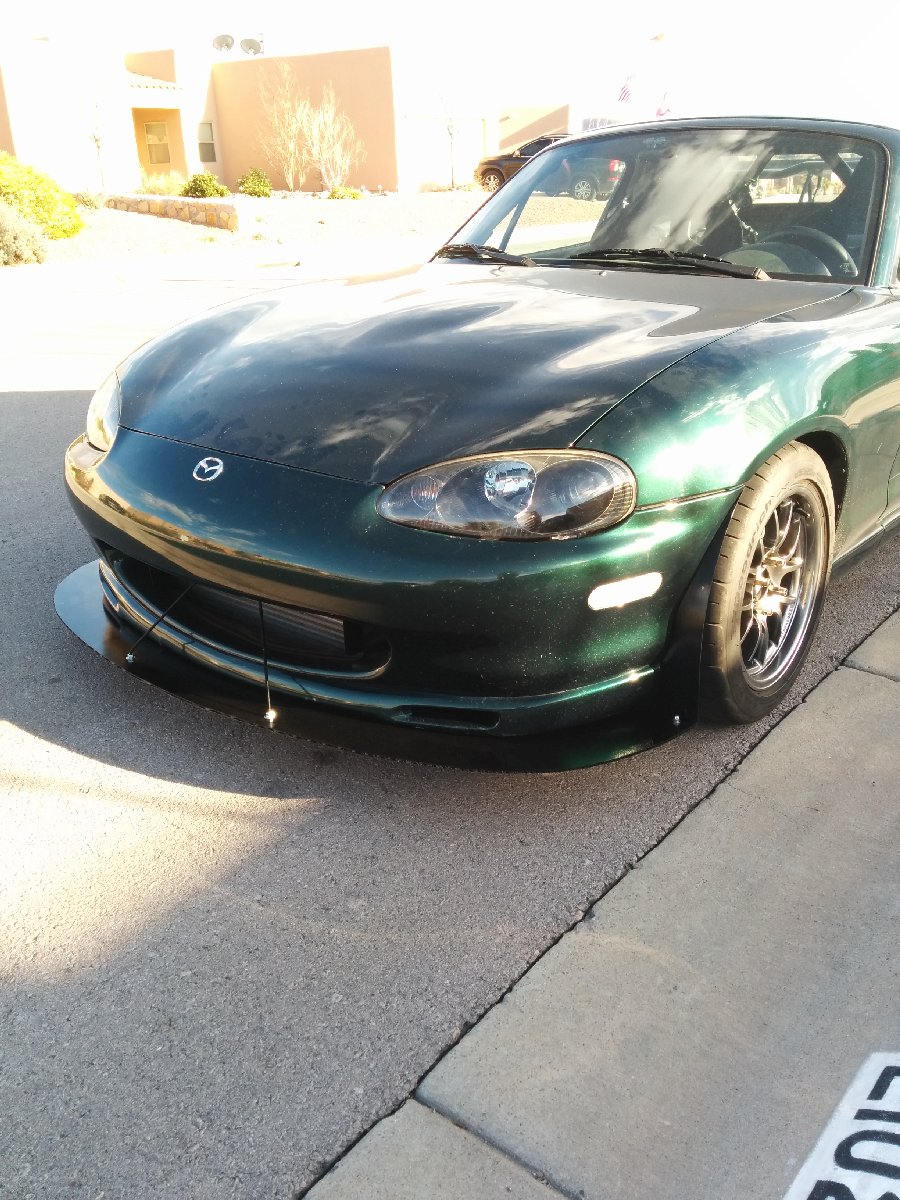

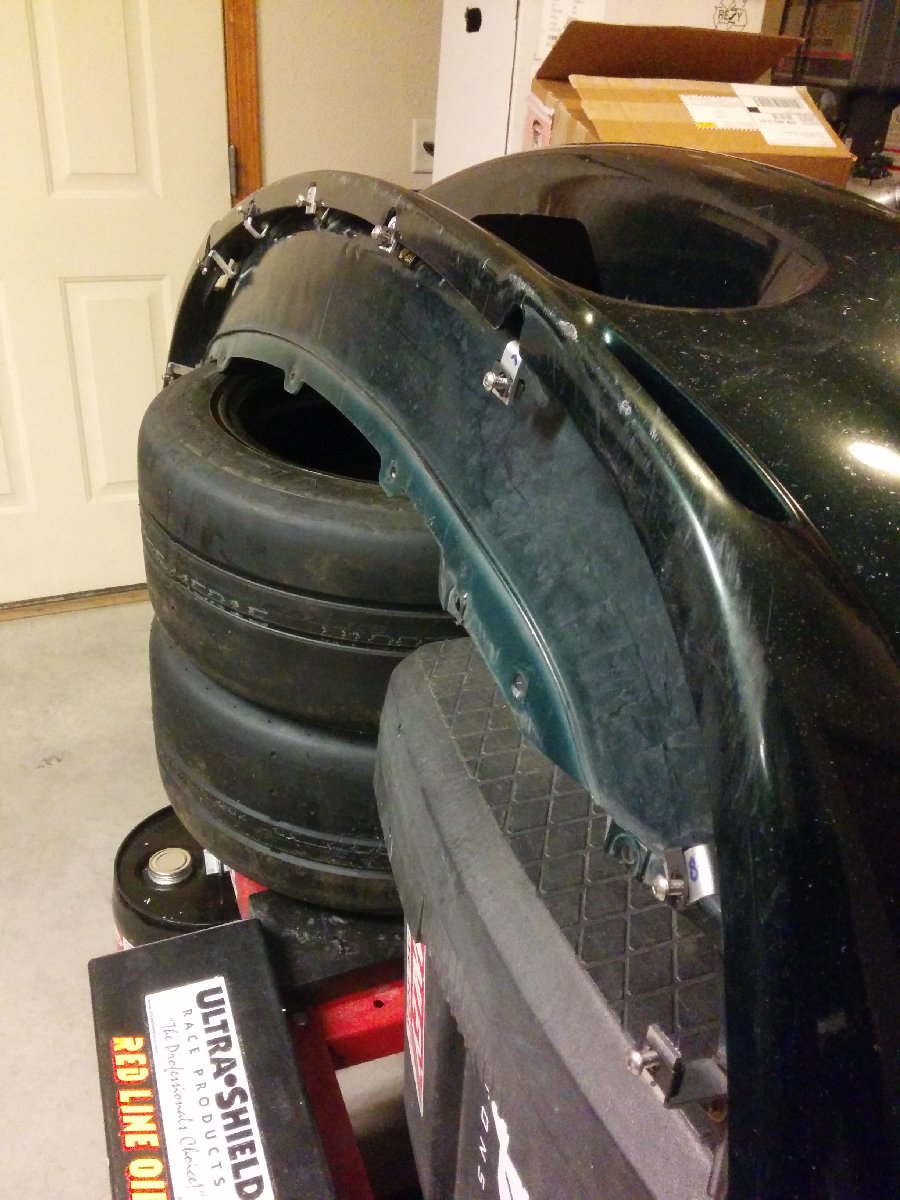

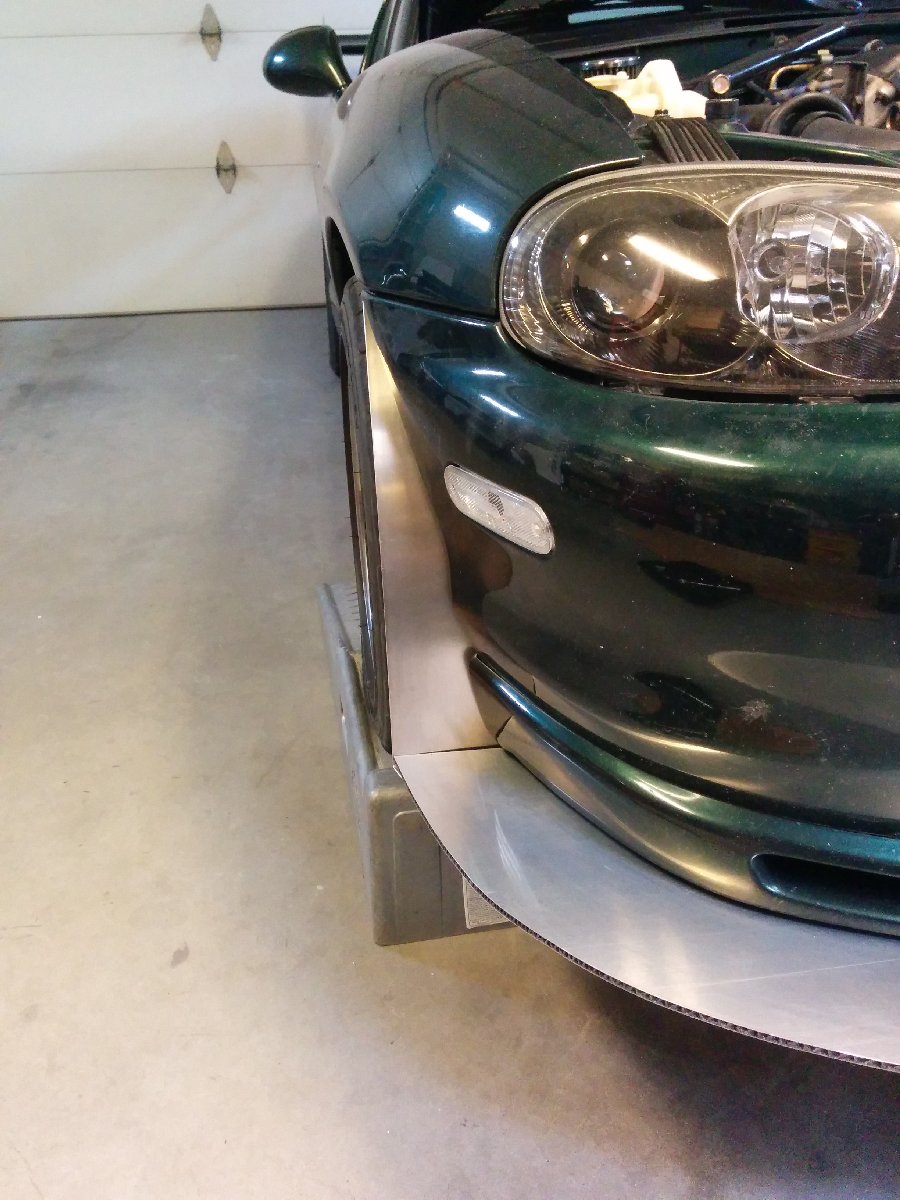

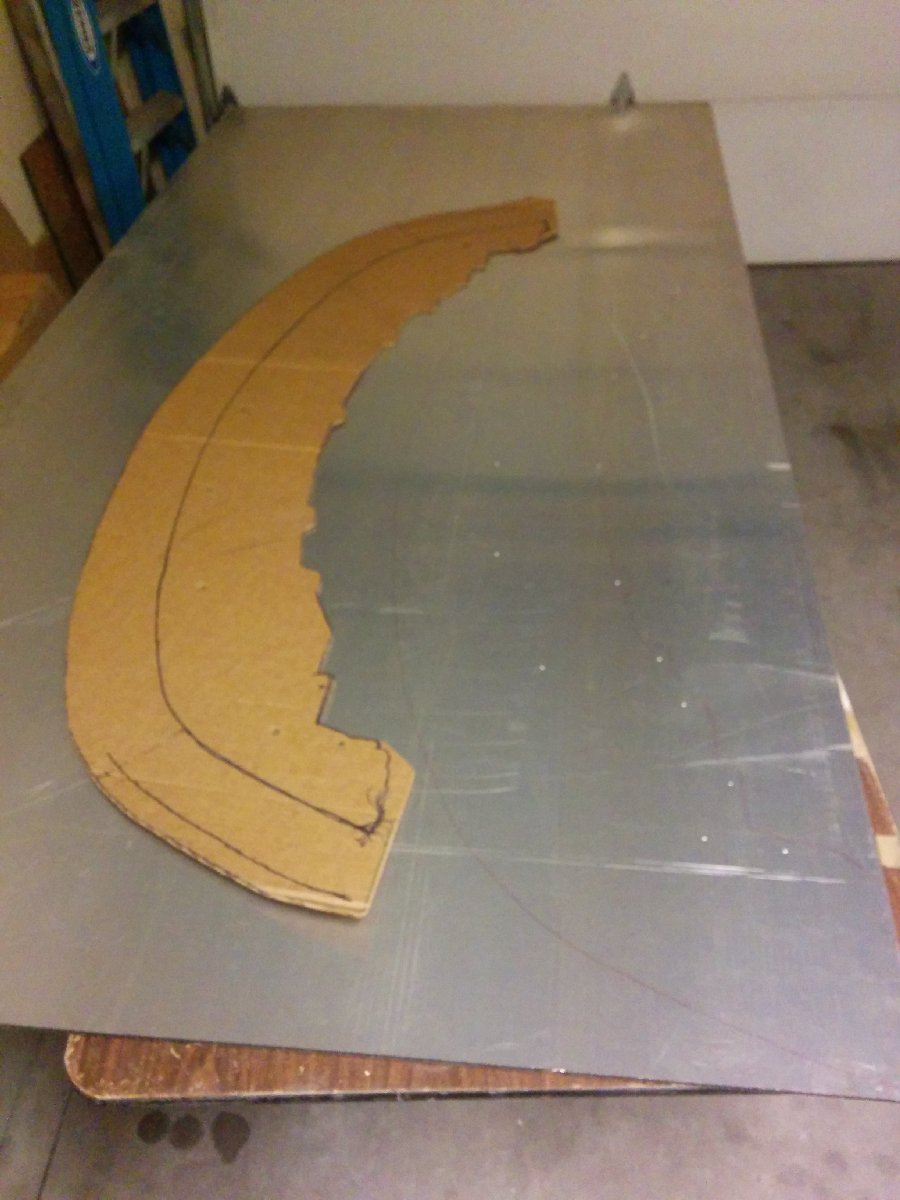

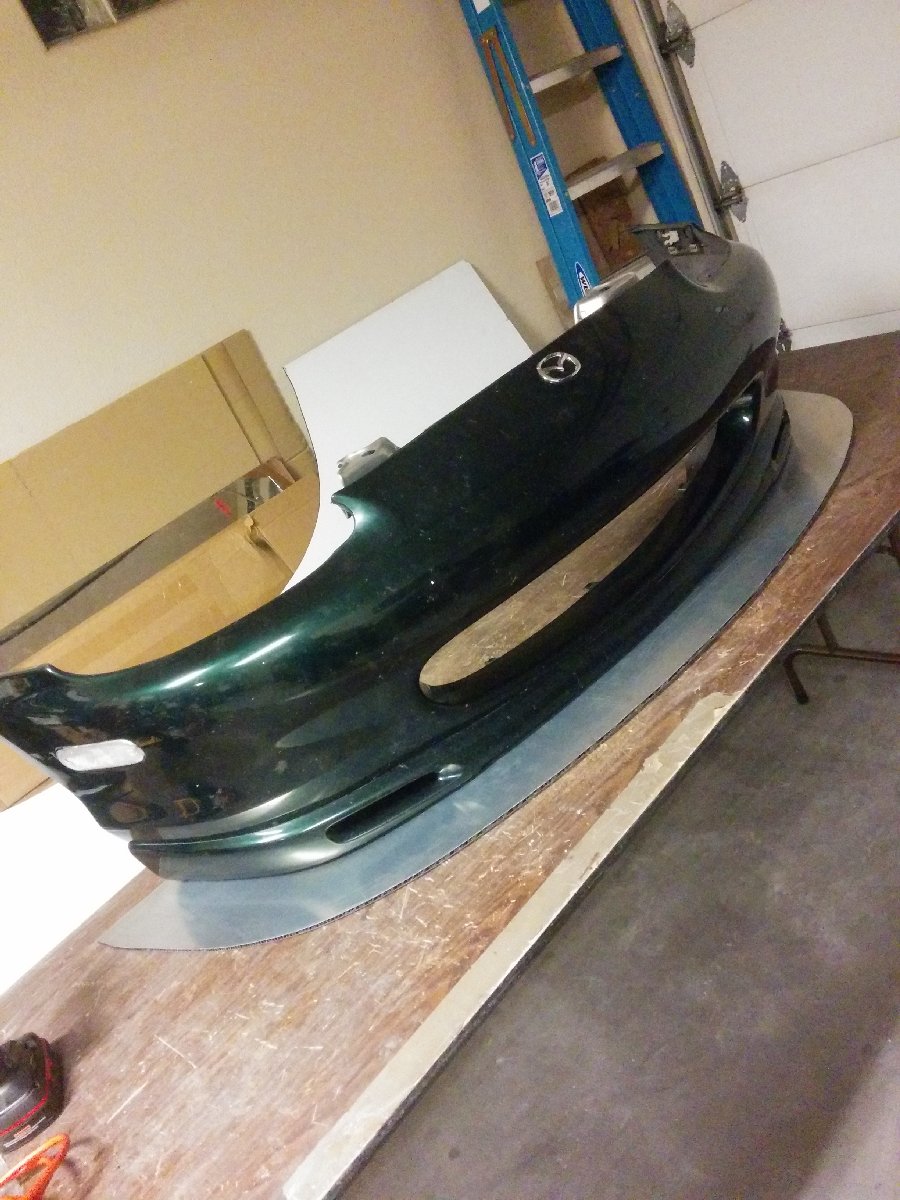

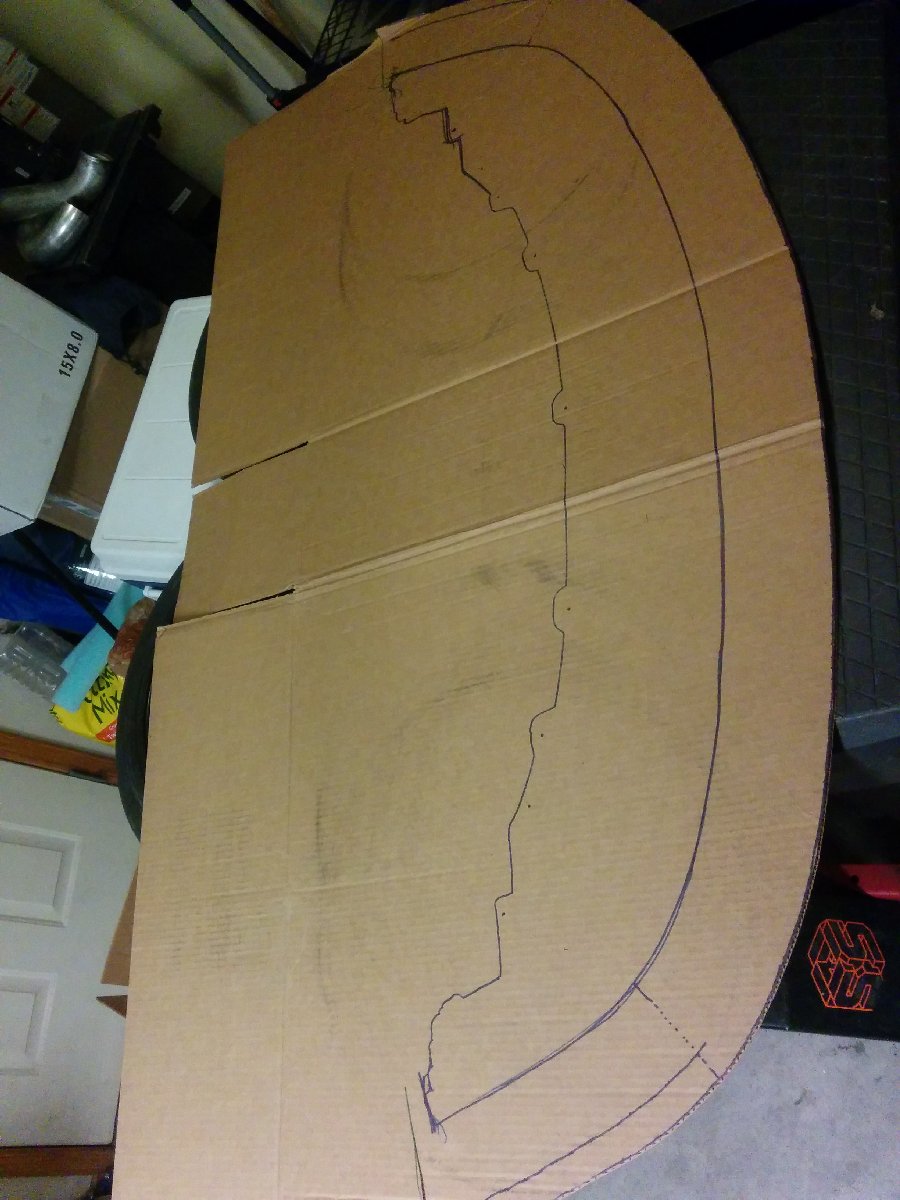

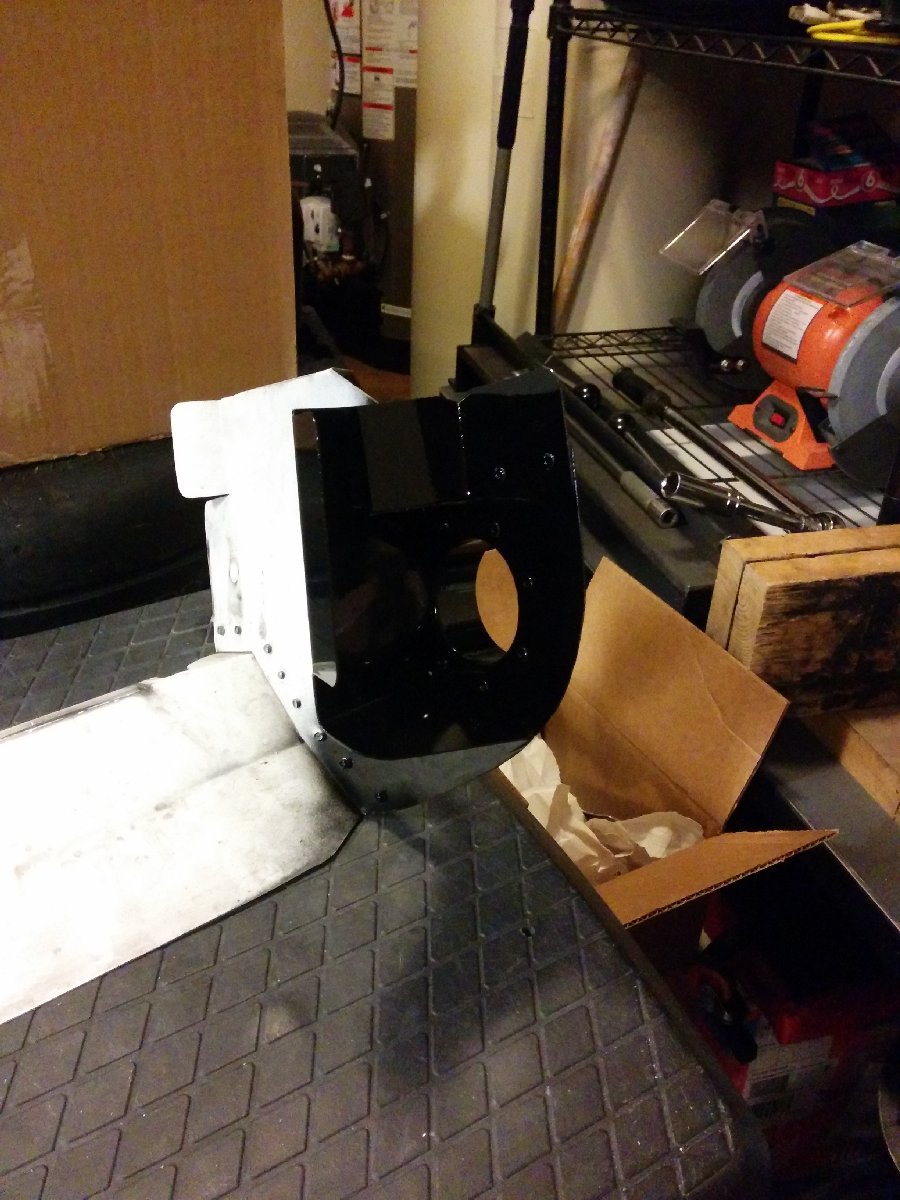

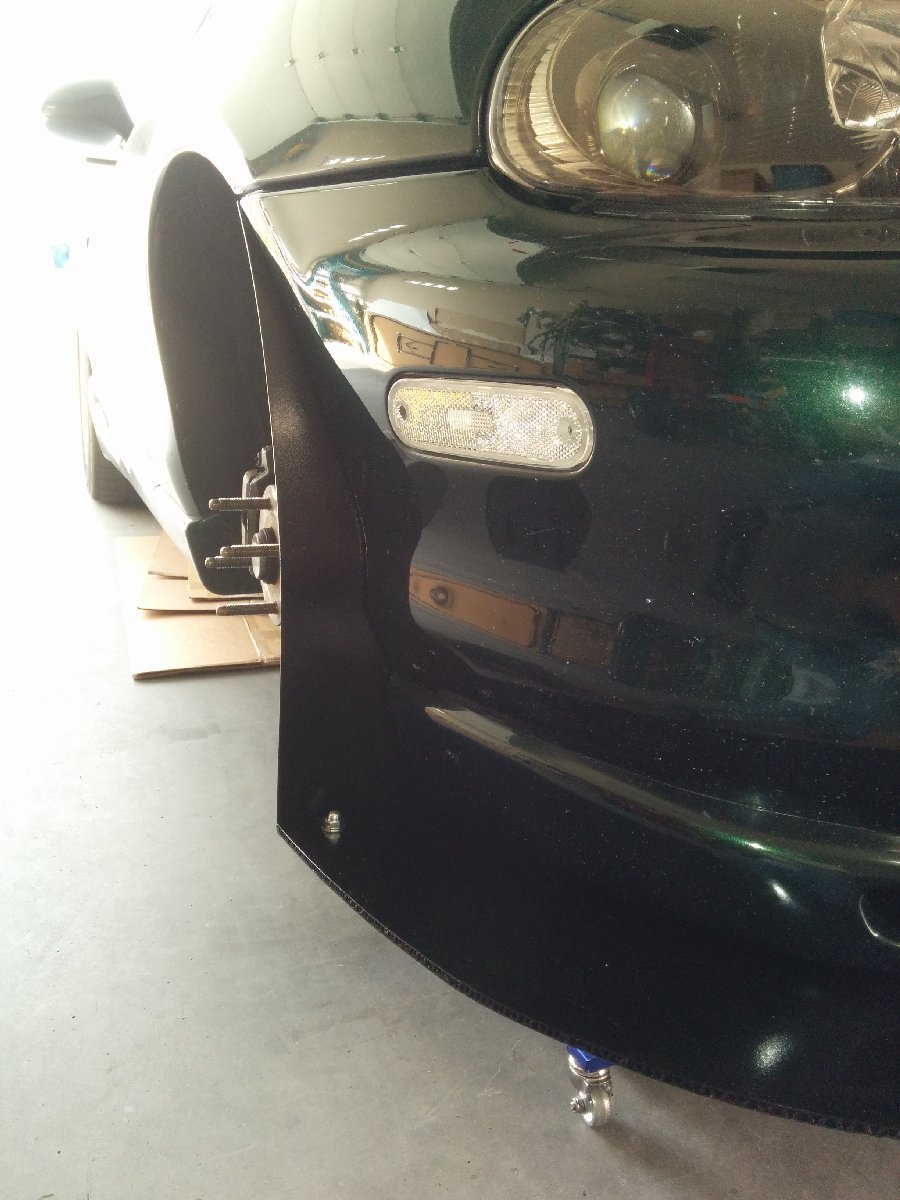

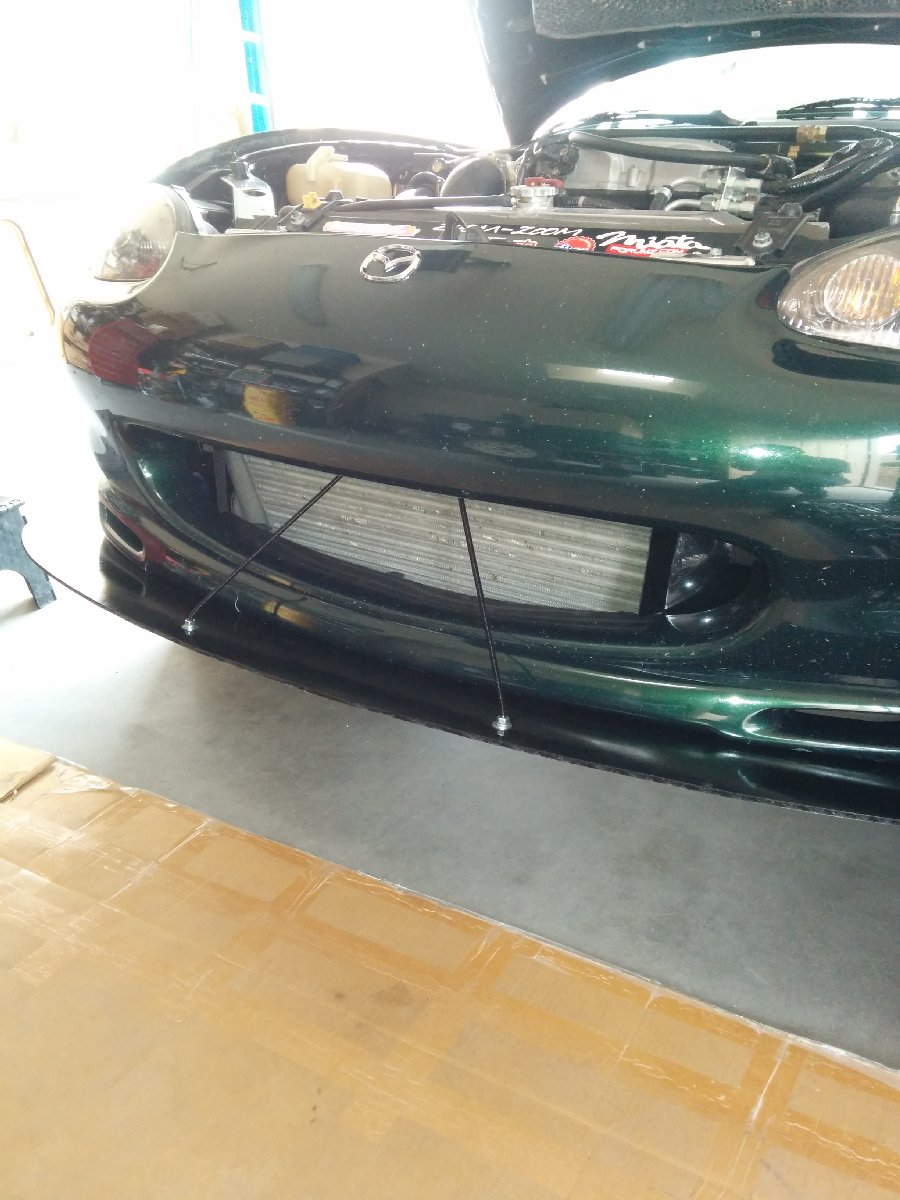

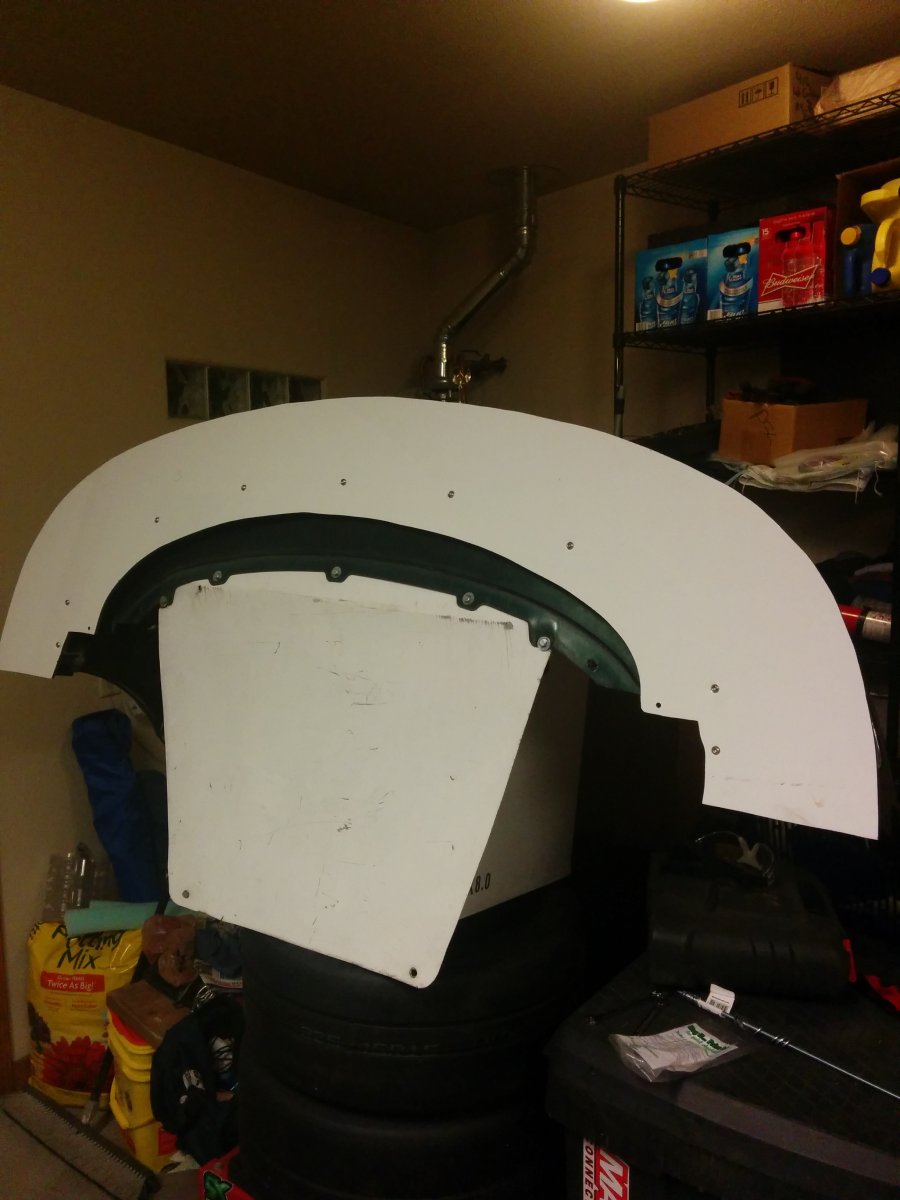

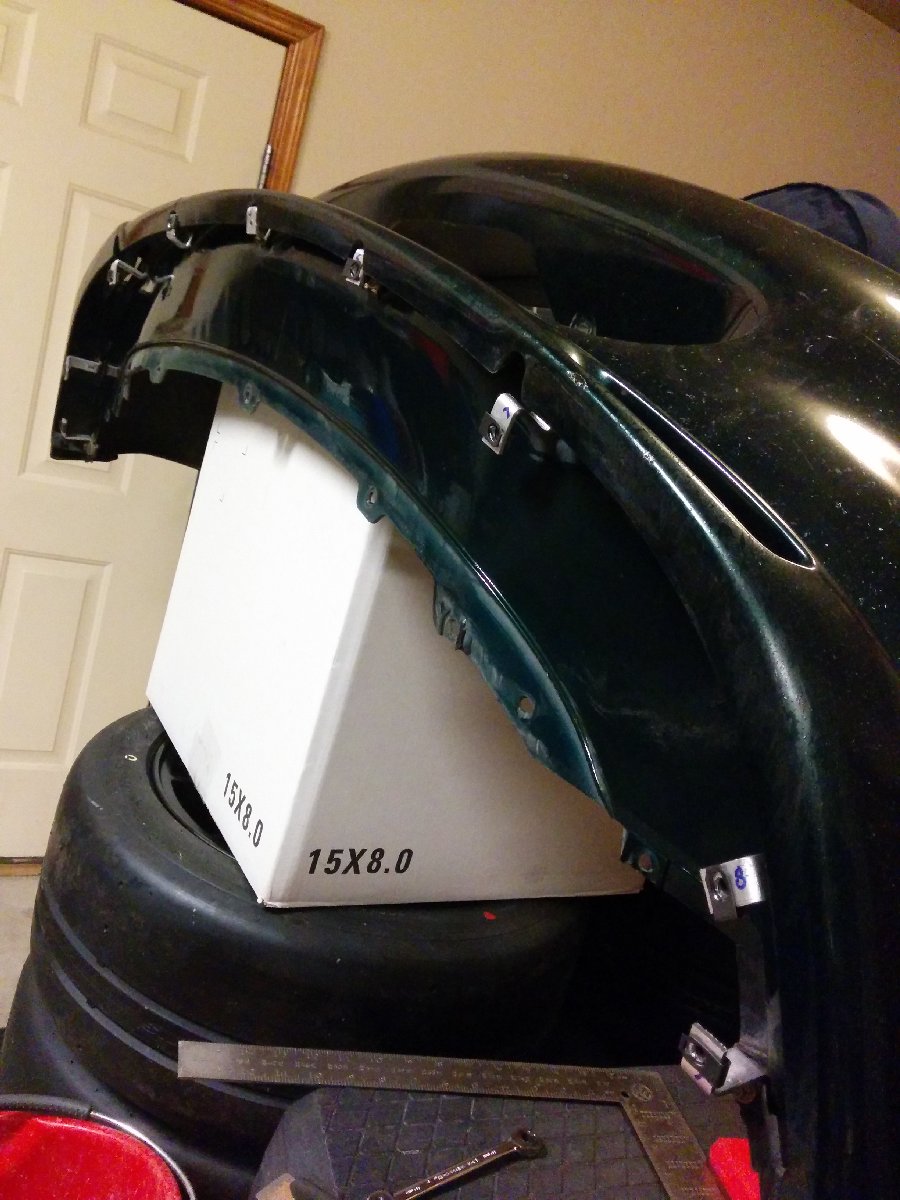

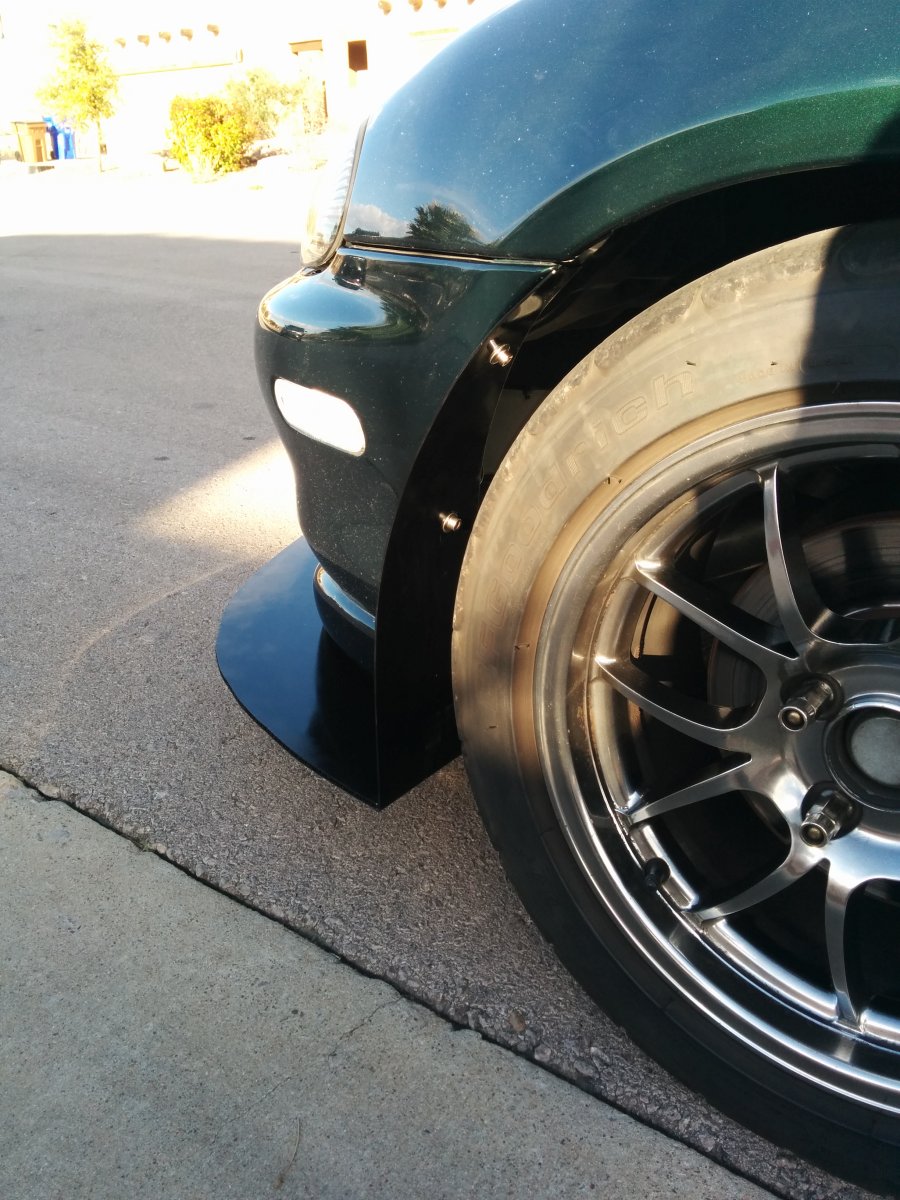

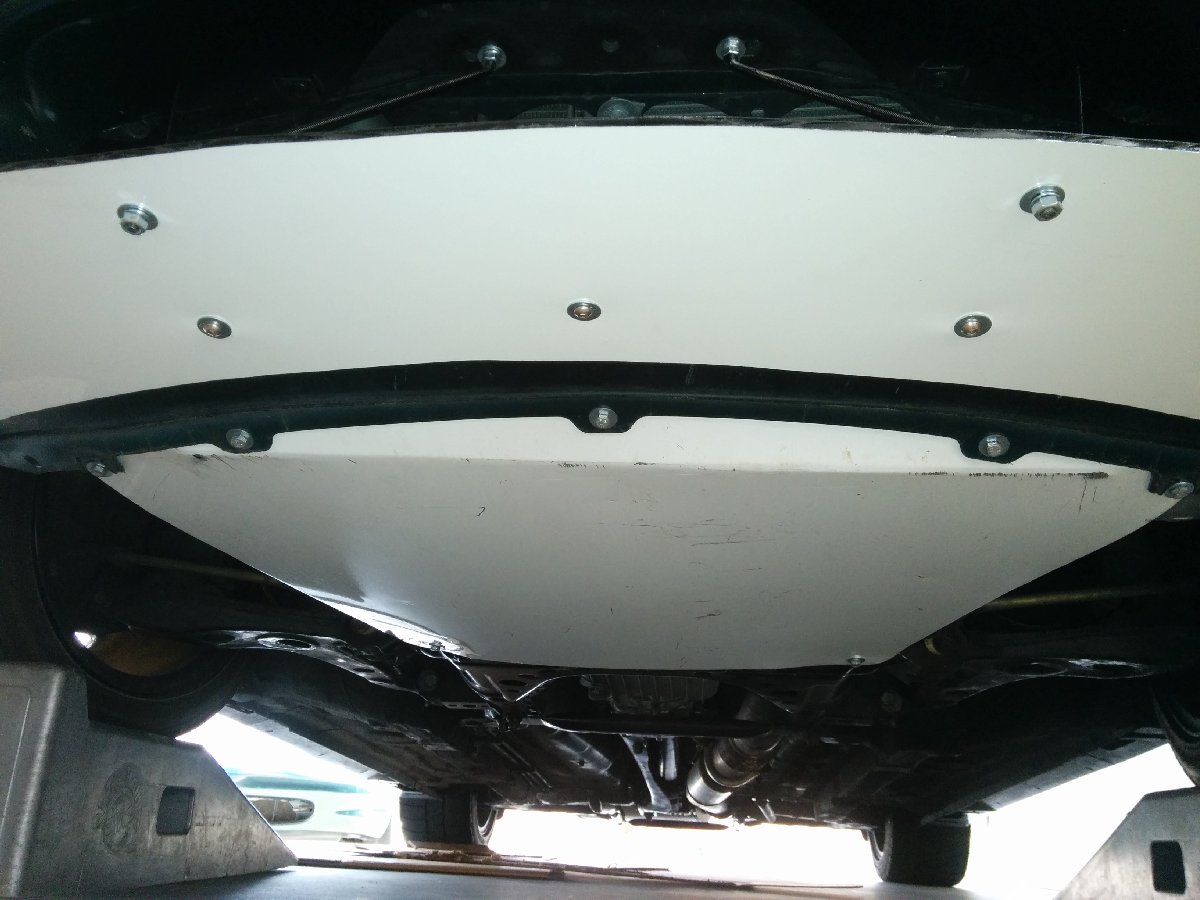

With the bumper air intakes made, I decided to continue with the front bumper splitter while I had the bumper cover off of the car. I bought a sheet of Alumalite to make the splitter. I made brackets to attach it to the bumper cover. I used u-nuts on the brackets for the bolts.



































Me doing the splitter standing test

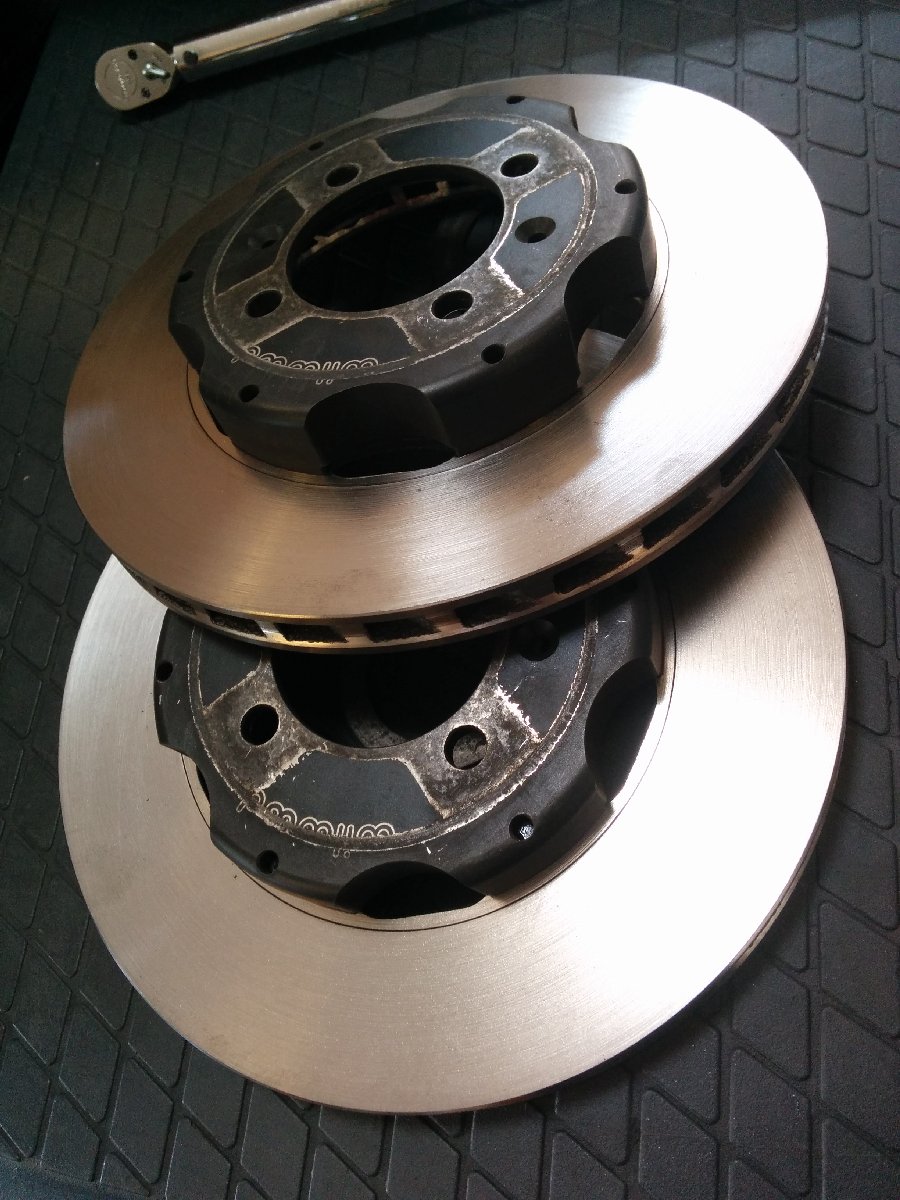

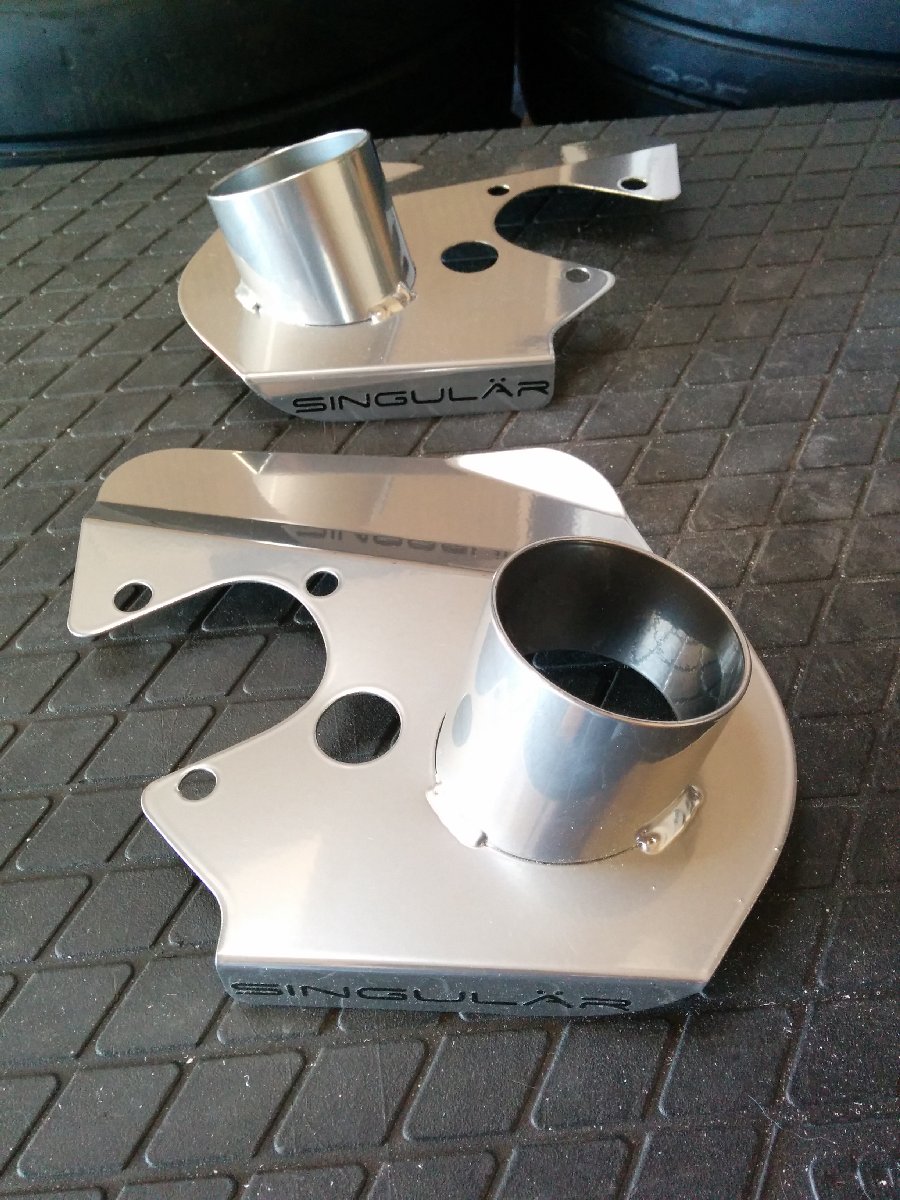

And finally the brake parts! I also ordered Singular 2.5" brake duct plates and Hawk DTC-60 pads from Trackspeed. I also ordered a set of directional rotors from 949Racing. I got the silicone duct hose from Pegasus Auto Racing.





Attached Thumbnails
99mx5 EFR build-img_20150115_122916.jpg   99mx5 EFR build-img_20150203_174318.jpg   99mx5 EFR build-img_20150206_132933.jpg   99mx5 EFR build-img_20150203_205211.jpg   99mx5 EFR build-img_20150210_130621.jpg

99mx5 EFR build-img_20150210_130612.jpg   99mx5 EFR build-img_20150223_222616.jpg   99mx5 EFR build-img_20150223_222623.jpg   99mx5 EFR build-img_20150223_222635.jpg   99mx5 EFR build-img_20150223_225913.jpg

99mx5 EFR build-img_20150226_183908.jpg   99mx5 EFR build-img_20150228_154542.jpg   99mx5 EFR build-img_20150228_180729.jpg   99mx5 EFR build-img_20150228_183921.jpg   99mx5 EFR build-img_20150228_183937.jpg

99mx5 EFR build-img_20150228_192321.jpg   99mx5 EFR build-img_20150228_192341.jpg   99mx5 EFR build-img_20150301_140434.jpg   99mx5 EFR build-img_20150301_140439.jpg   99mx5 EFR build-img_20150301_140453.jpg

99mx5 EFR build-img_20150301_141557.jpg   99mx5 EFR build-img_20150304_190119.jpg   99mx5 EFR build-img_20150305_182306.jpg   99mx5 EFR build-img_20150303_201735.jpg   99mx5 EFR build-img_20150303_201815.jpg

99mx5 EFR build-img_20150304_192555.jpg   99mx5 EFR build-img_20150305_203125.jpg   99mx5 EFR build-img_20150306_201119.jpg   99mx5 EFR build-img_20150307_103348.jpg   99mx5 EFR build-img_20150308_135416.jpg

99mx5 EFR build-img_20150308_135431.jpg   99mx5 EFR build-img_20150308_161215.jpg   99mx5 EFR build-img_20150308_161229.jpg   99mx5 EFR build-img_20150308_161709.jpg   99mx5 EFR build-img_20150308_162553.jpg

99mx5 EFR build-img_20150308_162602.jpg   99mx5 EFR build-img_20150308_174243.jpg   99mx5 EFR build-img_20150308_174318.jpg   99mx5 EFR build-ari-support-splitter.jpg   99mx5 EFR build-img_20150309_082649.jpg

99mx5 EFR build-img_20150222_130805.jpg   99mx5 EFR build-img_20150129_202302.jpg
99mx5 is offline   Reply With Quote
Old 03-09-2015, 07:18 PM   #610
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,039
Total Cats: 99
Default

Are those rotors used? They look like they've been turned on a lathe instead of blanchard ground.
Leafy is offline   Reply With Quote
Old 03-09-2015, 10:27 PM   #611
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

They are new. Maybe Emilio @ 949 can chime in on their finish.
99mx5 is offline   Reply With Quote
Old 03-10-2015, 11:24 AM   #612
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

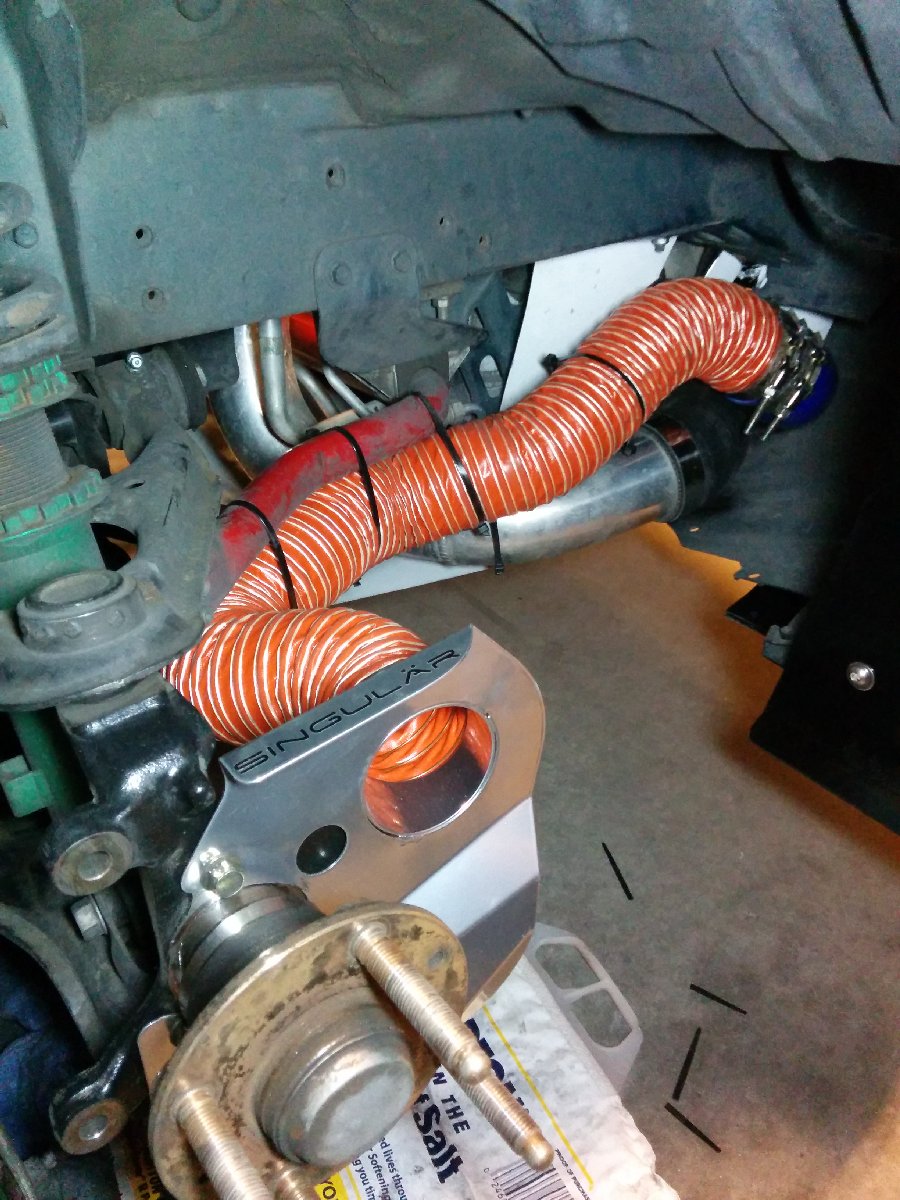

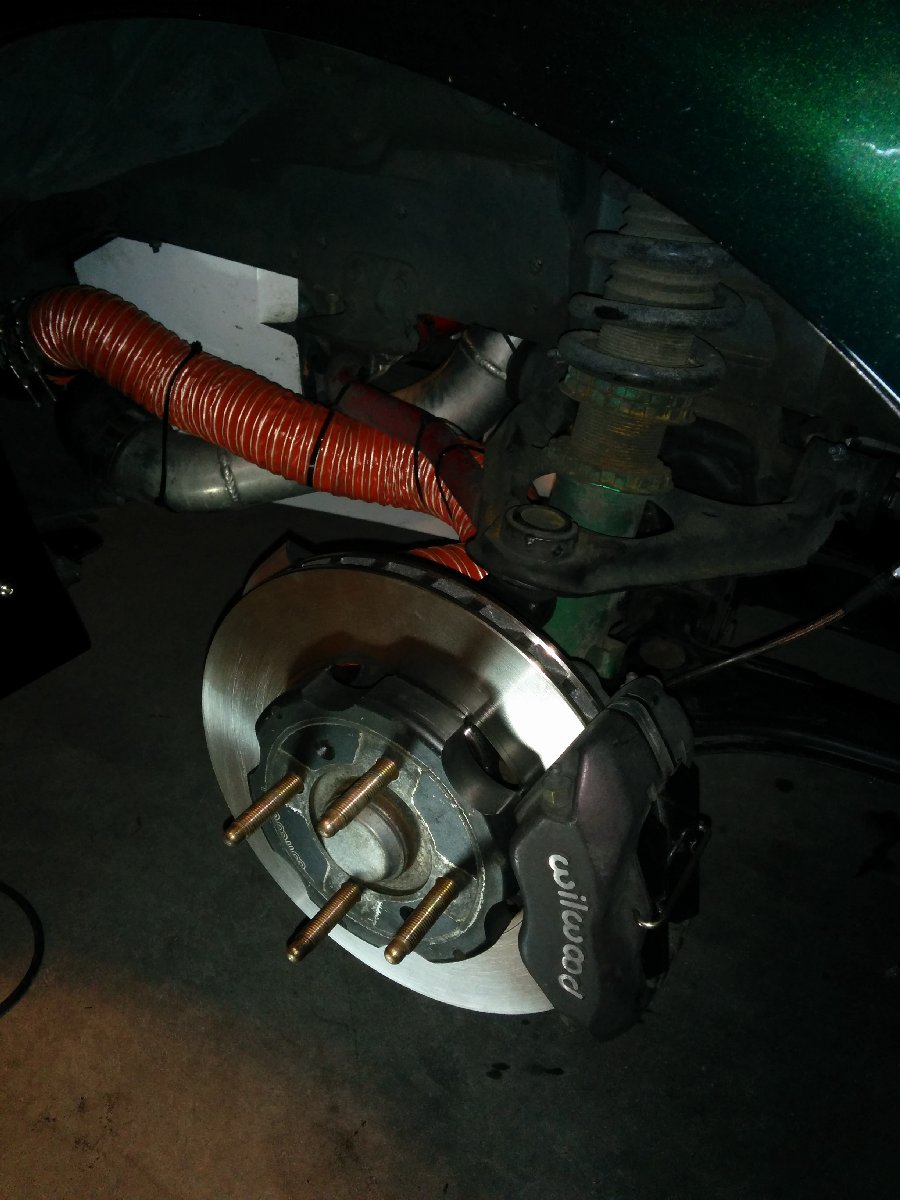

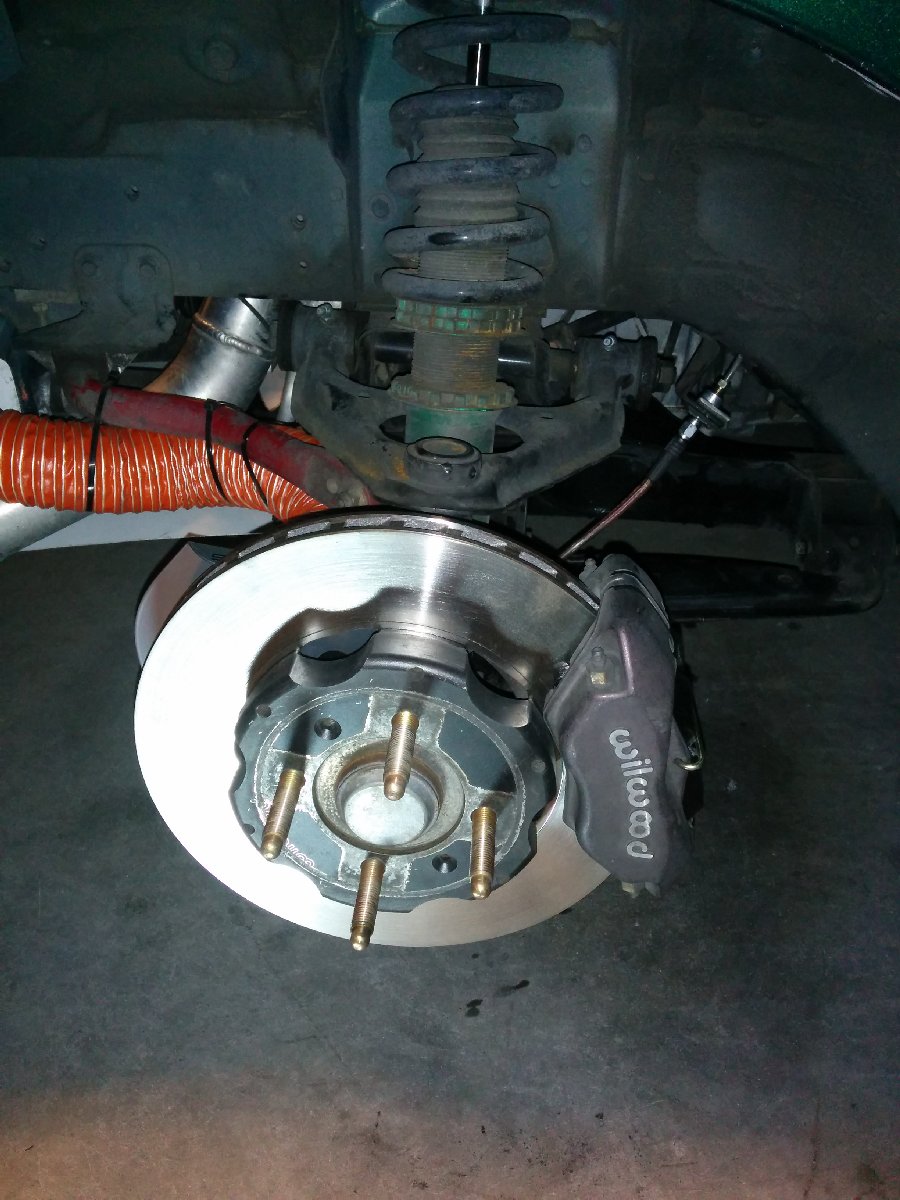

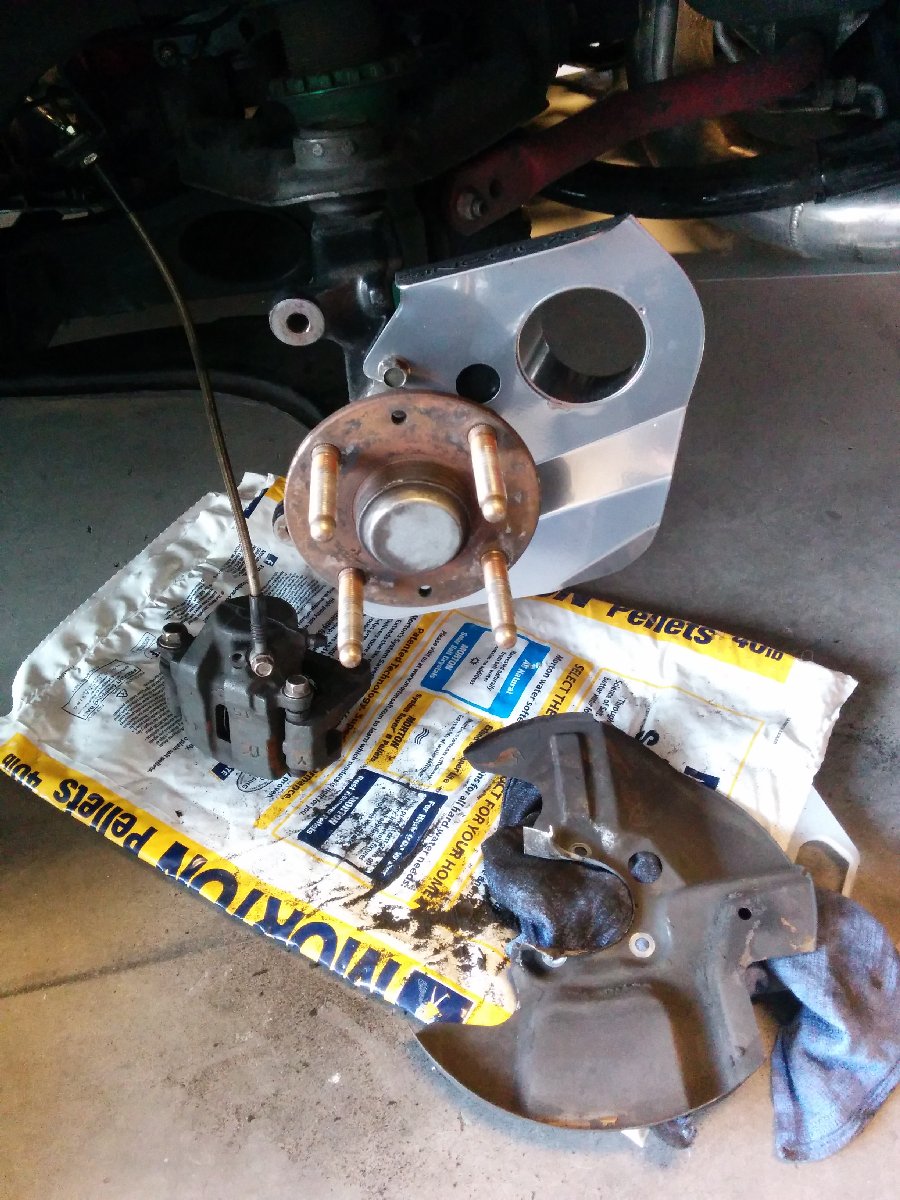

Last night I finally got to do the brakes. The Hawk pads are worse than the Carbotech pads. I had to re-drill and grind the holes to get them to line up and notch the top edge to make room for the pin.









Attached Thumbnails
99mx5 EFR build-img_20150309_183650.jpg   99mx5 EFR build-img_20150309_191402.jpg   99mx5 EFR build-img_20150309_221207.jpg   99mx5 EFR build-img_20150309_221217.jpg   99mx5 EFR build-img_20150309_221228.jpg

99mx5 is offline   Reply With Quote
Old 03-10-2015, 12:15 PM   #613
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,595
Total Cats: 936
Default

I wish I had even 1/4 of your skill with aluminum fabrication.

I'm going to have to remember that routing for the brake ducts, thanks for the pics!
EO2K is offline   Reply With Quote
Old 03-19-2015, 04:15 PM   #614
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

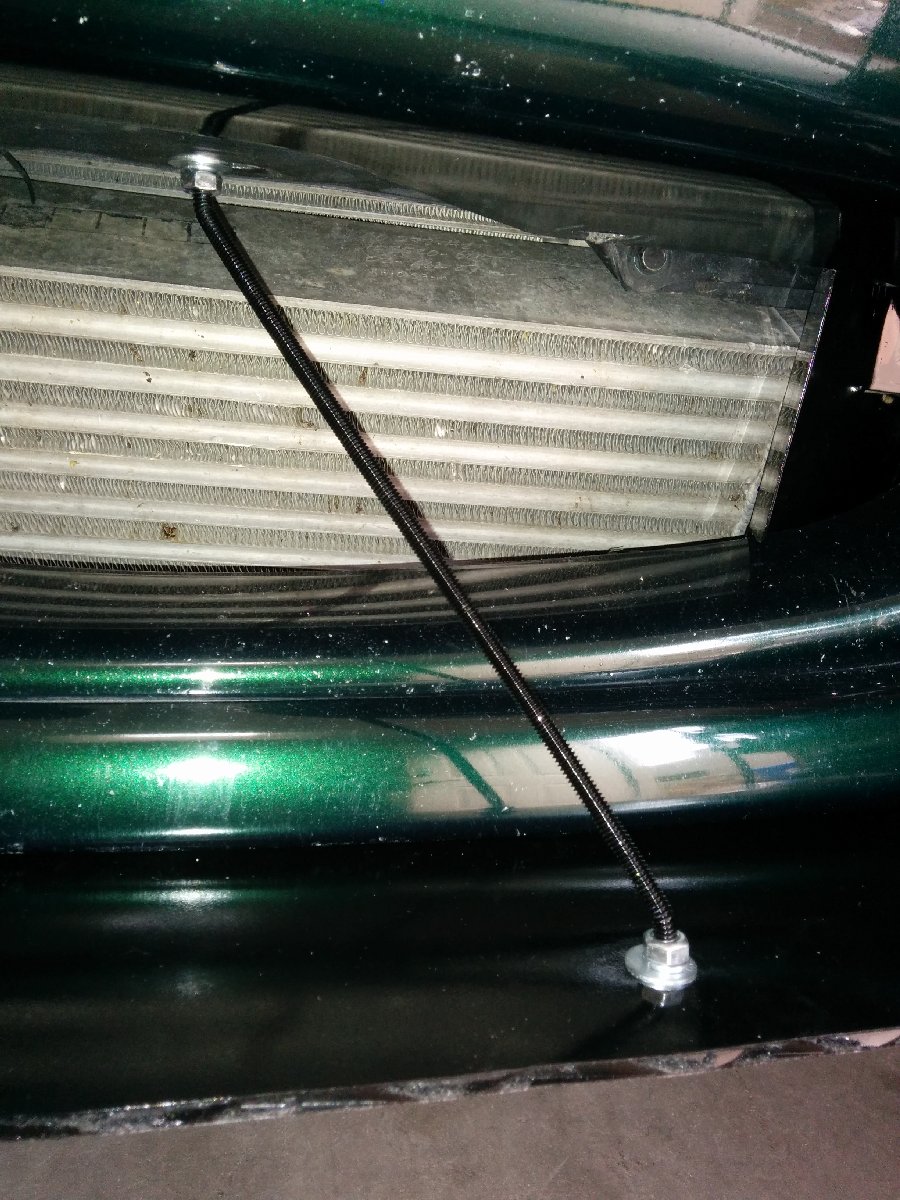

I realized that if the splitter is hit from below, it could potentially bend the rigid supports and hold the splitter in the bent position or break the supports and cause damage to the intercooler or radiator. I made new semi-rigid supports that will allow the splitter to return back to its original position if it receives an impact from below. I can also easily remove the supports.

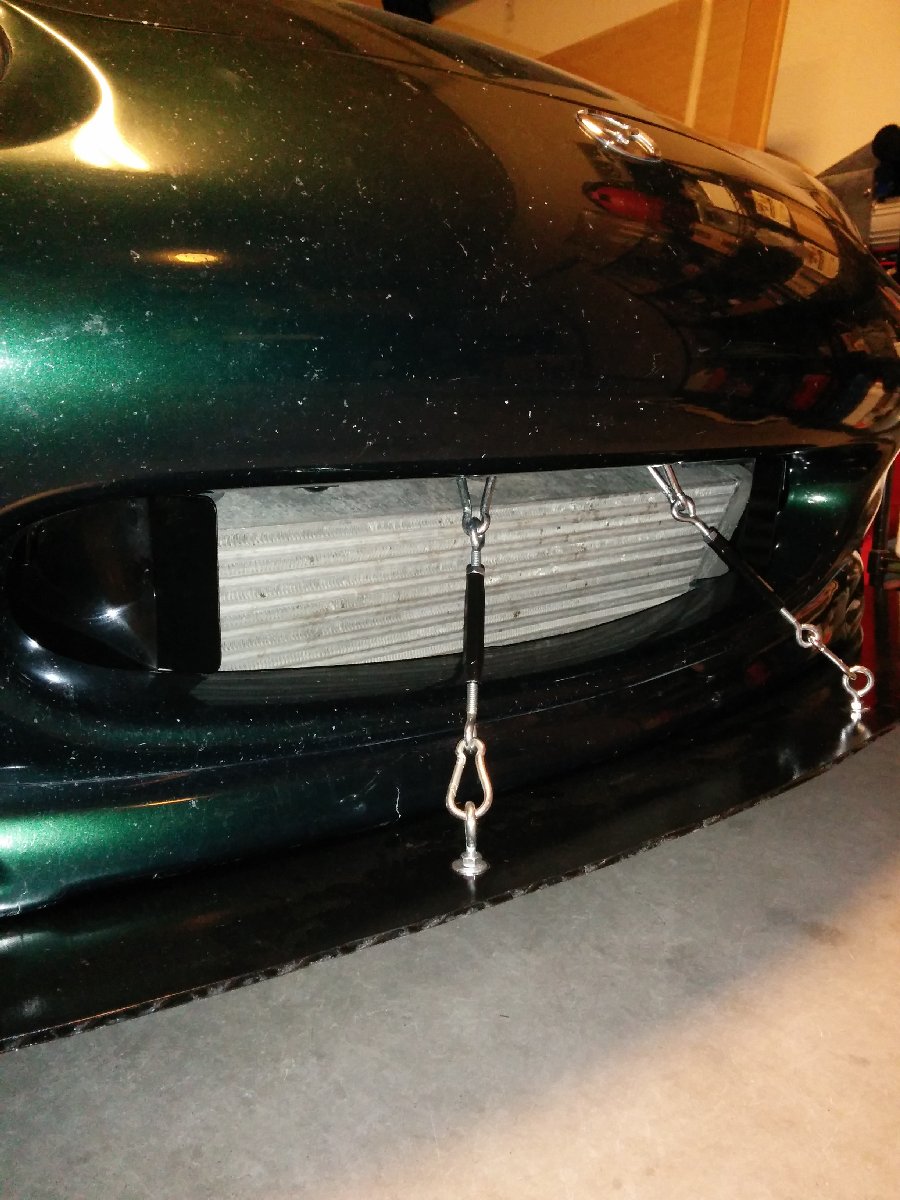

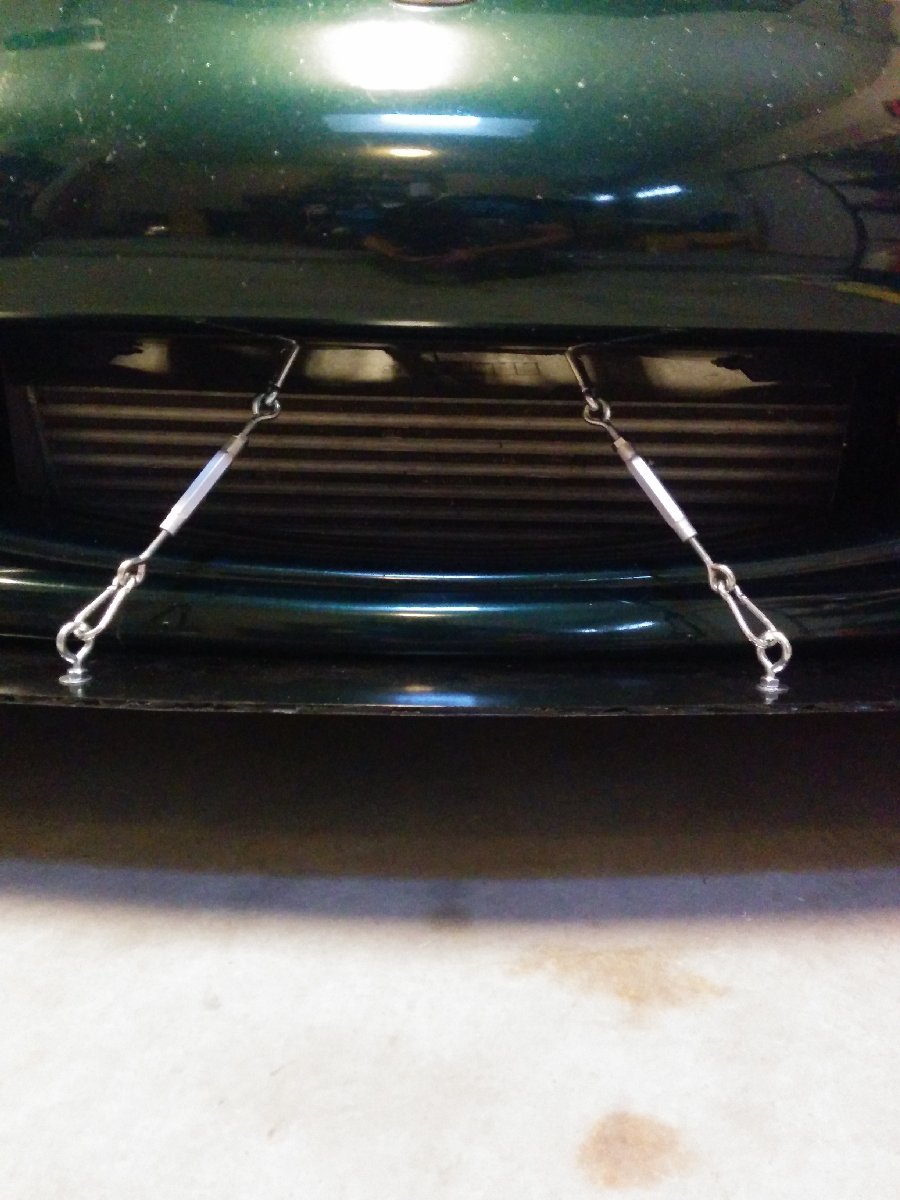

The supports are made with cable tensioners and snap link hooks and eye bolts.


I painted the tensioner bodies black. You can also see the bumper mouth brake ducts.
Attached Thumbnails
99mx5 EFR build-img_20150318_180308.jpg   99mx5 EFR build-img_20150318_214949.jpg
99mx5 is offline   Reply With Quote
Old 04-01-2015, 06:44 PM   #615
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

Random pic from the last trackday.

Attached Thumbnails
99mx5 EFR build-1279s.jpg
99mx5 is offline   Reply With Quote
Old 04-02-2015, 01:16 AM   #616
Junior Member

Join Date: May 2010
Location: Tampa, FL
Posts: 85
Total Cats: 0
Default

Car looks good!
I'm diggin the splitter/spats setup.
vintagerust is offline   Reply With Quote
Old 04-02-2015, 01:26 AM   #617
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,757
Total Cats: 2,494
Default

car looks like it means business. great pic
18psi is offline   Reply With Quote
Old 04-02-2015, 11:40 AM   #618
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,595
Total Cats: 936
Default

I dunno what it is about the dark colored NB's but they absolutely look "the business"
EO2K is offline   Reply With Quote
Old 04-20-2015, 01:45 AM   #619
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

Thanks for the comments! It feels like "the business" when I put my foot in it

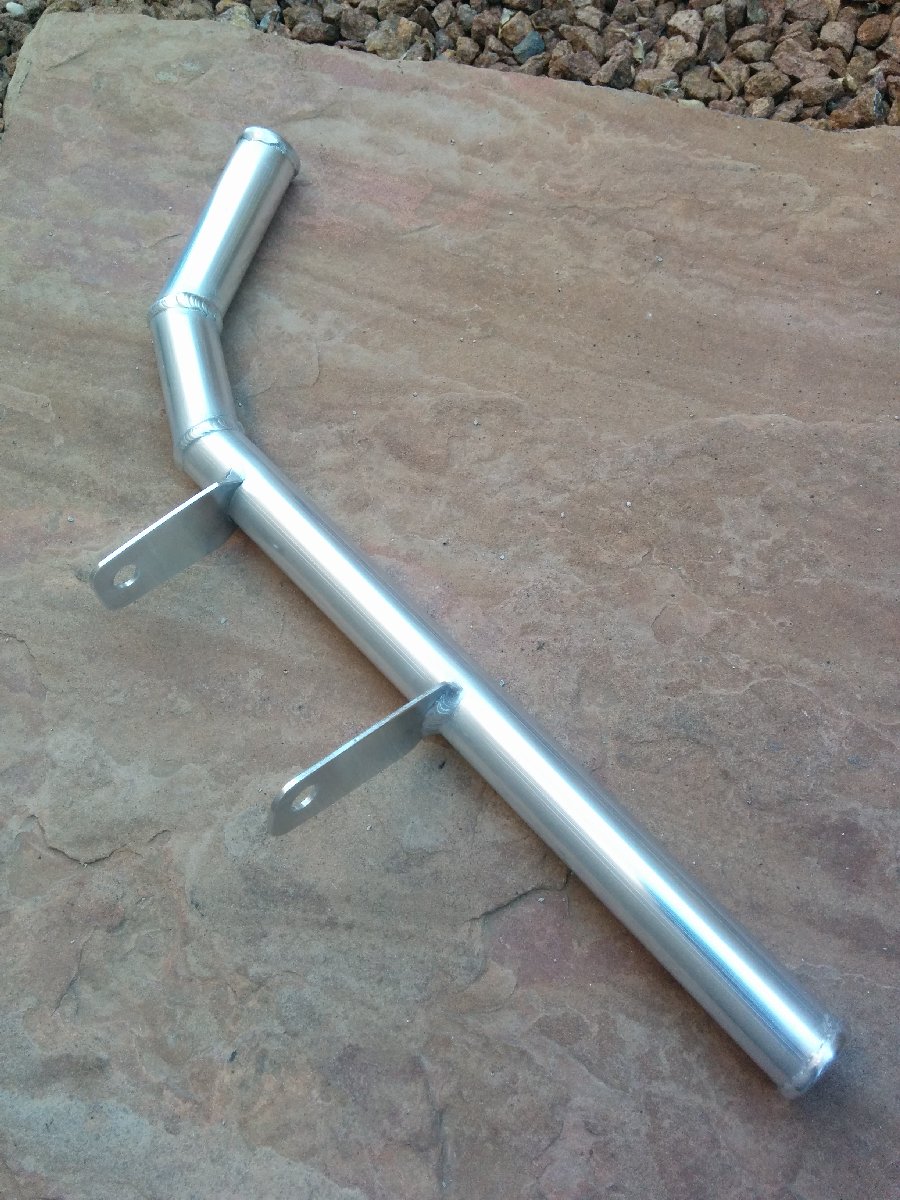

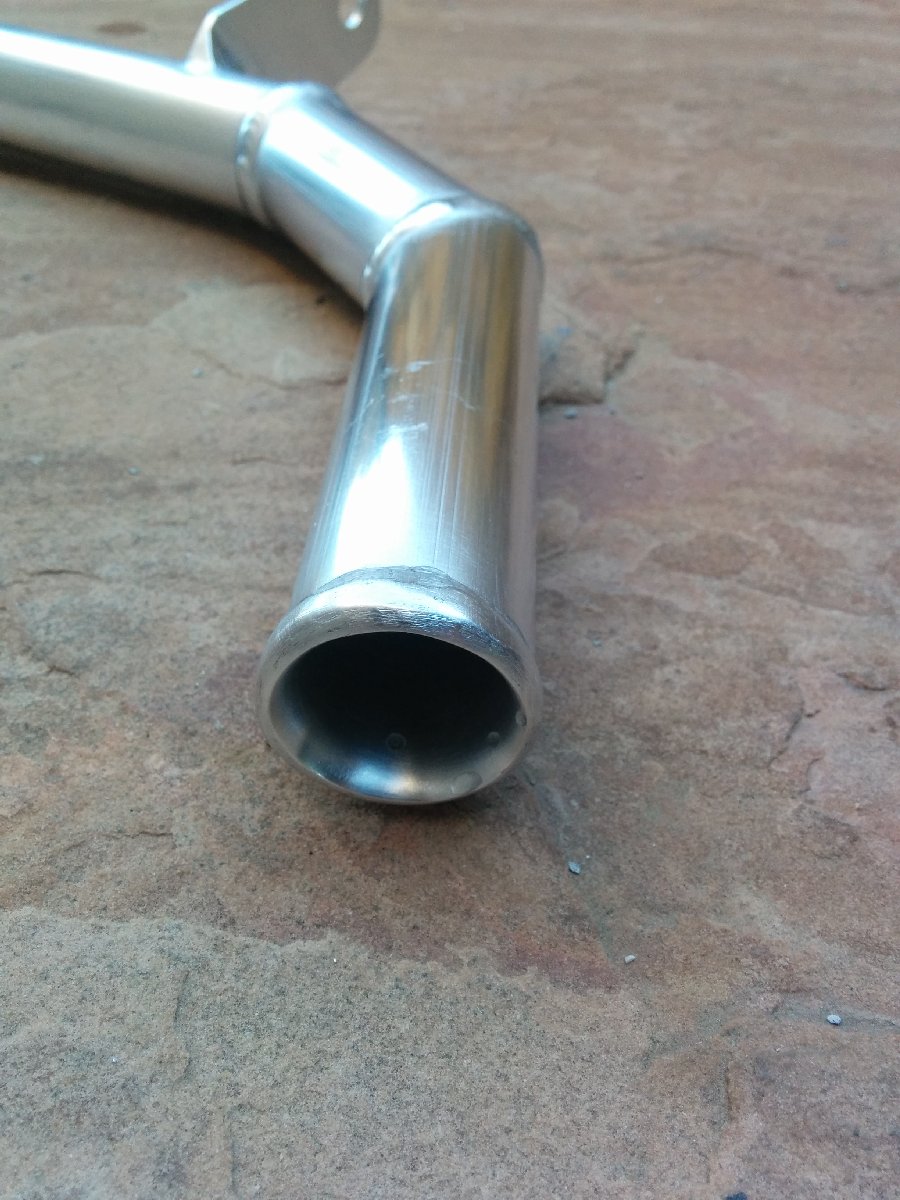

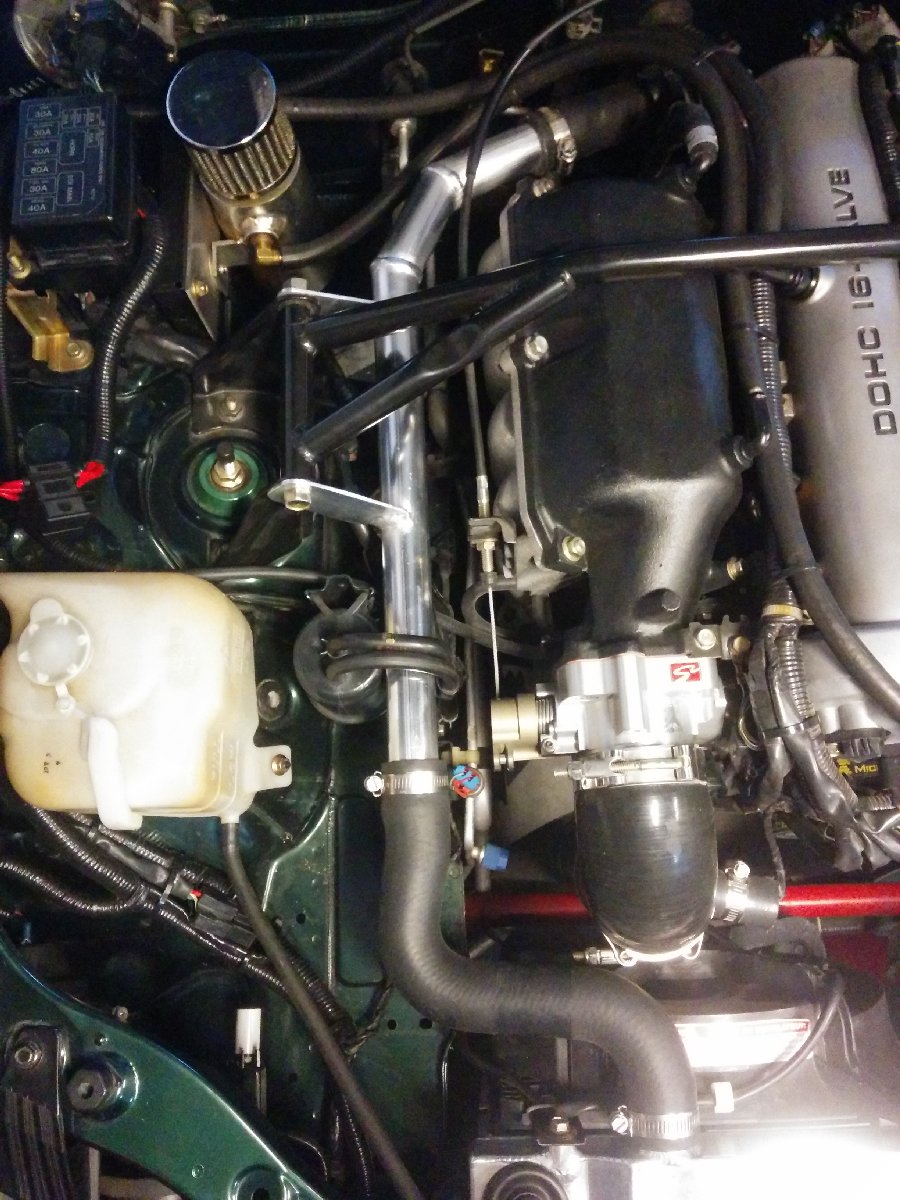

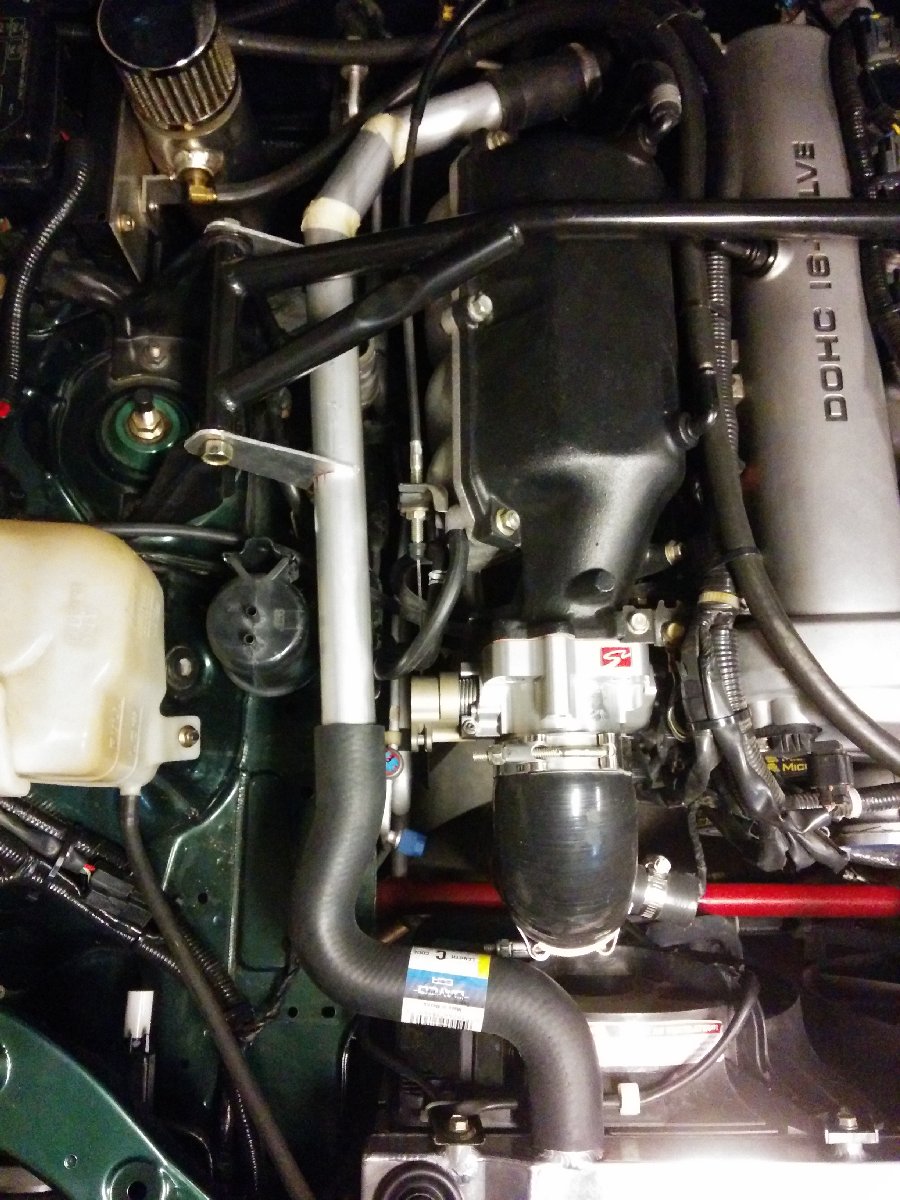

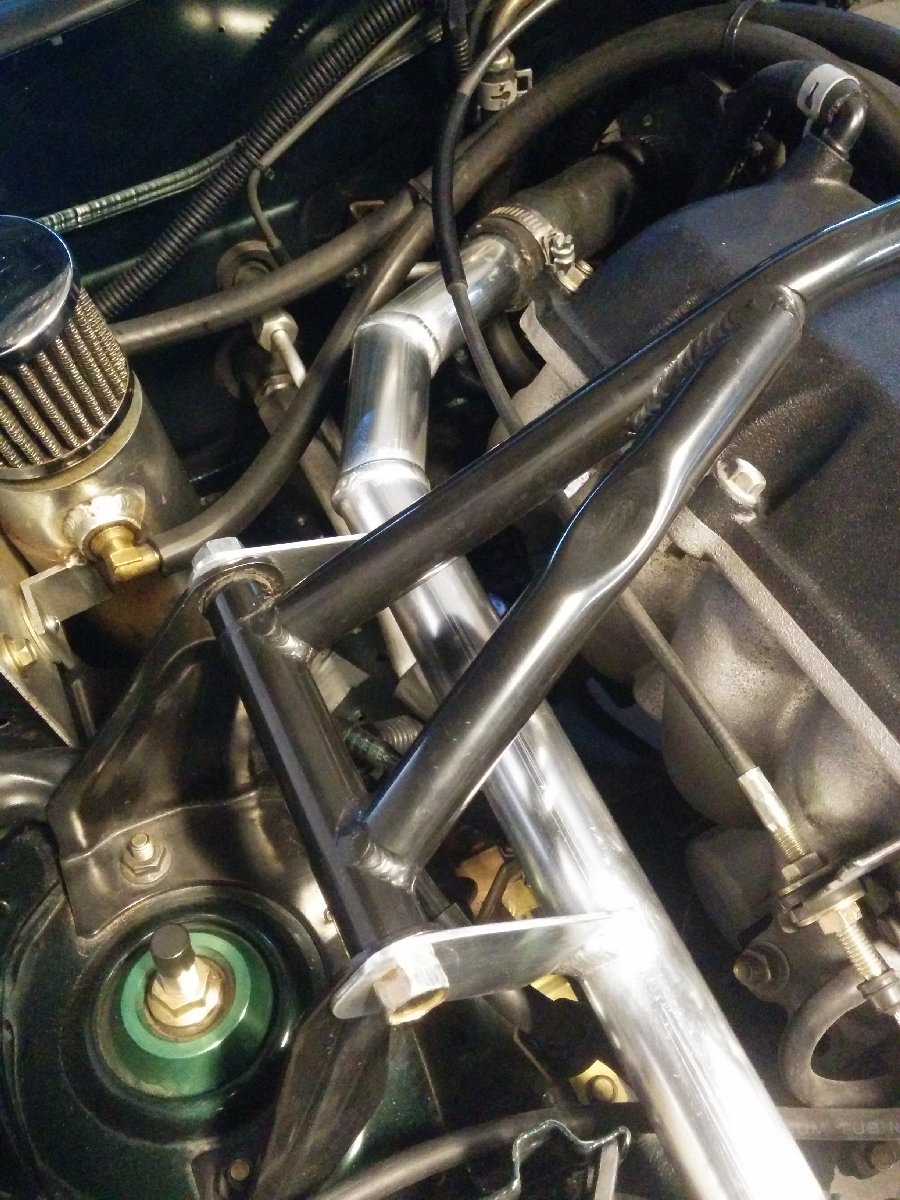

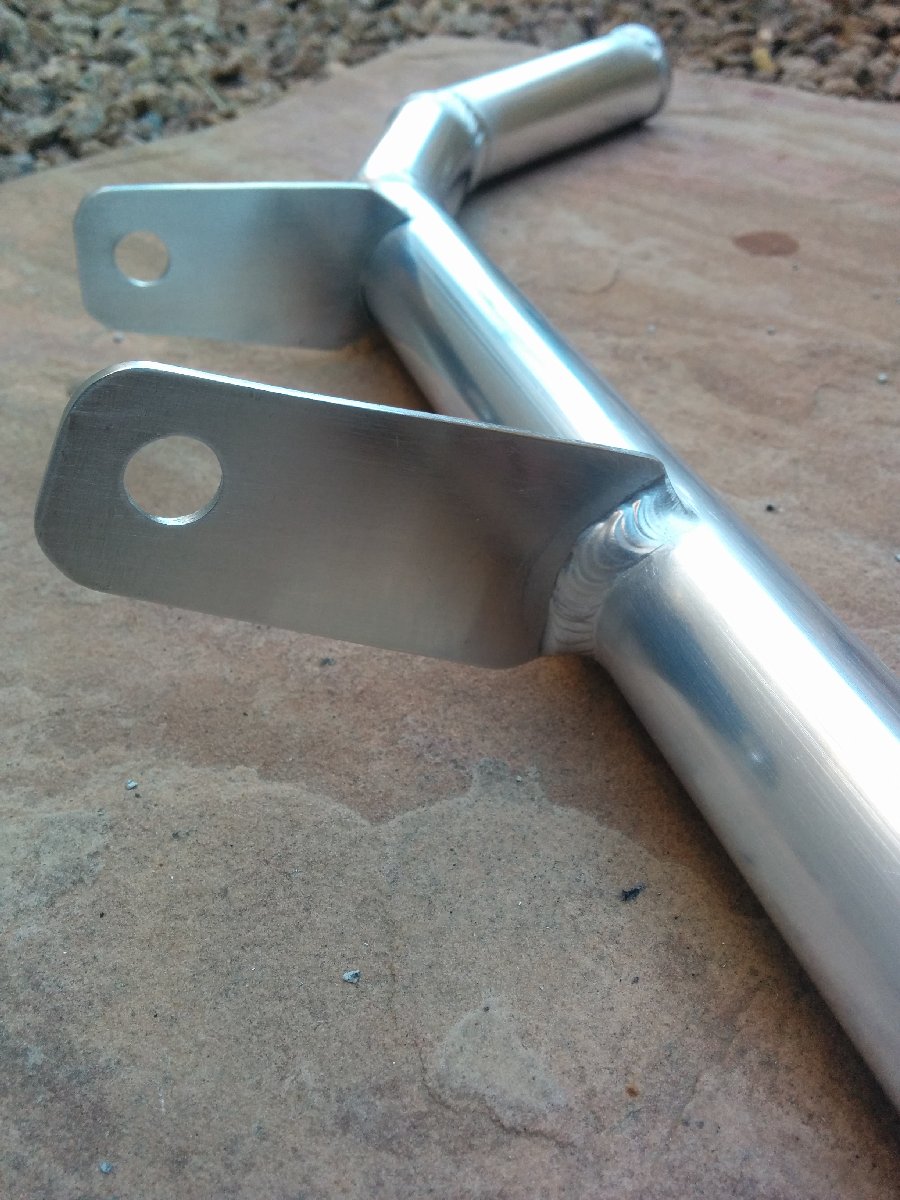

I always wanted to get rid of that long coolant hose, so I made a hard line to replace the GM truck hose. I bought schedule 40 aluminum tube and cut the pieces and taped them together to fit. I also made some cardboard pieces to make patterns for the mounts. I went to the local Autozone to get hose to to fit.

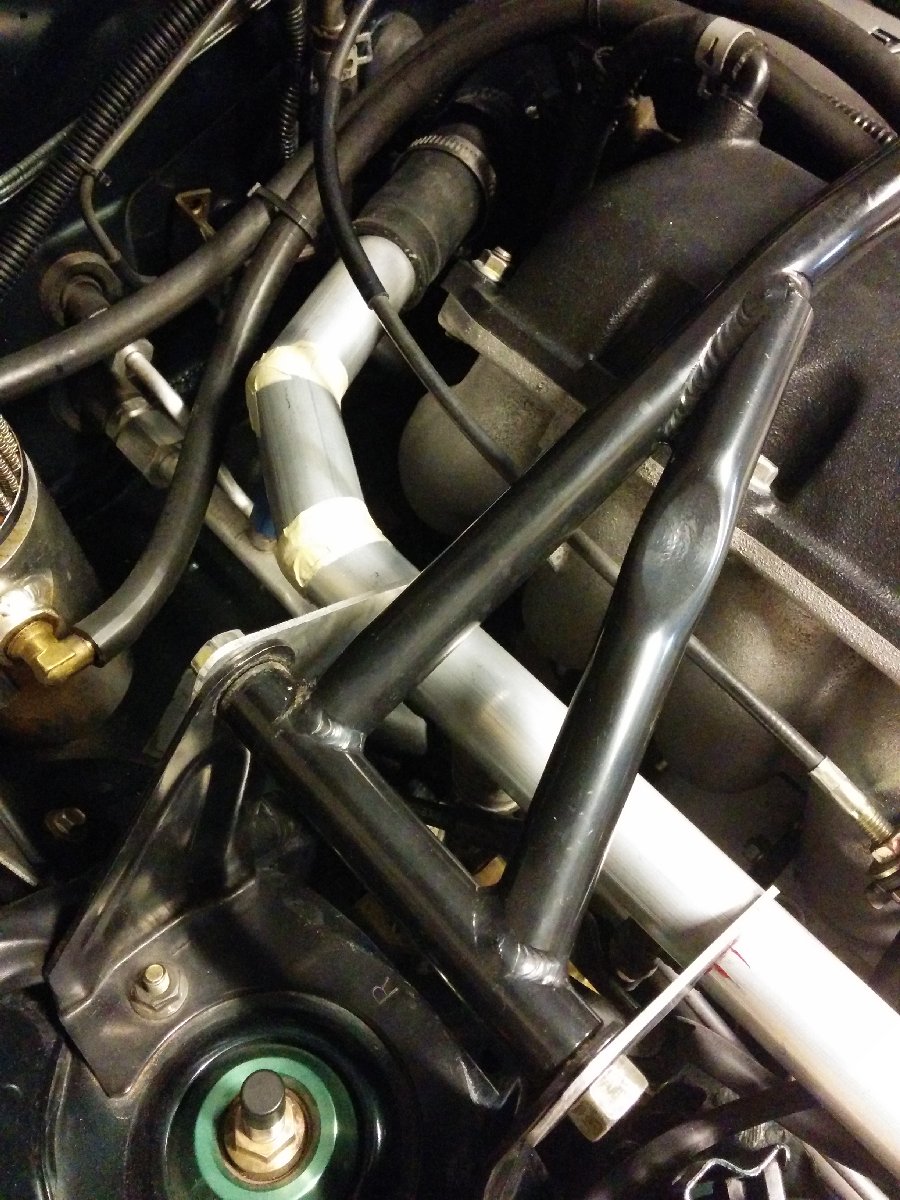

Here it is mocked up.












Attached Thumbnails
99mx5 EFR build-img_20150414_220513.jpg   99mx5 EFR build-img_20150414_220531.jpg   99mx5 EFR build-img_20150416_183104.jpg   99mx5 EFR build-img_20150416_183122.jpg   99mx5 EFR build-img_20150416_183135.jpg

99mx5 EFR build-img_20150416_192648.jpg   99mx5 EFR build-img_20150416_192626.jpg
99mx5 is offline   Reply With Quote
Old 06-14-2015, 04:53 AM   #620
Senior Member

Join Date: Jan 2013
Location: Gilbert, AZ
Posts: 740
Total Cats: 91
Default

Awesome build. Hopefully I can make it out to ASR again soon, it's been forever...
Arca_ex is offline   Reply With Quote
