Old 06-14-2015, 10:29 AM   #621
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,044
Total Cats: 33
Default

Excellent progress! I'm hoping to make a tube for the reroute on mine as well (when I get to that point). Do you have any reservations about the tube anchoring to the chassis instead of the engine, or are the rubber hoses at the ends enough to combat any movement from the engine?
TheBandit is offline   Reply With Quote
Old 06-14-2015, 11:04 AM   #622
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,212
Total Cats: 1,229
Default

Quote:
Originally Posted by 99mx5 View Post
I always wanted to get rid of that long coolant hose, so I made a hard line to replace the GM truck hose. I bought schedule 40 aluminum tube and cut the pieces and taped them together to fit. I also made some cardboard pieces to make patterns for the mounts. I went to the local Autozone to get hose to to fit.
I would strongly consider rebuilding the tabs so it fastens to the engine. You've got a rigid aluminum pipe attached to the chassis in one place (does not move) and to the engine at one end (moves a bunch). Not a good recipe for reliability
Savington is offline   Reply With Quote
Old 06-14-2015, 12:02 PM   #623
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,757
Total Cats: 2,493
Default

wouldn't the rubber portions allow movement?
18psi is offline   Reply With Quote
Old 06-14-2015, 01:00 PM   #624
Senior Member

Join Date: Jan 2013
Location: Gilbert, AZ
Posts: 740
Total Cats: 91
Default

Quote:
Originally Posted by Savington View Post
I would strongly consider rebuilding the tabs so it fastens to the engine. You've got a rigid aluminum pipe attached to the chassis in one place (does not move) and to the engine at one end (moves a bunch). Not a good recipe for reliability
That's why he used normal radiator hose sections on either end so that this won't be an issue. I see nothing wrong here.
Arca_ex is offline   Reply With Quote
Old 06-14-2015, 03:40 PM   #625
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

Thanks for the comments!

Quote:
Originally Posted by Savington View Post
I would strongly consider rebuilding the tabs so it fastens to the engine. You've got a rigid aluminum pipe attached to the chassis in one place (does not move) and to the engine at one end (moves a bunch). Not a good recipe for reliability
I figured the stock hose configuration is the same as mine except I moved the flexing hose to the rear. The only issue I ran into was clutch hard line clearance. I solved it by using a long flex hose for the clutch and removing the factory curled hard line and bracket at the transmission. The hose at the rear also curves up to clear the AC lines and engine wiring.

Last edited by 99mx5; 06-14-2015 at 03:51 PM.
99mx5 is offline   Reply With Quote
Old 08-11-2015, 05:57 PM   #626
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

So far, all is well. I'm still taking it to the track and beating the snot out of it.

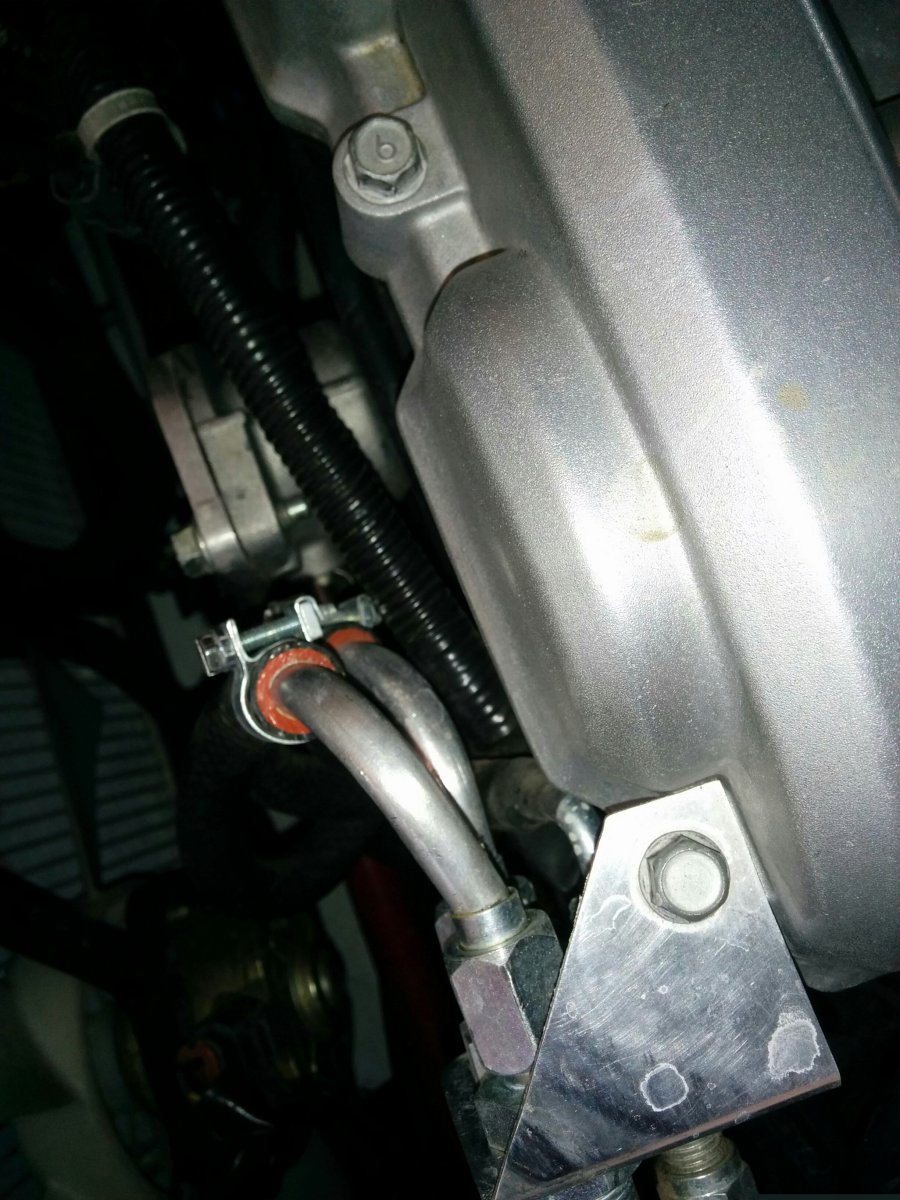

I noticed a smell of coolant after one session and found this:

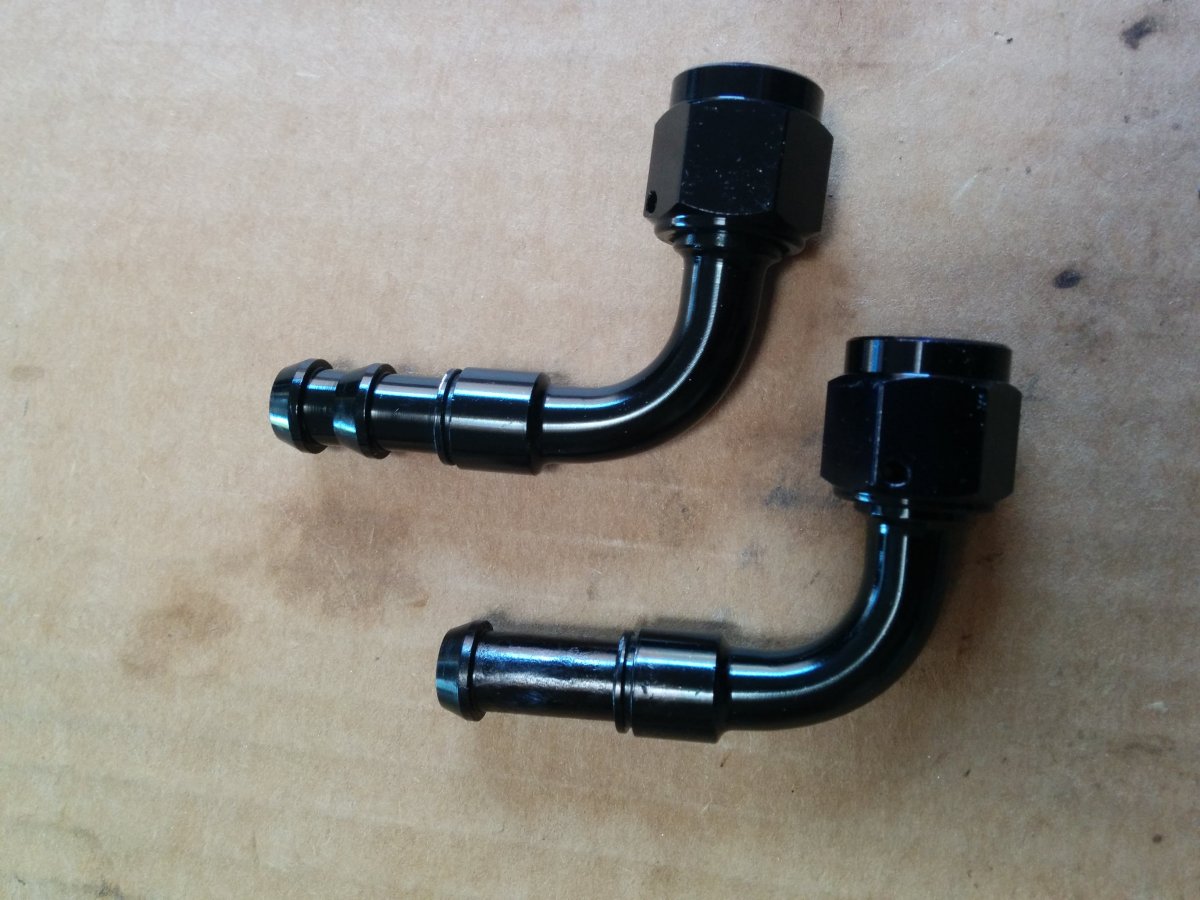

After three years, the soft aluminum fitting was bending and leaked at the collar. I bought new fittings and ground one of the barbs down on each one.

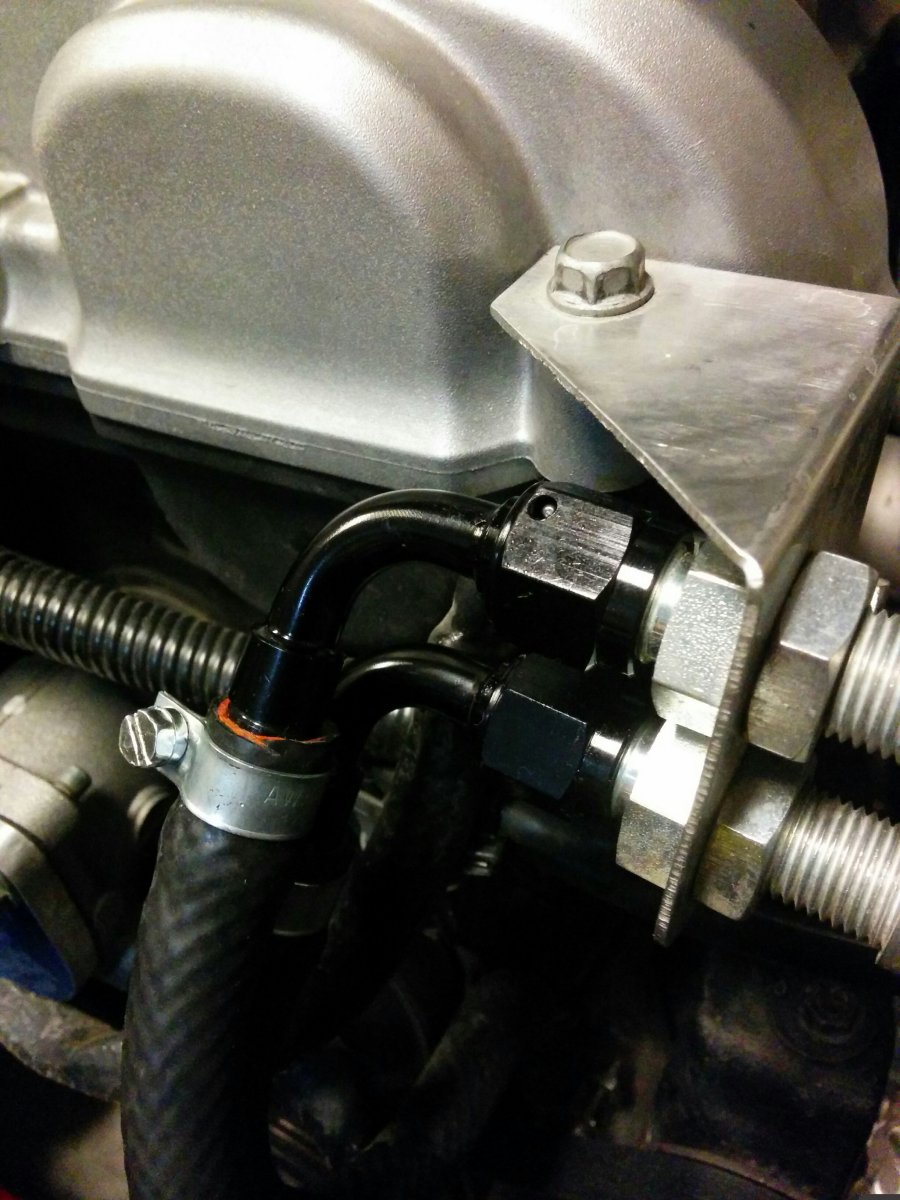

installed and good to go.

Attached Thumbnails
99mx5 EFR build-img_20150810_201537.jpg   99mx5 EFR build-img_20150810_183408.jpg   99mx5 EFR build-img_20150806_124616.jpg
99mx5 is offline   Reply With Quote
Old 08-11-2015, 06:13 PM   #627
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,595
Total Cats: 935
Default

I'm still completely distracted by all the pics of water jet sexiness earlier in the thread

Nice to hear its hold up, and good thing you caught that when you did.
EO2K is offline   Reply With Quote
Old 09-20-2015, 05:53 PM   #628
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

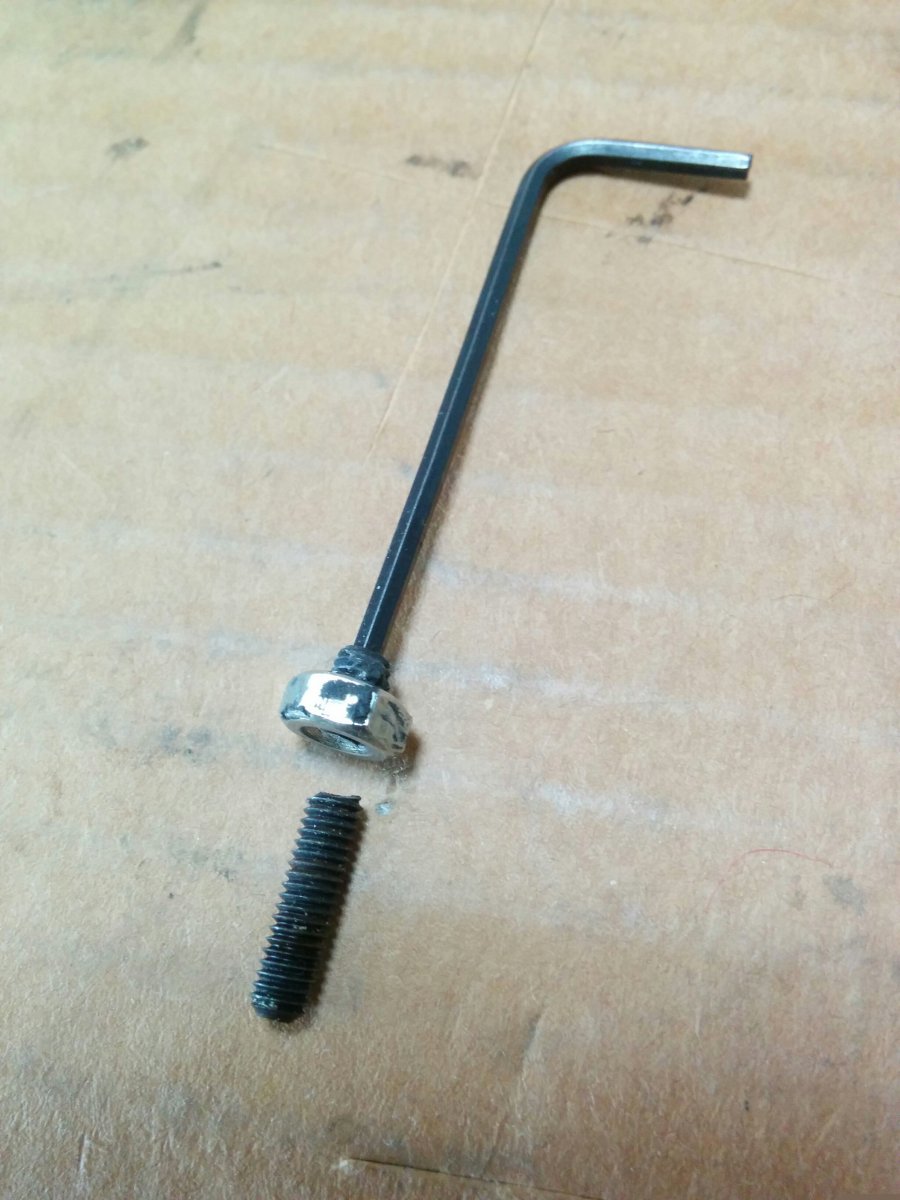

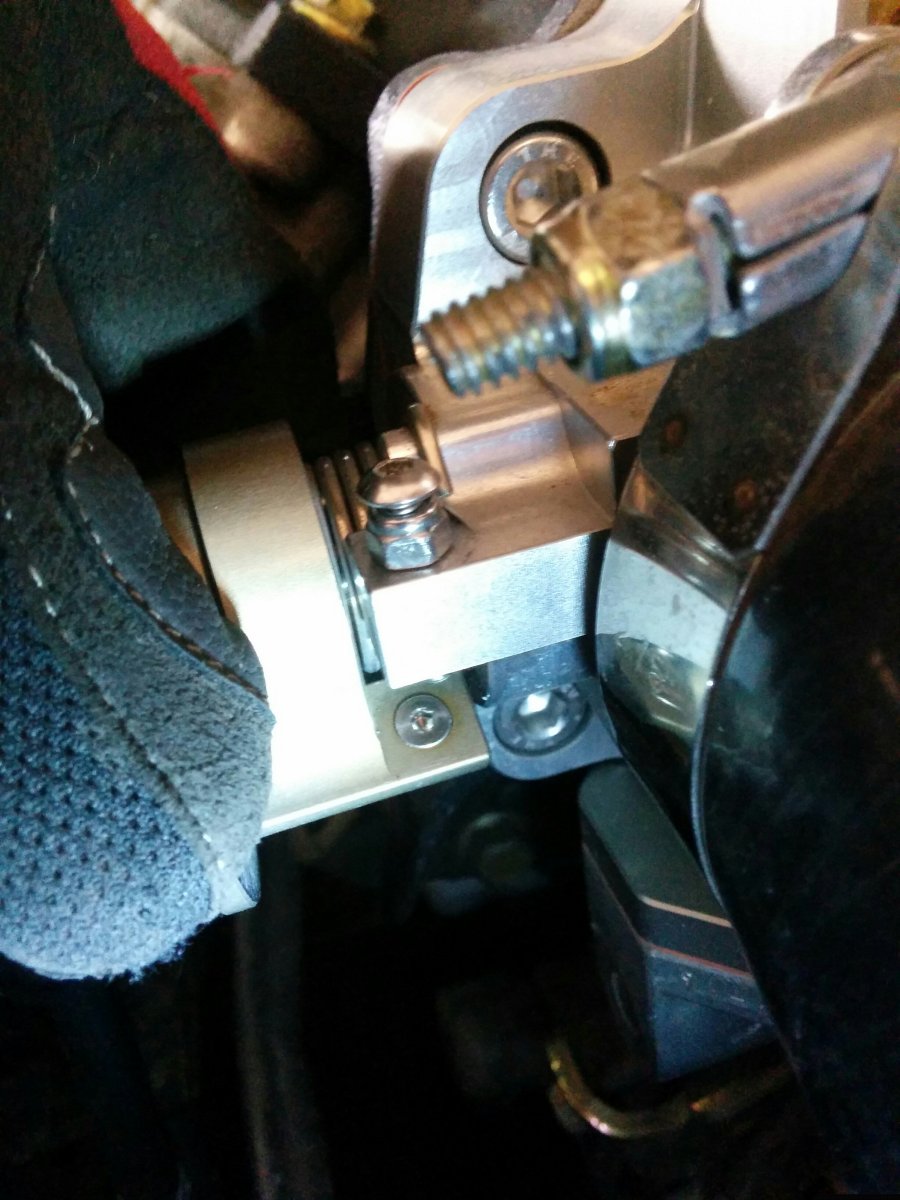

I have been having an issue with high idle. After searching for vacuum leaks I found that the throttle body has a screw loose where the idle set screw rests. I readjusted the idle set screw and it broke. I replaced all the screws with stainless and I used a nylon lock nut and thread-locker.





Looks like Leafy was right about the Skunk2 throttle body "Devil Screw". I'm surprised that Skunk2 used crappy hardware for idle screw and idle screw rest.
Attached Thumbnails
99mx5 EFR build-img_20150919_171245sml.jpg   99mx5 EFR build-img_20150919_125113sml.jpg
99mx5 is offline   Reply With Quote
Old 09-20-2015, 05:58 PM   #629
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,757
Total Cats: 2,493
Default

I'm not. Junk2 is called that for a reason. I also happen to think their "miata specific" tb is lazy work at best, lol

*edit: you are AWESOME. Thanks

Last edited by 18psi; 09-20-2015 at 07:30 PM.
18psi is offline   Reply With Quote
Old 09-20-2015, 06:41 PM   #630
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

I'm running FIC 650cc injectors. You have a PM Vlad.
99mx5 is offline   Reply With Quote
Old 09-20-2015, 08:50 PM   #631
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,595
Total Cats: 935
Default

Great, something else to replace on my throttle body. Thanks for the heads up though
EO2K is offline   Reply With Quote
Old 10-08-2015, 12:57 AM   #632
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

I figured I would post up my tune in case others need help or to see the settings I am using. Cheers!
99mx5 is offline   Reply With Quote
Old 01-26-2016, 06:54 PM   #633
Mr Broke Pants
iTrader: (9)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,541
Total Cats: 49
Default

That is the very first miata that I think sounds good to me.

Very throaty and deep sounding! How similar to the videos is it in person?

I wouldn't mind if mine sounded like that!
thumpetto007 is offline   Reply With Quote
Old 01-27-2016, 09:38 AM   #634
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,616
Total Cats: 306
Default

Quote:
Originally Posted by thumpetto007 View Post
That is the very first miata that I think sounds good to me.

Very throaty and deep sounding! How similar to the videos is it in person?

I wouldn't mind if mine sounded like that!
I've got the same exhaust; I'll sell you the axleback. It was too loud for me unless that's because of the 4.10 rear end and hitting 113Hz resonance at 3400RPM on the highway.

I'm waiting on MTnet approved muffler now. My tinnitus would be proud.
psyber_0ptix is offline   Reply With Quote
Old 01-27-2016, 01:39 PM   #635
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,595
Total Cats: 935
Default

Quote:
Originally Posted by psyber_0ptix View Post
I'm waiting on MTnet approved muffler now.
You will not regret it, I love my big *** Magnaflow.
EO2K is offline   Reply With Quote
Old 01-27-2016, 01:55 PM   #636
Mr Broke Pants
iTrader: (9)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,541
Total Cats: 49
Default

Quote:
Originally Posted by psyber_0ptix View Post
I've got the same exhaust; I'll sell you the axleback. It was too loud for me unless that's because of the 4.10 rear end and hitting 113Hz resonance at 3400RPM on the highway.

I'm waiting on MTnet approved muffler now. My tinnitus would be proud.
I'm guessing a lot of the deepness comes from all the turbo hotside parts. I'm still na. I'm staying stock exhaust while I'm na.

What are the complete specs for the exhaust? Header type, diameter from the turbo, any resonators and what size? Muffler?

I will duplicate the exact exhaust. I'm very picky when it comes to sound.
thumpetto007 is offline   Reply With Quote
Old 01-27-2016, 01:57 PM   #637
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,757
Total Cats: 2,493
Default

Duplicate Gordon's (EO2K). It's very similar, and the best one I've heard in person. He posted all the specs and tons of pics in his thread
18psi is offline   Reply With Quote
Old 01-27-2016, 02:04 PM   #638
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

Thanks for the comments!

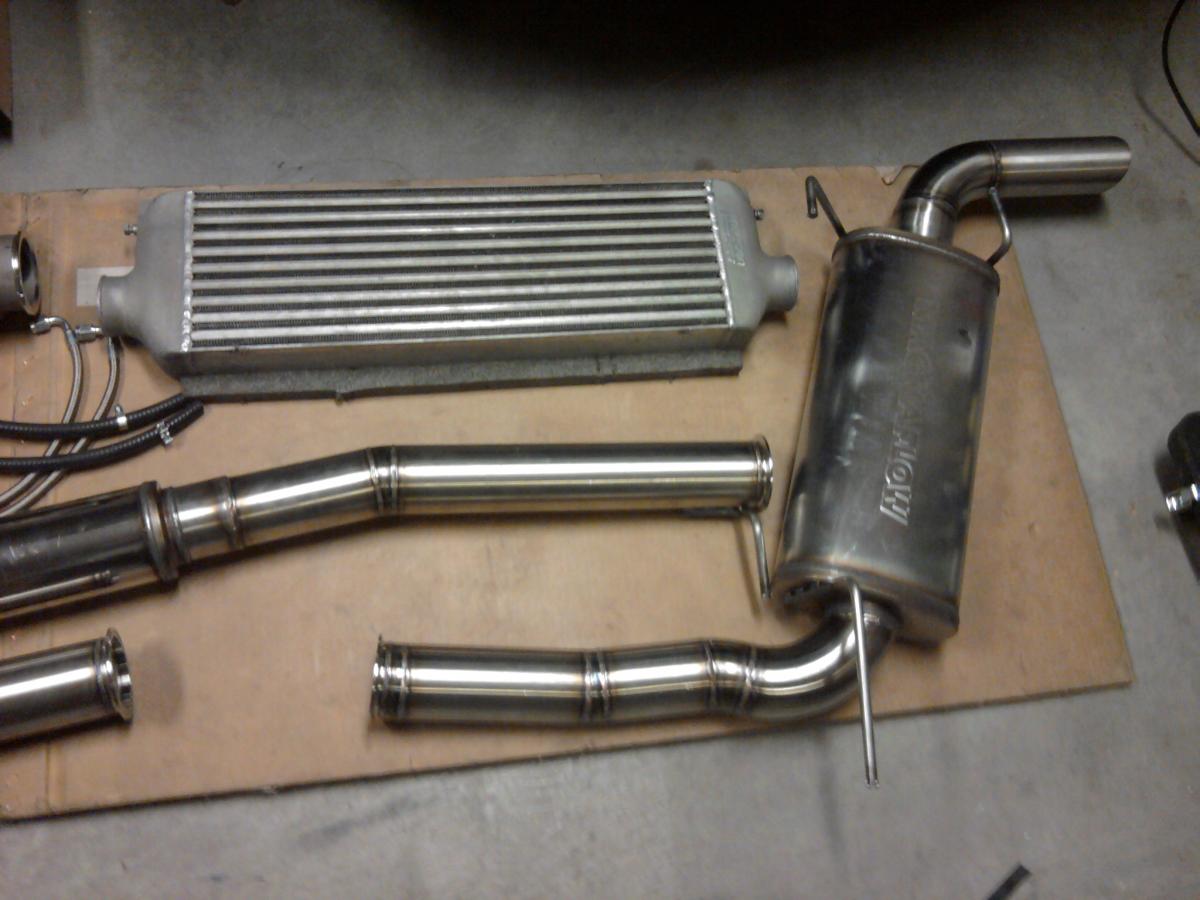

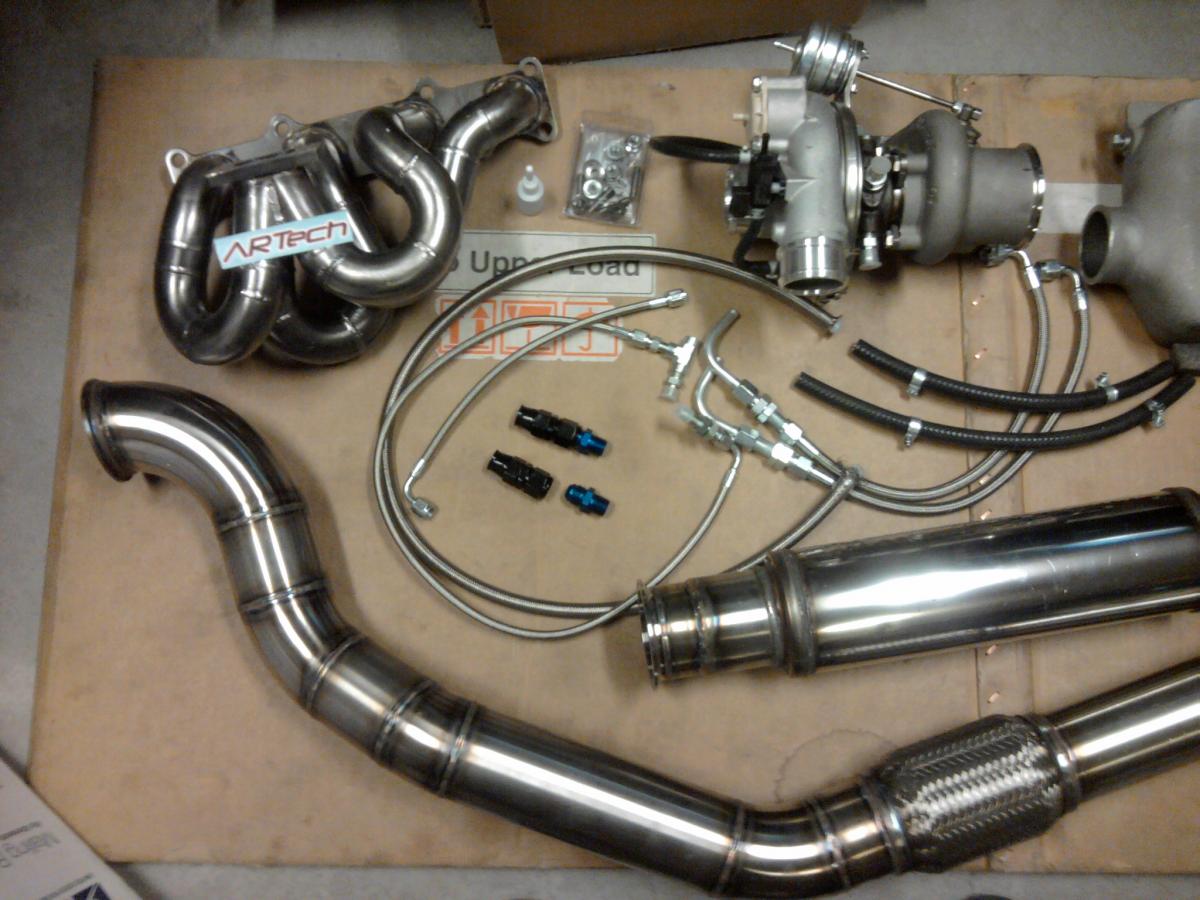

The exhaust was built by Abe of ARTech. 3" stainless with magnaflow resonator and muffler.



Attached Thumbnails
99mx5 EFR build-34045d1328903652-99mx5-efr-build-img_20120209_194303.jpg   99mx5 EFR build-34046d1328903652-99mx5-efr-build-img_20120209_194032.jpg
99mx5 is offline   Reply With Quote
Old 01-27-2016, 02:19 PM   #639
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,595
Total Cats: 935
Default

Yeah, 99mx5 is using a somewhat smaller muffler than the MT approved model.

Quote:
Originally Posted by 18psi View Post
Duplicate Gordon's (EO2K). It's very similar, and the best one I've heard in person. He posted all the specs and tons of pics in his thread
Thanks!

Although, I guess because I'm not using the single path Magnaflow am I using an MT approved muffler? Can we add my dual path to the muffler holy trinity?
EO2K is offline   Reply With Quote
Old 01-28-2016, 01:24 AM   #640
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

I'll make a video of the exhaust and stick my foot in it for the business sound. This car has been and remains too stoopid to use errryday.
99mx5 is offline   Reply With Quote
