Old 04-07-2016, 01:16 PM   #681
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,884
Total Cats: 521
Default

I have determined, judging by the neg props I've been awarded, that I said something stupid. Is there any reason that running 7 PSI should result in such a fall-off of torque on the top end? What else would cause that drop in torque above 5500 rpm?

My torque doesn't fall off nearly that much when on a GT2871R at 8 PSI (similar max power potential to the EFR, and supposedly not as efficient).

Learn me please?

Continue the discussion in my thread if we don't want to have it here?

https://www.miataturbo.net/build-thr...-77788/page54/
turbofan is offline   Reply With Quote
Old 04-07-2016, 02:15 PM   #682
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

So... I spoke with Abe at ARTech and he will repair the manifold and also reinforce the turbo flange.

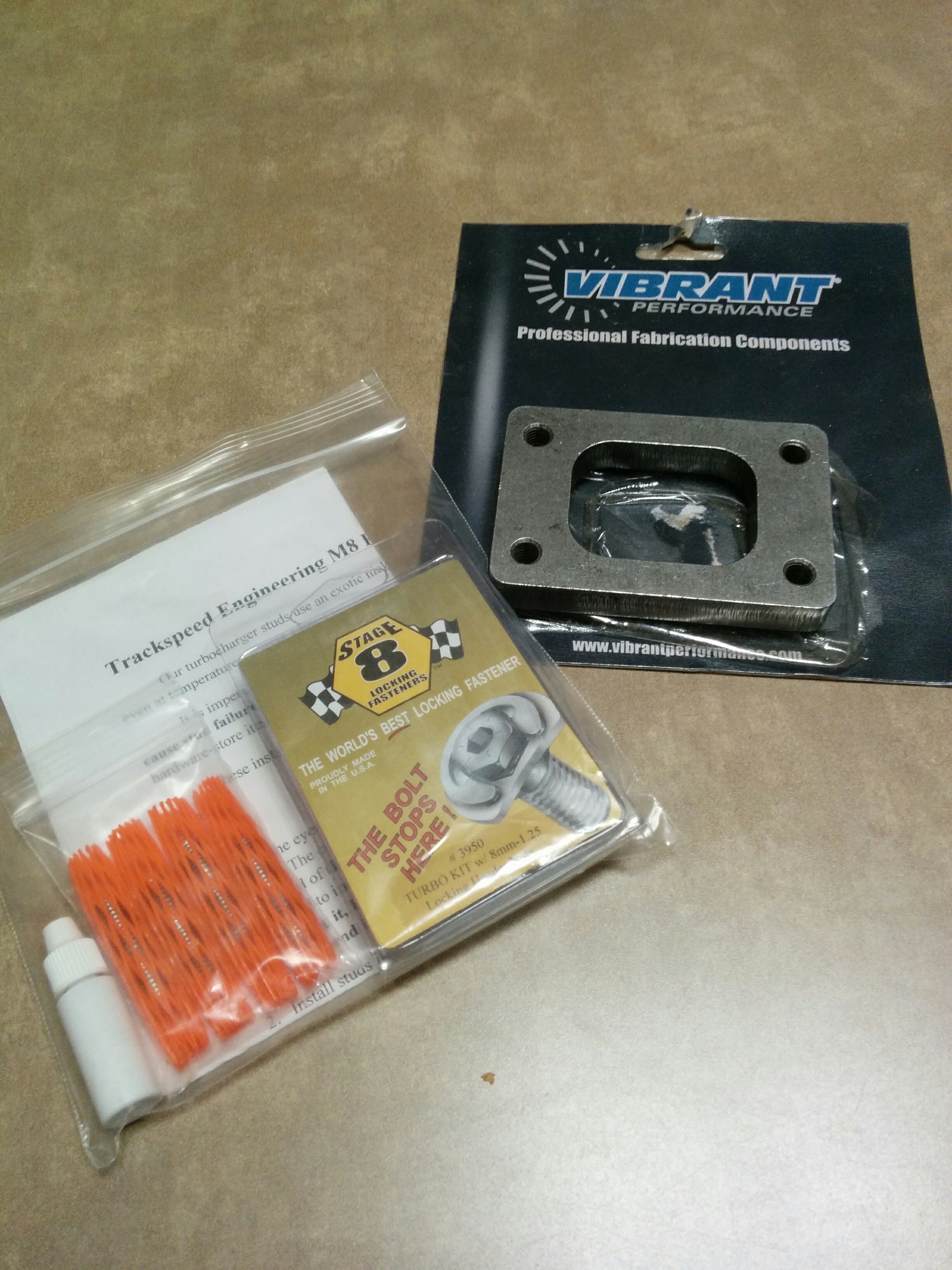

I ordered a new Vibrant 1/2" thick flange and TrackSpeed Inconel stud kit for the manifold.

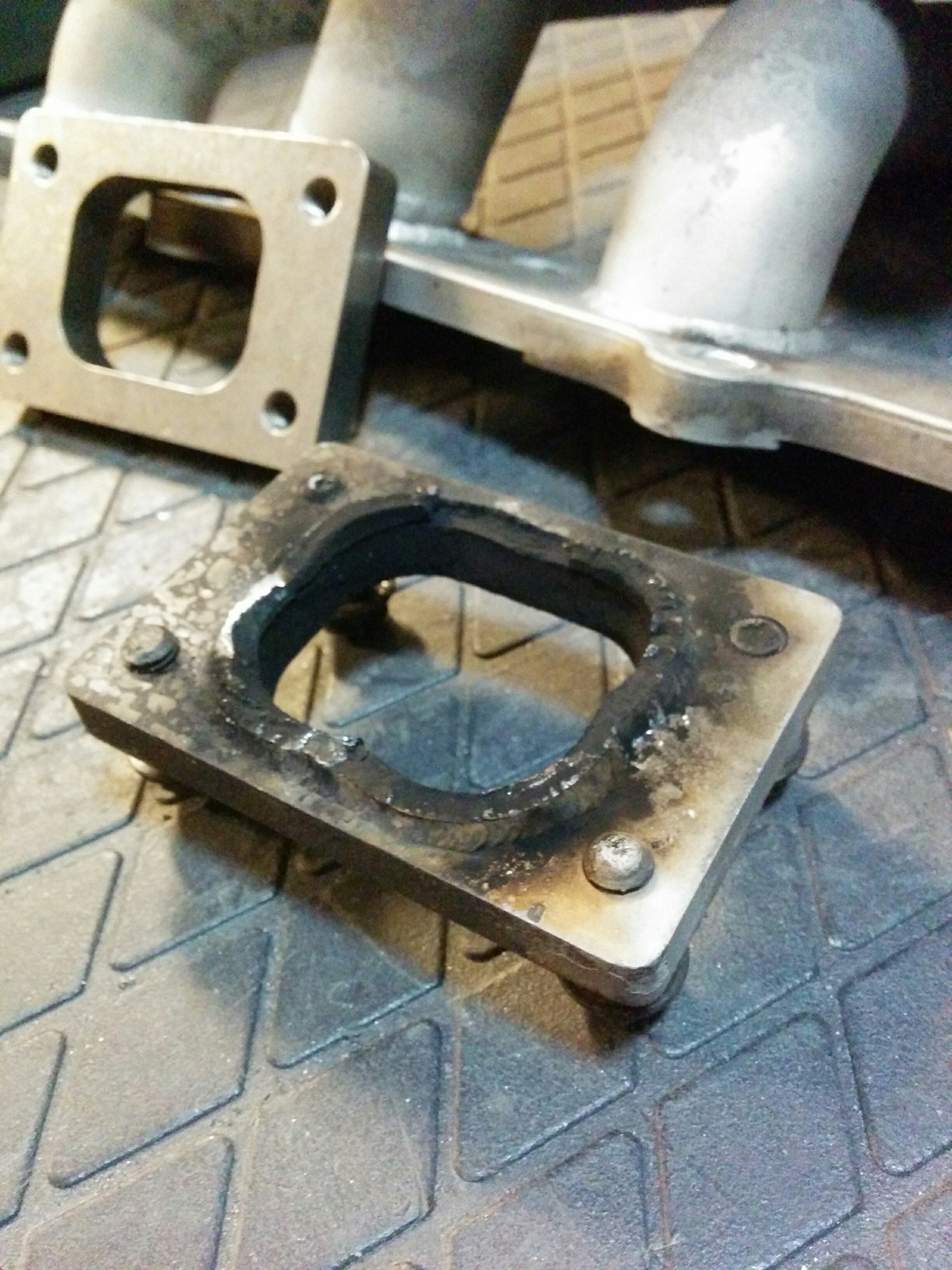

The flange cracked all the way around. All this time I thought it was leaking from loose studs.

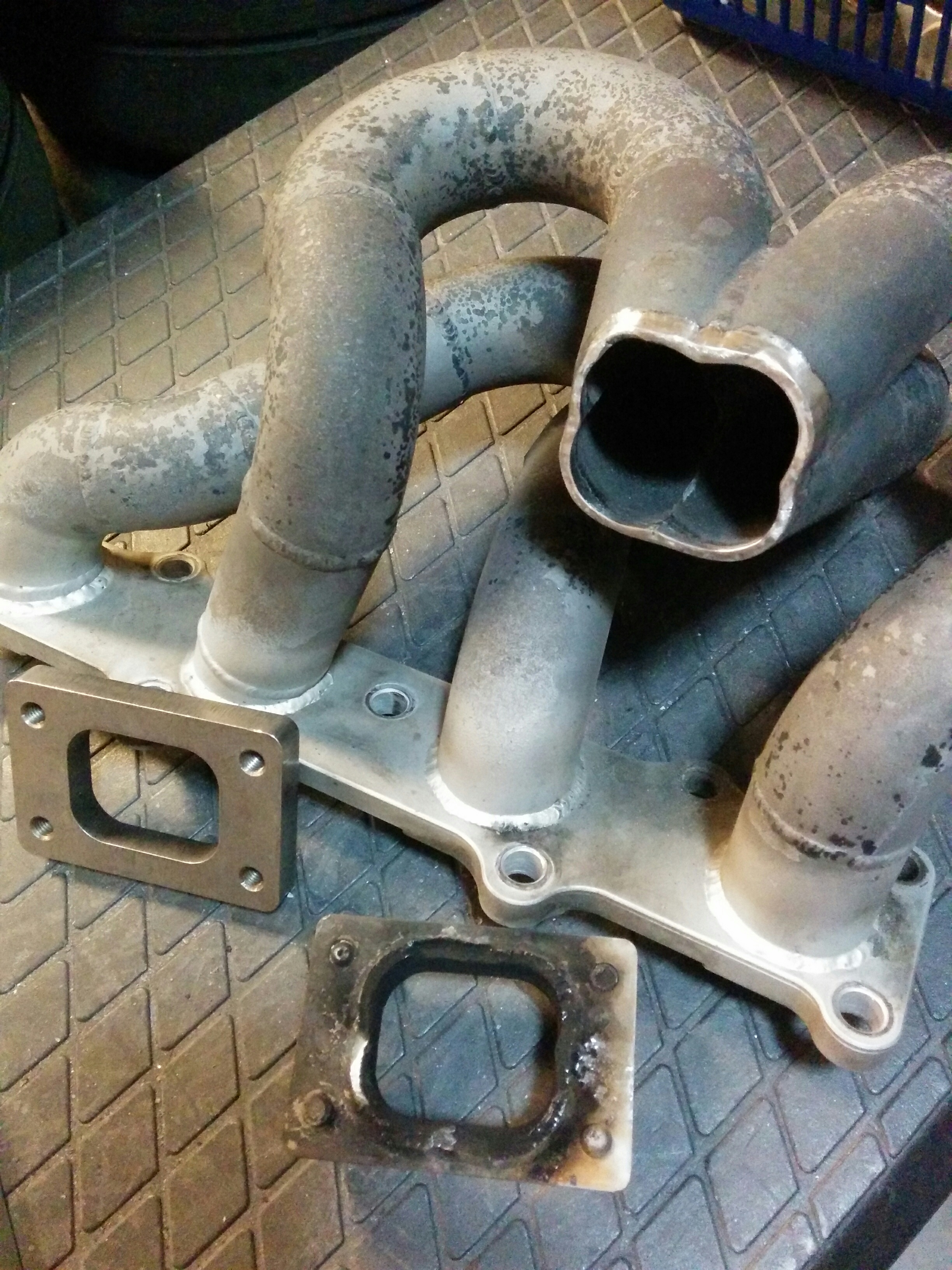

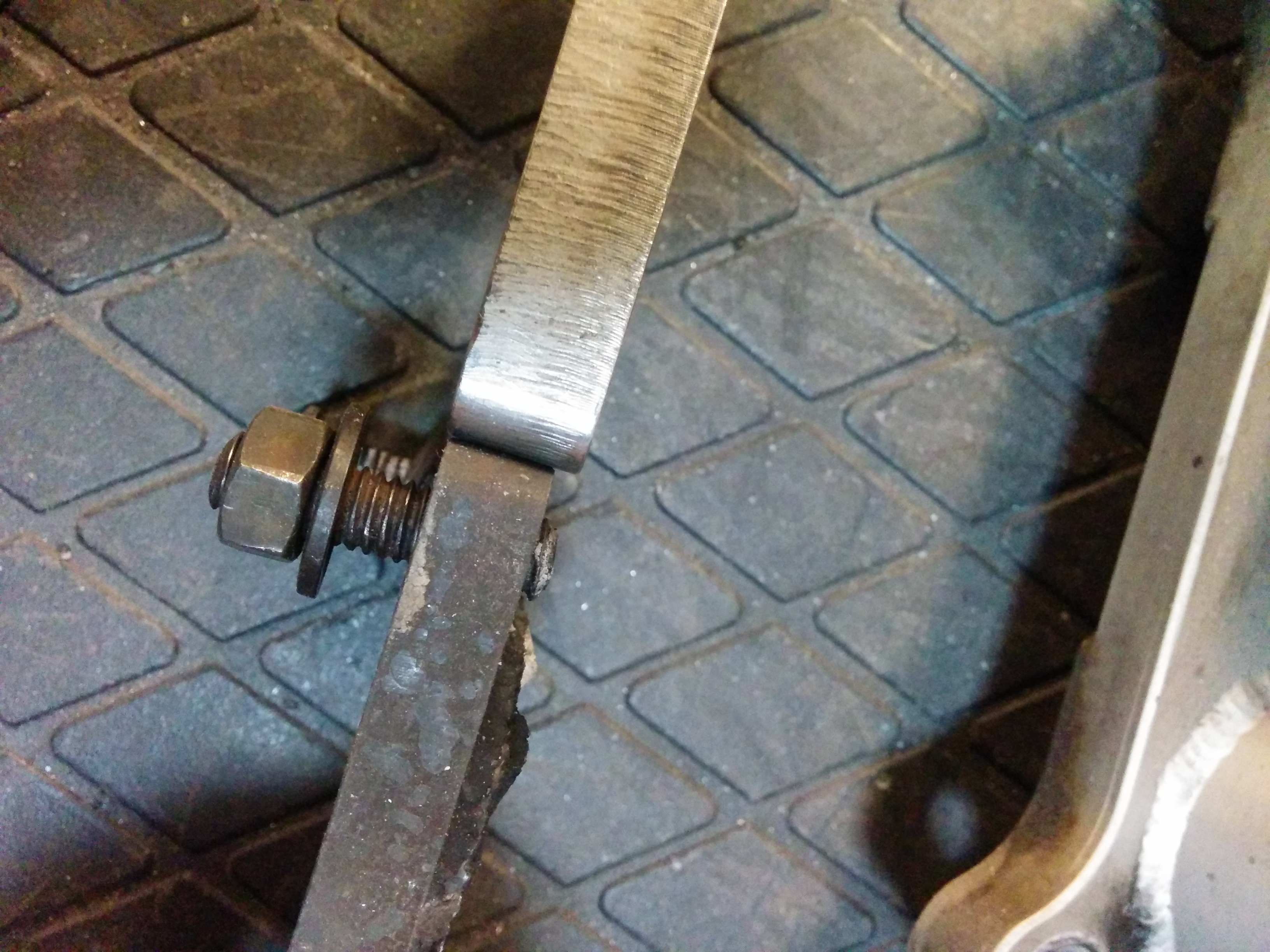

Flange thickness comparison. Abe told me he now uses thicker flanges. I had already purchased the Vibrant, So I'll use it.

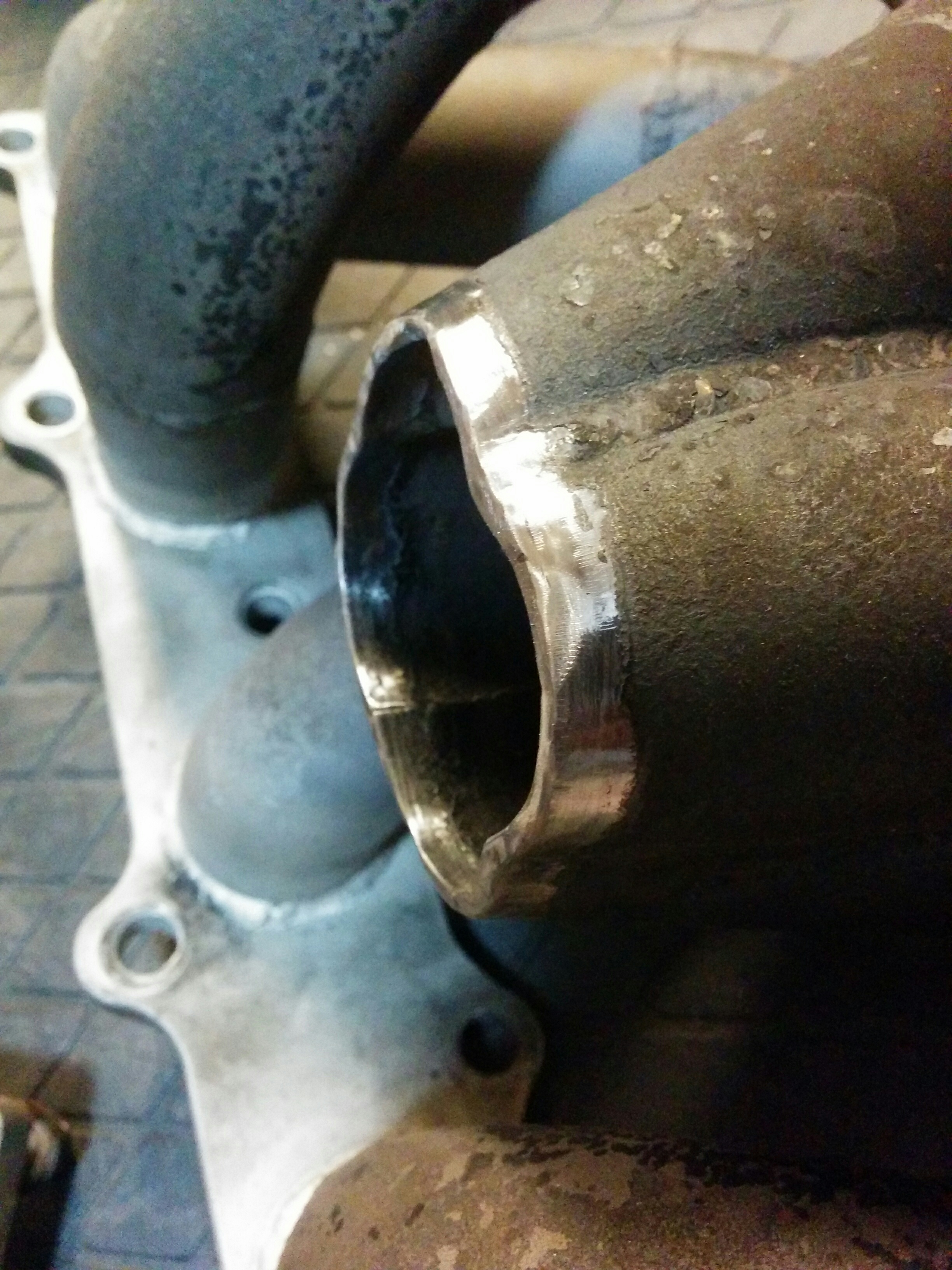

I smoothed and cleaned the collector edge and both inside and out.


Attached Thumbnails
99mx5 EFR build-img_20160407_102004.jpg   99mx5 EFR build-img_20160407_001349.jpg   99mx5 EFR build-img_20160407_001443.jpg   99mx5 EFR build-img_20160407_001338.jpg   99mx5 EFR build-img_20160407_001502.jpg

99mx5 is offline   Reply With Quote
Old 04-07-2016, 09:42 PM   #683
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 799
Total Cats: 58
Default

Deleted
Attached Thumbnails

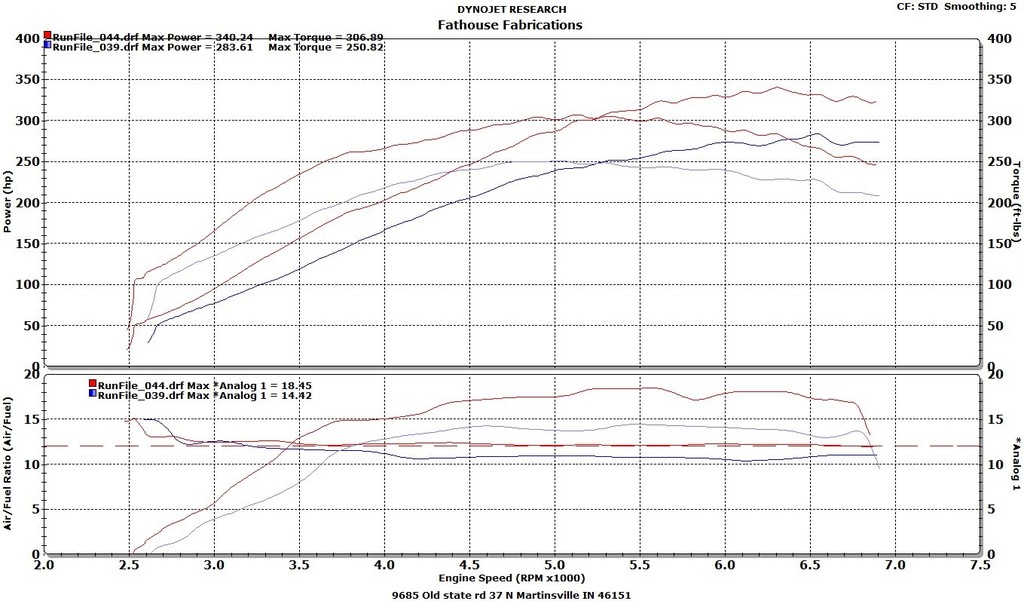

99mx5 EFR build-7f9353fc-9c69-4c7c-b516-8cce6303f704.jpg   99mx5 EFR build-abe9e112-9678-4529-80bb-2376b171e355.jpg   99mx5 EFR build-77eaa5e9-c84a-461d-a127-7e0c6813f5be.jpg

Last edited by HHammerly; 04-08-2016 at 06:33 AM.
HHammerly is offline   Reply With Quote
Old 04-08-2016, 11:13 AM   #684
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,596
Total Cats: 936
Default

Is that all Swain'd up or just a spray on coating?
EO2K is offline   Reply With Quote
Old 04-08-2016, 02:21 PM   #685
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

I sprayed on VHT and baked it in the oven.

Attached Thumbnails
99mx5 EFR build-34047d1328903652-99mx5-efr-build-img_20120209_204251.jpg
99mx5 is offline   Reply With Quote
Old 04-22-2016, 02:10 AM   #686
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

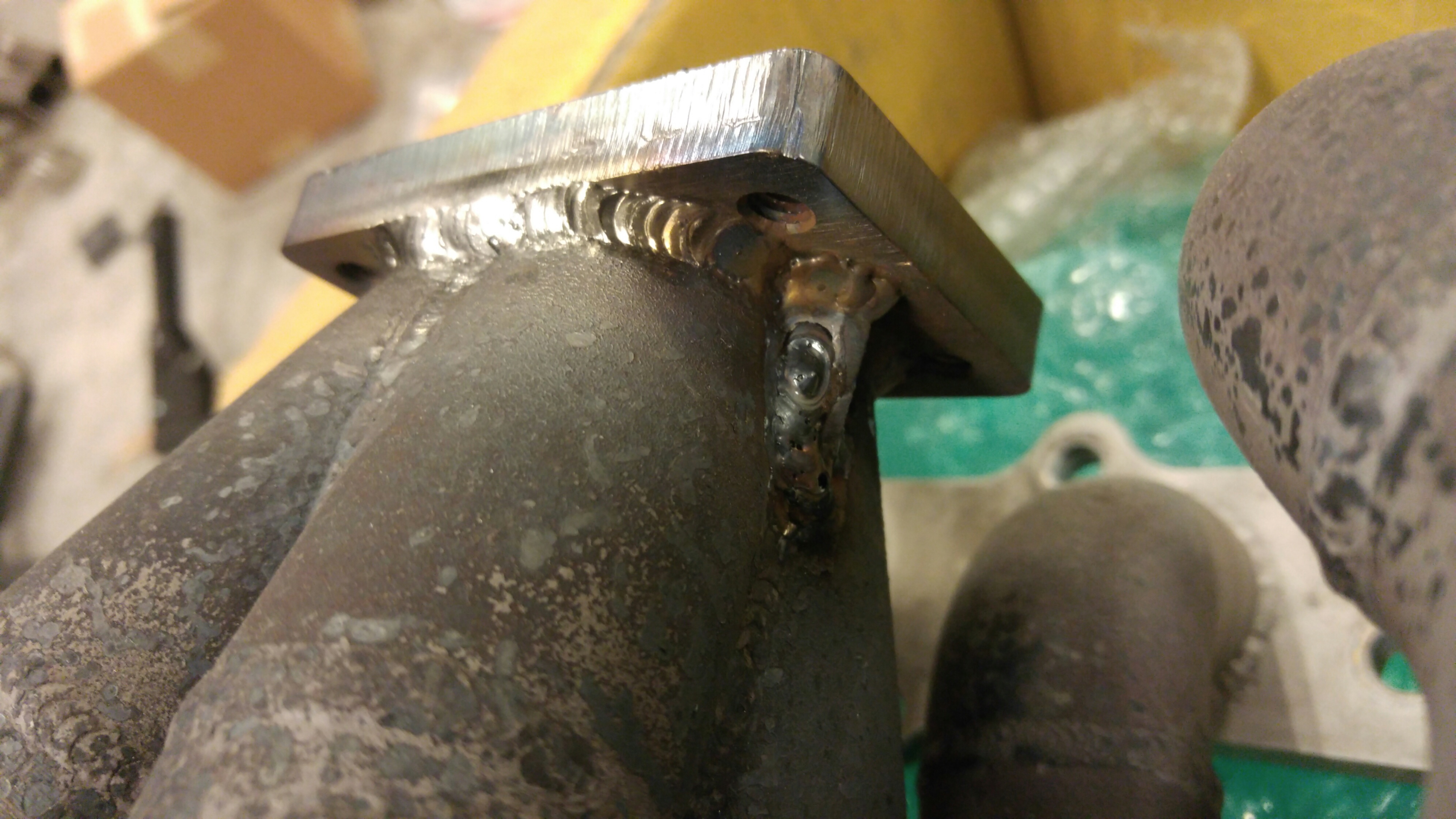

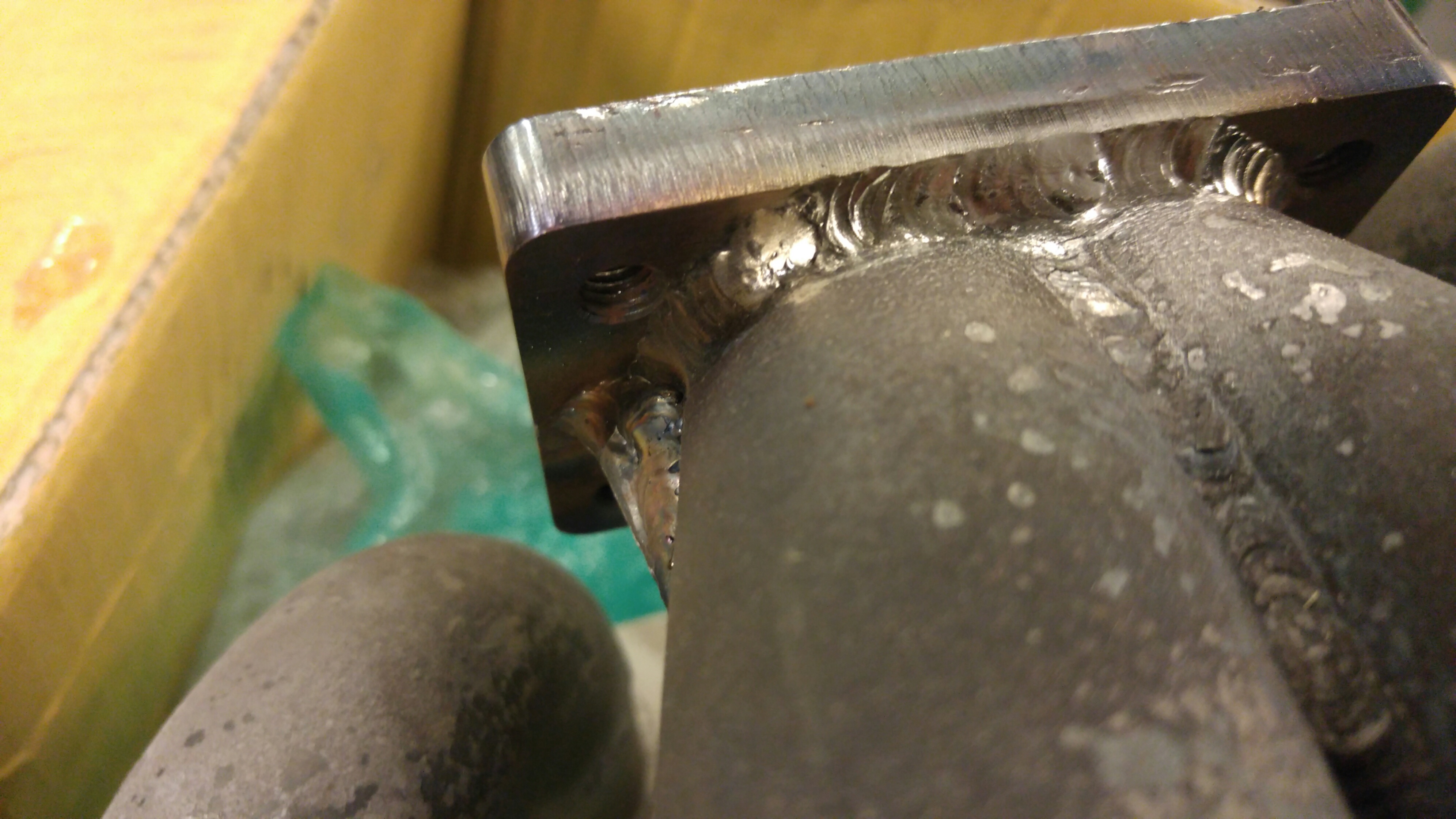

Abe worked his magic on the manifold and he added gussets to the flange for more support. Thanks again ARTech!





Attached Thumbnails
99mx5 EFR build-20160420_213128_resized.jpg   99mx5 EFR build-20160420_213134_resized.jpg
99mx5 is offline   Reply With Quote
Old 04-22-2016, 06:59 AM   #687
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,617
Total Cats: 307
Default

I want one, I just can't do the downtime.
psyber_0ptix is offline   Reply With Quote
Old 05-04-2016, 04:42 AM   #688
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

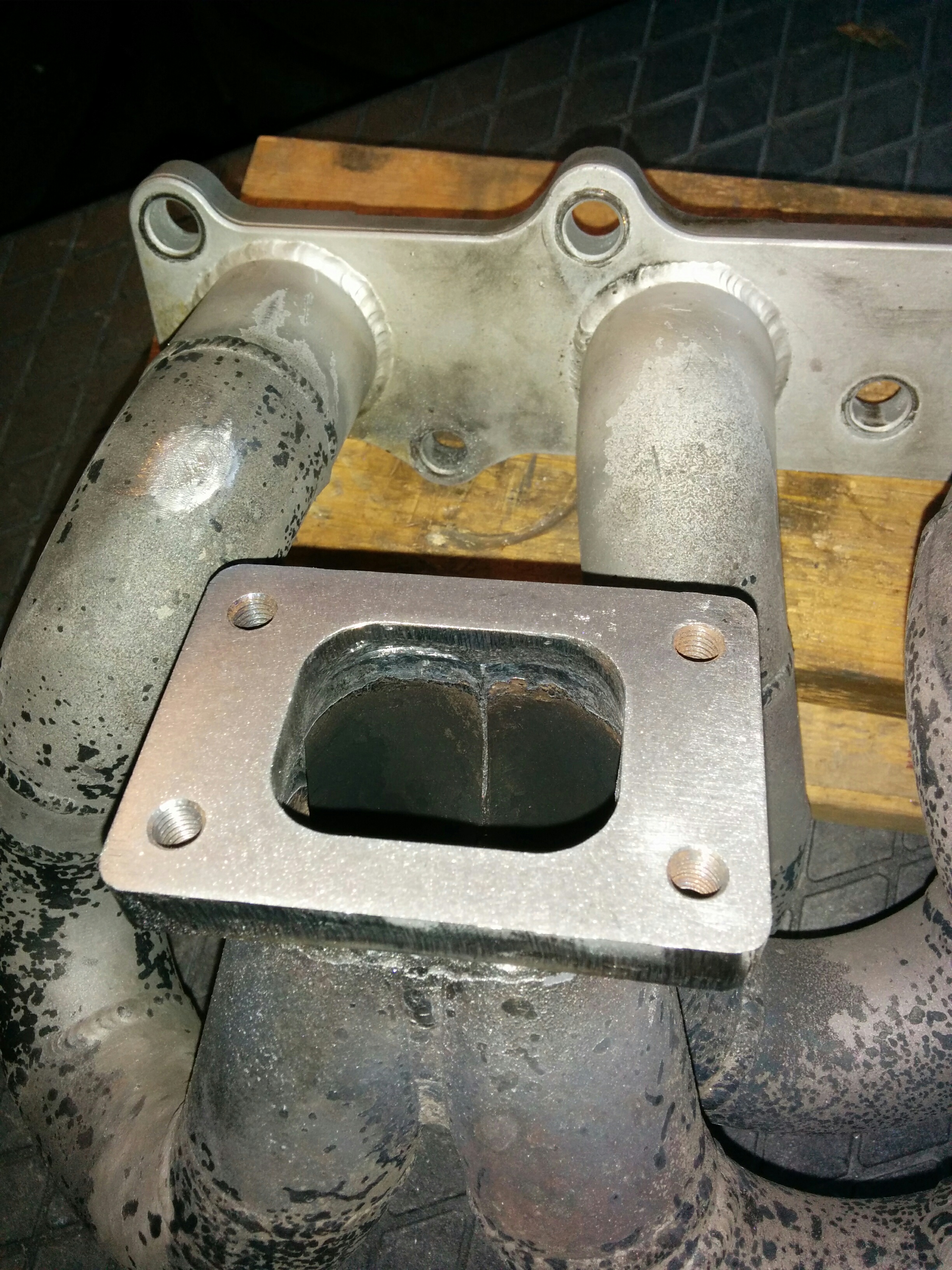

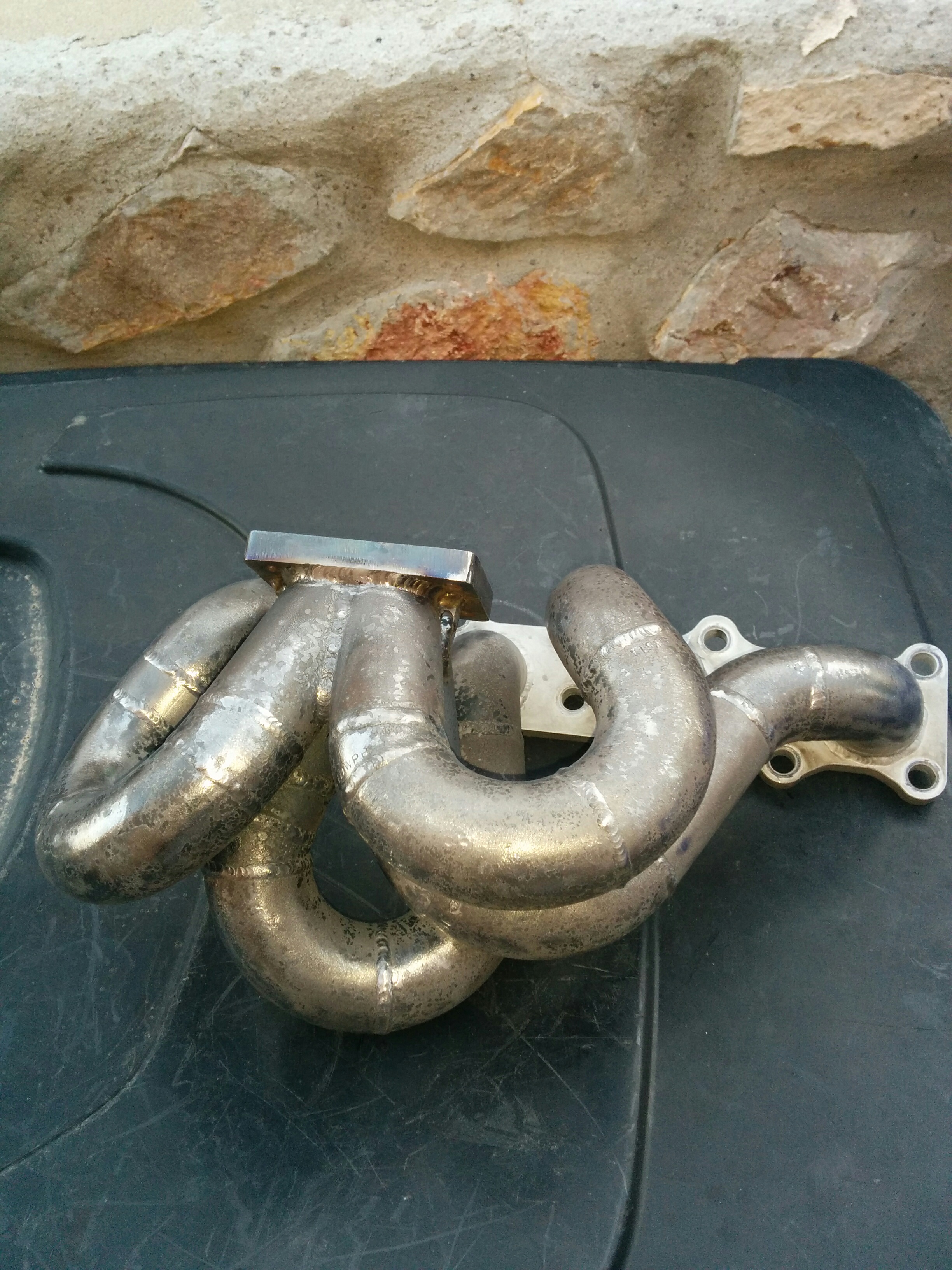

I got the manifold back from ARTech. The flange was a bit warped from welding, so I surfaced it and ported it to match the collector.


I then wire-brushed the old VHT paint off and cleaned it with thinner.

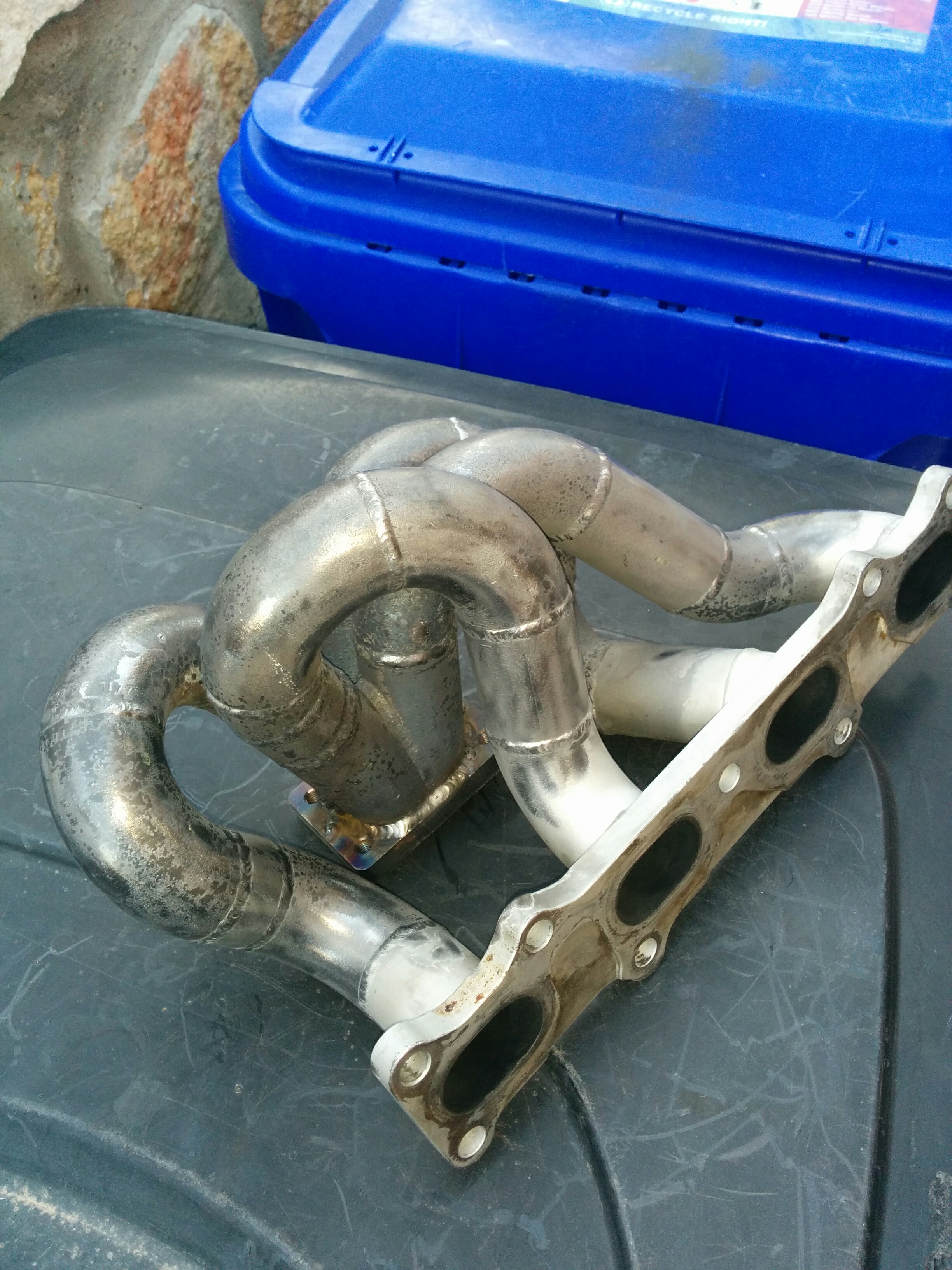

Fresh coat of VHT.

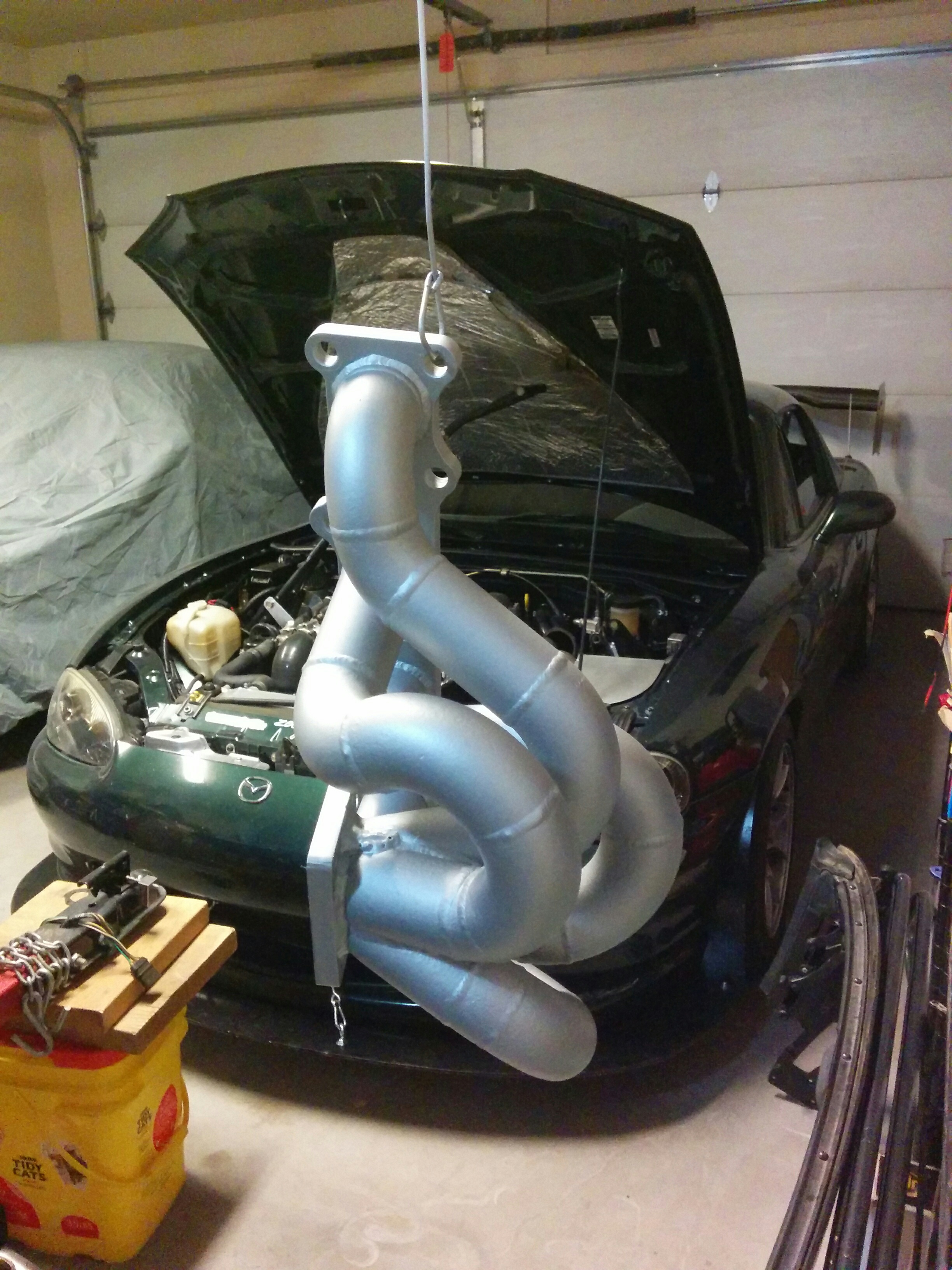

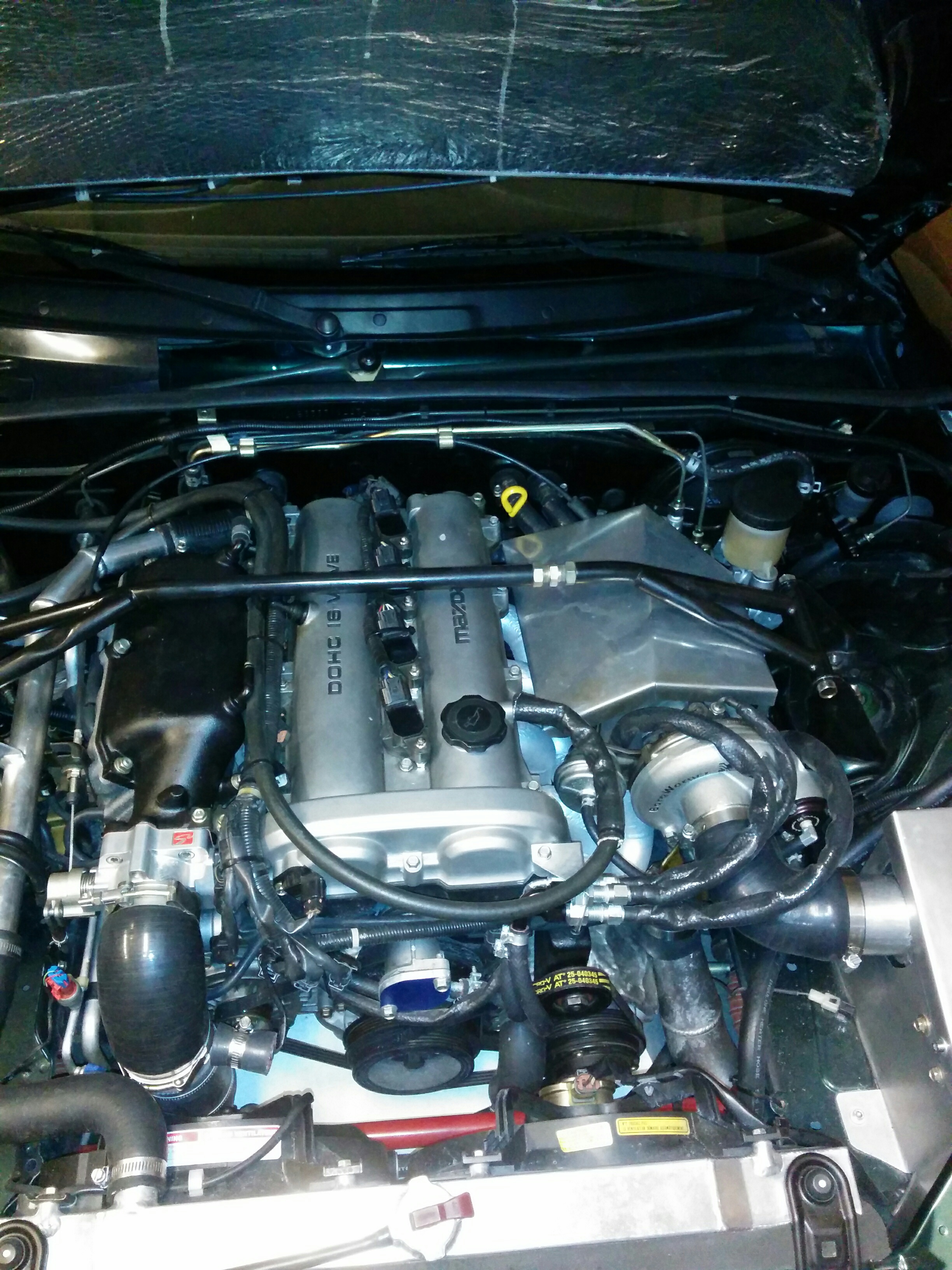

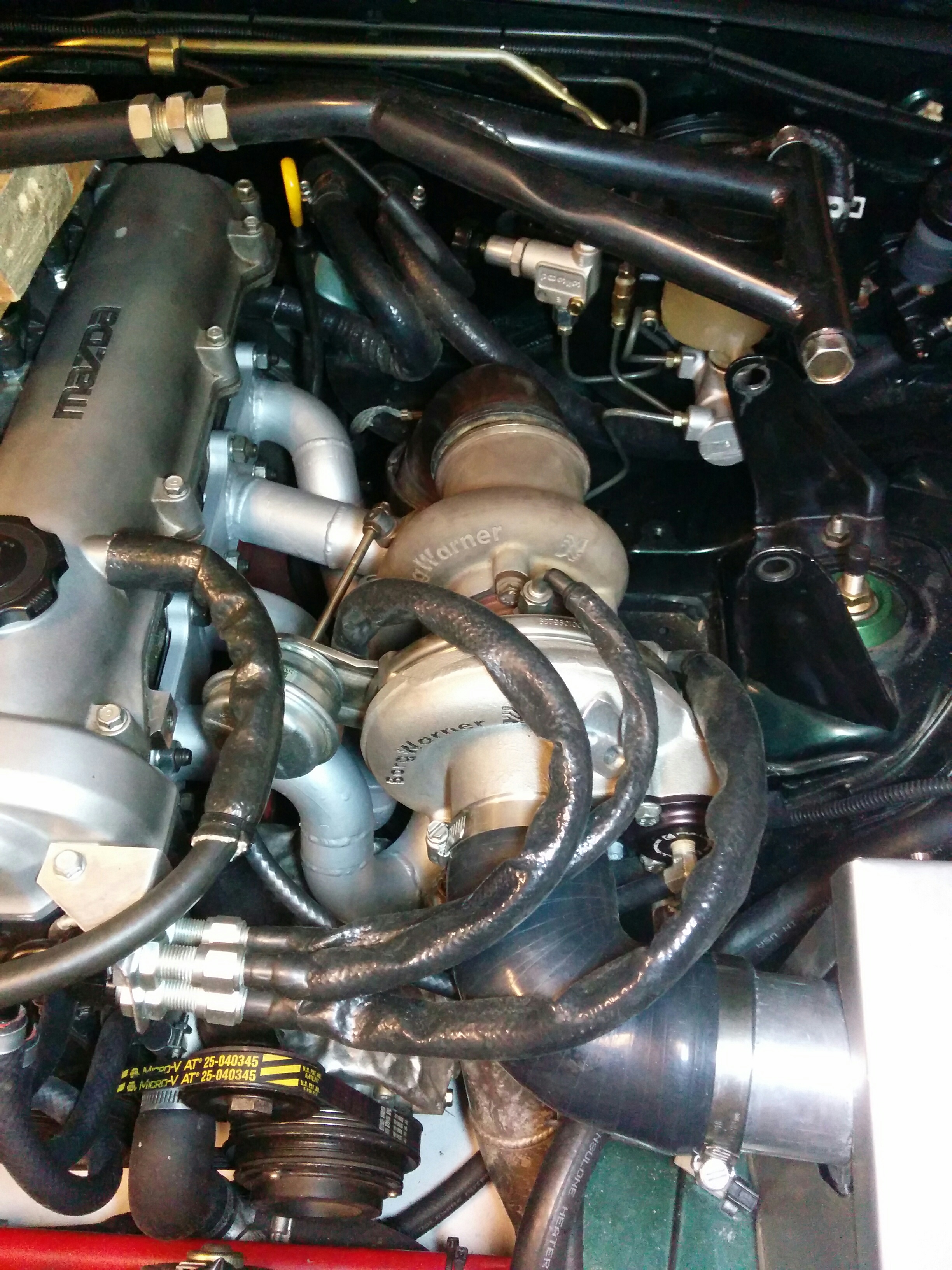

Installed with TSE EFR stud kit.

Attached Thumbnails
99mx5 EFR build-img_20160427_190139.jpg   99mx5 EFR build-img_20160427_191855.jpg   99mx5 EFR build-img_20160427_191918.jpg   99mx5 EFR build-img_20160427_210835.jpg   99mx5 EFR build-img_20160428_210338.jpg

99mx5 EFR build-img_20160429_000050.jpg
99mx5 is offline   Reply With Quote
Old 06-17-2016, 04:44 AM   #689
Newb

Join Date: Jun 2016
Posts: 3
Total Cats: -8
Default

So whats up with the car nowadays? I just read the whole thread and it's an inspiration! What do you think would be required to get too 230 Whp? Would it be streetable/dailyable?
Is your car dailyable or is it too much power?
datboi is offline   Reply With Quote
Old 06-17-2016, 08:30 AM   #690
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,617
Total Cats: 307
Default

Wow, first post made in someones build thread lol.

I so need a heat shield
psyber_0ptix is offline   Reply With Quote
Old 06-17-2016, 11:37 AM   #691
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,596
Total Cats: 936
Default

Quote:
Originally Posted by psyber_0ptix View Post
I so need a heat shield
I know, right? There are enough of us on the forum with Abe's manifolds that a short production run would totally be warranted. We could totally make it worth it.
EO2K is offline   Reply With Quote
Old 06-17-2016, 02:27 PM   #692
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,617
Total Cats: 307
Default

Quote:
Originally Posted by EO2K View Post
I know, right? There are enough of us on the forum with Abe's manifolds that a short production run would totally be warranted. We could totally make it worth it.
Let's make this happen!
psyber_0ptix is offline   Reply With Quote
Old 06-17-2016, 04:24 PM   #693
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

datboi: I'm still racing the car these days. I got FTD at the last event. The car is still running great after 5 years of boosted racing on this setup. I have over-built this car for the track. You wont need to do as much as I did for a 200-230 whp setup that is not raced on the track. I can daily the car, but it requires restraint and power corrupts and the car begs to be driven hard.

Heatshields? I'll see what I can do. I'd need to see the setup of all prospective buyers to make one that will fit them all. As for mounting the boxes, I think both NA and NB might have the same mounting points on the chassis. Maybe I can make a printable template that can be used for fitting to verify the dimensions.
99mx5 is offline   Reply With Quote
Old 06-17-2016, 05:32 PM   #694
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,617
Total Cats: 307
Default

Well, I have also have an Artech EFR top mount ram horn just the same as EO2K
psyber_0ptix is offline   Reply With Quote
Old 06-20-2016, 01:25 PM   #695
Newb

Join Date: Jun 2016
Posts: 3
Total Cats: -8
Default

Do you need better brakes than stock if you are going for 250ish whp?
datboi is offline   Reply With Quote
Old 06-20-2016, 01:29 PM   #696
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,617
Total Cats: 307
Default

you only need better brakes if you want to stop


j/k

Depends, if you're driving around town and not being a dick, then possible on stock sized rotor and better pads. Track, then upgrade.
psyber_0ptix is offline   Reply With Quote
Old 06-20-2016, 01:30 PM   #697
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,757
Total Cats: 2,494
Default

this is a really good build thread. not a stupid n00b questions thread. kthxbi
18psi is offline   Reply With Quote
Old 06-20-2016, 01:30 PM   #698
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,596
Total Cats: 936
Default

Quote:
Originally Posted by psyber_0ptix View Post
Well, I have also have an Artech EFR top mount ram horn just the same as EO2K
I think there are 5-6 of us by now, I have a list somewhere.
EO2K is offline   Reply With Quote
Old 06-20-2016, 01:32 PM   #699
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,617
Total Cats: 307
Default

Quote:
Originally Posted by EO2K View Post
I think there are 5-6 of us by now, I have a list somewhere.
We should form a club.
psyber_0ptix is offline   Reply With Quote
Old 08-04-2016, 01:15 AM   #700
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

Ill definitely be on the task of making a hot box and turbo CAI box, stay tuned.

I recently found this video of a friend who rode shotgun at ASR.

99mx5 is offline   Reply With Quote
