Old 02-09-2015, 05:50 PM   #521
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

You are going to need some serious front aero to work with that wing.

Solid progress man, I'm jealous of your access to paint.
EO2K is offline   Reply With Quote
Old 02-09-2015, 09:36 PM   #522
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

Thanks!
I already have a sheet of Alumalite purchased to make a splitter. The projects are starting to pile up. I have the splitter, new brake discs, new brakes and brake ducting to do, but I can't take the car apart yet. I have a dyno session scheduled for this Friday. I'll finally see what power the car makes at 24PSI.

Any guesses as to how much?
315 @ 12PSI
323 @ 14PSI
xxx @ 24PSI

Last edited by 99mx5; 02-09-2015 at 09:54 PM.
99mx5 is offline   Reply With Quote
Old 02-09-2015, 10:06 PM   #523
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,847
Total Cats: 228
Default

Hopefully not shrapnel! I'm gonna go with 400.
Mobius is offline   Reply With Quote
Old 02-09-2015, 11:49 PM   #524
Junior Member

Join Date: Apr 2011
Location: Las Cruces, NM
Posts: 250
Total Cats: 11
Default

IIRC he's already run at or near 24lbs at the last few Time Attack events, everything's holding up just fine.
Stock is offline   Reply With Quote
Old 02-10-2015, 12:13 AM   #525
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

I'd say 355whp as you are already pretty close to the right side of that compressor map. Do you have a rpm sensor on that EFR?
bcrx7 is offline   Reply With Quote
Old 02-10-2015, 12:56 AM   #526
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

I have no RPM sensor in my EFR. Stock is right, I've been running for a while and have raced a few events at this boost level for a while. This dyno session is to ensure longevity and to see how much power its making.
99mx5 is offline   Reply With Quote
Old 02-10-2015, 07:25 AM   #527
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,925
Total Cats: 93
Default

Quote:
Originally Posted by bcrx7 View Post
I'd say 355whp as you are already pretty close to the right side of that compressor map. Do you have a rpm sensor on that EFR?
400 probably isnt happening on the 6258 with regular gas, 370 would be what I'd expect. 355 is kind of on the low end, probably only going to end up with that if the tune is very conservative or if the motor is hurt, or californian gas.
Leafy is offline   Reply With Quote
Old 02-10-2015, 10:43 AM   #528
Junior Member

Join Date: Apr 2011
Location: Las Cruces, NM
Posts: 250
Total Cats: 11
Default

We're a 91 Octane region.
Stock is offline   Reply With Quote
Old 02-10-2015, 12:53 PM   #529
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

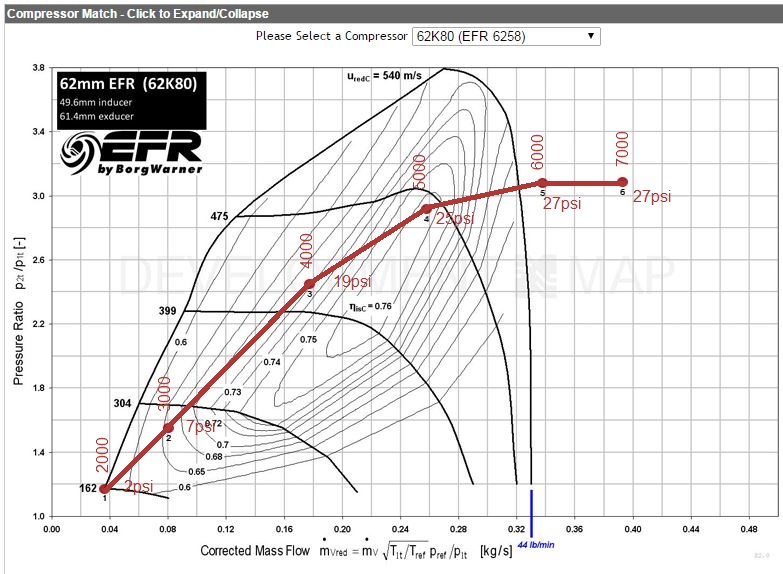

I made a lot of assumptions
Attached Thumbnails
99mx5 EFR build-99_6258.jpg
EO2K is offline   Reply With Quote
Old 02-10-2015, 12:54 PM   #530
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,925
Total Cats: 93
Default

The 4k rpm point can probably get moved to 25 or 27psi and the 6k moved down to like 20psi.
Leafy is offline   Reply With Quote
Old 02-10-2015, 01:04 PM   #531
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

BorgWarner Matchbot <- knock yourself out. Its a fun little tool
EO2K is offline   Reply With Quote
Old 02-10-2015, 01:07 PM   #532
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

Now that I have EBC it reaches 24psi very quickly. It can boost more if I run all of it. I played with it once and have seen it boost above 26PSI. It was scary fast.
99mx5 is offline   Reply With Quote
Old 02-10-2015, 01:12 PM   #533
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

Quote:
Originally Posted by EO2K View Post
BorgWarner Matchbot <- knock yourself out. Its a fun little tool
Thanks for that! I'll log the runs and enter the info to see the results.
99mx5 is offline   Reply With Quote
Old 02-10-2015, 01:30 PM   #534
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

Quote:
Originally Posted by 99mx5 View Post
Thanks for that! I'll log the runs and enter the info to see the results.
Winning!

Next step is to get Comrade Soviet to do the same with his 6758, then Ryan_G and BoostedSmurf with the 7163.
EO2K is offline   Reply With Quote
Old 02-10-2015, 01:33 PM   #535
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

That turbo based on the map can move maximum 44lbs, that's around 440hp. Now you are running that turbo to the **** at those numbers. I can see the car gaining torque at the low end by upping the boost, not sure if that torque will carry over to the upper rpm's for 400hp. 94 Octane it might see 370whp, potentially over-spinning the turbo. Not sure if I would drive around like that on a daily basis. You are sitting on the edge of bad surge!
bcrx7 is offline   Reply With Quote
Old 02-10-2015, 01:36 PM   #536
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,925
Total Cats: 93
Default

You dont get surge for pushing off the right side of the compressor map. you just run out of flow and the thing chokes up, you stop gaining boost and start loosing power as you increase the wastegate duty cycle. You only get surge for going left of the surge line, and thats pretty hard to do without a weird compressor-turbine mismatch, anti-lag, or anything else abnormal.
Leafy is offline   Reply With Quote
Old 02-10-2015, 01:43 PM   #537
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,068
Total Cats: 913
Default

Quote:
Originally Posted by EO2K View Post
Winning!

Next step is to get Comrade Soviet to do the same with his 6758, then Ryan_G and BoostedSmurf with the 7163.
One day I plan to run all of it on my v-band 6758 just for you gays. That is after I build a fancy manifold for it.
shuiend is online now   Reply With Quote
Old 02-10-2015, 01:46 PM   #538
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

My official guess is 360 15. because3900'altitude
EO2K is offline   Reply With Quote
Old 02-10-2015, 01:50 PM   #539
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Quote:
Originally Posted by Leafy View Post
You dont get surge for pushing off the right side of the compressor map. you just run out of flow and the thing chokes up, you stop gaining boost and start loosing power as you increase the wastegate duty cycle. You only get surge for going left of the surge line, and thats pretty hard to do without a weird compressor-turbine mismatch, anti-lag, or anything else abnormal.
Surge was the wrong word, I stand corrected. But you do over-spin the turbine which is not good either. In addition to rapid drop of efficiency, the spins are possibly going beyond the limits of the unit. It is an EFR, so I am sure it is designed to take it but it goes back to why I said 355whp!
bcrx7 is offline   Reply With Quote
Old 02-10-2015, 01:55 PM   #540
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

Quote:
Originally Posted by shuiend View Post
One day I plan to run all of it on my v-band 6758 just for you gays. That is after I build a fancy manifold for it.
This is why we love you
EO2K is offline   Reply With Quote
