What do you mean 'routed the same' ?
NB is non-return, so the fuel line routing is obviously quite different. They use GM "push-on" quick-disconnects, which is basically a hard line with a tall ridge at the end. The fittings have a plastic insert that slides over the ridge and then clicks into place, you get them off with a special tool that slides over the hard line and then goes underneath the plastic retainer to release it.
If you really want to get rid of the barbs, it might be possible to put an NB fuel pump bracket thingey into an NA fuel tank.
--Ian
NB is non-return, so the fuel line routing is obviously quite different. They use GM "push-on" quick-disconnects, which is basically a hard line with a tall ridge at the end. The fittings have a plastic insert that slides over the ridge and then clicks into place, you get them off with a special tool that slides over the hard line and then goes underneath the plastic retainer to release it.
If you really want to get rid of the barbs, it might be possible to put an NB fuel pump bracket thingey into an NA fuel tank.
--Ian
Ive seen people (patsmx5) clamp braided SS lines right to a barb with success, that was on the heater lines though.
you could always:
Rubber hose to SS line conversion kit
Reply
0
0
Thread Starter
Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
<p>Ian, I should have been clearer. I meant does the NB hardline have the same routing as the NA hardline. IE are they interchangeable.</p><p>I think I'm going to ignore that for now, and worry about it when I actually try and push some pressure through the lines. Then I'll run an AN6 line the whole way.</p><p>Emailed Bryan about swapping my DW200 for a DW300.</p><p>Going to run rubber to the rail, then maybe stainless to the regulator. Then definitely rubber to the flex fuel sensor and return. Small investment, can easily be re-done later.</p><p>This is basically just a dry run for a built motor and higher pressure.</p>
Reply
0
0
Elite Member
Joined: Mar 2007
Posts: 5,298
Total Cats: 884
From: Santa Clara, CA
<p>Ian, I should have been clearer. I meant does the NB hardline have the same routing as the NA hardline. IE are they interchangeable.</p><p>I think I'm going to ignore that for now, and worry about it when I actually try and push some pressure through the lines. Then I'll run an AN6 line the whole way.</p><p>Emailed Bryan about swapping my DW200 for a DW300.</p><p>Going to run rubber to the rail, then maybe stainless to the regulator. Then definitely rubber to the flex fuel sensor and return. Small investment, can easily be re-done later.</p><p>This is basically just a dry run for a built motor and higher pressure.</p>
The NB hard line (singular) does not drop into an NA. I'm sure you could make it work, but you'd probably need to bend it up a bit. You'd also need to source two of them if you wanted to keep it a return system (like E02K is trying to do).
If you replace the hard lines with stainless -6 AN lines (which is about $150 just for the hose, BTW. Double that once you add all the hose ends and fittings), you'll still need short lengths of hose barb-y stuff to adapt to the OEM NA fuel pump bracket.
--Ian
Reply
0
0
Elite Member
Joined: Mar 2007
Posts: 5,298
Total Cats: 884
From: Santa Clara, CA
A hose clamp on a stainless line pushed onto a hose barb fuel line sounds like a recipe for fiery death to me.
--Ian
Reply
0
0
Thread Starter
Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
<p>Good points. Thank you.</p><p>If it doesn't drop in then eh, I'm staying stock. I just asked because I have a stock NB line on my auction car.</p><p>That brings me to another point.</p><p>I have an NB2 gas tank. I've heard it has slightly more capacity, but I would need to make my fuel lines adapt to it. Which shouldn't be that hard, as I just saw how ed did his.</p><p>So should I order the NB fuel pump install kit instead?</p>
Reply
0
0
Joined: Sep 2012
Posts: 4,560
Total Cats: 1,143
From: your mom's house phoenix, AZ
With the right tool and a bit of experience, the GM quick disconnects work very well. Don't try to pry 'em loose with a screwdriver, that's pretty much guaranteed to **** up the plastic clip and prevent it from securing properly later.
A hose clamp on a stainless line pushed onto a hose barb fuel line sounds like a recipe for fiery death to me.
--Ian
A hose clamp on a stainless line pushed onto a hose barb fuel line sounds like a recipe for fiery death to me.
--Ian
Reply
0
0
Thread Starter
Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Googled and found that the NB tank is indeed bigger than my 1990 tank. So I will be getting the nb install kit for the fuel pump and swapping tanks at some point.
Reply
0
0
Joined: Sep 2012
Posts: 4,560
Total Cats: 1,143
From: your mom's house phoenix, AZ
We have a little mom and pop chain here in AZ that is awesome, and always undercuts airgas by 30-50% on bottles, wire and hardware. Cant really get a break on inerts though.
Cant help ya on the tank. My assumption is they just bolt and unbolt and are swapable, but its just an assumption.
Cant help ya on the tank. My assumption is they just bolt and unbolt and are swapable, but its just an assumption.
Reply
0
0
Thread Starter
Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
<p>Thats pretty awesome. I need to shop around once I get a man sized bottle. There is a 200cf bottle on cl that is a couple hours away. Just need to find time to go get it.</p>
Reply
0
0
Joined: Sep 2012
Posts: 4,560
Total Cats: 1,143
From: your mom's house phoenix, AZ

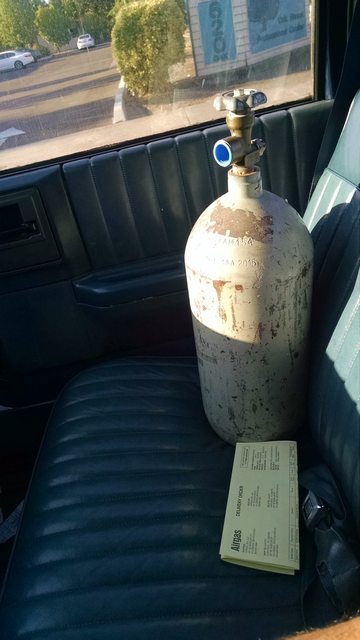

I walked out of vern lewis for about $140, which even beat most CL prices
these are the kind of guys you want to look for Home Page
Reply
0
0
Joined: Sep 2012
Posts: 4,560
Total Cats: 1,143
From: your mom's house phoenix, AZ
