I was a little worried that nobody had posted here for 2 whole days.

Is that an OSU... couch?
Old Nov 23, 2015 | 05:54 PM
  #5182
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

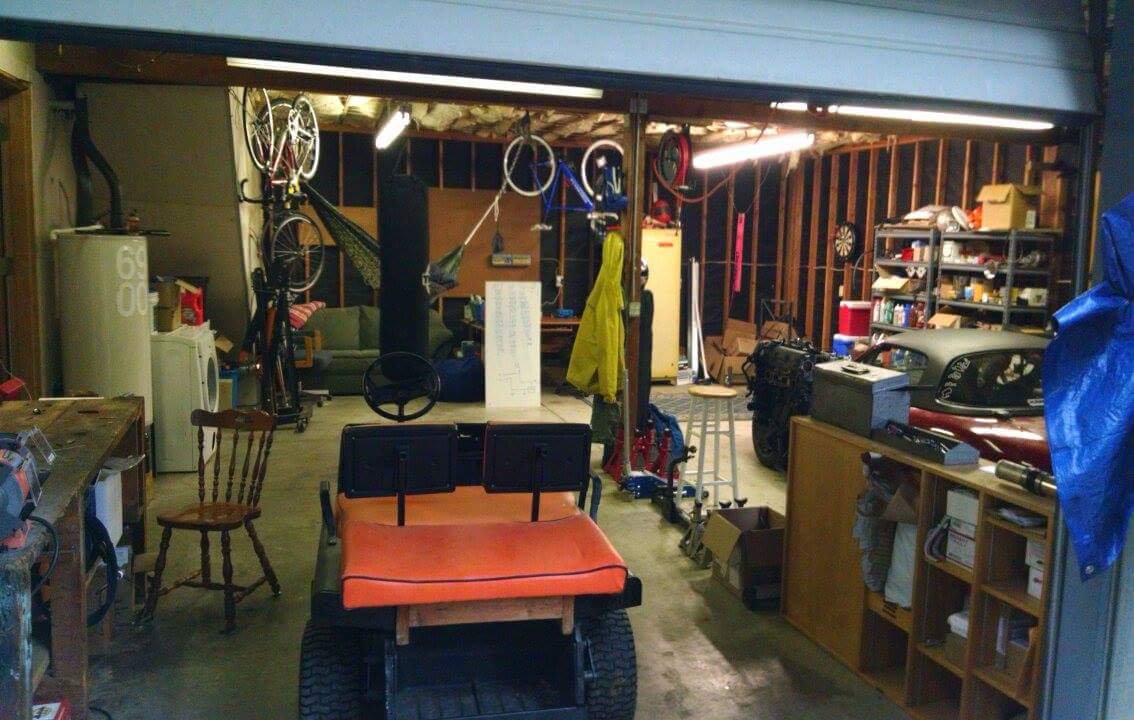

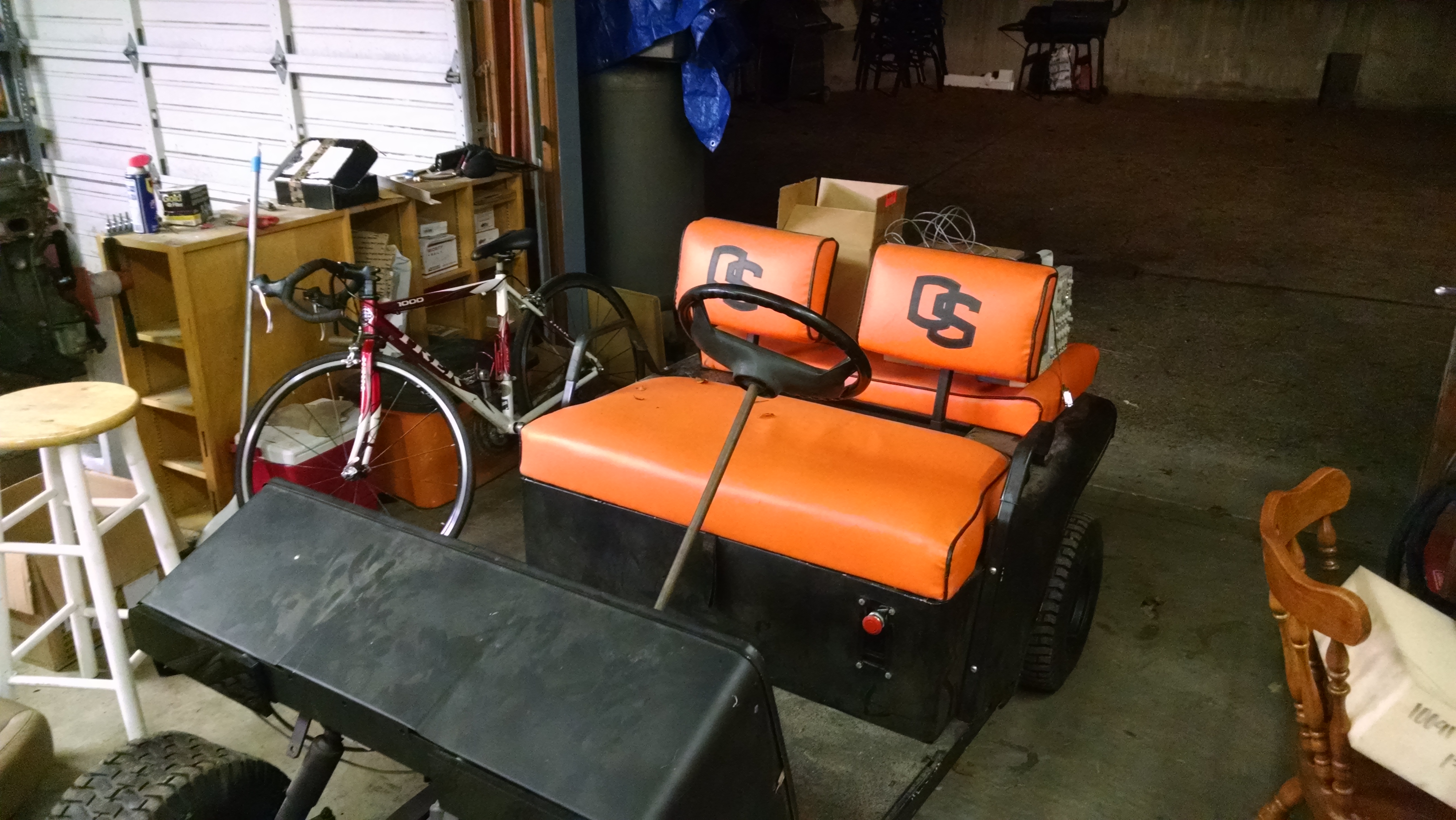

Nope even better. Its an OSU golf cart

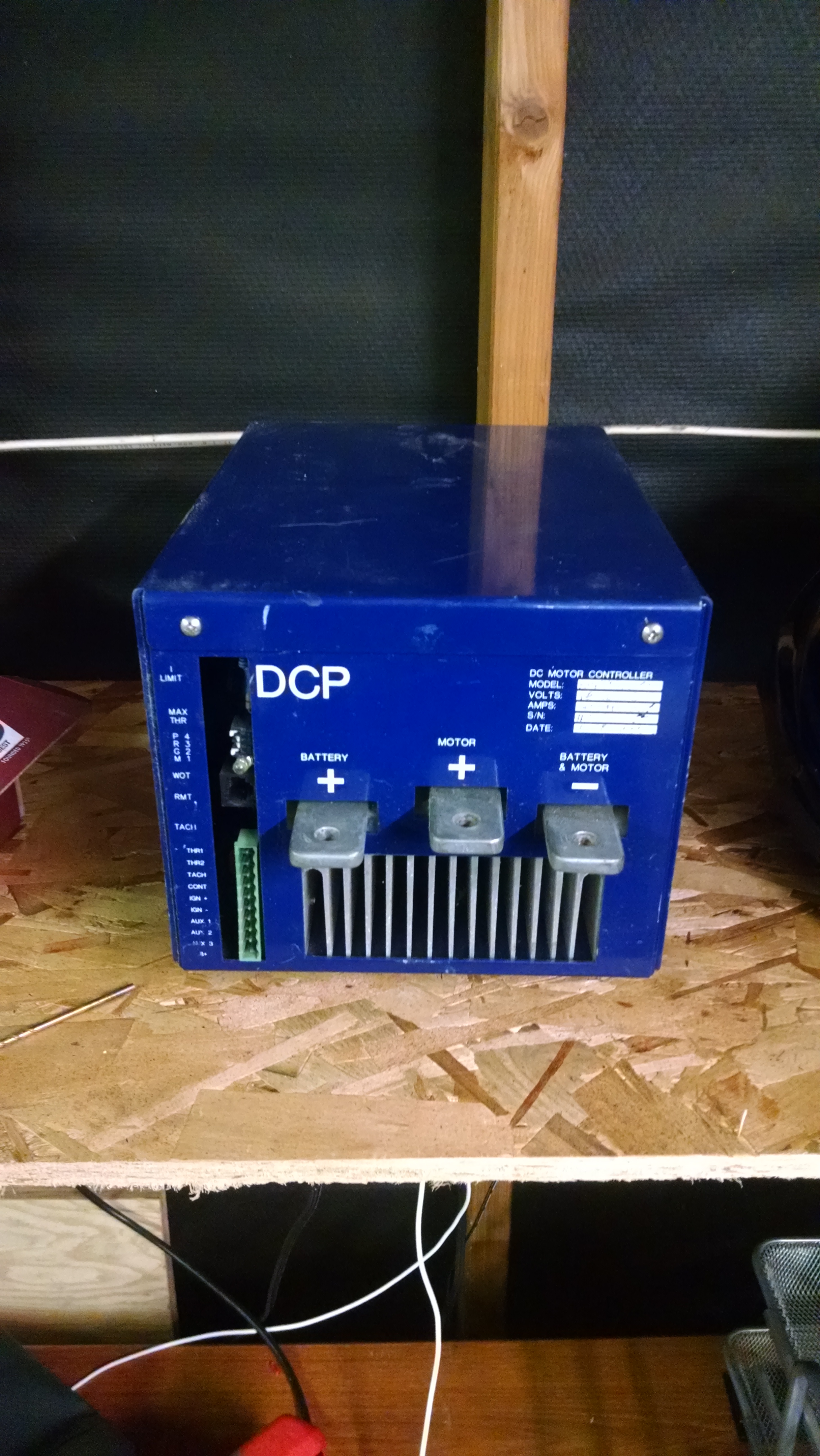

Thats a 1200amp motor controller.
Attached Thumbnails Aidan's loose oily bunghole actually runs a track lap-lgutxti.jpg   Aidan's loose oily bunghole actually runs a track lap-aqoovlk.jpg   Aidan's loose oily bunghole actually runs a track lap-dpax0bu.jpg
Old Nov 23, 2015 | 06:53 PM
  #5183
Leafy's Avatar
Elite Member
iTrader: (1)

Joined: Jun 2012
Posts: 9,491
Total Cats: 105
From: NH
Default

Originally Posted by aidandj
But the rescue that had him turns out to be ridiculously strict, require a fenced yard around the door. No chance of that so we had to turn him down. Hailey was pretty damn butthurt about it.

Still hunting.
This is why rescues always loose to puppy mills and breeders.
Old Nov 23, 2015 | 06:56 PM
  #5184
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

It was sad. Because we have been searching for a GSP forever. I've wanted one for 10+ years. And hailey has one at her parents. And this one seemed to have a bit of hunting experience, but wasn't ridiculously insane like younger GSPs. A little bit of recall training, and probably learning his old calls he would have been awesome.

The lady fostering him tried to come up with ways we could get around their requirements (she really liked us) but the lady running it was a huge bitch. I has the sads still. He was very sweet.

We live on over an acre of property, but its not fenced. As long as you keep an eye on them its fine. I've chased haileys pointer for a few miles before, but he pretty much only stays in their backyard and sprints whenever he can get free.

Still very butthurt.
Old Nov 23, 2015 | 09:04 PM
  #5185
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

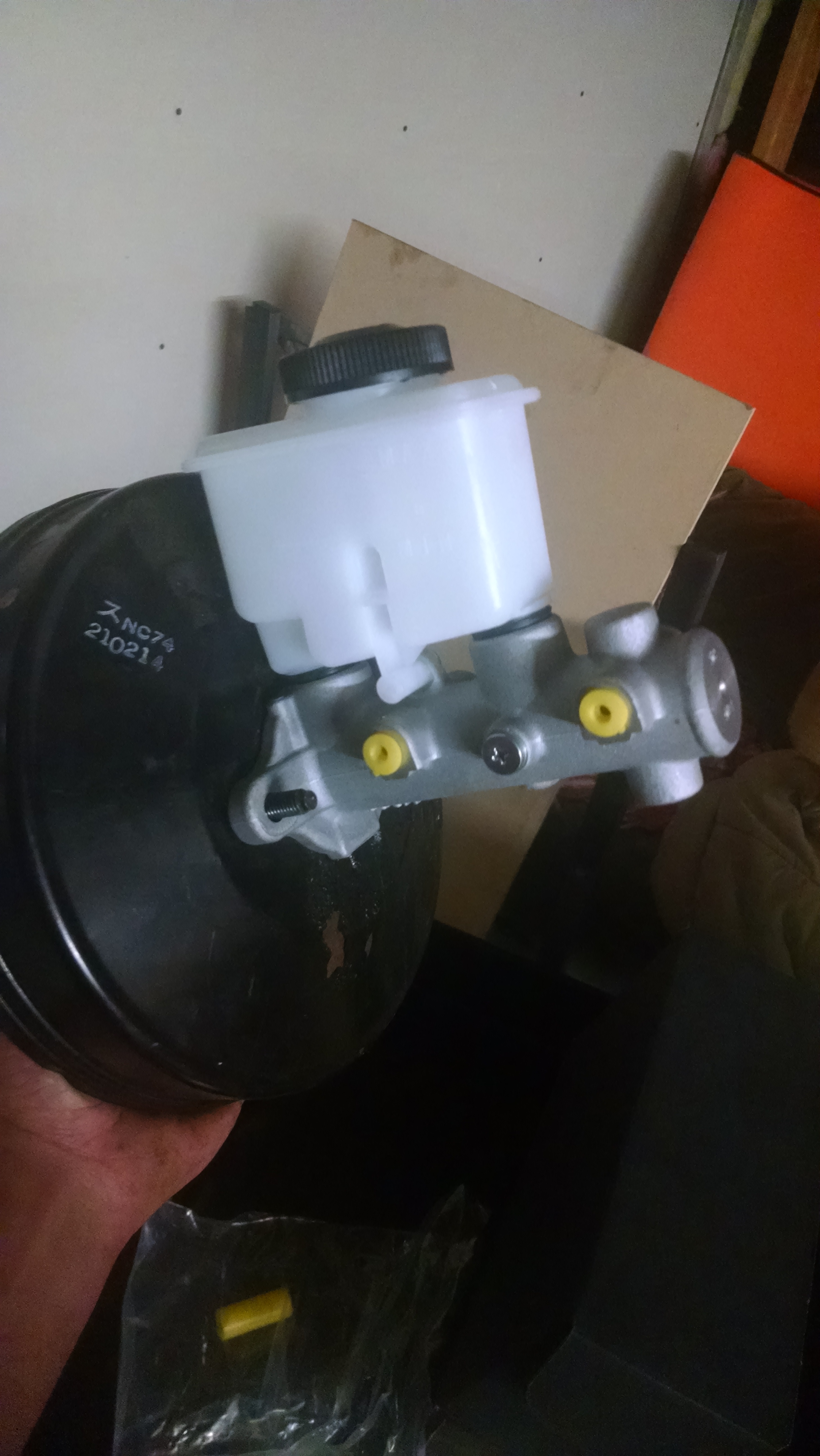

929 master on 01 booster.



Stupid question but can you measure cylinder bore without taking it apart?
Attached Thumbnails Aidan's loose oily bunghole actually runs a track lap-gpj2ecc.jpg
Old Nov 23, 2015 | 11:40 PM
  #5186
codrus's Avatar
Elite Member

Joined: Mar 2007
Posts: 5,298
Total Cats: 884
From: Santa Clara, CA
Default

Originally Posted by aidandj
929 master on 01 booster.

Stupid question but can you measure cylinder bore without taking it apart?
If you can measure the pushrod travel accurately enough (some kind of fixture with a dial indicator?) you could theoretically squirt fluid out of it and then measure the volume of fluid.

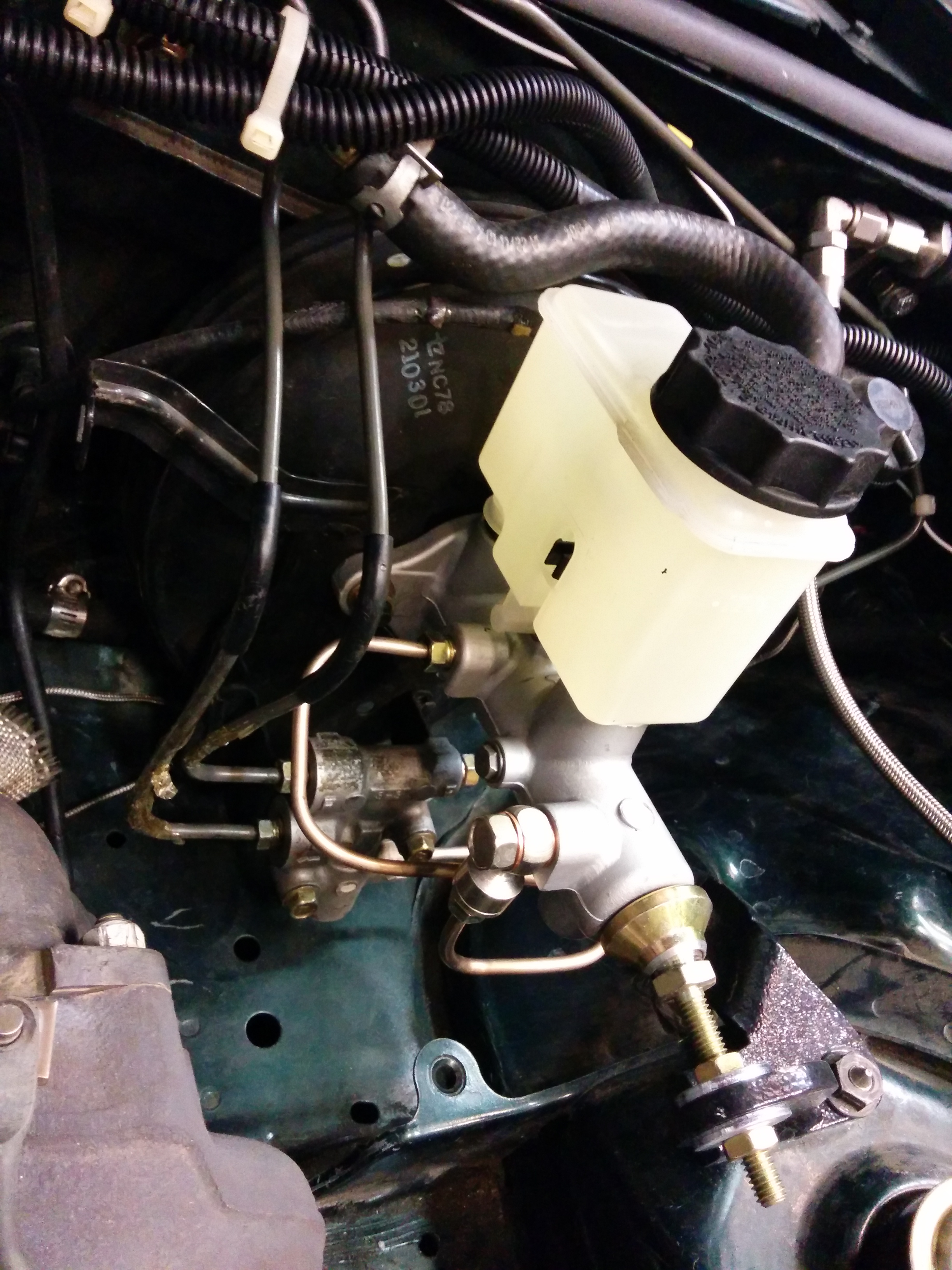

The 929 master on the 01 booster is awesome, especially with a master cylinder brace.



--Ian
Attached Thumbnails Aidan's loose oily bunghole actually runs a track lap-929master.jpg
Old Nov 23, 2015 | 11:55 PM
  #5187
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

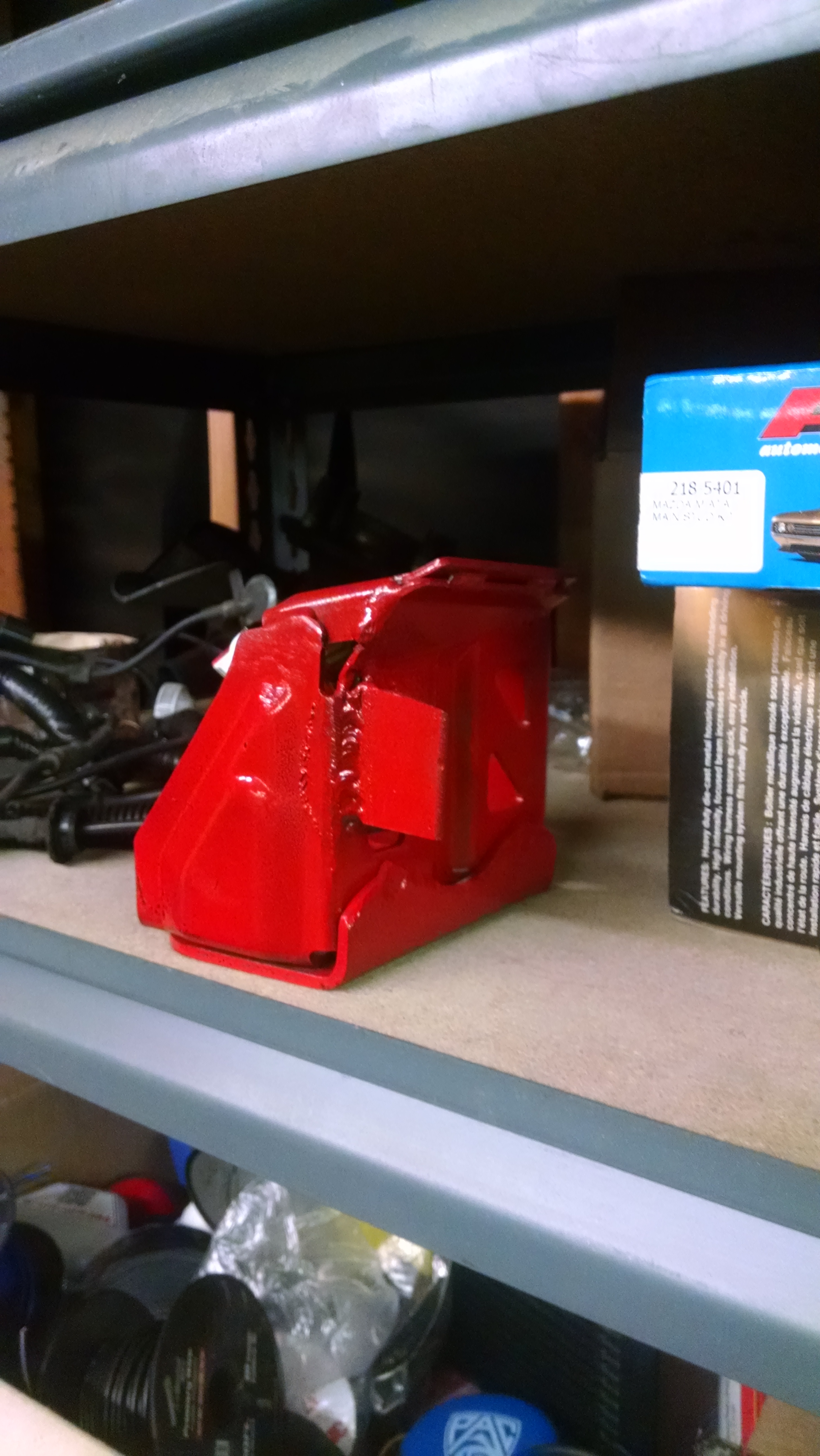

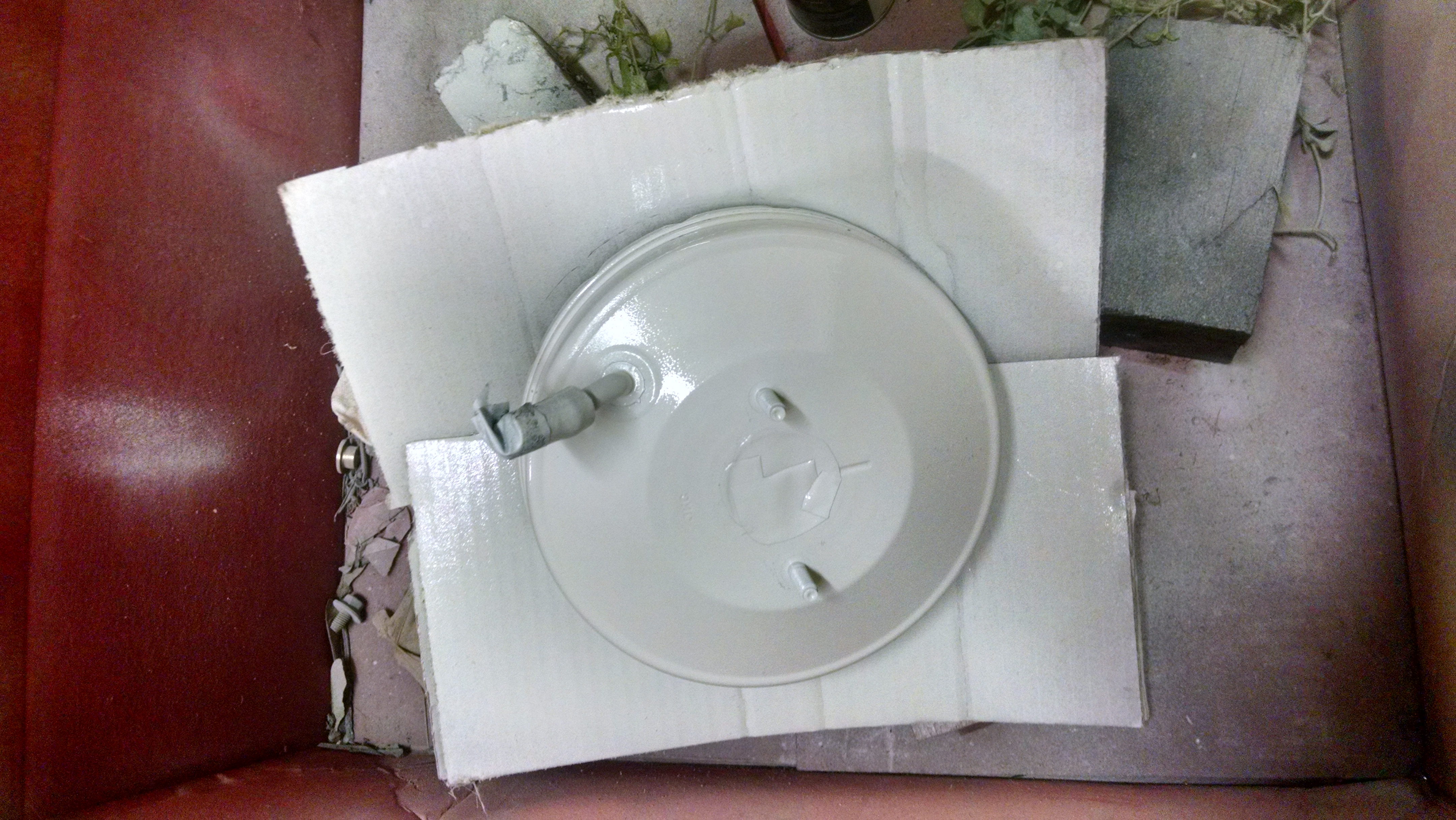

Booster, and soon to be brace.


Attached Thumbnails Aidan's loose oily bunghole actually runs a track lap-icf6nrr.jpg   Aidan's loose oily bunghole actually runs a track lap-mzh5w6o.jpg
Old Nov 24, 2015 | 01:18 PM
  #5188
M.Adamovits's Avatar
Junior Member

Joined: Mar 2012
Posts: 323
Total Cats: 23
Default

That brace looks beefy.
Old Nov 24, 2015 | 01:29 PM
  #5189
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

Its part of the strut brace from an 01.
Old Nov 24, 2015 | 02:39 PM
  #5190
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

Black friday sale at racetronix. Tucked up my mangina and bought the bulkhead connector and e85 pump connector.
Old Nov 24, 2015 | 02:57 PM
  #5191
psyber_0ptix's Avatar
Elite Member
iTrader: (4)

Joined: Mar 2012
Posts: 4,648
Total Cats: 544
From: Northern VA
Default

is there a significant difference between NA and NB brake boosters? Is one single diaphragm vs dual diaphragm? How does the 929 MC feel?
Old Nov 24, 2015 | 02:59 PM
  #5192
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

Originally Posted by bbundy
I’m pretty sure the push rod thing wont work right.
The 323 GTX community has been doing a similar swap for years with a 929 master cylinder. It required using a booster from a later model Protégé I don’t think anybody got one to work with a stock booster. The 929 master has the same push rod interface as the 2001+ miatas.

The piston in the master cylinder sticks deep in the booster on the 2001+ versions while on the earlier ones the push rod of the booster sticks out and into the piston of the master cylinder. The early master will bolt up to a later booster but it wont work right without a longer rod I don’t think the later master will bolt up to a early booster because there is no way to make the push rod short enough.

Bob
No idea, its not installed. Need my abs swap first. *cough* @Monk *cough*
Old Nov 24, 2015 | 04:08 PM
  #5193
codrus's Avatar
Elite Member

Joined: Mar 2007
Posts: 5,298
Total Cats: 884
From: Santa Clara, CA
Default

Originally Posted by psyber_0ptix
is there a significant difference between NA and NB brake boosters? Is one single diaphragm vs dual diaphragm? How does the 929 MC feel?
The big booster change is NA/NB1 vs NB2. NA is single, NB2 had both single and double. The 929 master is awesome with my f/r Wilwoods.

--Ian
Old Nov 24, 2015 | 04:11 PM
  #5194
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

I have the non-abs sports booster, so it isn't the double ratio one.

But the big difference is that the 929 master doesn't work with the NA/NB1 version. Which is what psyber was probably asking about.
Old Nov 24, 2015 | 10:49 PM
  #5195
codrus's Avatar
Elite Member

Joined: Mar 2007
Posts: 5,298
Total Cats: 884
From: Santa Clara, CA
Default

Originally Posted by aidandj
I have the non-abs sports booster, so it isn't the double ratio one.

But the big difference is that the 929 master doesn't work with the NA/NB1 version. Which is what psyber was probably asking about.
Correct. Keith was speculating that there might be an earlier-gen 1 inch 929 master that would fit, but AFAIK nobody's tried it.

--Ian
Old Nov 24, 2015 | 10:58 PM
  #5196
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

Originally Posted by codrus
Correct. Keith was speculating that there might be an earlier-gen 1 inch 929 master that would fit, but AFAIK nobody's tried it.

--Ian
From my research the earlier 929s were 7/8 masters. Which is why the 323 community used the earlier one and protégé booster.
Old Nov 25, 2015 | 10:15 AM
  #5197
notbenh's Avatar
Newb

Joined: Apr 2015
Posts: 21
Total Cats: 0
From: Portland OR
Default

Originally Posted by aidandj
From my research the earlier 929s were 7/8 masters. Which is why the 323 community used the earlier one and protégé booster.

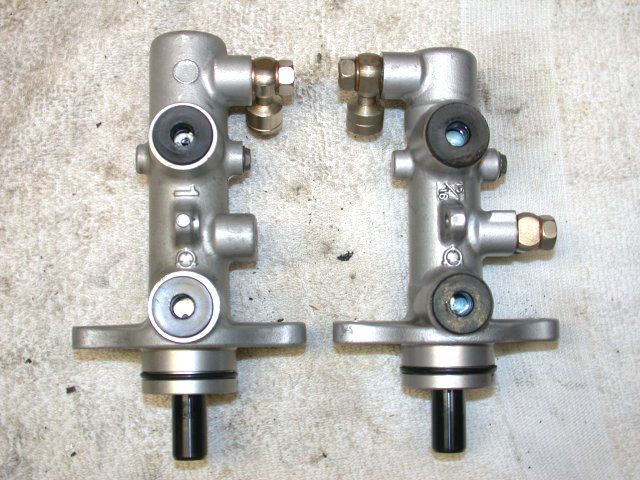

I think that the 1" ones came off the ABS cars. The piston size should be molded in to the case under the reservoir.

Attached Thumbnails Aidan's loose oily bunghole actually runs a track lap-80-mccomp_0760204f0e4fc84aadacaccd5fab4d7da8e919a0.jpg
Old Nov 25, 2015 | 10:48 AM
  #5198
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

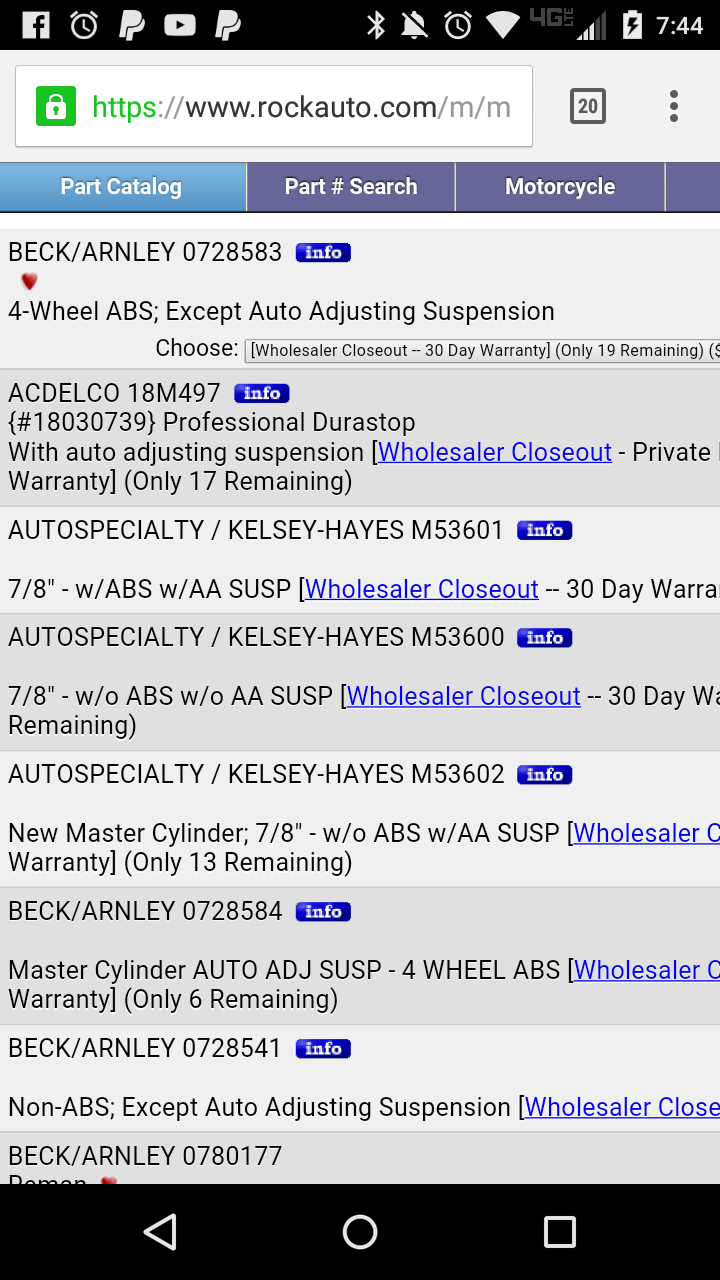

Rockauto still says 7/8. This doesn't mean it's true. But still.



I posted a link somewhere else but the abs and non abs are exactly the same for our purposes, one just has an extra fitting.
Attached Thumbnails Aidan's loose oily bunghole actually runs a track lap-nuoraim.png
Old Nov 25, 2015 | 02:13 PM
  #5199
OneTwo's Avatar
Junior Member
iTrader: (2)

Joined: Apr 2014
Posts: 396
Total Cats: 36
From: Sacramento, CA
Default

929 MC will bolt up fine to an NA booster.

Its the fat NB1s they don't play nice with IIRC. Ratios are better on the NB2 non-ABS sport and MSM MCs than with the NA booster though.
Old Nov 25, 2015 | 03:49 PM
  #5200
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

News to me.
