Old 09-18-2013, 01:13 PM   #201
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,680
Total Cats: 1,561
Default

I'm not sure what you want a picture of. You raise the lower spring perch to elevate the car and allow more travel.
sixshooter is offline   Reply With Quote
Old 09-18-2013, 01:20 PM   #202
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by sixshooter View Post
I'm not sure what you want a picture of. You raise the lower spring perch to elevate the car and allow more travel.

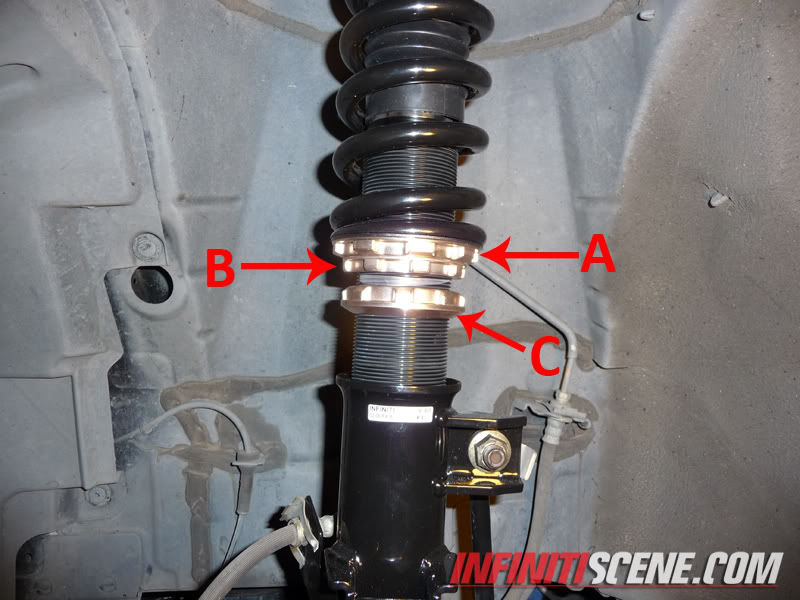

But on the BC coilovers you raise the car by lengthening the shock. so you twist the bottom mount effectively screwing it in. you dont touch the springs at all

like this

Adjusting BC Coilovers (Lowering Ride Height))

Attached Thumbnails
breaking my turbo virginity-abc.jpg
rhysmate is offline   Reply With Quote
Old 10-12-2013, 04:58 PM   #203
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Finally fixed the iat issue. Turns out the ground wire wasnt earthing at all. Cleaned out the earths and now its perfect. Took hours to figure out haha

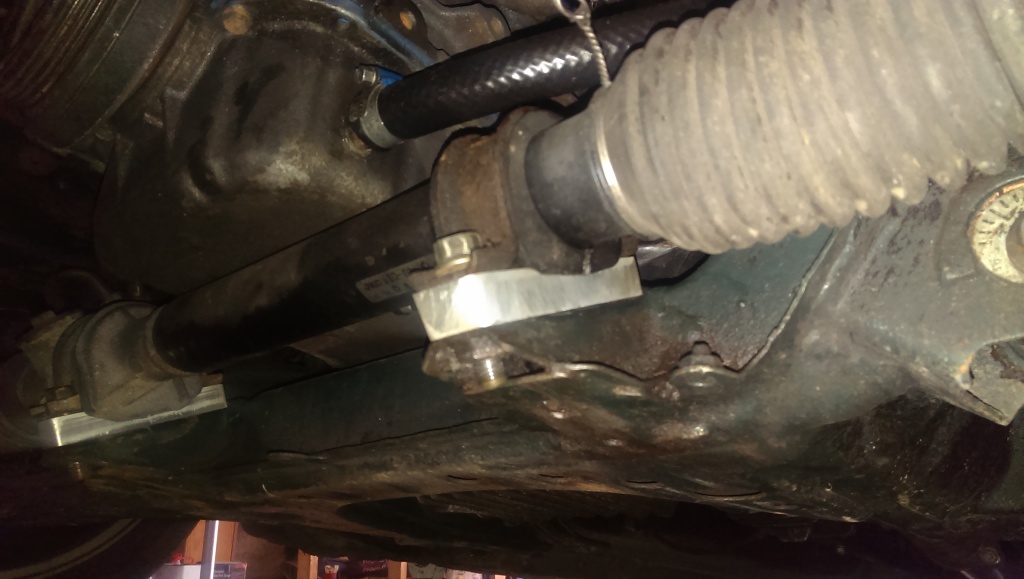

Also fitted the rack spacers

Gotta track it badly!

Attached Thumbnails
breaking my turbo virginity-imag0267_zps0b8b3574.jpg
rhysmate is offline   Reply With Quote
Old 10-12-2013, 06:22 PM   #204
Senior Member
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 719
Total Cats: 55
Default

What's the idea behind rack spacers?
Onyxyth is offline   Reply With Quote
Old 10-12-2013, 06:29 PM   #205
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Well when you lower the car the steering rack comes with it but the track rod end stay at the same height So then you get a fairly serious angle between the rack and the track rod ends that can cause bump ster and heavy steering.
rhysmate is offline   Reply With Quote
Old 10-12-2013, 06:40 PM   #206
Senior Member
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 719
Total Cats: 55
Default

Gotcha. That's what I'd thought when looking at it, but I wasn't sure.
Onyxyth is offline   Reply With Quote
Old 10-12-2013, 06:58 PM   #207
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

First I've heard of the rack spacer. Is this just for slammed cars, or when does this start to help?
Fireindc is offline   Reply With Quote
Old 10-18-2013, 07:17 AM   #208
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by Fireindc View Post
First I've heard of the rack spacer. Is this just for slammed cars, or when does this start to help?
I wouldnt say my car is as slammed as most. but it is quite low. the angle was pretty severe and it did give bump steer, but not anymore. just have a look at the angle of your track rod ends.

Blew my first gear box last night. it appears to be stuck in fifth gear although the gear stick moves around like there are no gears at all.
rhysmate is offline   Reply With Quote
Old 10-18-2013, 01:34 PM   #209
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,680
Total Cats: 1,561
Default

Sounds like you broke a shift fork. You should be more gentle.
sixshooter is offline   Reply With Quote
Old 10-18-2013, 08:17 PM   #210
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

I agree man, i was too hard on it while changing gear.

Does anyone have an exploded diagram of a g/box? Cant find one online. I have a second box in the garage that i could use parts out of to make one out of two
rhysmate is offline   Reply With Quote
Old 11-11-2013, 04:16 AM   #211
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Gearbox sorted and im running 0.9 bar as of last night. everything seems ok, afrs and duty cycle etc are normal.

i couldnt do a full pull in second because it was pissing rain and my tyres aren't the best. log attached
Attached Files
File Type: msl 2013-11-10_17.52.55.msl (518.0 KB, 68 views)
rhysmate is offline   Reply With Quote
Old 11-24-2013, 07:32 AM   #212
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default



Put her on the dyno this week. I guess I'm happy. Timing still needs tuning so there's more in her I hope. Lots and lots of little improvements to be made I need a knock sensor so I can change the timing its still pretty much stock timing map but the dyno man changed a few cells while still staying safe. 200 HP is still weak though. Baby steps I guess

Not sure if you can see from the picture but boost stays quite level.

I'll scan it in on Tuesday at work but for now its attached


What are the thoughts?
Attached Thumbnails
breaking my turbo virginity-imag0628_zps381f7ac9.jpg
rhysmate is offline   Reply With Quote
Old 11-24-2013, 08:35 AM   #213
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,680
Total Cats: 1,561
Default

Were you datalogging during the pull? That could tell us a few things about your tune.
sixshooter is offline   Reply With Quote
Old 11-26-2013, 05:23 AM   #214
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Yep i datalogged it.

181hp Run

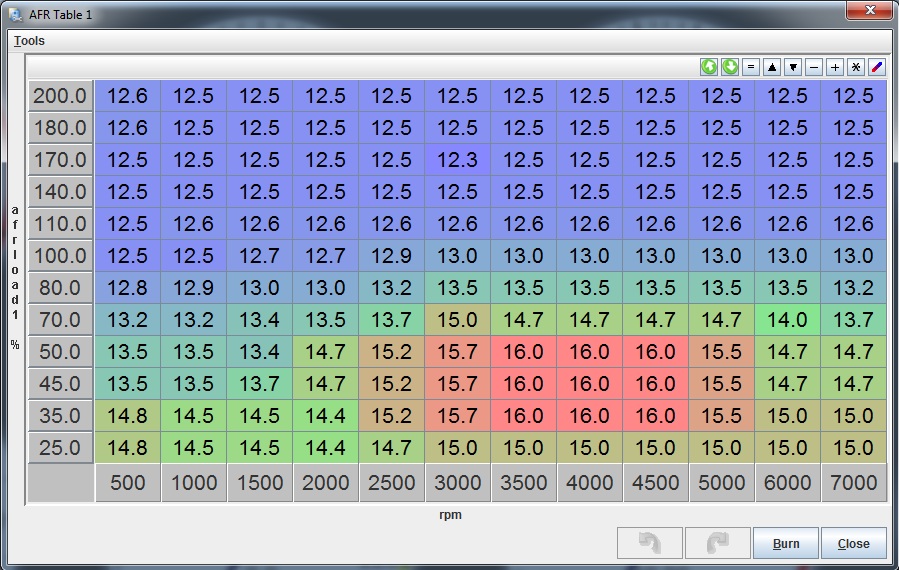

this is my AFR Table

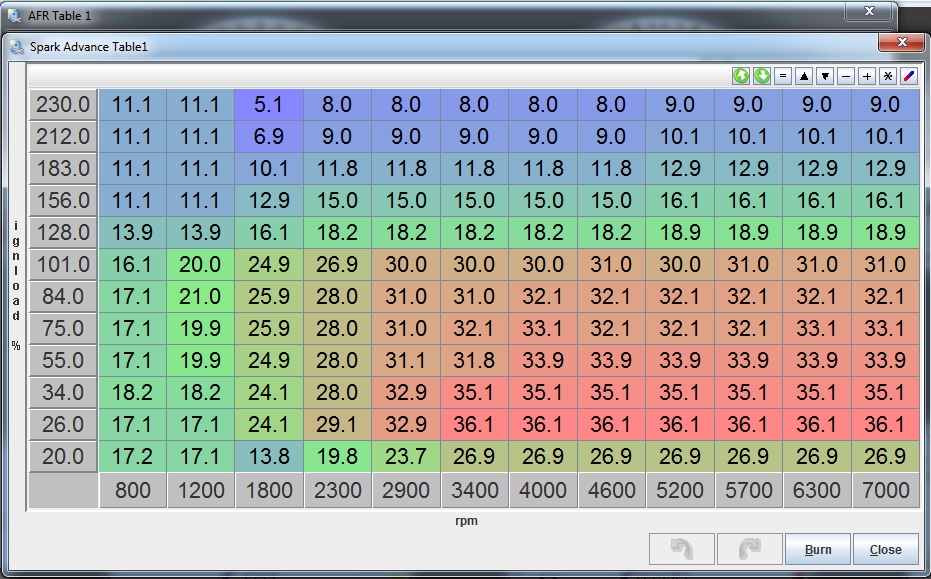

and the timing map i was using


200hp Run

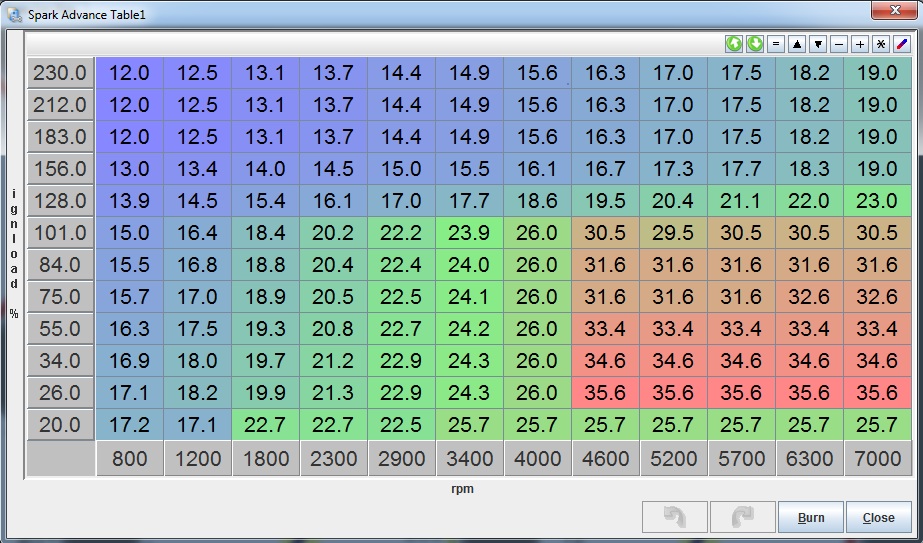

this is the timing map that dyno man came up with

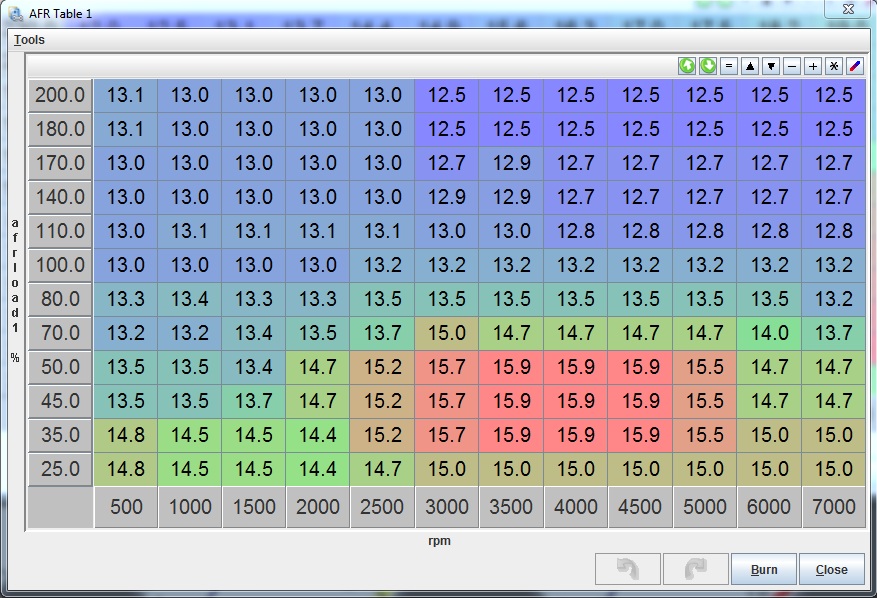

and the AFR Table after he had a look at it


I've also attached the log, msq and both dyno sheets. one with my tune and the other with his.

any thoughts?
Attached Thumbnails
breaking my turbo virginity-myafrtable_zps17753b4a.jpg   breaking my turbo virginity-basetimingmap_zps86e78b15.jpg   breaking my turbo virginity-bartstimingmap_zps88aaccc8.jpg   breaking my turbo virginity-bartsafrtable_zpsea1dbe70.jpg
Attached Files
File Type: msl 200hp run.msl (597.5 KB, 65 views)
File Type: msq 200 hp tune.msq (83.9 KB, 60 views)
File Type: pdf 181hp.pdf (102.3 KB, 74 views)
File Type: pdf 200hp.pdf (175.9 KB, 62 views)
rhysmate is offline   Reply With Quote
Old 11-26-2013, 09:43 AM   #215
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,680
Total Cats: 1,561
Default

Your datalog shows a 18.7 degrees of spark advance at 6710 rpm and then only 7 degrees at 7000 rpm. Do you have it set to retard spark starting at 6900 or something?


EDIT: and your actual AFRs during the run look good but the targets he set look a bit lean for my conservative tastes from 180kpa and up.

Last edited by sixshooter; 11-26-2013 at 09:55 AM.
sixshooter is offline   Reply With Quote
Old 11-26-2013, 09:57 AM   #216
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Sounds like a spark retard soft limiter.
thenuge26 is offline   Reply With Quote
Old 11-26-2013, 10:22 AM   #217
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by thenuge26 View Post
Sounds like a spark retard soft limiter.
on the money there man. i have the soft limiter set at 6500. its what was there from day one.

what do you think the afrs should b after .8 Sixshooter?

and the fact that my max power is at 6500 does that have anything to do with the soft limiter? should my top end be later?
rhysmate is offline   Reply With Quote
Old 11-26-2013, 10:28 AM   #218
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Looks like you'll squeak out a few more ponies if you remove the soft limiter. If you look at your torque curve, it moves down until ~6500 and then takes another turn down there, right after your peak HP.

I think the general consensus on the forum from what I have read is to shoot for 11.8 above light boost.
thenuge26 is offline   Reply With Quote
Old 11-26-2013, 10:30 AM   #219
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by thenuge26 View Post
Looks like you'll squeak out a few more ponies if you remove the soft limiter. If you look at your torque curve, it moves down until ~6500 and then takes another turn down there, right after your peak HP.

I think the general consensus on the forum from what I have read is to shoot for 11.8 above light boost.
What would you consider as light boost?
rhysmate is offline   Reply With Quote
Old 11-26-2013, 10:53 AM   #220
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

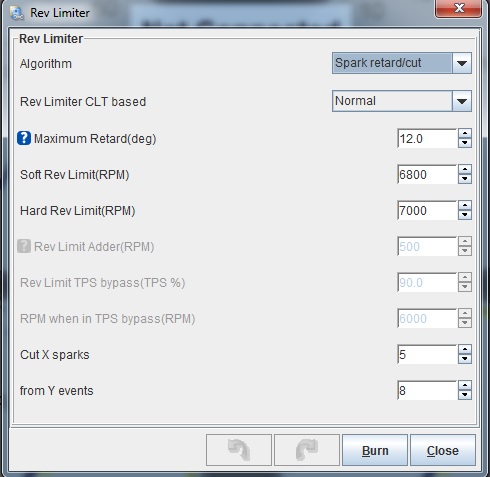

made a mistake on the rev limiter in the previous post. its 6800.

Attached Thumbnails
breaking my turbo virginity-revlimiter_zpse9ed67f1.jpg
rhysmate is offline   Reply With Quote
