Old 01-15-2013, 02:54 PM   #81
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

i certainly do.. im on the hunt for rx8 injectors. i wanted RC but cant afford them atm.. i also calibrated the AFR gauge to the ECU using the values you gave me.. it made me happy
rhysmate is offline   Reply With Quote
Old 01-15-2013, 05:29 PM   #82
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,684
Total Cats: 1,562
Default

RX7 460cc or 550cc injectors will be cheaper and easy to find if money is tight. 460's will get you more than double the stock hp.
sixshooter is online now   Reply With Quote
Old 01-15-2013, 05:55 PM   #83
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by sixshooter View Post
RX7 460cc or 550cc injectors will be cheaper and easy to find if money is tight. 460's will get you more than double the stock hp.


Ill keep an eye on the classifieds here. My ultimate goal is to run 12-13 psi on stock internals. Ive relad that both the turbo and internals can handle that well. Will 460s do that?
rhysmate is offline   Reply With Quote
Old 01-16-2013, 06:24 PM   #84
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,684
Total Cats: 1,562
Default

My 460's get me 10psi on a 2870 turbo without limiting out. I'd say you'll be right there with that smaller turbo at 12-13psi.
sixshooter is online now   Reply With Quote
Old 01-16-2013, 07:35 PM   #85
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by sixshooter View Post
My 460's get me 10psi on a 2870 turbo without limiting out. I'd say you'll be right there with that smaller turbo at 12-13psi.
i read somewhere that after 13 psi the turbo is out of its efficiency range.. id be happy with 12 psi.. what figures do you see with 10 psi?

ill keep an eye out for injectors in the coming weeks..
rhysmate is offline   Reply With Quote
Old 01-16-2013, 09:55 PM   #86
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

no
Braineack is offline   Reply With Quote
Old 01-17-2013, 04:09 AM   #87
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by Braineack View Post
no
No what lad?!
rhysmate is offline   Reply With Quote
Old 01-17-2013, 09:20 AM   #88
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
i read somewhere that after 13 psi the turbo is out of its efficiency range..
no.
Braineack is offline   Reply With Quote
Old 01-17-2013, 09:33 AM   #89
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Well either way, my little 1.6 engine surely wont appreciate more than 13-14 anyway? well not for long anyway!!
rhysmate is offline   Reply With Quote
Old 01-17-2013, 09:45 AM   #90
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

depends on the amount of torque and clyinder pressure that creates; the rods are the weak link.
Braineack is offline   Reply With Quote
Old 01-17-2013, 09:50 AM   #91
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by Braineack View Post
depends on the amount of torque and clyinder pressure that creates; the rods are the weak link.
If i ever decide to put rods in, it'll be a 1.8 i put them in!
rhysmate is offline   Reply With Quote
Old 01-17-2013, 03:29 PM   #92
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by rhysmate View Post
after 13 psi the turbo is out of its efficiency range
Squirrel Performance
I found this tool useful for comparing turbo performance.
sturovo is offline   Reply With Quote
Old 01-17-2013, 05:47 PM   #93
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Thanks Sturovo
rhysmate is offline   Reply With Quote
Old 01-20-2013, 09:04 AM   #94
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

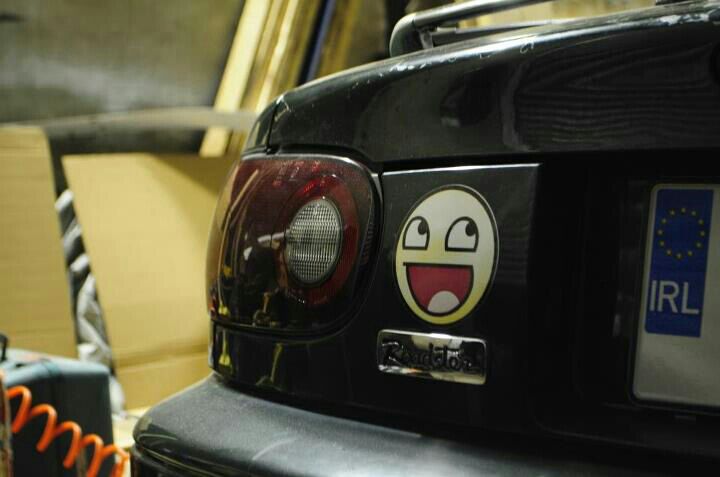

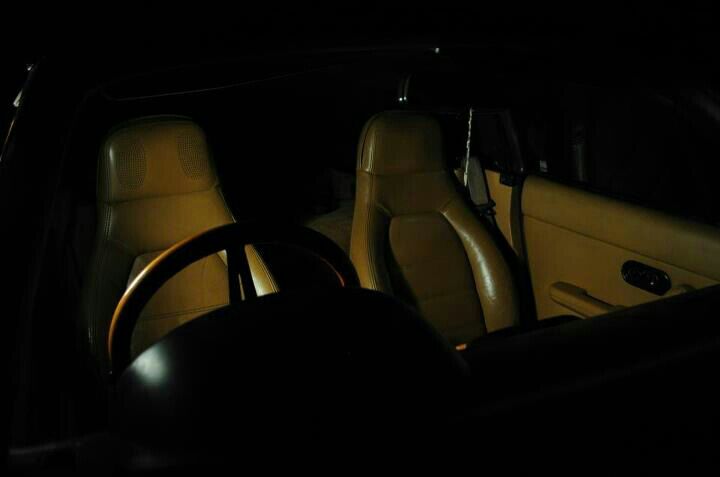

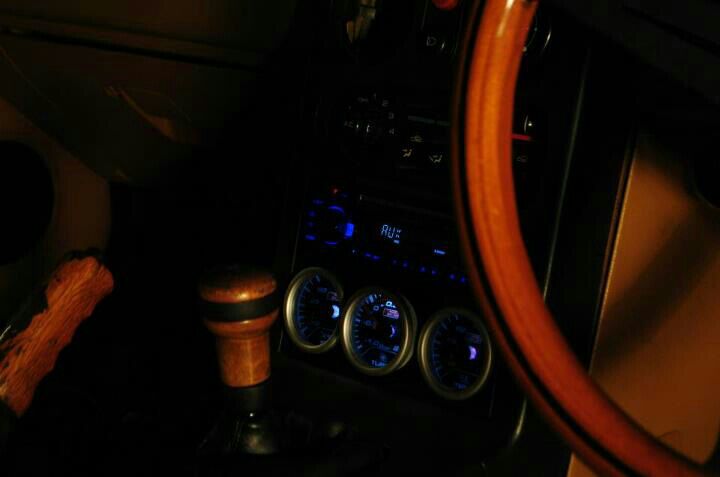

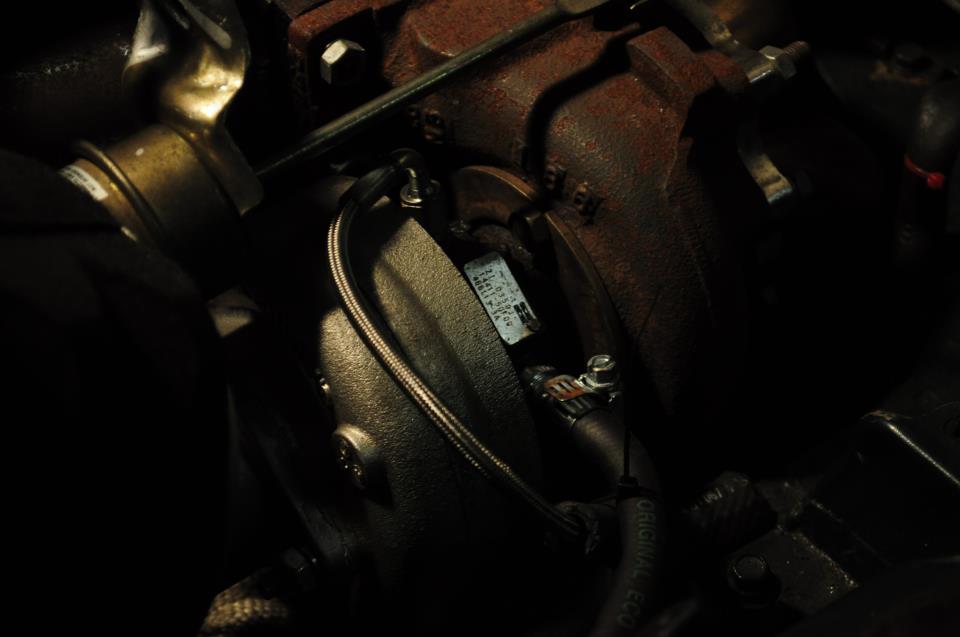

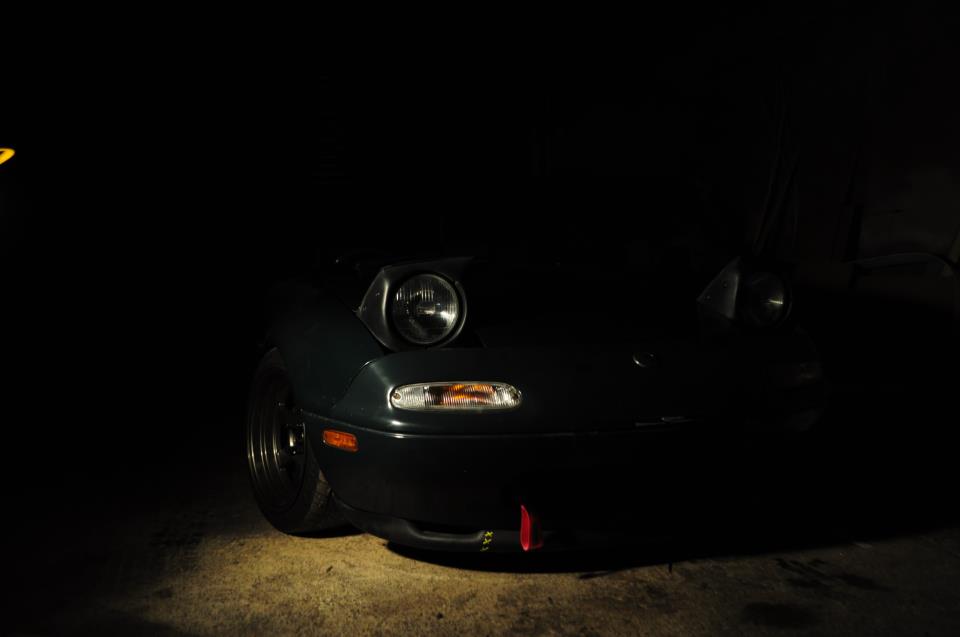

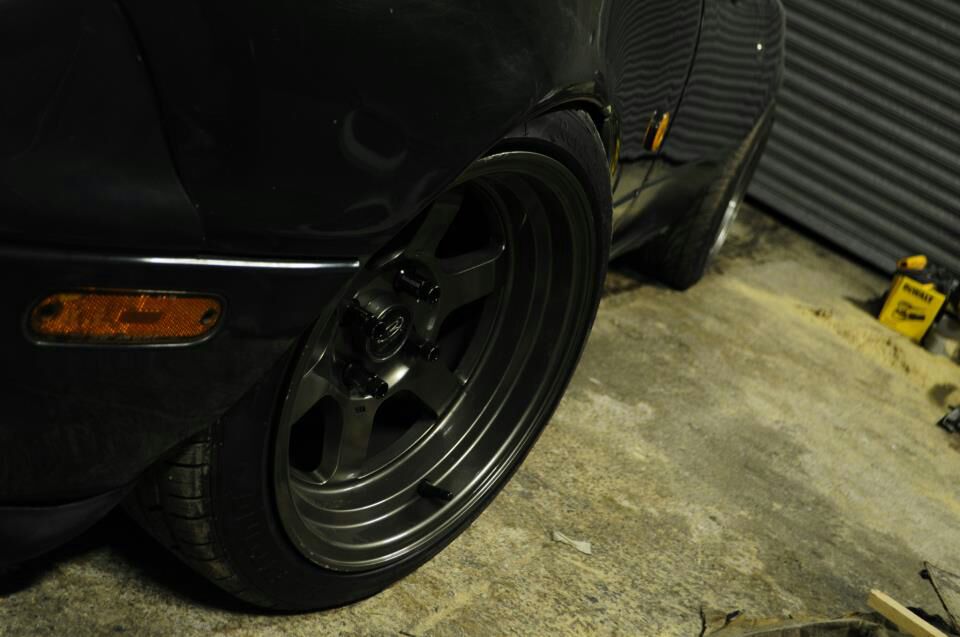

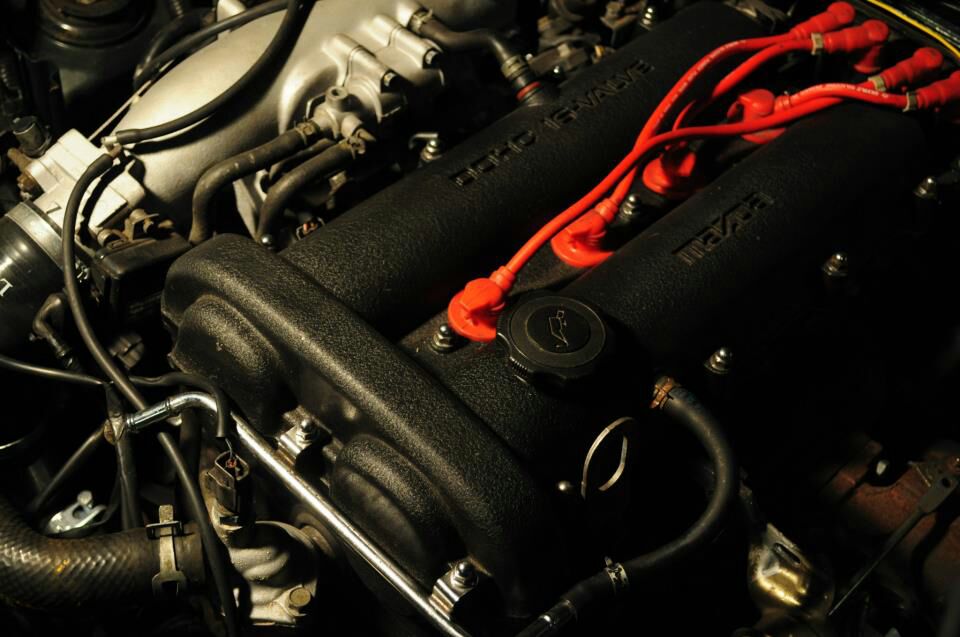

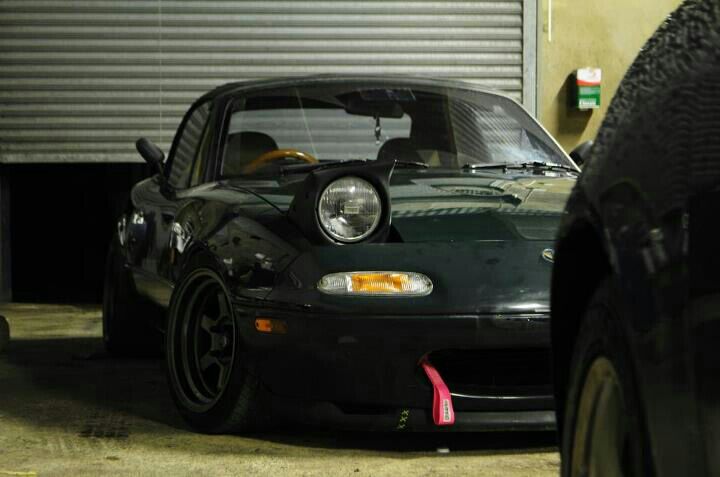

a friend of mine took a few pictures over the weekend for me.. i must send payment to a member tomorrow for injectors and then i can finally start tuning















Attached Thumbnails
breaking my turbo virginity-img-20130119-wa0011.jpg   breaking my turbo virginity-img-20130119-wa0006.jpg   breaking my turbo virginity-img-20130119-wa0008.jpg   breaking my turbo virginity-img-20130119-wa0009.jpg   breaking my turbo virginity-img-20130119-wa0010.jpg

breaking my turbo virginity-img-20130119-wa0012.jpg   breaking my turbo virginity-74936_521361981230269_1661141778_n_zpsff6c579a.jpg   breaking my turbo virginity-555454_520864734613327_1150142000_n_zpsb97c842d.jpg
rhysmate is offline   Reply With Quote
Old 02-20-2013, 02:47 PM   #95
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Hi Lads,

I ran VEAL tonight briefly. here are some logs if someone could take a look see ?
Attached Files
File Type: msl after veal run 1.msl (222.6 KB, 109 views)
File Type: msl after veal run 2.msl (815.8 KB, 88 views)
rhysmate is offline   Reply With Quote
Old 02-20-2013, 07:42 PM   #96
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

I have a question with regards to the rev limiter.. when i hit the rev limiter it completely kills the power, which for a track day is useless as it cuts my power for about a second? what settings do i change so its more of a bounce than a power cut
rhysmate is offline   Reply With Quote
Old 02-21-2013, 09:06 AM   #97
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,684
Total Cats: 1,562
Default

Quote:
Originally Posted by rhysmate View Post
I have a question with regards to the rev limiter.. when i hit the rev limiter it completely kills the power, which for a track day is useless as it cuts my power for about a second? what settings do i change so its more of a bounce than a power cut
Mine bucks slightly when you get hard against the limiter but it doesn't unsettle the car.

My settings are
Rev Limiter
Soft rev limit : 7000
Soft limit absolute timing: 10
Soft limit timemax: 5.0 sec
Hard Rev Limit: 7100

[The soft rev limit retards the timing in an attempt to slow the acceleration of the engine and reduce its power.]

Rev Limiter Type
Hard cut/limiter type
Base Number to Cut Sparks From(sparks): 5
Rev Limiter
Hard Cut type: FUEL ONLY
Cut 'n' number out of base sparks:3

[The base number is the number of sparks that can be cut from. This value will depend on the number of cylinders. Then select how many sparks (or injection pulses, I assume) to cut in each mode.
sixshooter is online now   Reply With Quote
Old 02-21-2013, 09:41 AM   #98
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

change the cuts from and the base number to increase the speed of the rev limiter. Off the top of my head I cant think of what's better...if 1 out of 4 would be better than say 15 out of 16.
Braineack is offline   Reply With Quote
Old 02-21-2013, 09:41 AM   #99
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Cheers man ill set that up and see what difference it makes.. i bought 460cc injectors but they seem to be missing in the post so i imagine they'll be returned to sender. in the meantime i may get some 1.8L injectors so i can run a little boost.. is there any sense in doing that? it's going to take a good few weeks to get my hands on the 460s
rhysmate is offline   Reply With Quote
Old 02-21-2013, 10:30 AM   #100
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by sixshooter View Post

Base Number to Cut Sparks From(sparks): 5
Rev Limiter
Hard Cut type: FUEL ONLY
Cut 'n' number out of base sparks:3

[The base number is the number of sparks that can be cut from. This value will depend on the number of cylinders. Then select how many sparks (or injection pulses, I assume) to cut in each mode.
So this is cutting 3 sparks out of 5?
rhysmate is offline   Reply With Quote
