Old 02-27-2013, 04:46 AM   #121
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

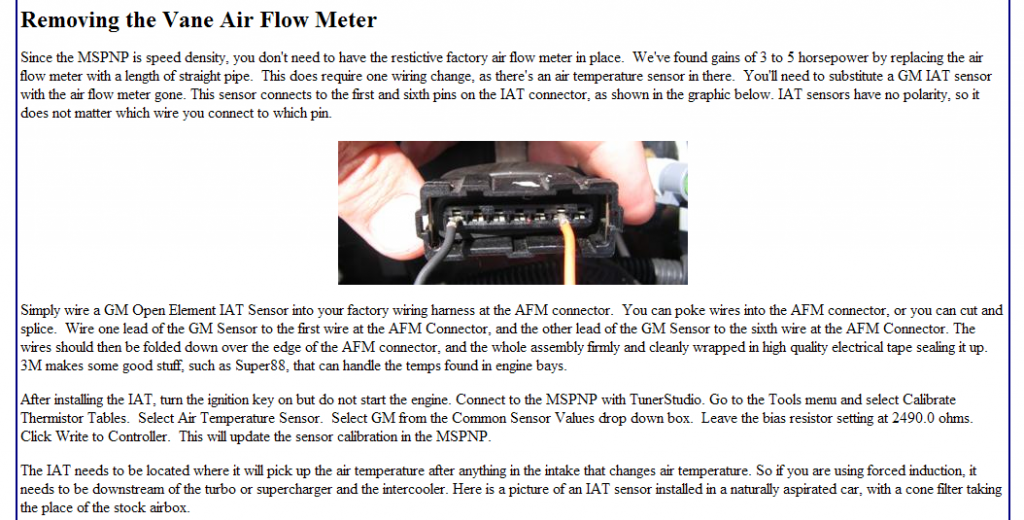

ok, heres how i connected my IAT sensor.

Name:  IATsetup_zpscbb55876.png
Views: 1
Size:  438.8 KB

when it's plugged in like this, im getting around 1-2 degrees (Celsius) at idle after the car is warm. when i unplug it, the MAT reads 20-21 degrees (Celsius). would it be better to log this?

by the way, will i damage the car by driving it like this?
rhysmate is offline   Reply With Quote
Old 02-27-2013, 07:24 AM   #122
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Quote:
Originally Posted by Braineack View Post
-17F suggests not connected.
BUt the screenshots of the datalog shows readings from 1.4 to 15.6C - which doesn't sound too bad for me for winter time... (@rhysmate - what where the actual outside temps again?)
Zaphod is offline   Reply With Quote
Old 02-27-2013, 07:25 AM   #123
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by Zaphod View Post
BUt the screenshots of the datalog shows readings from 1.4 to 15.6C - which doesn't sound too bad for me for winter time... (@rhysmate - what where the actual outside temps again?)
at the moment the outside temp in between -1 Celsius at night and 5 to 6 degrees during the day?
rhysmate is offline   Reply With Quote
Old 02-27-2013, 07:46 AM   #124
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

So I don't see what is wrong with your readings - with an efficient intercooler your intake temps after the IC won't exceed your outside temp very much...

All 4 screenshots show MAT between 7-8 C and rising to a max of 15.6C when going into boost - at ~4-5C outside temp I would consider this as normal...

Greets
Zaphod is offline   Reply With Quote
Old 02-27-2013, 08:08 AM   #125
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by Zaphod View Post
So I don't see what is wrong with your readings - with an efficient intercooler your intake temps after the IC won't exceed your outside temp very much...

All 4 screenshots show MAT between 7-8 C and rising to a max of 15.6C when going into boost - at ~4-5C outside temp I would consider this as normal...

Greets
Thats a good point. maybe me messing with the connectors changed it? the old logs were showing wierd numbers and after i went at the plugs it changed! cheers Zaphod.. ill do another log tonight and try and use virtual dyno. im curious as to what ballpark im in
rhysmate is offline   Reply With Quote
Old 02-27-2013, 09:31 PM   #126
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,684
Total Cats: 1,561
Default

I'm glad you got it worked out.
sixshooter is online now   Reply With Quote
Old 02-28-2013, 04:19 AM   #127
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by sixshooter View Post
I'm glad you got it worked out.
Cheers man! can't wait for my injectors. boost cut is breaking my ***** and cant be good for the engine :( I was hoping my waste gate would open at 7 psi but it doesnt appear to be. i better set up a regulator on my compressor and see what it opens at
rhysmate is offline   Reply With Quote
Old 02-28-2013, 05:37 AM   #128
Junior Member

Join Date: Sep 2012
Location: New Zealand Christchurch
Posts: 207
Total Cats: -5
Default

I had the same problem i hooked the vacuum lines up wrong to the wastgate and when it hit boost it went round to about 20psi. Wasnt so good for the engine. Air compressor works a treat though
jimmyneutron is offline   Reply With Quote
Old 02-28-2013, 07:32 AM   #129
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by jimmyneutron View Post
I had the same problem i hooked the vacuum lines up wrong to the wastgate and when it hit boost it went round to about 20psi. Wasnt so good for the engine. Air compressor works a treat though
I have boost cut set to 7 psi as my duty cycle maxes just over that.
rhysmate is offline   Reply With Quote
Old 02-28-2013, 10:22 AM   #130
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Here's a crappy video..


Last edited by rhysmate; 02-28-2013 at 10:35 AM.
rhysmate is offline   Reply With Quote
Old 02-28-2013, 04:19 PM   #131
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,684
Total Cats: 1,561
Default

Feels better than naturally aspirated, huh?

You can buy a lower psi wastegate actuator on ebay pretty cheap. Just make sure it will bolt to your bracket and has the right rod length.

I changed from an "7psi wastegate" that was giving me 10+psi to a "3psi wastegate" that gives me a solid 7psi. Then I use a Greddy Profec B boost controller to go up from 7. Now I have two settings, 7psi when the controller is off and 10psi when it is on. The controller actually has two settings, so when I build my engine I could actually have three levels. It has proven useful on the track to have the wastegate only setting which is more gentle with boost onset when there is moisture on the racing surface.
sixshooter is online now   Reply With Quote
Old 02-28-2013, 04:25 PM   #132
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Its outrageous how different.. its the most fun ive ever had in a car.. as soon as I did my first pull I put the s2000 up for sale.. it just doesnt give me the same buzz..

I have friend with a lot of turbos as he rebuilds them, I might ask him for one.. is table switching easy to set up?
rhysmate is offline   Reply With Quote
Old 02-28-2013, 04:29 PM   #133
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

By the way, I set up my rev limiter to 6 out of 9 sparks and its really fast.. I set up a spark only cut and got no flames which made me a bit sad
rhysmate is offline   Reply With Quote
Old 02-28-2013, 04:43 PM   #134
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Nice man, congrats. Nothing like a turbo miata, i love mine.
Fireindc is offline   Reply With Quote
Old 03-06-2013, 07:55 PM   #135
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Finally got my 460 injectors.. what apart from the req fuel do I need to adjust? Im assuming that idle will be funny now?
rhysmate is offline   Reply With Quote
Old 03-07-2013, 08:22 AM   #136
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Quote:
Originally Posted by rhysmate View Post
Finally got my 460 injectors.. what apart from the req fuel do I need to adjust? Im assuming that idle will be funny now?
No it should stay as before - if you change your req fuel correctly.
Zaphod is offline   Reply With Quote
Old 03-07-2013, 12:46 PM   #137
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,684
Total Cats: 1,561
Default

It might need a little tweaking but not much. You will want to let VEAL work on the fuel to make up for any irregularities after you get done. And you will likely be tuning a few new cells in the higher KPA regions of your map. Keep doing it incrementally like before.
sixshooter is online now   Reply With Quote
Old 03-08-2013, 04:54 AM   #138
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by sixshooter View Post
It might need a little tweaking but not much. You will want to let VEAL work on the fuel to make up for any irregularities after you get done. And you will likely be tuning a few new cells in the higher KPA regions of your map. Keep doing it incrementally like before.
Went tuning last night (in the pissing rain) and got to 159kpa before the wastegate opened. (or so i assume as it climbed no further). i did a datalog but forgot it on my other laptop so ill upload it after work.. The car pulls so well now, but i wouldnt want to do much wet weather driving. it nuts
rhysmate is offline   Reply With Quote
Old 03-08-2013, 12:24 PM   #139
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

I can't wait till i'm at this point in my build! Hopefully I will be where you are by this time next year!
BTMiata is offline   Reply With Quote
Old 03-08-2013, 01:21 PM   #140
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,684
Total Cats: 1,561
Default

Stretched tires and very little available suspension travel before contact with the bump stops won't help much with maintaining traction. Faster doesn't always look as "cool", but it will be faster. A little bit of sidewall flex is our friend.
sixshooter is online now   Reply With Quote
