Old 09-09-2014, 01:29 PM   #261
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by 18psi View Post
Nice man. Looking way better already.
Also looks like you're making some decent power with it (I'd guess somewhere in the 240-260 range)
You motivated me to sort it out! Once i changed my oil and coolant i took degreaser and a pressure washer to it.

Quote:
Originally Posted by Fireindc View Post
Looks like she has some good topend. The low end spool appears to be lacking a bit, but it sounds like you have been able to improve that a bit.
Ya it's getting a bit better. first and second gear are pretty insane after 4k. i have a boost leak somewhere i'm certain of it. ill get some delron and make a leak tester.

Next job is uprate the injectors. 400$ is a lot of money but it's gonna be worth it. hope to order them on Friday

After that its rods and oem rings. full gasket kit (OEM) and ACL bearings.

Aim is safe 250whp tune which i think is realistic for a daily.
rhysmate is offline   Reply With Quote
Old 09-09-2014, 02:10 PM   #262
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

make sure you get ID or FIC injectors only. trust me, they are the best.
you can probably hit up Bryan @ FAB9 for a good deal on either.
18psi is offline   Reply With Quote
Old 09-09-2014, 02:12 PM   #263
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by 18psi View Post
make sure you get ID or FIC injectors only. trust me, they are the best.
you can probably hit up Bryan @ FAB9 for a good deal on either.
Good idea! i might even ask him to put a package together to save me paying uber shipping! Nice
rhysmate is offline   Reply With Quote
Old 09-09-2014, 08:15 PM   #264
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

Lift the WG actuator rod off of the arm and make sure the flapper is completely seated if you haven't already. It's ok to have a little preload on the actuator rod when it goes over the flapper arm stud.
sixshooter is online now   Reply With Quote
Old 09-09-2014, 09:09 PM   #265
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by sixshooter View Post
Lift the WG actuator rod off of the arm and make sure the flapper is completely seated if you haven't already. It's ok to have a little preload on the actuator rod when it goes over the flapper arm stud.
There defo is man, i had the actuator off a few times already. if anything there is probably too much.
rhysmate is offline   Reply With Quote
Old 09-09-2014, 09:11 PM   #266
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by 18psi View Post
make sure you get ID or FIC injectors only. trust me, they are the best.
you can probably hit up Bryan @ FAB9 for a good deal on either.
Got a quote off these guys.

Eagle rods
ACL bearings
Supertech pistons and rings
ID1000

i might skip on the pistons though. ill need a fuel pump and oil pump too


just over 1000 euro delivered. time to start eating noodles for the next few weeks
rhysmate is offline   Reply With Quote
Old 09-15-2014, 02:40 PM   #267
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default



Video! they arent the best but until i get an external mic.....

rhysmate is offline   Reply With Quote
Old 09-19-2014, 09:24 AM   #268
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Ordered

Eagle rods
Cometic head gasket
Id725 injectors
Acl bearings (all)

To buy

billet Oil pump
Piston rings

Will supertech be ok with standard pistons?

My buddy with a tuning shop managed to find me the parts so i saved on customs and shipping!
rhysmate is offline   Reply With Quote
Old 09-19-2014, 09:38 AM   #269
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

Are you asking about supertech rings on stock pistons or supertech pistons in a stock bore diameter?
sixshooter is online now   Reply With Quote
Old 09-19-2014, 09:52 AM   #270
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by sixshooter View Post
Are you asking about supertech rings on stock pistons or supertech pistons in a stock bore diameter?
Sorry i meant supertech rings on standard pistons dude!
rhysmate is offline   Reply With Quote
Old 09-19-2014, 10:38 AM   #271
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

Why wouldn't you buy forged pistons as well? You get the benefit of lower compression which gives you more headroom against detonation on pump gas.

And the pistons are stronger.
sixshooter is online now   Reply With Quote
Old 09-19-2014, 11:03 AM   #272
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Its another 400e on top of the money ive spent and id need to order it today to get them for that. I also just biught a fuel pump and cops and i still need bottom end gaskets etc etc
rhysmate is offline   Reply With Quote
Old 09-19-2014, 11:05 AM   #273
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

I guess i could save up and wait till later in the year
rhysmate is offline   Reply With Quote
Old 09-20-2014, 06:19 PM   #274
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

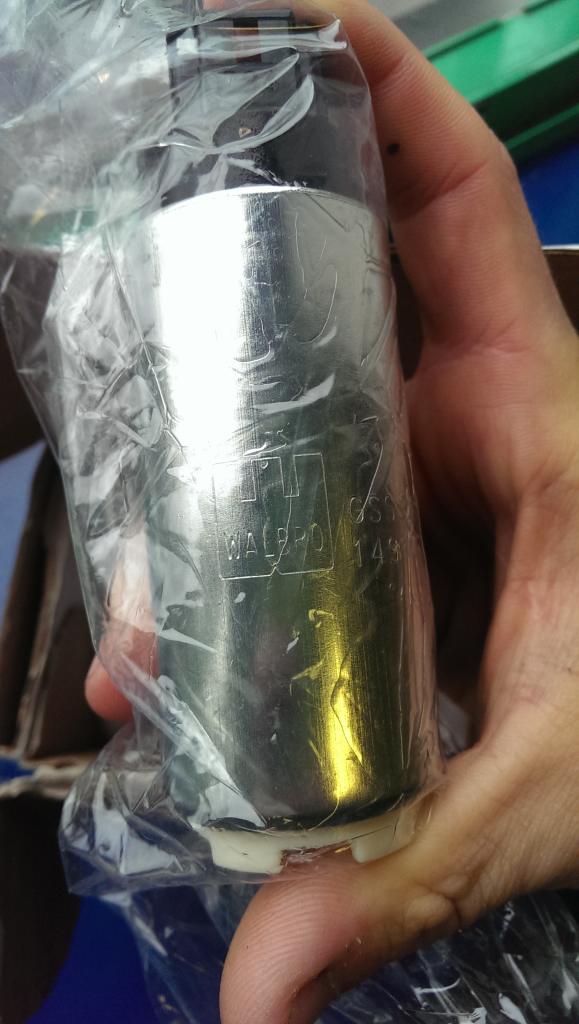

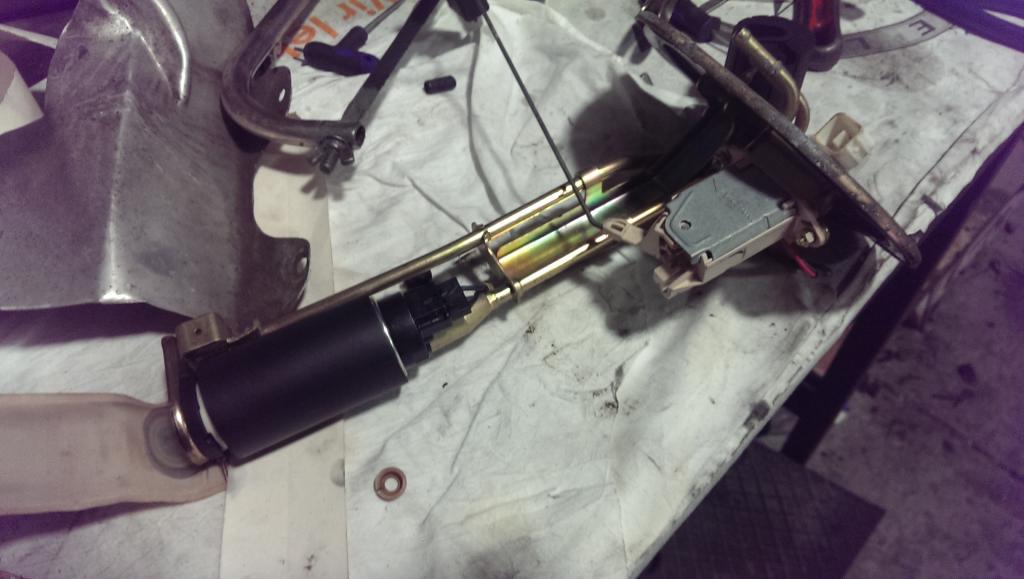

Earlier on in the week i got a pretty good deal on a walbro 255 so i took it. I put in into the car today





I read that some people have had issues with the 255 causing rich idle and cruise. All seems well so far! Ill probably invest in an adjustable fpr as a precaution.

I picked up my cops yesterday as well and im waiting on the laser cut plate to fit them. I also need a loom off a yaris or avensis or some other toyota.

Anyway. I thought the "missfire" was down to the fuel pump letting go, but the issue is still there.

Anyone have any thoughts on it? The log is in a few posts back and its still happening..

I thought it was the boost cut but Its not boost cut i know that
Attached Thumbnails
breaking my turbo virginity-imag2627_zpsigez5awa.jpg   breaking my turbo virginity-imag2632_zps5jfteuso.jpg
rhysmate is offline   Reply With Quote
Old 09-21-2014, 02:44 PM   #275
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

Spark plugs need to be gapped to .028 inches?

Weak ignition coil?

Dirty fuel injector?

Burned (or slightly bent) valve in the head? Do a compression test for this one.
sixshooter is online now   Reply With Quote
Old 09-21-2014, 03:25 PM   #276
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by sixshooter View Post
Spark plugs need to be gapped to .028 inches?

Weak ignition coil?

Dirty fuel injector?

Burned (or slightly bent) valve in the head? Do a compression test for this one.
But would any of these cause the injector to close like that? Would you see it in the log unless the ecu is telling it to do that?
rhysmate is offline   Reply With Quote
Old 09-22-2014, 09:54 AM   #277
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

I thought we were trying to diagnose a missfire. I haven't seen a log.

Are you seeing a DC drop, RPM drop, Inj PW drop, everything drop, or what?
sixshooter is online now   Reply With Quote
Old 09-22-2014, 10:07 AM   #278
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by sixshooter View Post
I thought we were trying to diagnose a missfire. I haven't seen a log.

Are you seeing a DC drop, RPM drop, Inj PW drop, everything drop, or what?
The log is in post 256 and its the same issue as in that log. The pw and duty cycle dip sharply.

What i've done to try and diagnose it is copy my ignition and fuel tables into a totally new msq. Ill run a log on the way to work and post it here.
rhysmate is offline   Reply With Quote
Old 09-22-2014, 01:05 PM   #279
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

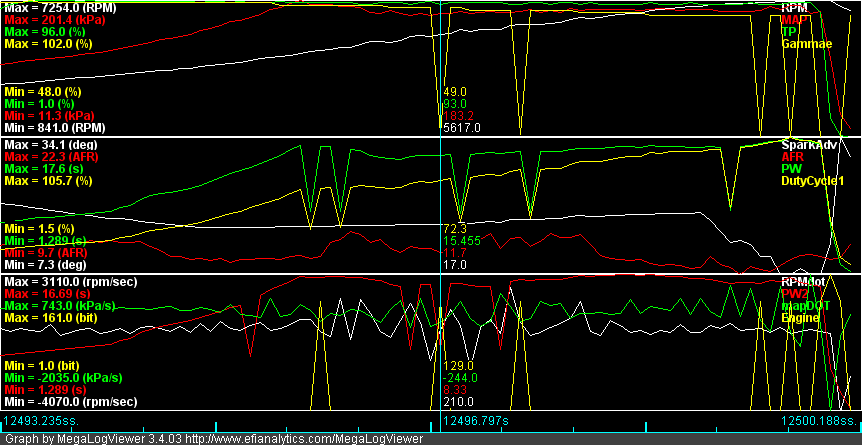

This has some odd things in it I don't understand. Maybe a MS guru will stop in and take a look.
Attached Thumbnails
breaking my turbo virginity-graph.png
sixshooter is online now   Reply With Quote
Old 09-22-2014, 01:53 PM   #280
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by sixshooter View Post
This has some odd things in it I don't understand. Maybe a MS guru will stop in and take a look.
I really can't figure it out.

So far i've copied my fuel and spark tables into a fresh msq to see if it was any other setting that i changed by mistake. no difference at all.

I've attached a new log from today. one log was a pull in 3rd gear and the other log is a pull in 3rd plus a shift into 4th and 5th.

The tune file is also attached.
Attached Files
File Type: msq CurrentTune.msq (85.2 KB, 41 views)
File Type: msl 2014-09-22_15.41.49 3rd 4th 5th.msl (90.2 KB, 42 views)
File Type: msl 2014-09-22_15.39.44 thrid gear.msl (327.5 KB, 55 views)
rhysmate is offline   Reply With Quote
