Old 11-26-2013, 09:31 PM   #221
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,684
Total Cats: 1,562
Default

6800 is a safe limit, I was just expecting it to be higher so I was briefly puzzled.

I would be at an AFR of 11.2 or 11.5 above 180kpa for safety's sake. Fuel quality differences and other tuning irregularities don't leave you much room at those AFRs. It is actually what you are running in your datalog for the pull. The targets he changed didn't actually change the fueling at the time of your dyno pull yet.
sixshooter is offline   Reply With Quote
Old 04-17-2014, 11:24 AM   #222
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

This is still alive and well. haven't driven it much though! here are some pics of a day out last weekend. topless for the win! no immediate plans for the future. just enjoy it.

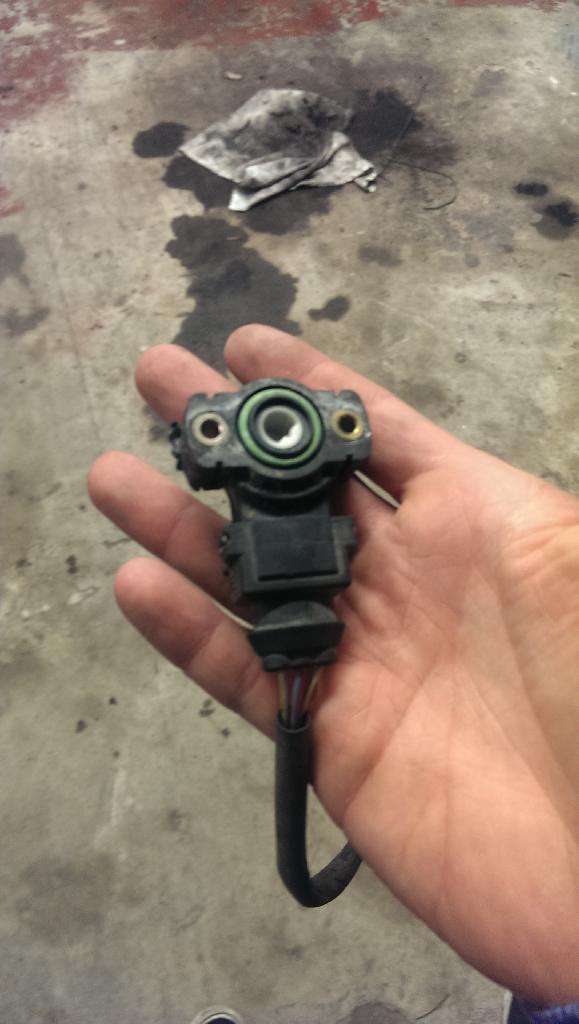

Also Bought a BMW TPS



enjoyed some more sun



had an ice cream

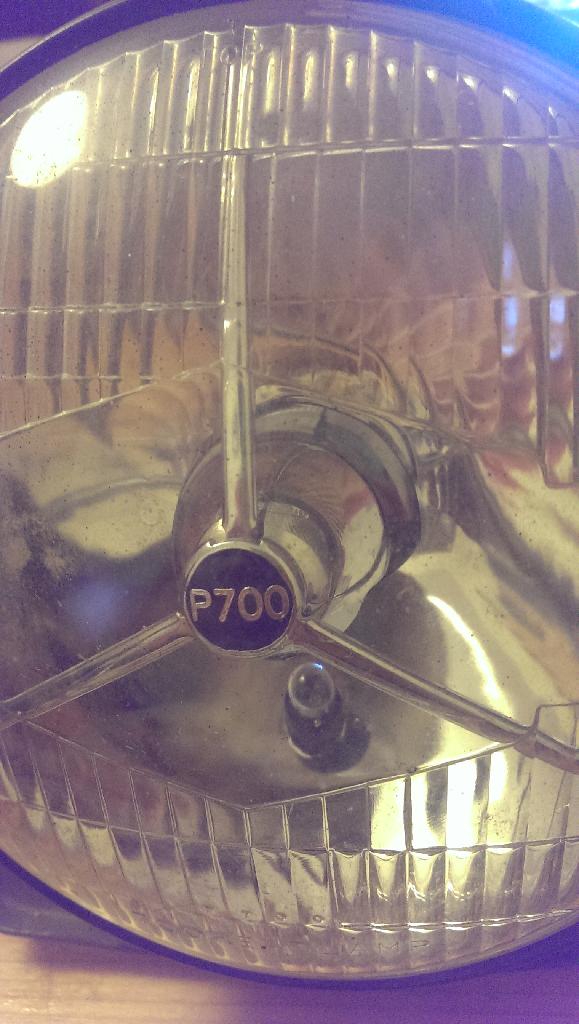

Bought some lights



made a friend



And i let the missus drive



All in all alot of fun in the little roadster that could in recent times
Attached Thumbnails
breaking my turbo virginity-1496956_10151896157240925_1515568789_n_zps2bd5b06a.jpg   breaking my turbo virginity-1960790_10151906488600925_76207988_o_zpsadf25178.jpg   breaking my turbo virginity-imag1300_zps53b431d5.jpg   breaking my turbo virginity-imag1305_zps5d4ea058.jpg   breaking my turbo virginity-1604383_10151893386050925_93502379_n_zpsf7b71bb5.jpg

breaking my turbo virginity-1904194_10151917639725925_1812770751_n_zps2e5343d4.jpg   breaking my turbo virginity-imag1704_zpsdimxdqpp.jpg   breaking my turbo virginity-imag1688_zps7vohqvxd.jpg   breaking my turbo virginity-imag1683_1_zpspzxwrpxr.jpg   breaking my turbo virginity-imag1673_zpswp5i6oqa.jpg

breaking my turbo virginity-imag1664_zpso9c9zstw.jpg   breaking my turbo virginity-imag1506_zpsjjti5wvd.jpg
rhysmate is offline   Reply With Quote
Old 04-17-2014, 11:28 AM   #223
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

LOL, awesome update. Now I feel bad, when my GF (of several years) asks me to drive the car, i still just kind of laugh out loud.

On my defense, she does not know how to drive manual worth a damn, so I should teach her that first on a beater.

Anyways, rad update duder. A rollbar would be a pretty sweet addition, is that in your plans?
Fireindc is offline   Reply With Quote
Old 04-17-2014, 11:33 AM   #224
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Definitely a good update and good to see you enjoying the car.

You were one of the first builds I started following and inspired me to start collecting parts. Funny looking back now, I have come a long way and i'm almost ready to install my set-up. I remember watching that first video you made of being boosted and thinking "Damn can't wait until I can do that" .... The time is almost here hahaha
BTMiata is offline   Reply With Quote
Old 04-17-2014, 12:05 PM   #225
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by Fireindc View Post
LOL, awesome update. Now I feel bad, when my GF (of several years) asks me to drive the car, i still just kind of laugh out loud.

On my defense, she does not know how to drive manual worth a damn, so I should teach her that first on a beater.

Anyways, rad update duder. A rollbar would be a pretty sweet addition, is that in your plans?
My Gf is pretty well versed in manual her first car was a Toyota Hilux :P she boosted hard and didnt stall once!! So damn proud

Im not sure if ill get a roll bar mate, Insurance hate them over here!

Quote:
Originally Posted by BTMiata View Post
Definitely a good update and good to see you enjoying the car.

You were one of the first builds I started following and inspired me to start collecting parts. Funny looking back now, I have come a long way and i'm almost ready to install my set-up. I remember watching that first video you made of being boosted and thinking "Damn can't wait until I can do that" .... The time is almost here hahaha
That means alot man! I know how it feels to get all the parts together and watch other builds and FINALLY get to hit boost that first few times. nothing quite like it
rhysmate is offline   Reply With Quote
Old 04-17-2014, 12:20 PM   #226
Senior Member
iTrader: (8)

Join Date: Feb 2012
Location: Raleigh, NC
Posts: 617
Total Cats: 53
Default

Quote:
Originally Posted by BTMiata View Post
You were one of the first builds I started following and inspired me to start collecting parts...
Werd. Same here but I've had mine up and running for almost a year now. My build is pretty similar to yours for a reason. Been driving the crap out of it daily.

Reasons like this are why the MT community is so cool and helpful. Also for the free male services exchanged.
petrolmed is offline   Reply With Quote
Old 04-17-2014, 04:01 PM   #227
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

The weather wasnt great today, but i donned the fluffy hat of wisdom and turned the heating up to 11!

Attached Thumbnails
breaking my turbo virginity-10151162_10151991356375925_1605033973016960391_n_zps2f1c46e0.jpg
rhysmate is offline   Reply With Quote
Old 04-18-2014, 03:44 PM   #228
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

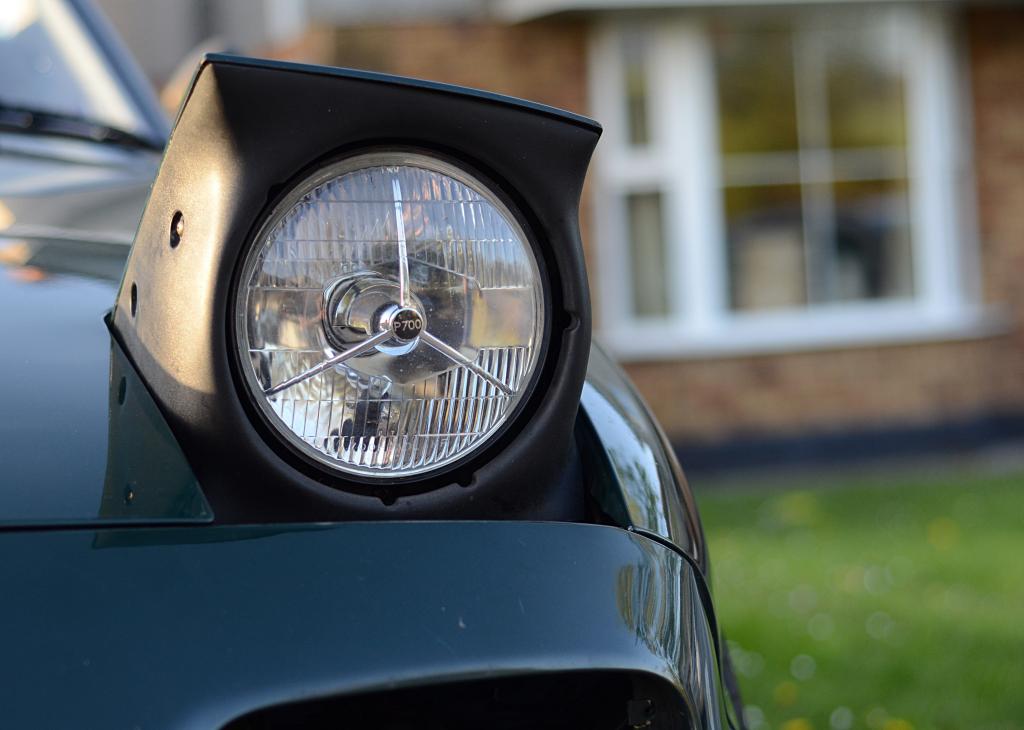

New lights fitted
Attached Thumbnails
breaking my turbo virginity-dsc_7988_zps92176818.jpg
rhysmate is offline   Reply With Quote
Old 08-18-2014, 06:07 PM   #229
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

long over due update!

NCT'd once again. all i needed was a caliper on the back

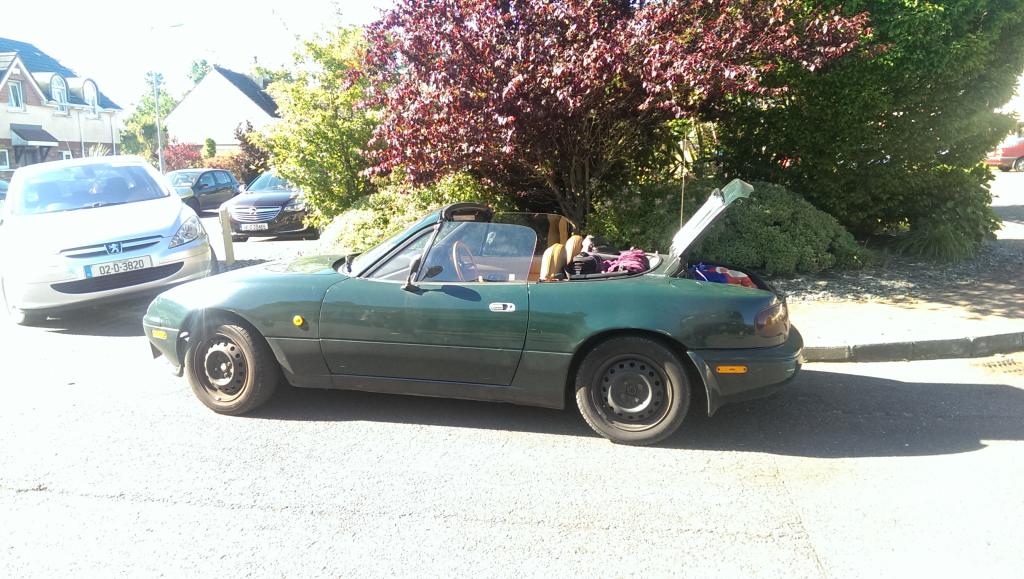

NCT SPEC!!


Then i noticed an issue with my AFRs. on ful boost they were all over the place and on warmup. well pretty much everywhere,

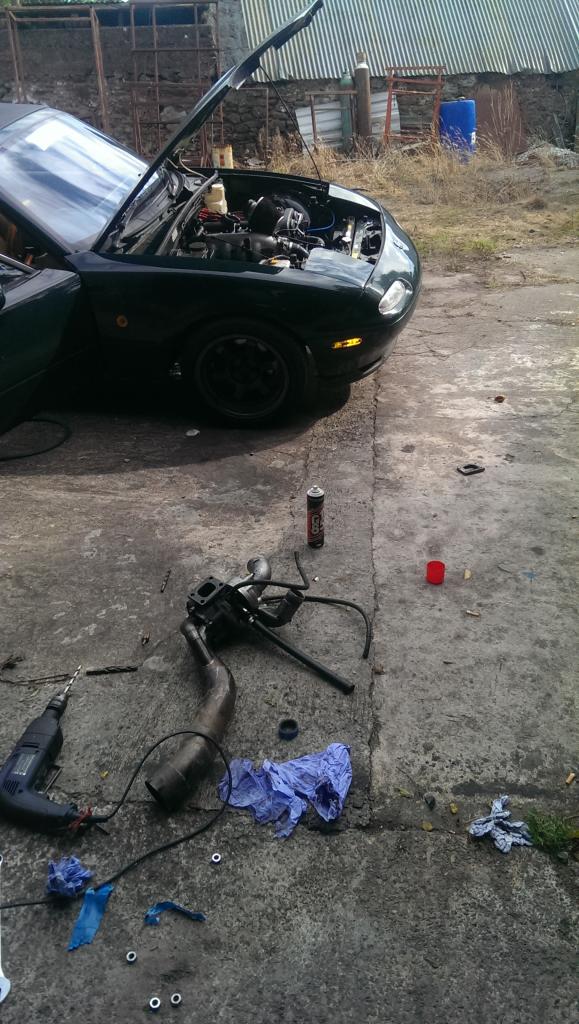

has a look and saw i was missing some bolts on the turbo

on closer inspection

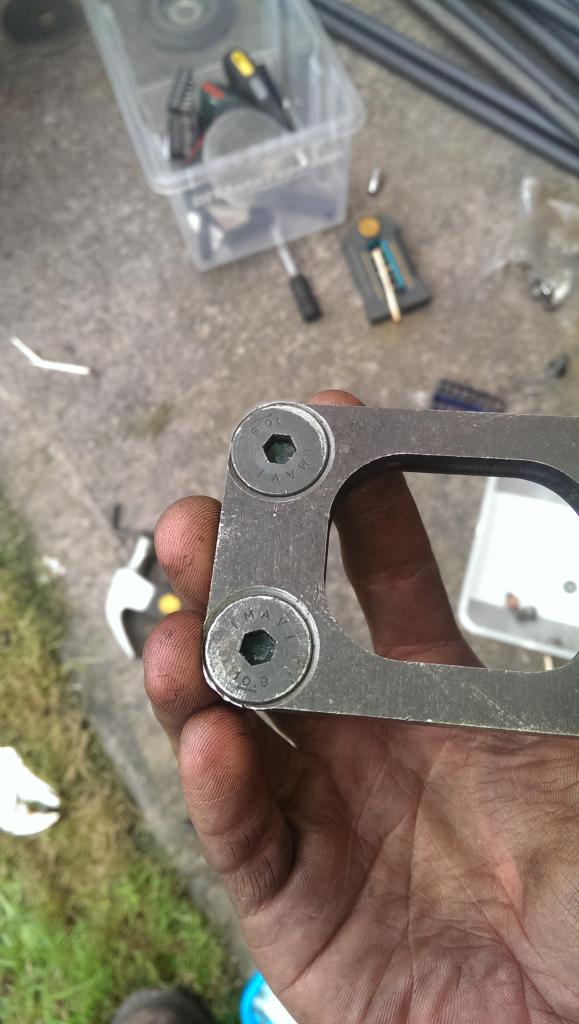

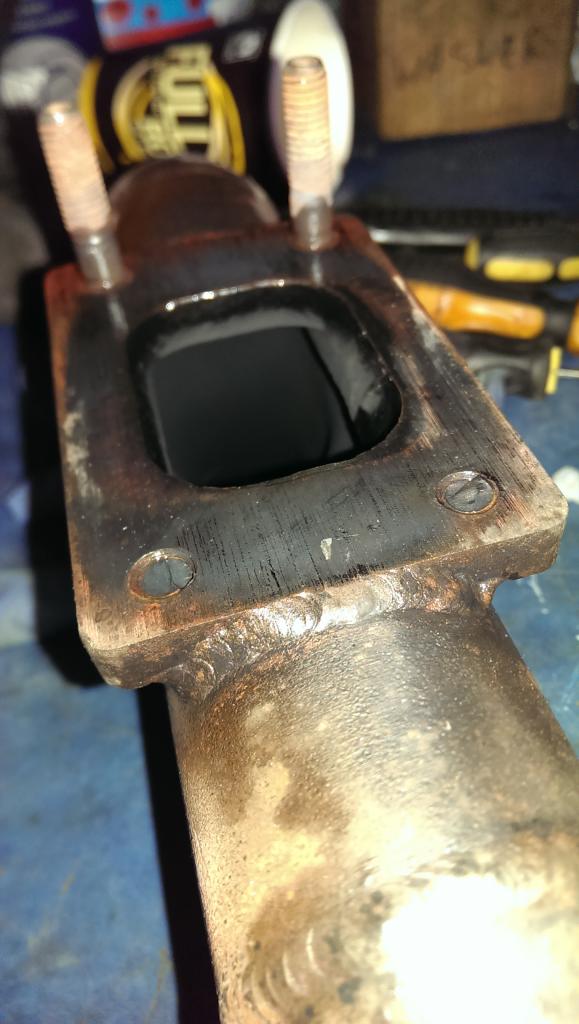

two sheared studs.

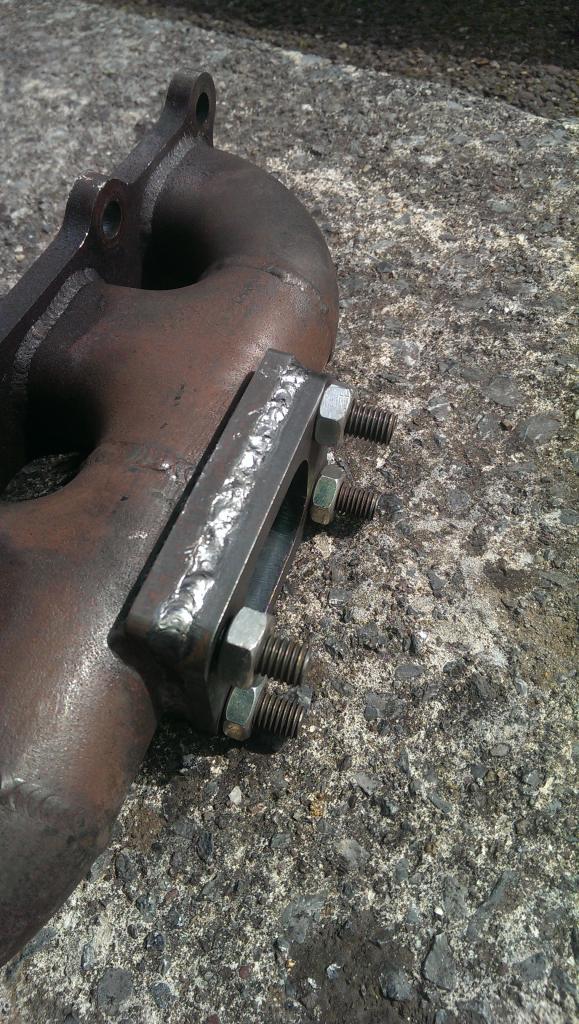

Then Nicolas came to the rescue with a spare flange



the bolts here are M10 for extra stregth. just had to redrill the turbo and fit a new gasket.



Job done



after i remapped it again its running sweet. i also fitted an EBC and just making adjustment so so i can run MOAR BARS.

nothing else to report!

Actually no...

I have joined the chinacharger elite with this bad boy

T25 T28 GT25 GT28 GT2871 GT2860 sr20 CA18DET Upgrade Turbo Charger Turbolader | eBay

the seals in my T25 are almost finished and this is cheap. i have a friend with a turbo balancing machine so ill put it on that and make sure its all in spec. hopefully itll be ok and i can run MOAR BARS
Attached Thumbnails
breaking my turbo virginity-imag2122_zpsj45fpnnj.jpg   breaking my turbo virginity-imag2200_zpsalcmicp4.jpg   breaking my turbo virginity-imag2359_zpsmxotd8tg.jpg   breaking my turbo virginity-imag2363_zpsk5omjlt0.jpg   breaking my turbo virginity-imag2365_zps7g1ri9dj.jpg

breaking my turbo virginity-imag2368_zps7ndynysj.jpg
rhysmate is offline   Reply With Quote
Old 09-01-2014, 04:59 PM   #230
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

update time

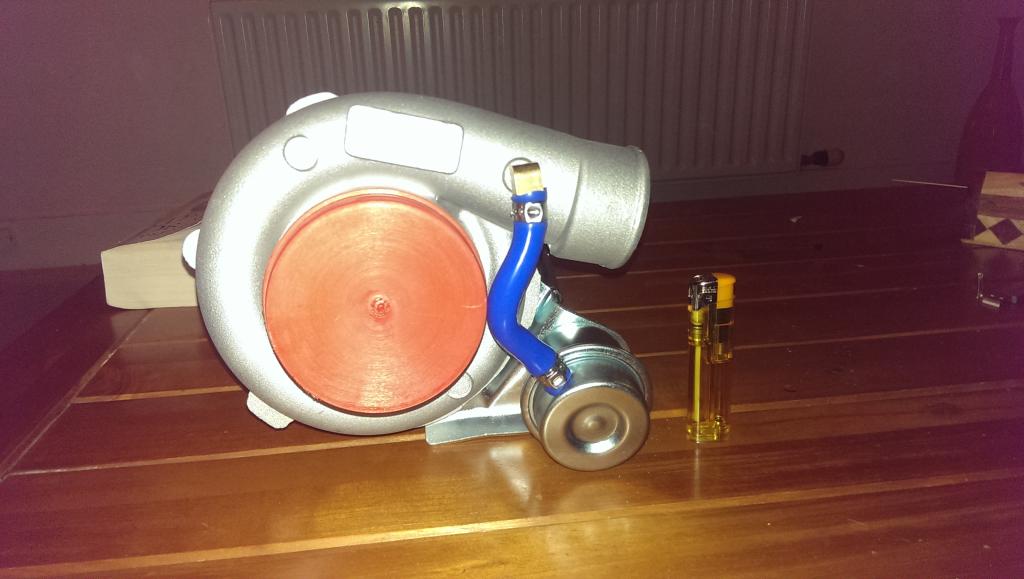

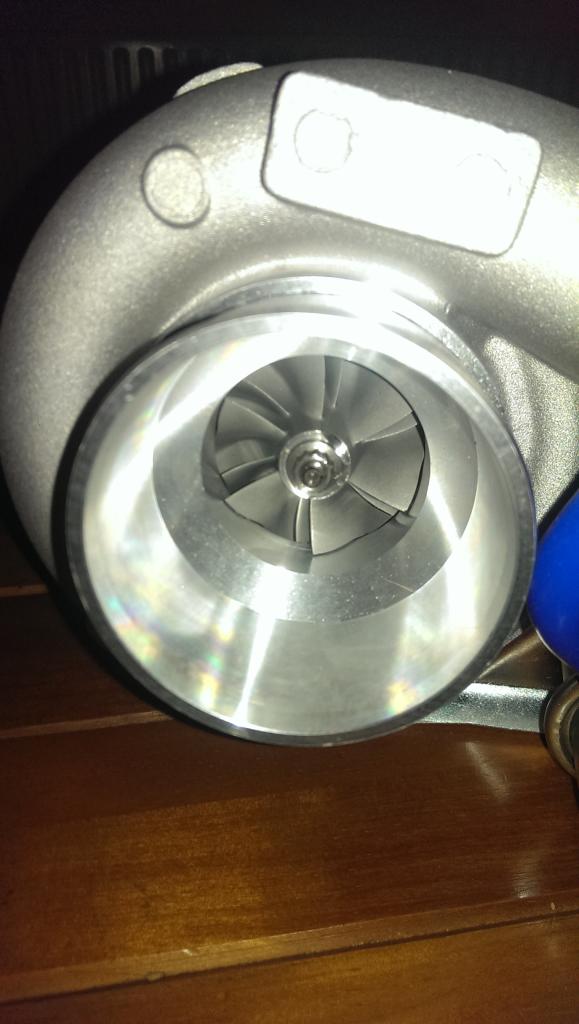

I got my china turbo

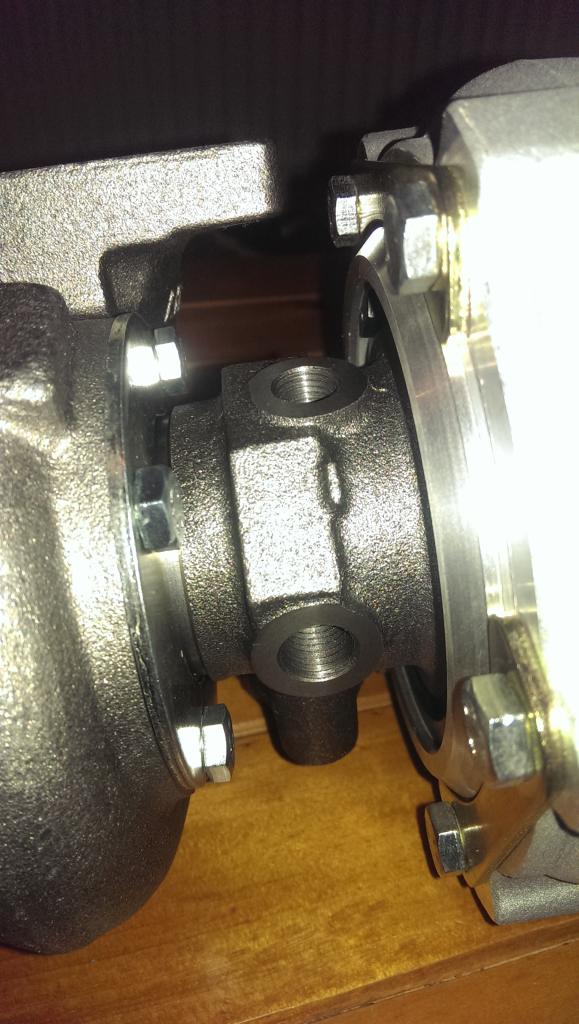

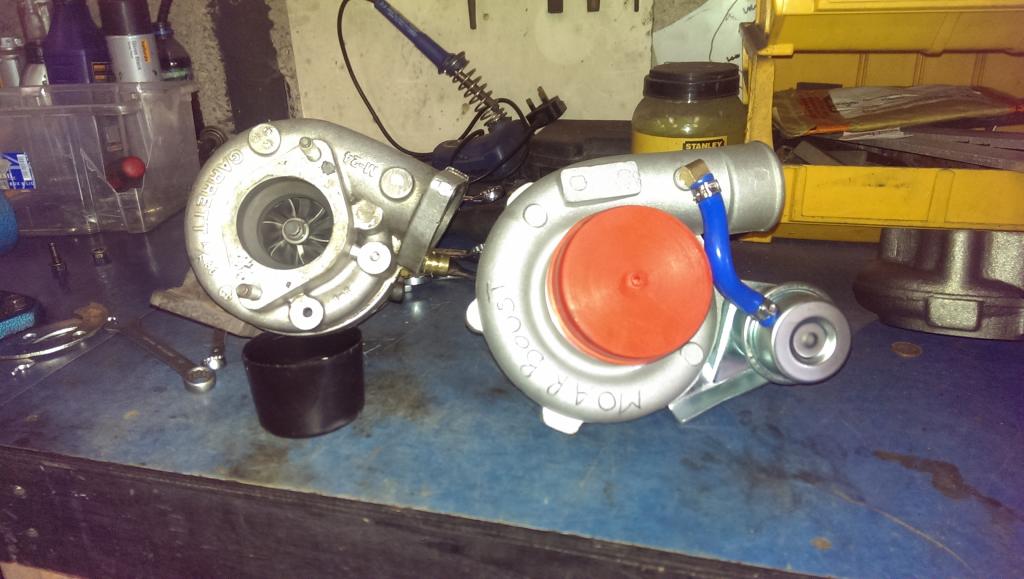

t25 vs chinese

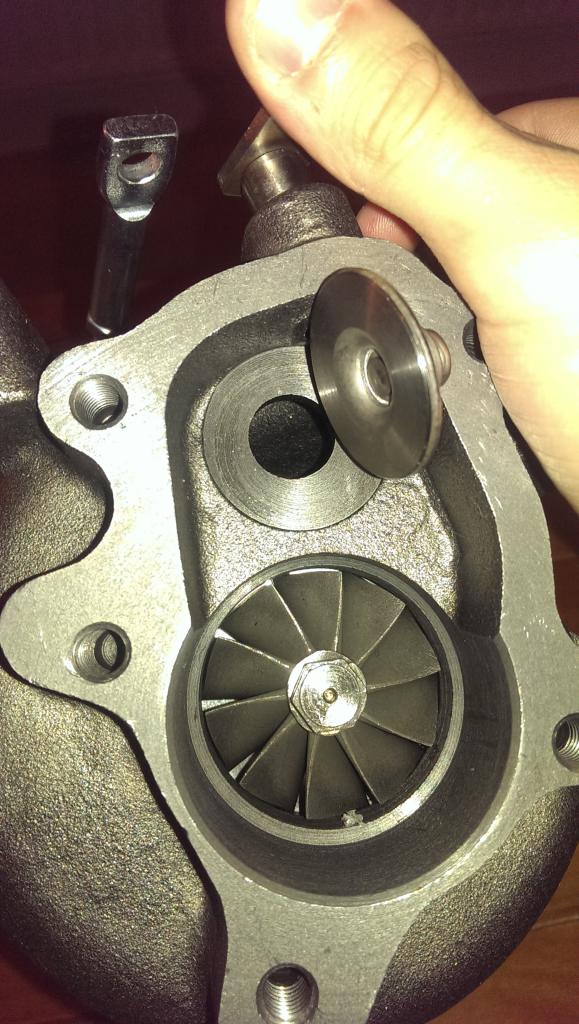

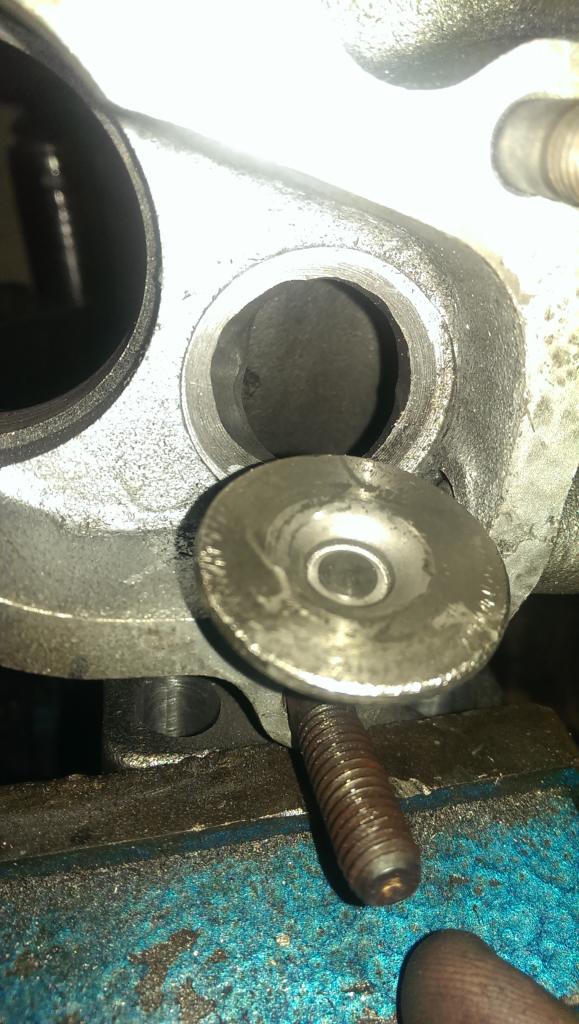

First job was to fix this





Done

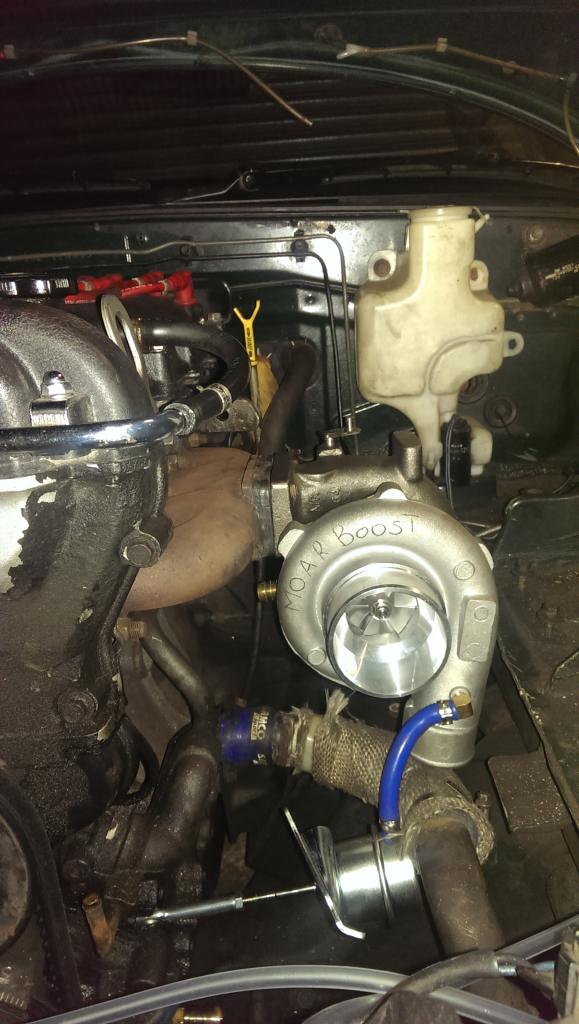

Next job was to bolt it on



I've heard horror stories about chineese turbos having a slightly different stud pattern to the t25 dp flange. but this one was perfect. actually every fitting so far has been perfect.

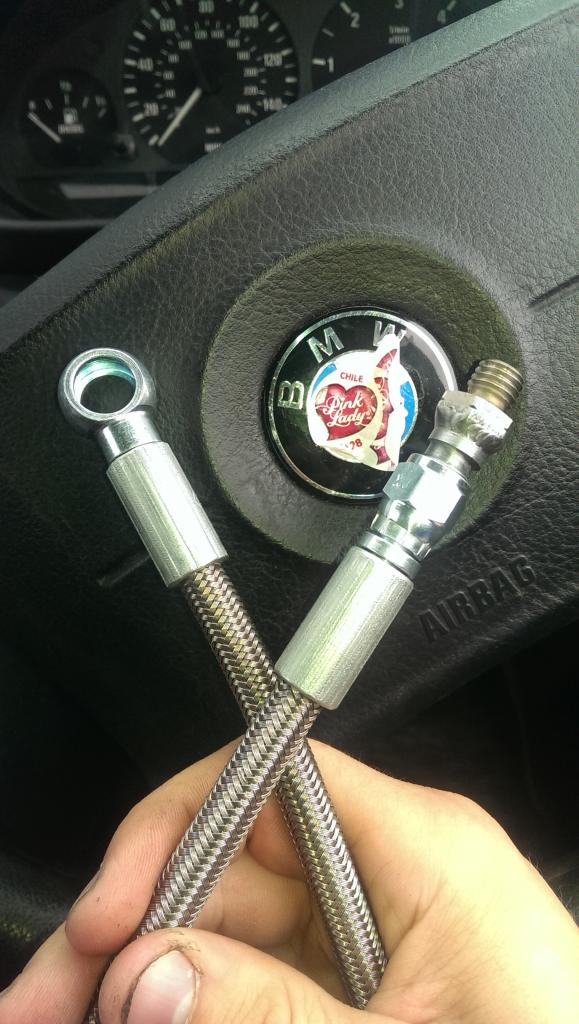

One issue i had was that the oil feed was m12 x 1.25 which is slighty bigger than normal garrett stuff. so i had to go away and have this made



I know they're **** pics but this is my daily so i was in a rush. eventually i had to go to bed so the car is still in the shed till tomorrow or next day.

I promise once its fitted ill tidy my bay up nice and pretty, put a cat in there and take awesome massive photos for you all the see.

Once it's all fitted and i've done some runs i'll update further.

GIVE ME FEEDBAKS
Attached Thumbnails
breaking my turbo virginity-imag2431_zpso3w2phwe.jpg   breaking my turbo virginity-imag2433_zps8topwnuq.jpg   breaking my turbo virginity-imag2434_zpspvr4mewn.jpg   breaking my turbo virginity-imag2436_zpsy5s9i9xy.jpg   breaking my turbo virginity-imag2505_zpsqbmzvv6k.jpg

breaking my turbo virginity-imag2507_zpsfic3rgle.jpg   breaking my turbo virginity-imag2513_zpsvxttsuzv.jpg   breaking my turbo virginity-imag2495_zpsf1tvuqmg.jpg
rhysmate is offline   Reply With Quote
Old 09-01-2014, 05:18 PM   #231
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

That wg port job is sloppy. But will probably work.
That engine bay made me want to vomit. Disgusting.

But

MOAR BOOST is always a good thing

Glad the flange lined up for you. That's good. Is that an sr t25 its replacing? Your torque curve is going to invert itself if so lol
18psi is offline   Reply With Quote
Old 09-01-2014, 05:51 PM   #232
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by 18psi View Post
That wg port job is sloppy. But will probably work.
That engine bay made me want to vomit. Disgusting.

But

MOAR BOOST is always a good thing

Glad the flange lined up for you. That's good. Is that an sr t25 its replacing? Your torque curve is going to invert itself if so lol
My engine bay make me sick, but it's my daily so props for that?

Wastegate port isn't perfect i agree, but it seals and it's a hell of alot better than it was!

its an sr t25 ya, think this new turbo is too big? as soon as i do a bit of tuning i'll put it on my mates dyno and see what it looks like. If the threshold is too high on this turbo ill go back to my t25 and rebuild it. i loved the spool on that turbo so it's not the worst thing in the world if it needs to go back on.
rhysmate is offline   Reply With Quote
Old 09-01-2014, 06:37 PM   #233
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

I would expect it to hit peak torque around 4500-5000
18psi is offline   Reply With Quote
Old 09-02-2014, 07:25 AM   #234
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

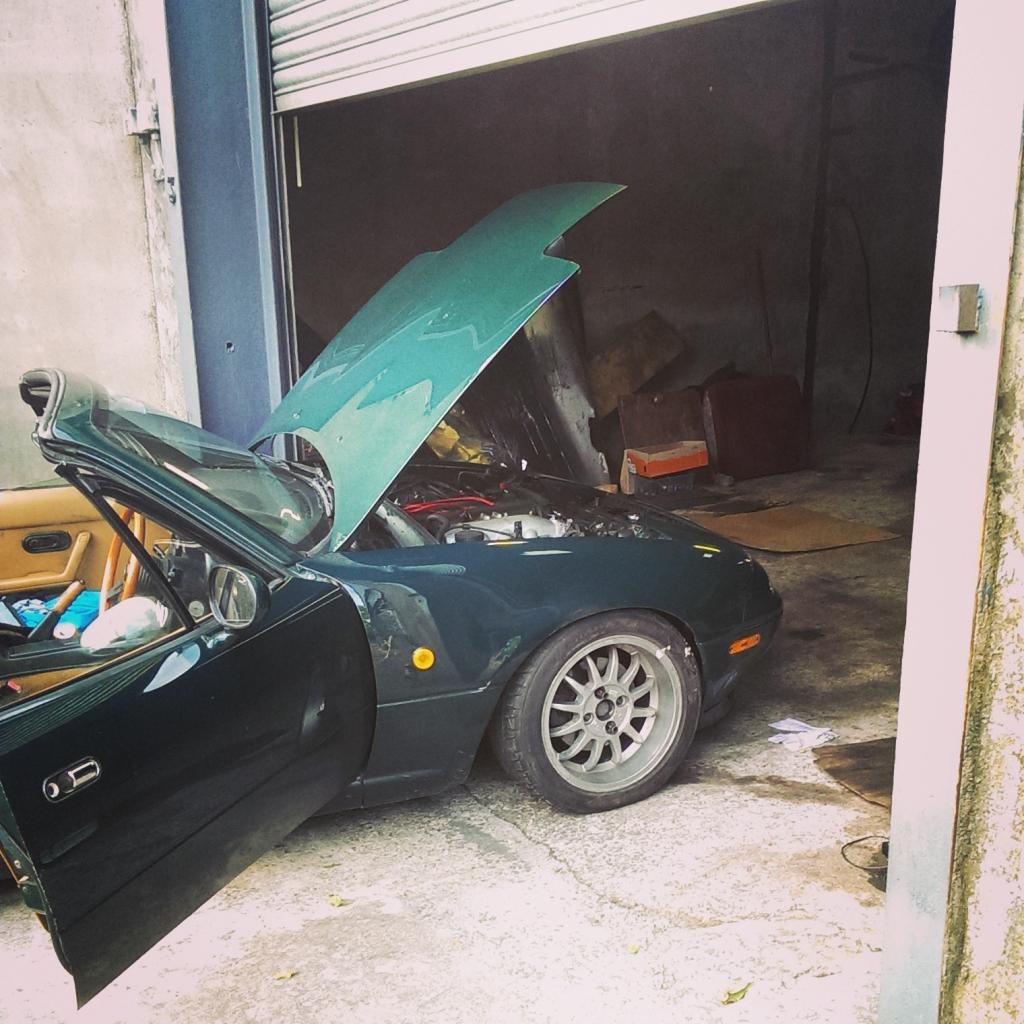

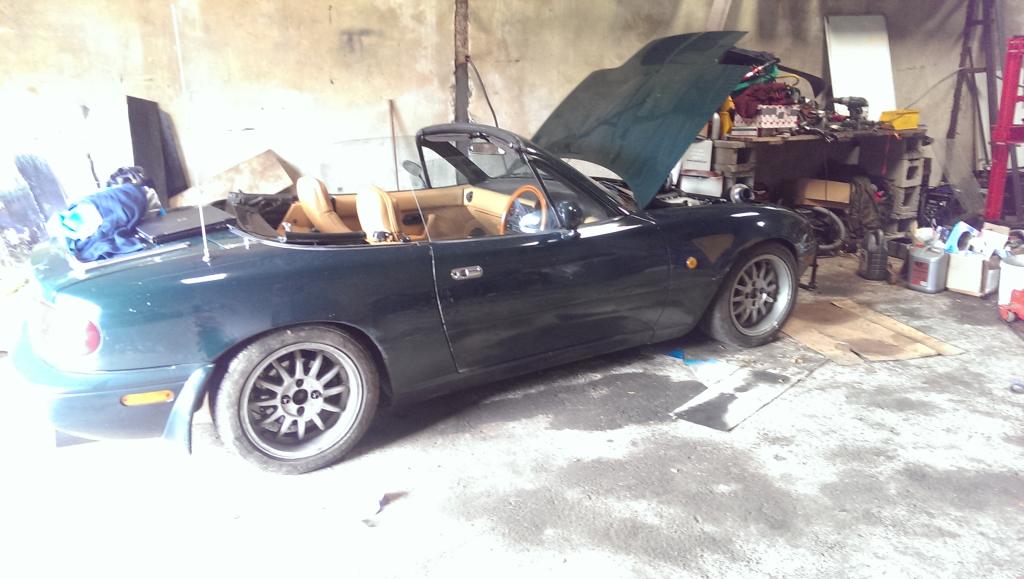

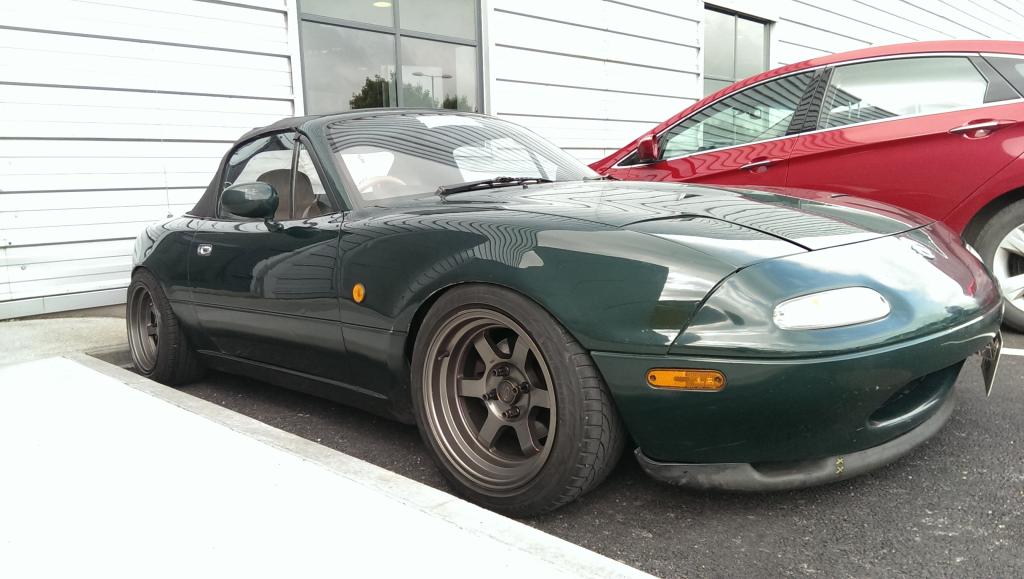

Tried some new wheels



Theyre RH wheels. 15*7 et 37?

Spacers will make them look better i think

Attached Thumbnails
breaking my turbo virginity-img_20140830_175807_zpseoww0icw.jpg   breaking my turbo virginity-imag2485_zps74gcszg2.jpg
rhysmate is offline   Reply With Quote
Old 09-04-2014, 06:51 PM   #235
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Men.

Turbo is on. Its goes like this

2000rpm .... No boost


3000rpm... No boost



4000rpm... Whats that slight whooshing sound?



5000rpm.... Brraaaaaaaaa

Holy f**king **** where did that telegraph pole come from!!

Needs tuning though. I got some det up high closer to 190kpa so i loaded some fuel on that shiz till i can get on my mates dyno.

Think i kinda prefer the t25. This will do for now but i might rebuild the t25 and put it back on. I might gain some rpm off the threshold my pulling timing from the cells around where it start to spool initially and add some fuel

Thlught?
rhysmate is offline   Reply With Quote
Old 09-04-2014, 09:34 PM   #236
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,684
Total Cats: 1,562
Default

My Chinese 2870 is made by a different company and seems to get into boost much quicker. But you are using a 1.6, right?
sixshooter is offline   Reply With Quote
Old 09-04-2014, 09:56 PM   #237
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

So the powerband is exactly as I predicted it, eh?

Yeah, these chinachargers (esp yours with how large it is) are not known for their excellent spool. Enjoy the topend though
18psi is offline   Reply With Quote
Old 09-04-2014, 10:04 PM   #238
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Ya its a 1.6. If i got the 1.8 my road tax would be way more. Ill post the log in the morning. I did a thiird gear pull from 2k.

Didnt doubt you for a second 18! With a bit of tuning it wont be so bad i think. At least im not making boost while cruising so my mpg might benefit a bit. Its all about positives.

I might try and put the t25 exhaust housing on it if it fits. Its a bit smaller!
rhysmate is offline   Reply With Quote
Old 09-04-2014, 10:27 PM   #239
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Double post
rhysmate is offline   Reply With Quote
Old 09-04-2014, 10:32 PM   #240
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Just remembered a few things as i was dropping off to sleep.

1. My waste gate actuator signal is being taken from the compressor outlet. Whereas my t25 was taking its signal from the throttle body. So first job is to relocate the current set up to before tge butterfly valve of the inlet.

2. Im using waste gate pressure only. So if i ad my ebc and set it to 100% ( ie. let it bleed air out of the signal line) until 3k or so surely that will hold the waste gate fully closed a bit longer?

3. Also any thoughts on whether adding fuel to the cells just before initial spool will help? Theory being denser exhaust gases to encourage turbine to spin faster?

Gotta be worth a few hundred rpm surely!!
rhysmate is offline   Reply With Quote
