Old 01-14-2013, 01:52 PM   #61
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by rhysmate View Post
would that no cause a lean condition?
Quote:
Originally Posted by sixshooter View Post
Wait! Your AFR target table is garbage!

the lines in between. they have been read.
Braineack is offline   Reply With Quote
Old 01-14-2013, 02:40 PM   #62
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

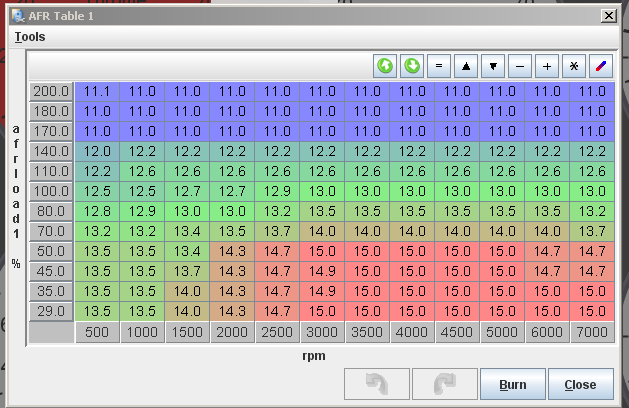

hows this



as soon as i know its safe ill go log it
Attached Thumbnails
breaking my turbo virginity-afr2_zps38911d62.png
rhysmate is offline   Reply With Quote
Old 01-14-2013, 03:09 PM   #63
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

I cant go and datalog because my laptop has no battery and my car charger isnt working.. bollocks.. ill have to get my usb to rs232 changer back

i also noticed that the gauge reads about .8:1 AFR off the gauge in the ecu.. what would cause that? i set the ecu for wideband and Innovate PLX 0.0-5.0 as i have an MTX-L
rhysmate is offline   Reply With Quote
Old 01-14-2013, 03:39 PM   #64
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

do custom:

.23v - 7.35
5v - 22.39
Braineack is offline   Reply With Quote
Old 01-14-2013, 04:16 PM   #65
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by Braineack View Post
do custom:

.23v - 7.35
5v - 22.39
ok ill try that and see how it goes.. cheer Brain.. how does the AFR table look?
rhysmate is offline   Reply With Quote
Old 01-14-2013, 04:28 PM   #66
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

better...
Braineack is offline   Reply With Quote
Old 01-14-2013, 05:05 PM   #67
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by Braineack View Post
better...

ok.. ill run that and see how it is.. ill get a better laptop than this too, why is so hard to find one with an rs232!!
rhysmate is offline   Reply With Quote
Old 01-14-2013, 05:27 PM   #68
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

would you mind telling me what it was about the last table that was so crap apart from the kPA not being correct on the left?
rhysmate is offline   Reply With Quote
Old 01-14-2013, 05:35 PM   #69
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

the whole thing.
Braineack is offline   Reply With Quote
Old 01-14-2013, 06:25 PM   #70
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

FYI - the new afr targets won't change your fueling table until you run VEAL.
sixshooter is offline   Reply With Quote
Old 01-14-2013, 06:36 PM   #71
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

Quote:
Originally Posted by rhysmate View Post
would you mind telling me what it was about the last table that was so crap apart from the kPA not being correct on the left?
If you don't have cells for the boosted values it won't correct them. There is a big difference in the ratio of fuel to air that I want to run between 3 psi and 8 psi or 12 psi. It also didn't go up to 7000 rpm and that bugged me a little. And then I didn't like some of the fuel ratios in the 3-5000 rpm cruise cells and elsewhere. It just wasn't what works well.
sixshooter is offline   Reply With Quote
Old 01-15-2013, 09:48 AM   #72
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

So if i go ahead and run VE analyse with this table it should give me a fairly good fuel table to run with 200kPa?

out of curiosity and in the quest to understand this, how does the ecu use the AFR table in respect to the Fuel Table? for arguments sake what if i don't use ve analyse, does the fuel table ultimately control the AFR table or visa versa? or do they run independently?
rhysmate is offline   Reply With Quote
Old 01-15-2013, 11:54 AM   #73
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

Quote:
Originally Posted by rhysmate View Post
So if i go ahead and run VE analyse with this table it should give me a fairly good fuel table to run with 200kPa?
Yes, but...
-Your engine might not be able to handle 200kpa
-Your injectors might not have the headroom to get to 140kpa
-Your fueling should always be tuned in stages. Tune the car with the wastegate open initially and get the naturally aspirated cells right first. It will take an hour or so of mixed driving with VEAL on and set to "easy".
-You need to set overboost protection very low and monitor your duty cycle carefully as you incrementally increase the overboost limit while tuning with VEAL. You may find the base wastegate pressure will exceed your injector capacity putting you at risk for detonation even at a couple of psi, since you still have stock 1.6 injectors. Be cautious and incremental to find those limits, and when your duty cycle gets to 90% set your overboost protection at that psi to prevent it from exceeding safe limits. You don't want lean detonation.


Quote:
Originally Posted by rhysmate View Post
out of curiosity and in the quest to understand this, how does the ecu use the AFR table in respect to the Fuel Table? for arguments sake what if i don't use ve analyse, does the fuel table ultimately control the AFR table or visa versa? or do they run independently?
The AFR table is used to permanently adjust your VE table only when VEAL is on and operational. Once VEAL has finished changing your VE table it will remain correct unless you modify your engine or its components. The AFR targets will not interfere with or correct your fueling at any other time unless you enter closed-loop operation. The VE table is where the fueling info is primarily derived.

Unless your laptop maintains a charge better than mine, you might look into a power inverter to help charge it while tuning. Mine plugs into the cigarette lighter.
sixshooter is offline   Reply With Quote
Old 01-15-2013, 12:30 PM   #74
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

That clears up alot thank you. when buying the VEAL should i bother getting the TS and megalog viewer package?

ill go ahead and set my overboost to 110 KPa and do a log at slow acceleration and WOT. i have a laptop here that has a 15 - 20 minute battery life, and a friend has an inverter i can borrow if needs be. itll be enough to get a few logs going
rhysmate is offline   Reply With Quote
Old 01-15-2013, 12:43 PM   #75
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

VEAL is a funciton within TS.

I have never registered MLV, but I like the scatterplots...but it's not as important as the autotune feature.
Braineack is offline   Reply With Quote
Old 01-15-2013, 12:57 PM   #76
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by Braineack View Post
VEAL is a funciton within TS.

I have never registered MLV, but I like the scatterplots...but it's not as important as the autotune feature.
Excellent, that'll save a few quid.
Can i use the licence on any laptop or just one? im only borrowing a laptop for the time being
rhysmate is offline   Reply With Quote
Old 01-15-2013, 01:04 PM   #77
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

i think up to 3? you can email him if you need additional licenese if you get a new CPU.
Braineack is offline   Reply With Quote
Old 01-15-2013, 01:05 PM   #78
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by Braineack View Post
i think up to 3? you can email him if you need additional licenese if you get a new CPU.
i just checked the licence, you were right

''The standard Non-Commercial TunerStudio MS License agreement covers one (1) user installing the application on up to 3 computers for their own personal use. ''
rhysmate is offline   Reply With Quote
Old 01-15-2013, 02:17 PM   #79
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

just did some logs. i set the overboost to 120 and i hit that in second gear at wot.. my AFR was ok up to 110 KPa. it said i hit 100% Duty cycle at around 120.. this is what ive read from it.. am i on the right track to understanding it??
i did a slow acceleration down the hill and full WOT uo the hill
Attached Files
File Type: msl Downhill slow accel.msl (470.4 KB, 95 views)
File Type: msl WOT uphill.msl (473.3 KB, 111 views)
rhysmate is offline   Reply With Quote
Old 01-15-2013, 02:40 PM   #80
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

100% DC at 1.5psi. sounds like you need bigger injectors.
Braineack is offline   Reply With Quote
