Old 09-04-2014, 11:12 PM   #241
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,655
Total Cats: 1,558
Default

I'm going to say yes to all three points as things to do. Also make sure the Wastegate flapper has a little touch of preload holding it tightly closed.
sixshooter is offline   Reply With Quote
Old 09-05-2014, 12:45 AM   #242
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Quote:
Originally Posted by rhysmate View Post
Just remembered a few things as i was dropping off to sleep.

1. My waste gate actuator signal is being taken from the compressor outlet. Whereas my t25 was taking its signal from the throttle body. So first job is to relocate the current set up to before tge butterfly valve of the inlet.

2. Im using waste gate pressure only. So if i ad my ebc and set it to 100% ( ie. let it bleed air out of the signal line) until 3k or so surely that will hold the waste gate fully closed a bit longer?

3. Also any thoughts on whether adding fuel to the cells just before initial spool will help? Theory being denser exhaust gases to encourage turbine to spin faster?

Gotta be worth a few hundred rpm surely!!
Yes, doing all 3 of those should definitely make a big change.
18psi is offline   Reply With Quote
Old 09-08-2014, 12:29 PM   #243
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

I've been working on this for the last few days.

There are a few issues.

1. i have a missfire causing lean afrs at 5k causing det. not good. this is more than likely the spark gap. no idea what its set to but it looks wide. i'll gap them asap

2. my injectors are struggling at full boost. i have some logs which i will add below.

3. i think in order for me to really get the most out if this turbo i need to run MOAR BOOST. i'll come back to this shortly.

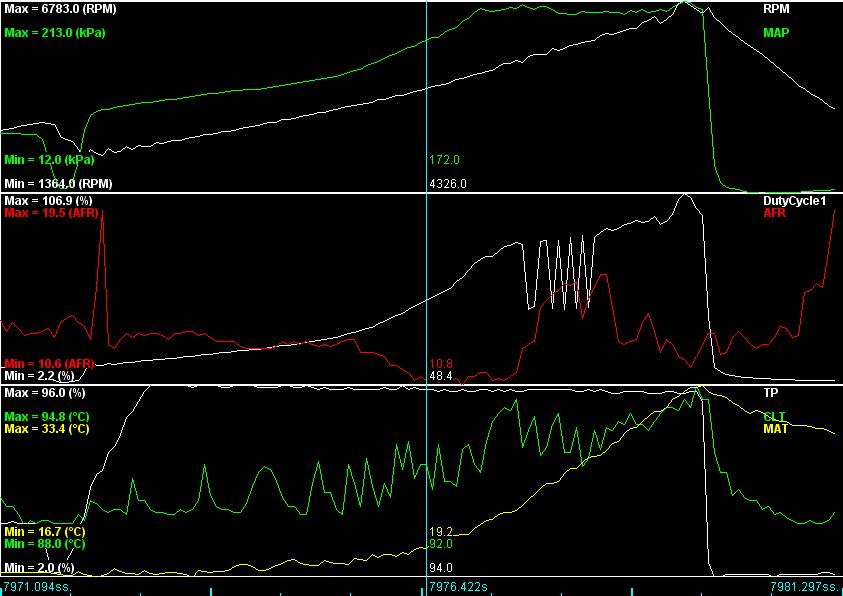

1... as you can see here in this screenshot i have a miss fire



The screenshot above is using waste gate pressure only.

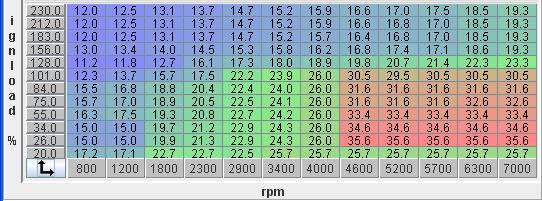

this is the timing map



It's conservative as i was trying to stop the engine detonating

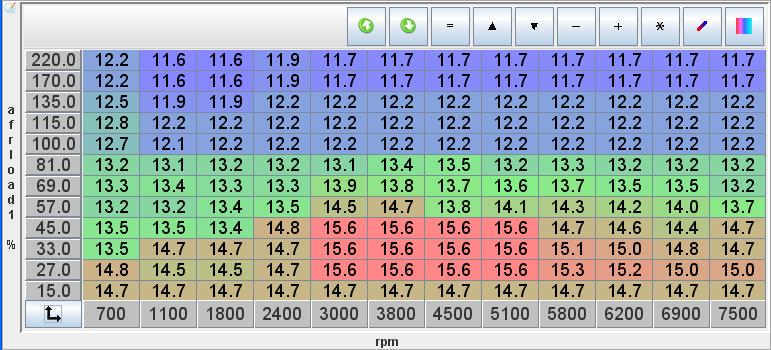

here's target AFR

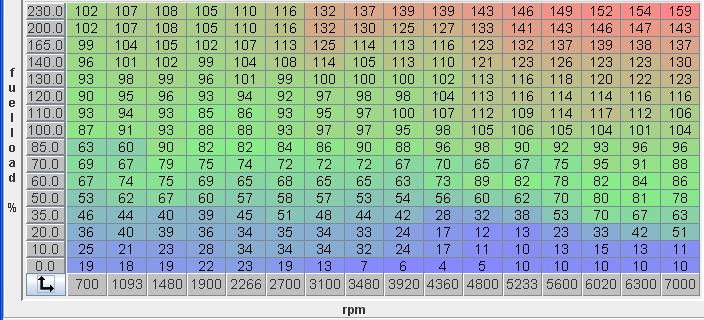

resulting fuel map

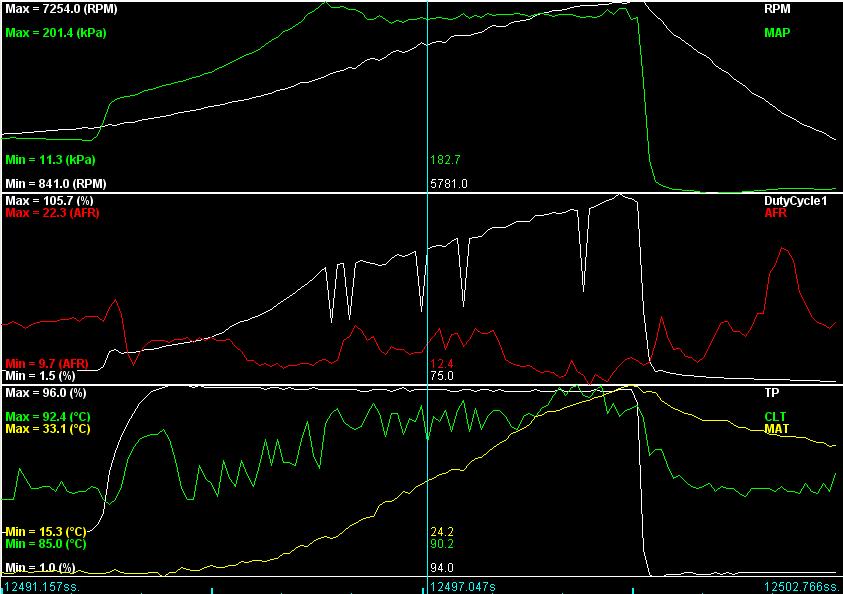

in order to try and get the turbo to spool up faster i added a boost control solenoid. im using this boost map but so far it's not made a difference. here's the boost map and below that is the screen shot from a log. same road and also third gear.





you can see the injector duty cycle dip every so often which to me indicates a miss fire. correct?

you can also see my injectors have run out of head room.(unless ive made a mistake and 'dutycycle1'' isn't injector duty?

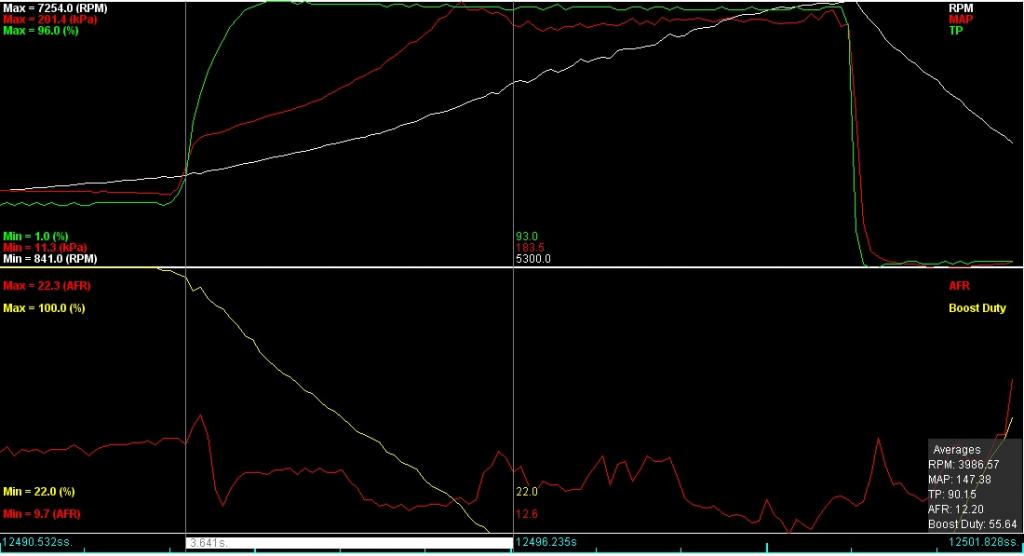

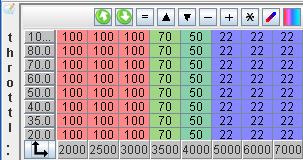

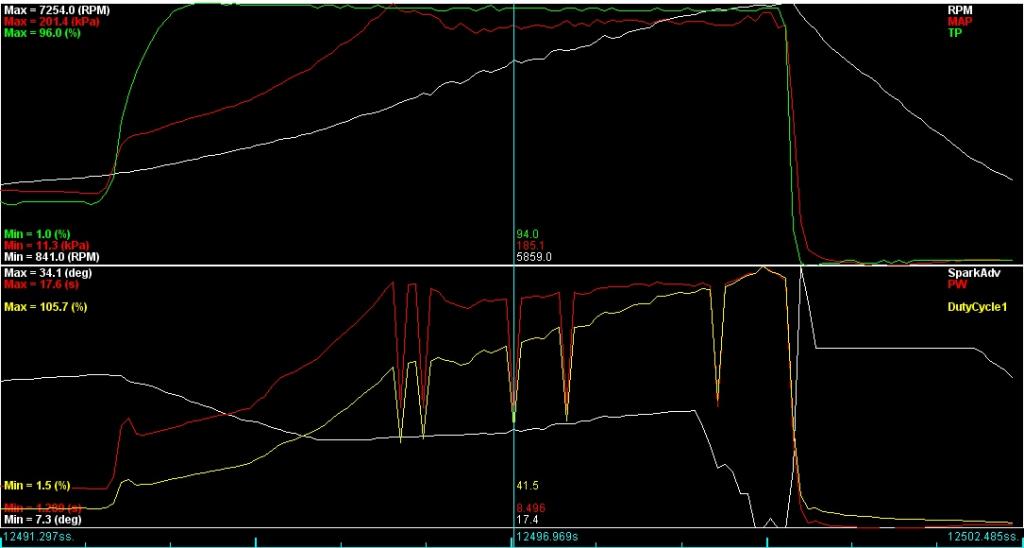

heres that log again with boost duty



think i can push that duty up a bit and hold the waste gate longer?


the way i see it now is i have two options

Option A:

Go back to the t25 and drive it with 200RWHP and enjoy it the way it is.

Option B:

Replace the rods with these link

Run OEM pistons and rings

ev15 850cc ID Injectors

ACL Bearings

MOAR BOOST

any thoughts?
Attached Thumbnails
breaking my turbo virginity-noboostcontroller_zpsa8319cce.jpg   breaking my turbo virginity-ignmap_zps7b346114.jpg   breaking my turbo virginity-afrtable_zps2b2eb333.jpg   breaking my turbo virginity-fuelmap_zpsd6fbce66.jpg   breaking my turbo virginity-boostdutymap_zpse288270b.jpg

breaking my turbo virginity-boostcontrolleradded_zpsebeaafa4.jpg   breaking my turbo virginity-boostcontrolleraddedboostduty_zpsae4011e6.jpg
rhysmate is offline   Reply With Quote
Old 09-08-2014, 02:01 PM   #244
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

please dont ban me for this AWFUL video but i dont have a go pro

https://www.youtube.com/watch?v=JRbo...ature=youtu.be

third gear wot at 3k

video taken on a closed road

Attached Thumbnails
breaking my turbo virginity-closedrd_zps833ffc22.jpg
rhysmate is offline   Reply With Quote
Old 09-08-2014, 05:13 PM   #245
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,655
Total Cats: 1,558
Default

Anything above 85 duty cycle is pretty much open all of the time.
Over 200kpa on a 2870 is about 250 whp, iirc. You may already be over the edge of what your bottom end can take with your stock 1.6. You need to be around 11.2 afr instead of 11.7 if you are pushing it that hard.
sixshooter is offline   Reply With Quote
Old 09-08-2014, 06:02 PM   #246
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by sixshooter View Post
Over 200kpa on a 2870 is about 250 whp, iirc.
Even with a non genuine 2871? ill set the boost to 190

any thoughts on timing map? i get the feeling im too advanced up top.
rhysmate is offline   Reply With Quote
Old 09-08-2014, 08:37 PM   #247
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

thoughts on these before i pull the trigger?

4 EV14 850cc Mazda Miata MX5 Fuel Injectors New $309 | eBay
rhysmate is offline   Reply With Quote
Old 09-08-2014, 09:19 PM   #248
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

I would get FIC or ID's before I bought Five-0's ... They aren't too far off on price either

775cc FIC Mazda Miata Fuel Injector Clinic Injector Set (High-Z)
BTMiata is offline   Reply With Quote
Old 09-08-2014, 09:32 PM   #249
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by BTMiata View Post
I would get FIC or ID's before I bought Five-0's ... They aren't too far off on price either

775cc FIC Mazda Miata Fuel Injector Clinic Injector Set (High-Z)

What are the adaptors they give you the option for? are they not PNP? I know they explain but they dont explain it very well. why use different plugs?
rhysmate is offline   Reply With Quote
Old 09-08-2014, 09:40 PM   #250
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by rhysmate View Post
What are the adaptors they give you the option for? are they not PNP? I know they explain but they dont explain it very well. why use different plugs?
One end plugs into the stock harness and the other goes to the injector. I guess they make all the injectors connectors uniform? I opted to get the pnp adapters for mine
BTMiata is offline   Reply With Quote
Old 09-08-2014, 10:05 PM   #251
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by BTMiata View Post
One end plugs into the stock harness and the other goes to the injector. I guess they make all the injectors connectors uniform? I opted to get the pnp adapters for mine
I'm probably gonna be a cheap *** and get the free ''solder yourself ones''

Thanks for the link. i already have a man that wants my rx7 injectors for 50e

so that's 415 delivered to the island of Ireland!
rhysmate is offline   Reply With Quote
Old 09-08-2014, 10:06 PM   #252
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,655
Total Cats: 1,558
Default

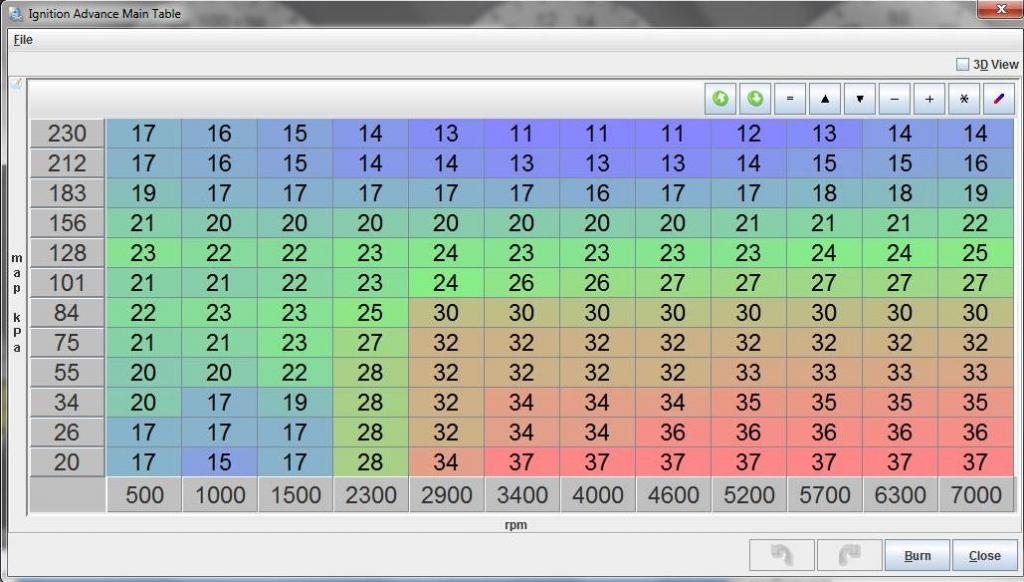

This is mine. At least I don't think I've changed it since this was uploaded.

Attached Thumbnails
breaking my turbo virginity-sparktable_zpsf9ff6d35.jpg
sixshooter is offline   Reply With Quote
Old 09-08-2014, 10:09 PM   #253
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by rhysmate View Post
I'm probably gonna be a cheap *** and get the free ''solder yourself ones''

Thanks for the link. i already have a man that wants my rx7 injectors for 50e

so that's 415 delivered to the island of Ireland!
I dont blame you... the connectors aren't needed just make it easier to swap back & forth lol
BTMiata is offline   Reply With Quote
Old 09-08-2014, 10:22 PM   #254
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by sixshooter View Post
This is mine. At least I don't think I've changed it since this was uploaded.

Cheers Steve! i think i'll lower boost on my way home from work (Night shift so it's 2 am here. No ''5-0'' to bother me ) and make sure im not detonating then if i am i'l drop some timing after 180kpa.

Quote:
Originally Posted by BTMiata View Post
I dont blame you... the connectors aren't needed just make it easier to swap back & forth lol

it's all fun and games until you run out of duty cycle and have to pay dollar dollar for bigger ones.

oh the joys of being a car addict.
rhysmate is offline   Reply With Quote
Old 09-08-2014, 10:30 PM   #255
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,698
Total Cats: 267
Default

Quote:
Originally Posted by sixshooter View Post
Anything above 85 duty cycle is pretty much open all of the time.
Over 200kpa on a 2870 is about 250 whp, iirc. You may already be over the edge of what your bottom end can take with your stock 1.6. You need to be around 11.2 afr instead of 11.7 if you are pushing it that hard.
What do you think the noisy duty cycle really is? Seems like a math error in the log to me, as, in theory, this info is what MS is telling the injectors to do, and why would it be telling them that?

I wonder if it wound be better to present pulse width in mS rather than duty cycle.
DNMakinson is online now   Reply With Quote
Old 09-08-2014, 10:42 PM   #256
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

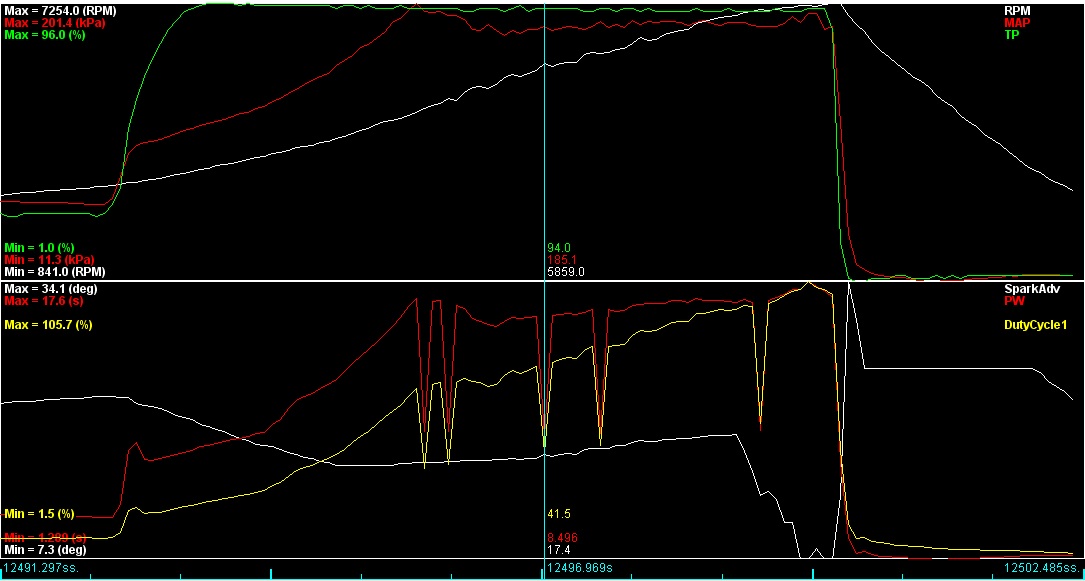

Does this help at all?



I've attached the log also

It's only started doing this since i installed the bigger turbo. hence why i think plugs are the culprit
Attached Thumbnails
breaking my turbo virginity-boost-controller-added-pw-.jpg   breaking my turbo virginity-boostcontrolleraddedpw_zps9011db37.jpg
Attached Files
File Type: msl boostcontroladded.msl (407.0 KB, 60 views)
rhysmate is offline   Reply With Quote
Old 09-08-2014, 11:02 PM   #257
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,655
Total Cats: 1,558
Default

Gap the plugs to .028 inch and you should be fine unless the coil is getting weak.
sixshooter is offline   Reply With Quote
Old 09-09-2014, 12:47 PM   #258
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by sixshooter View Post
Gap the plugs to .028 inch and you should be fine unless the coil is getting weak.
I think i had my boost cut set too low and it was fuel only cut. changed to spark and fuel now and lowered boost. EBC is getting better and better and im spooling alot earlier now. which is nice

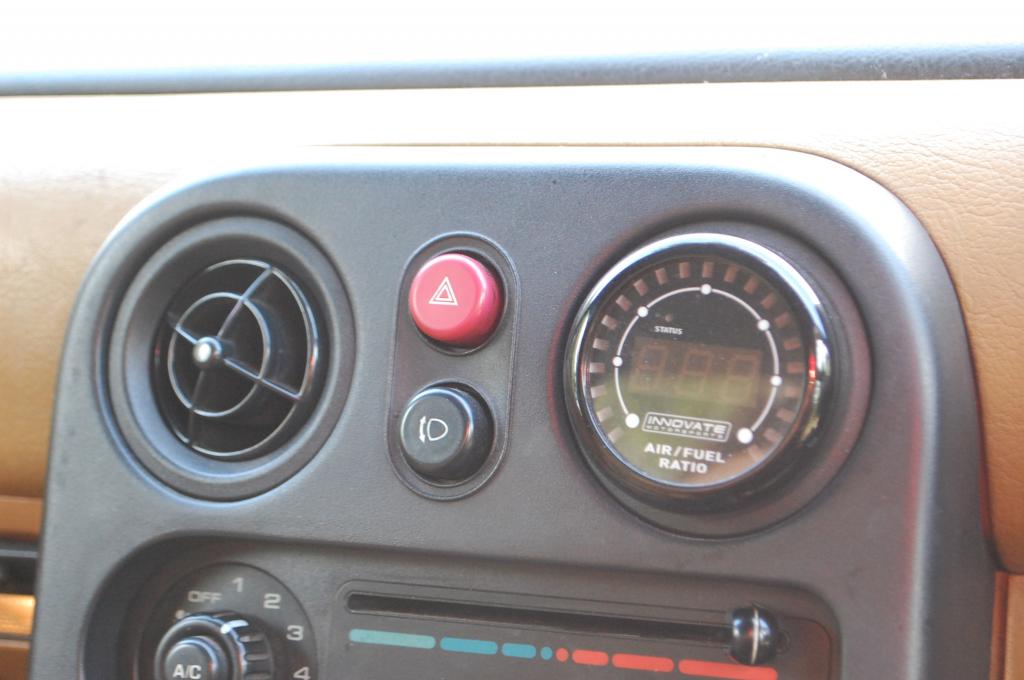

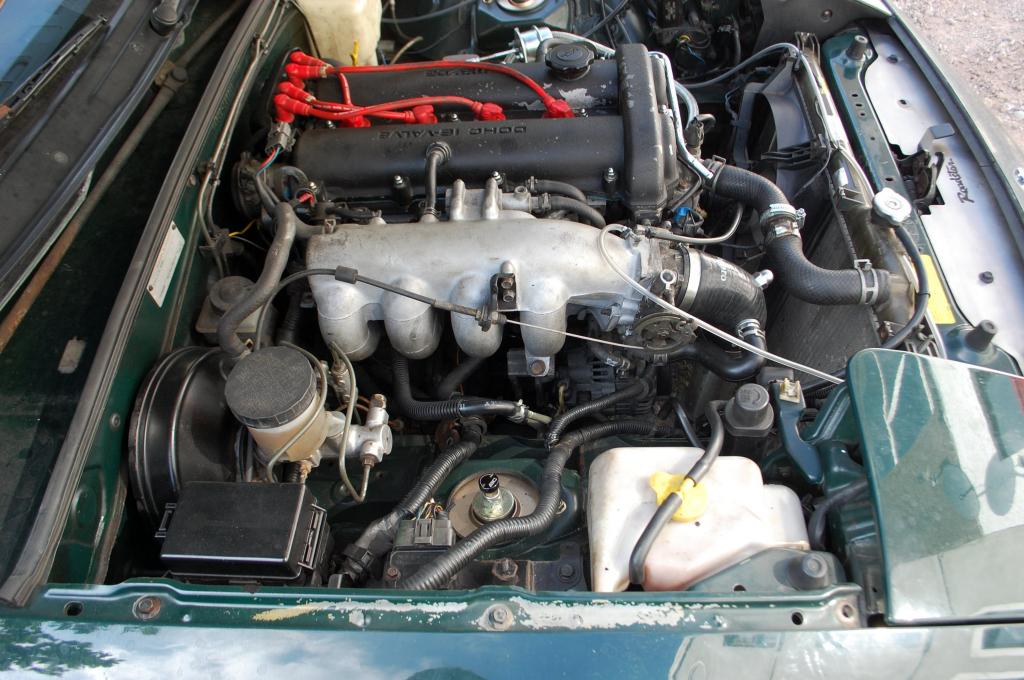

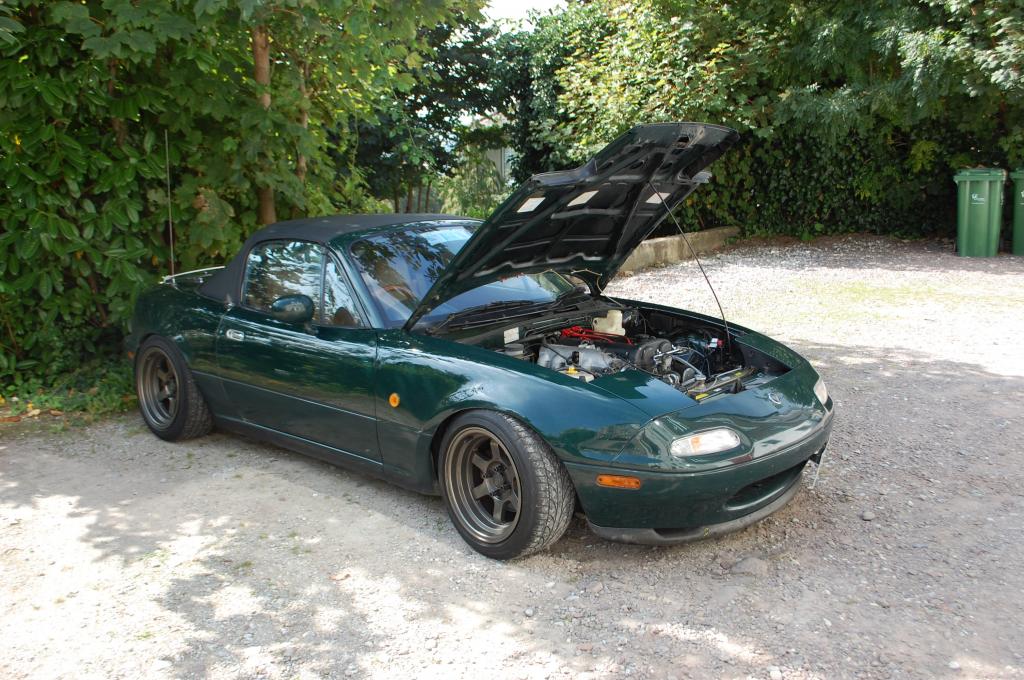

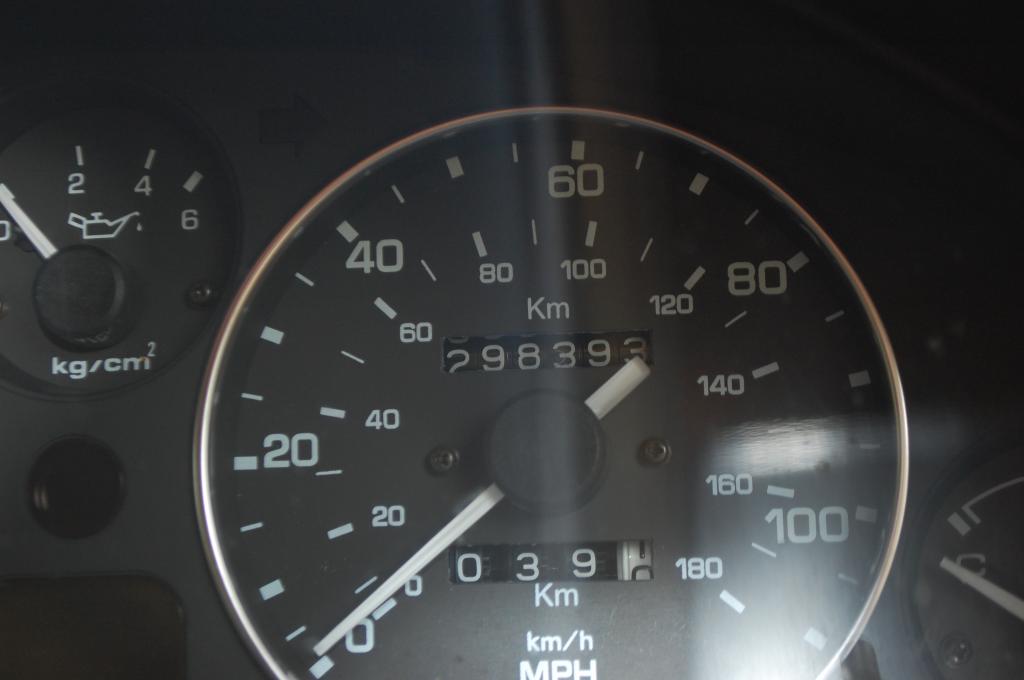

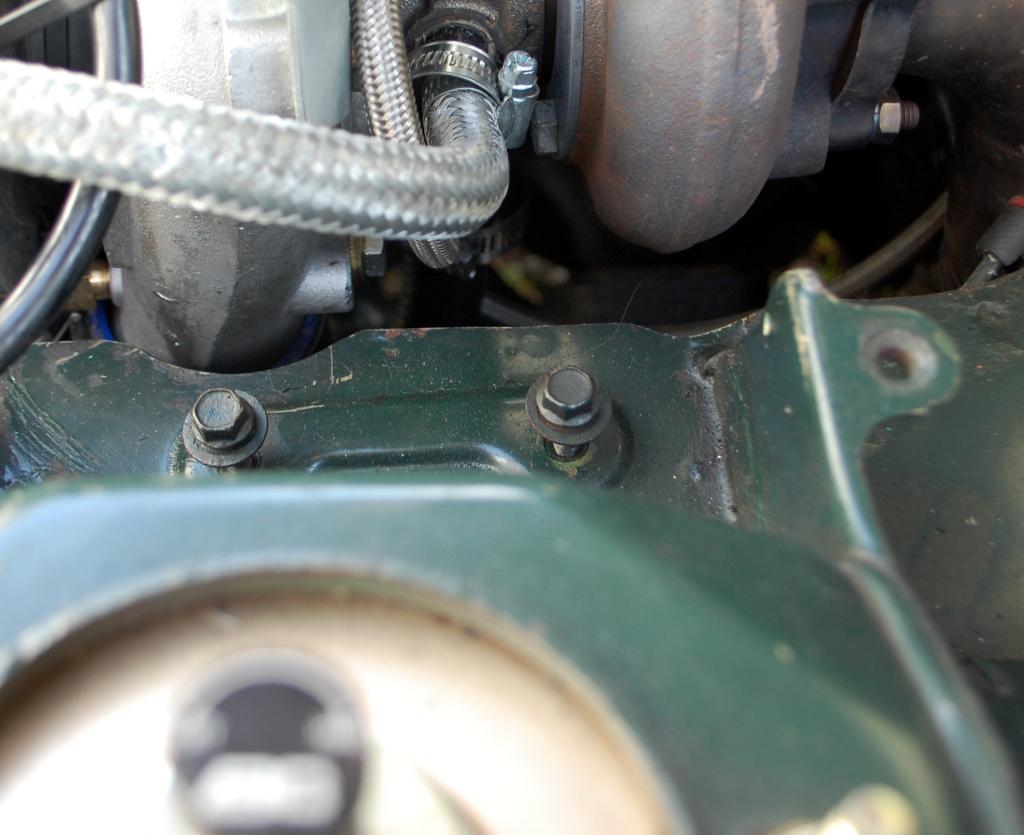

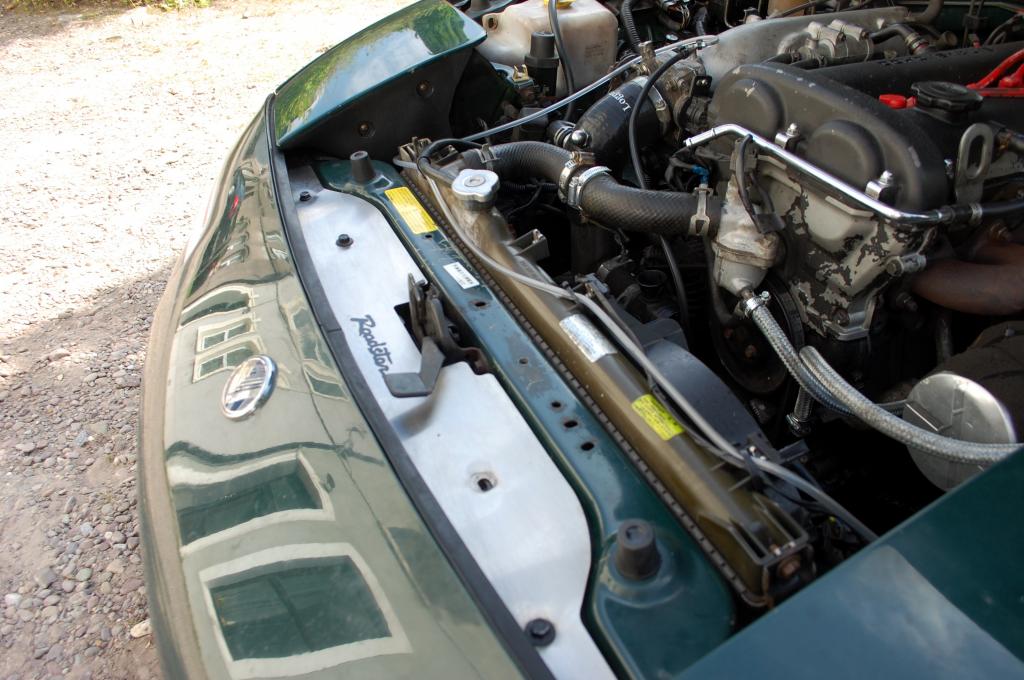

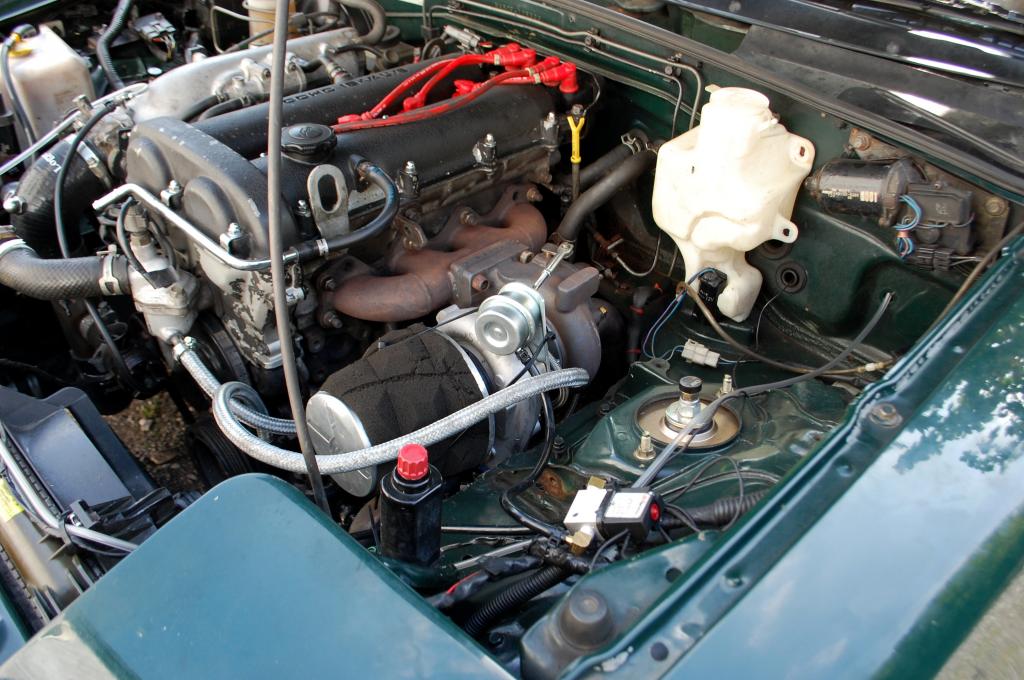

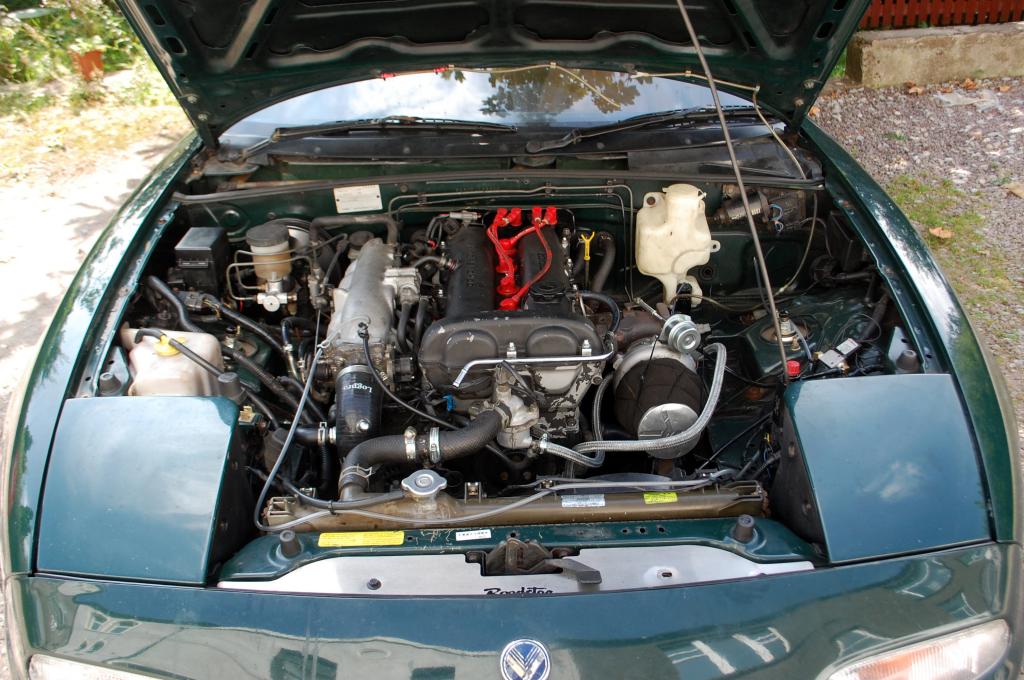

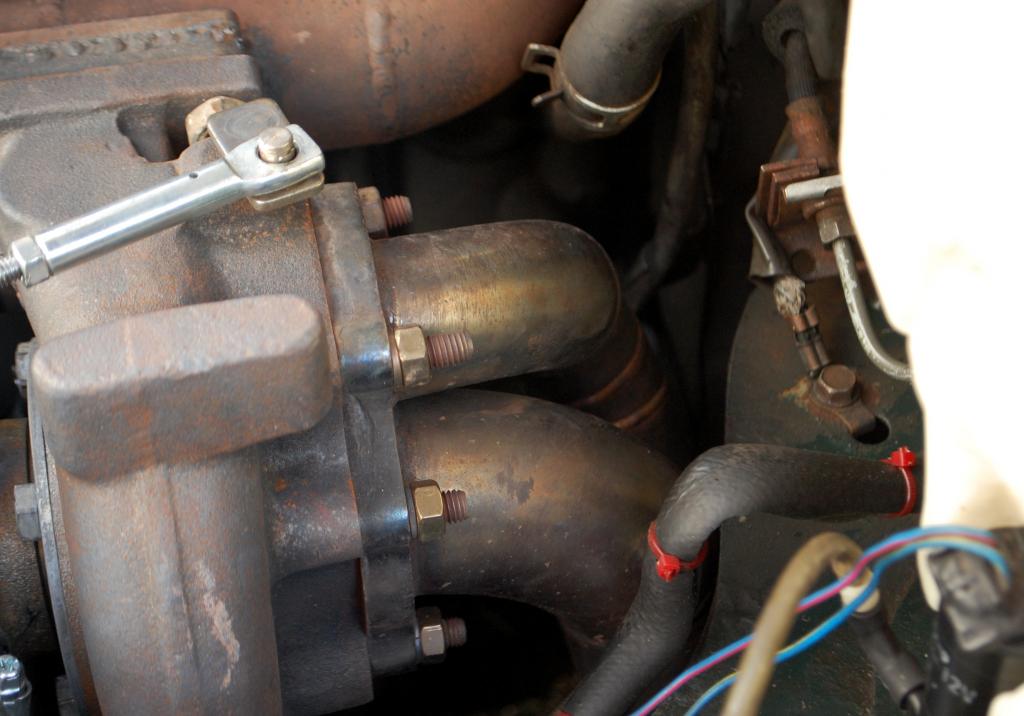

some recent pics




















realised i hadn't put up any hi res shots for ages excuse the cable ties and ghetto air filter.. also waiting on new manifold nuts. m10x1.5 is hard to find with a 14mm hex!
Attached Thumbnails
breaking my turbo virginity-dsc_5900_zps71a24a0d.jpg   breaking my turbo virginity-dsc_5907_zps4238a74a.jpg   breaking my turbo virginity-dsc_5905_zpsc962ce7a.jpg   breaking my turbo virginity-dsc_5902_zps00b701fb.jpg   breaking my turbo virginity-dsc_5897_zps2d10a295.jpg

breaking my turbo virginity-dsc_5895_zps400656d5.jpg   breaking my turbo virginity-dsc_5886_zpsad858931.jpg   breaking my turbo virginity-dsc_5884_zps191bee71.jpg   breaking my turbo virginity-dsc_5881_zps3488dcb3.jpg
rhysmate is offline   Reply With Quote
Old 09-09-2014, 01:01 PM   #259
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Nice man. Looking way better already.
Also looks like you're making some decent power with it (I'd guess somewhere in the 240-260 range)
18psi is offline   Reply With Quote
Old 09-09-2014, 01:07 PM   #260
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Looks like she has some good topend. The low end spool appears to be lacking a bit, but it sounds like you have been able to improve that a bit.
